Gigabyte Aorus GTX 1080 Ti Xtreme Edition 11GB Review

Temperatures were measured after 5 minutes of load under three scenario: Furmark, Unigine Heaven and desktop idle in sequential order with 2 minutes of downtime in between each test. GPU-Z was used to record the maximum temperature, fan profiles on GPUs were left to their default behaviour.

Delta temperatures are presented below to account for small fluctuations in room temperature, but for all the testing present in this graph the temperature ranged from 21.6 to 23.1 degrees Celsius.

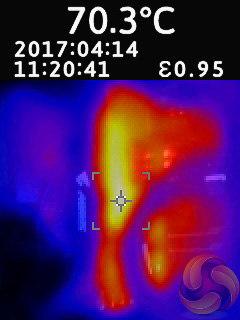

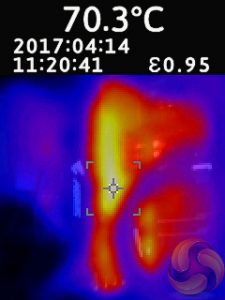

Temperatures are kept very competitive too, around 70 degrees Celsius under prolonged heavy load is nothing to scoff at.

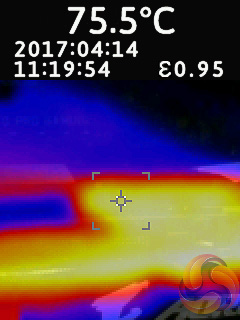

Considering its TDP is in the 250+ watts region, peak hotspot VRM temperatures in the mid 70s is respectable. Most VRMs can operate within specification up to temperatures of 125 degrees Celsius so there are no issues here.
