DinoPC Slayer 15.6″ GTX 870M and Magma Wrath GTX 770

DinoPC Slayer 15.6″ GTX 870M

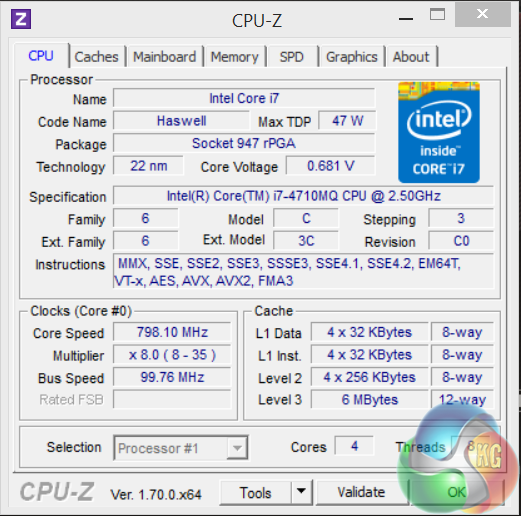

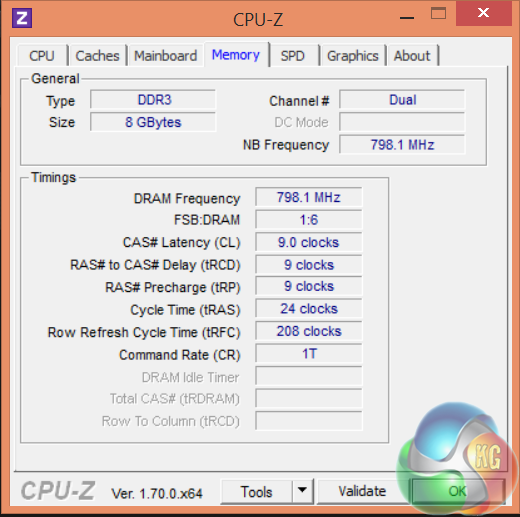

The mobile Intel Core i7 4710MQ processor is built on the 22nm process. It is a quad core chip with hyperthreading enabled. It has 6MB of level 3 cache. System memory is running at 1,600mhz with timings of 9-9-9-24.

The Nvidia GTX780M is a powerful mobile solution built on the 28nm process. It has 24 ROP's, 112 texture units and 1,344 CUDA cores. The core clock speed is set at 941mhz with a turbo frequency of 967mhz. The 6GB of GDDR5 memory is connected via a 192 bit interface.

DinoPC Magma Wrath GTX 770

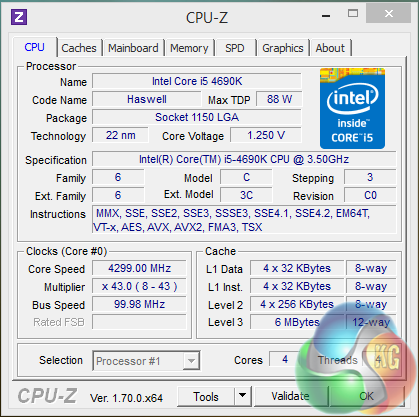

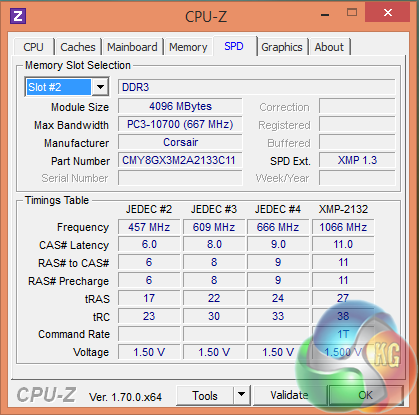

The desktop Intel i5 4690k processor is built on the 22nm process. It is a quad core chip, but it doesn't ship with Hyperthreading enabled. It has 6MB of level 3 cache. System memory is running at 2,133mhz at timings of 11-11-11-27.

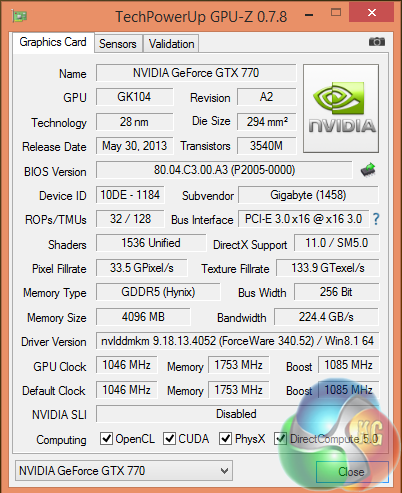

The Gigabyte Nvidia GTX 770 is built on the 28nm process. It has 32 ROPs, 128 Texture units and 1,536 CUDA Cores. The clock speed is set at 1,046 mhz with a turbo frequency of 1,085mhz. The 4GB of GDDR5 memory is connected via a 256 bit interface.

Software:
3DMark
Cinebench R11.5 64 bit
Cinebench R15 64 bit
FRAPS Professional
Unigine Heaven Benchmark
Unigine Valley
SiSoft Sandra
CrystalDiskMark
ATTO Disk Benchmark
Cyberlink PowerDVD Ultra 12
Cyberlink MediaEspresso 6.7
GRID AutoSport (Direct X 11)
Tomb Raider (Direct X 11)
Total War: Rome 2 (Direct X 11).

Technical Monitoring and Test Equipment:
Asus USB BluRay Drive
Thermal Diodes
Raytek Laser Temp Gun 3i LSRC/MT4 Mini Temp
Extech digital sound level meter & SkyTronic DSL 2 Digital Sound Level Meter
Fuji XT-1 with 18-50mm lens and Sony RX100.

Game descriptions are taken with courtesy from Wikipedia.
