MSI MEG CORELIQUID E15 AIO CPU Cooler Review

Rating: 8/10.

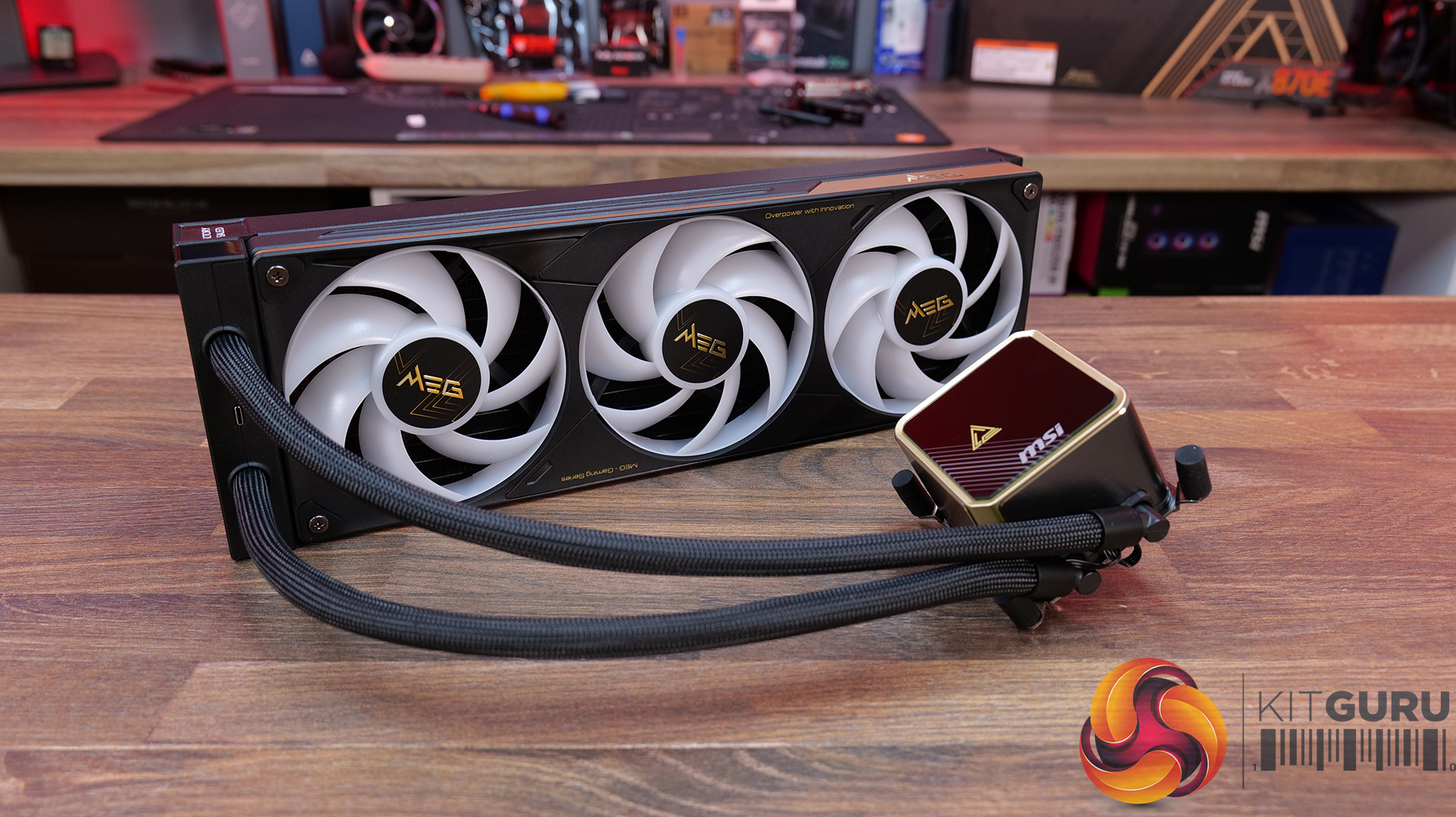

Today we’re looking at MSI’s latest flagship AIO CPU cooler, the MEG CORELIQUID E15. It features a huge 6.67-inch curved AMOLED display, a single-frame triple 120mm fan setup, and a whopping MSRP of almost 400 US dollars. So, at that price, you’d expect it to be one of the best AIOs ever, right? Well, in this review, we’ll be checking out the build quality, installation, noise, and of course, thermal performance, to see if it can really justify that price tag. Let’s find out.

Timestamps:

00:00 Introduction
00:51 Pricing

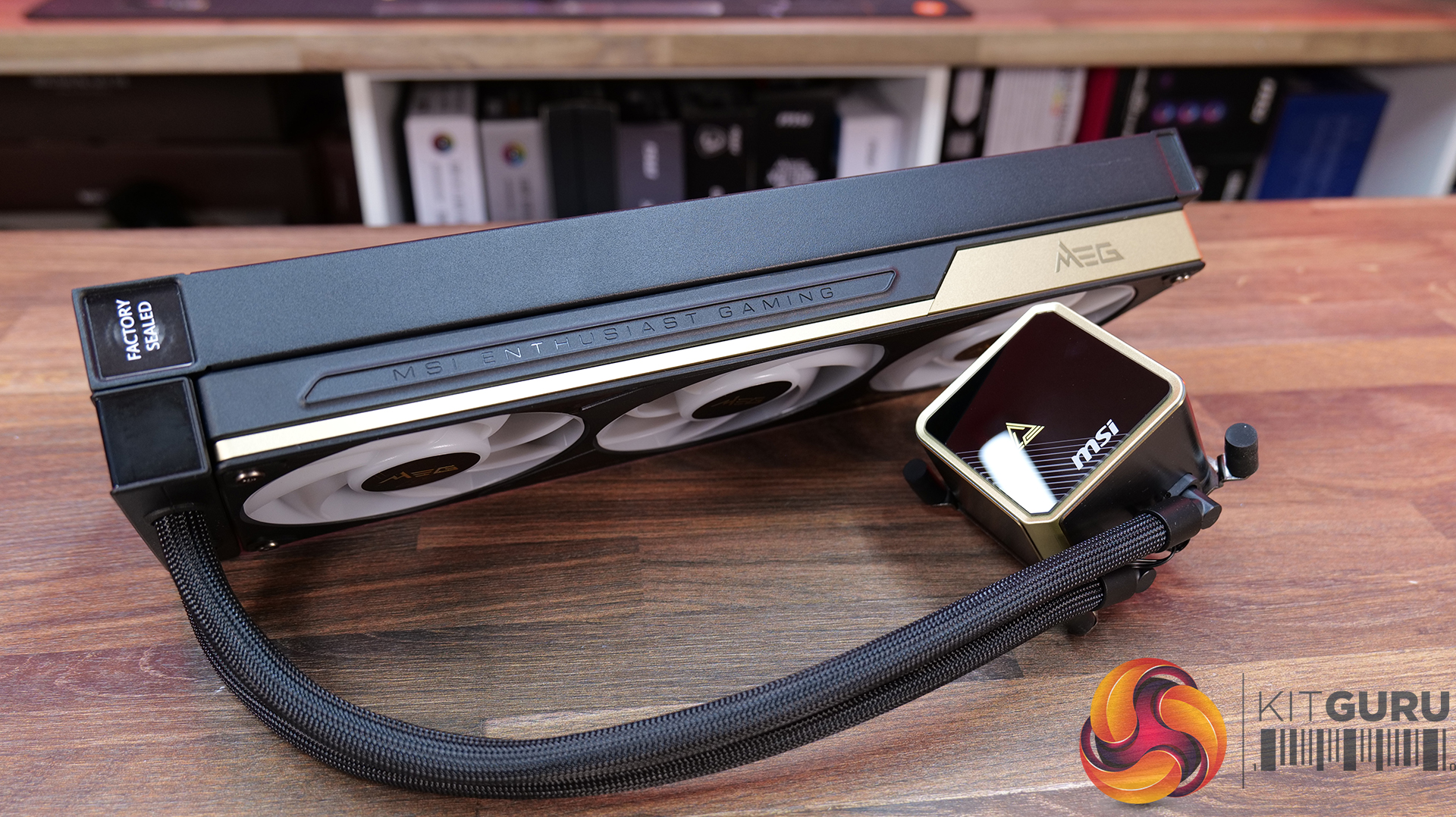

01:44 Overview / Build Quality

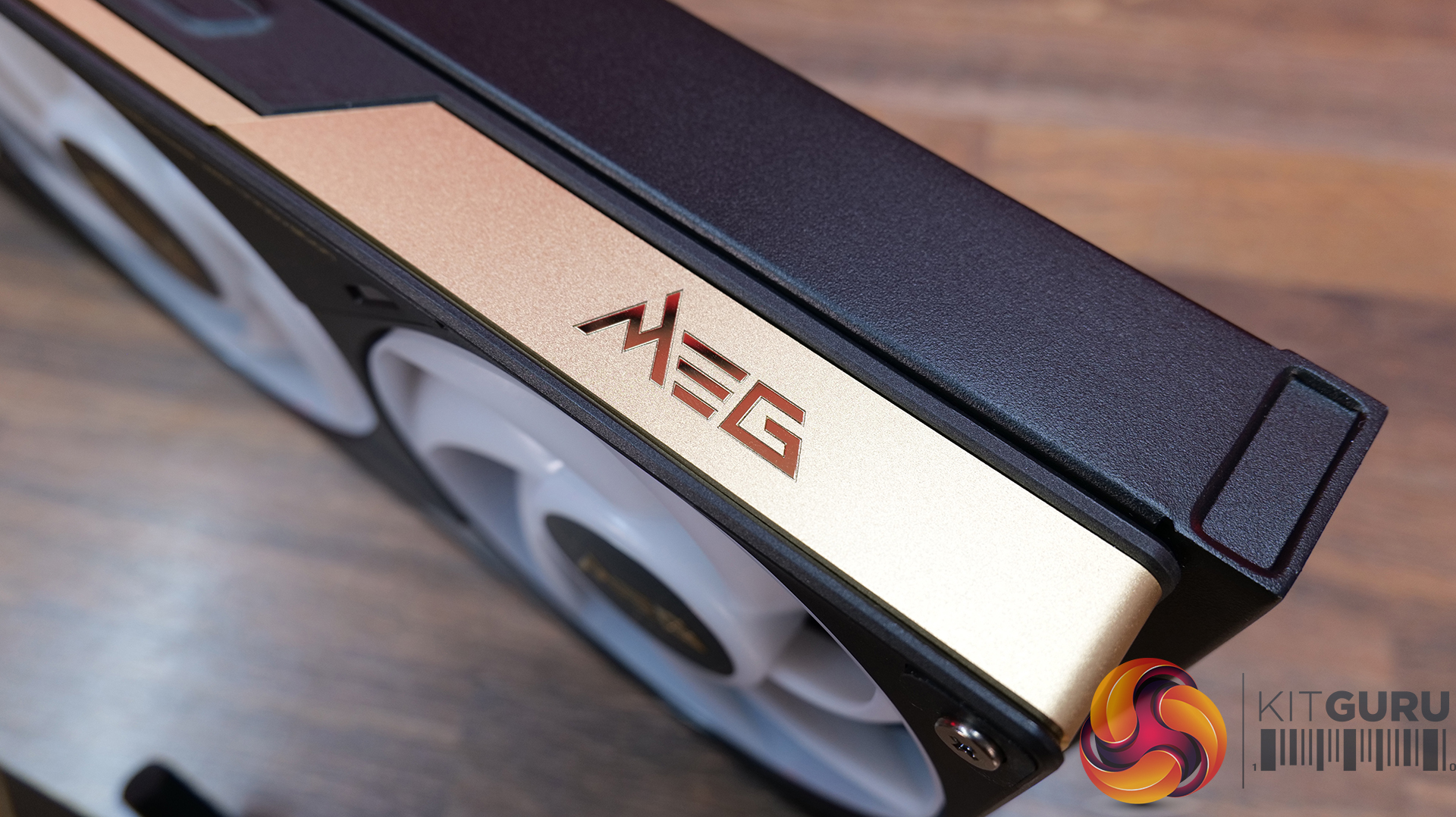

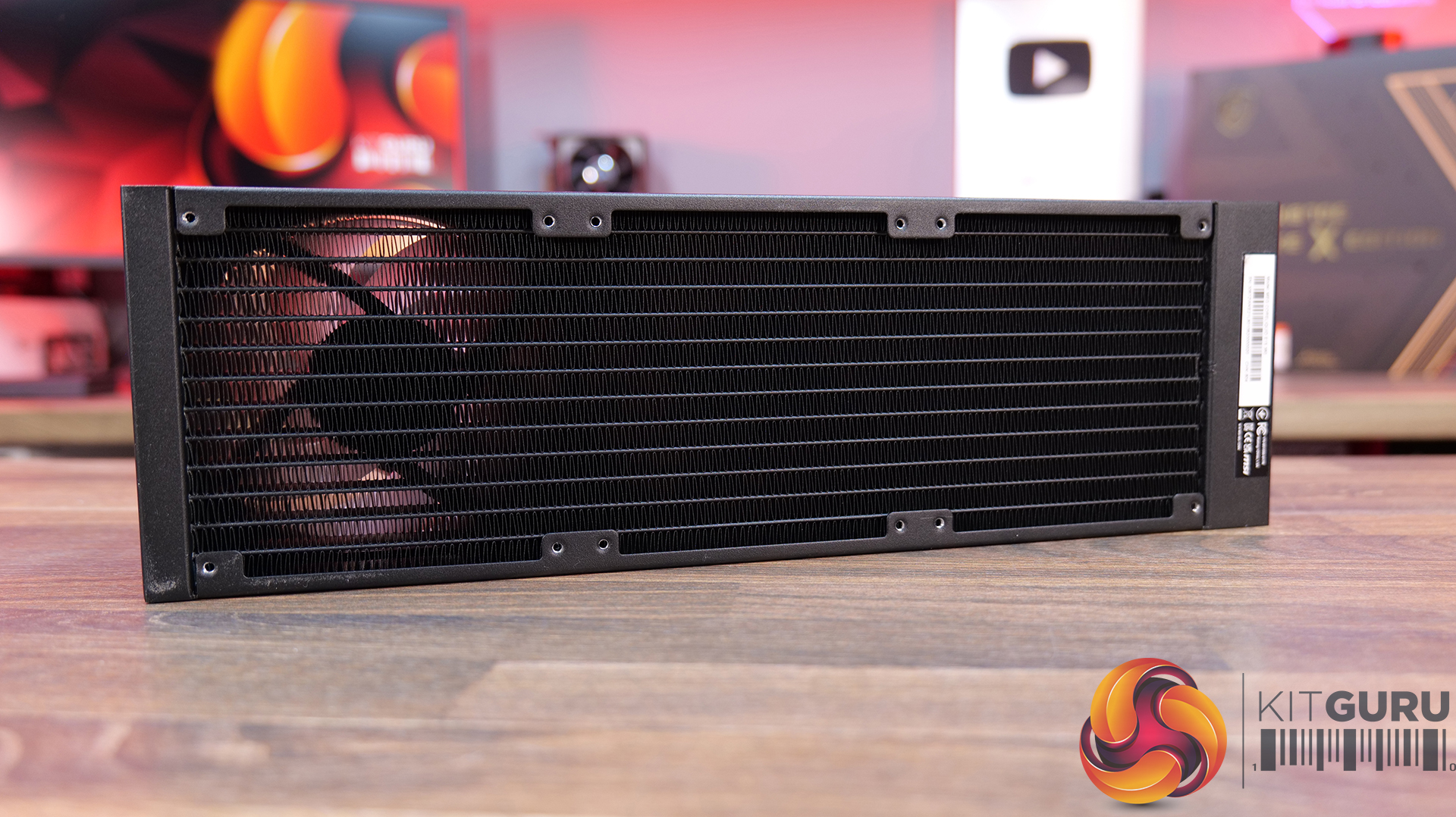

03:32 Radiator Design / Tubing

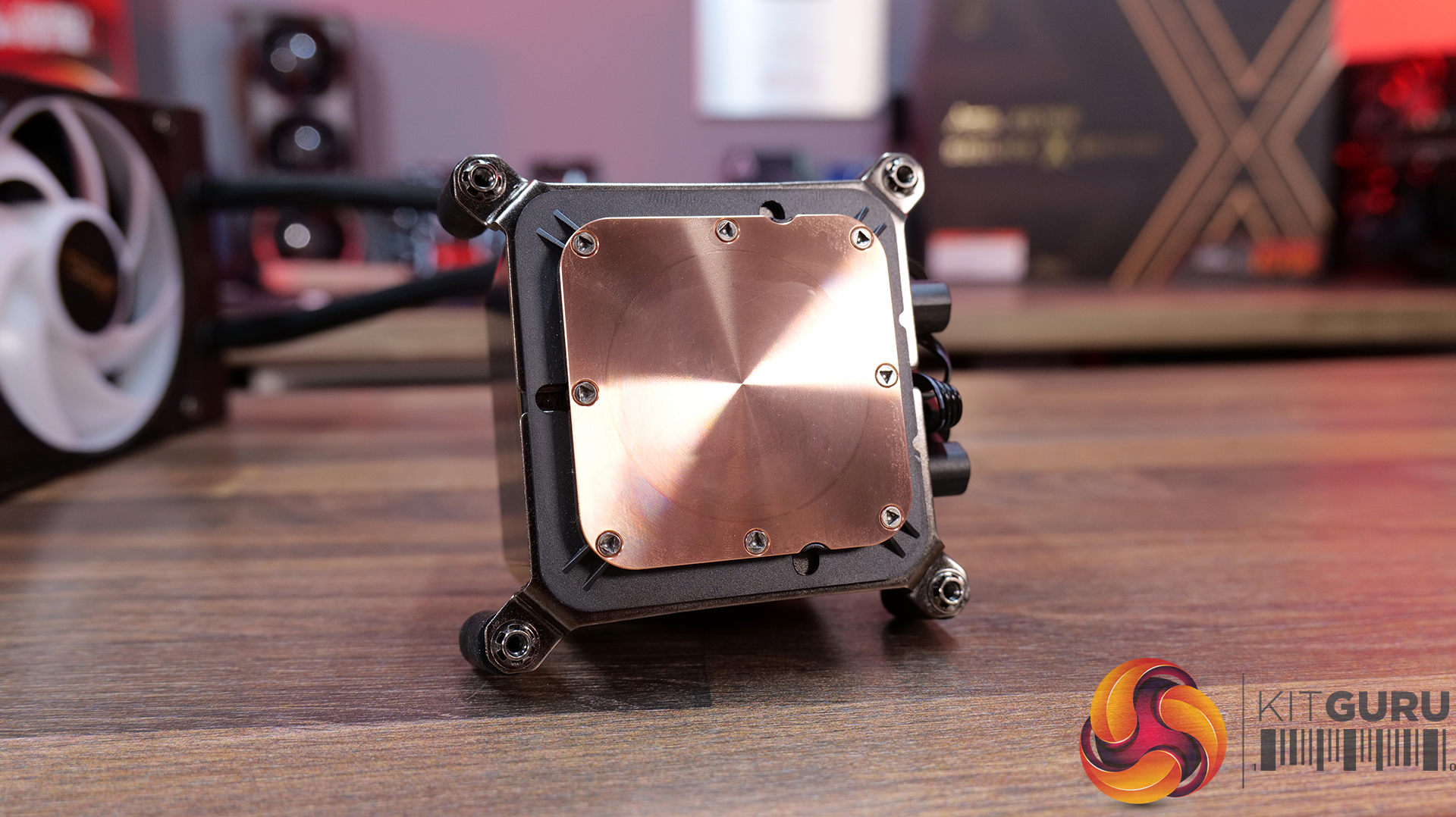

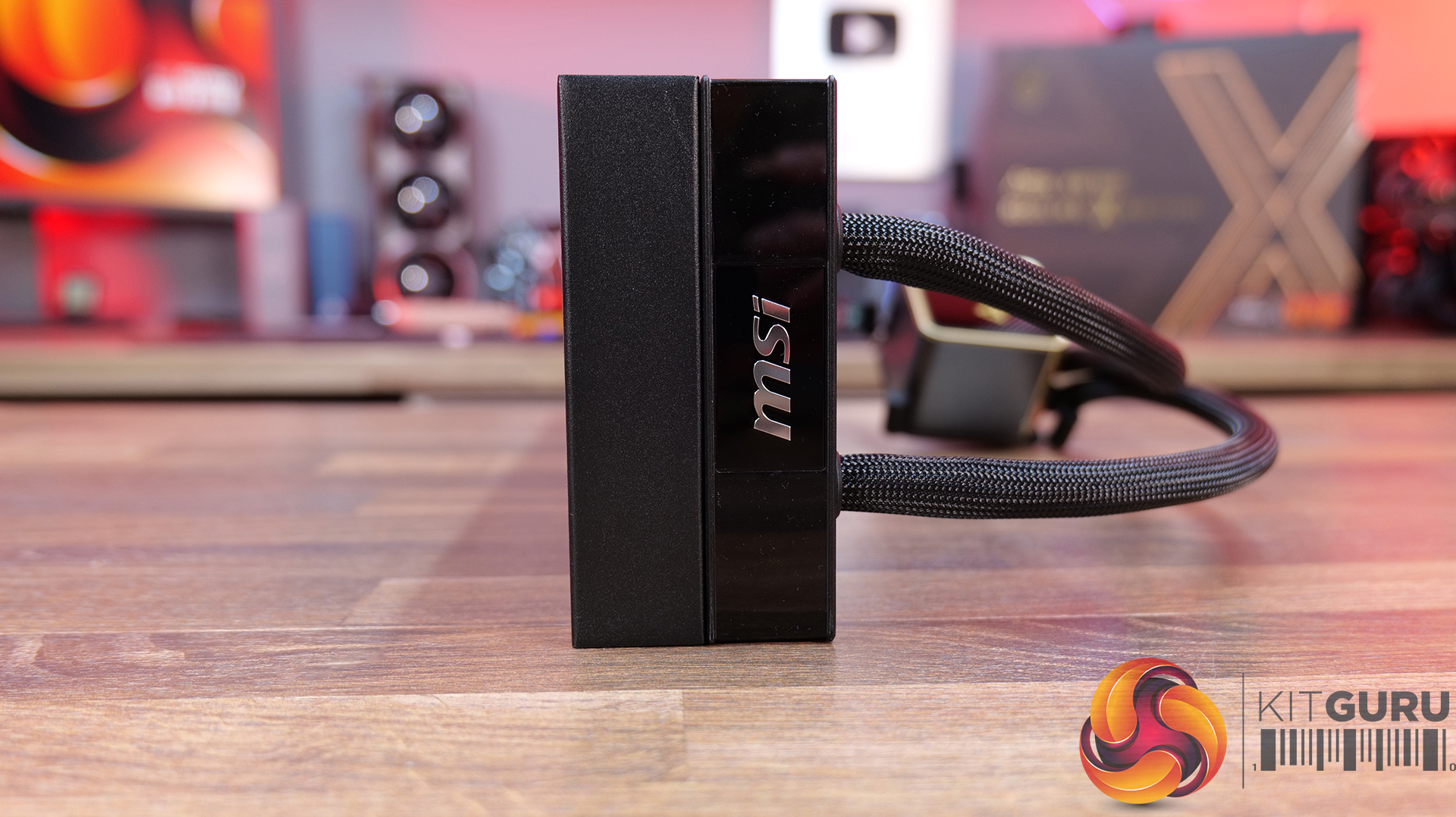

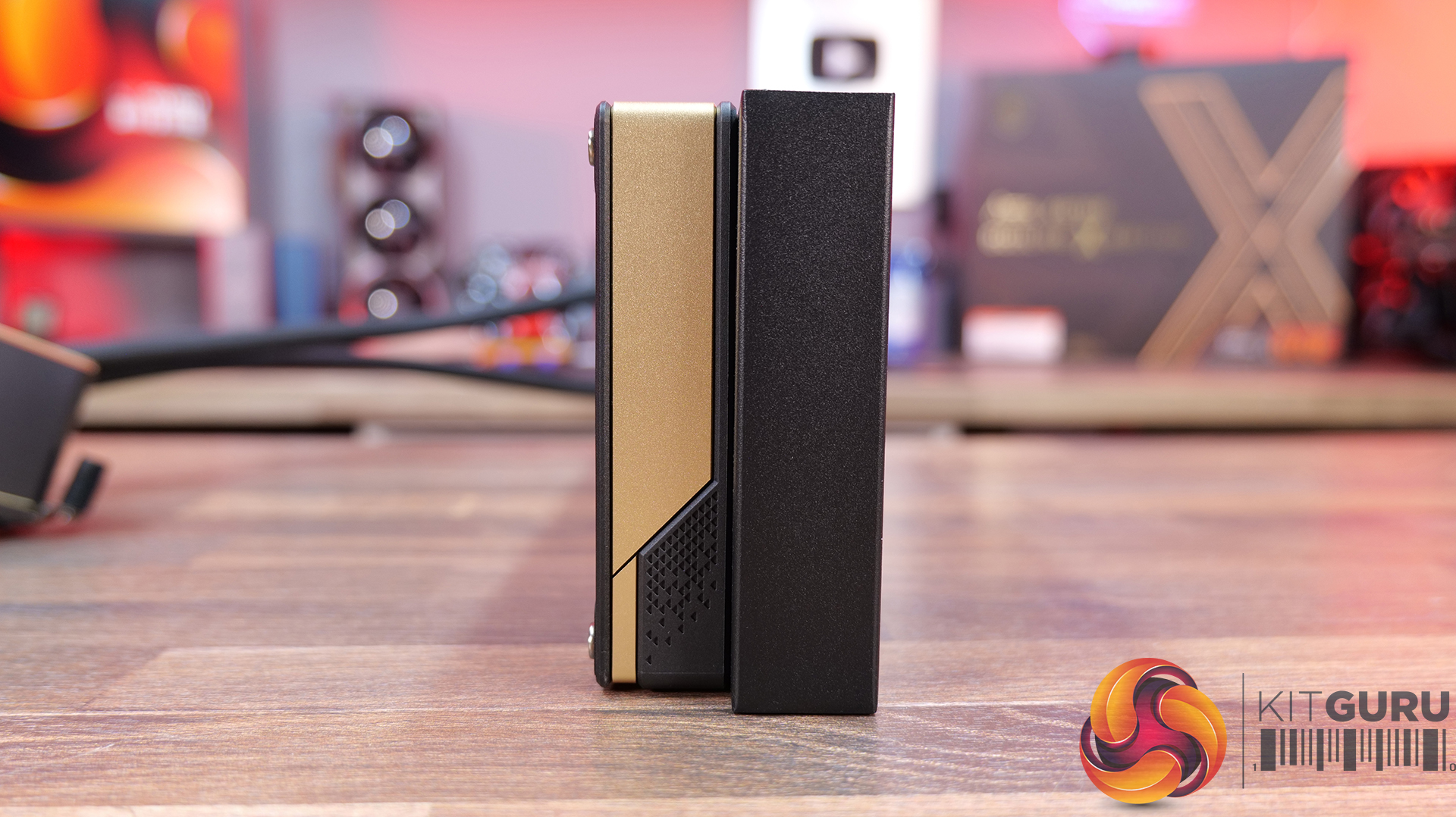

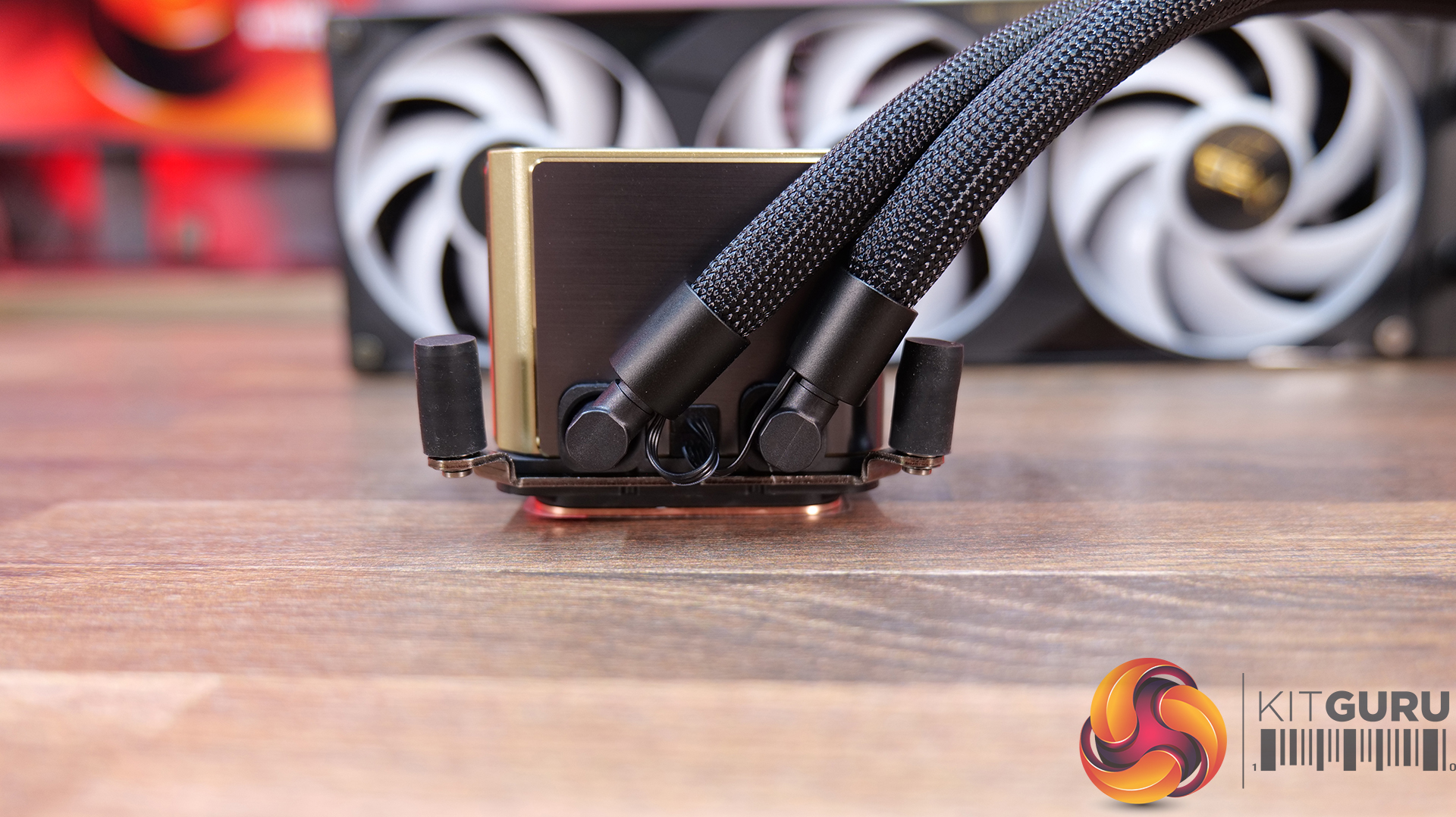

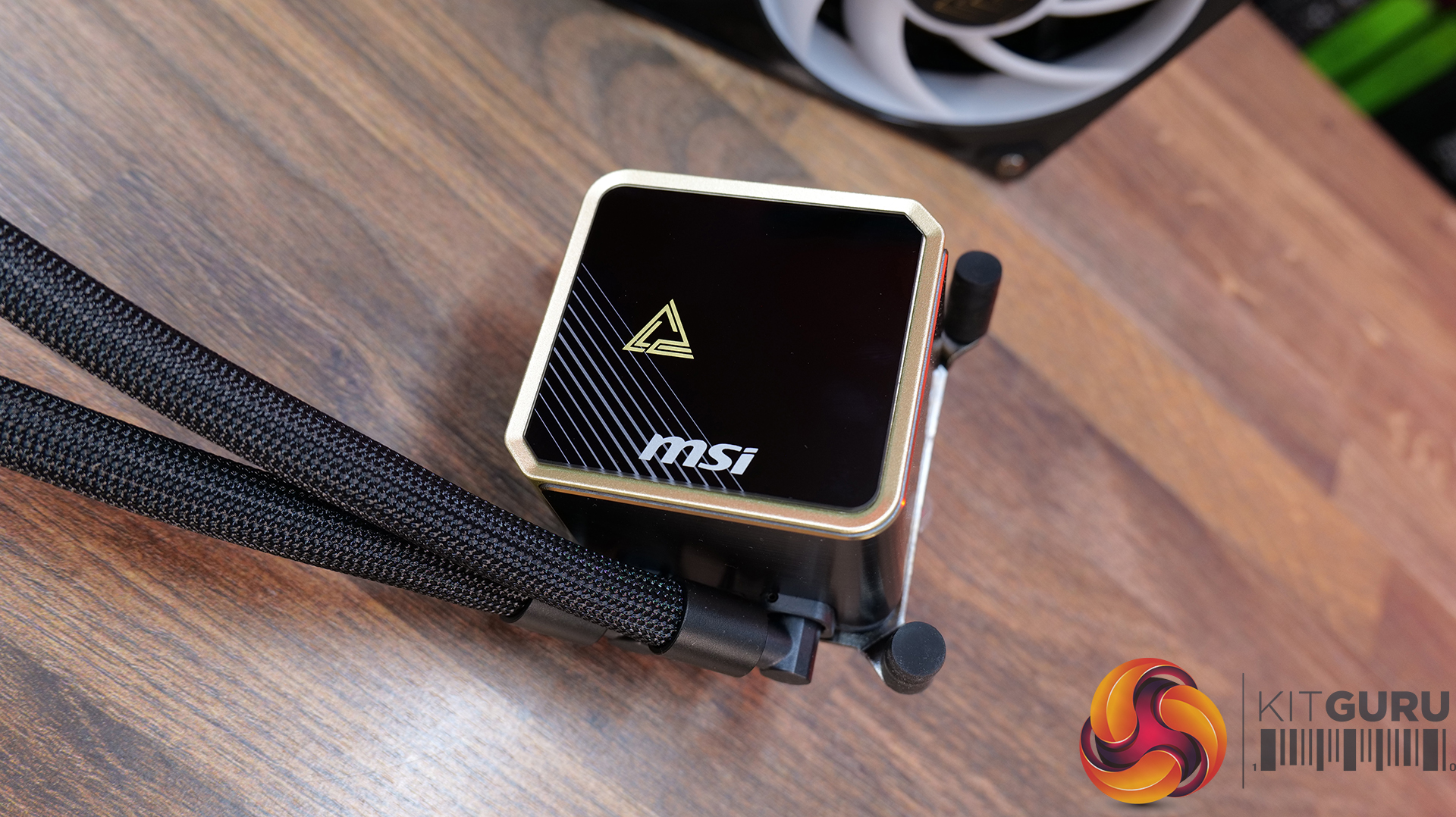

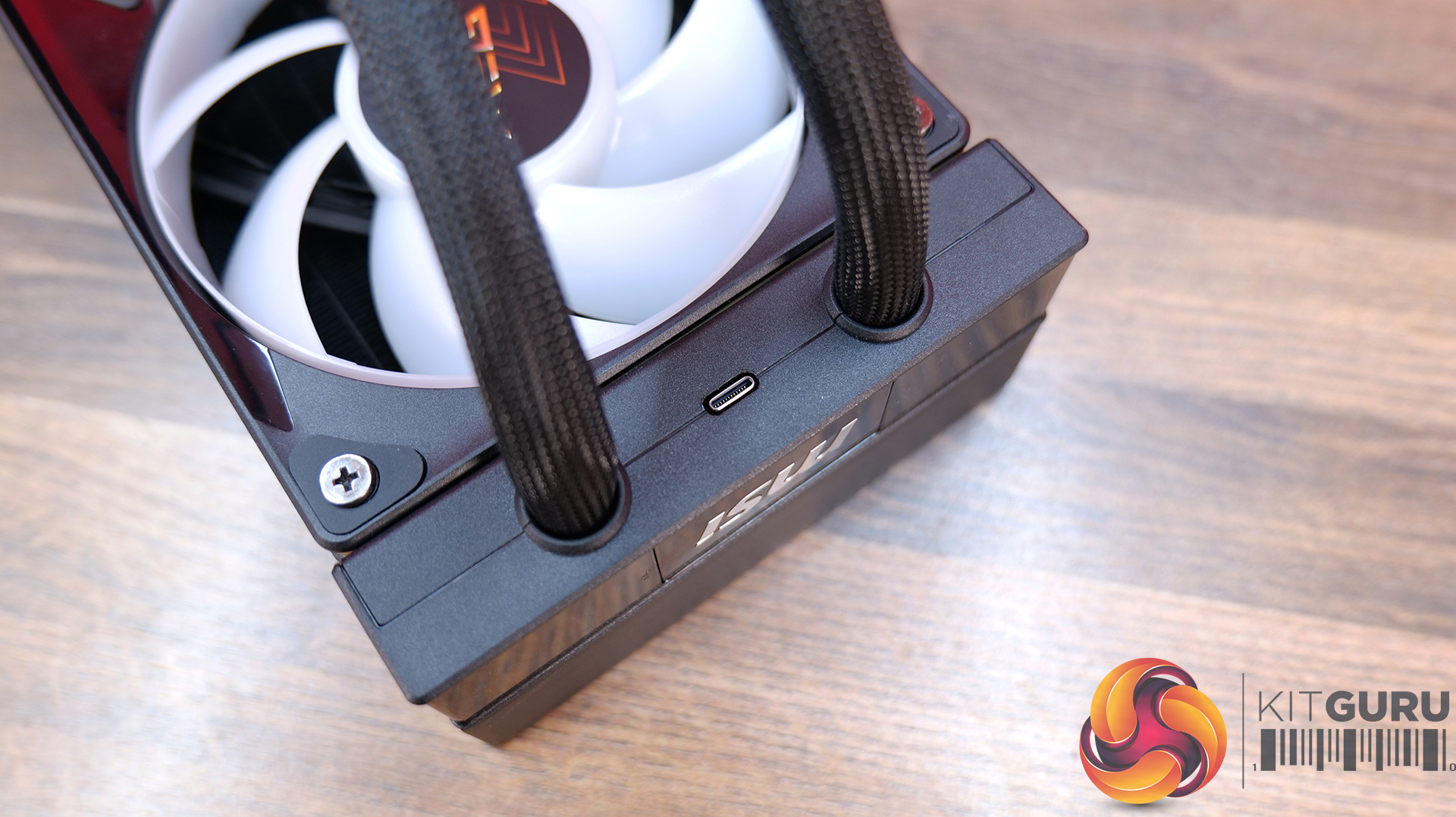

05:11 CPU Block
07:33 The Screen / Fans / Cables

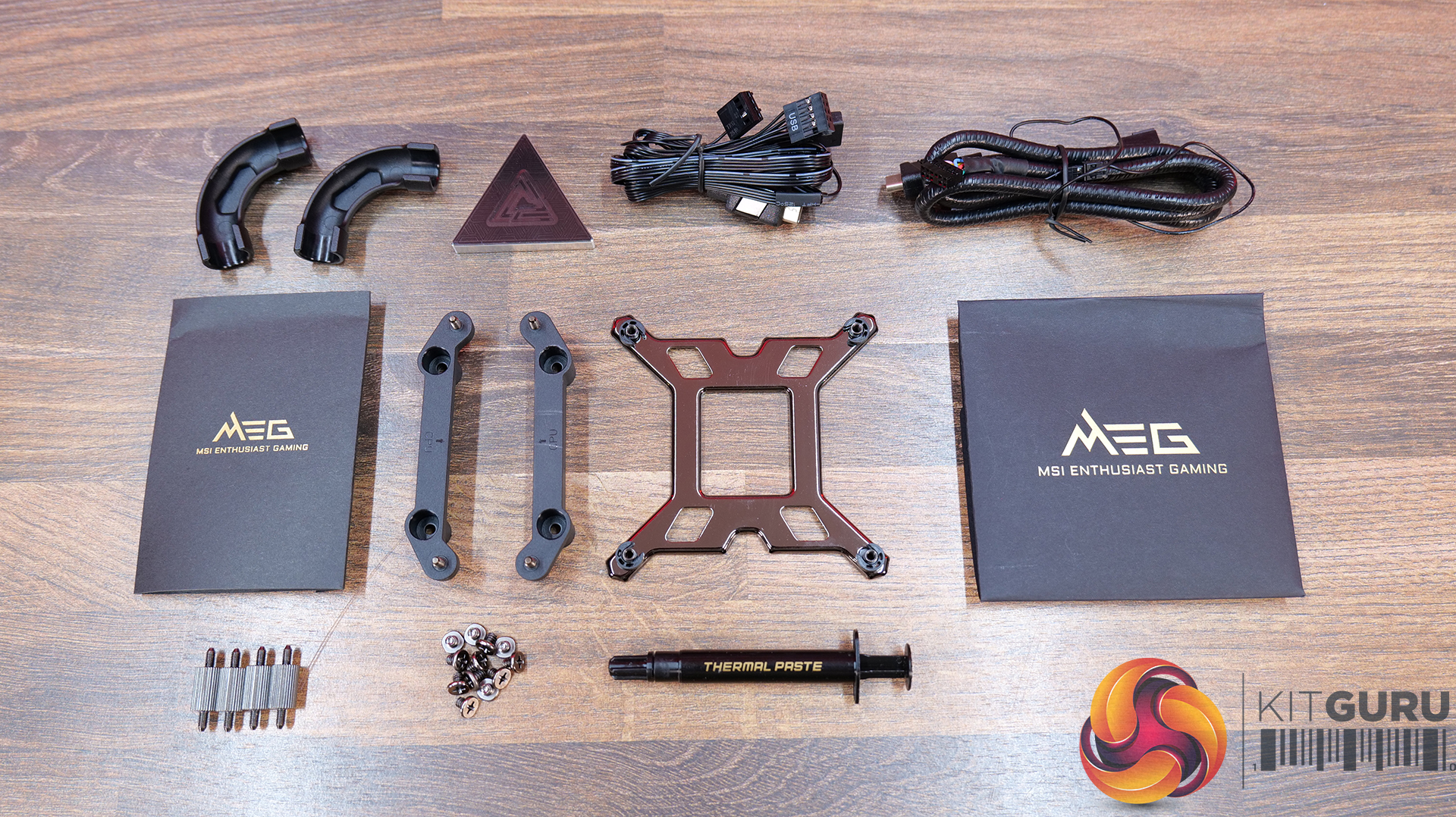

09:37 Accessories
10:33 Install Procedure / Software
13:32 Thermal and Noise Performance
16:06 James thoughts

Features:

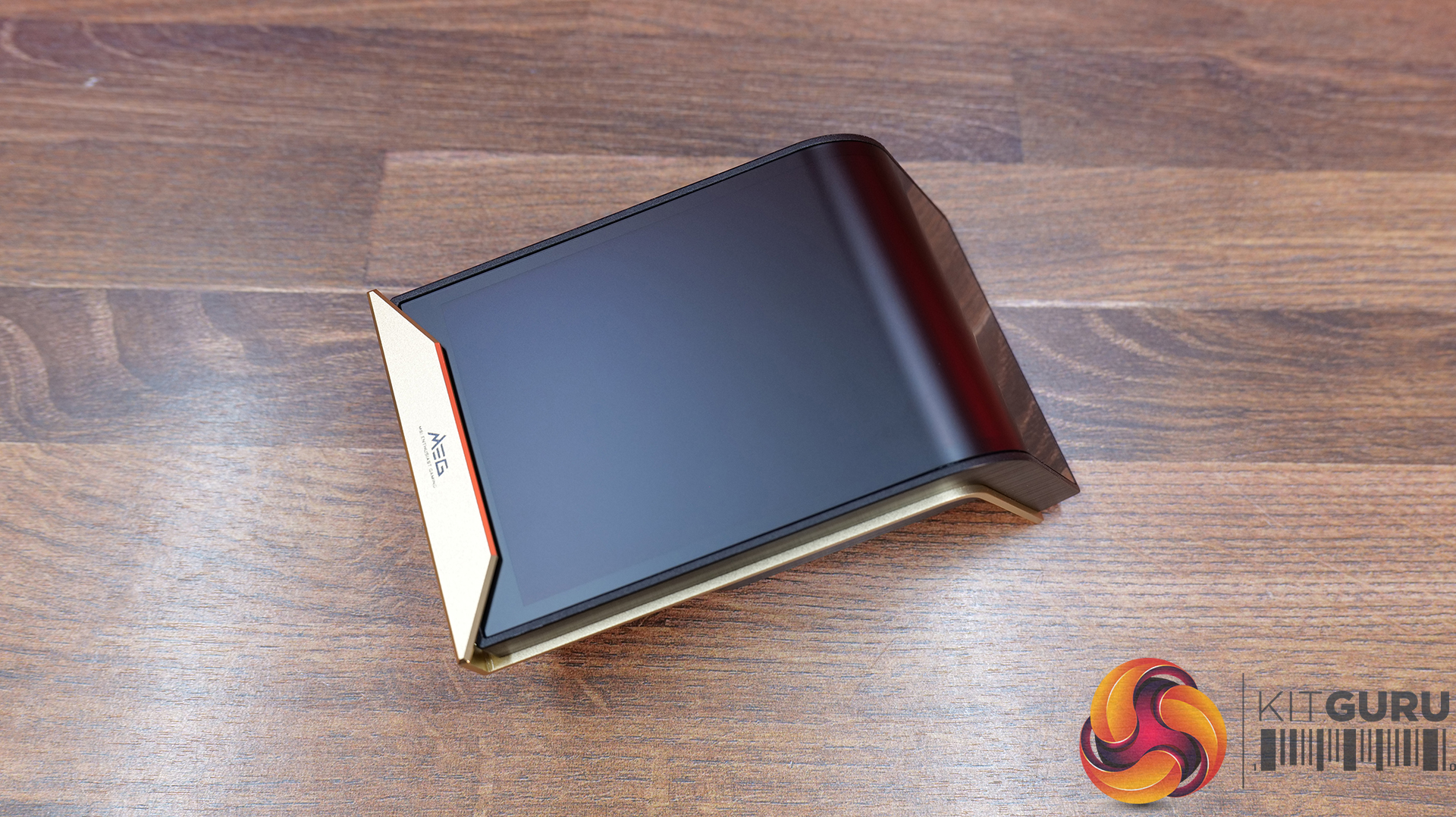

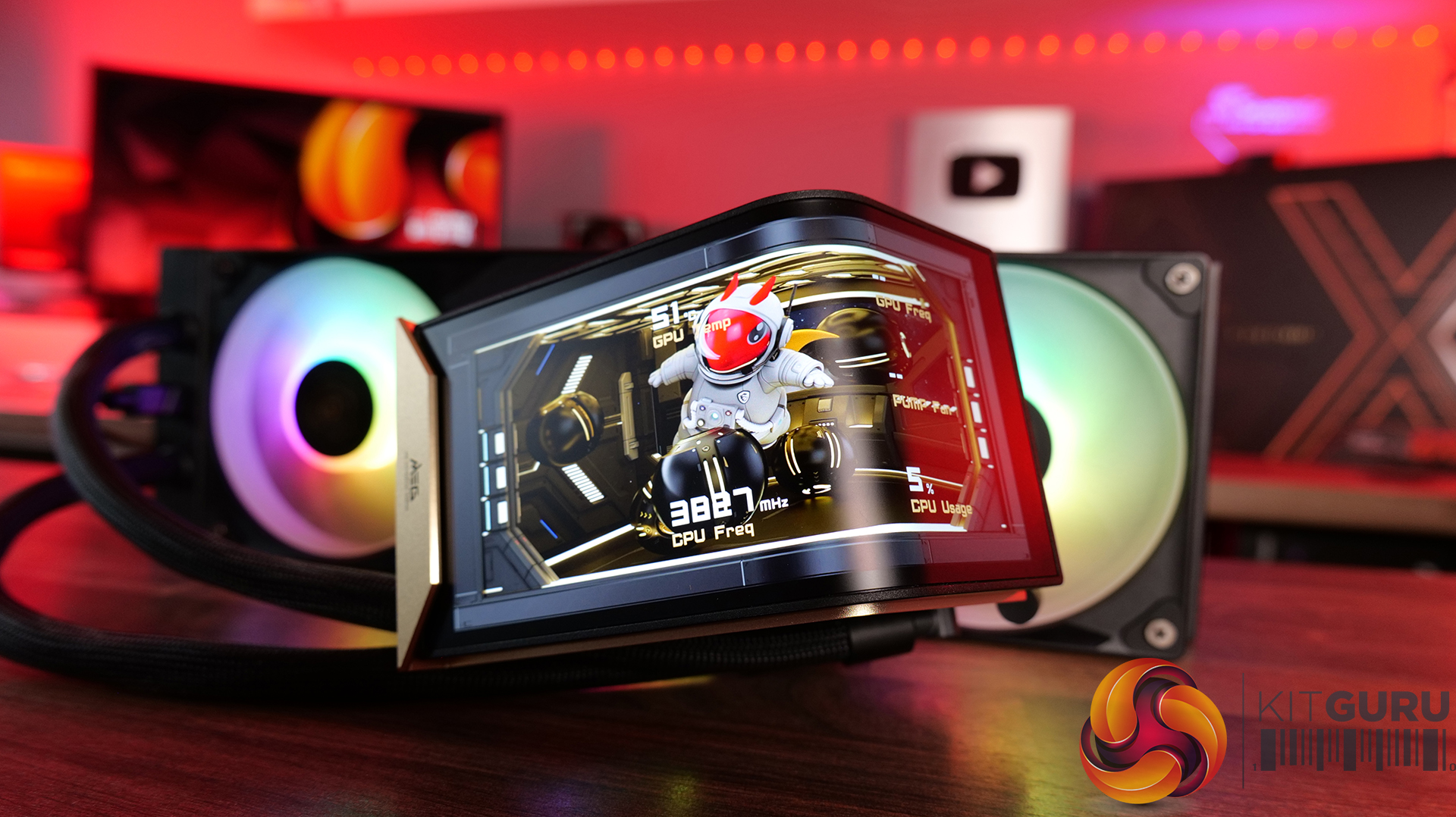

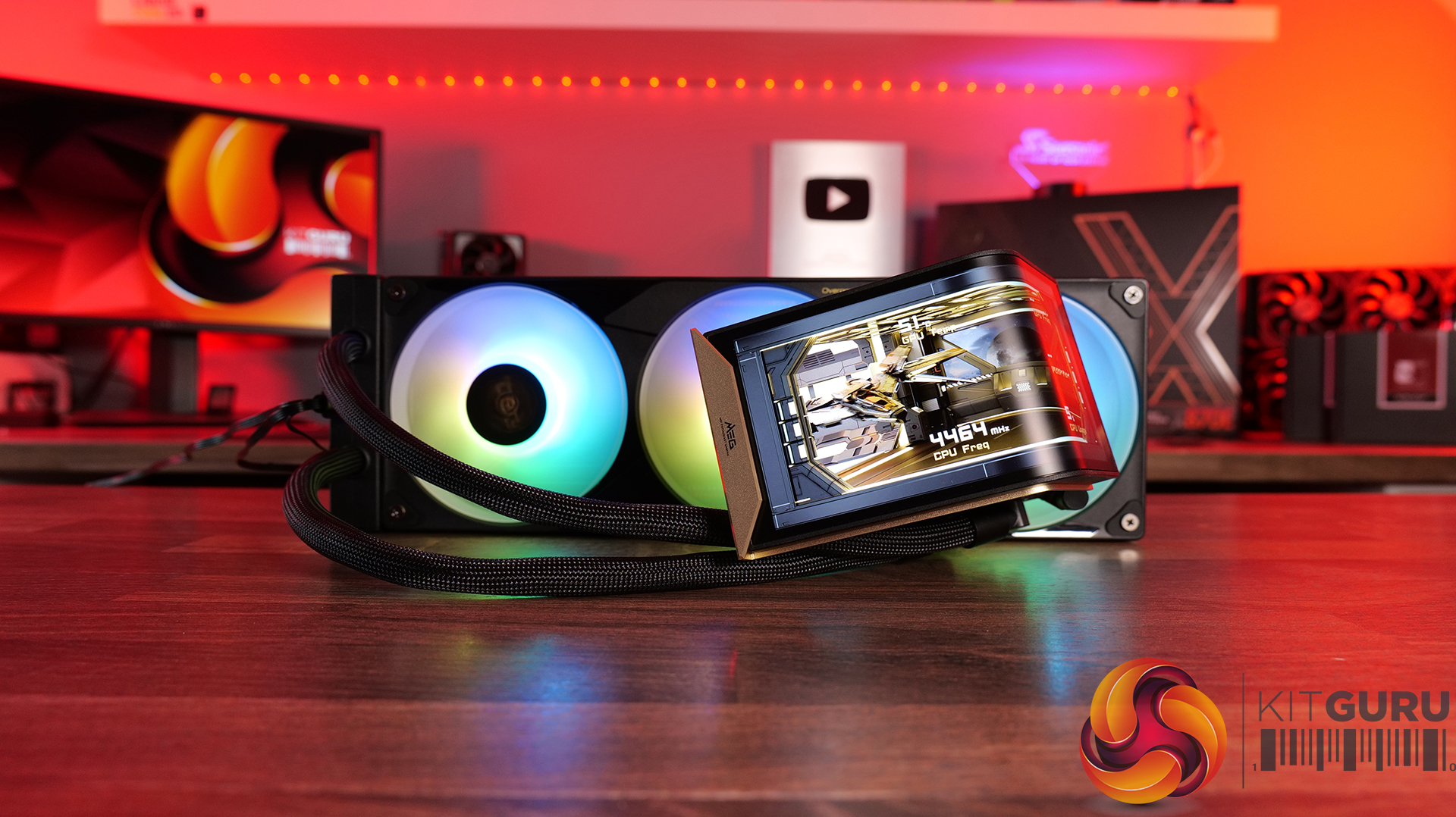

  • Curved Display: E15 360 features a huge 6.67-inch 2K AMOLED display with a 110-degree curved viewing angle, supporting custom animations, images and videos. It can operate in full-screen, split-screen or extended-display modes, making it more than just a fancy pump cover.

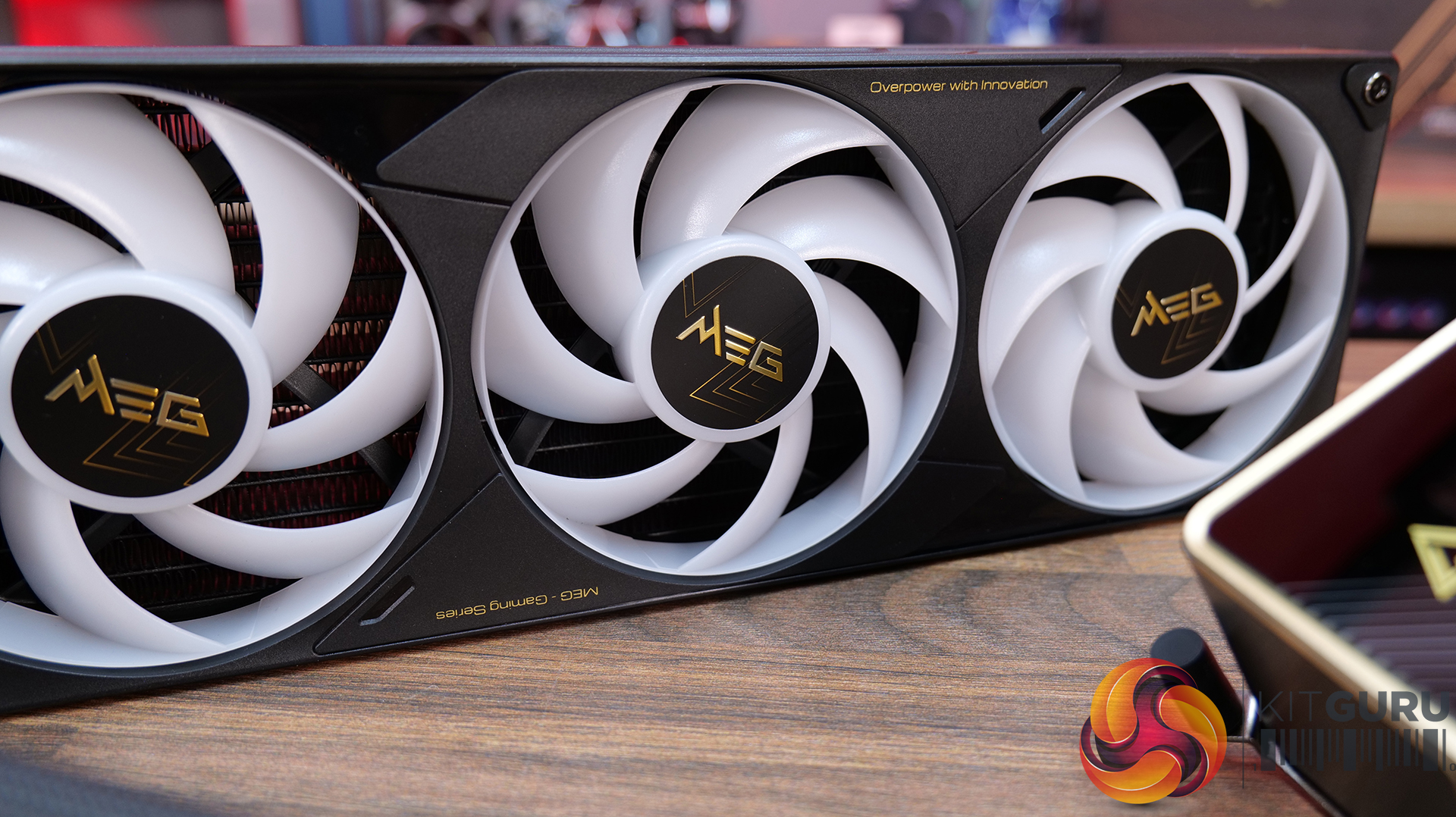

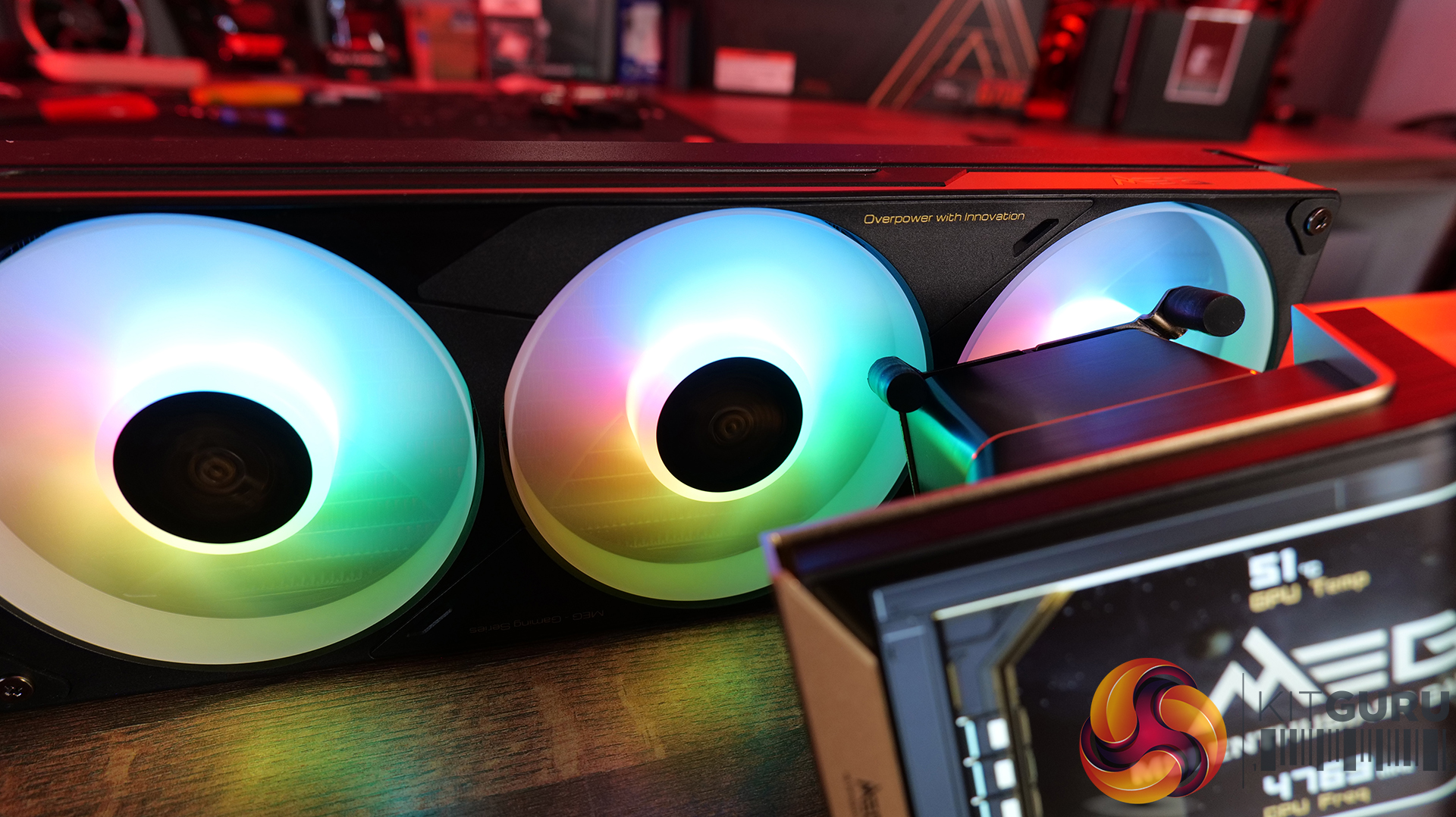

  • Laminar Focus Cooling: MSI’s three-fan setup uses Laminar Focus Technology, with the middle fan spinning in reverse to reduce turbulence, smooth out airflow and cut down noise. There’s also a 30mm-thick radiator and a cooling safeguard that automatically ramps up the remaining fans if one fails.

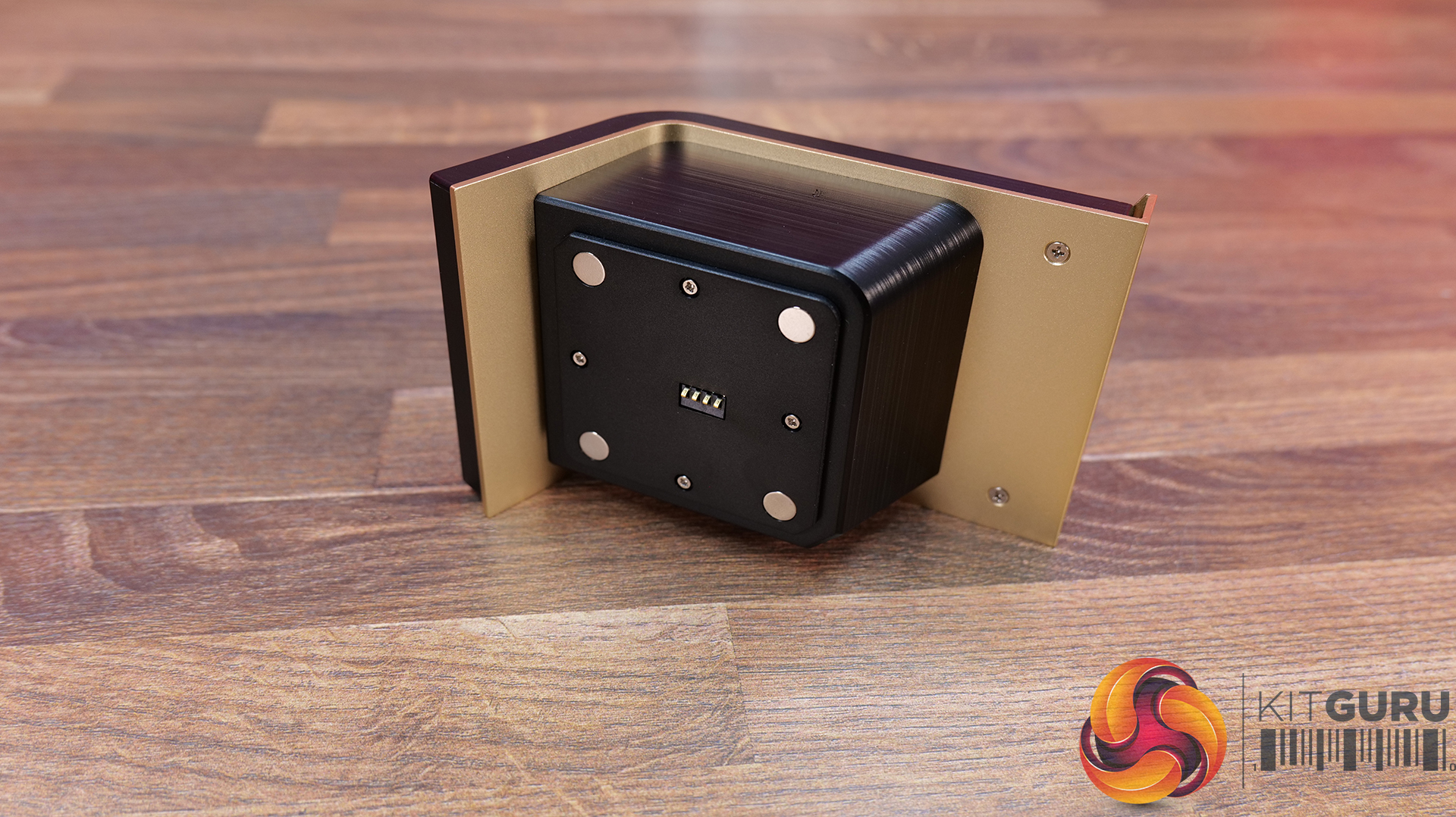

  • Clean Installation: Slick installation process with its EZ Conn single-cable design, connecting the screen, fans, ARGB and pump through one cable. The magnetic POGO-PIN screen also simplifies installation, while the 90-degree tube clips help keep the tubing looking neat and tidy.

Specifications:

  • Pump Speed: 3000 ± 300 RPM
  • Load Current: 0.52 ± 0.104 A
  • Power Consumption: 6.24 ± 1.248 W
  • Life Expectancy: 50,000 hours at 40°C
  • CPU Block Dimensions: 71.63 x 68.5 x 64.97 mm
  • Display Size: 6.67″
  • Panel Type: OLED
  • Panel Resolution: 2240 x 1080
  • Radiator Size: 360 mm
  • Dimensions: 397 x 124.5 x 30 mm
  • Material: Aluminium

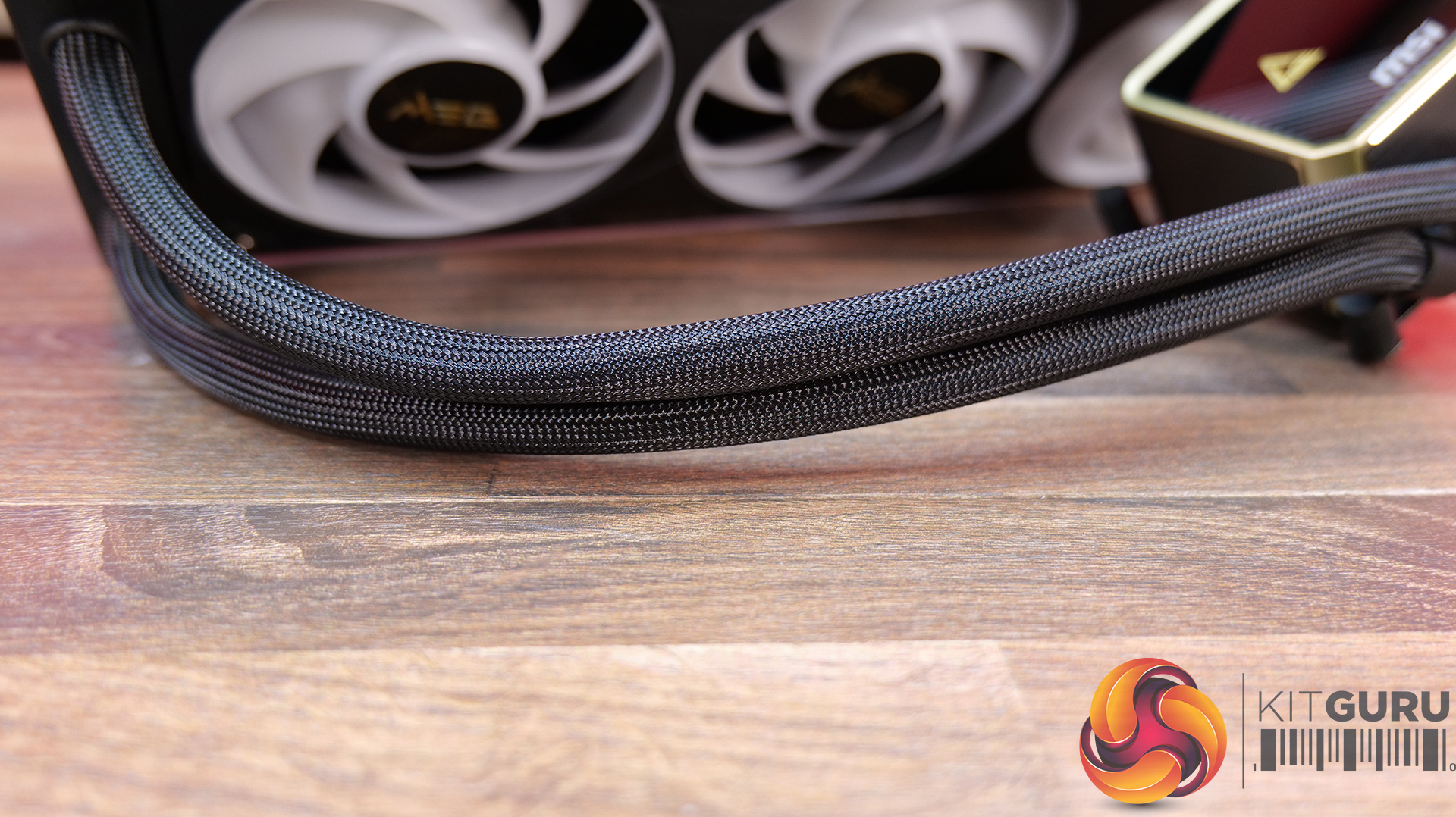

  • Tube Length: 390 mm
  • Tube Material: EPDM + IIR
  • Fan Dimensions: 362 x 125 x 28.4 mm
  • Fan Quantity: 3
  • Fan Speed: 800–2300 ± 230 RPM
  • Fan Airflow: 217.91 CFM
  • Fan Air Pressure: 3.84 mm-H₂O
  • Fan Noise: 39.58 dBA
  • Fan Bearing: FDB
  • Fan Life Expectancy: 40,000 hours at 40°C
  • Fan Rated Current: 0.68 ± 0.15 A (set)
  • Fan Power Consumption: 8.16 W (set)
  • LED: ARGB Gen2
  • CPU Socket Support: Intel: LGA 1700 / LGA 1851, AMD: AM5 / AM4

Test System Specifications:
