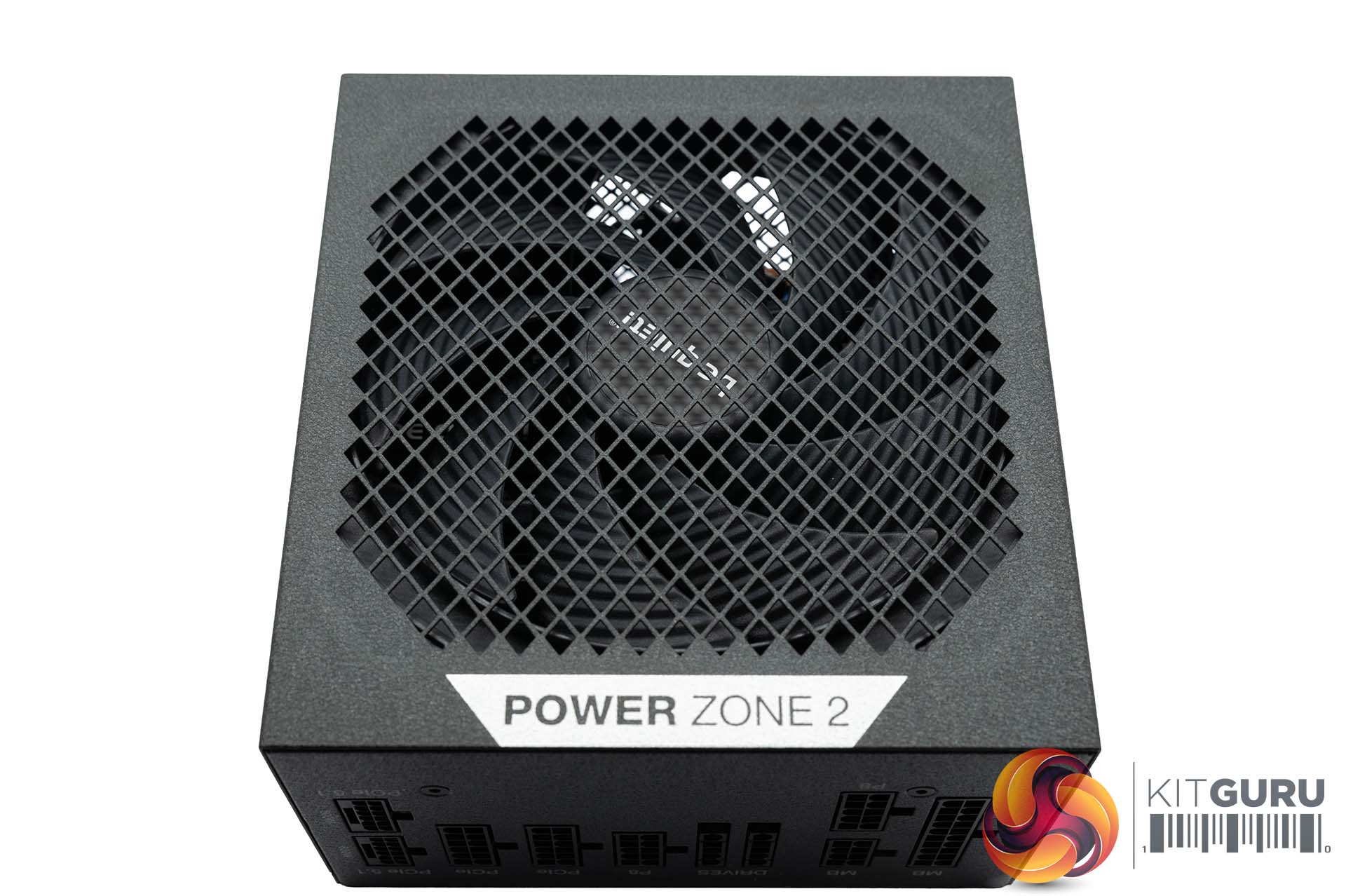

We quite like the appearance of this power supply. Sure, you could argue they are all similar, but the finish quality is pretty high. The chassis measures 160x150x86 mm (LxWxH). It weighs 1.88kg.

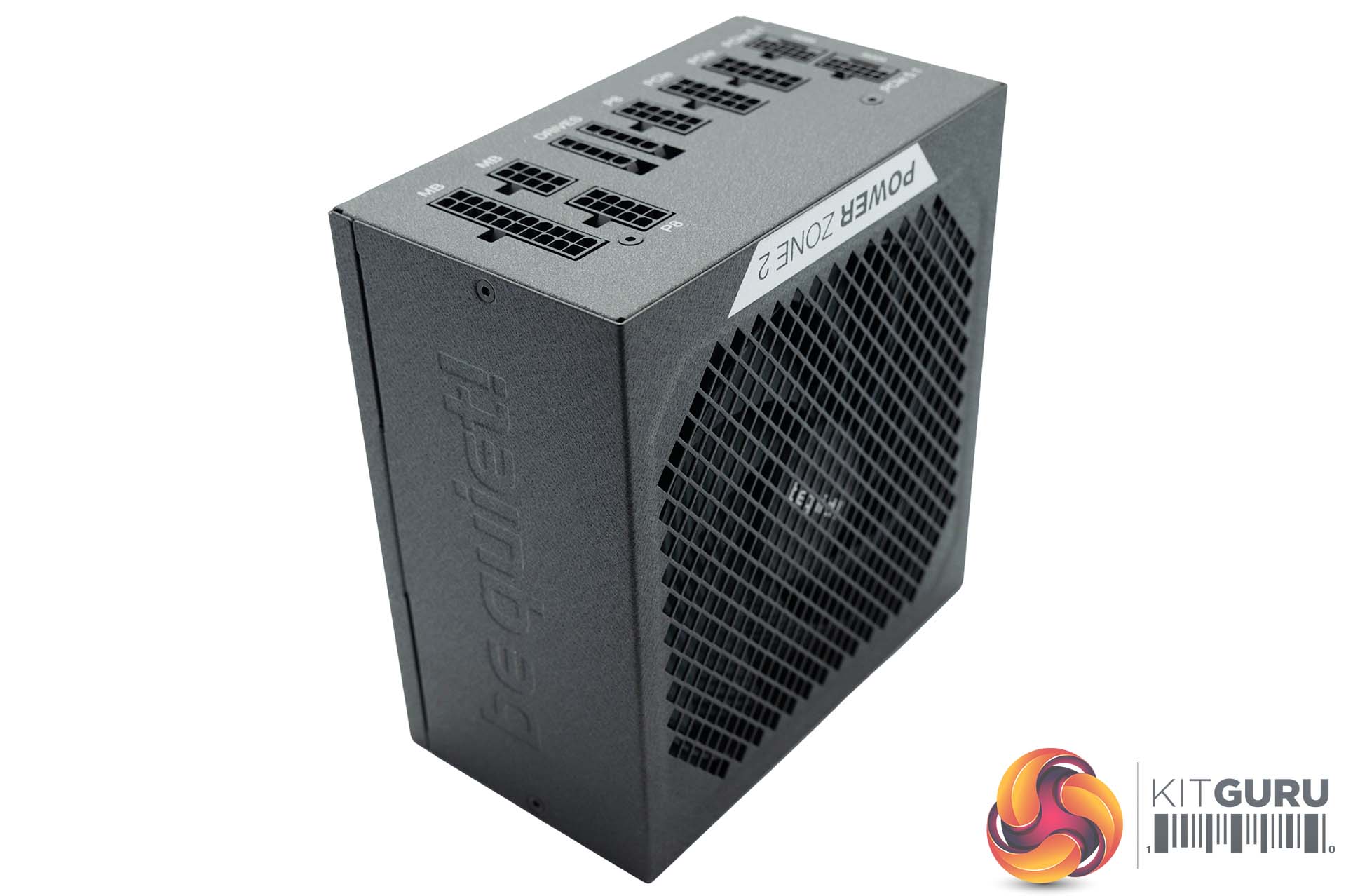

We like the mesh design on some of the panels as well. The design has large holes cut into the grille, too, aiding fan airflow.

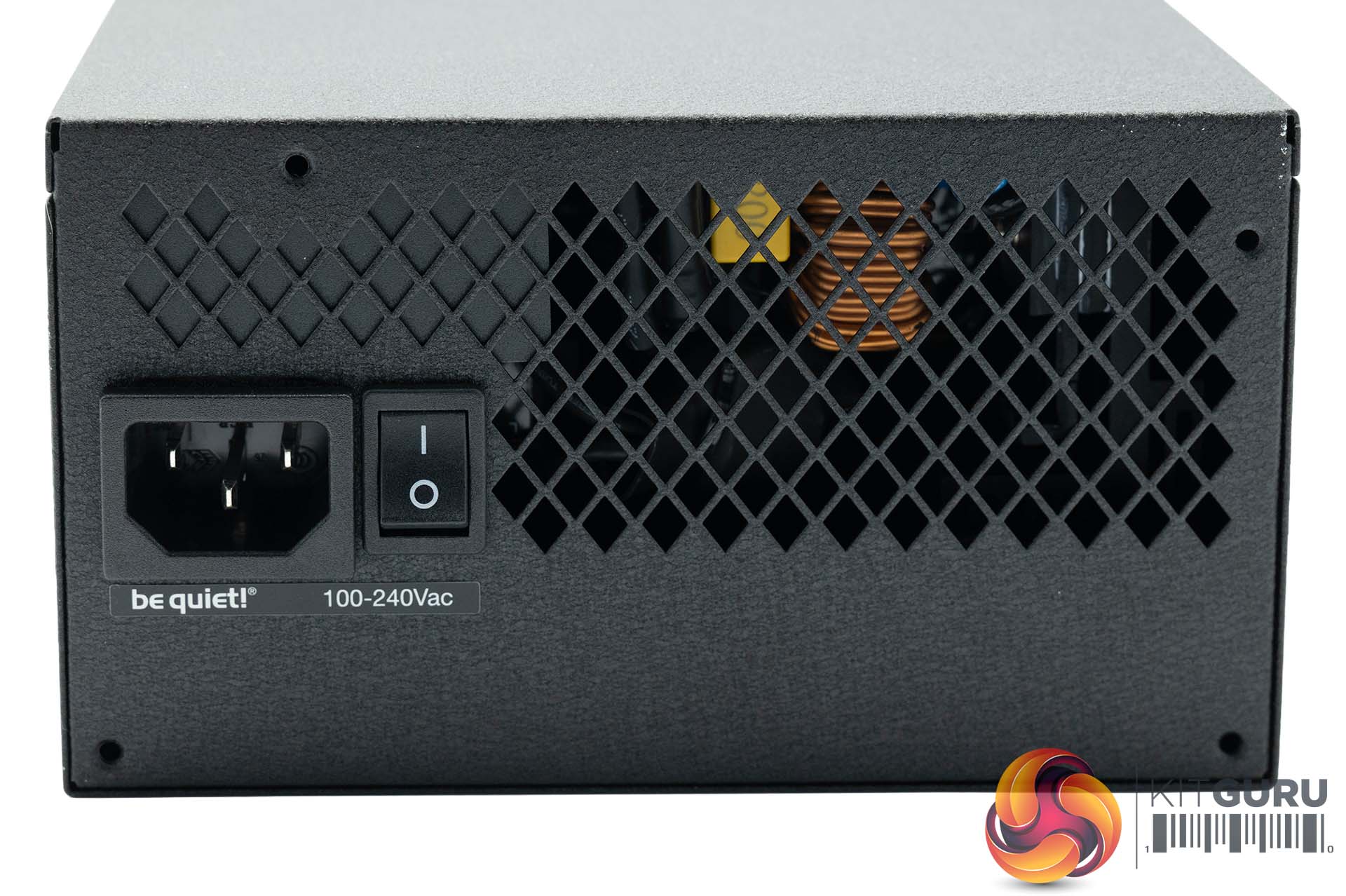

The power side is home to a power connector and switch, along with a panel to help expel warm air.

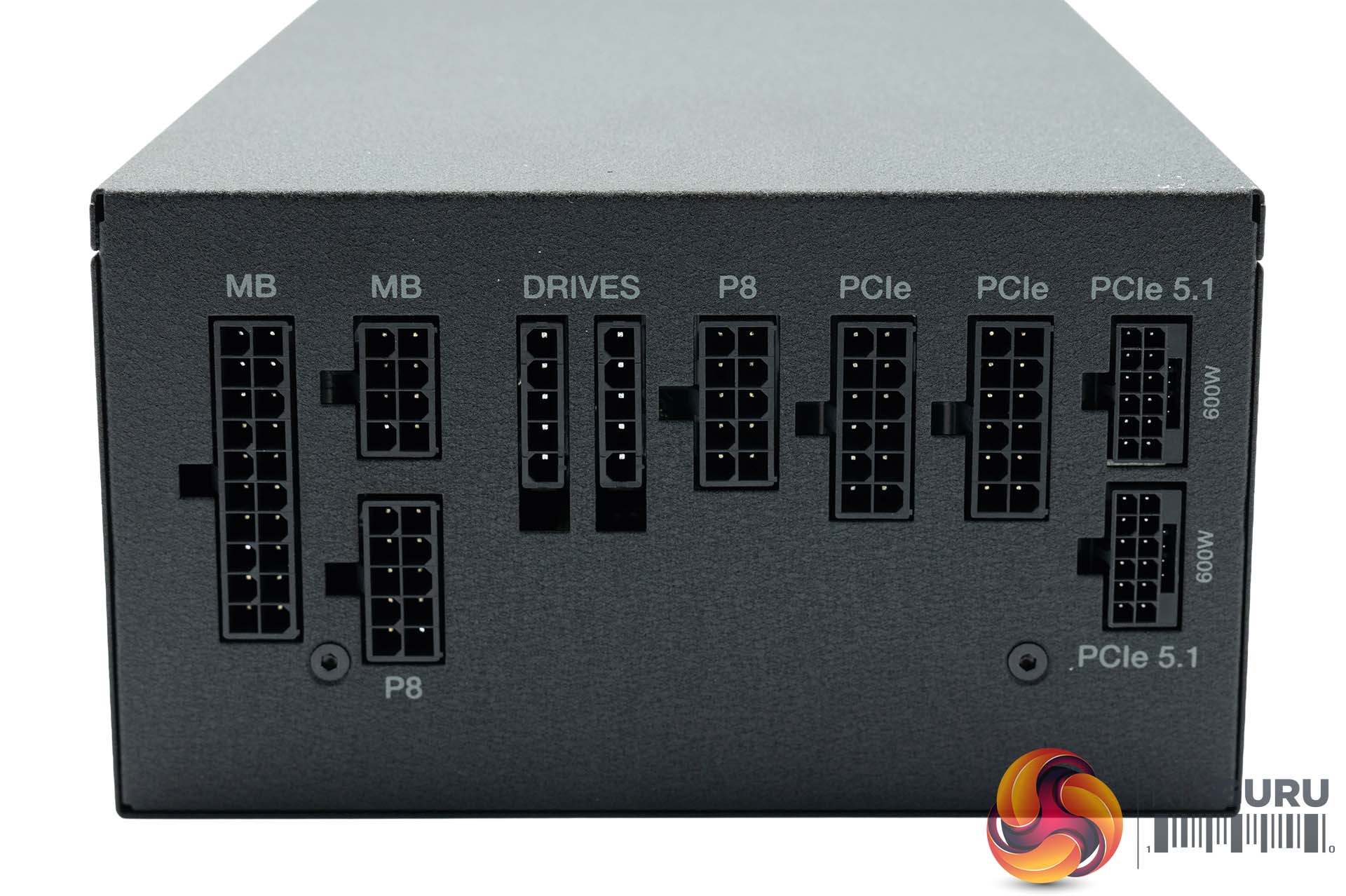

The other side is home to the modular bay, all mounted in a vertical pattern and labelled for ease of use.

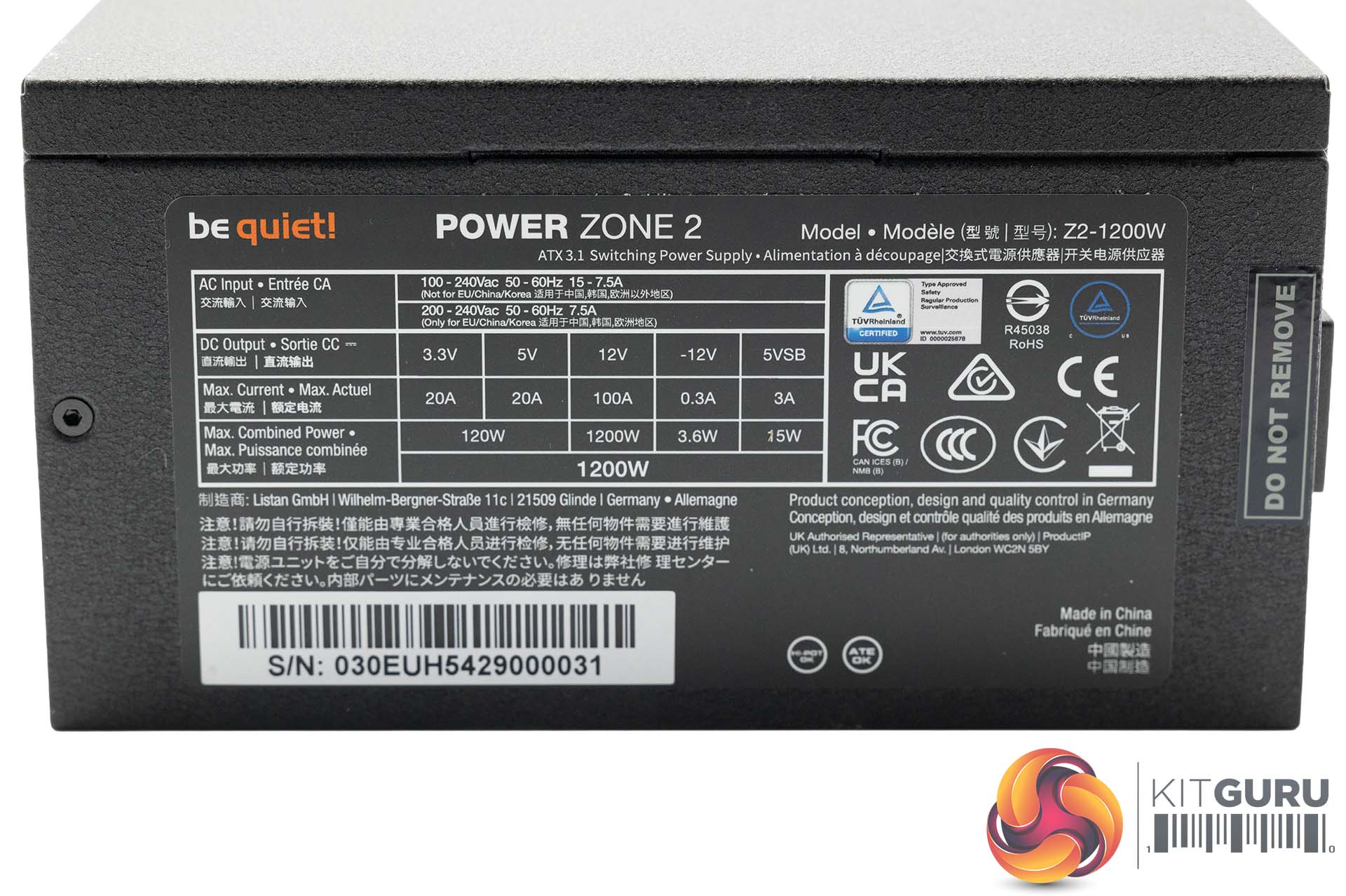

This unit is able to deliver 100A via the +12V rail, for a total of 1200 Watts.
