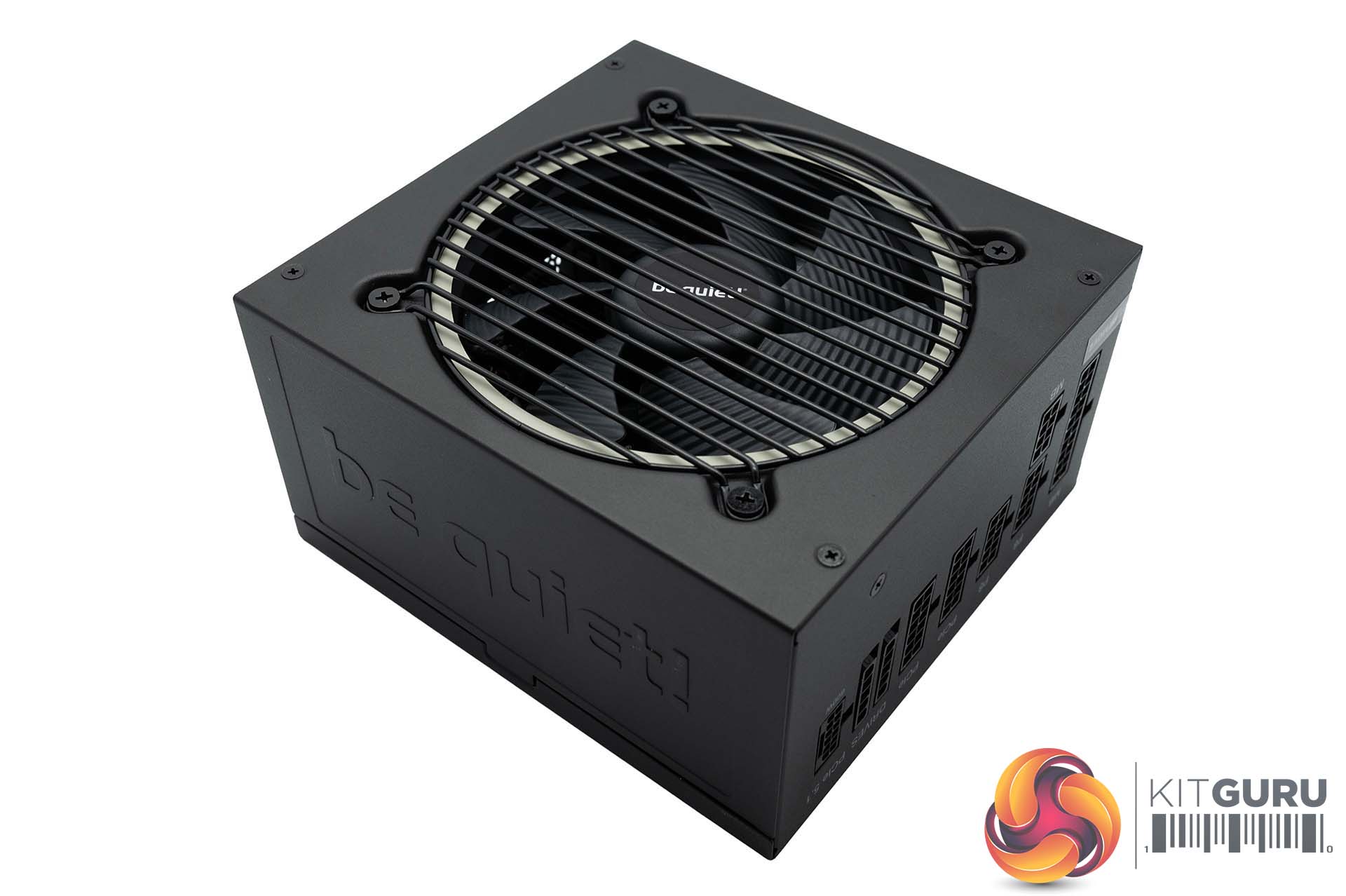

The overall footprint of the Pure Power 13 M 1200W is compact. It measures 160 x 150 x 86 mm.

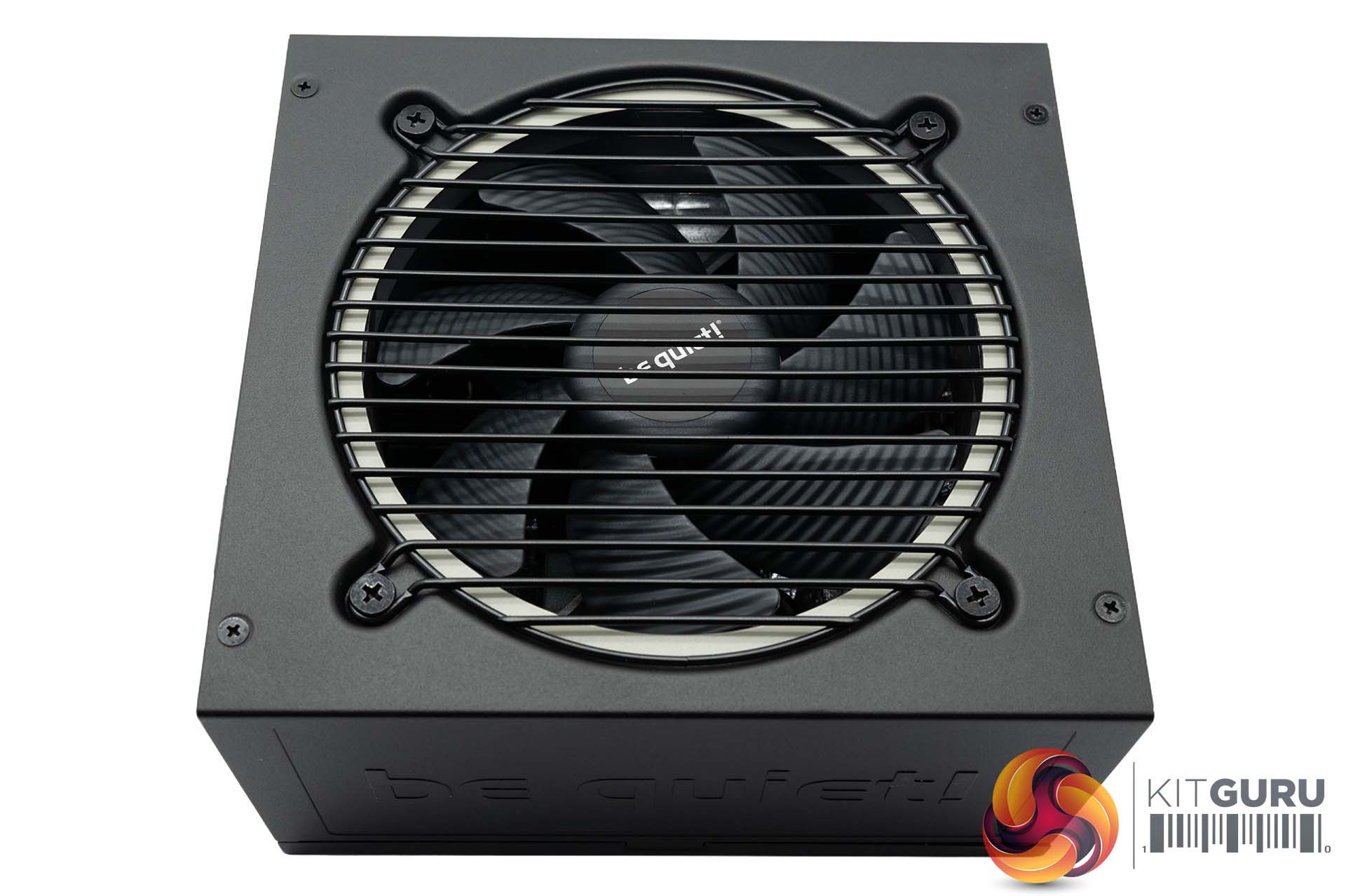

The grille at the top of the power supply is very open, ensuring good airflow from the fan to the components underneath. We will take a closer look at the fan shortly.

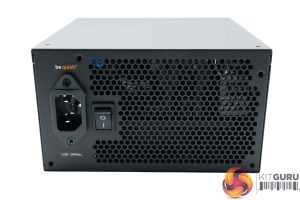

One side of the PSU is home to the power switch and connector. A large vented panel is at the side to help aid airflow. This fan adopts a semi-passive zero RPM cooling system. We have seen many versions of this before – basically the fan will disable at lower loads and internal temperatures to keep the noise floor as low as possible.

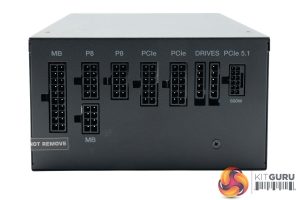

The modular side of the unit is all labelled with the cable connectors mounted vertically.

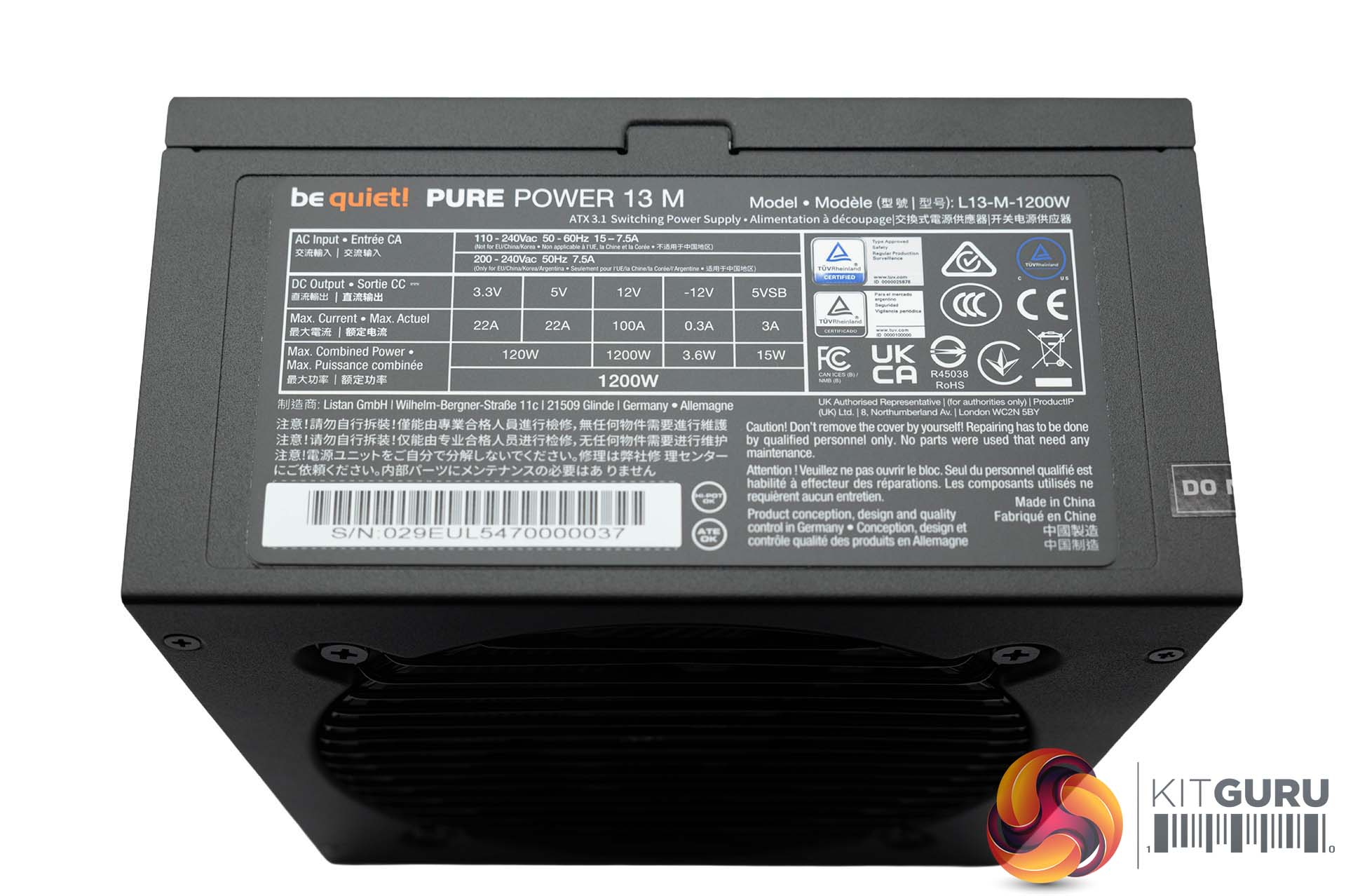

The unit is able to deliver 100A on the +12V rail, with the +3.3V and +5V minor rails able to deliver 22A for a total of 120W.
