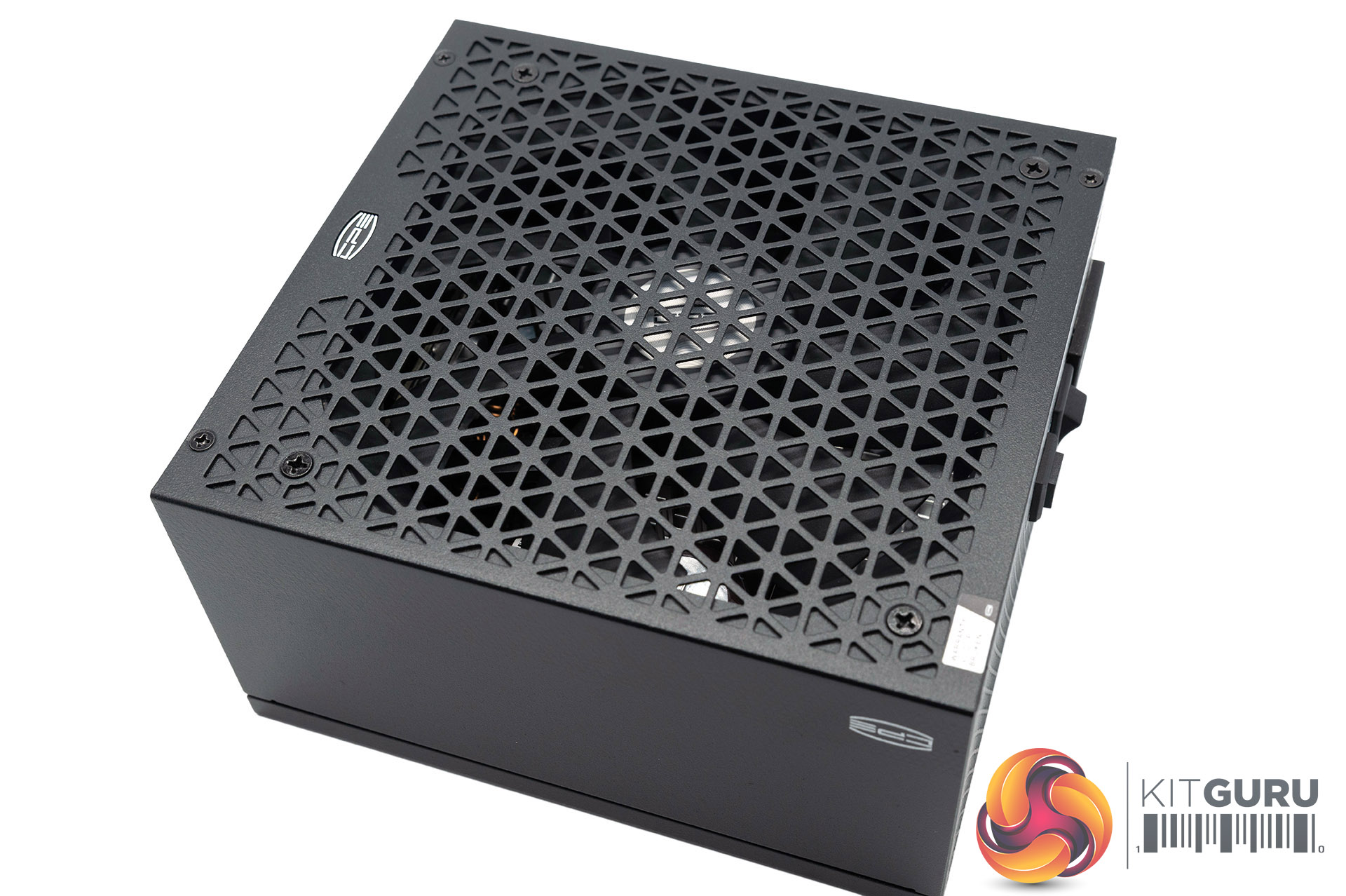

The YS1200 is a simple looking power supply measuring 160 mm x 150 mm x 86 mm. This PSU will fit into a wide variety of PC chassis. I like the metallic plate at the top, it's a nice touch.

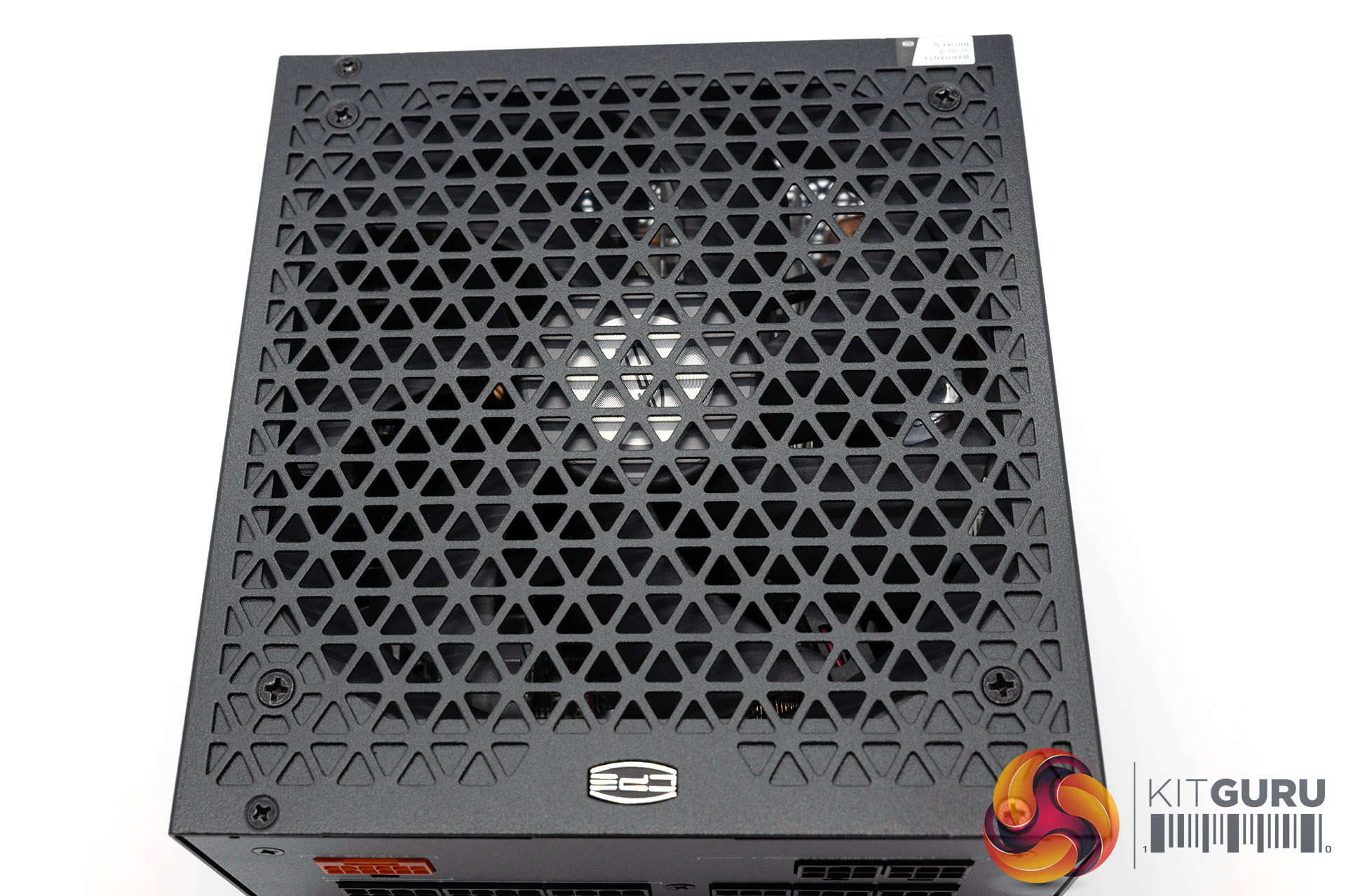

The top of the unit has a large grille for airflow. We will look at the fan inside shortly once we open the unit.

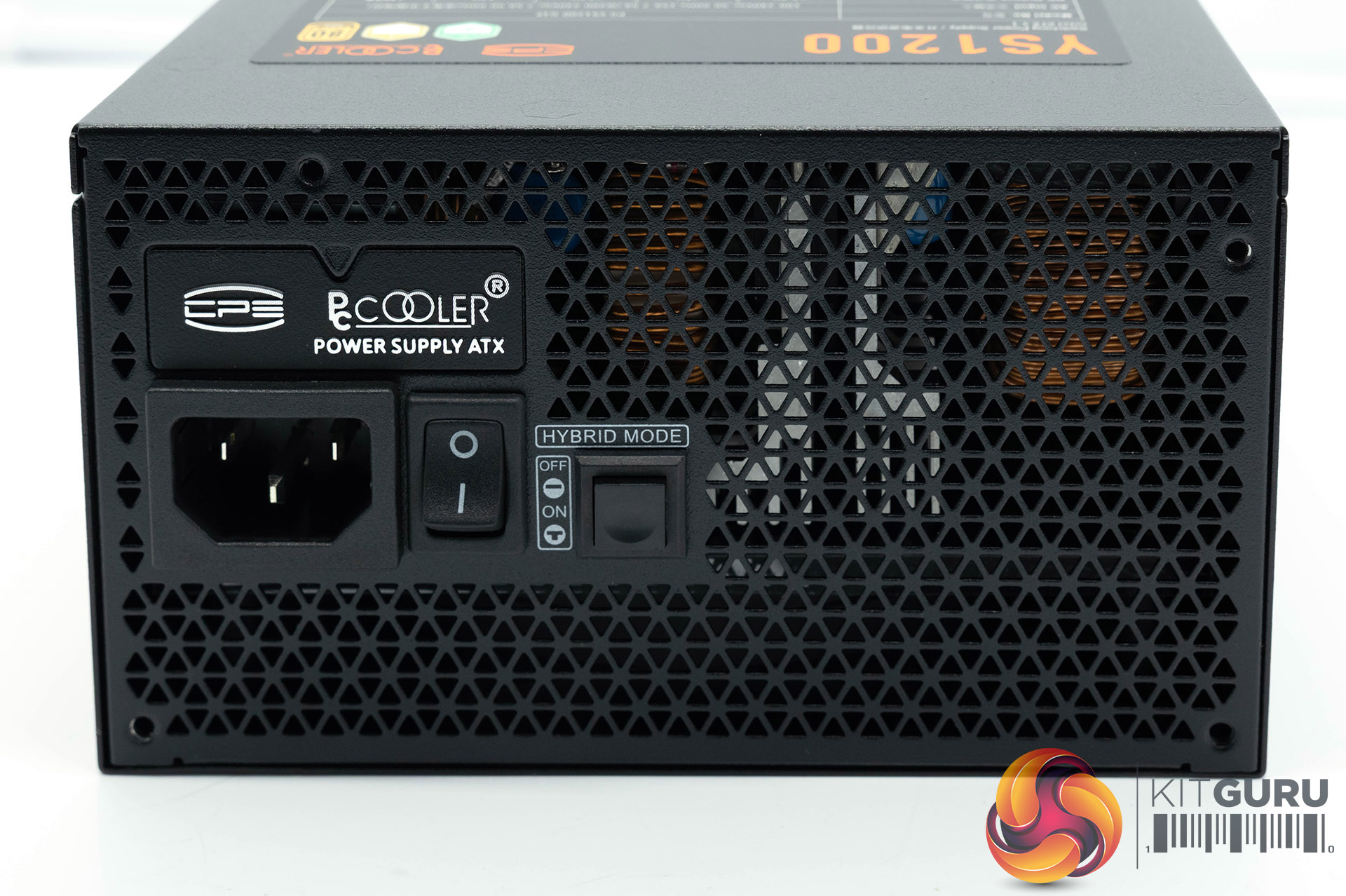

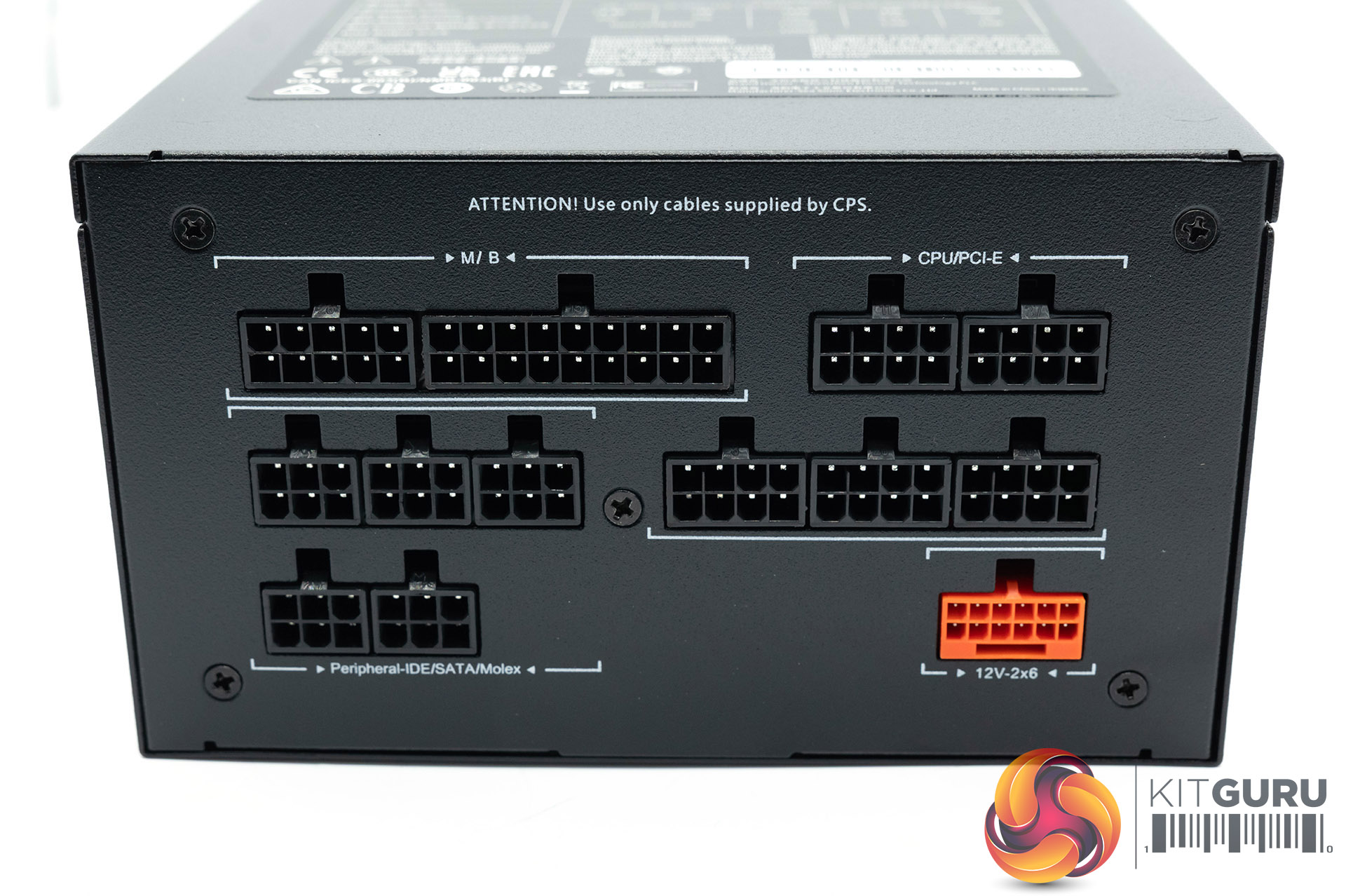

One side of the power supply is home to the modular bay, across three rows, and the other side is home to the power connector switch and the hybrid fan mode switch.

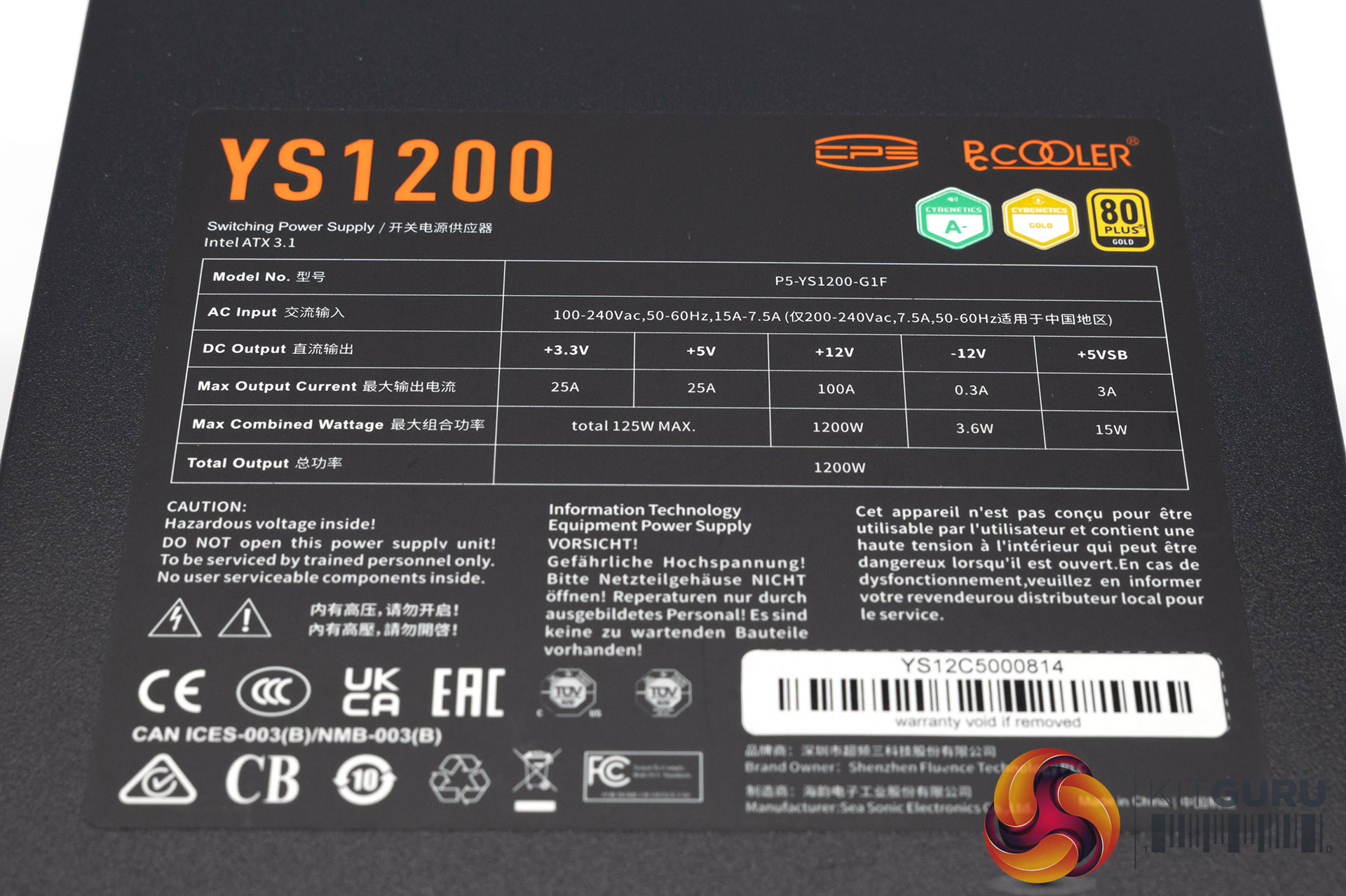

The YS1200 is able to deliver 100A across the +12V rail and 25A across both minor +3.3V and +5V rails.
