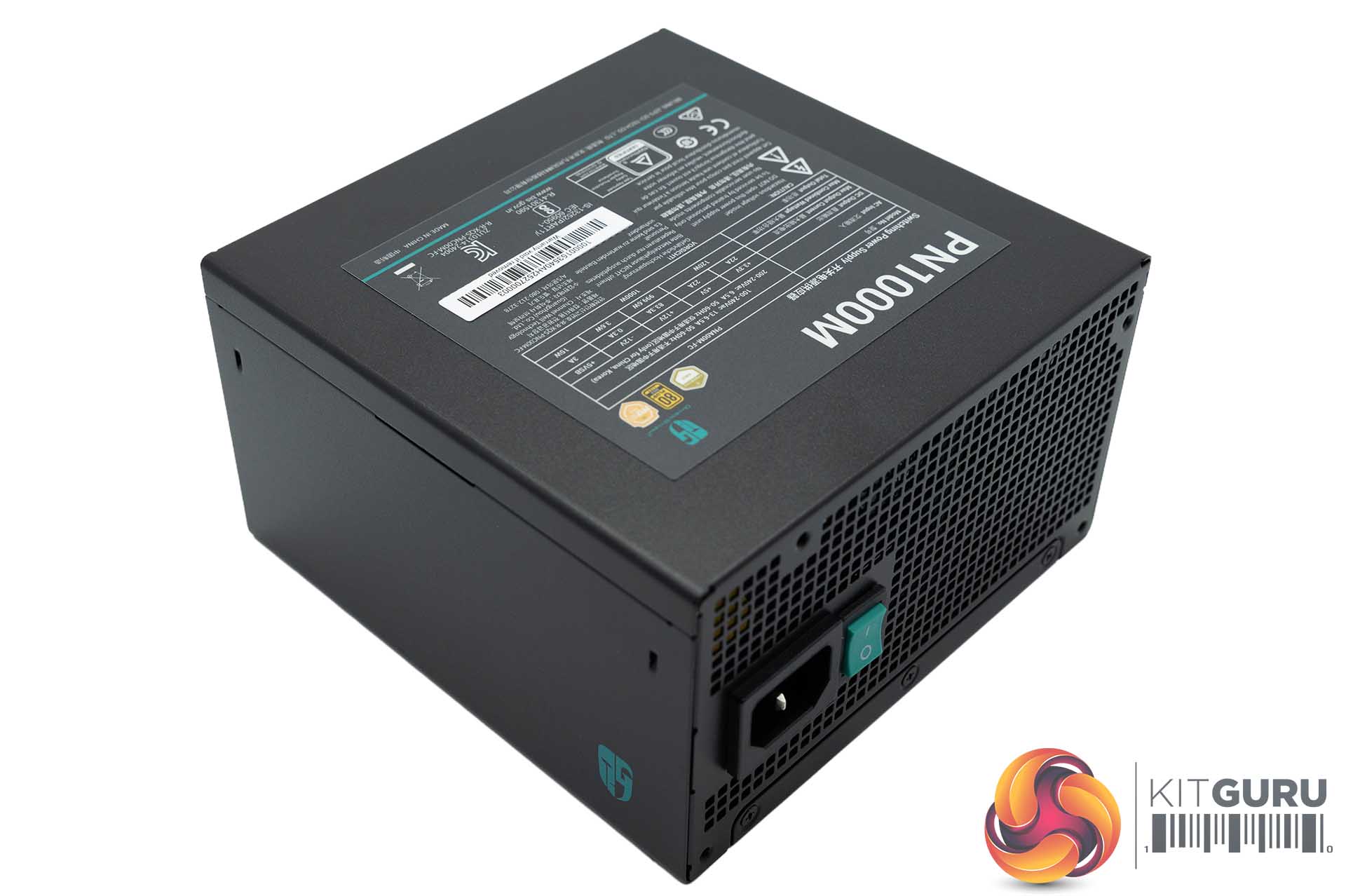

The PN1000M is a simple-looking power supply with some coloured accents on various buttons and switches. It measures 150 mm x 85 mm x 150 mm and weighs 1.7kg. This size will fit into the majority of cases on the market today.

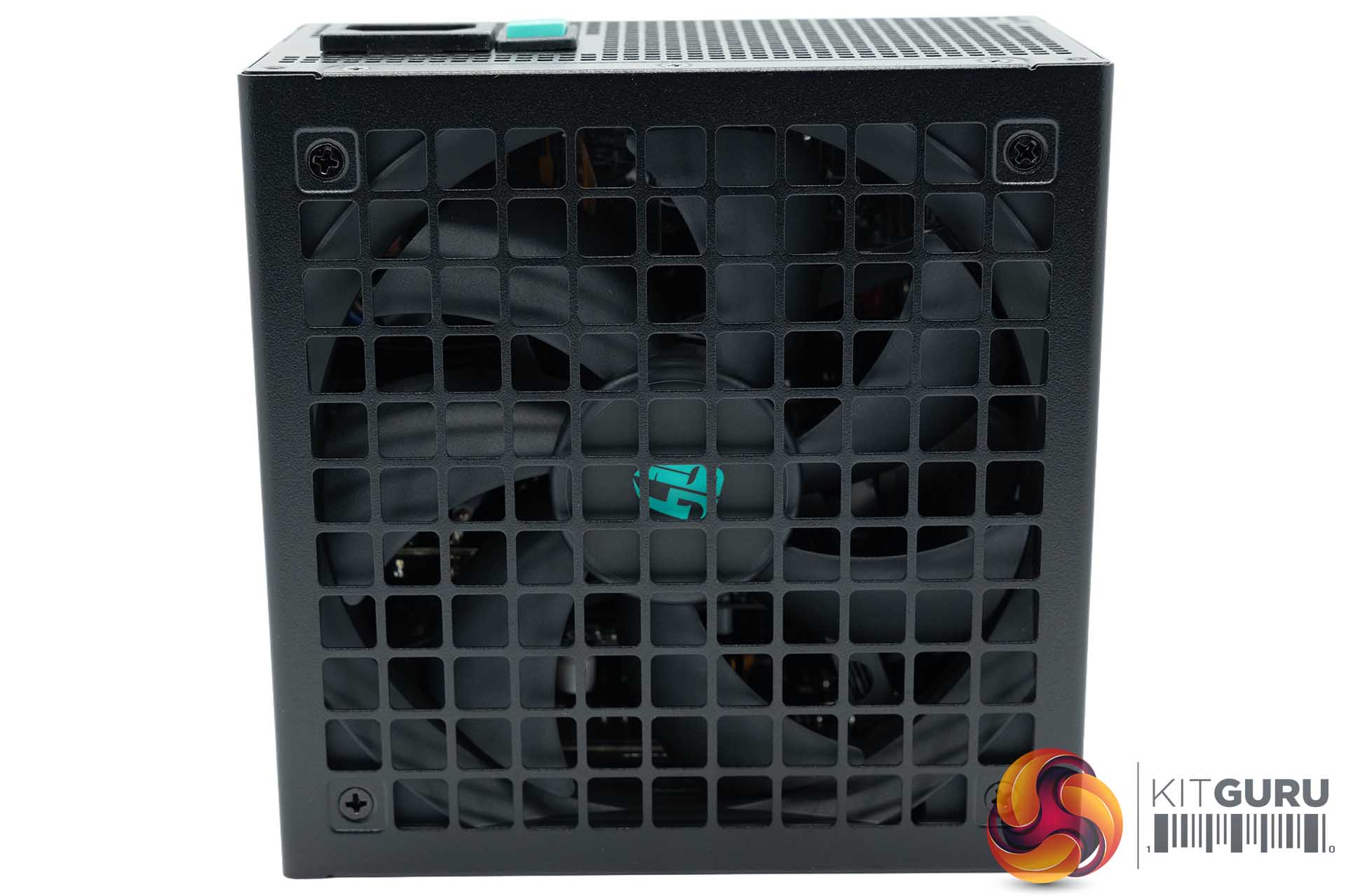

The top of the power supply is heavily vented with the fan underneath. I quite like this cut design, it will offer a lot of airflow capabilities and it looks pretty cool, too.

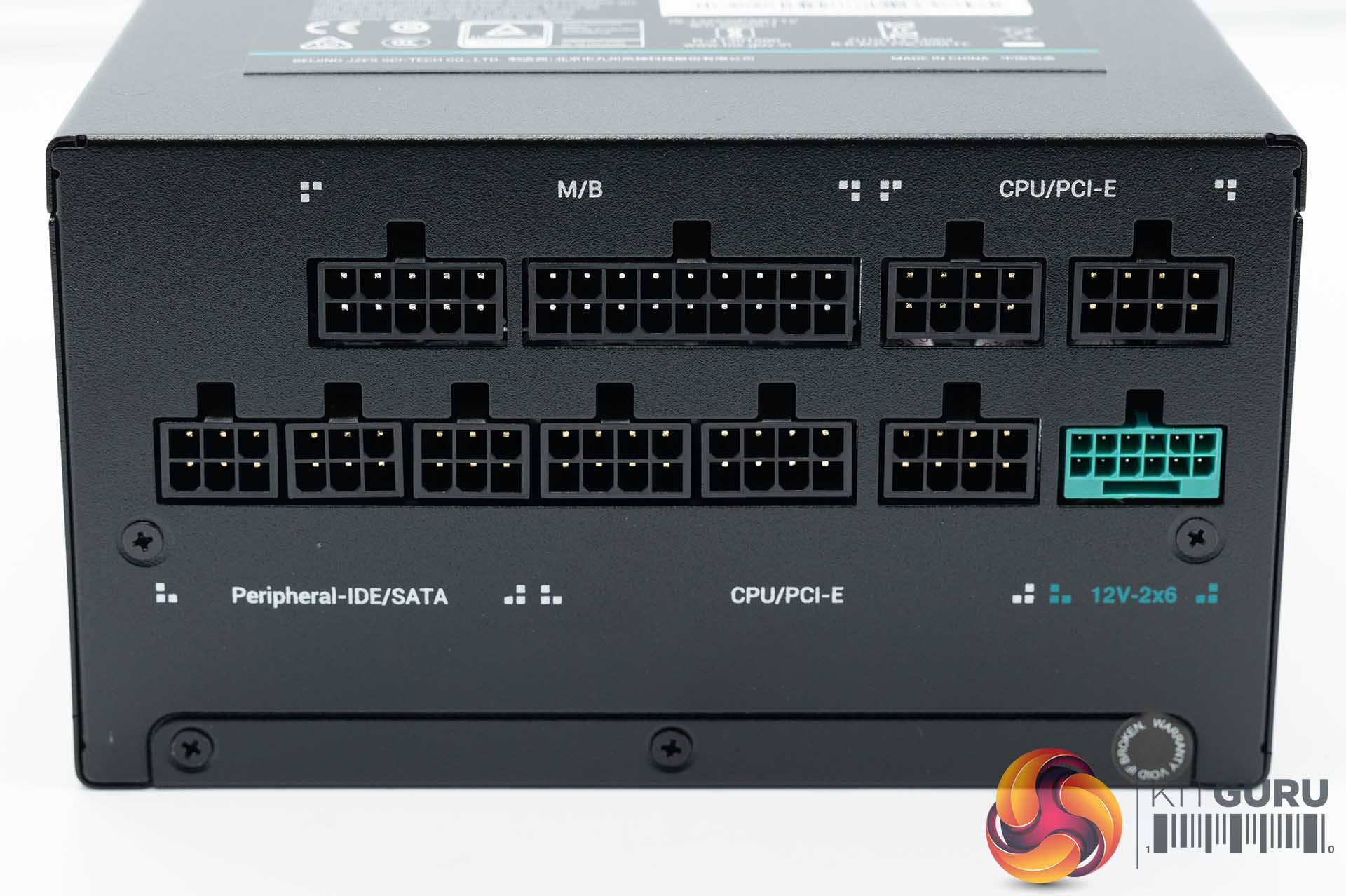

The modular side of the power supply is nicely laid out, across two rows. All connectors are labelled well. The 12V 2×6 connector is coloured to stand out from the others.

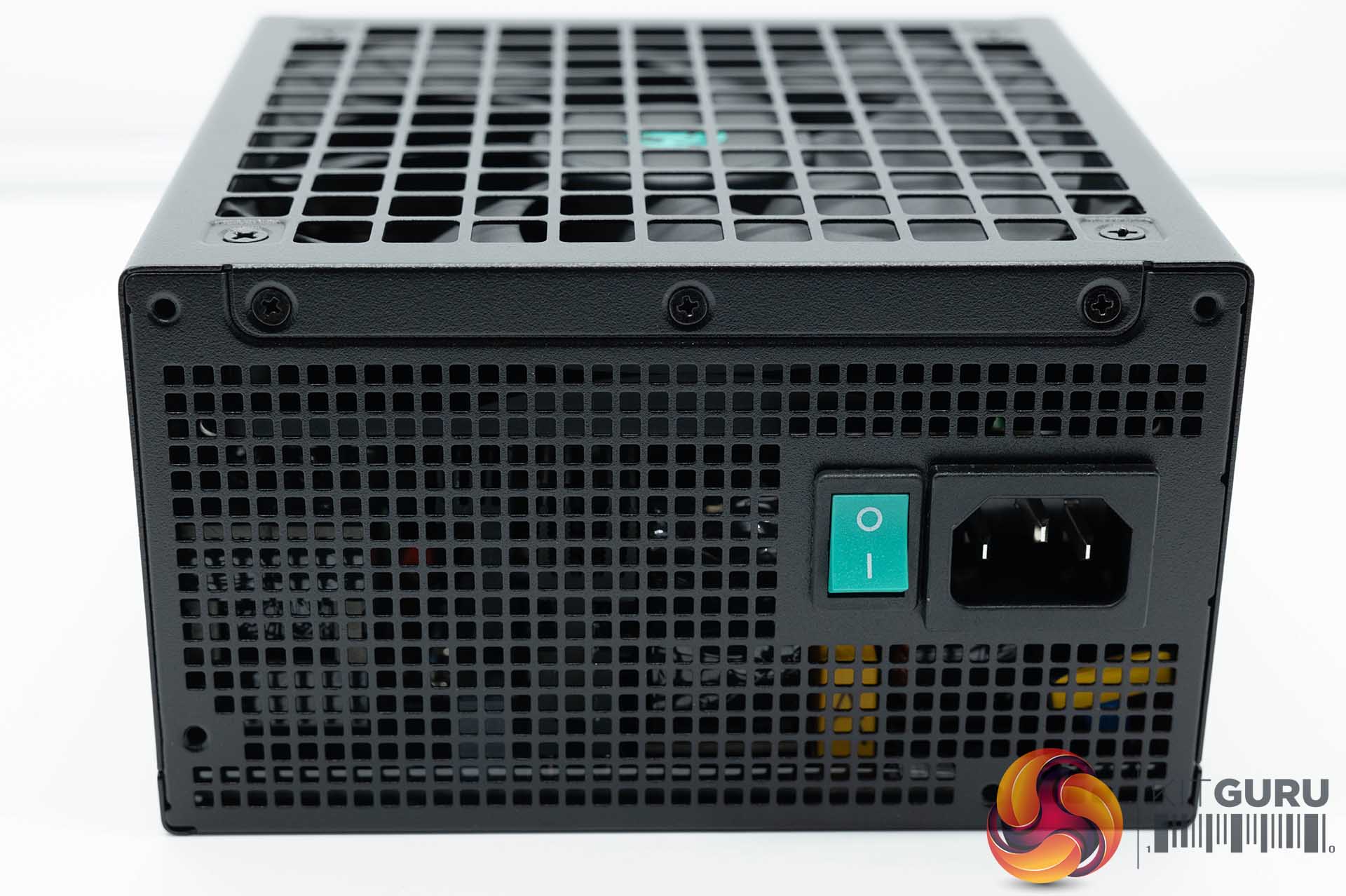

The power side of the supply has a single power switch and connector for the cable. This side is vented to help with airflow during use. I have to say I like the little touches of turquoise on some of the ports, switches and logo etchings. I normally am not a fan of colour on power supplies, but it is a subtle addition.

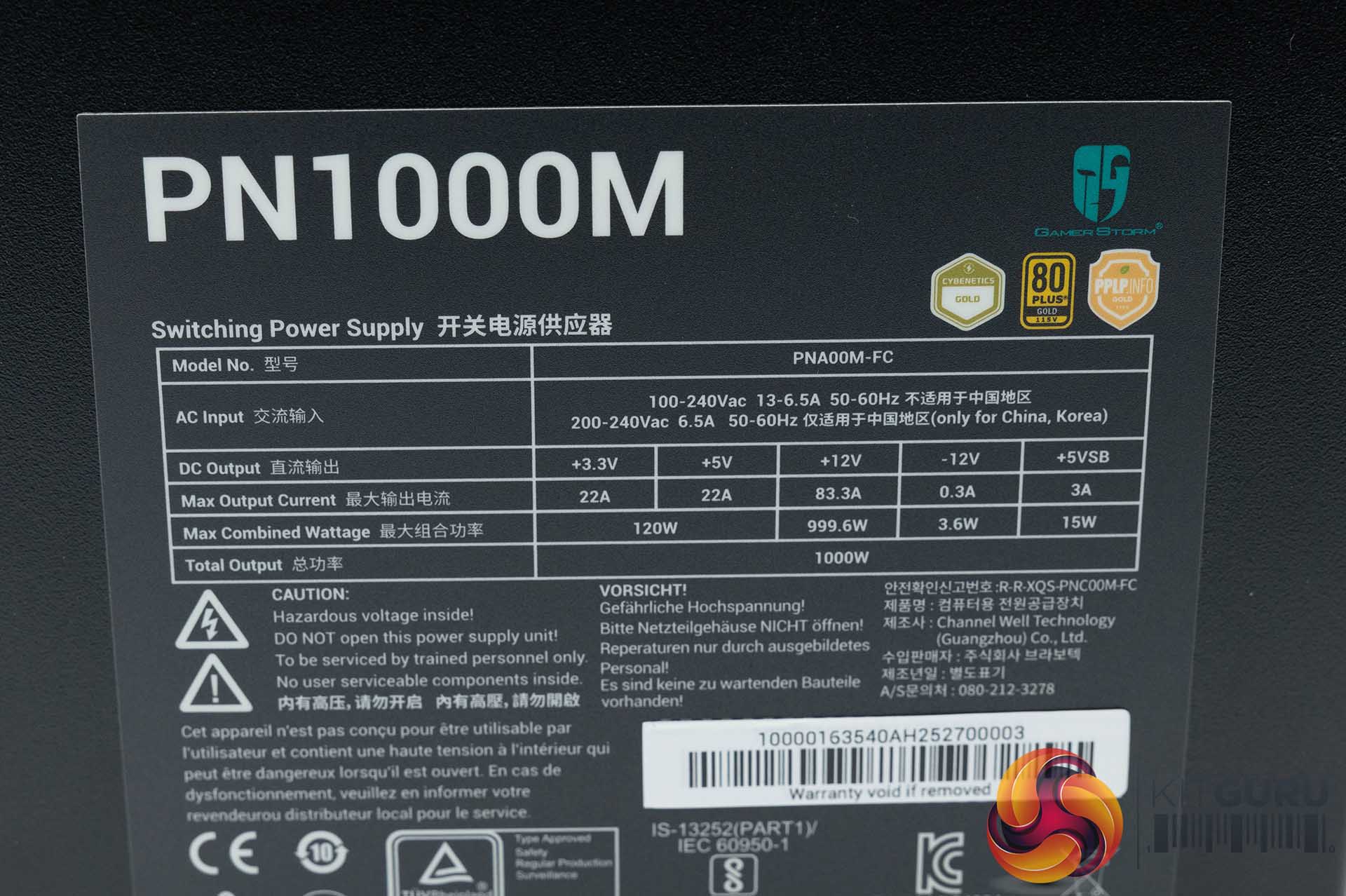

The PN1000M can deliver 83.3A via the +12V rail for 999.6W and 22A on both +3.3V and +5V minor rails. DeepCool have both Cybenetics Gold and 80 Plus Gold Certified badges here as well.
