DeepCool PX1000G (80 Plus Gold) Review

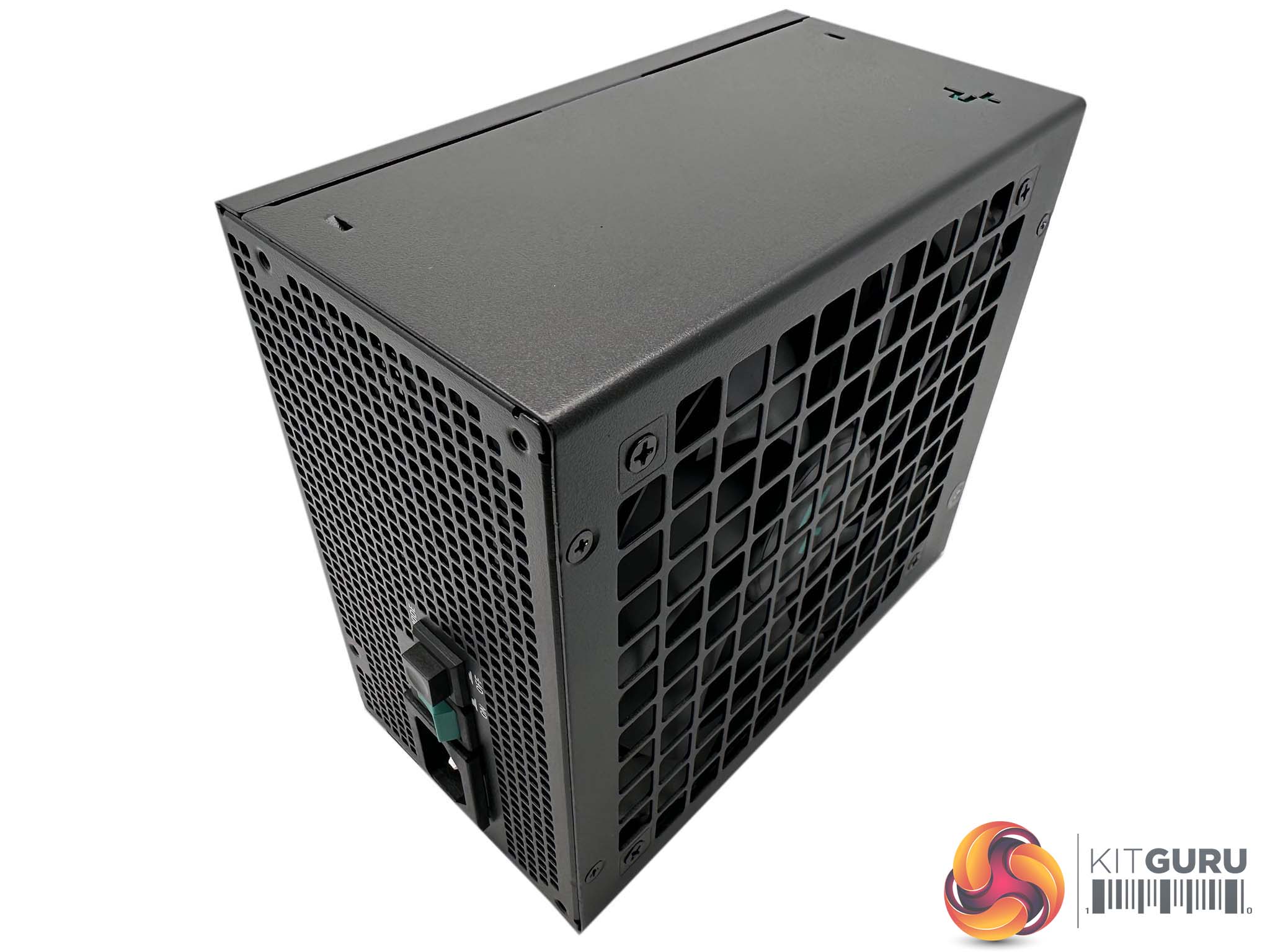

The unit is very understated and built to a high standard. It measures 150x160x86mm (WxLxH) – reasonably compact to suit a wide variety of case designs.

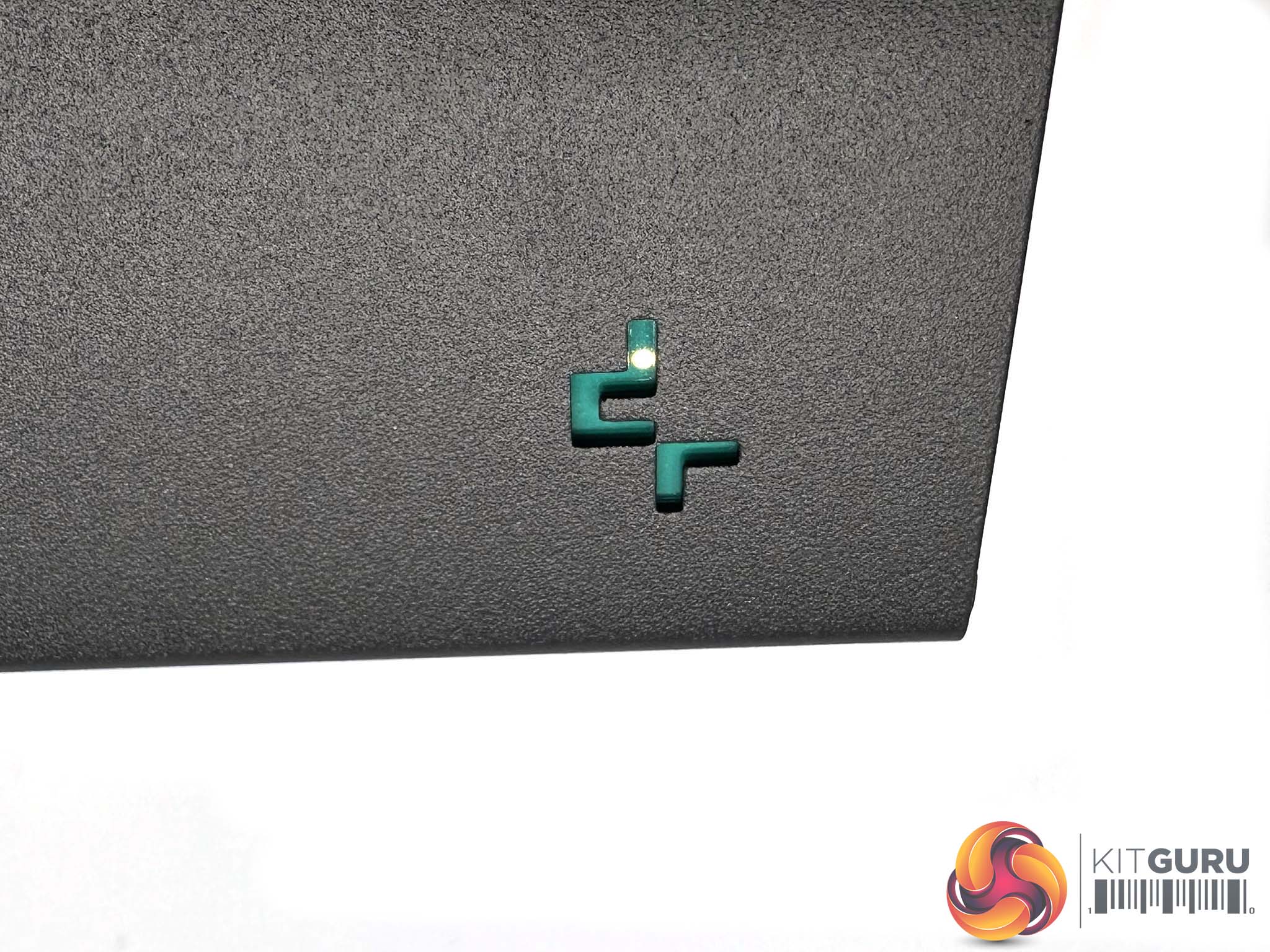

I quite liked the little engraved ‘DC' logo on the side panels. Again, very understated and a nice touch.

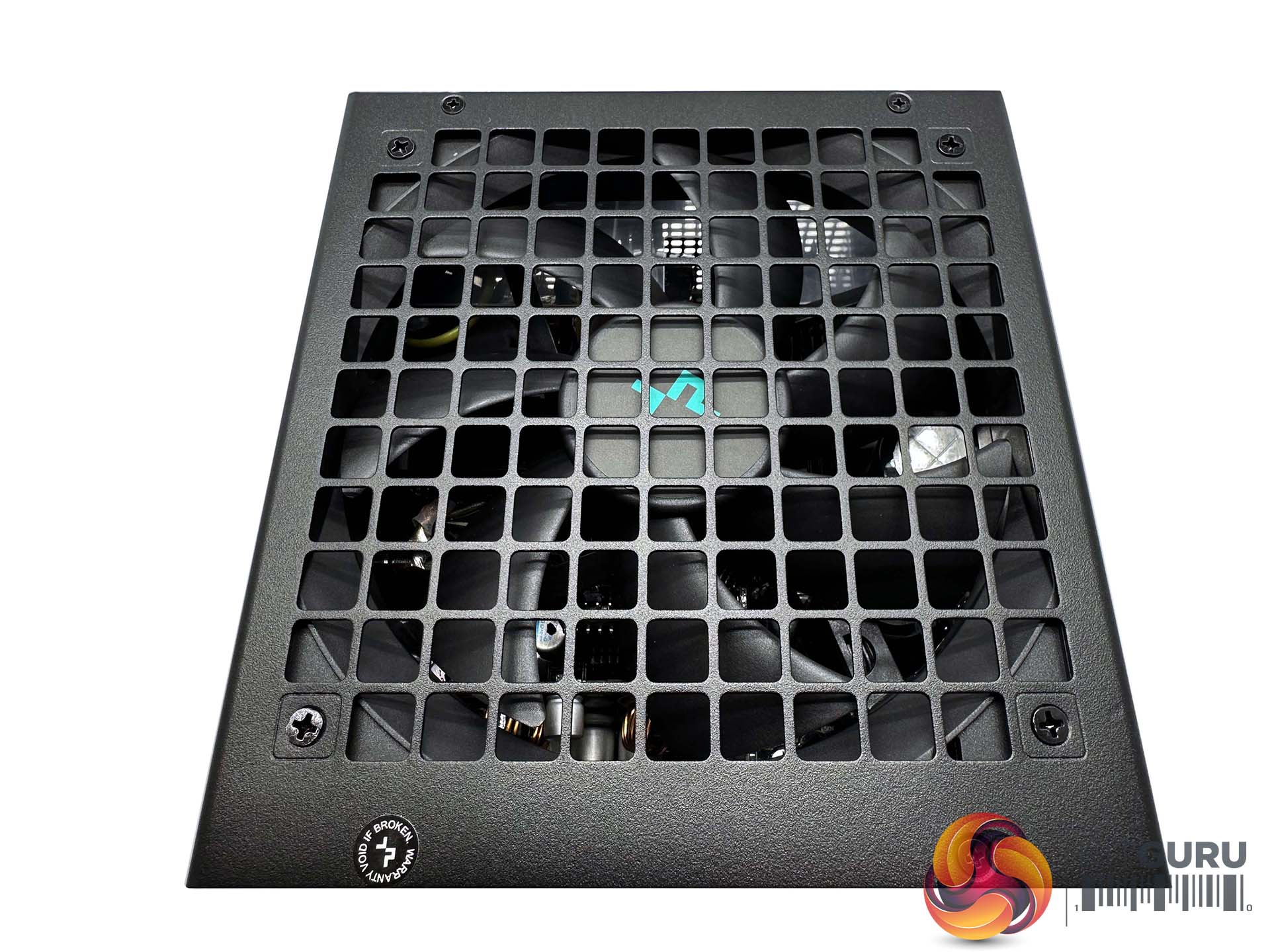

A large 135mm fan is hidden behind a shroud on the top of the power supply. We will take a closer look at this when we open the unit later.

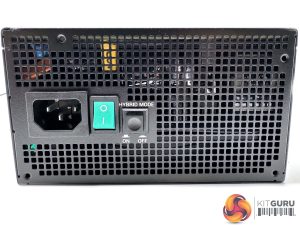

One side of the power supply is home to the power connector, switch and Hybrid mode switch which disables the fan at lower loads.

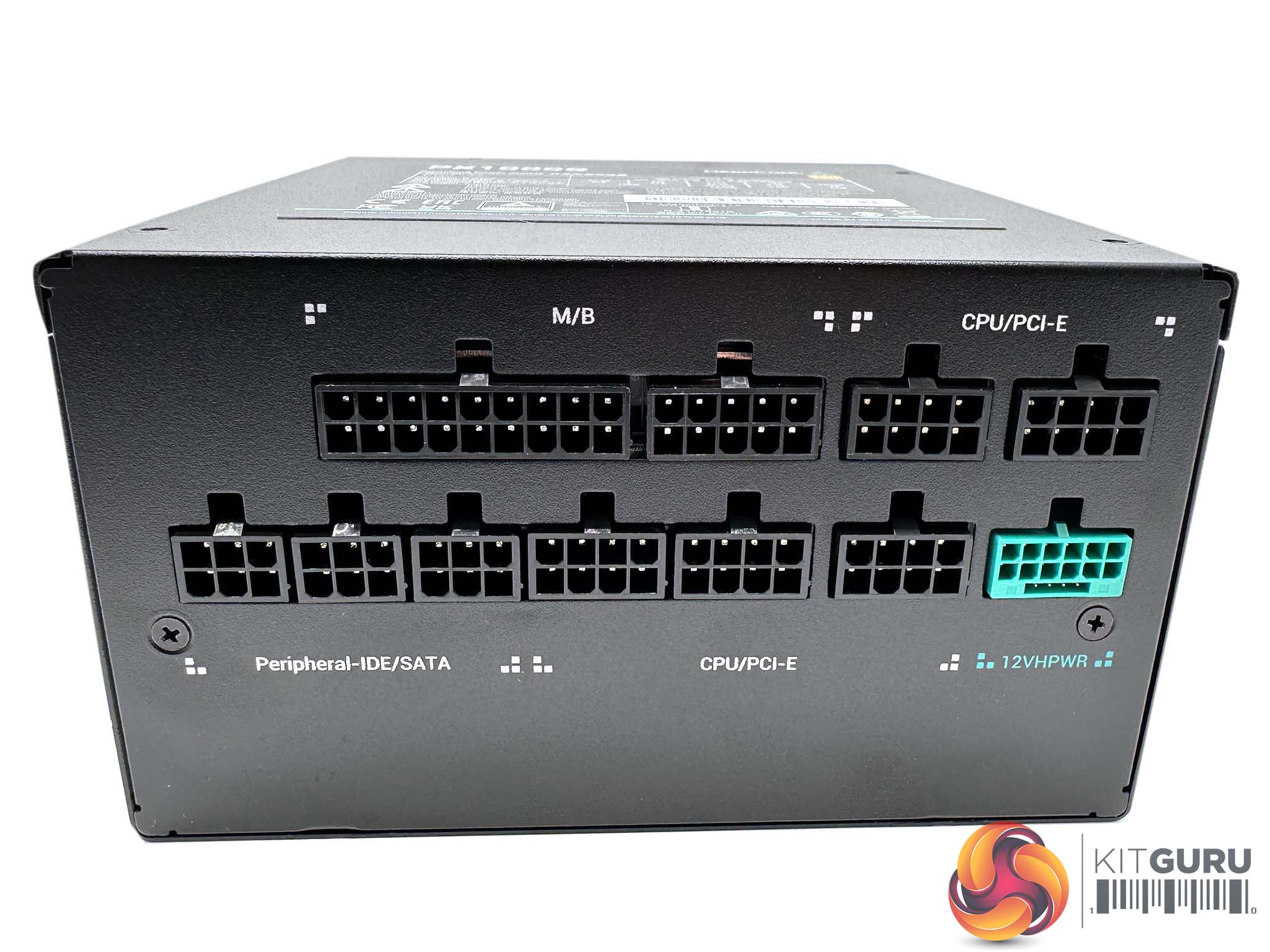

The other side is home to the modular bay – two rows of labelled connectors to help with the build process. The 12VHPWR connector is coloured blue to stand out from the rest.

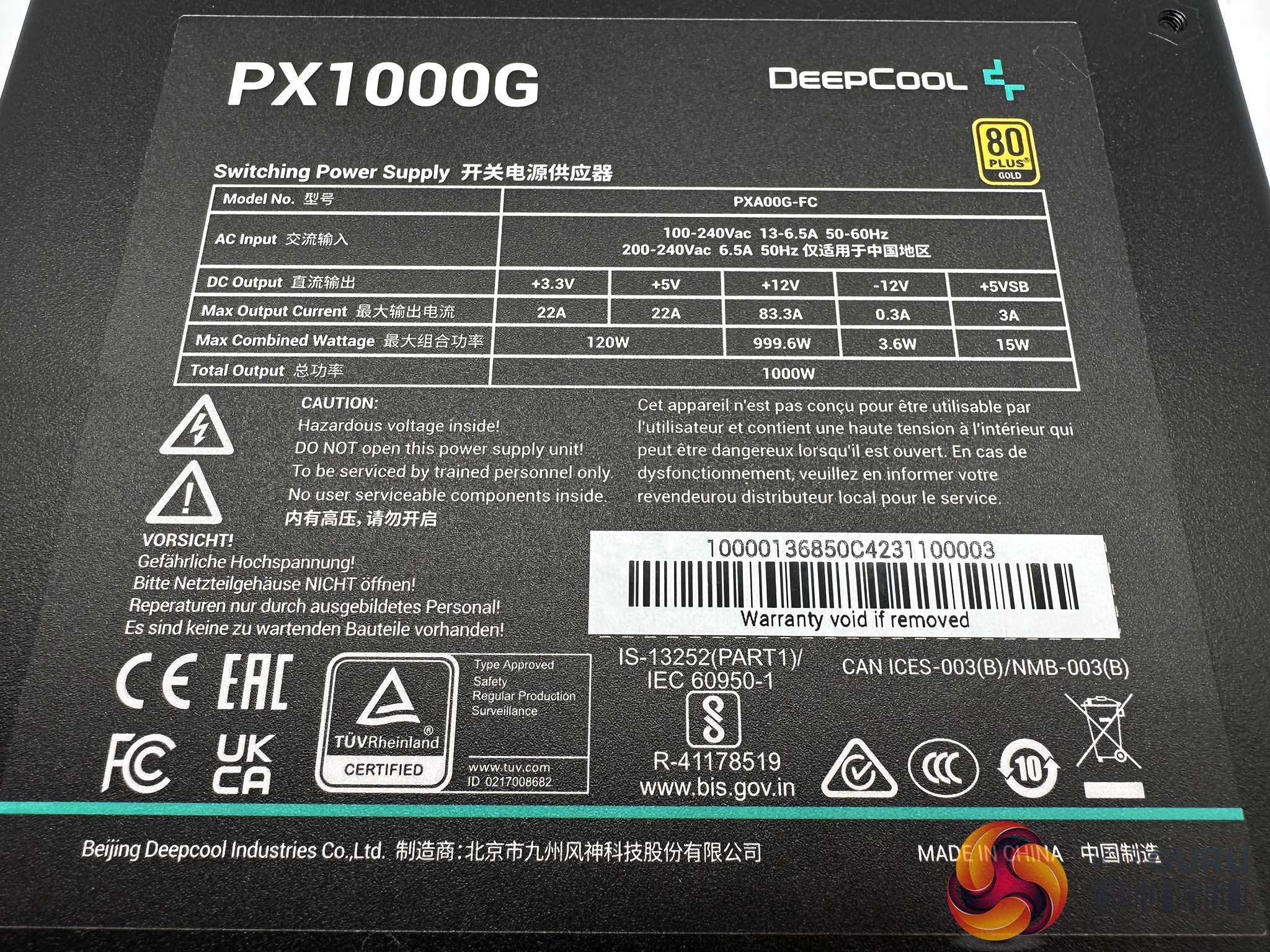

The top of the power supply has a sticker which indicates the power delivery across the rails. The supply can deliver 22A on both +3.3V and +5V rails and 83.3A via the +12V rail.
