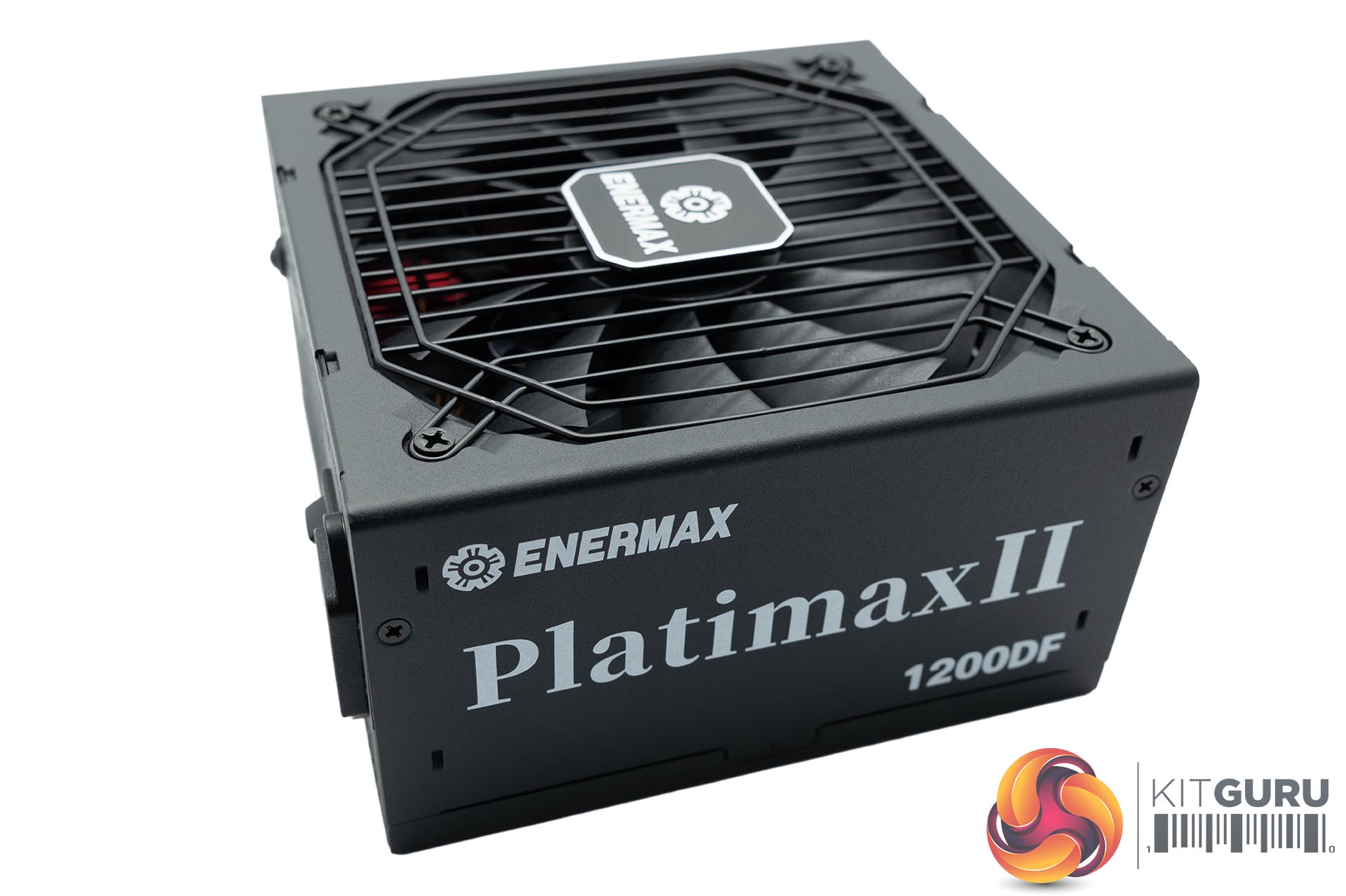

We received the black version of the Enermax Platimax II 1200DF. It is well finished, simple in design and a simple black/grey aesthetic. The power supply measures 150 x 85 x 150 mm and weighs 1.67KG. It is not an oversized unit and will fit into a variety of chassis designs on the market.

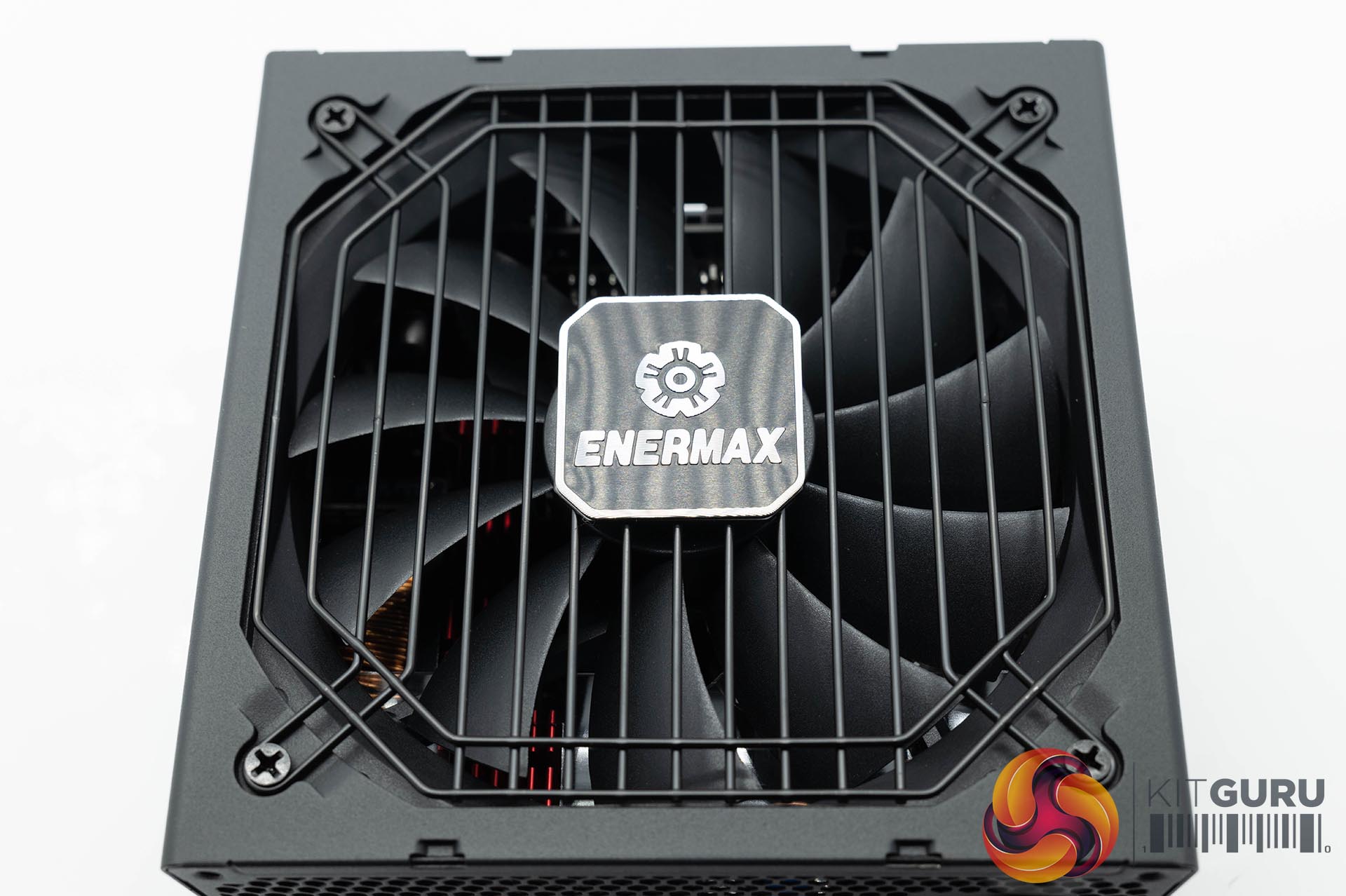

The large fan resides behind a metal grille with the ‘Enermax' badge the middle. There is plenty of vent spacing for airflow.

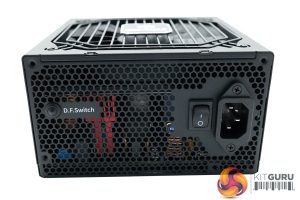

On one side of the unit, we have the power connector port and the power switch.

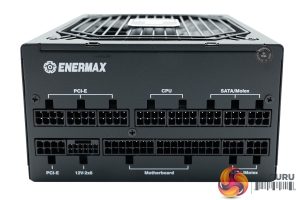

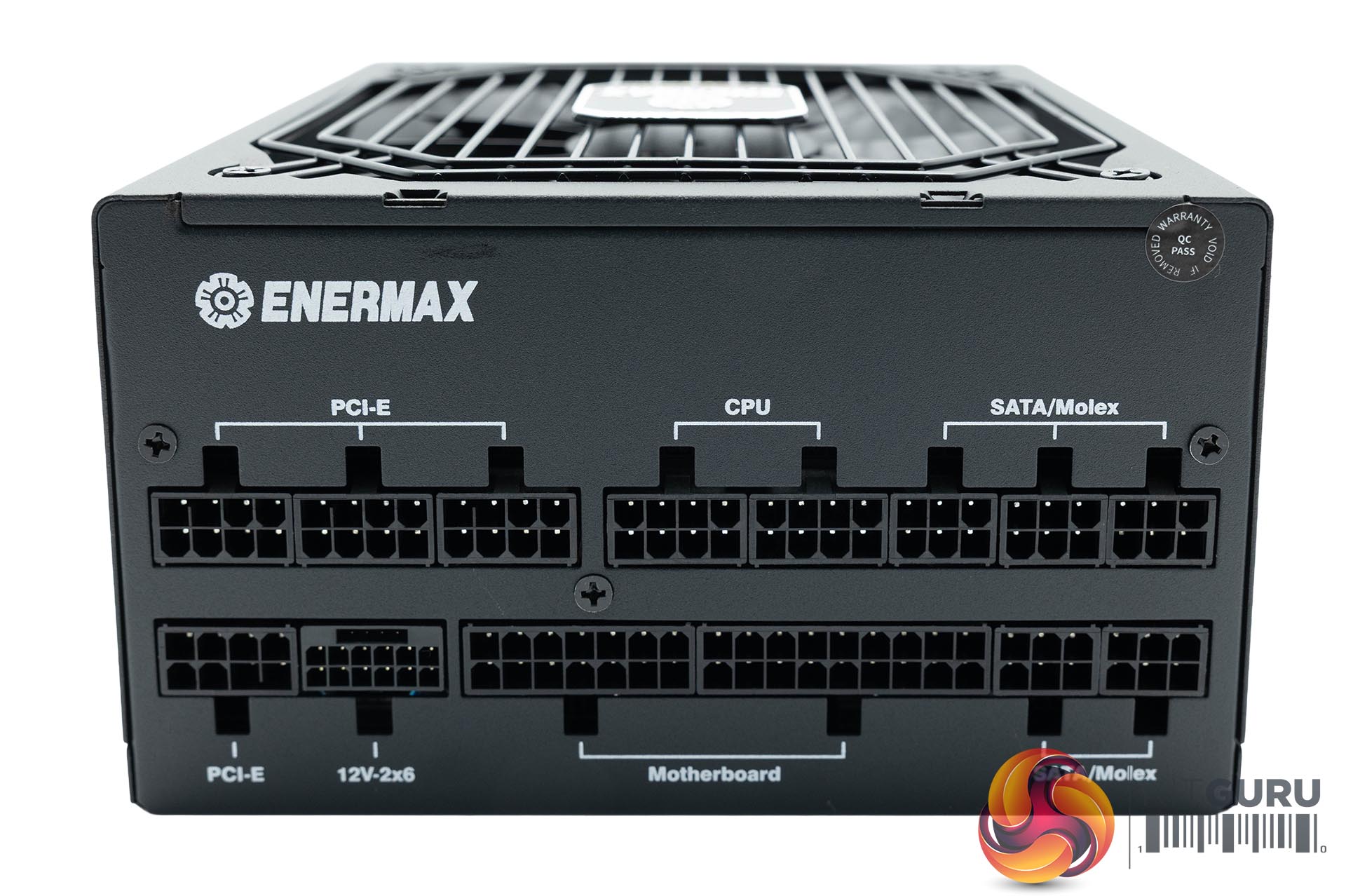

The other side of the power supply is home to the modular bay – in this case all arranged over two rows and labelled.

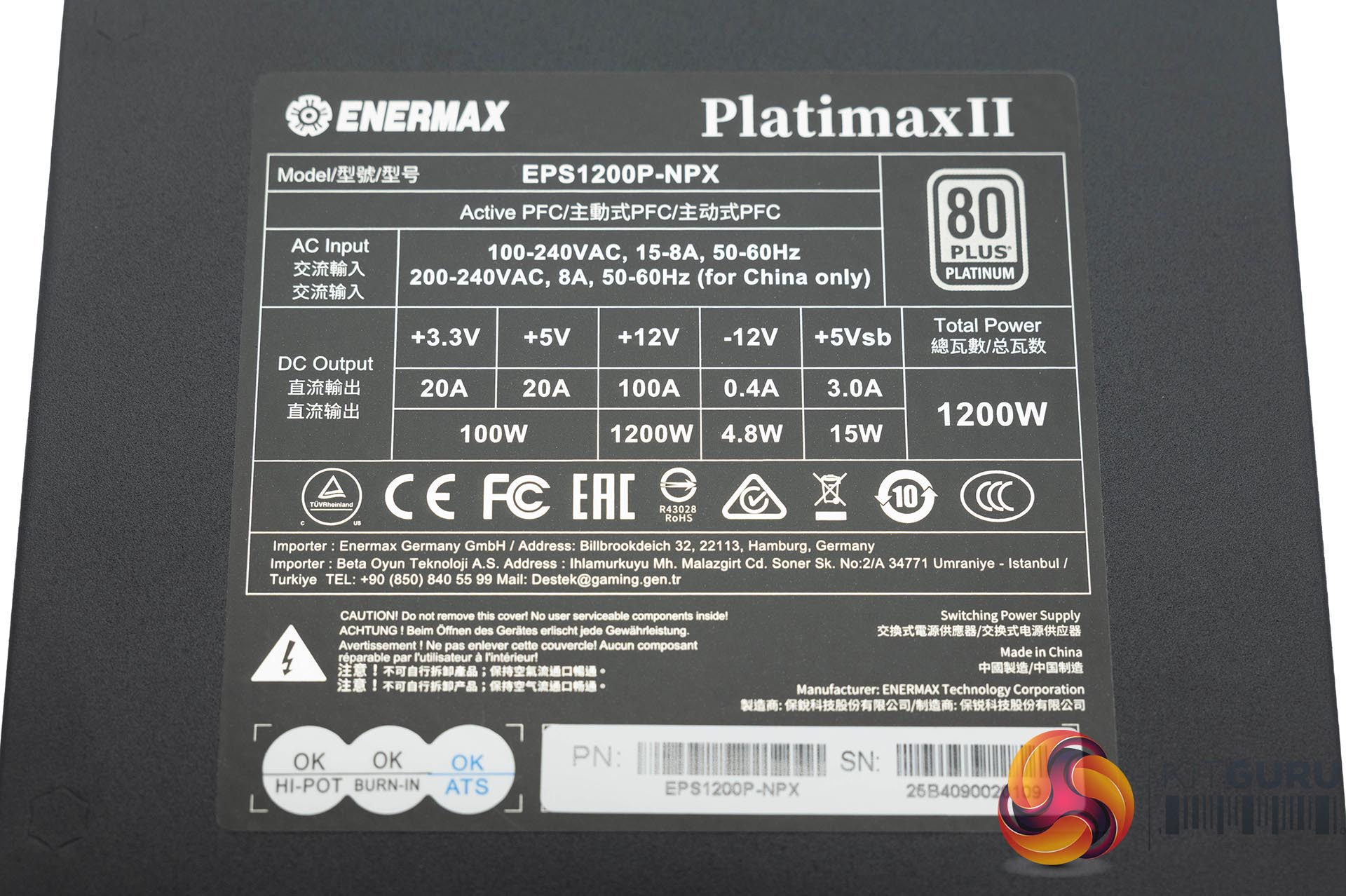

The power label on top shows the power delivery. Up to 100A via on the +12V rail and 20A on both secondary +3.3V and +5V rails.
