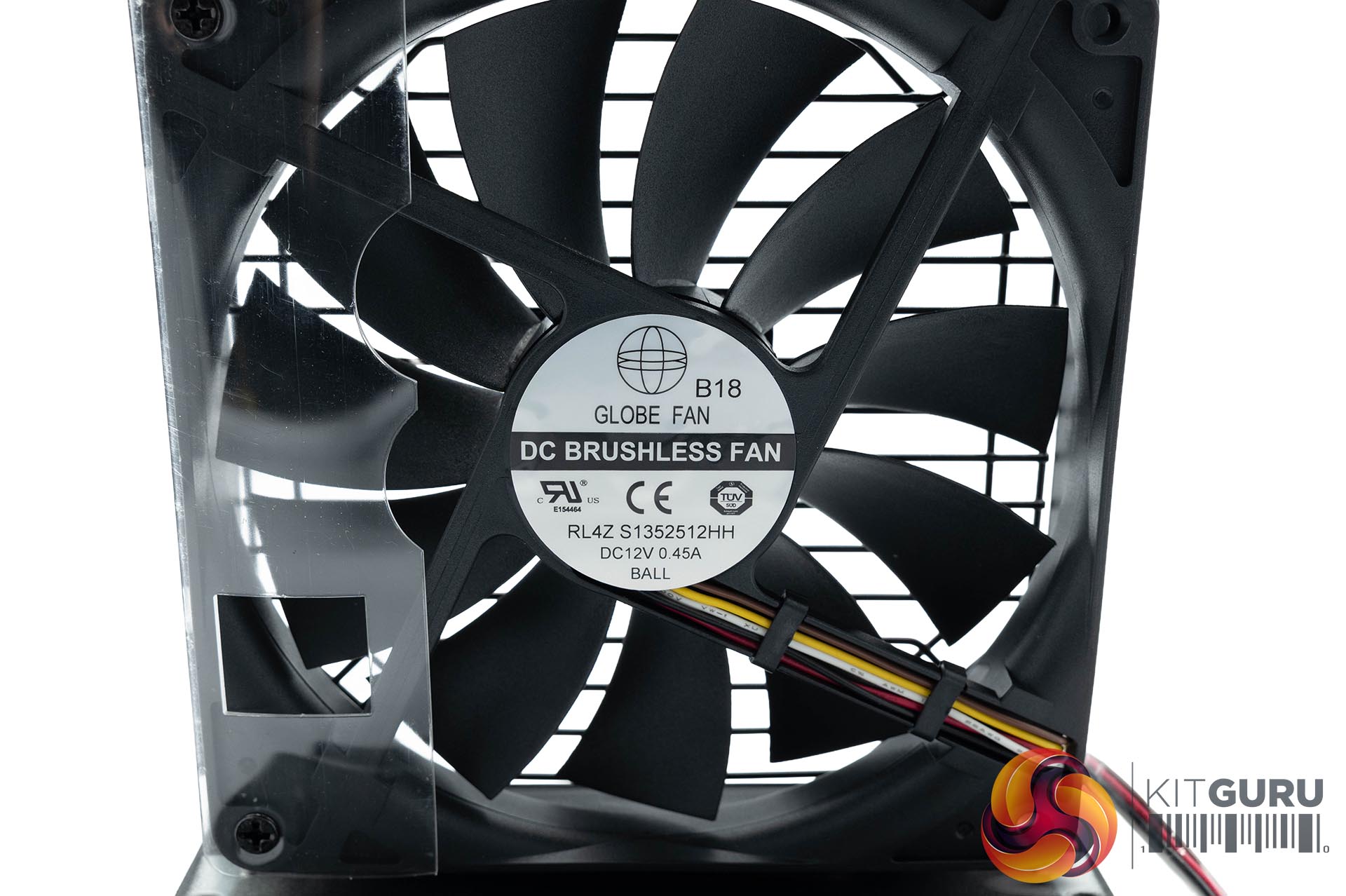

Enermax have adopted a 135mm (25mm deep) Globe Fan unit rated at 12V 0.45A for this power supply. This is a Dual Ball Bearing fan (S1352512HH). MBTF is 100,000 hours.

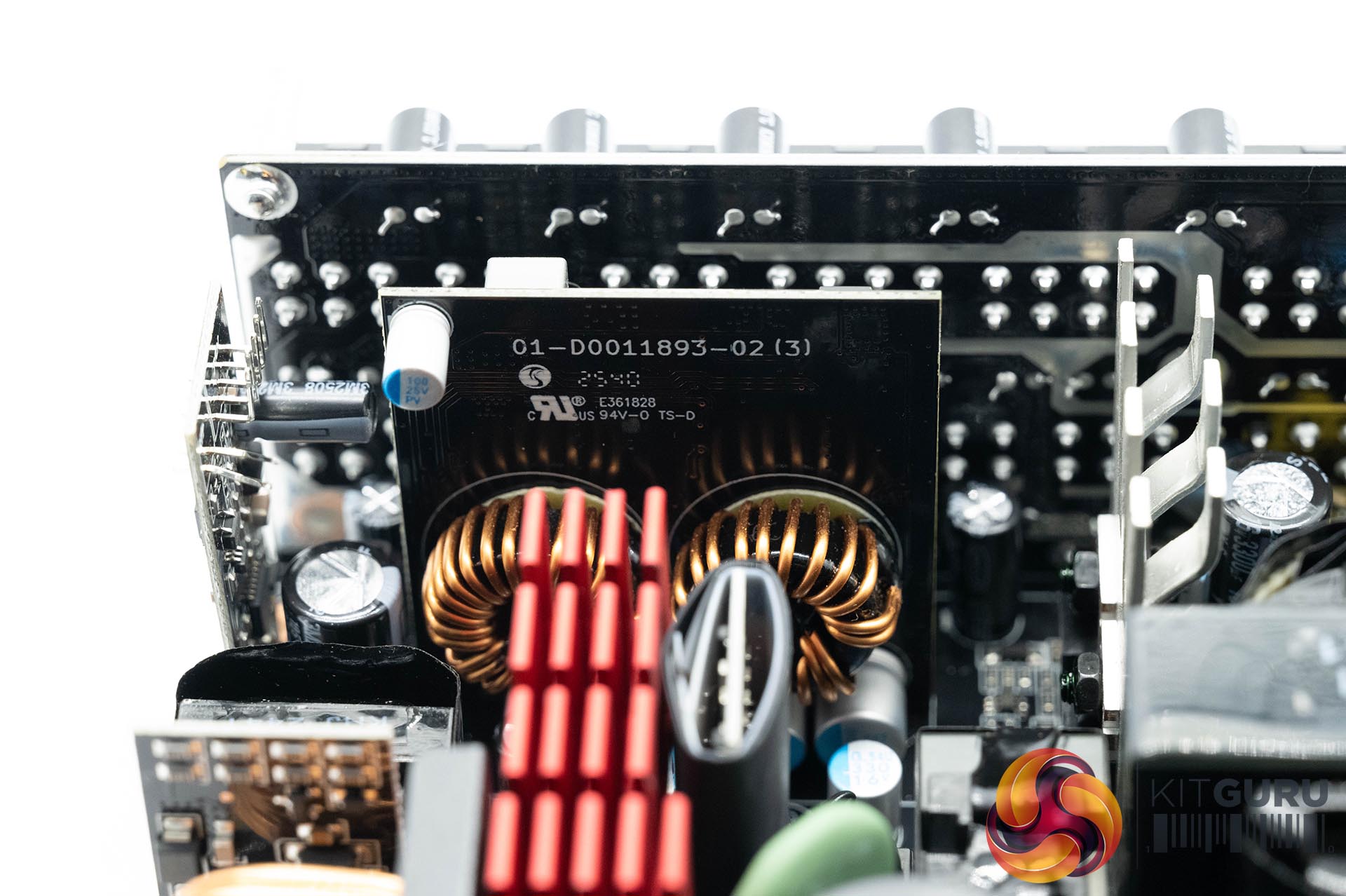

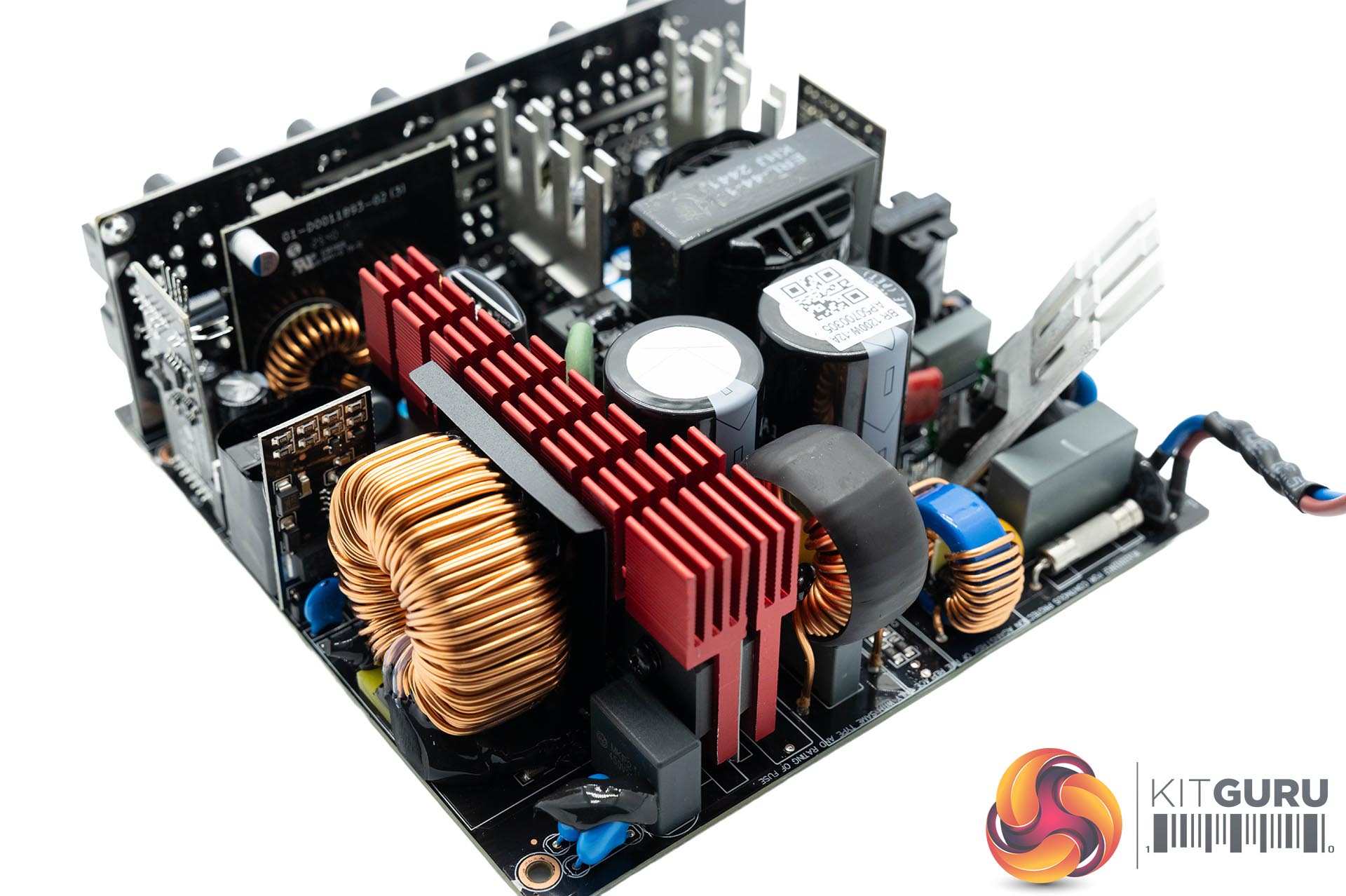

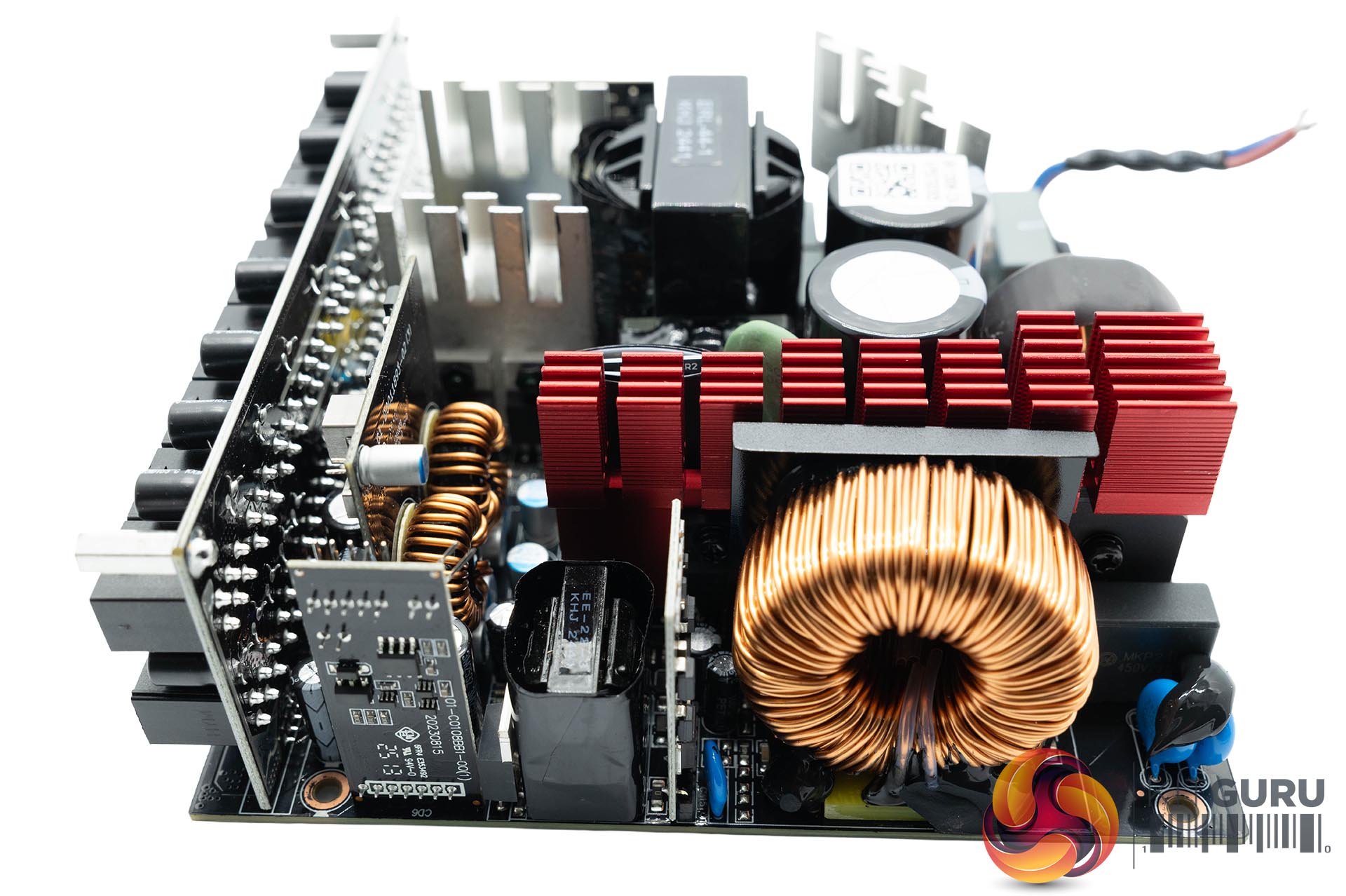

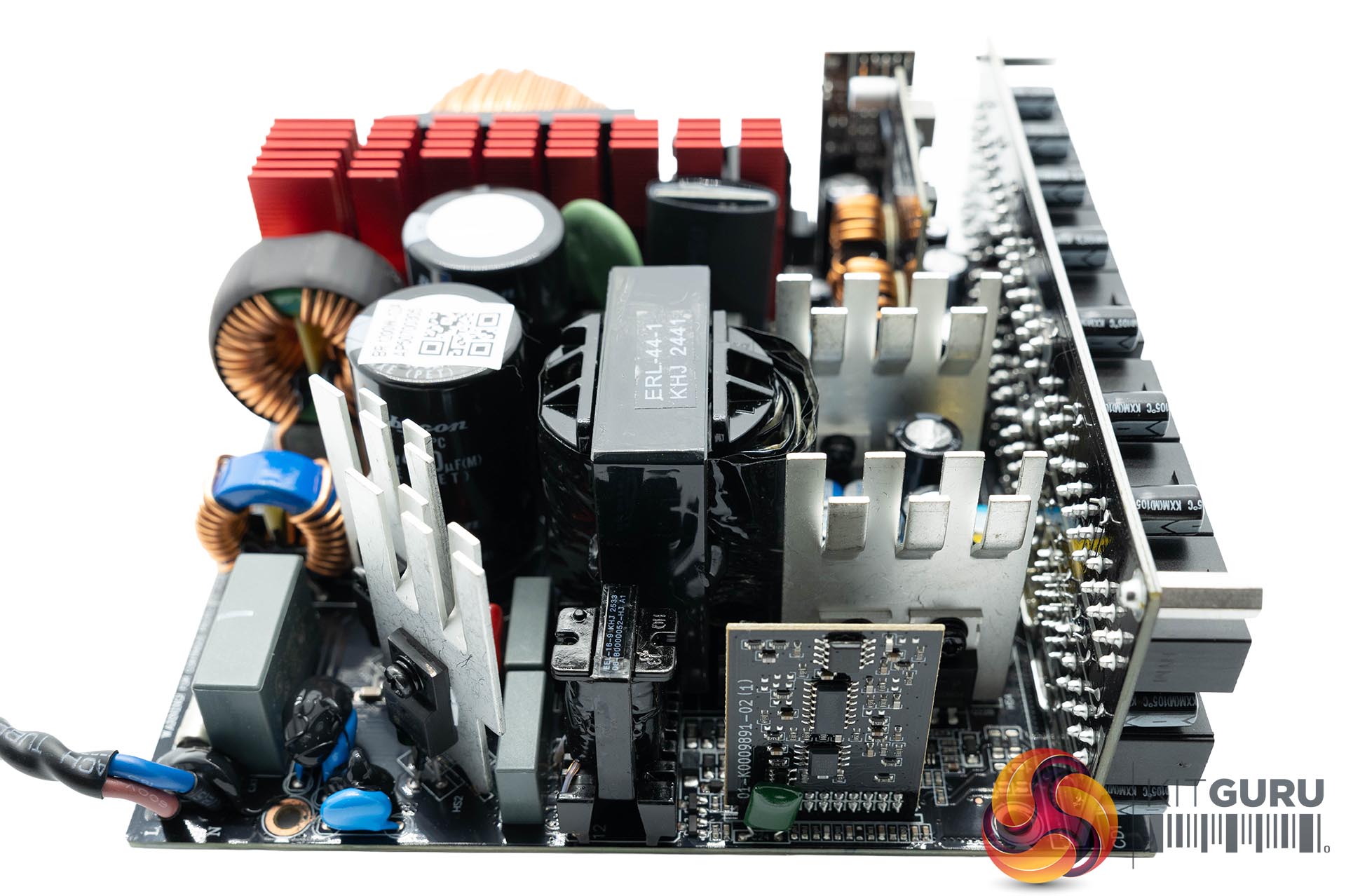

This is an RSY OEM design in collaboration with Enermax. It is an APFC, Full Bridge & LLC Resonant Converter topology with the secondary side 12V synchronous rectification and minor rails generated by DC-DC converters.

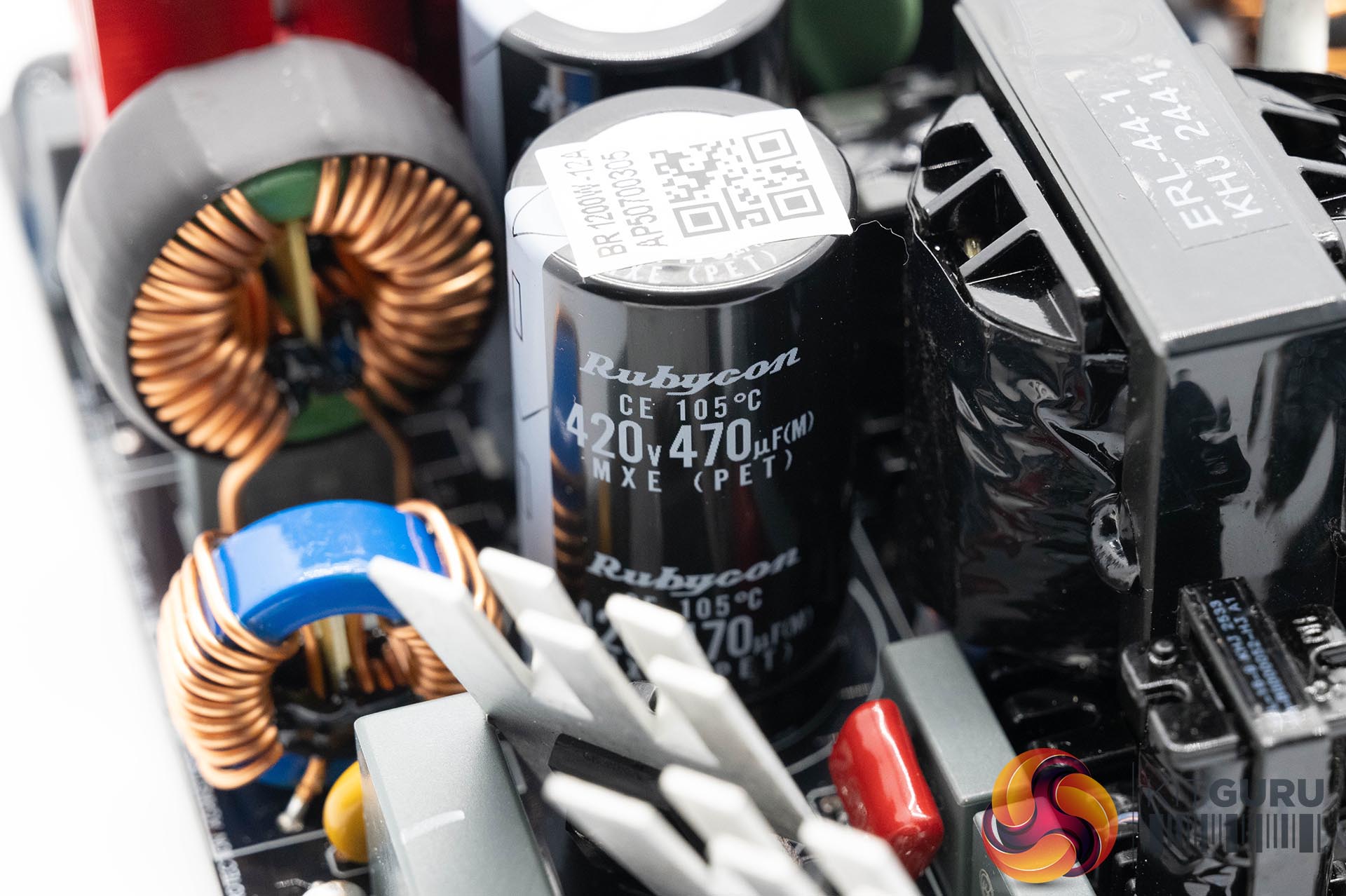

The primary capacitors are high grade 105C Japanese rated Rubycon (MXE), 420V, 470uF to give a total of 940uF. Filtering caps are a mixture of 105c caps from Nippon Chemi Con, Rubycon and UNICON. All quality capacitors throughout. The PCB Soldering quality is high throughout and build quality is overall very good.

The unit ships with OVP, OCP, OPP, SCP, OTP, UVP protections in place.
