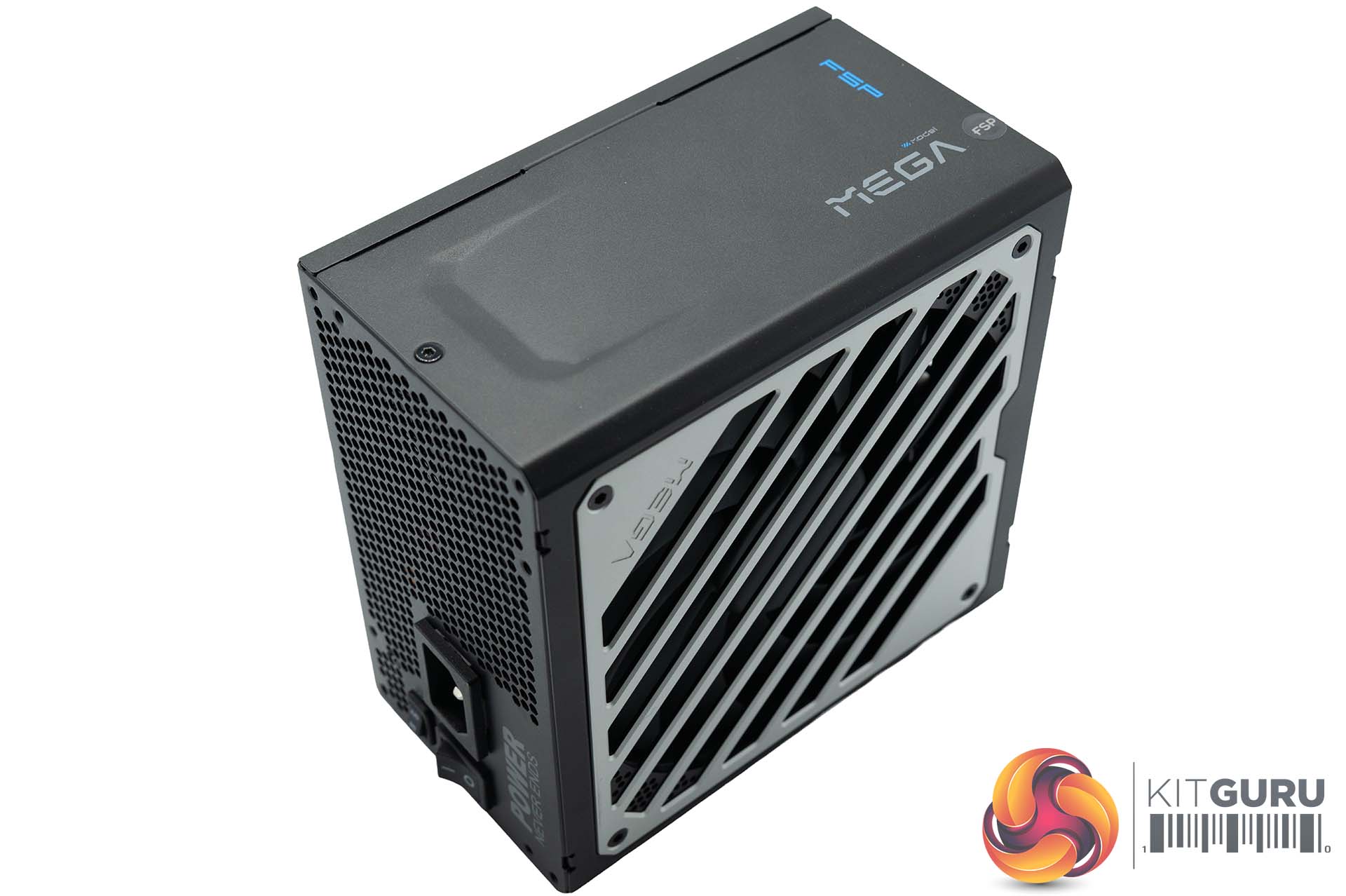

The Mega GM is nicely finished with some subtle branding on the side. It measures 150 mm x 150 mm x 86 mm.

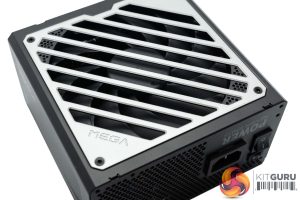

The top fan shroud is accented in silver with the ‘Mega' branding in the corner. Large vents ensure high levels of airflow are possible.

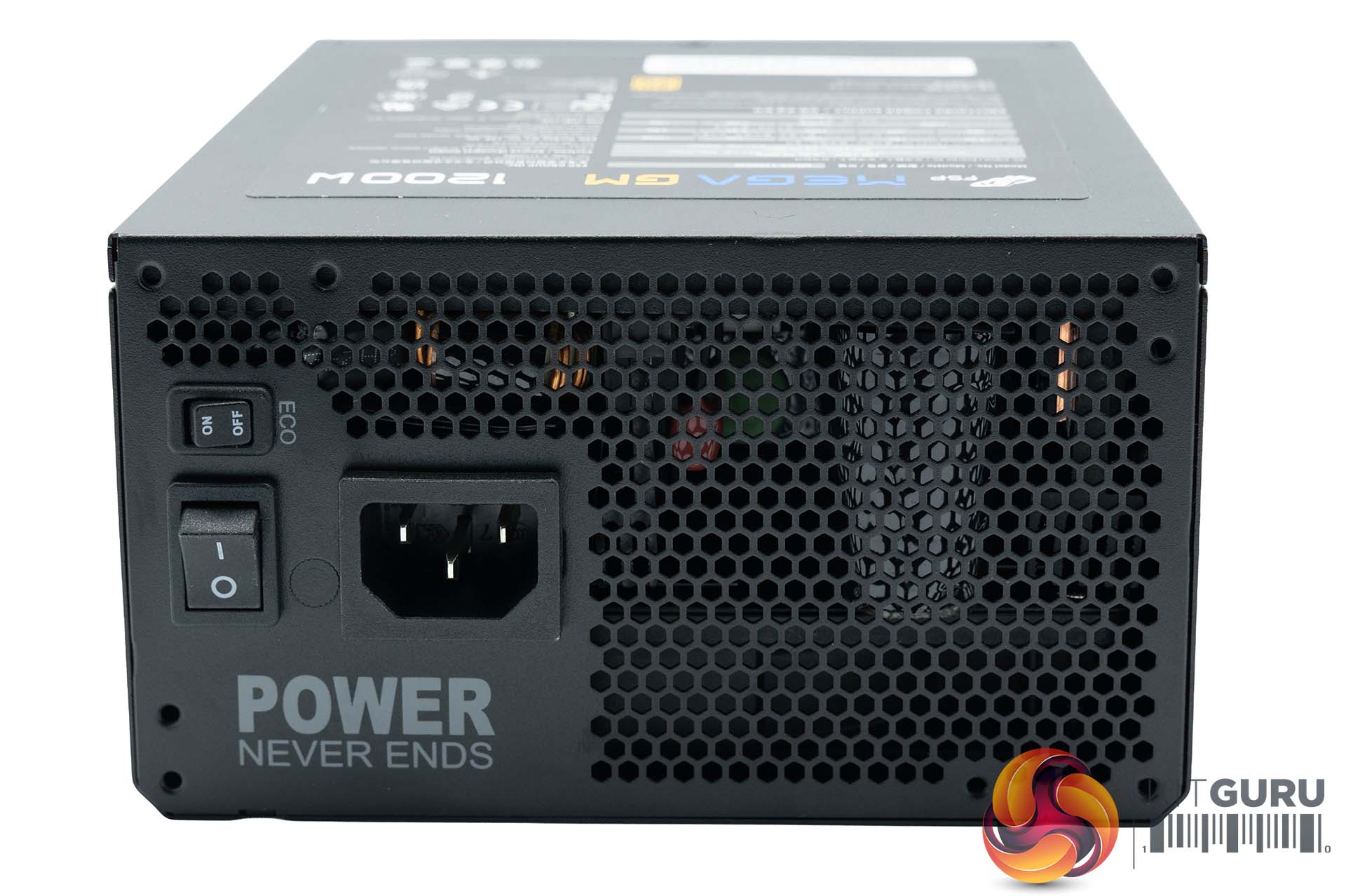

On the side of the unit we find a vented panel to aid with airflow, alongside a power connector, power button and ECO semi-fanless control switch (a mode to turn the fan off at idle and lower power demands).

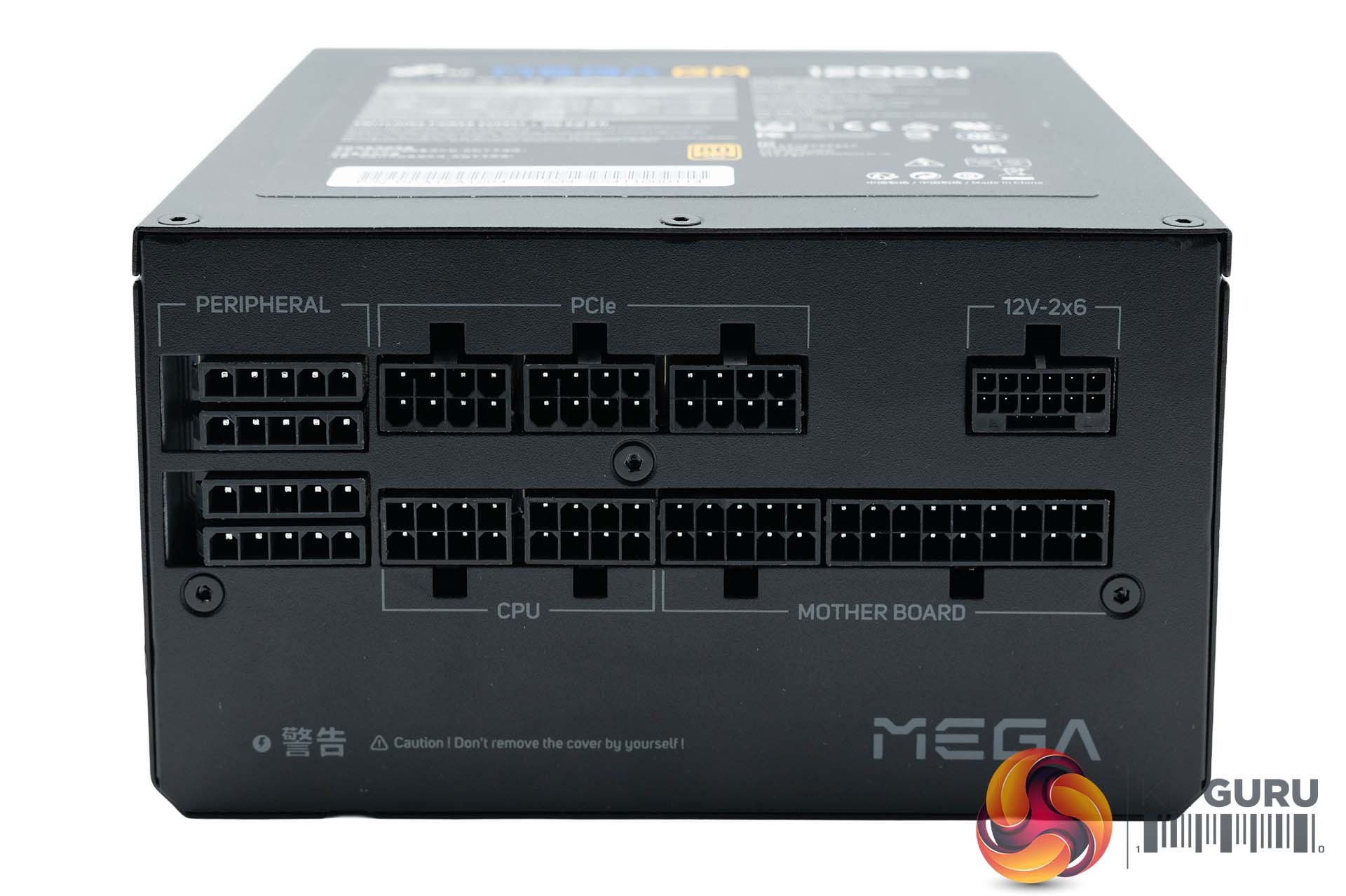

The modular bay is split across two rows, all labelled for ease of use during the installation phase.

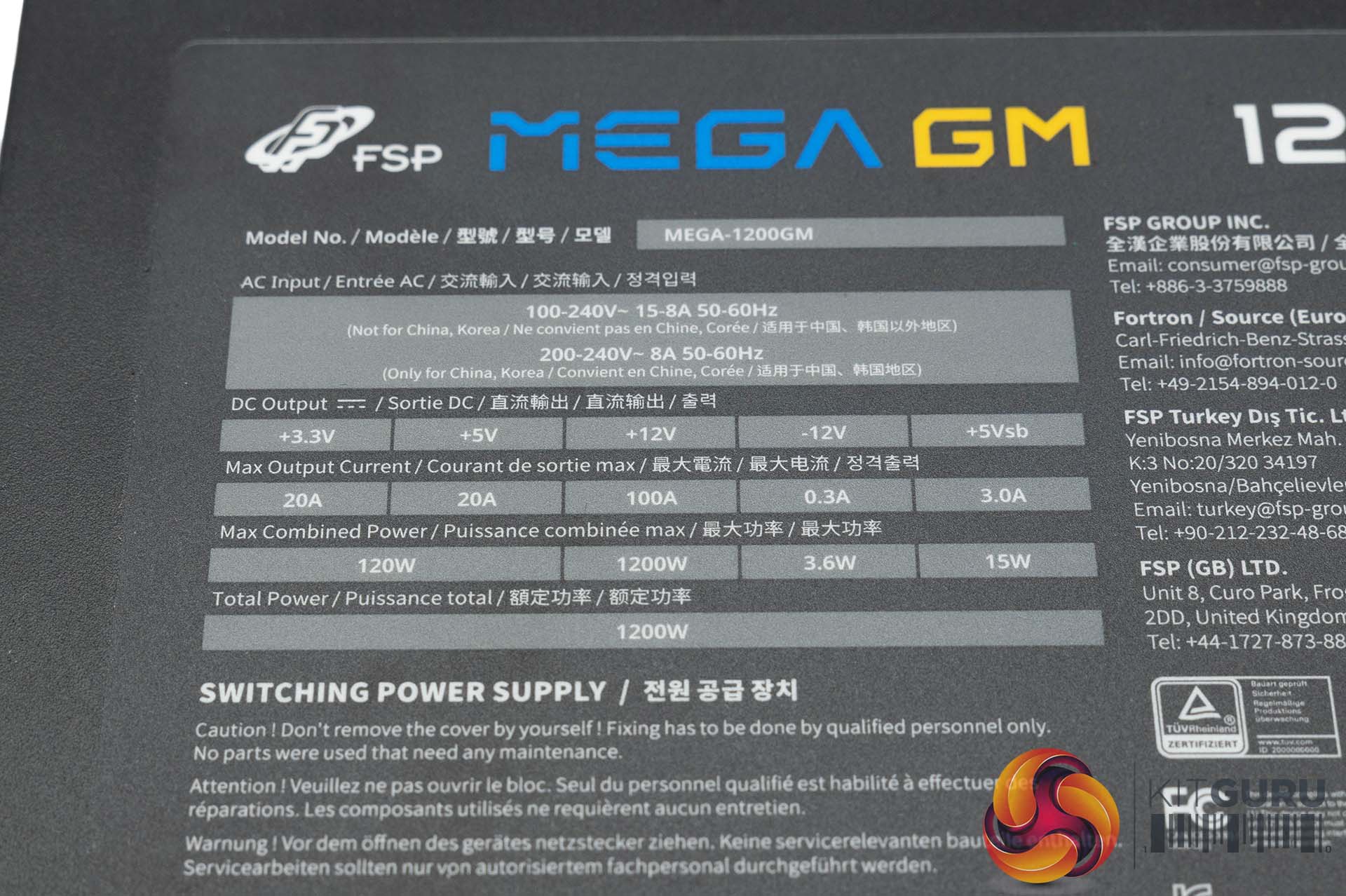

The power supply can deliver 100A on the +12V rail, with 20A on the +3.3V and +5V rails.
