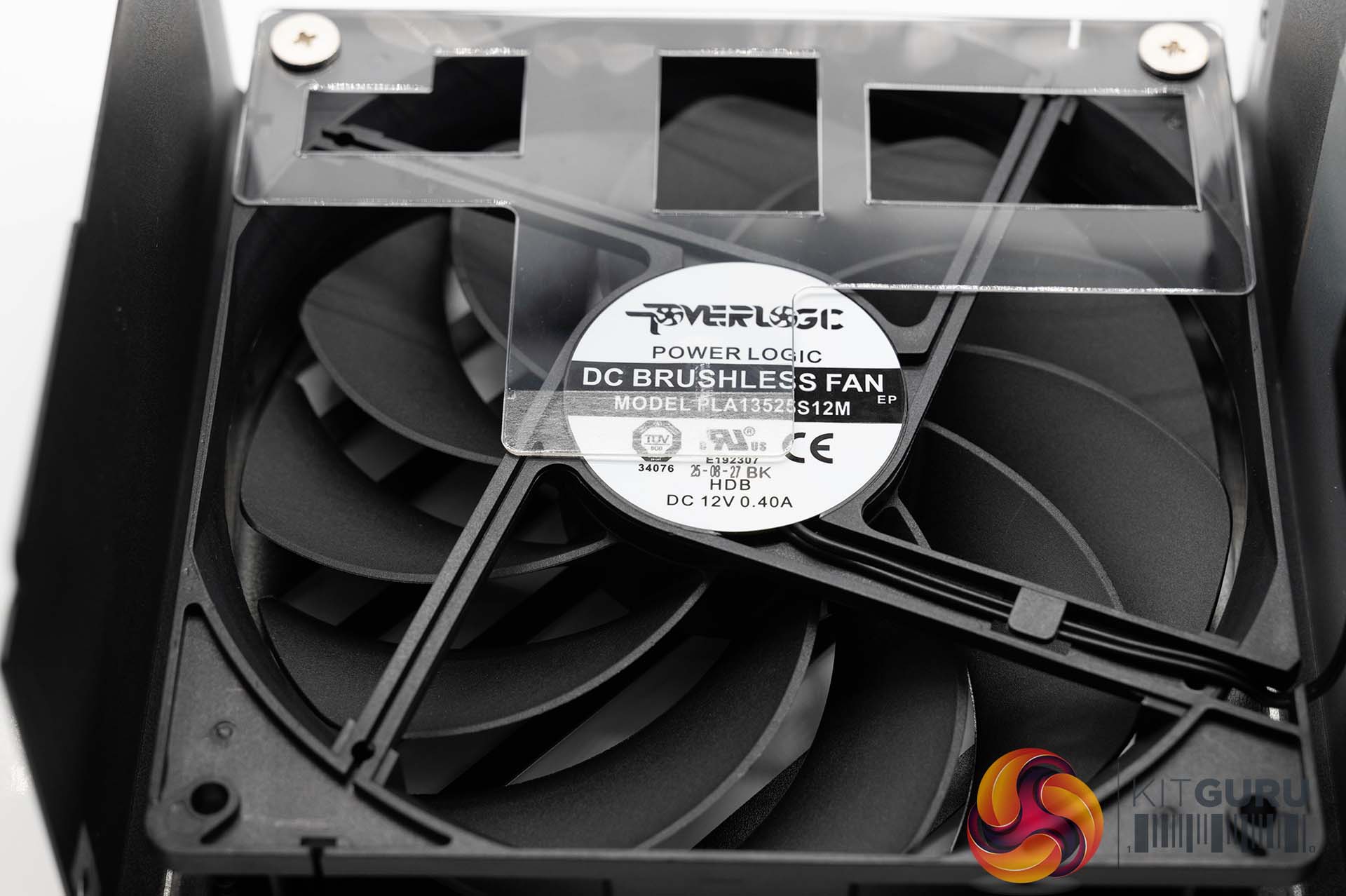

The fan inside is a Power Logic model PLA13525S12M, fluid dynamic bearing, DC 12V 0.40A. This 135mm fan is rated to deliver around 111 CFM airflow with a noise rating around 41.6dBa. It has featured in other power supplies from the likes of be quiet!

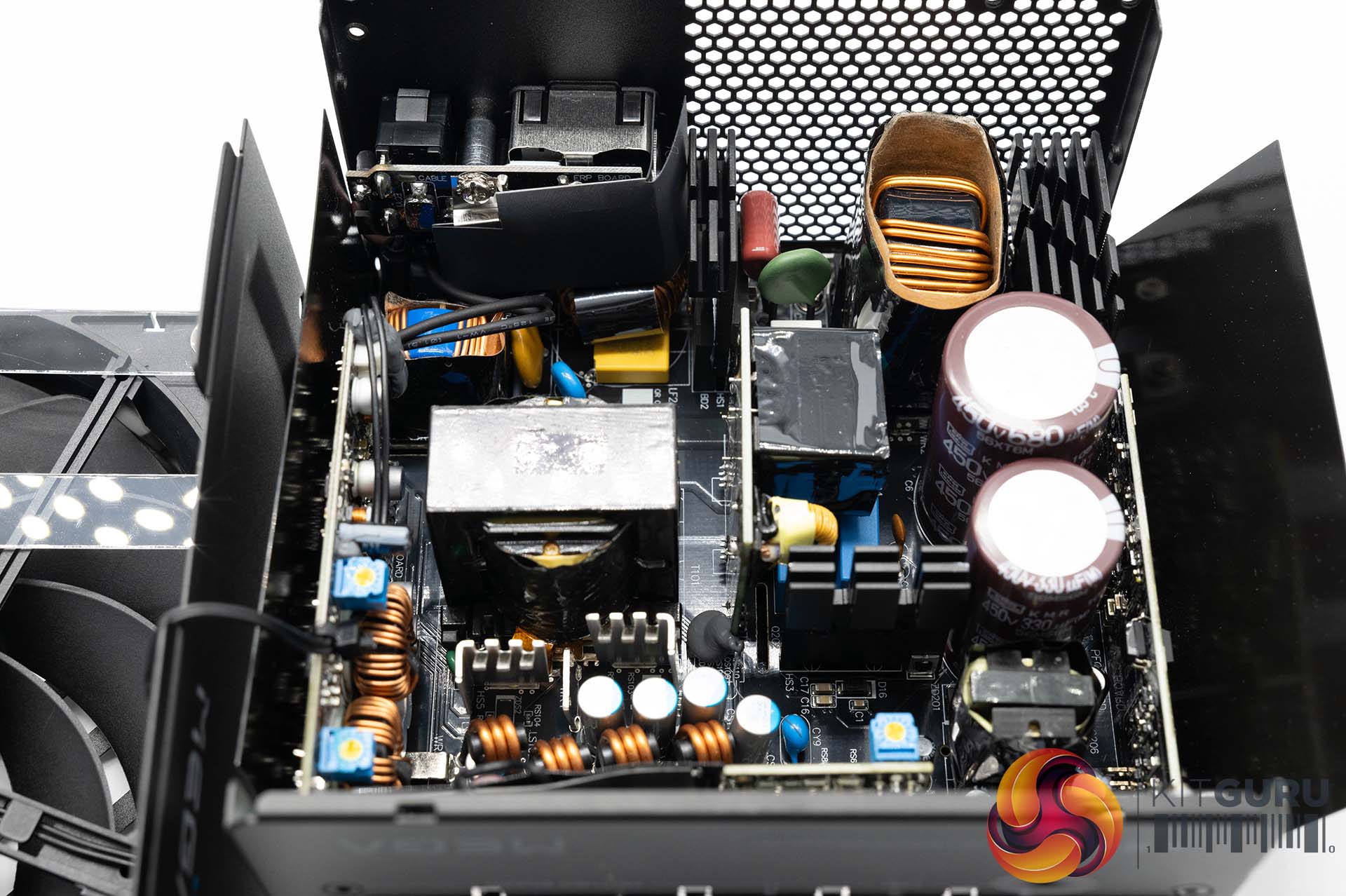

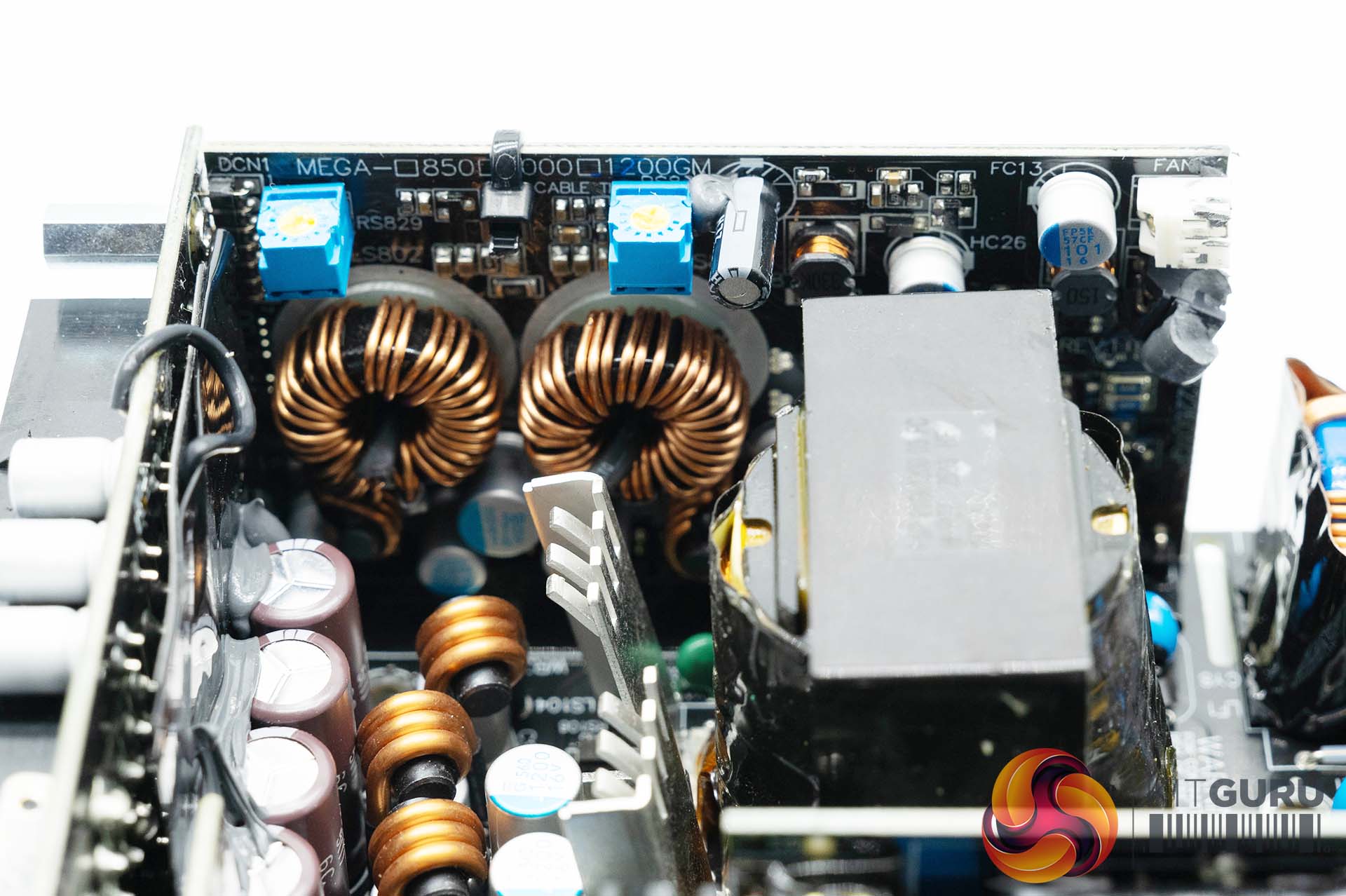

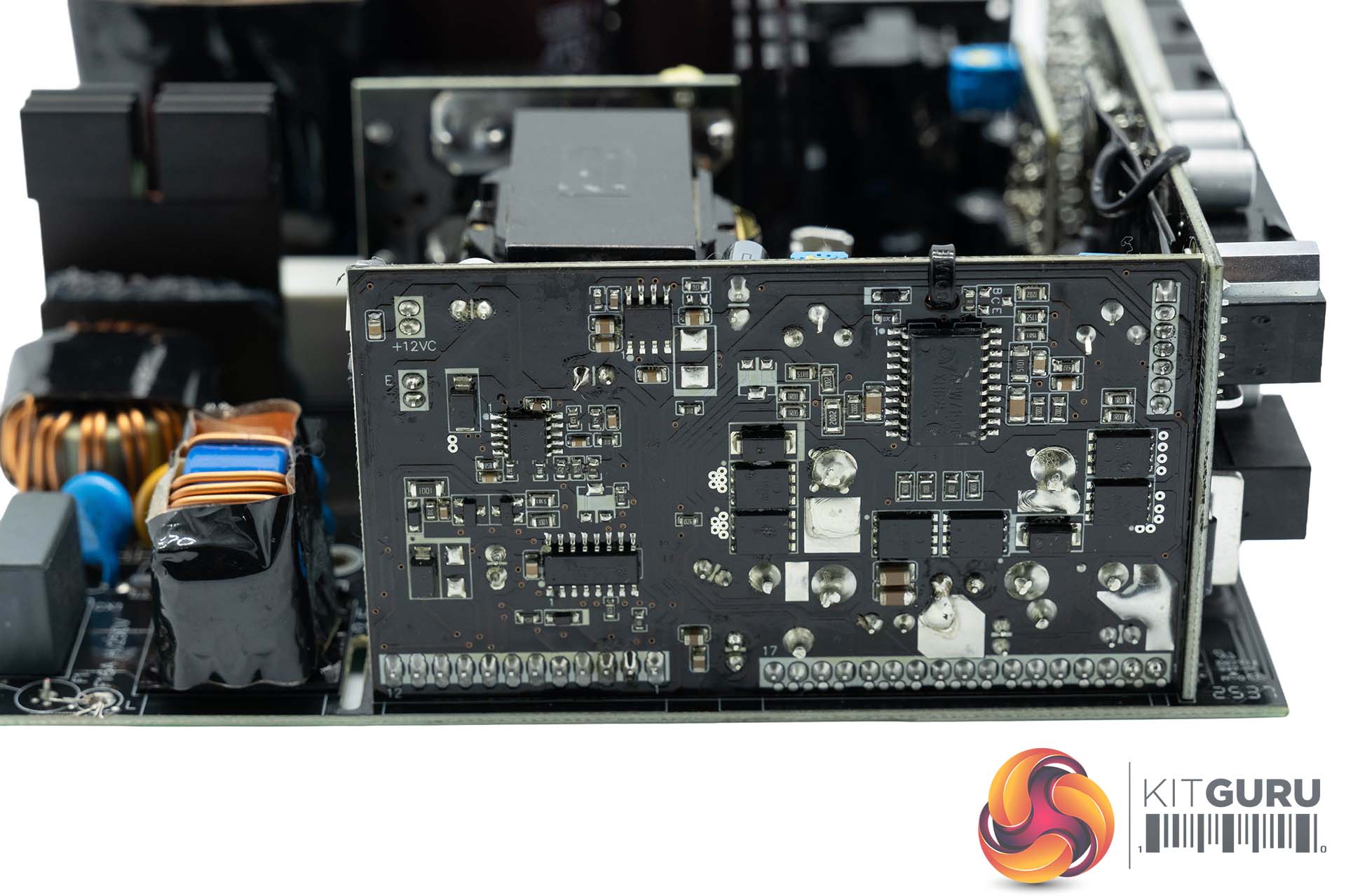

FSP make their own power supplies and we will likely see this design in other power supplies going forward. It is comprised of a primary side APFC, Half Bridge & LLC Resonant converter, alongside the secondary side 12V Synchronous Rectification & DC-DC convertors to generate the minor rails.

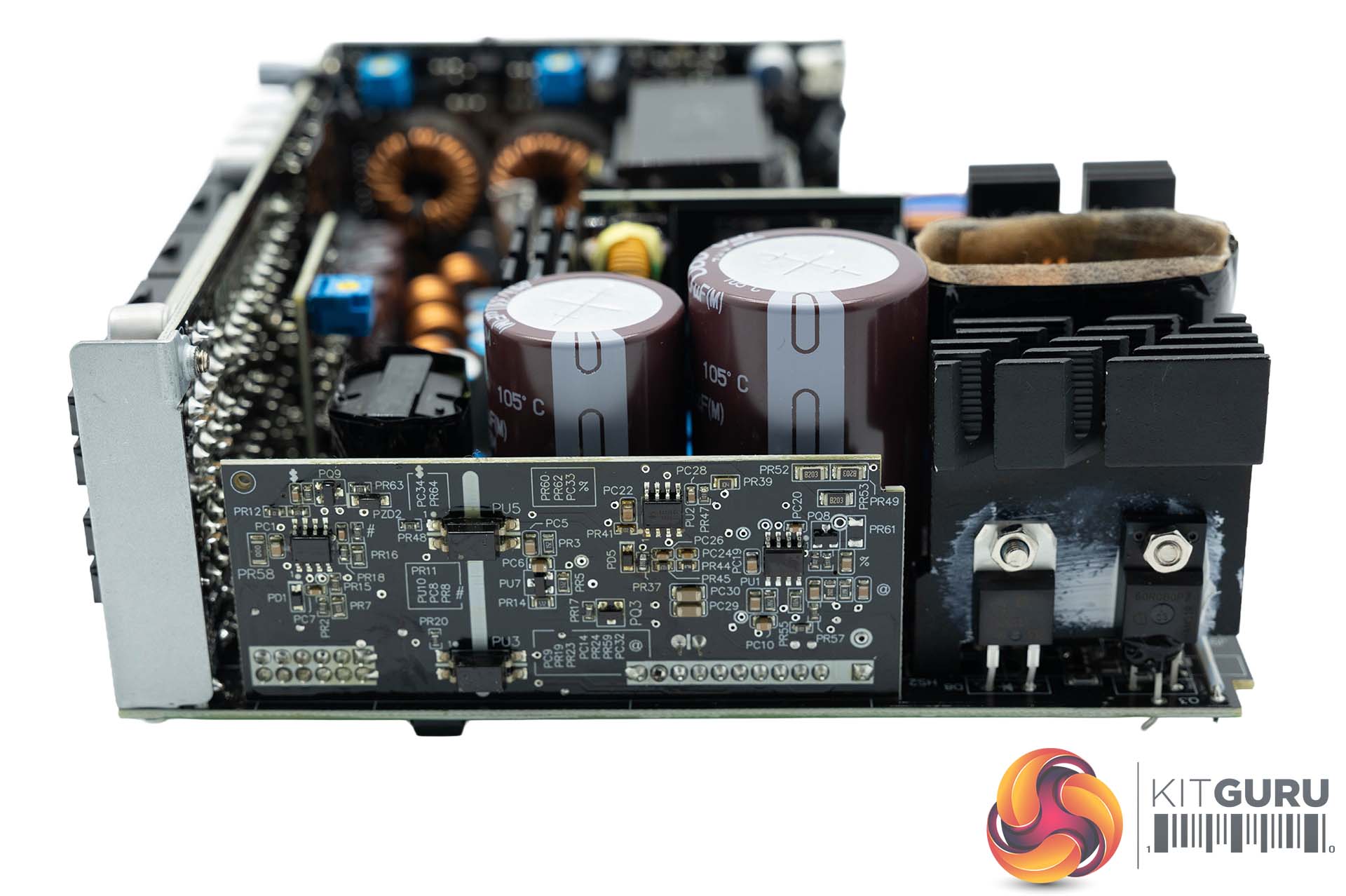

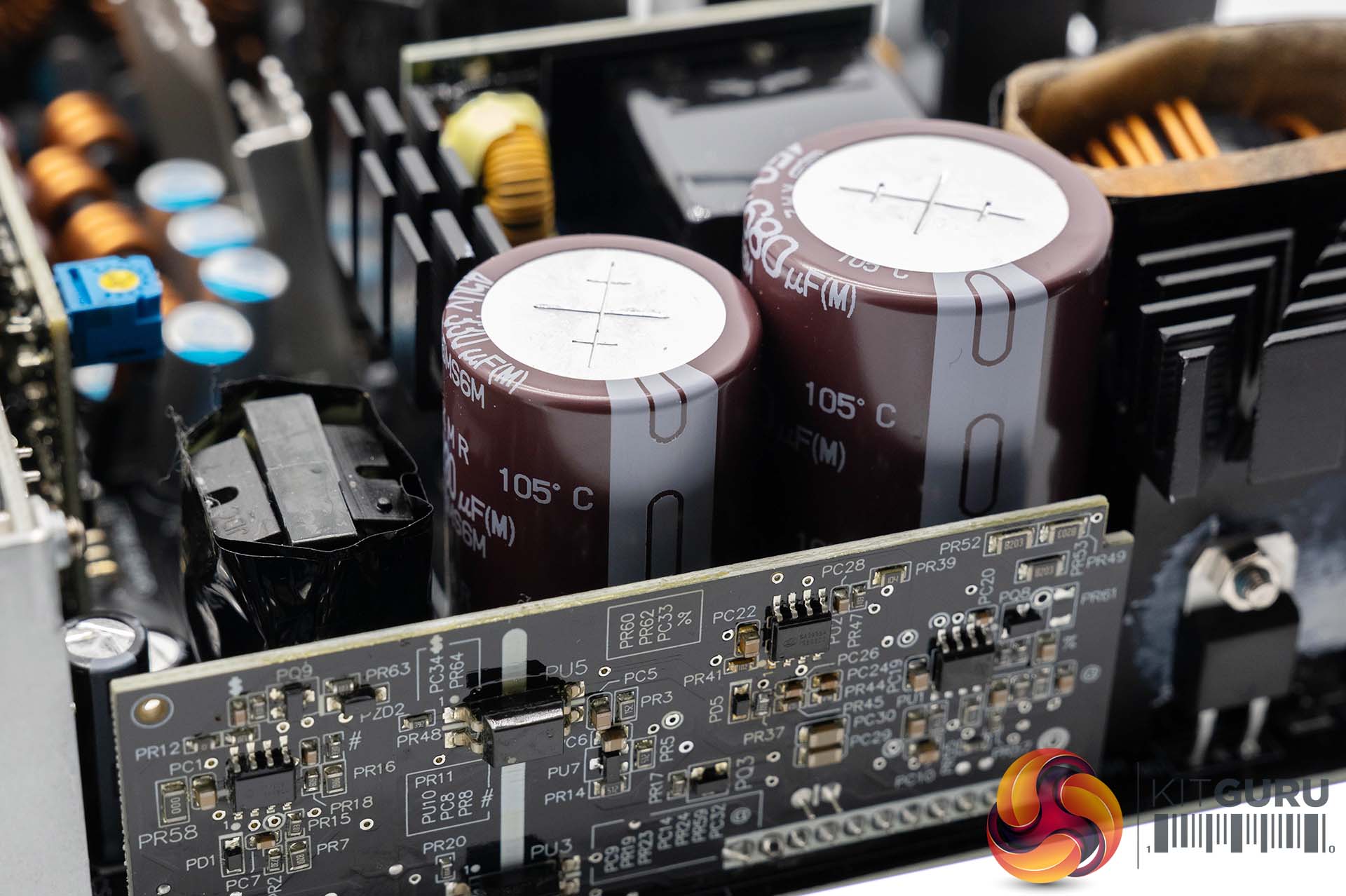

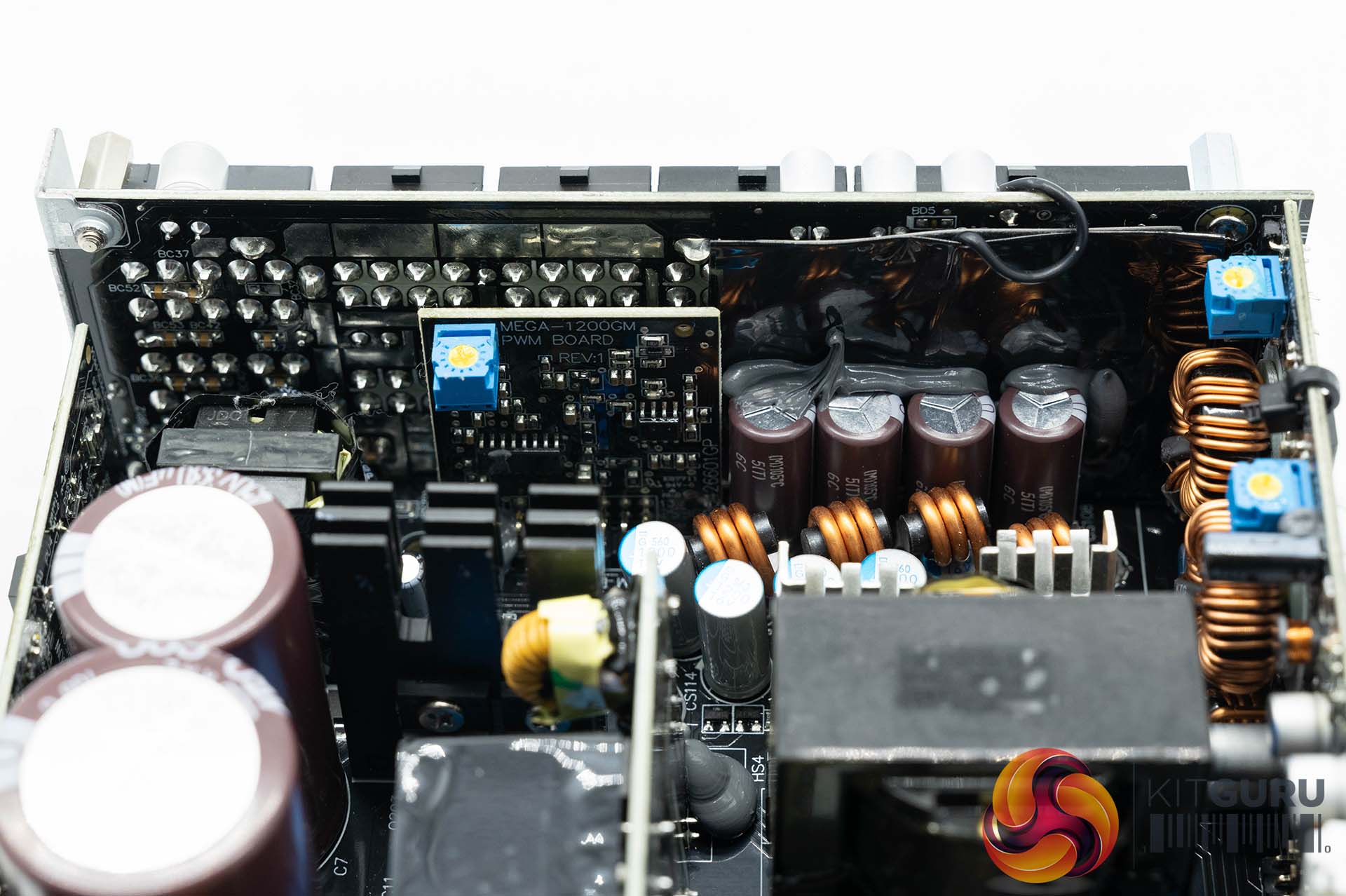

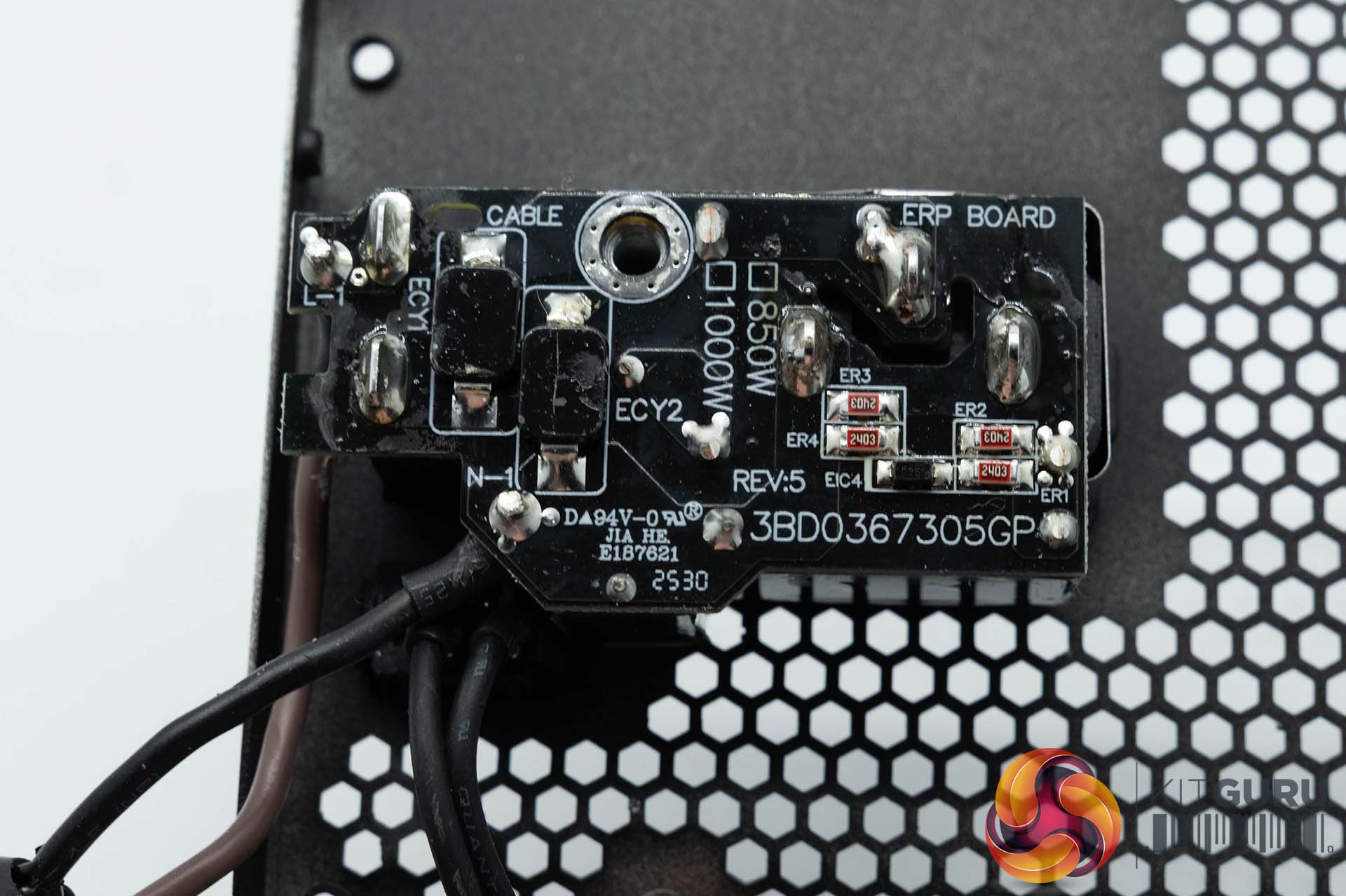

The transient filter is comprised of 2x Y Caps, 3x X Caps, 2x CM chokes and 1x MOV. We are happy to see FSP using quality Japanese capacitors in both primary and secondary side. The two main primary stage capacitors are 105C-rated Japanese caps from Nippon Chemi Con, rated 420V 680uF and 330uF for a total of 1010uF.
Soldering quality on the main PCB is very good throughout. It ships with full OCP, OVP, SCP, OPP, UVP, OTP, SIP, NLO protections.
