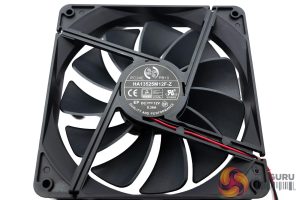

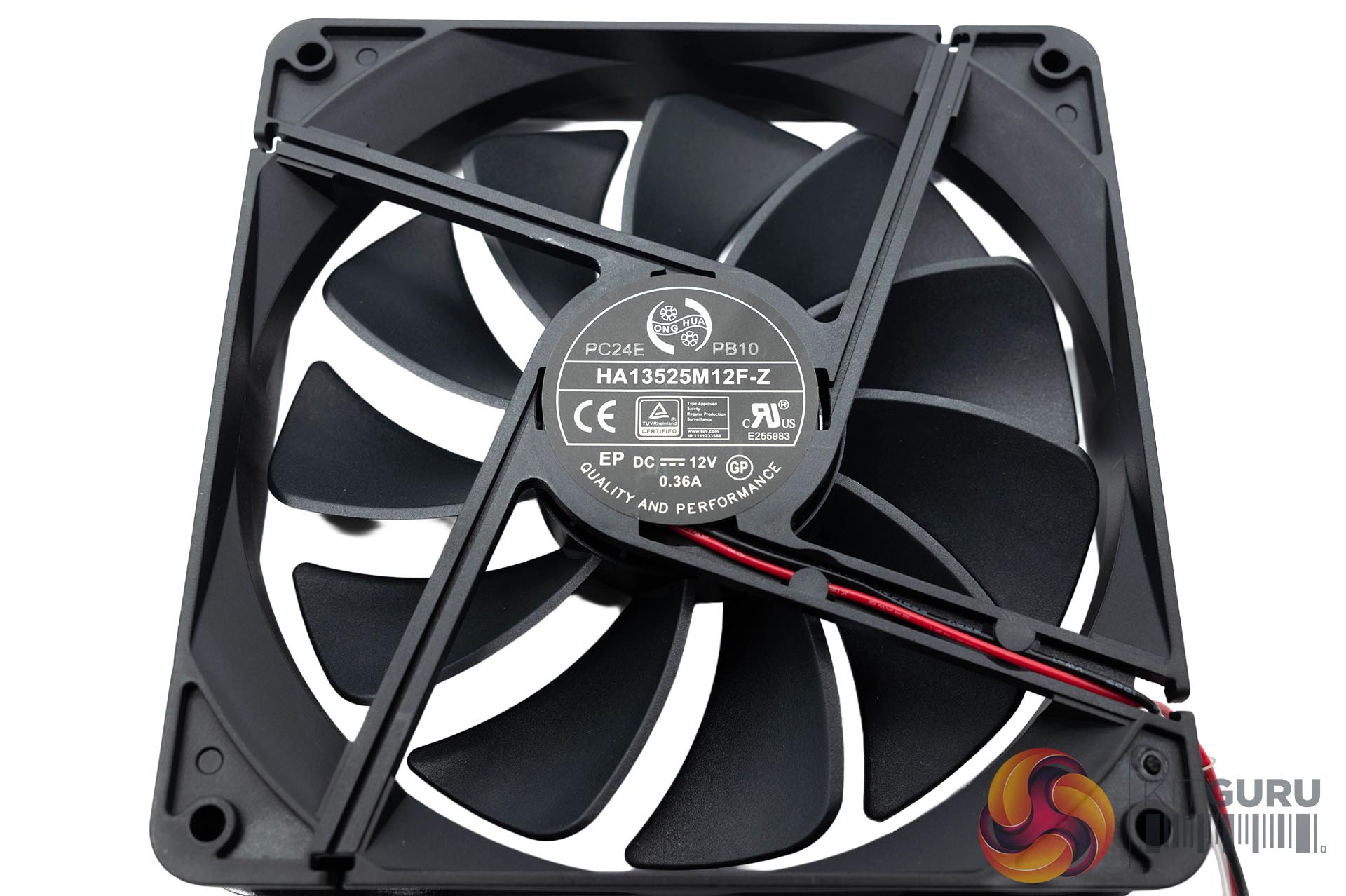

LC-Power are using a Hong Hua HA13525M12F-Z fan. While LC-Power have not really detailed this fan in any of their literature or datasheets, they really could do with pointing out that it is a quality 135mm fluid dynamic bearing (FDB) fan – we have seen the exact same fan used in many Seasonic power supplies in recent years. I don't see any mention of them adopting an FDB fan and most manufacturers will highlight this extensively!
This fan is rated 12V 0.36A with a maximum rated speed of around 1,800 rpm. These are great fans.

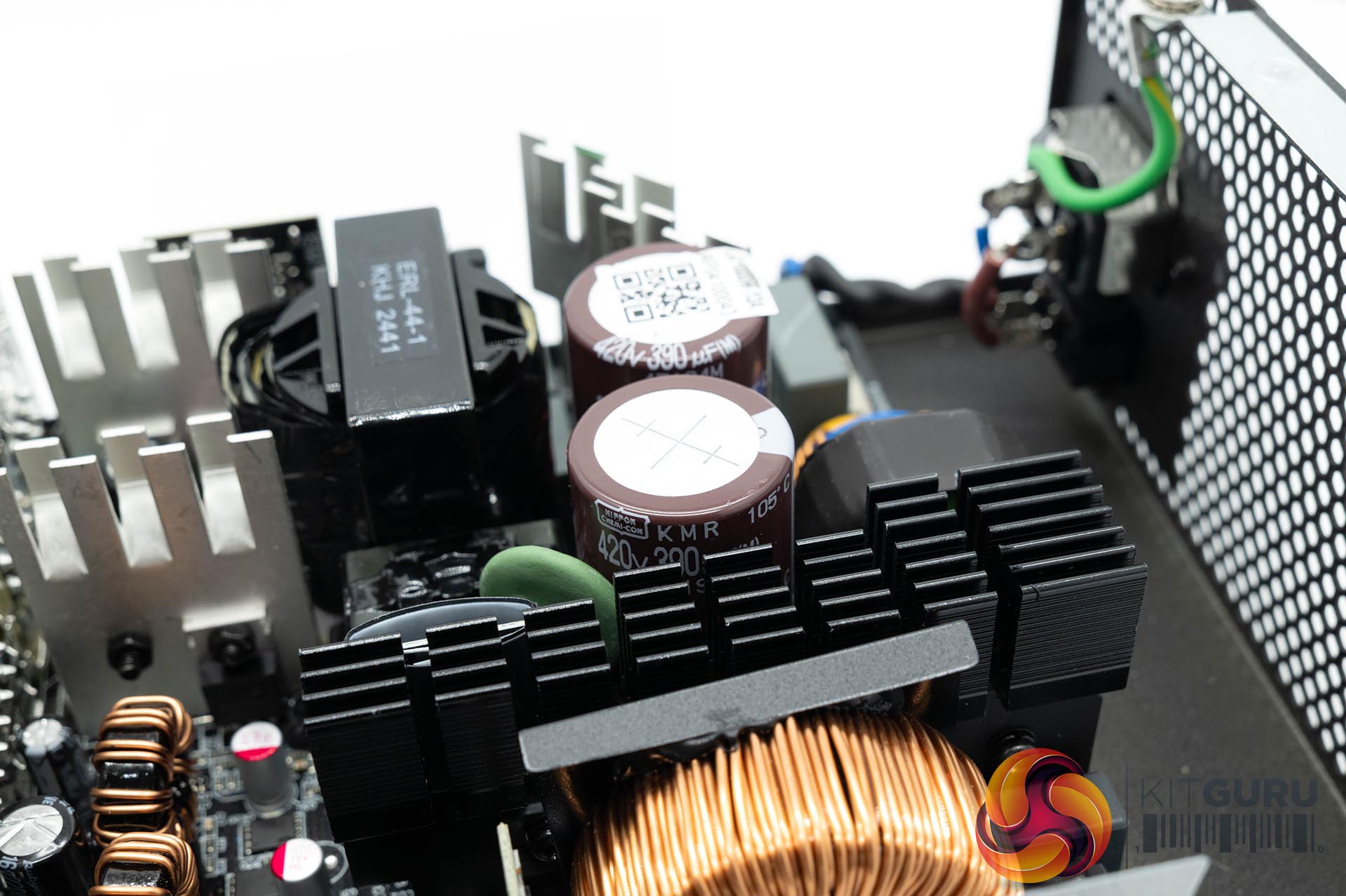

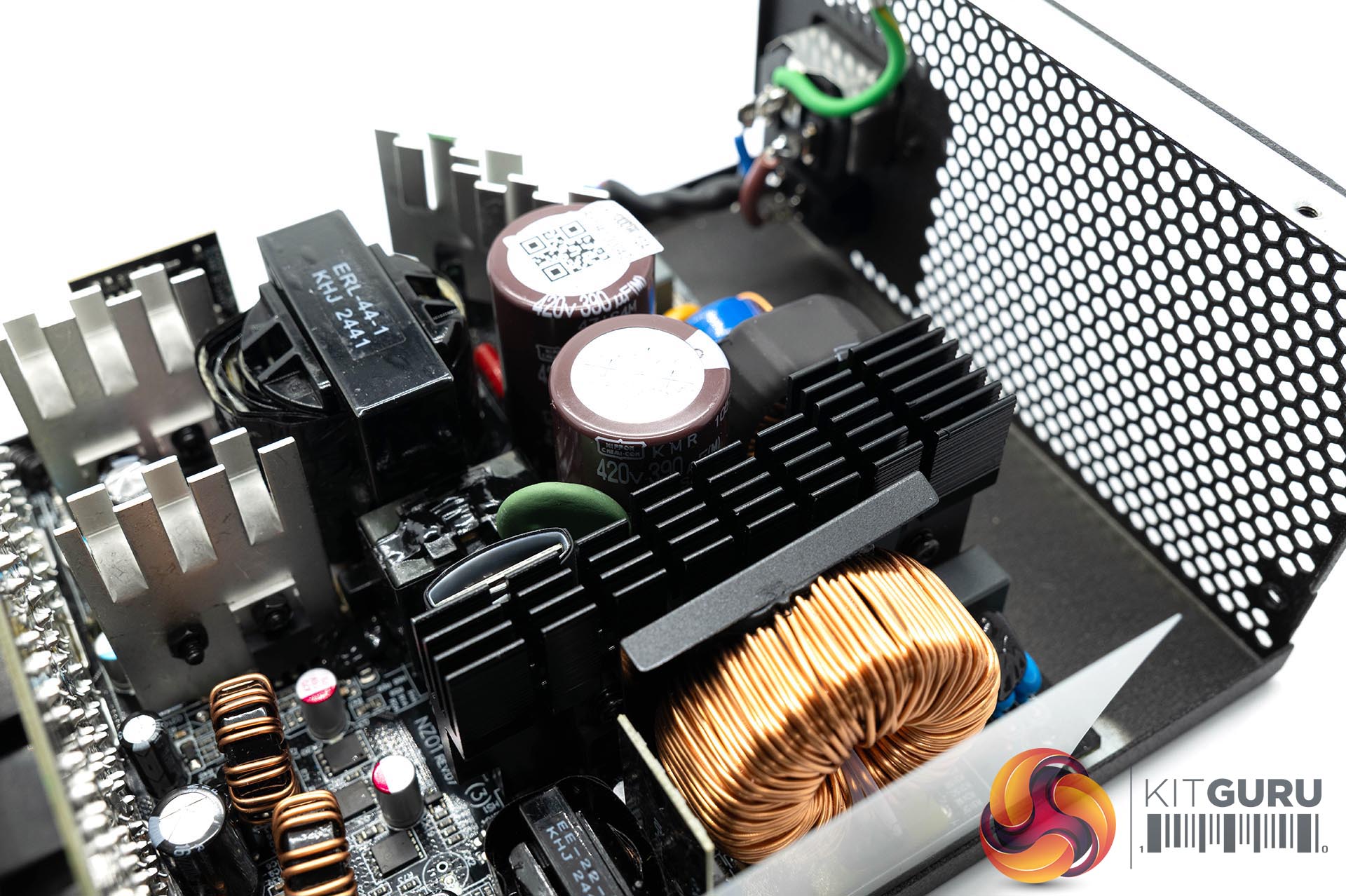

As detailed earlier in the review, this is a DC to DC design with OEM partner RSY. RSY are not one of the more widely known companies on the market for power supply designs but they have created units for Super Flower and Enermax and even some for Seasonic in their earlier budget line up. The two primary capacitors are 105C rated Japanese Nippon Chemi Con, rated 420V 390uF x2 for a total of 780uF. The main transformer is by Kai Hao Jie.

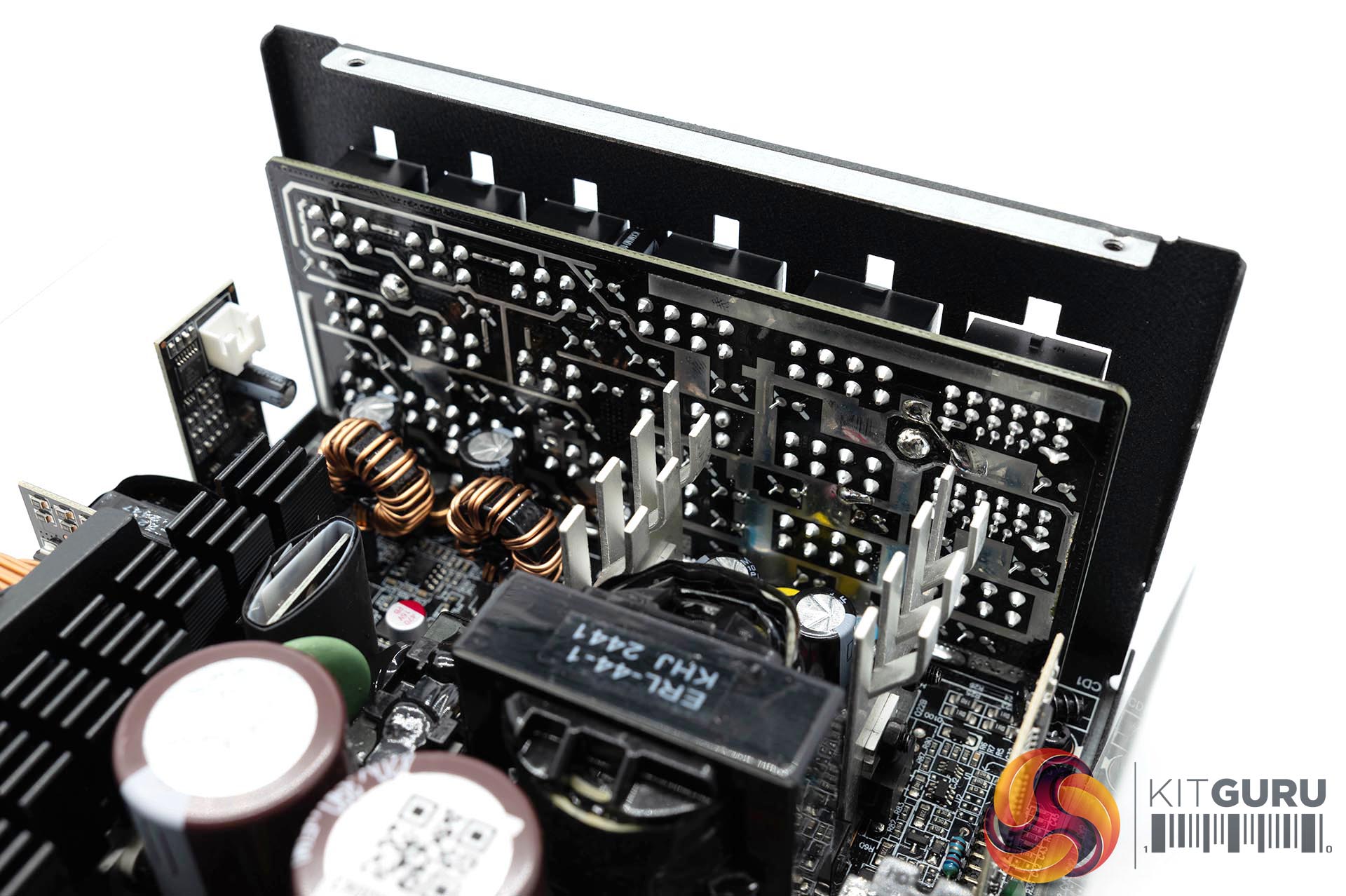

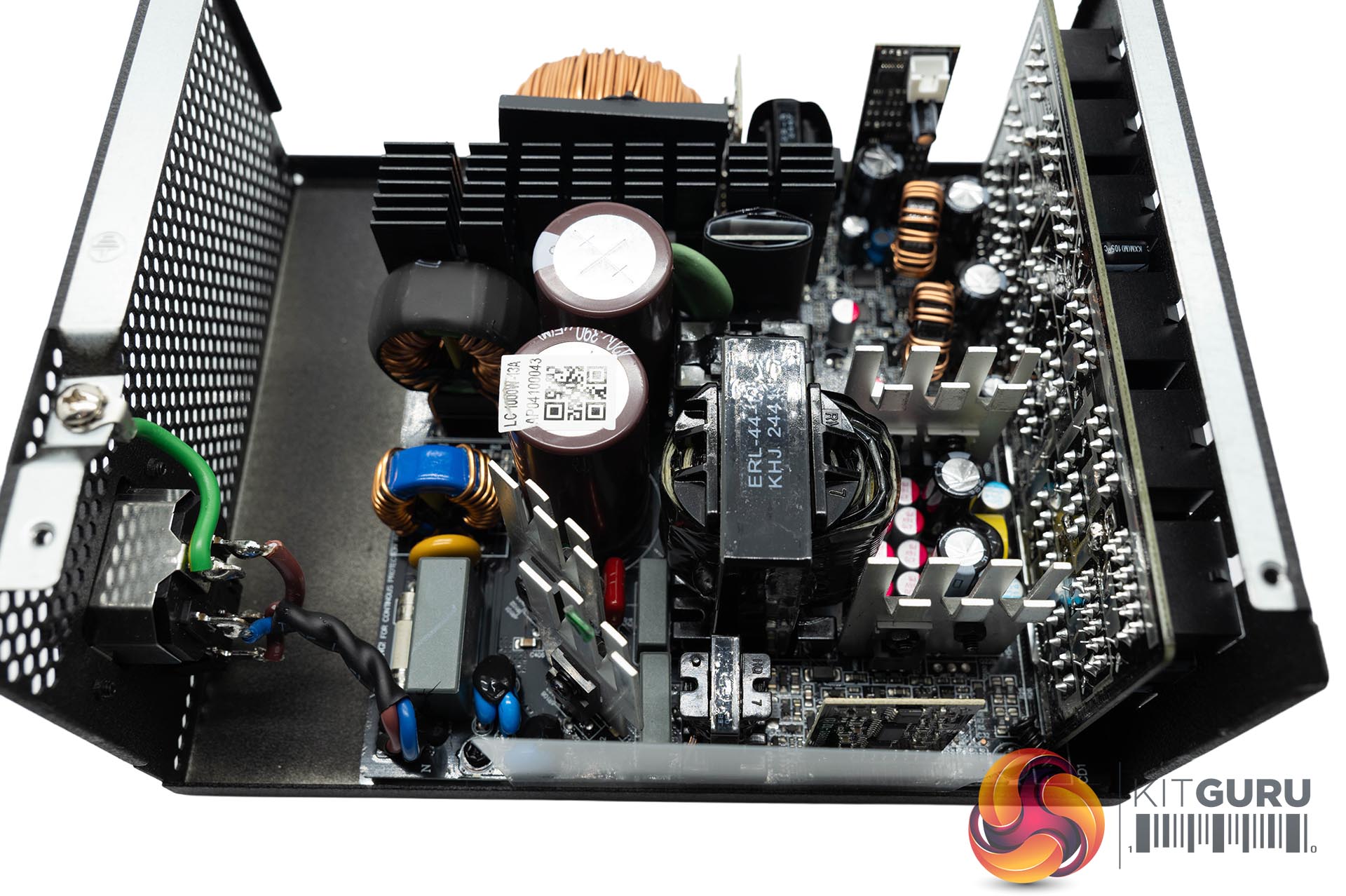

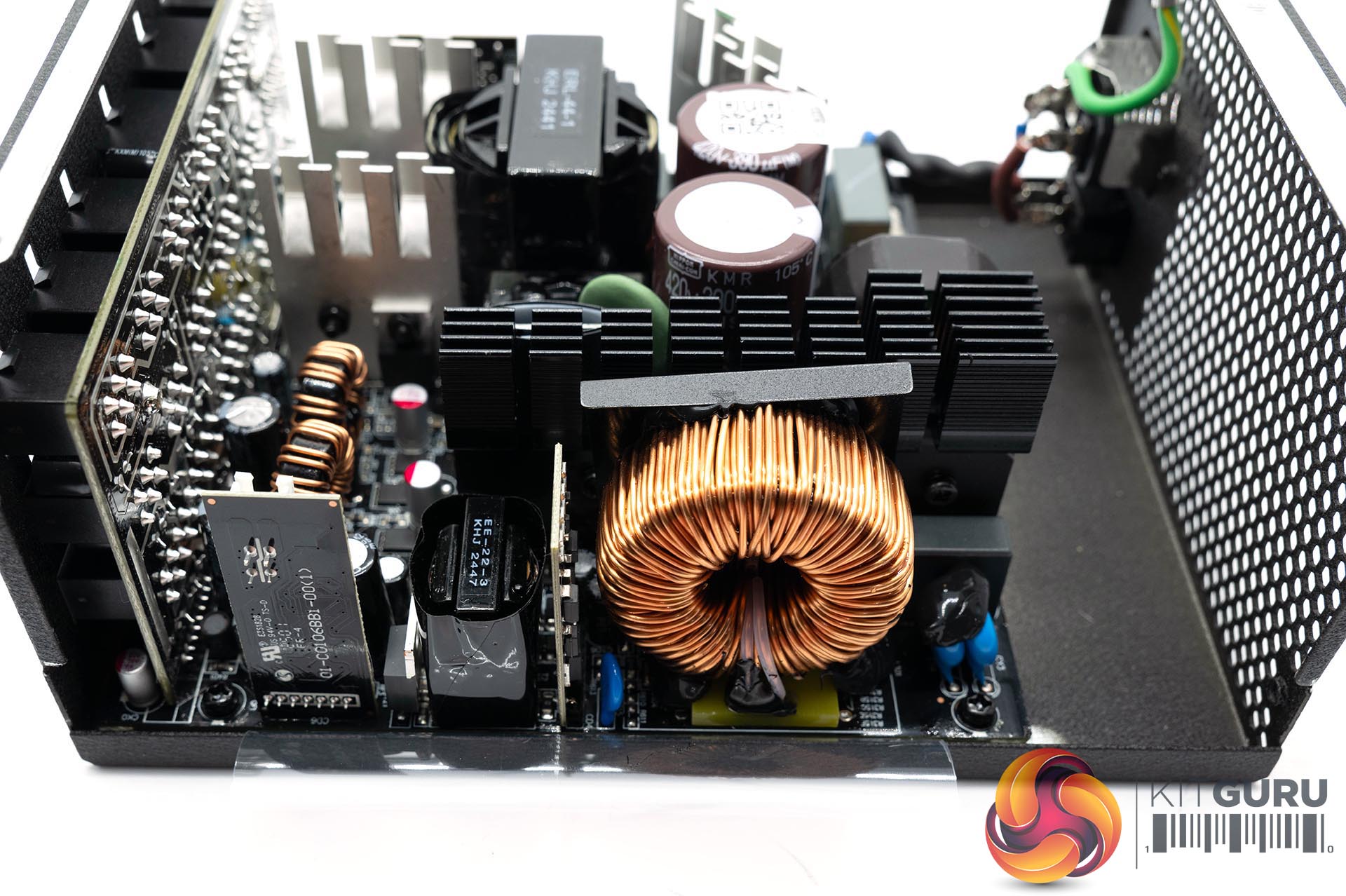

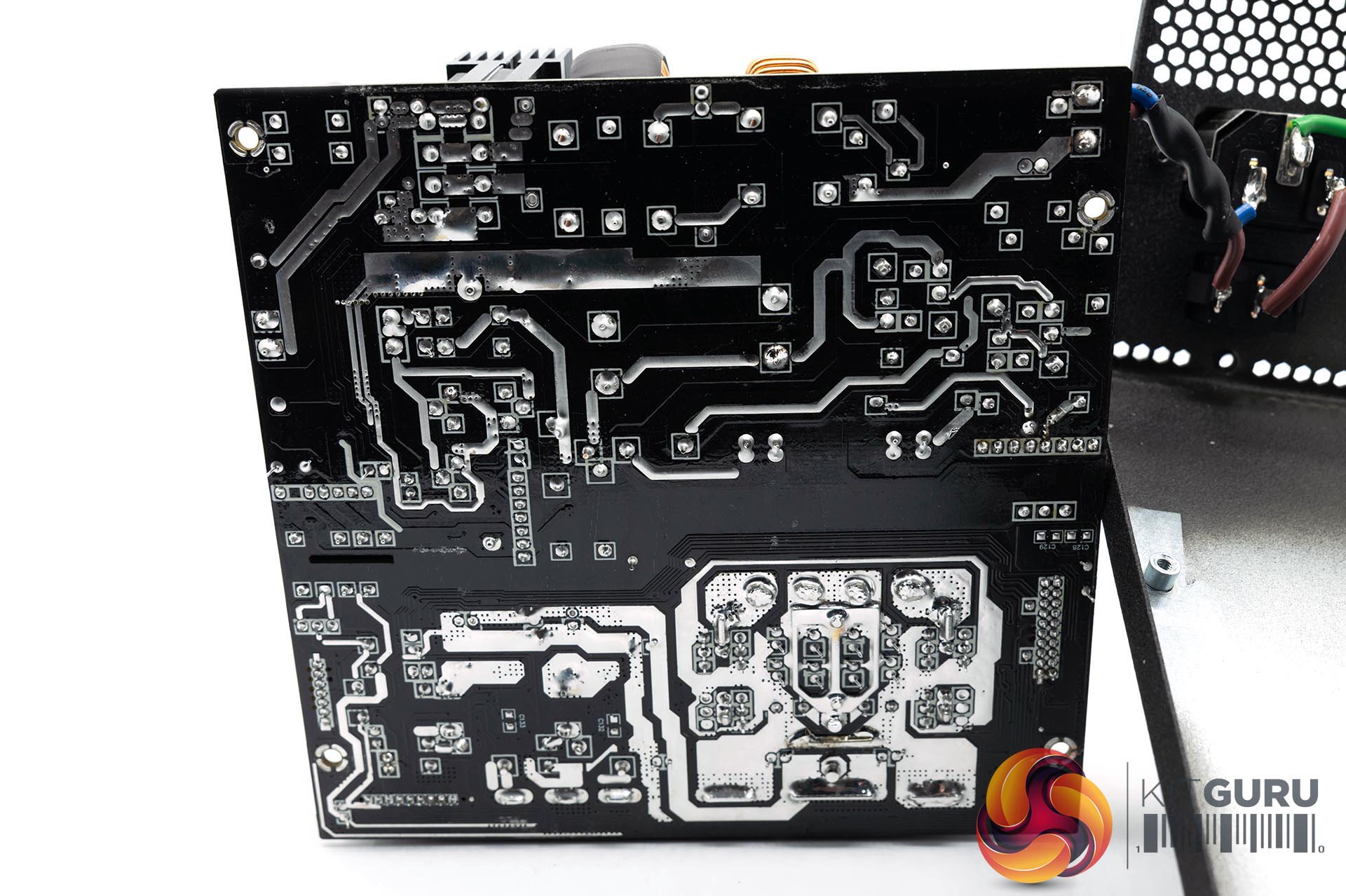

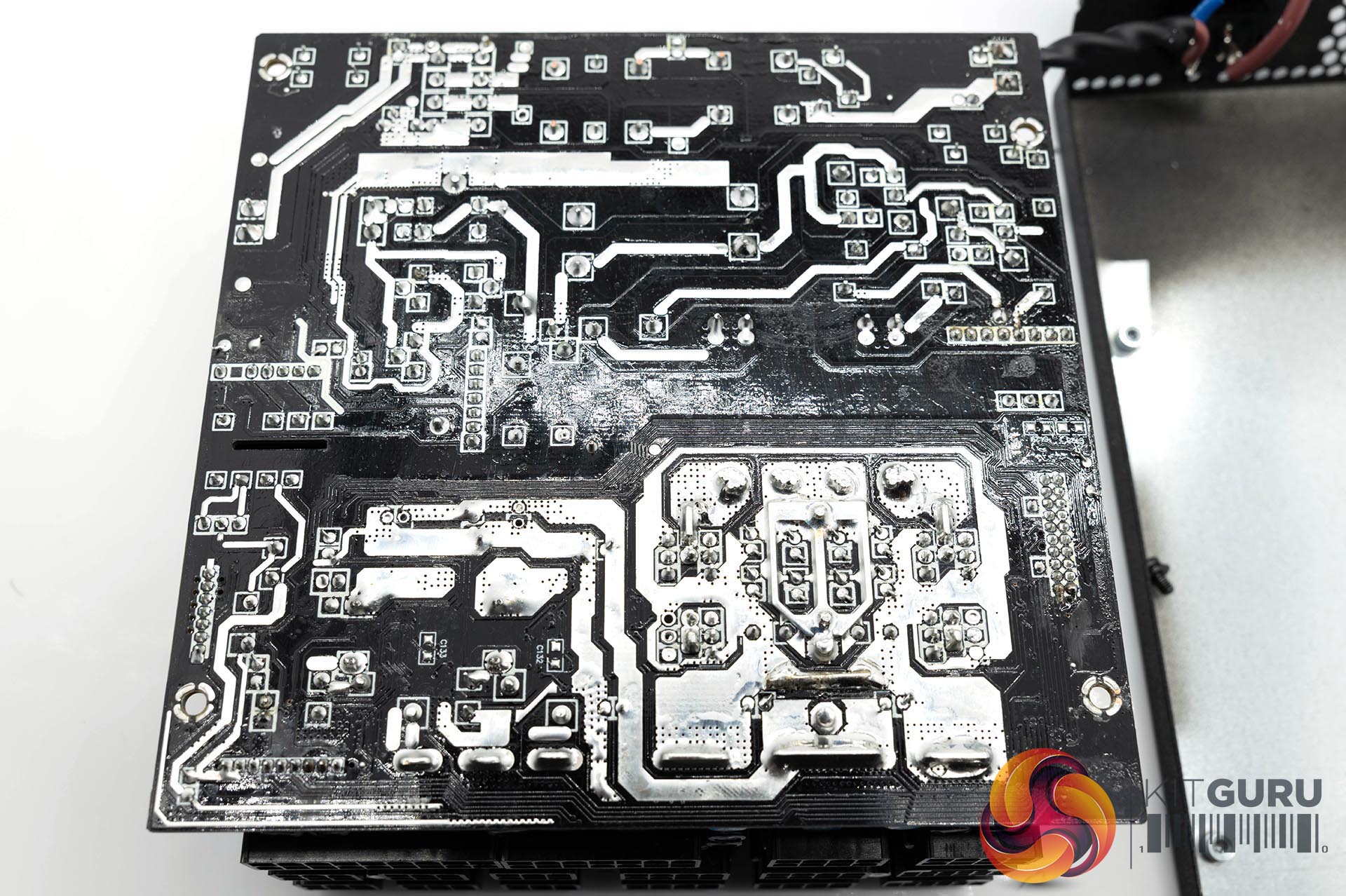

The internal design of the power supply is clean and well laid out with plenty of room for air flow across the board. The soldering quality is also very good on the main PCB and components side.
The power supply ships with OVP, OCP, OPP, OTP, SCP and UVP protections. As we said earlier, LC-Power is supporting these units with a 10-year warranty.
