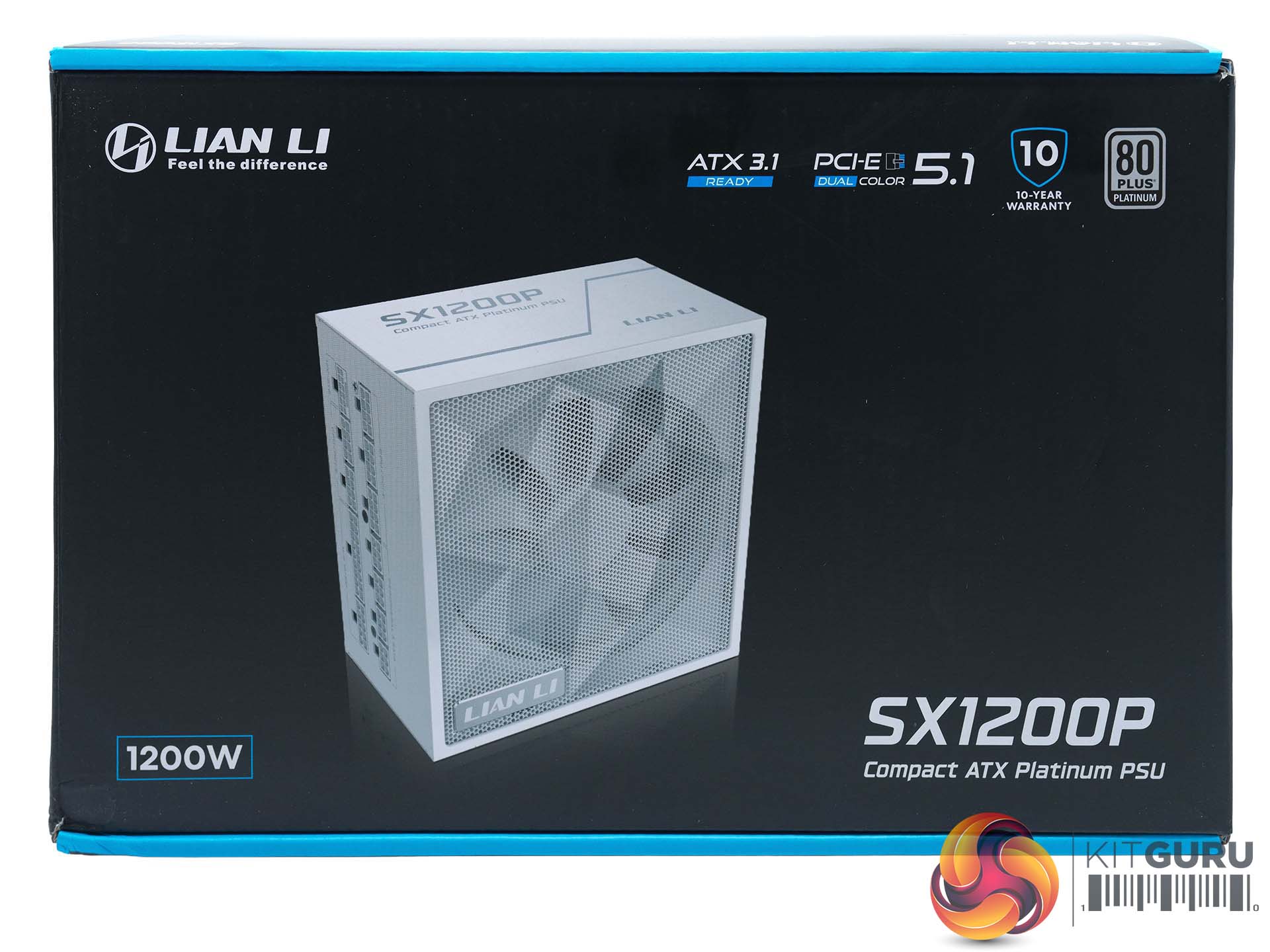

The Lian Li SX1200P arrives in a box with a high resolution image of the power supply on the front. We did get a white version of the unit, so I wonder if Lian Li have two boxes for each colour. The front of the box highlights key features, such as ATX 3.1, PCIe 5.1, 80 Plus Platinum certification and the 10-year warranty terms.

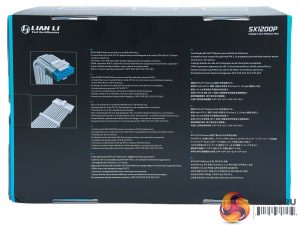

The rear of the box focuses on a small list of features in multiple languages and two images of the cables.

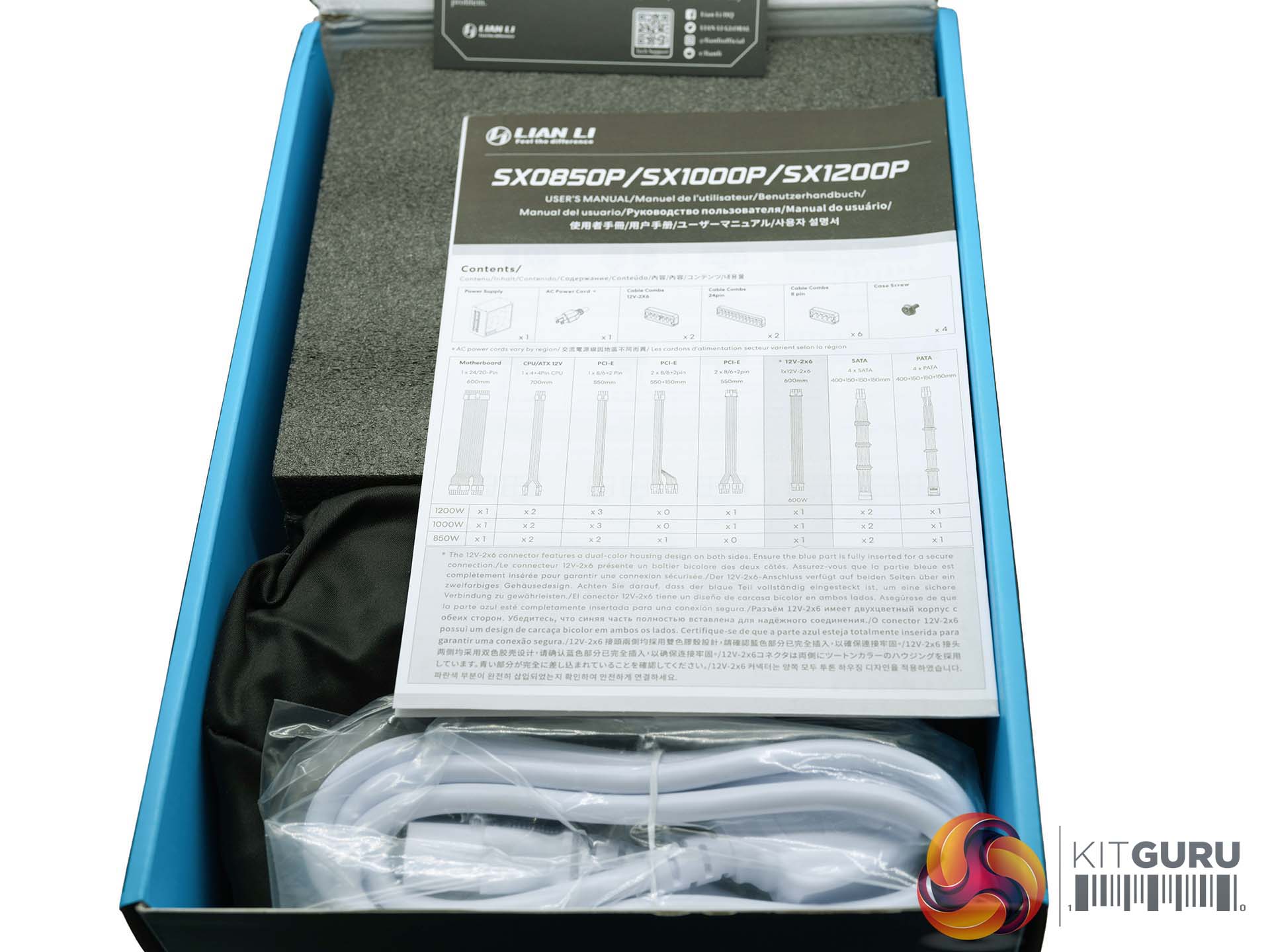

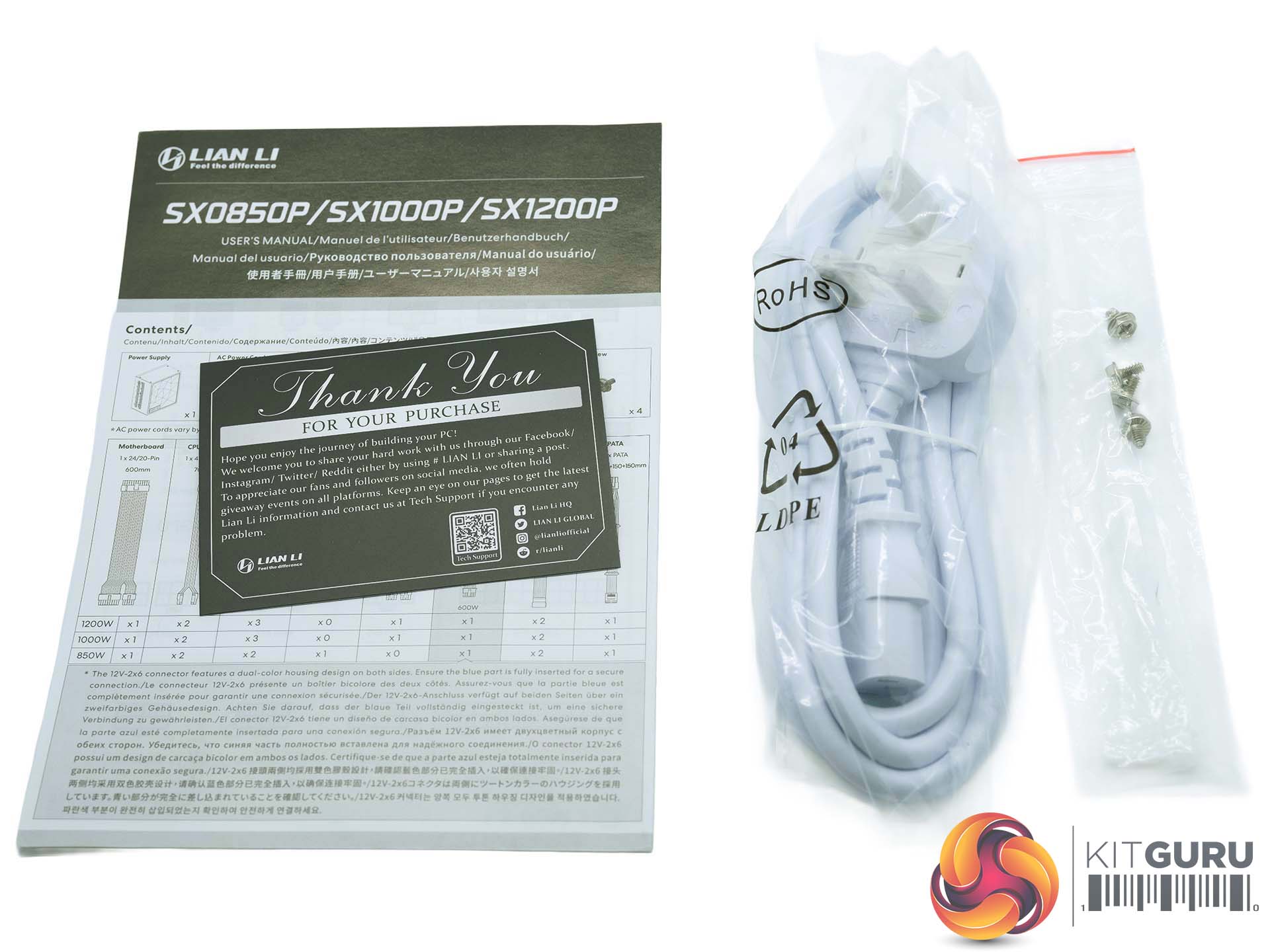

Inside the box there is some literature on the power supply, and the unit itself is shipped between two soft pieces of foam. A white power cable is placed beside the cable bag. Lian Li also include some white cable ties, cable combs and mounting screws.

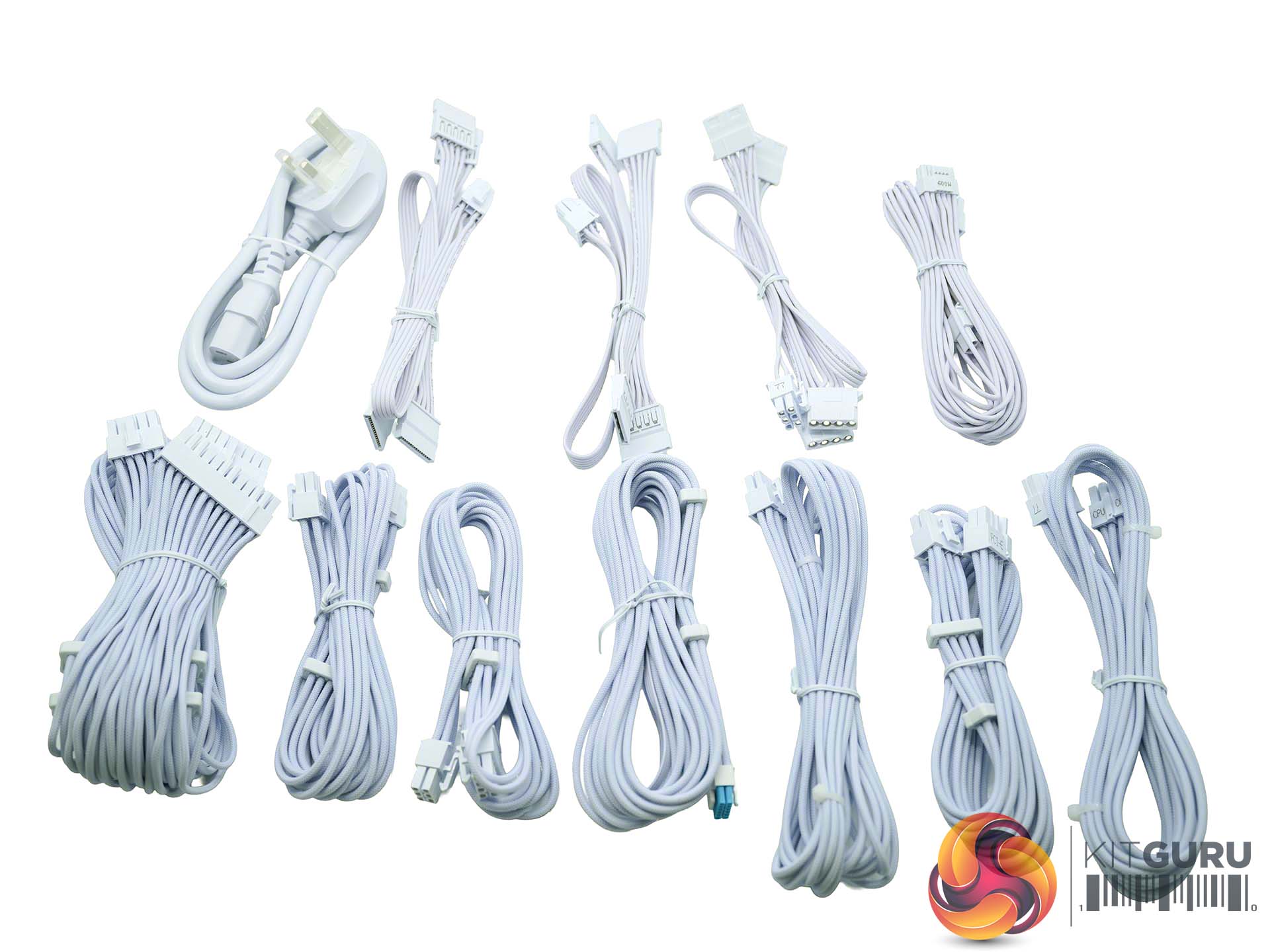

The Lian Li cables are all individually sleeved. In the image above, the cables at the bottom are all a slightly different tone to the ones above which is unusual to seef

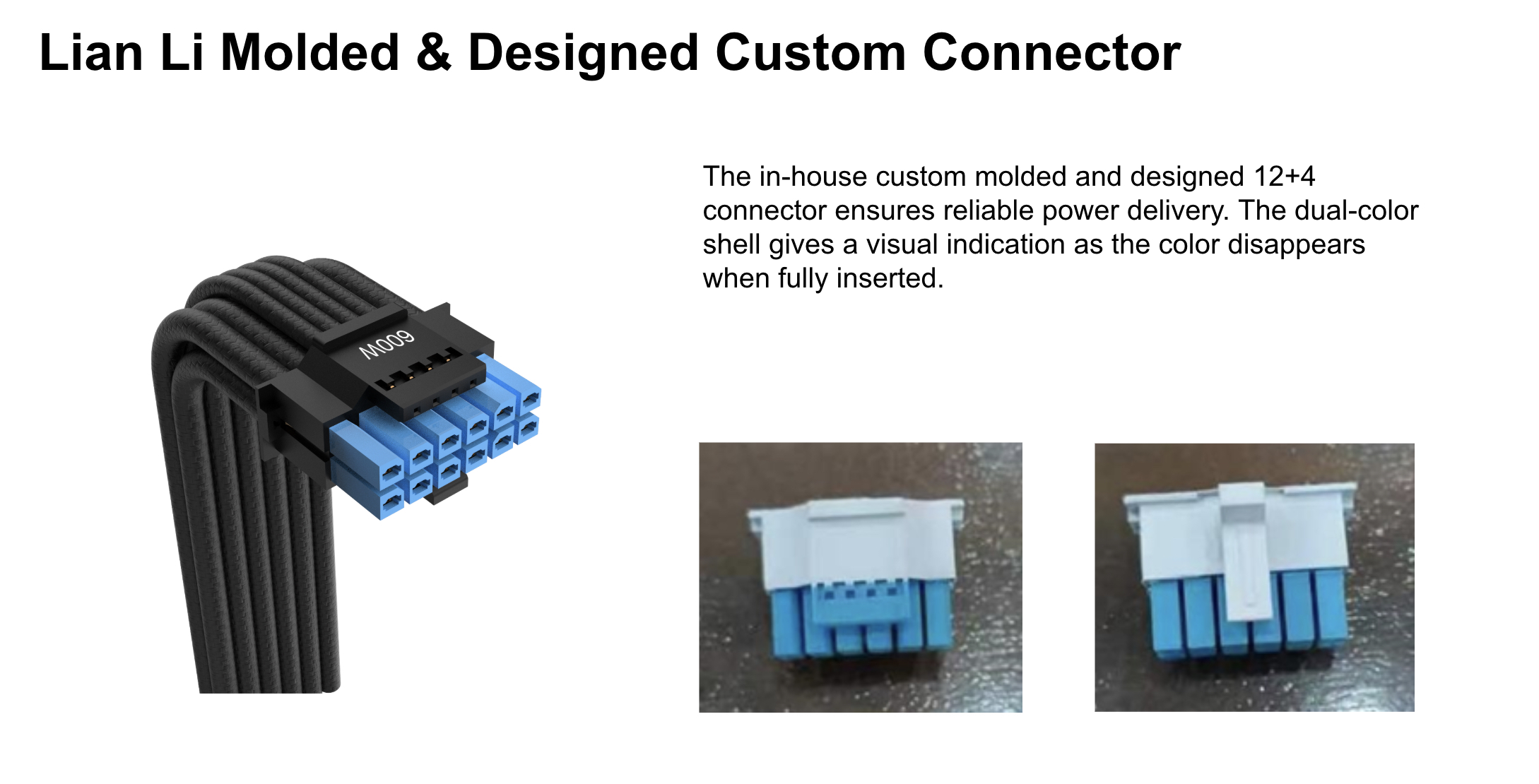

The SX PSU is shipped with 3x PCIe 6+2 cables, while the 1000W and 1200W models ship with two additional 12V-2X6 to 2x PCIe 6+2 pin cables. This means they can power accessories from Lian Li as well, such as the Universal USB and PWM Fan Hub, as well as other add-in components.

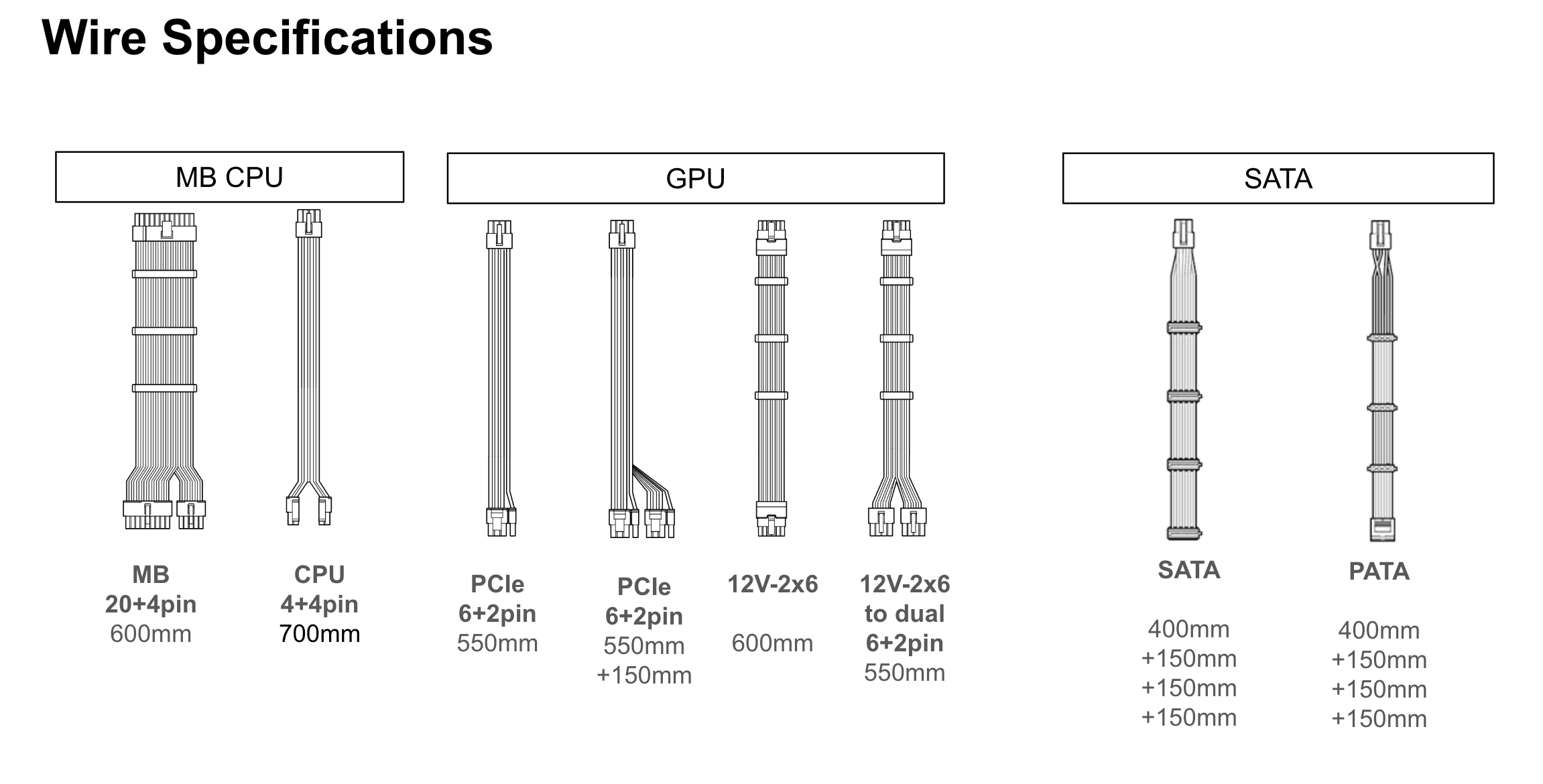

The MB 20+4 pin cable is 16-22 AWG, the CPU 4+4 pin is 16 AWG, the GPU 12v-2×6 (600w) cable is 16 AWG and the SATA cables are 18 AWG.
