Antec Vortex View 360 AIO CPU Cooler Review

1. Antec Vortex View 3602. Test Results3. Closing Thoughts4. View All Pages

Today we’re taking a look at the Antec Vortex View 360, a premium 360mm AIO cooler built around Asetek’s latest 9th-generation pump design, featuring an integrated 5-inch 360-degree rotatable IPS display. On paper, Antec is targeting both strong thermal performance and a high level of visual customisation with the Vortex View 360. In this review, we’ll be testing installation, build quality, acoustics and, of course, thermal performance to see how it compares against other 360mm AIOs.

Timestamps:

00:00 Intro
00:44 Pricing and key details

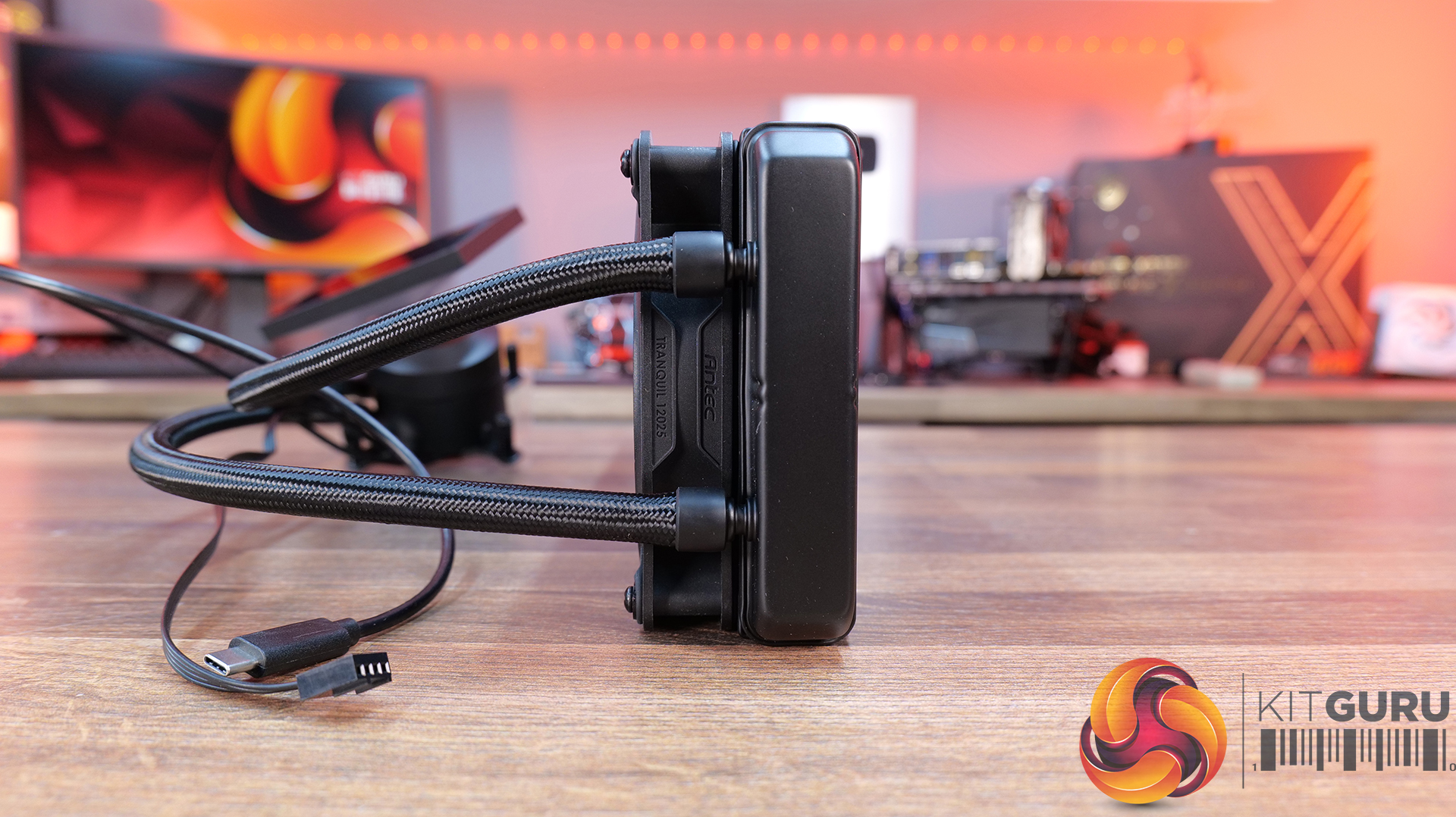

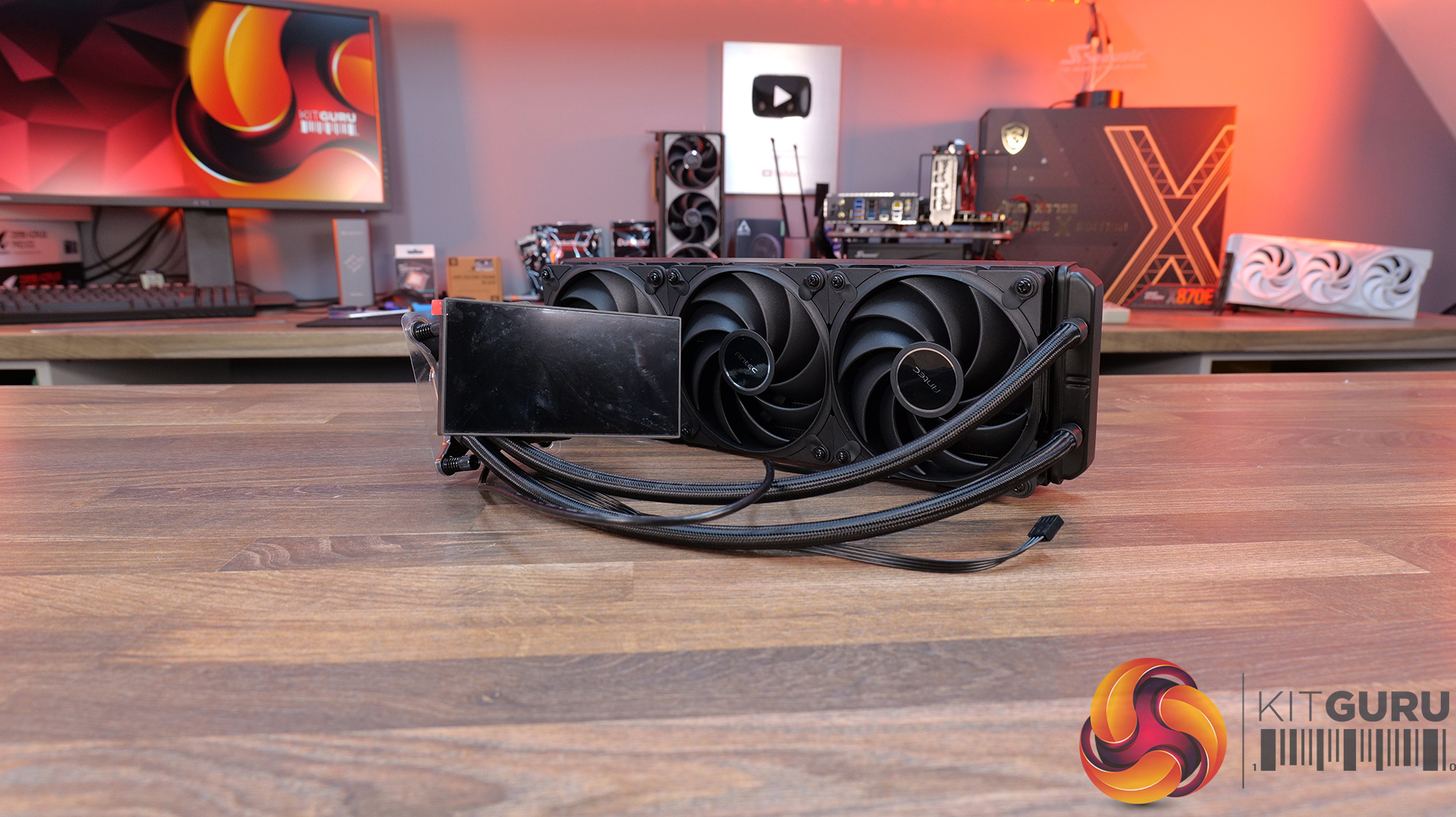

01:42 Closer look – radiator

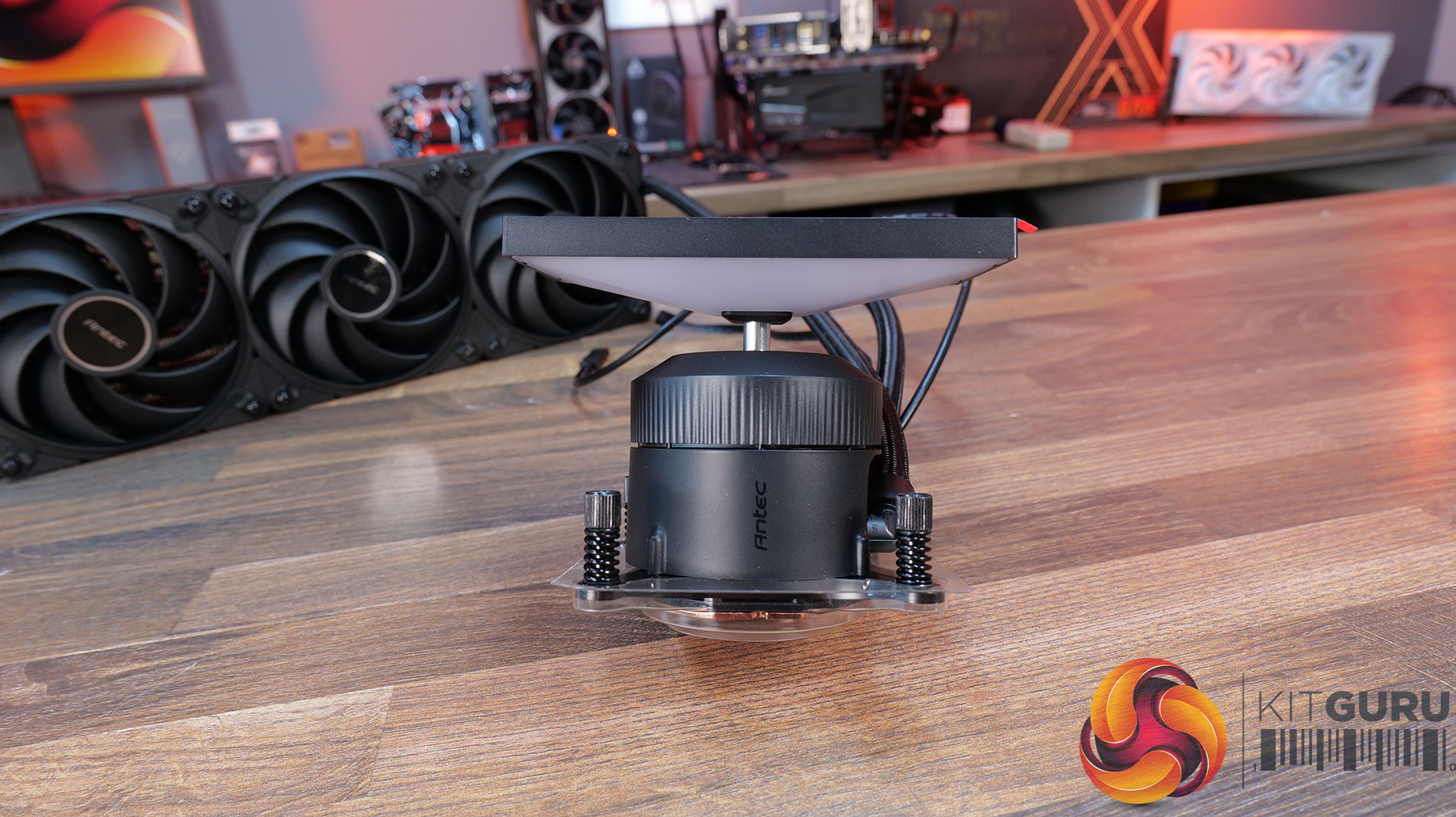

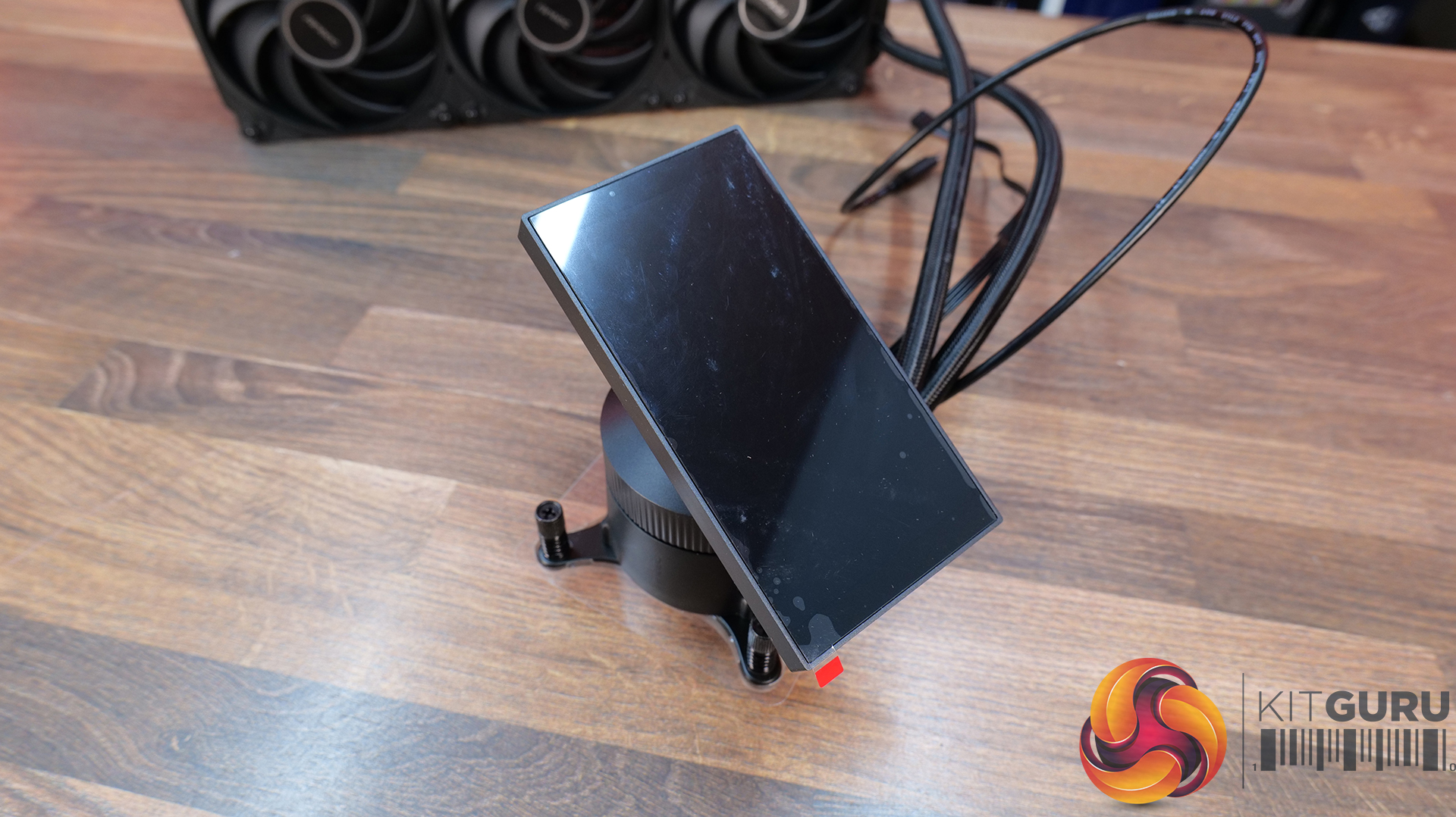

03:29 CPU block + screen!
07:00 Tranquil fans

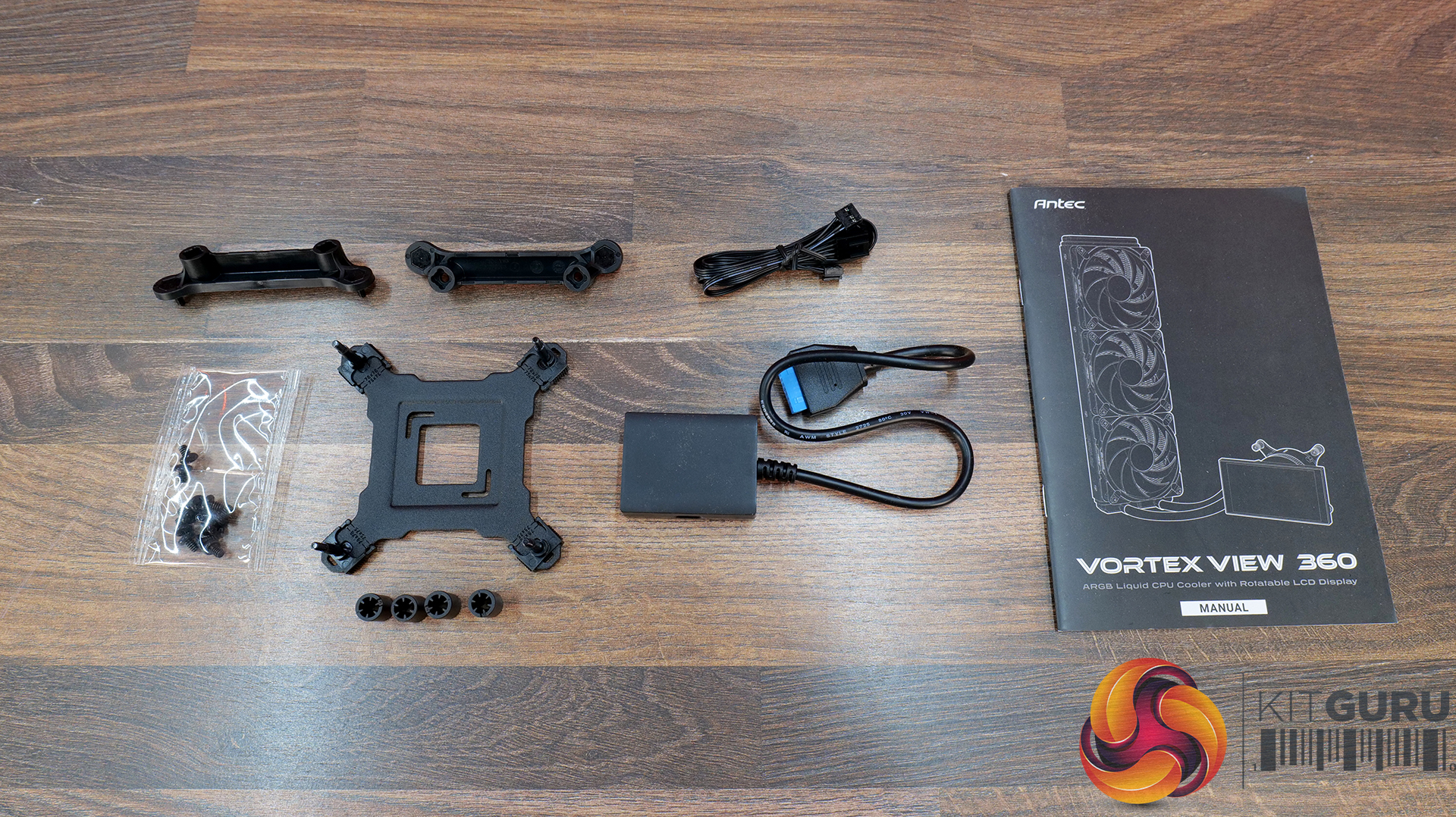

08:19 Other accessories
09:09 Installation process
10:30 Screen software
11:41 Acoustics and thermals
13:48 Closing thoughts

Features:

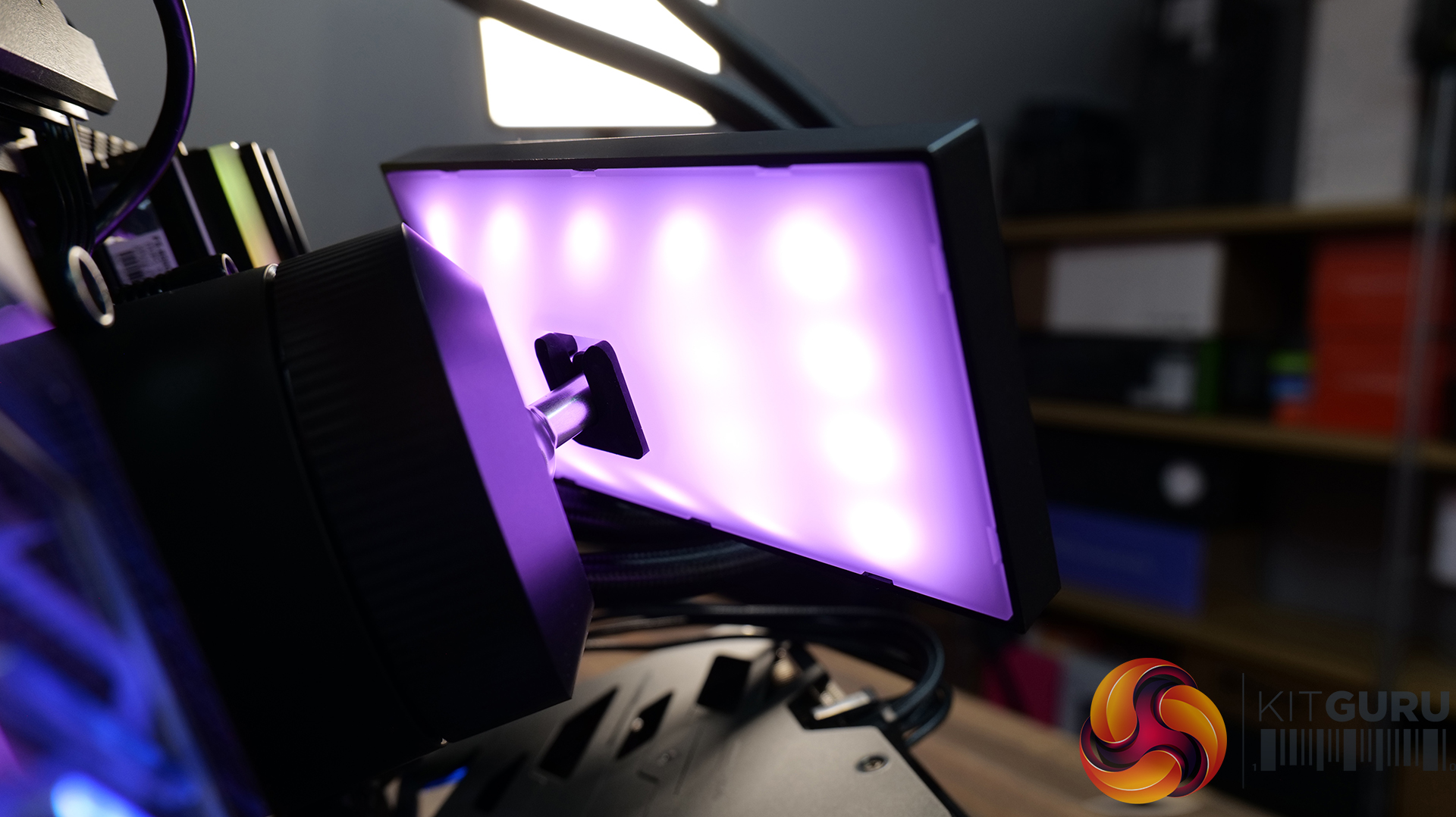

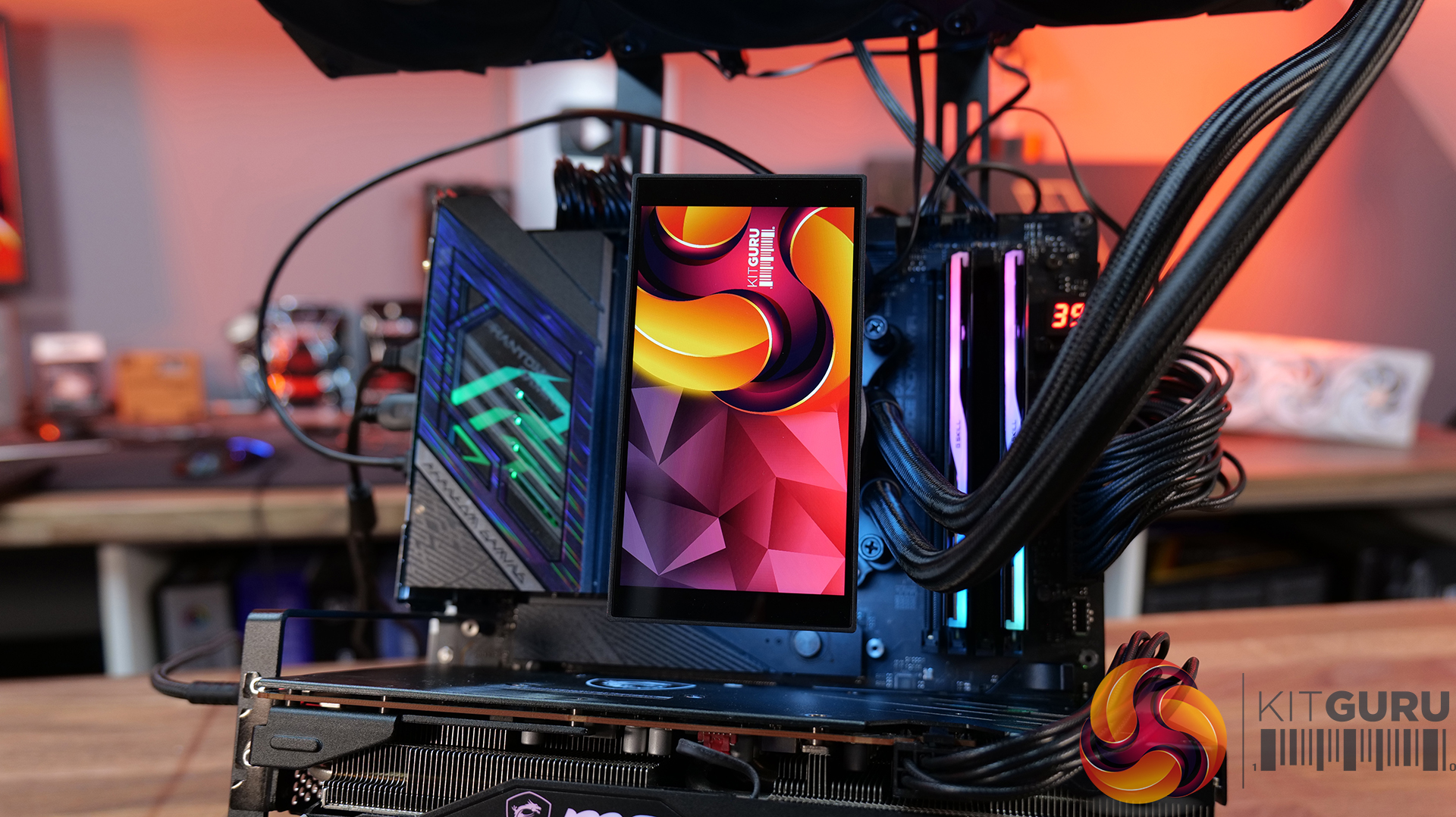

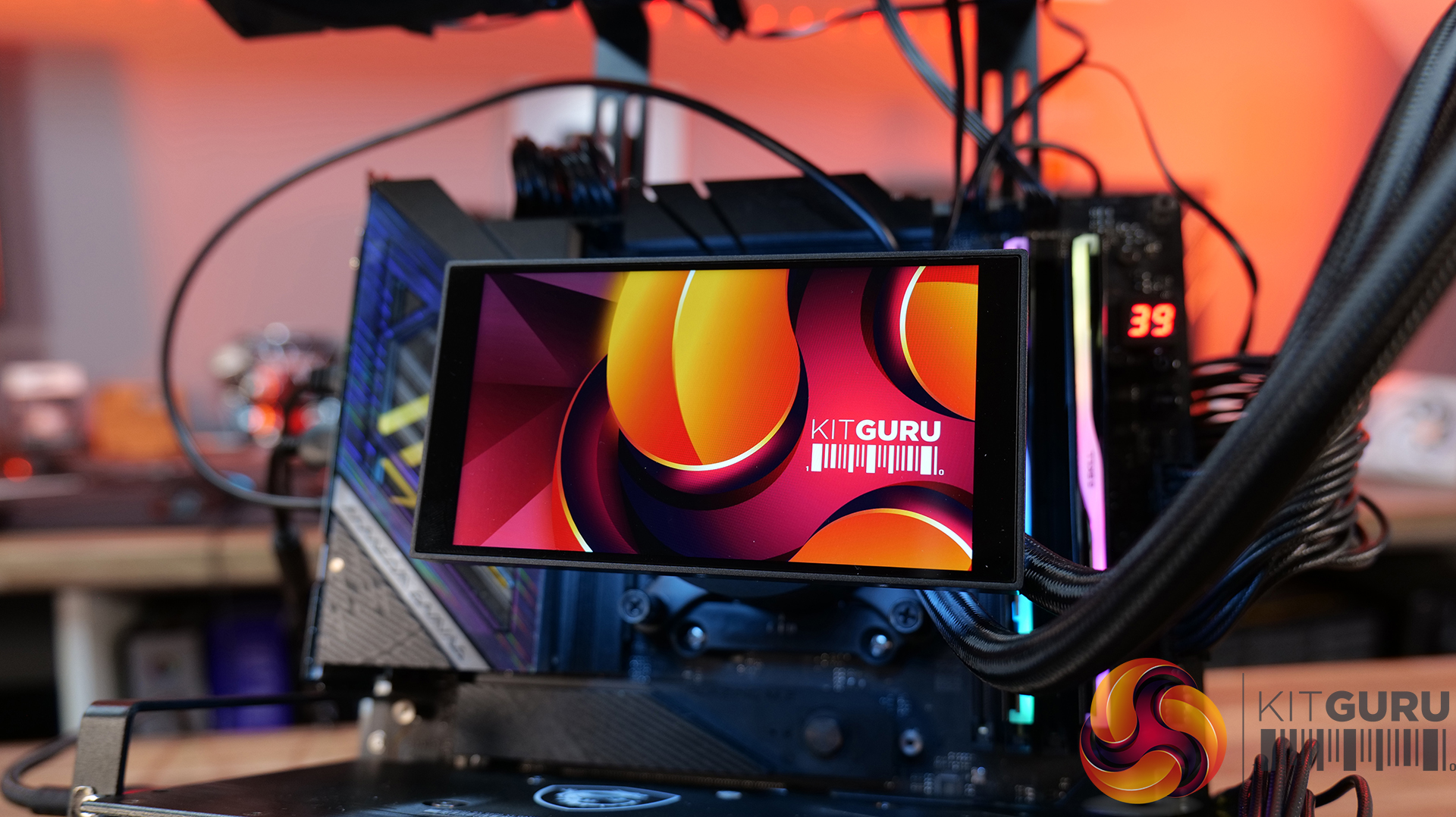

• Huge 5-inch IPS display — Vortex View 360 is equipped with a 1280 x 720 IPS panel that can be oriented through 360 degrees to suit your build, perfect for monitoring real-time system stats or custom visuals that show through your chassis side panel.
• 9th-Gen Asetek cooling platform with quieter pump — engineered for up to ~400 W TDP cooling power with reduced vibration and optimised acoustics, pairing performance with lower noise.
• Integrated iUnity 2.0 — Users can fine-tune fan and pump curves, customise lighting zones and control what the display shows, all through Antec’s updated iUnity 2.0 software.

Specifications:

• CPU Socket Compatibility: Intel: LGA115X / 1200 / 1700 / 1851, AMD: AM4 / AM5
• Radiator Material: Aluminium

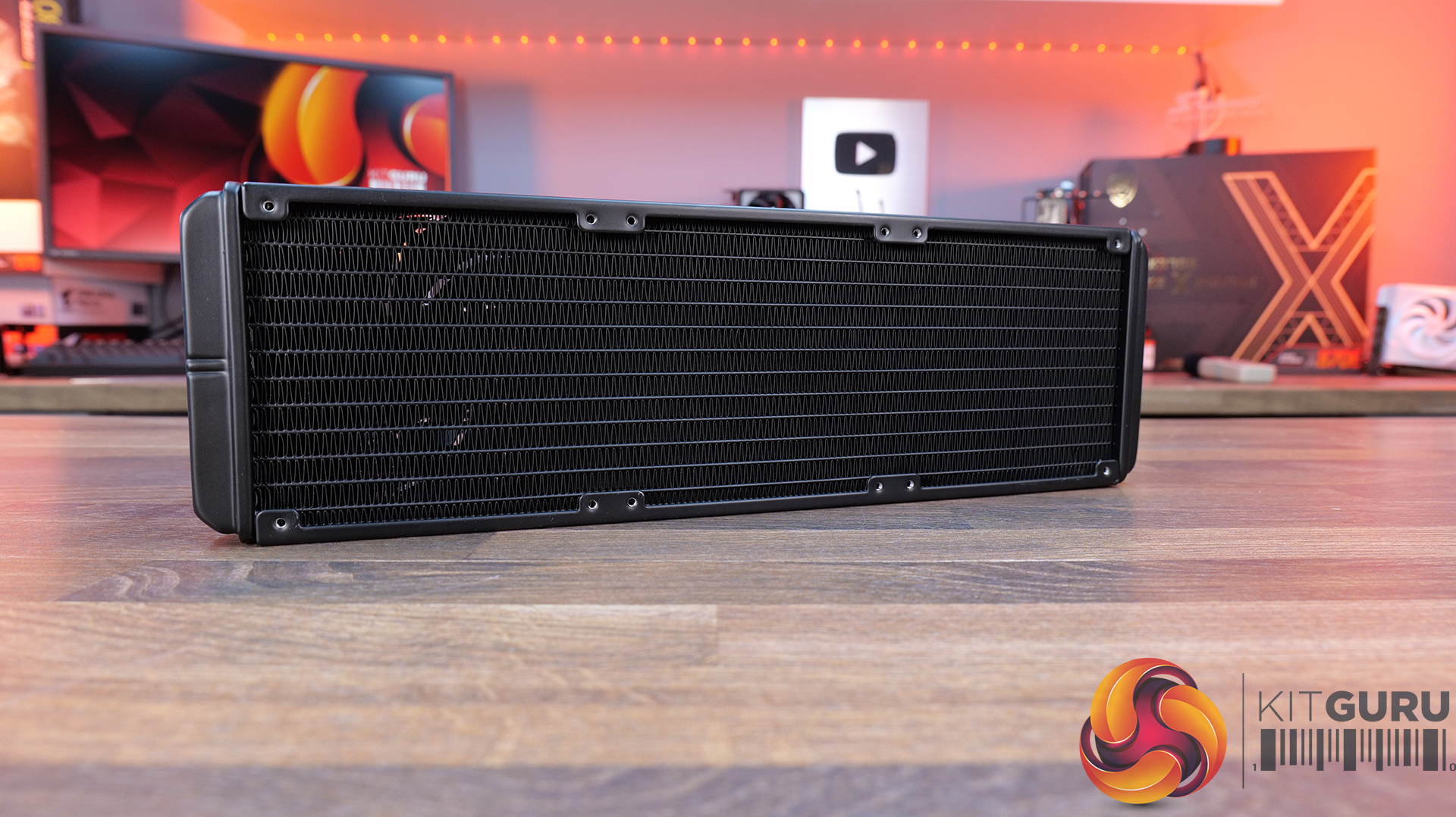

• Radiator Dimensions: 394 × 120 × 27 mm
• Pump Speed: up to 3000RPM
• Pump Noise: ≤27 dB(A)

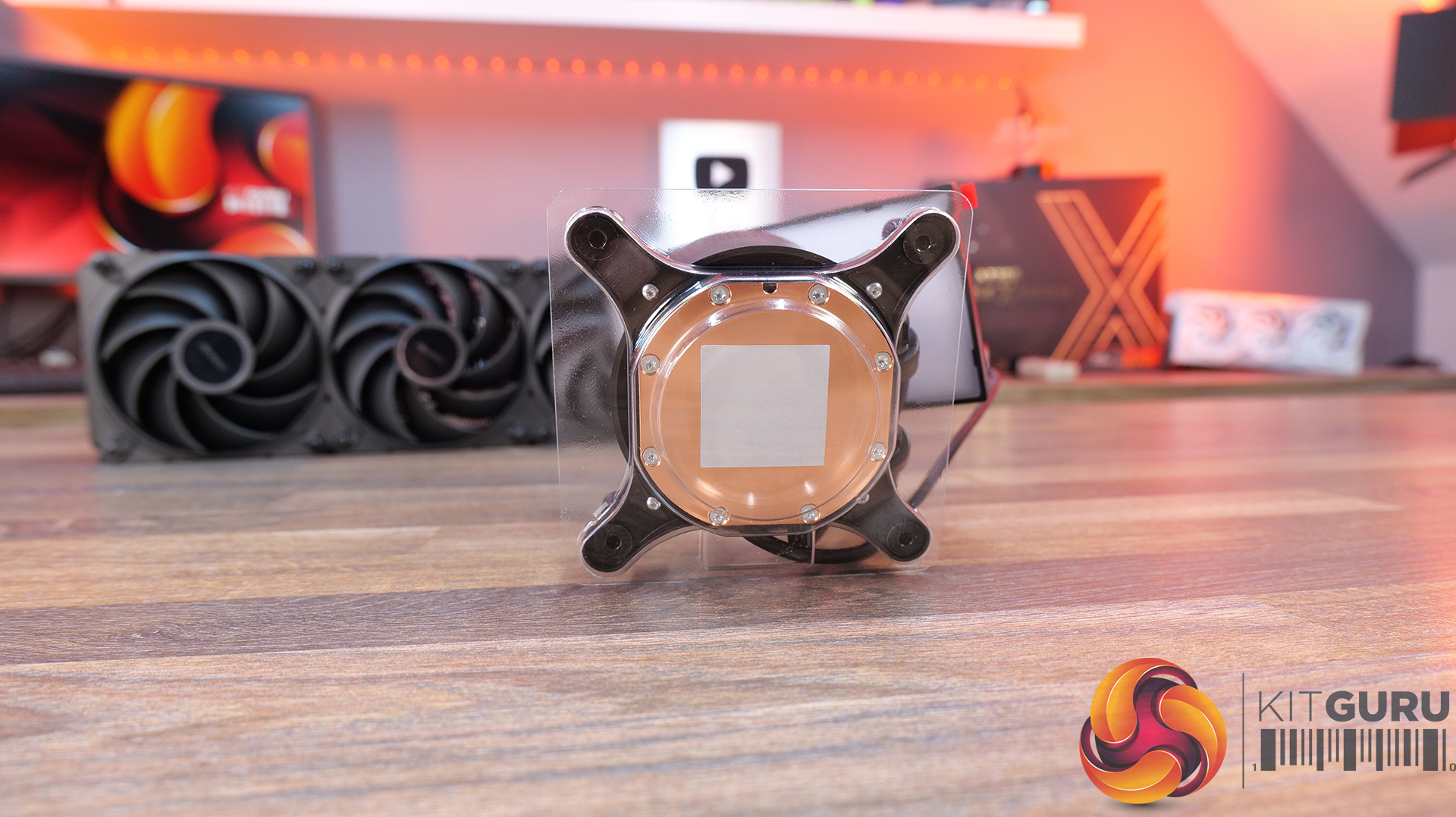

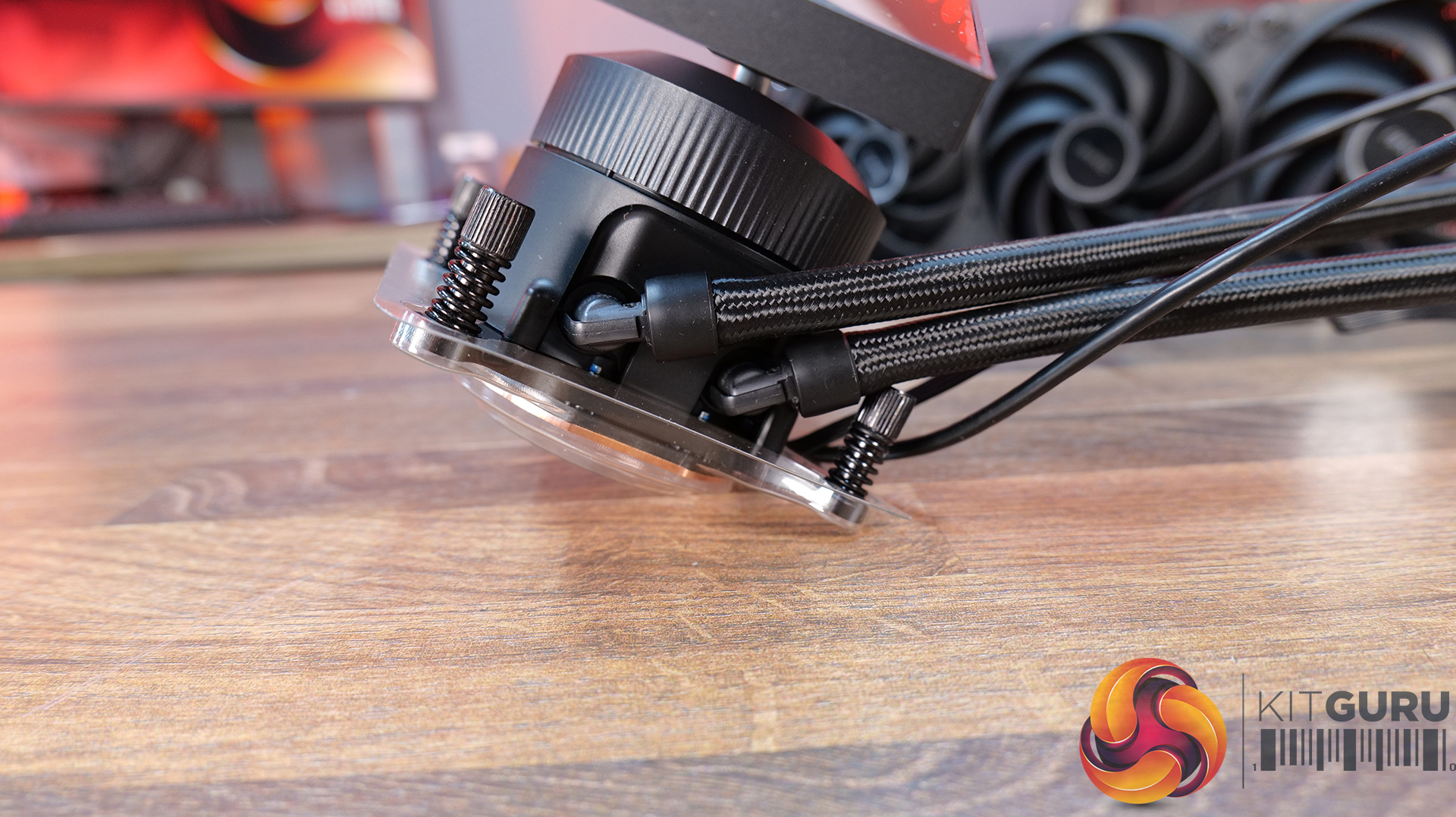

• Cold Plate Material: Micro Skived Copper
• Pump Connector: 4-pin Molex

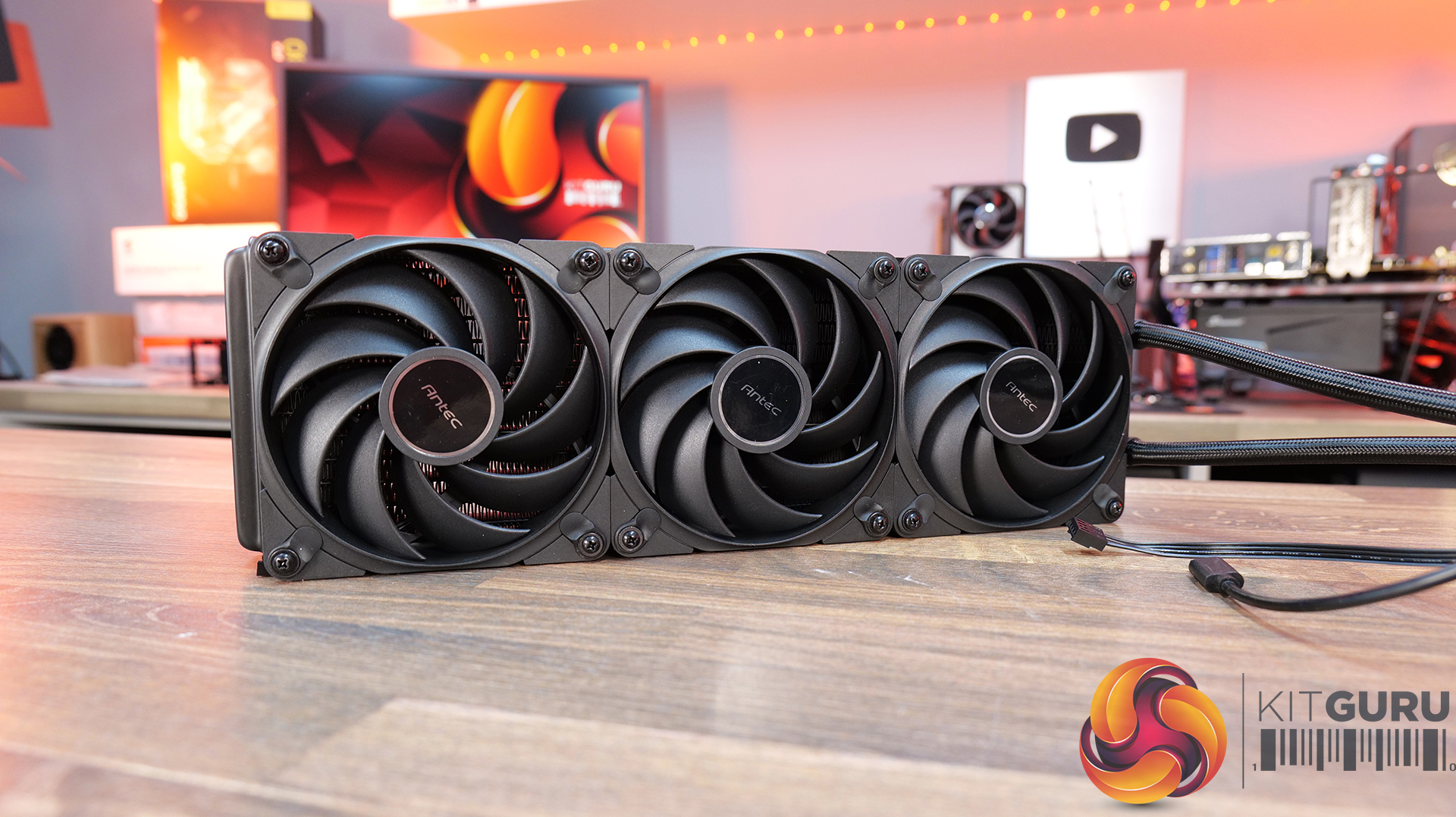

• Fan Dimensions: 120 × 120 × 25 mm
• Fan Speed (PWM): 400 ±100 ~ 2000 ±150 RPM
• Air flow: 59.23 CFM (max.)
• Air Pressure: 2.46 mmH₂O (max.)
• Fan Noise: 28.6 dB(A)
• Fan Connector: 4-pin PWM
• LCD Screen: IPS 1280 x 720 resolution, 60Hz refresh, 300 nits brightness
• Warranty: 6 Years

Test System Specifications:

• CPU: AMD Ryzen 9 9950X
• Motherboard: ASRock Phantom Gaming X870E Nova WiFi
• Memory: 32GB (2 x 16GB Modules) Kingston Fury DDR5-6000
• Graphics card: MSI Radeon RX 6600 XT Gaming X
• Storage: 1TB Corsair MP600 Elite PCIe Gen4x4 NVME M.2 SSD
• Power Supply: Seasonic Prime TX-1600
• Chassis: Open Test Bench
• Thermal Compound: Arctic MX-6
• O/S: Windows 11 Version 24H2
