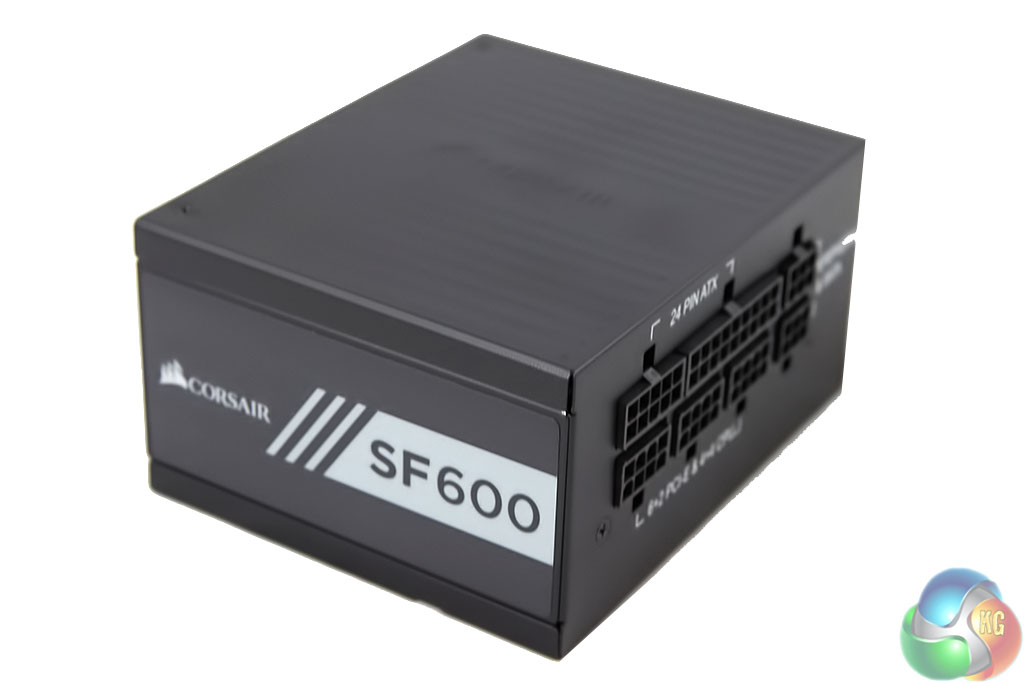

The Corsair SF600, like the SF450 is a tiny little power supply with no fancy external stickers or lights. The unit is finished in matt black with the name shown on one side.

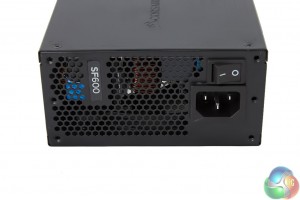

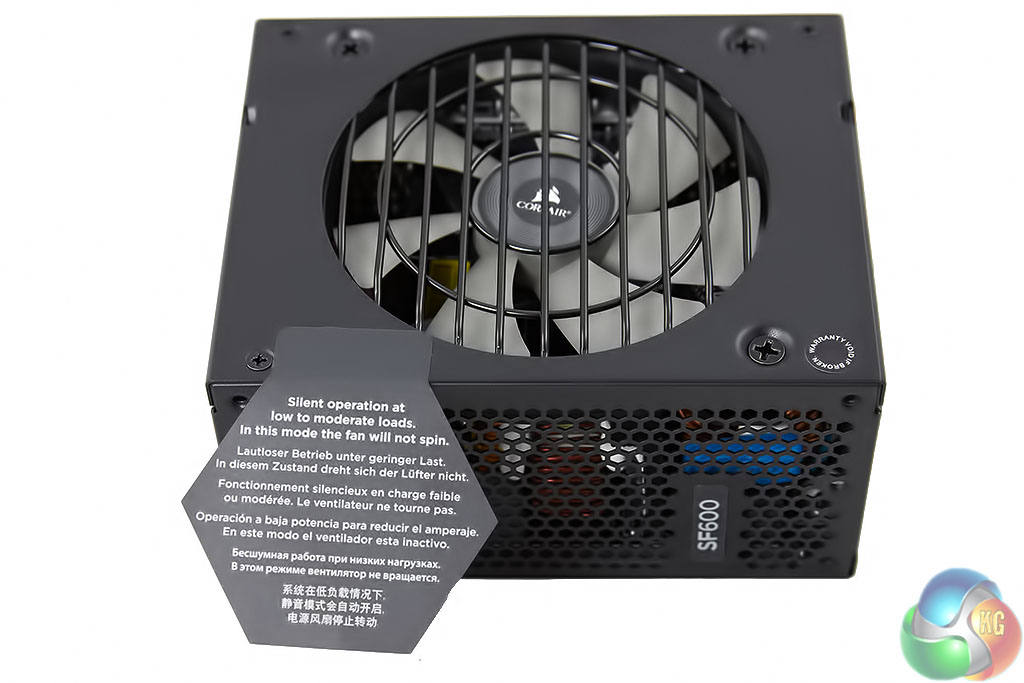

First thing, remove the sticker with information on the ZERO RPM mode. There is a power switch and cable connector close by.

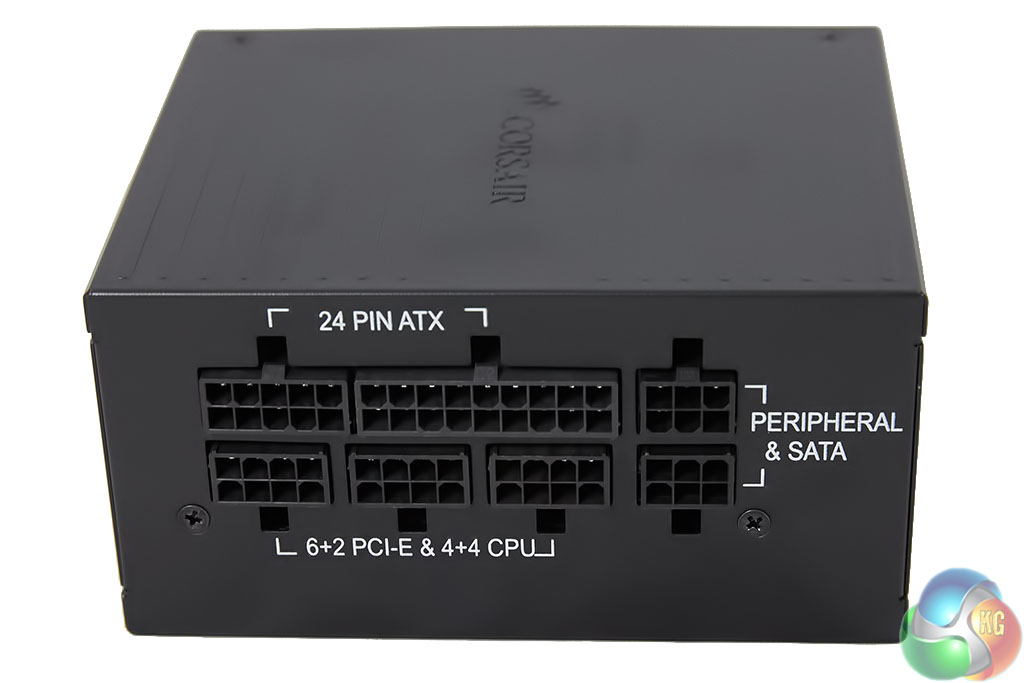

The modular side of the power supply is neatly laid out and easy to follow – with the cable connectors all labeled.

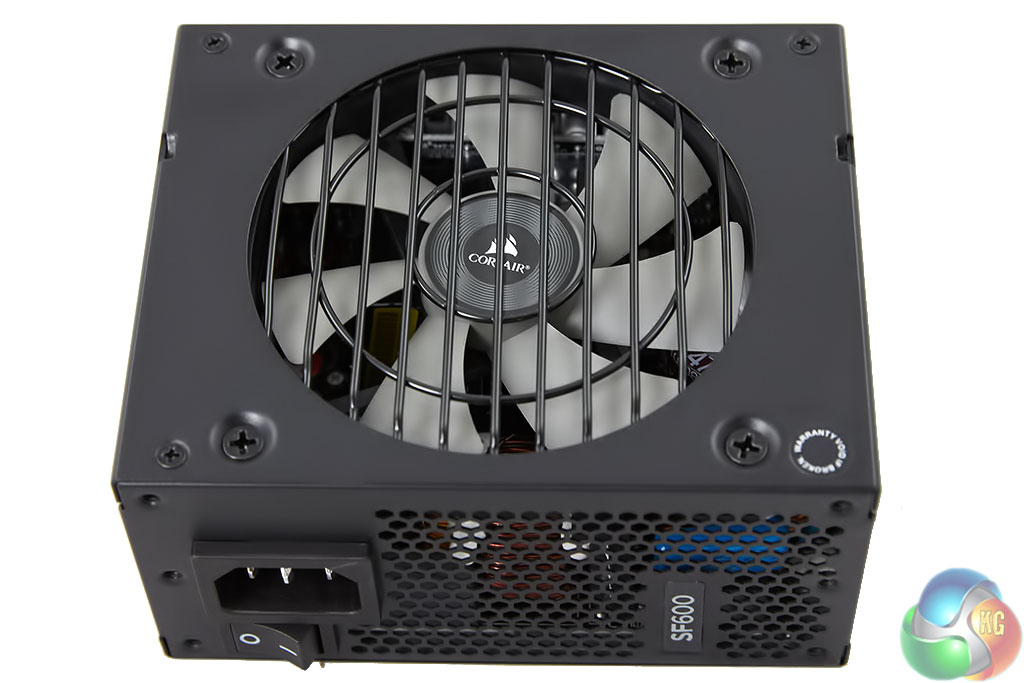

The large grey/white 92mm fan is clearly seen behind the black metal grill, above.

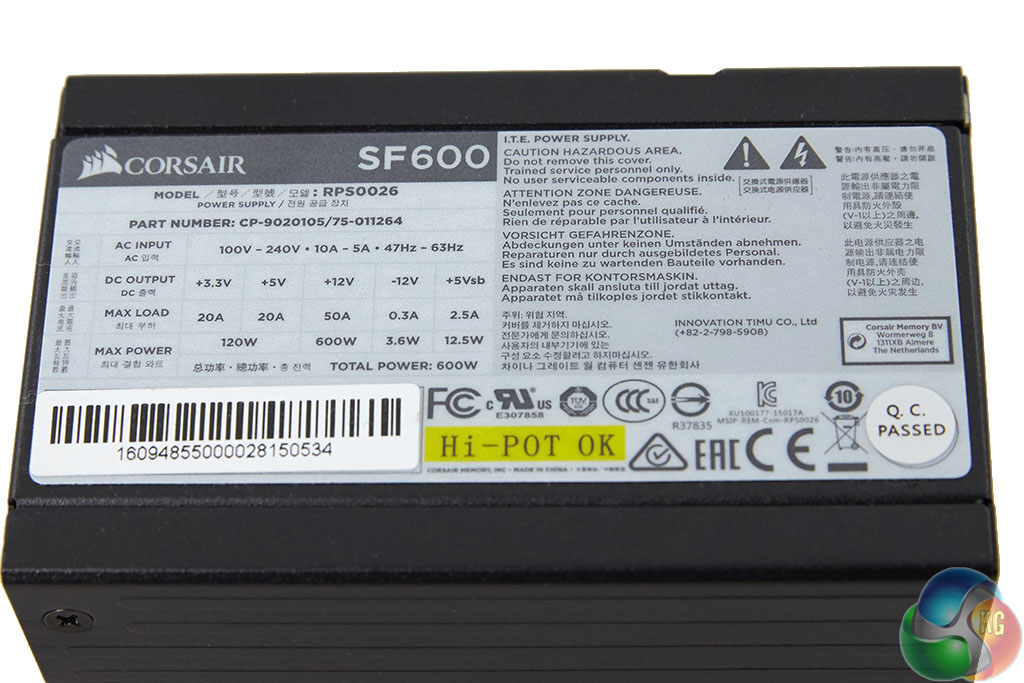

Corsair SF 600 Power Supply | |||||
DC Output
|
+3.3V
|
+5V
|
+12V |
-12V
|
+5Vsb
|
Max Output
|
20A
|
20A
|
50A |
0.3A
|
2.5A
|
Total Power | 120W | 600W | 3.6W | 12.5W | |
600W |
The Corsair SF 450 can deliver 50A from the +12V rail.
