CPS PCCooler YT1200 ATX 3.1 PSU Review

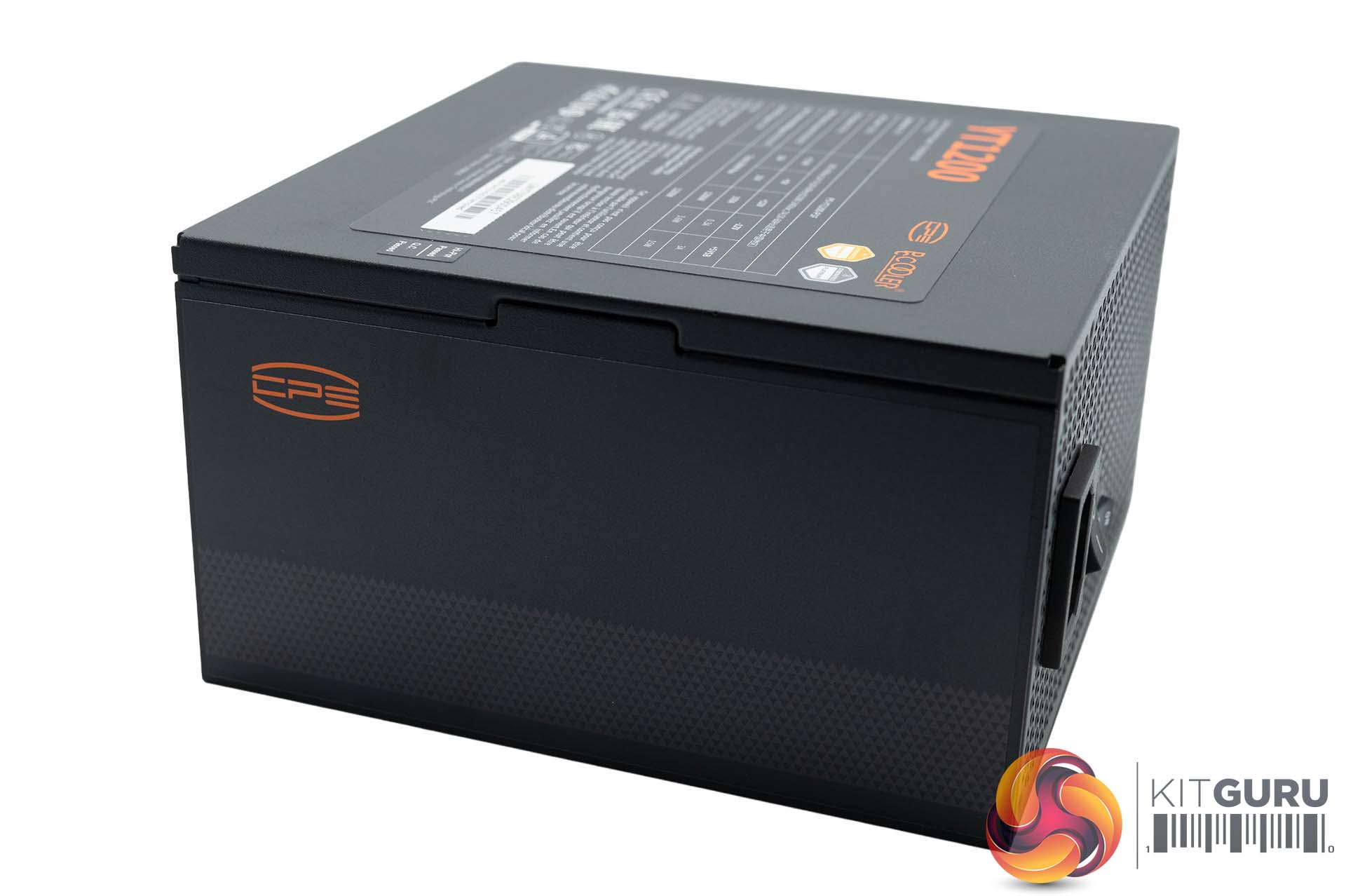

The YT1200 is relatively compact for the output wattage, measuring 135mm x 135mm x 25mm. It weighs 1.75kg.

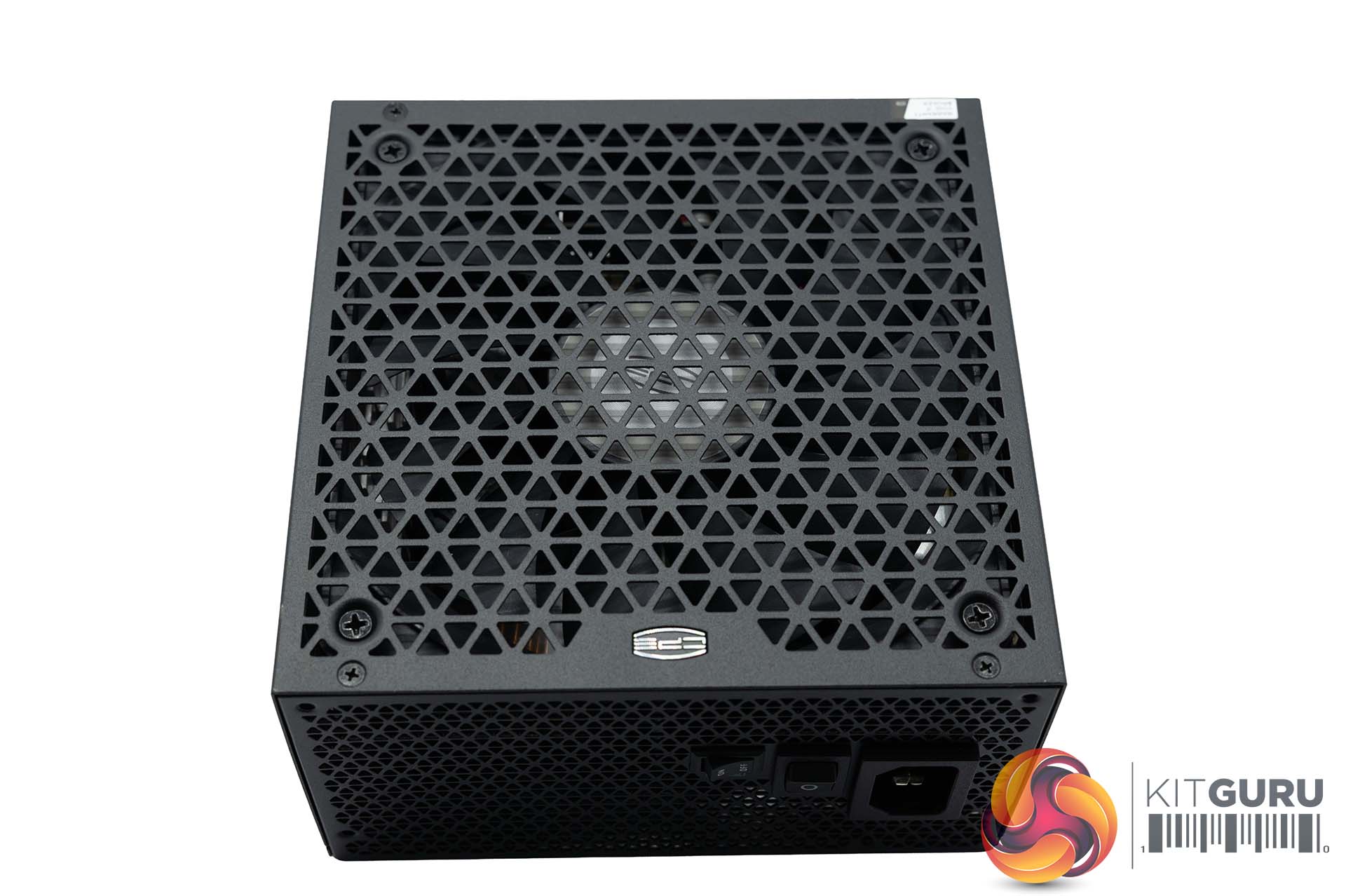

I like the fan grille – the triangular cut-outs not only look cool but they are large enough to ensure high levels of airflow with the fan drawing in air underneath.

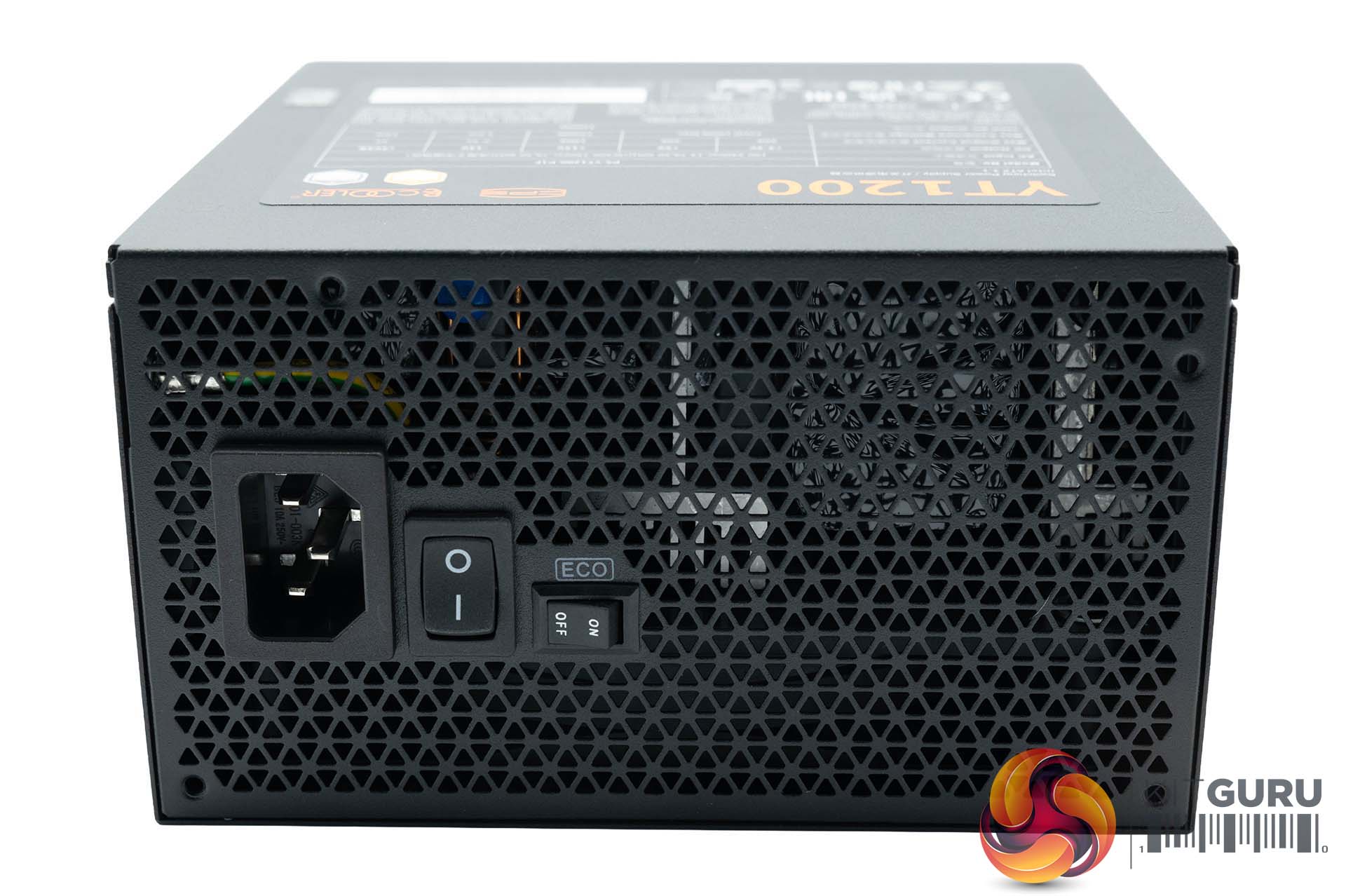

One side of the unit is home to the power connector, switch and ‘eco mode' switch. A similar implementation has been seen on many units in recent years. Basically, when enabled, the fan will only activate when a certain load/temperature is achieved. This has the effect of lowering noise emissions which many people value.

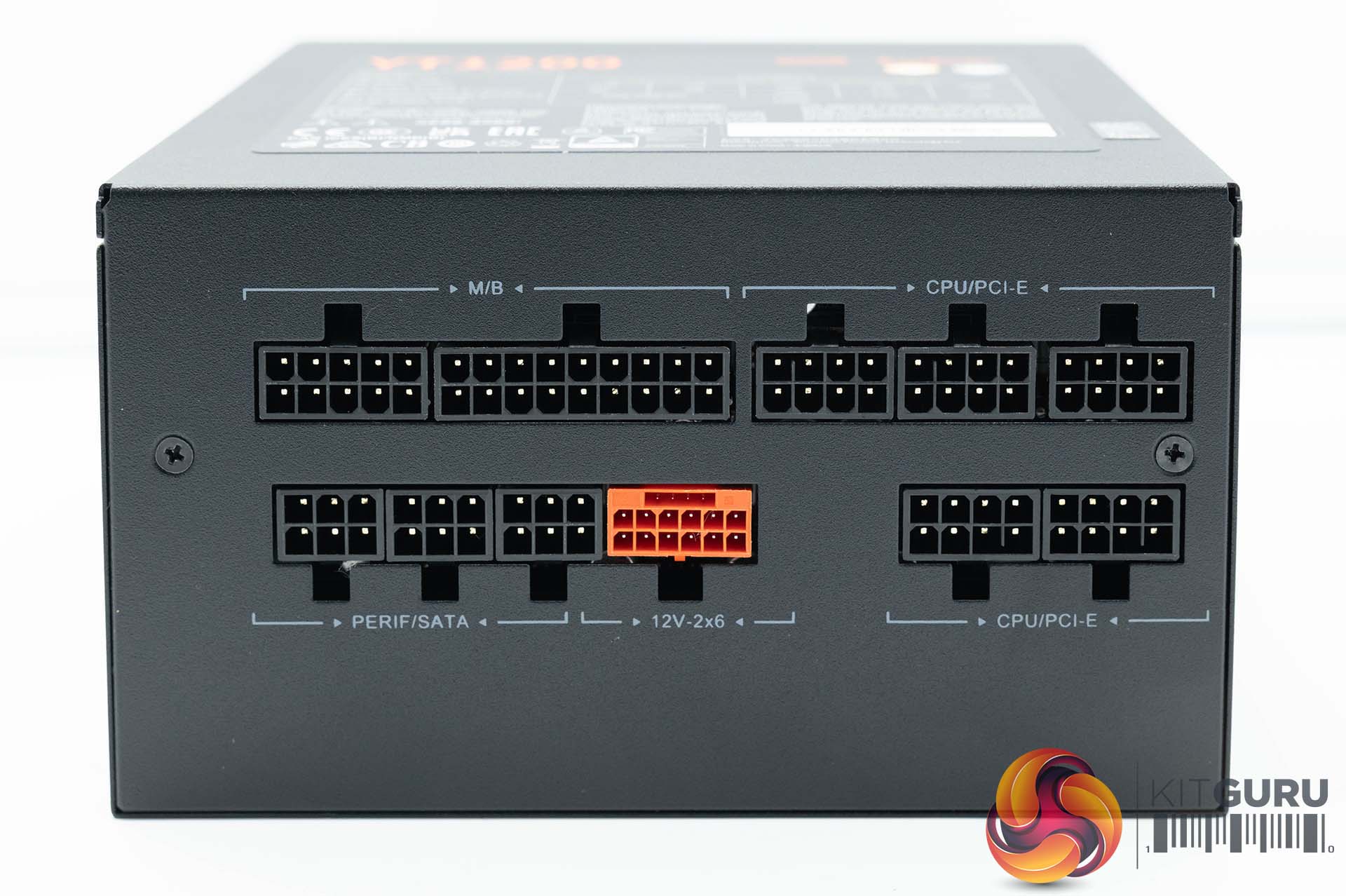

The modular bay is split over two rows, all clearly labelled and even colour coded for ease of install.

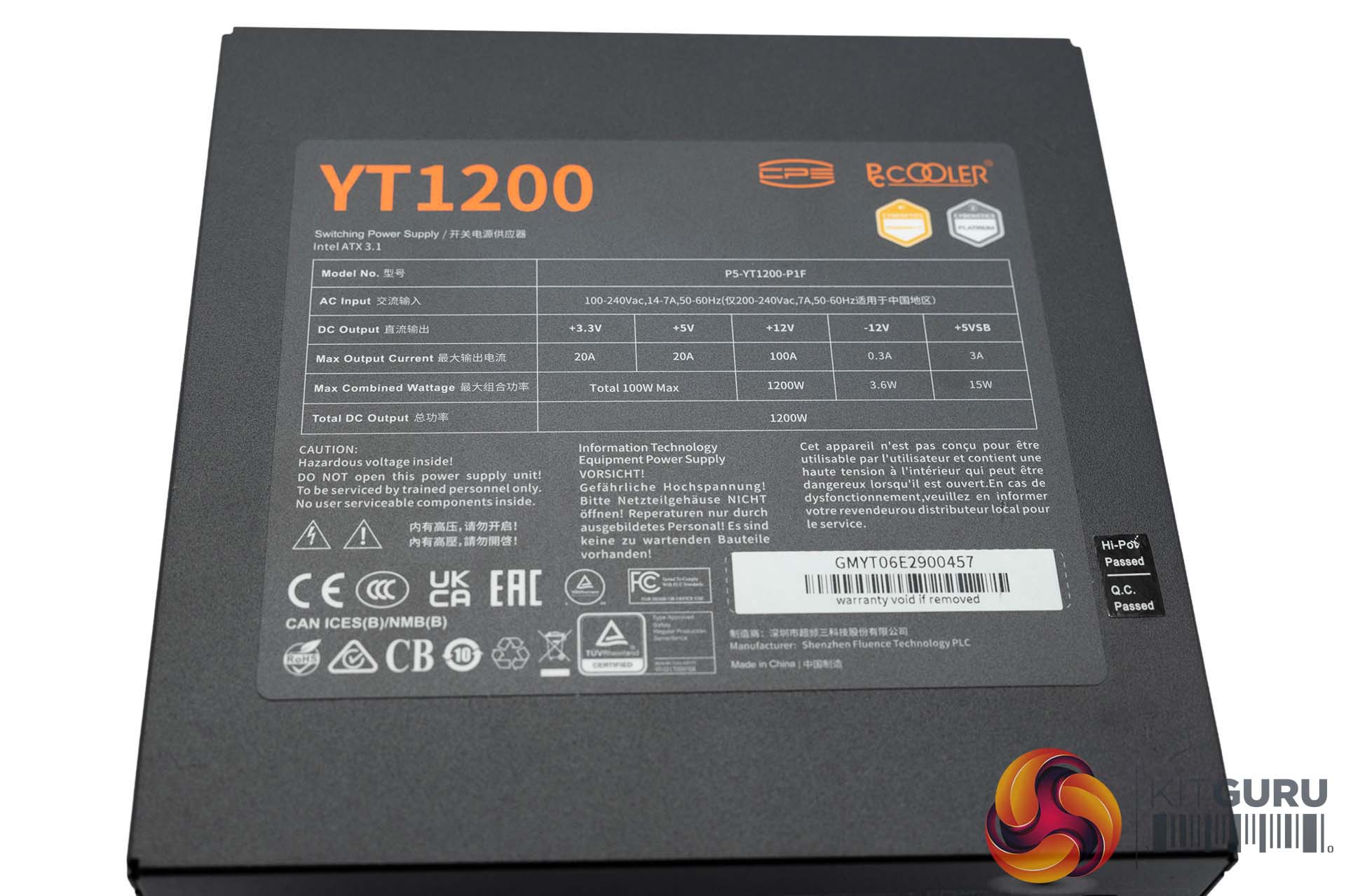

The YT1200 is able to deliver 100A on the +12V rail for a total of 1200 watts. Secondary +3.3V and +5V rails are rated at 20A.
