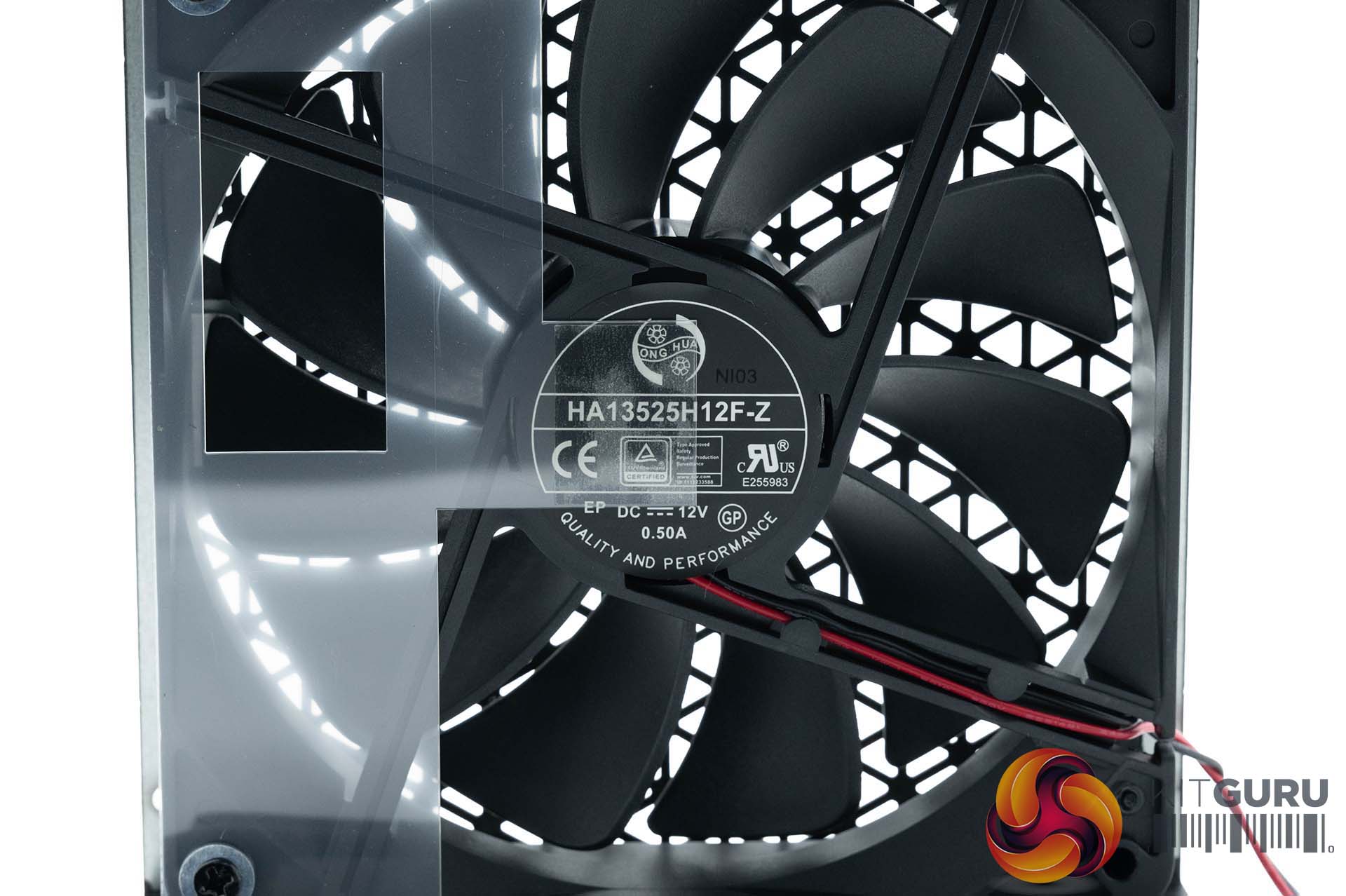

Inside, we find a high-grade Hong Hua FDB fan, model HA13525H12F-Z which we have seen in many high-end units in the last year from the likes of Seasonic. I like these fans a lot, they have proven to be good performers while being reliable.

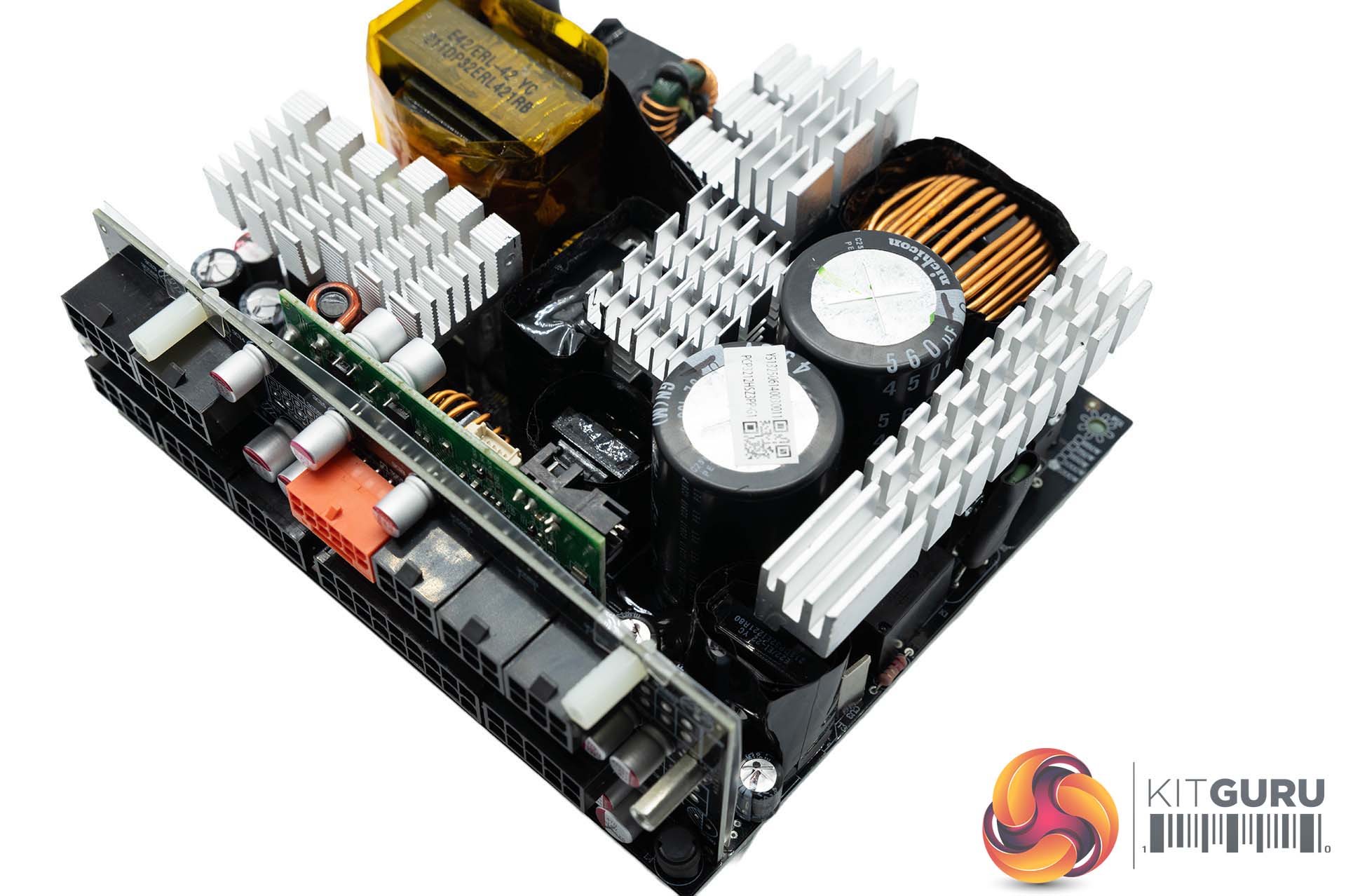

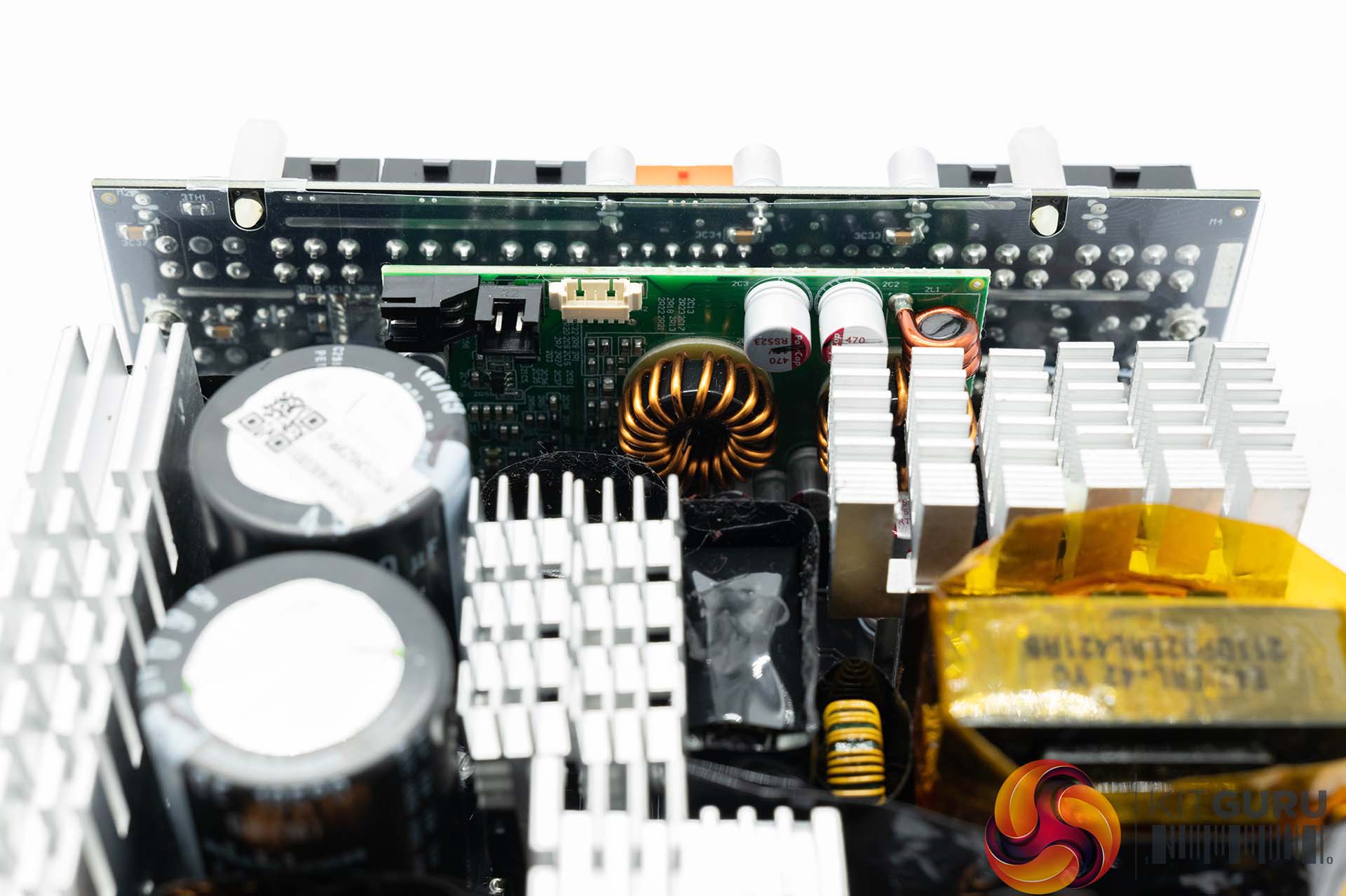

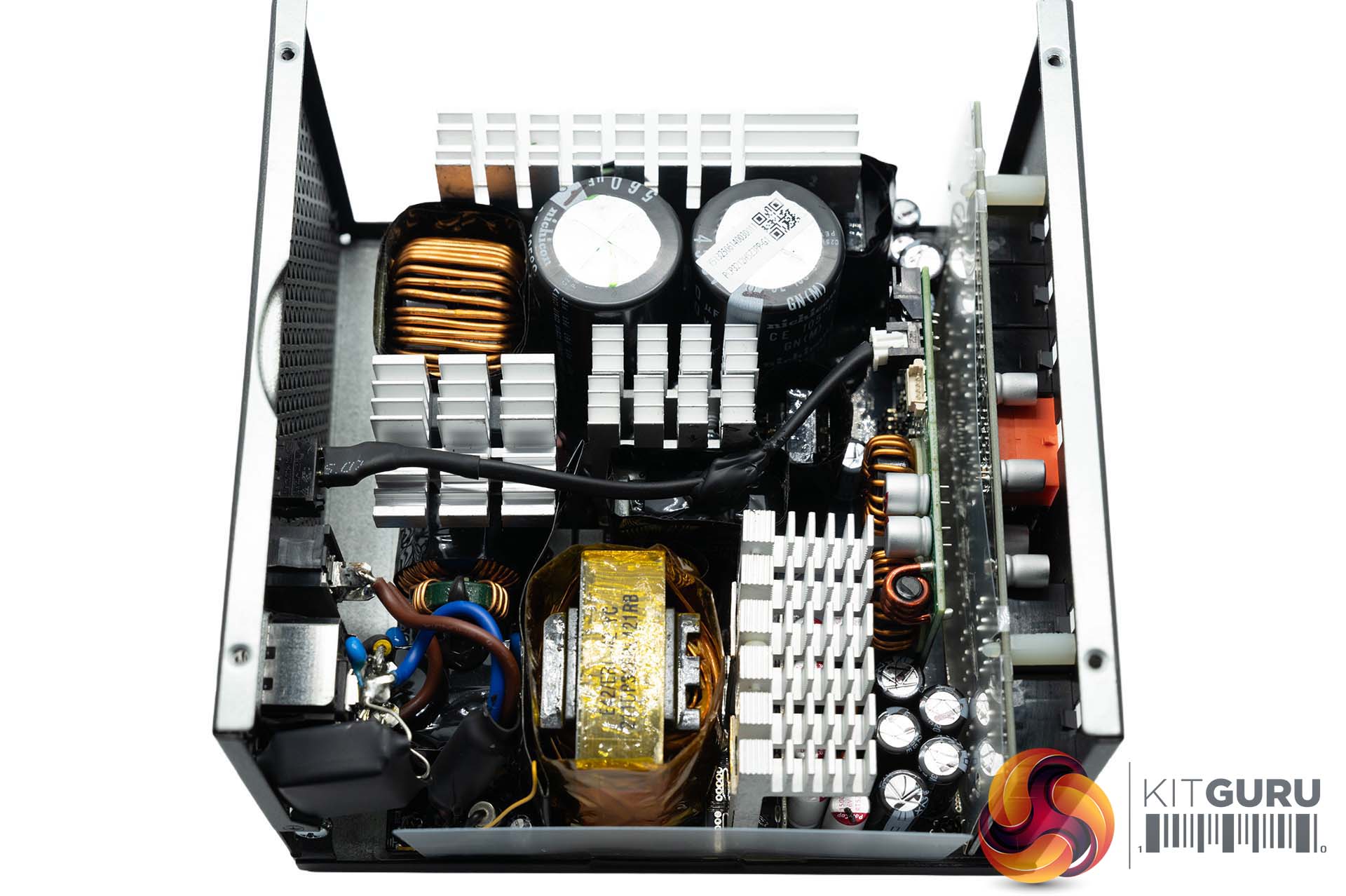

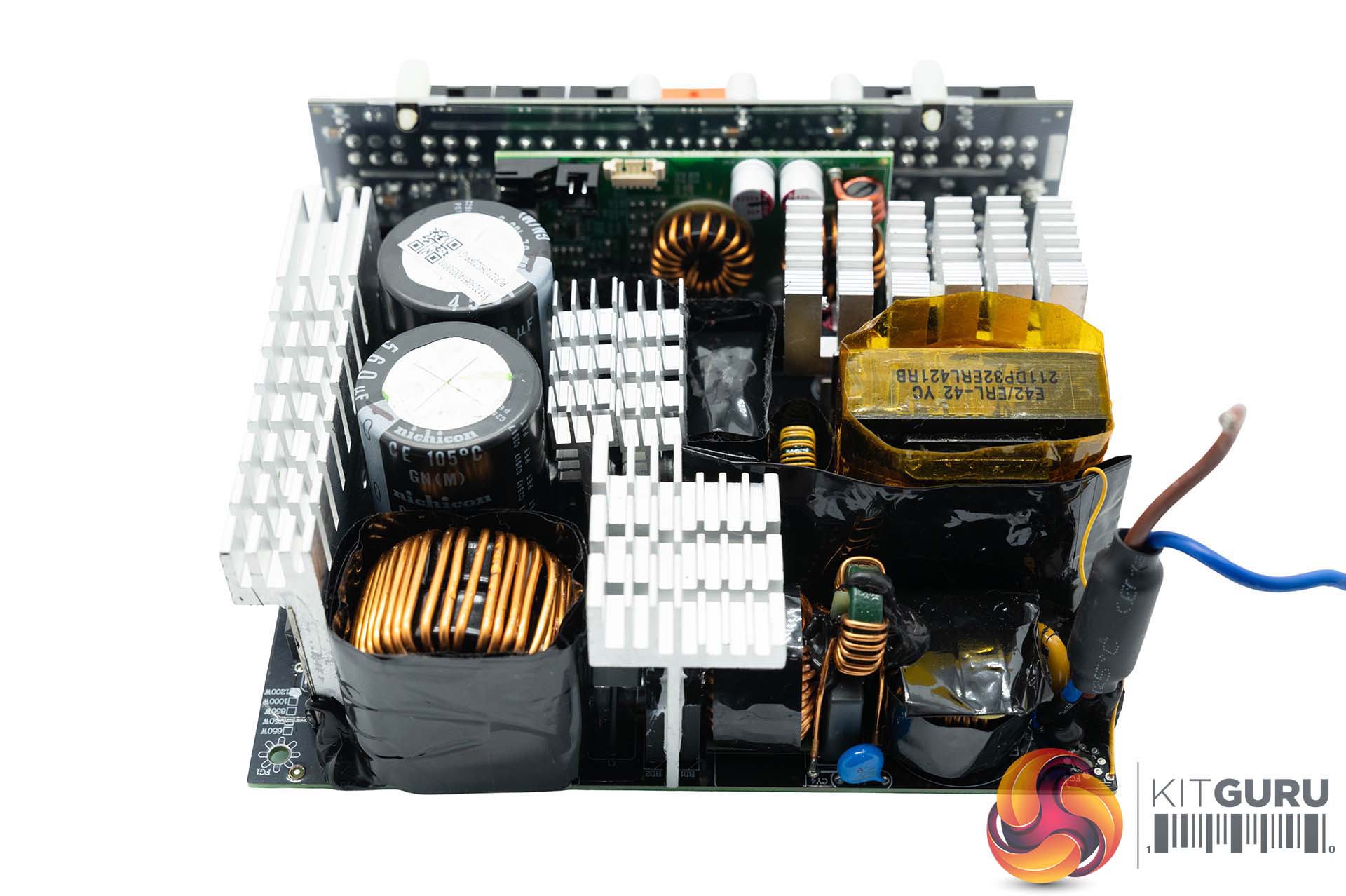

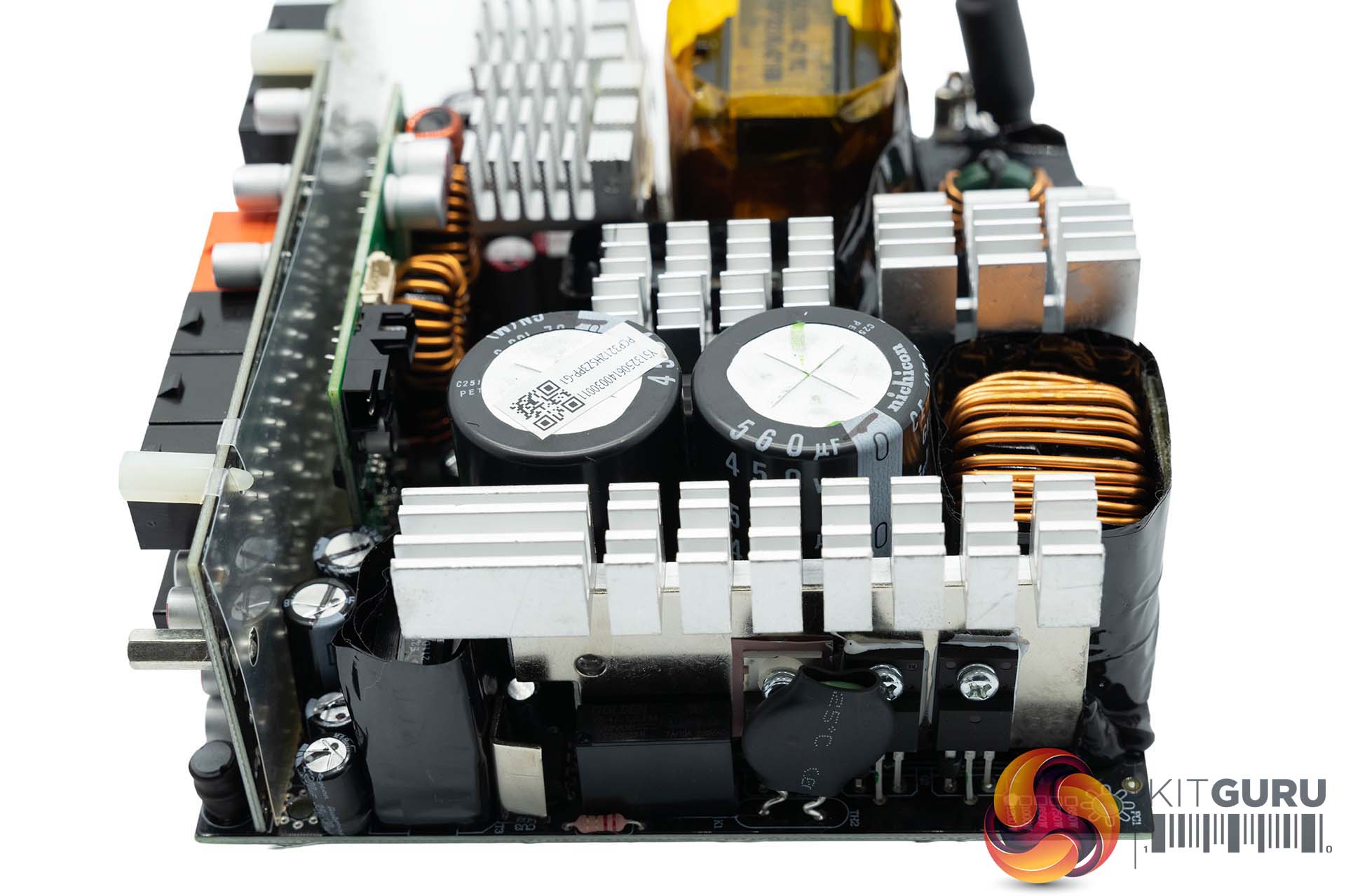

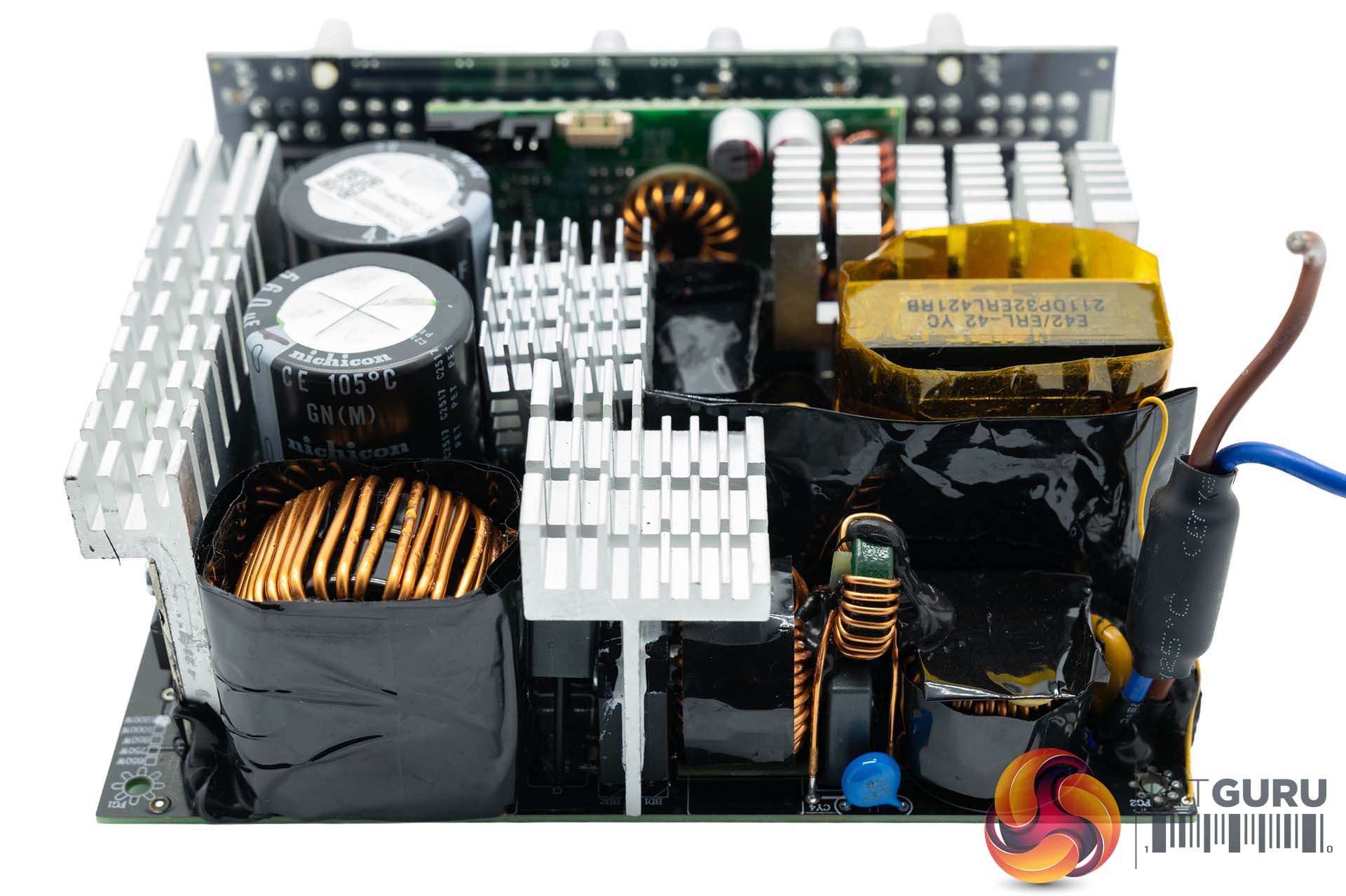

This power supply is an Andyson OEM part in conjunction with PCCooler. It is a double-sided PCB and the primary side is comprised of 4x Y Caps, 2x X Caps, 2x CM Chokes and 1x MOV. The primary stage is APFC, Full Bridge Topology and LLC Resonant Converter for improved efficiency levels – the secondary side is 12V Synchronous rectification with the minor rails generated from DC-DC converters.

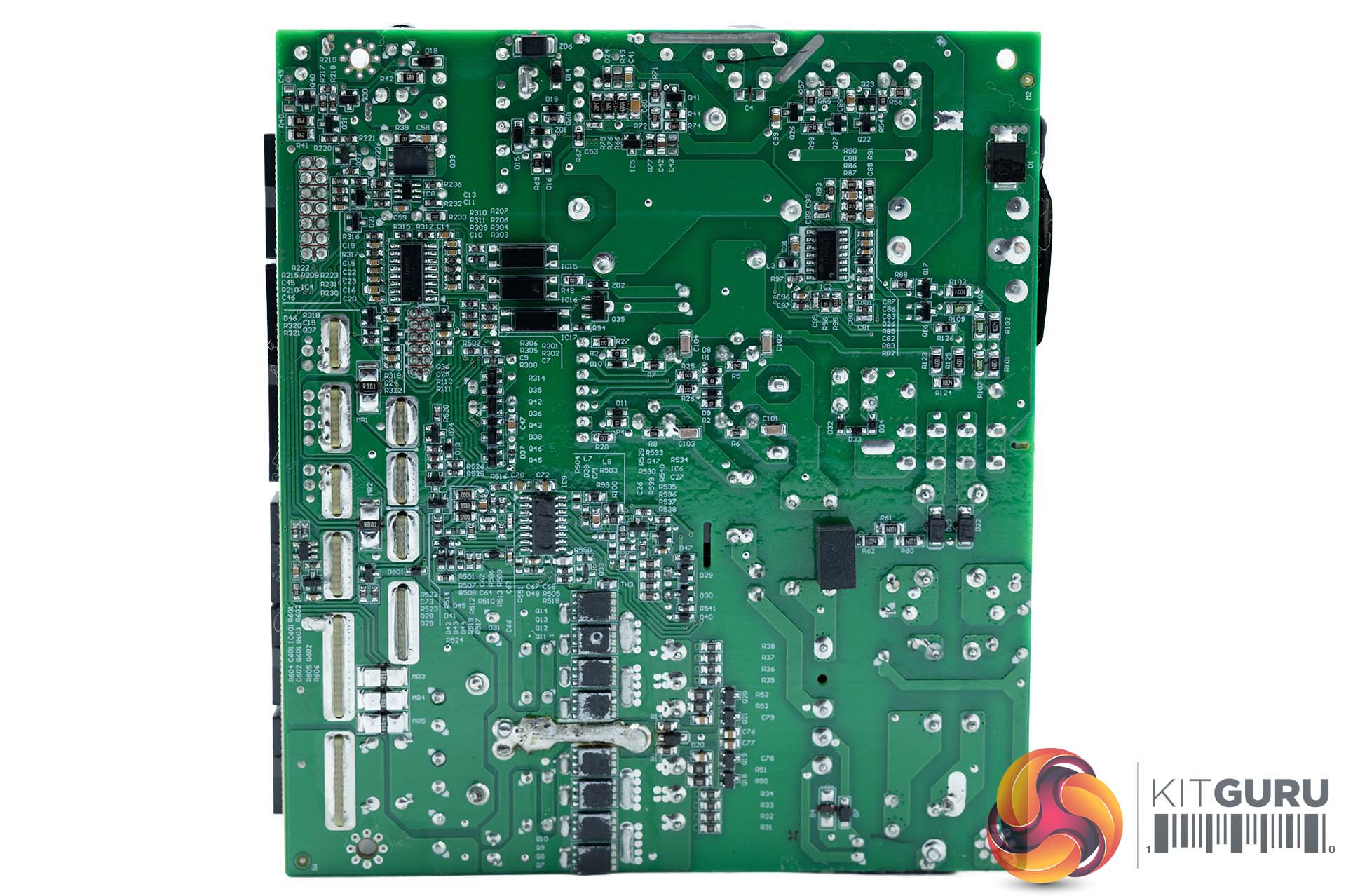

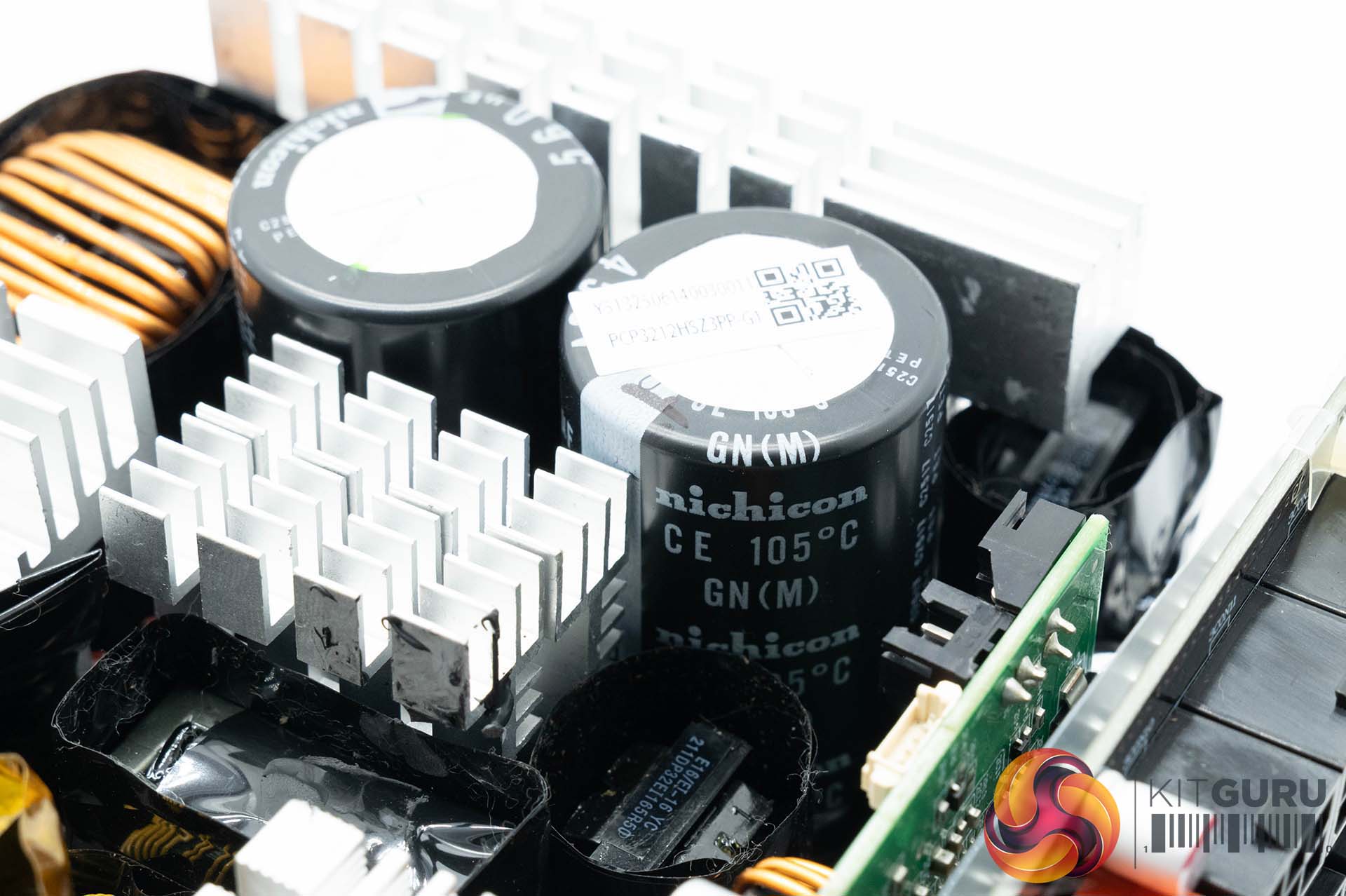

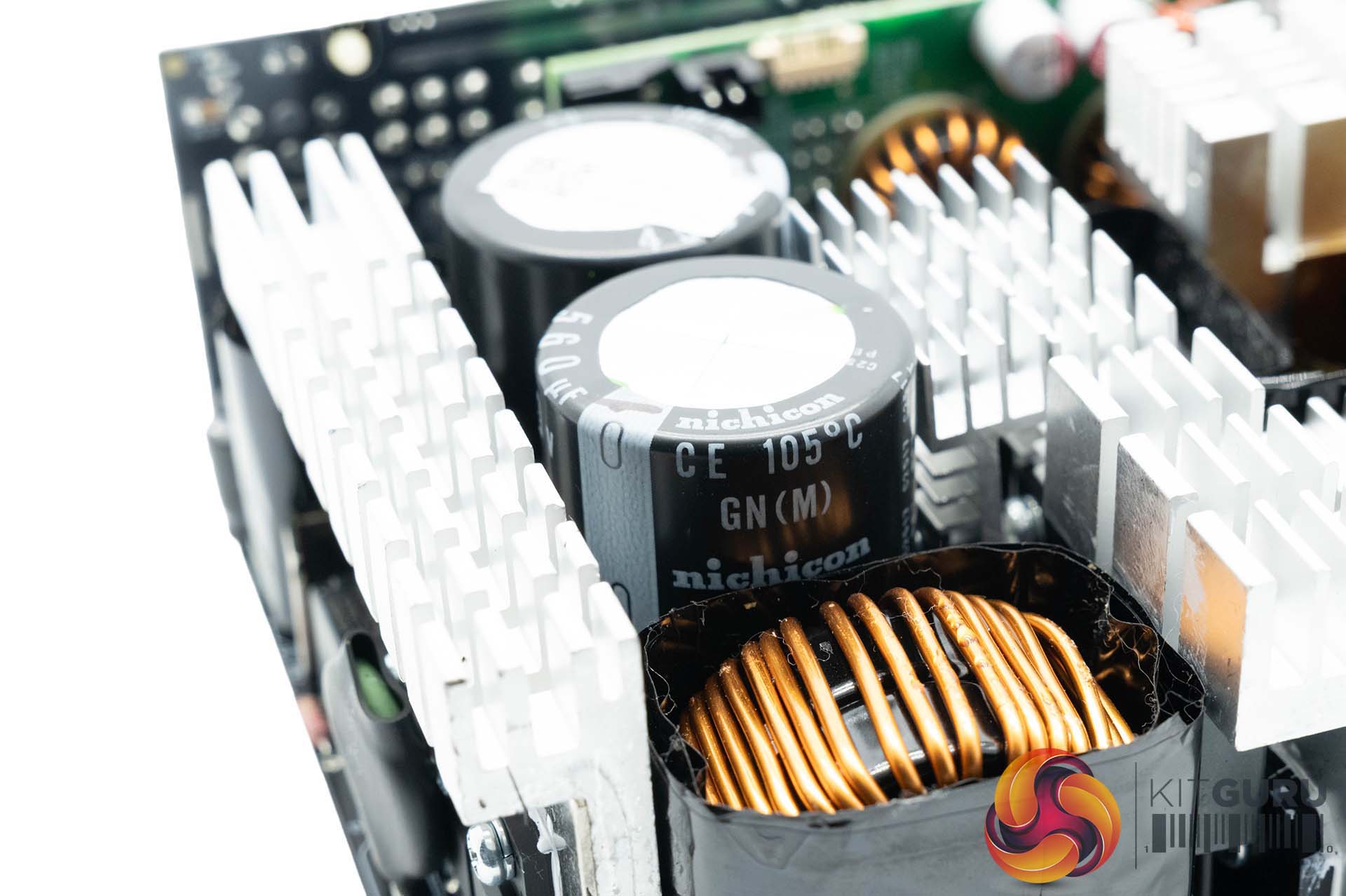

Soldering quality seems fine across the main board. The primary stage capacitors are by Nichicon – rated 105C, with two working at 560uF each for a total of 1120uF. Nippon Chemi Con, Rubycon and Teapo make the electrolytic caps. The unit has OVP/UVP/SCP/OPP/OCP/OTP/SPD Protections.
