We used CrystalDiskMark 8’s custom settings to test the 4K 70/30 mixed read/write performance of the drive through a range of queue depths using a single thread and four threads.

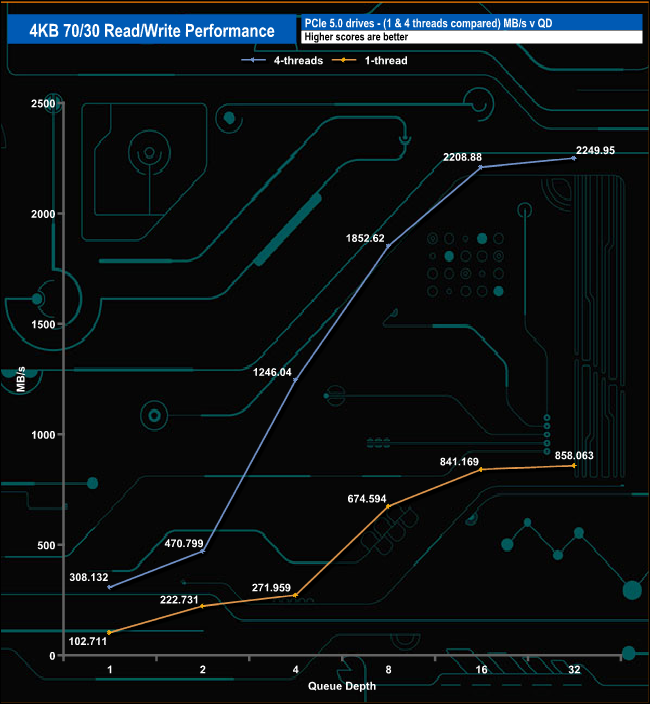

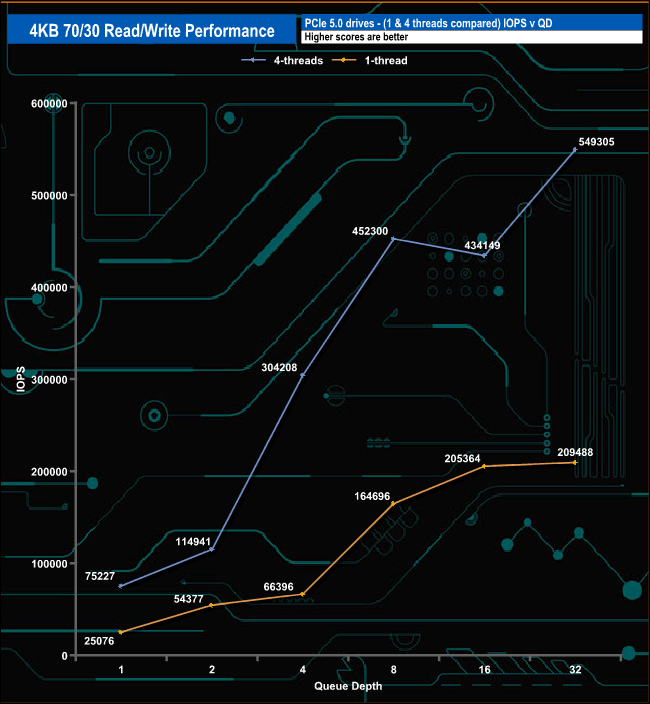

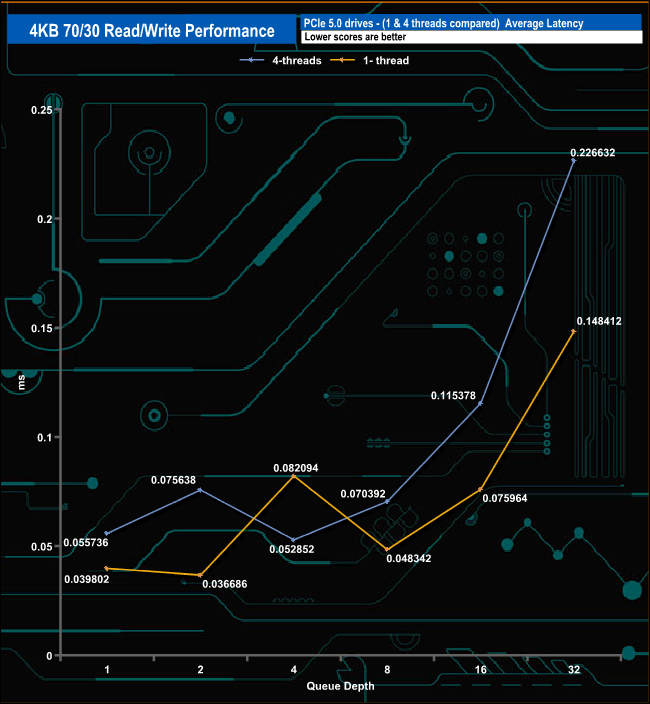

In the four-threaded 4K 70/30 read/write tests, the performance of the 2TB ADATA XPG Mars 980 Blade ranges from 75,227 IOPS (308.13MB/s) at QD1 to 549,305 IOPS (2,249,95 MB/s) at QD32. Dropping to a single thread, the performance ranges from 25,076 IOPS (102.71MB/s) at QD1 up to 209,488 IOPS (858.06MB/s) at QD32. With a single thread, the performance seems to slow down between QD2 and QD4 with a corresponding large spike in the latency, but the drive quickly recovers and accelerates up to QD16, where the performance starts to plateau out until the end of the test run.
