We used CrystalDiskMark 8 to test the random performance of the drive at lower queue depths (QD1 – QD8, where most of the everyday workloads occur) using 1 to 4 threads.

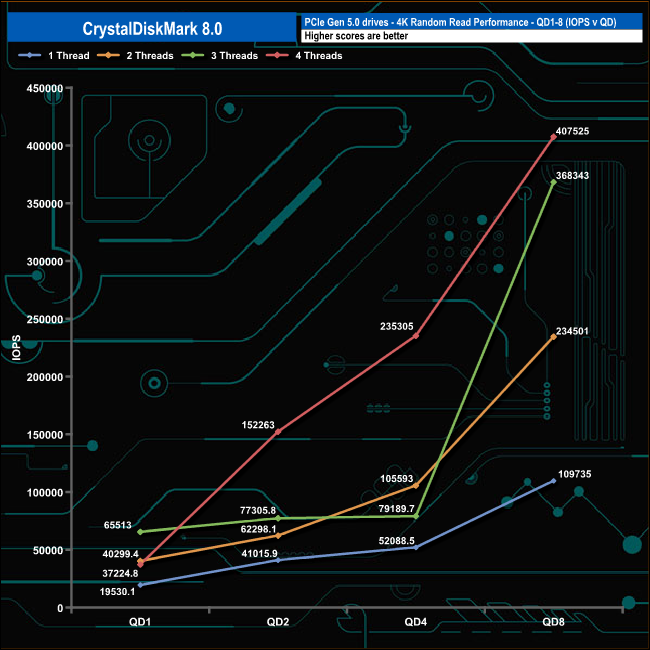

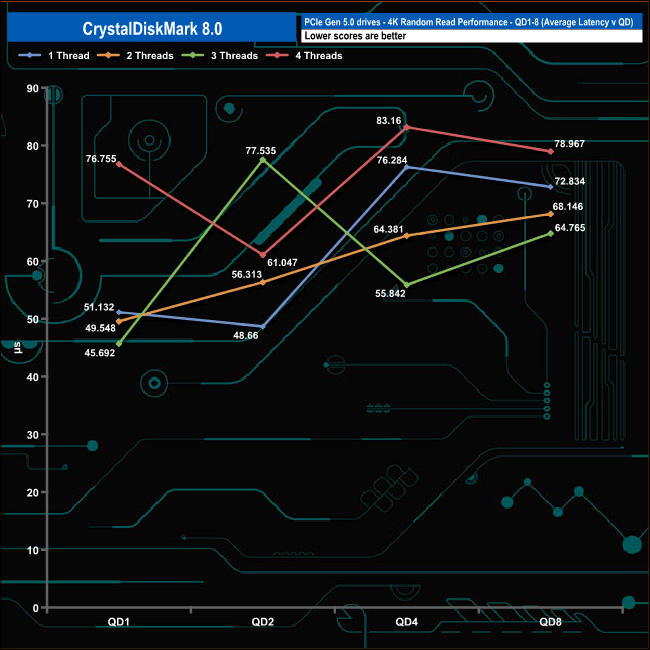

Random Reads

QD1 read performance for the 2TB XPG Mars 980 Blade ranged from 19,530 IOPS (79.99MB/s) using a single thread up to 65,513 IOPS (268.34MB/s) using three threads. At the end of the test at Queue Depth 8, the single thread performance had risen to 109,735 IOPS (449.47MB/s) while with three threads the figure rose to 368,343 IOPS (1,508.73MB/s).

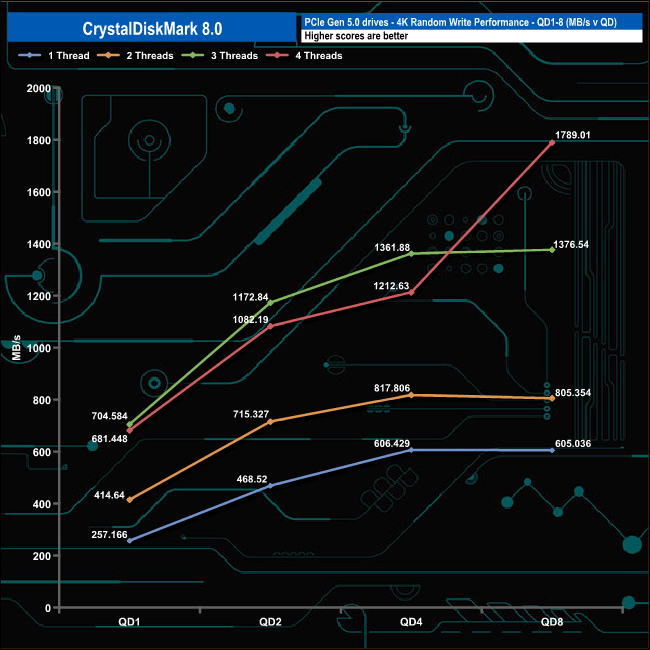

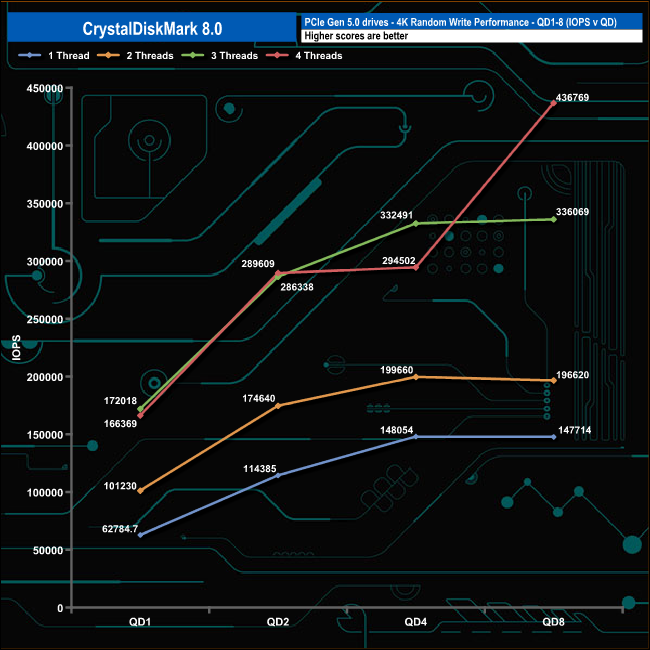

Random Writes

In the 4K write tests, performance rose sharply from QD1 to QD2 across all four tested threads, with the fastest increases observed in the three- and four-threaded tests. Using 1,2, and 3 threads, the performance began to plateau, but with four threads, the performance accelerated and kept climbing even at the end of the test run.
