To test the real-life performance of a drive, we use a mix of folder/file types and by using the FastCopy utility (which gives a time as well as MB/s result) we record the performance of drive reading from & writing to a 2TB Kingston KC3000.

Transfer Details
Data file – 100GB.
BluRay Movie – 42GB.
Windows 11 iso – 5.4GB.
File folder – 50GB – 28,523 files.
Movie demos 8K – 21GB – (11 demos).
Raw Movie Clips 4K – 16GB – (9 MP4V files).
Photo Folder – 10GB – 304 files – (171 @ .RAW, 105 @ JPG, 21 @ .CR2, 5 @ .DNG).
Audio Folder – 10GB – 1,483 files – (1479 @ MP3, 4 @ .FLAC files).
Single large image – 5GB – 1.5bn pixel photo.
3D Printer File Folder – 4.25GB – (166 files – 105 @ .STL, 38 @ .FBX, 11 @ .blend, 5 @ .lwo, 4 @ .OBJ, 3@ .3ds).
AutoCAD File Folder – 1.5GB (80 files – 60 @ .DWG and 20 @.DXF)

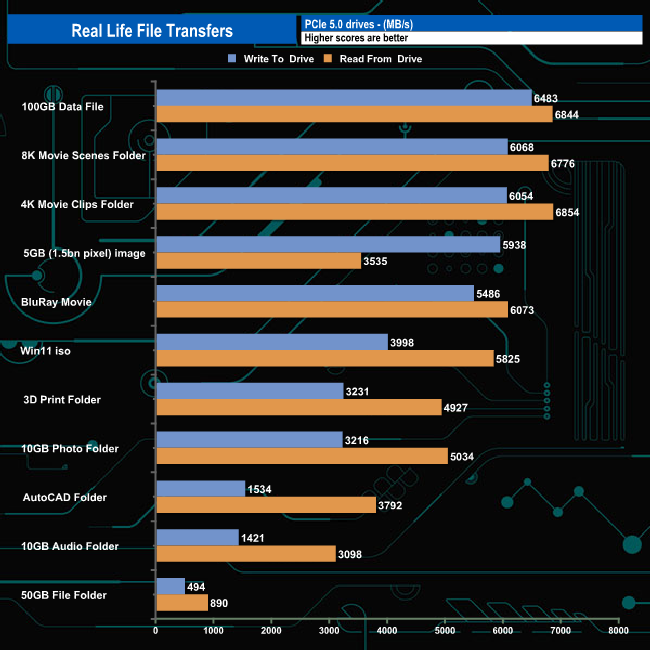

In our real-life file transfer tests, the 2TB ADATA XPG Mars 980 Blade averaged 3,993MB/s for the eleven tests when writing data. The fastest performance came from the 100GB data file transfer at 6,483MB/s (17secs), while the slowest (as usual) was the 50GB file folder transfer at 494MB/s (125 secs). When it came to reading the data, the drive averaged 4,877MB/s, with the fastest transfer being the 4K Raw Movie Clip folder at 6,054MB/s.
