We used CrystalDiskMark 8‘s custom settings to test the Sequential read and write performance of the drive through a range of queue depths. The setup for the tests is listed below.

Transfer Request Size: 128KB, Thread(s): 1, Outstanding I/O: 1-32.

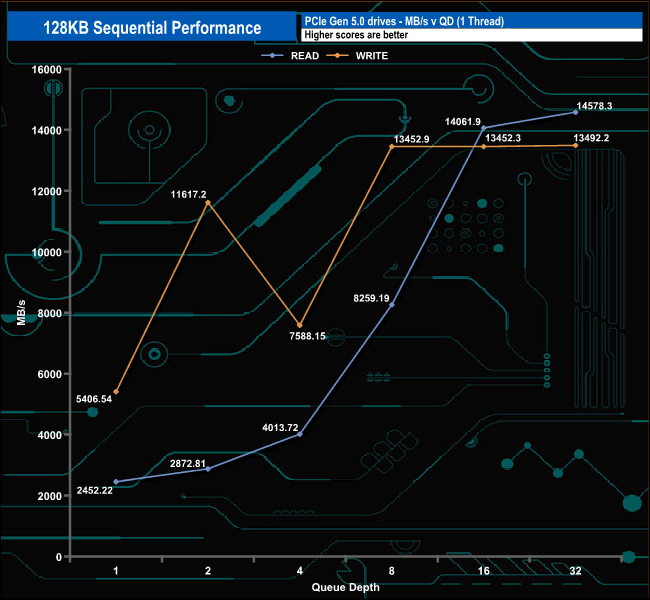

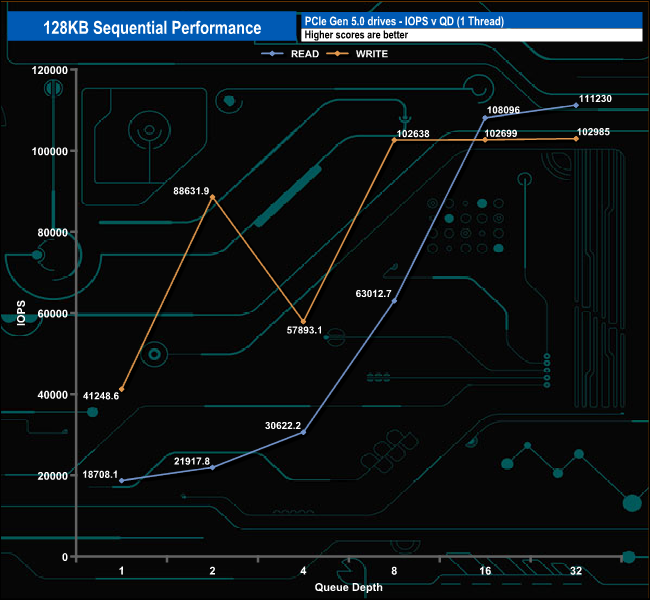

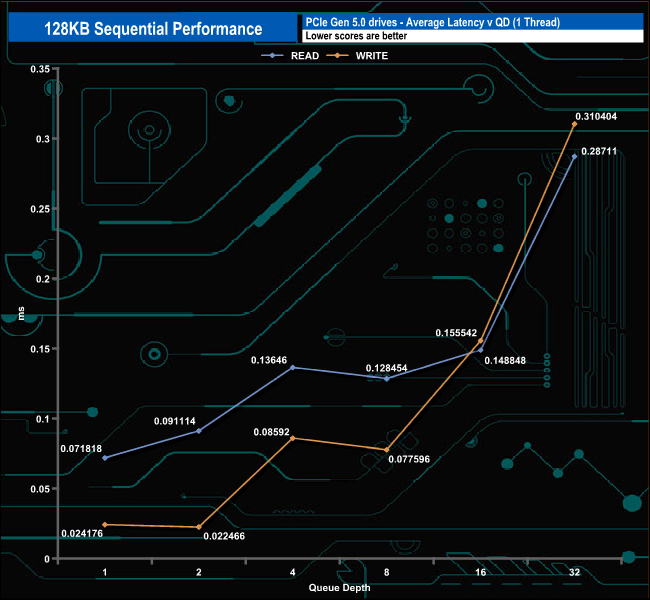

128KB Sequential Read / Write.

With this Sequential test, we could confirm the official Sequential read/write ratings for the drive of up to 14,000MB/s and up to 13,000MB/s, respectively, with a peak read result of 14,578MB/s with writes at 13,492MB/s.

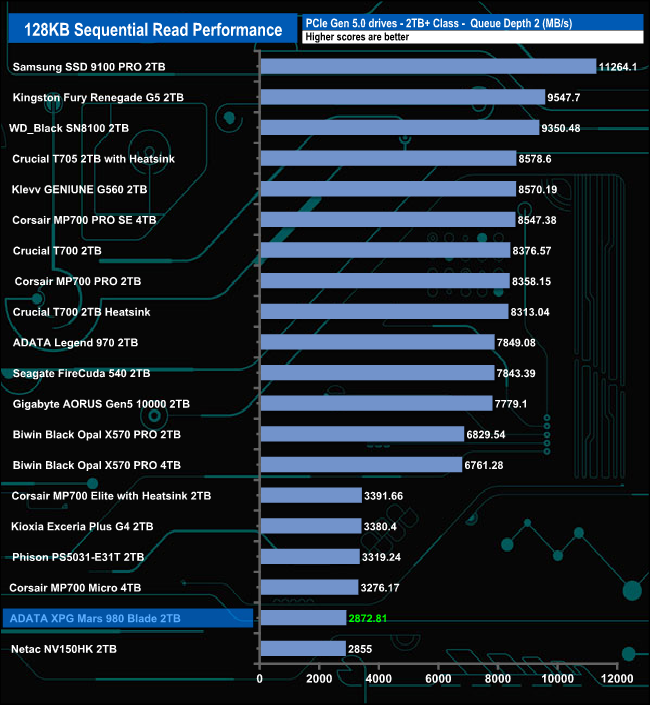

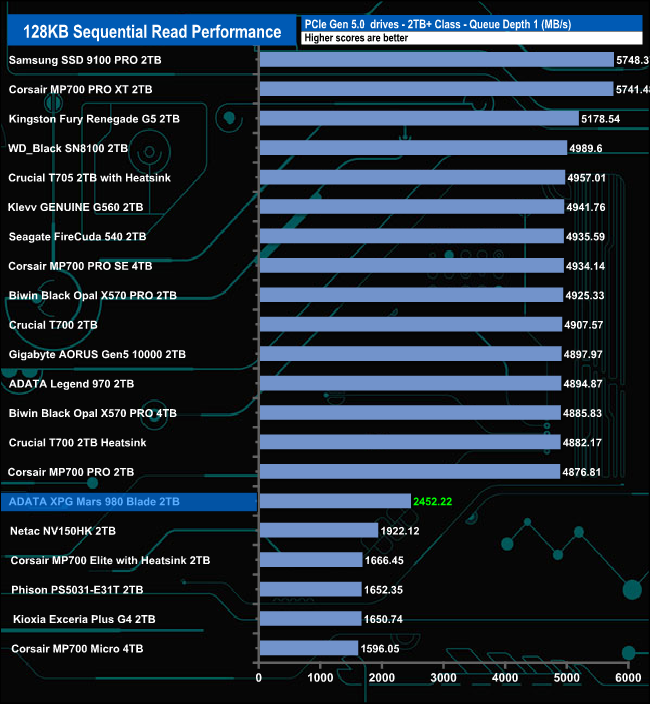

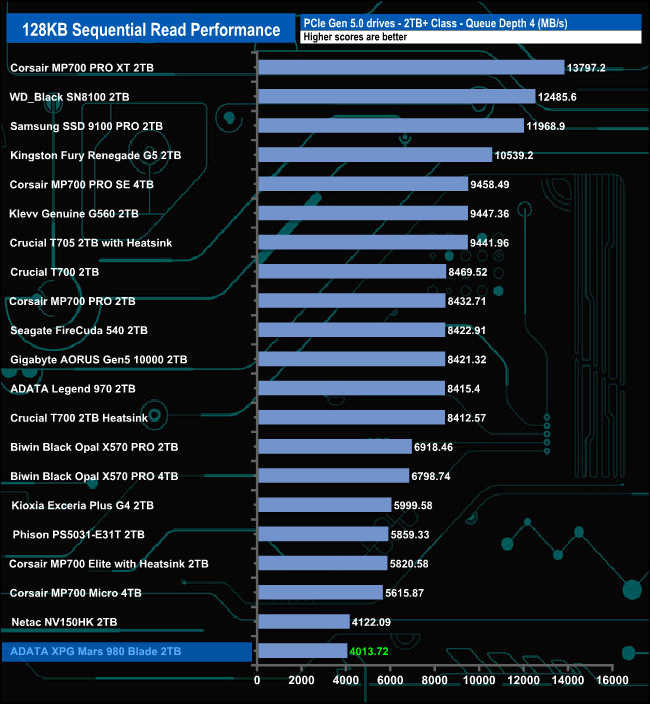

128KB Sequential Read v QD performance.

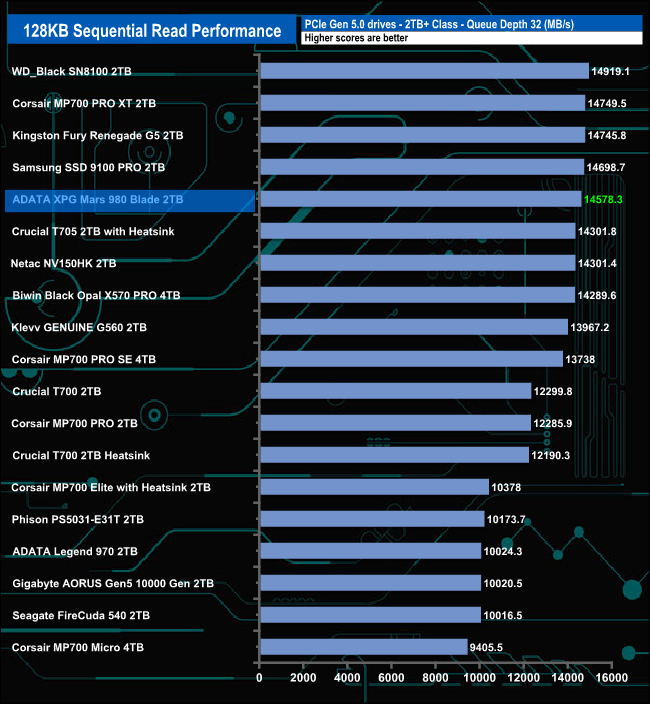

The best performance from the XPG Mars 980 Blade came at QD32; its score of 14,578.3MB/s puts it into fifth position in the results chart.

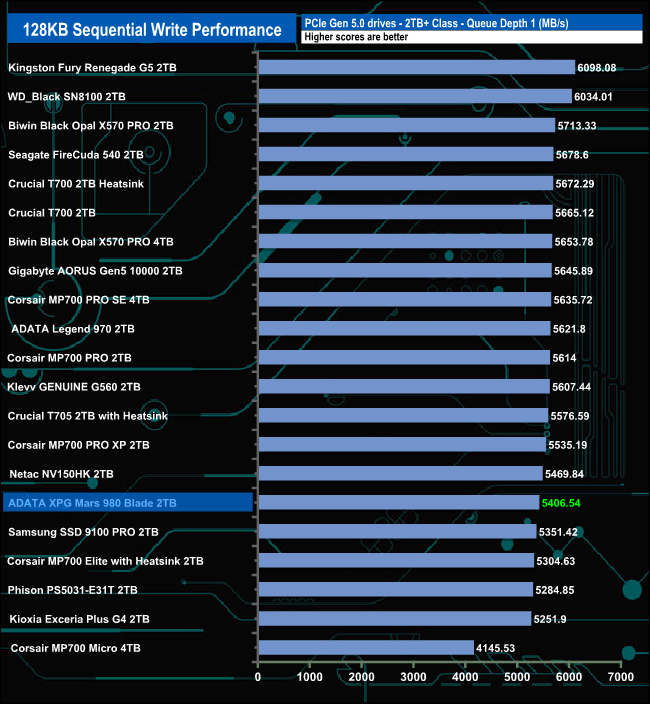

128KB Sequential Write v QD performance.

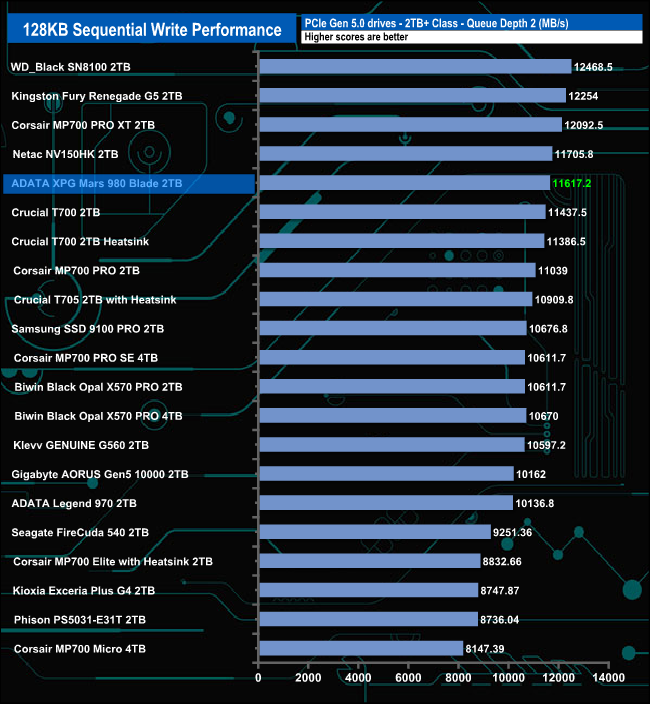

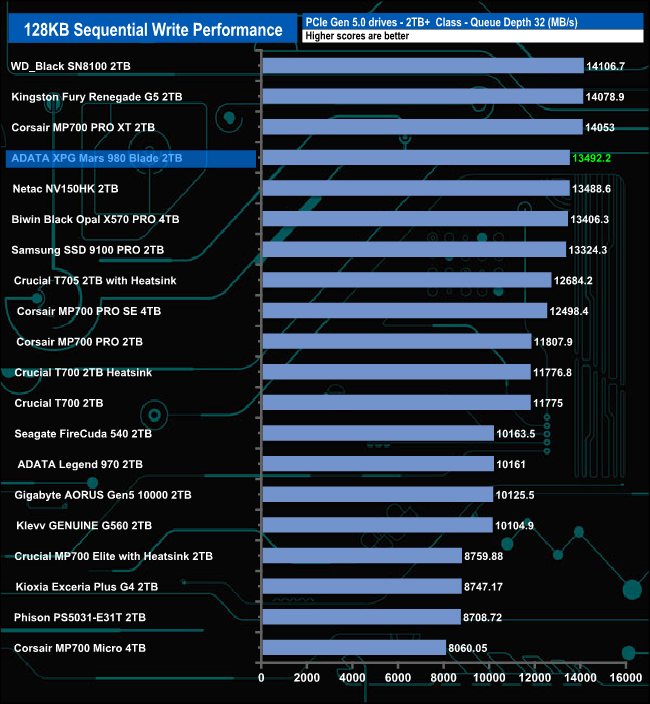

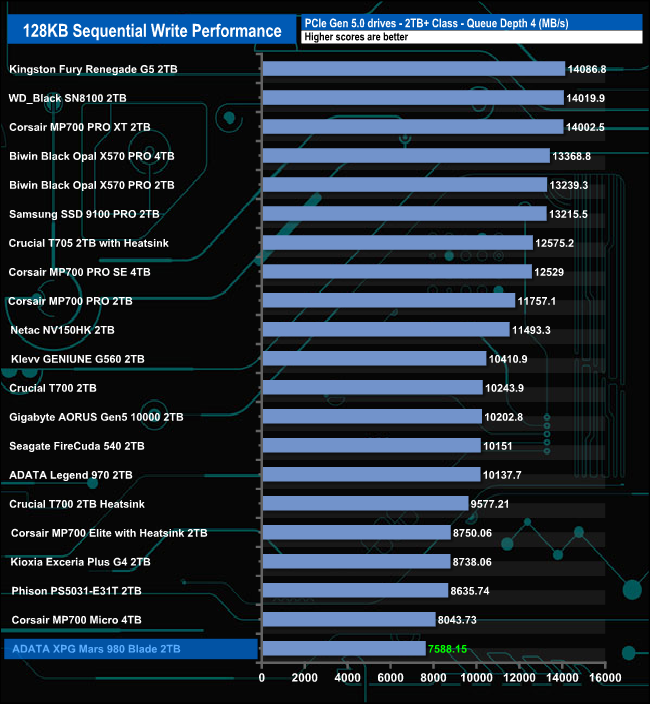

At QDs 1 & 4, the ADATA XPG Mars 980 Blade sits in the lower half of the results chart; at QD4, it sits in last place. However, at QDs 2 and 32, the drive sits in the top 5 of the charts.
