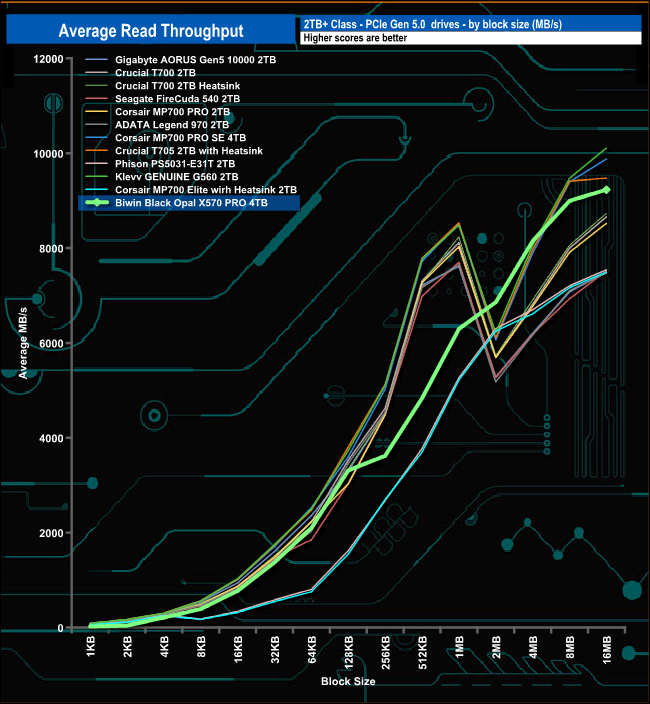

In our read-throughput tests, the performance of the X570 PRO climbed pretty smoothly through the block marks, peaking at the end of the test run at 9,320MB/s.

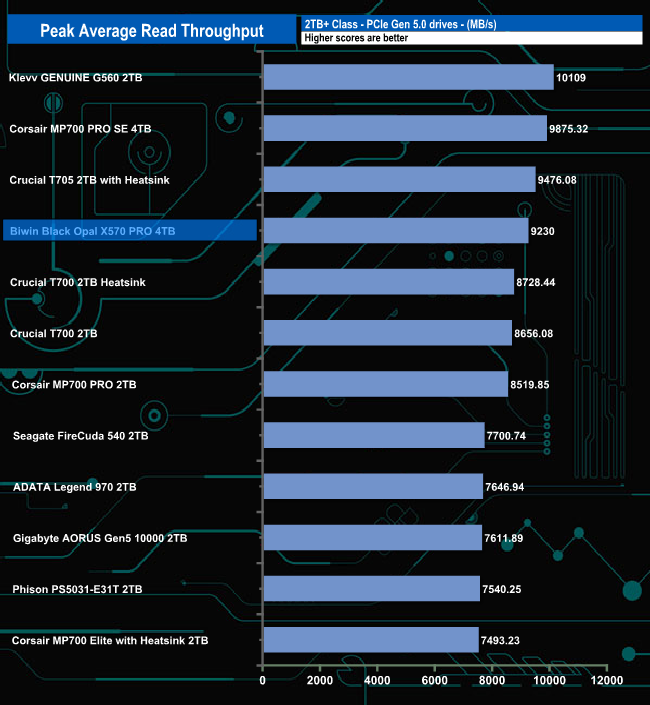

Even though the peak read result is nowhere near the official maximum figure of 14,000MB/s, it's still good enough to place the drive in the fourth spot on the results table.

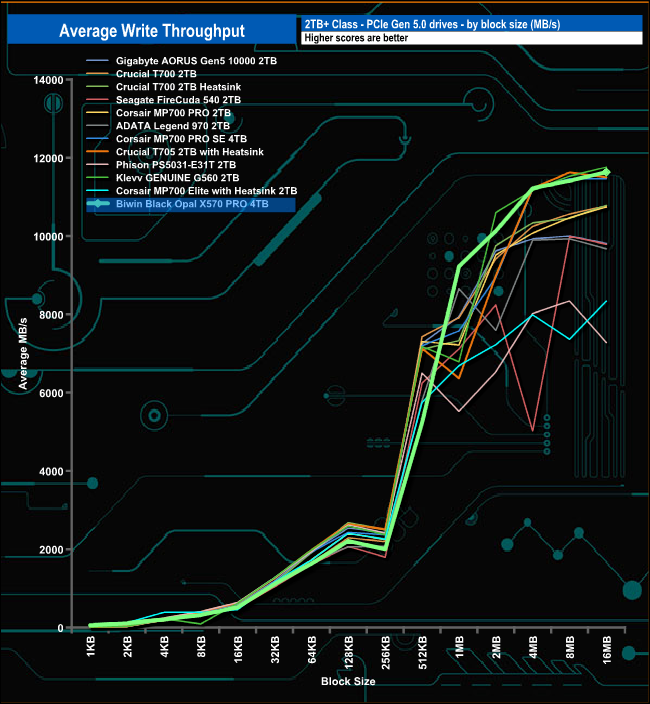

In the write-throughput test, the drive starts to plateau out between 128KB and 256KB before picking up the pace again, peaking at the end of the test run at 11,632MB/s. As with the read result, this is short of the official maximum of 13,000MB/s but it is closer to the official figure than the preak read result.

Although the tested peak write result of 11,632MB/s is somewhat short of the official maximum it is still good enough to put the drive in second place behind Klevv's GENUINE G560.
