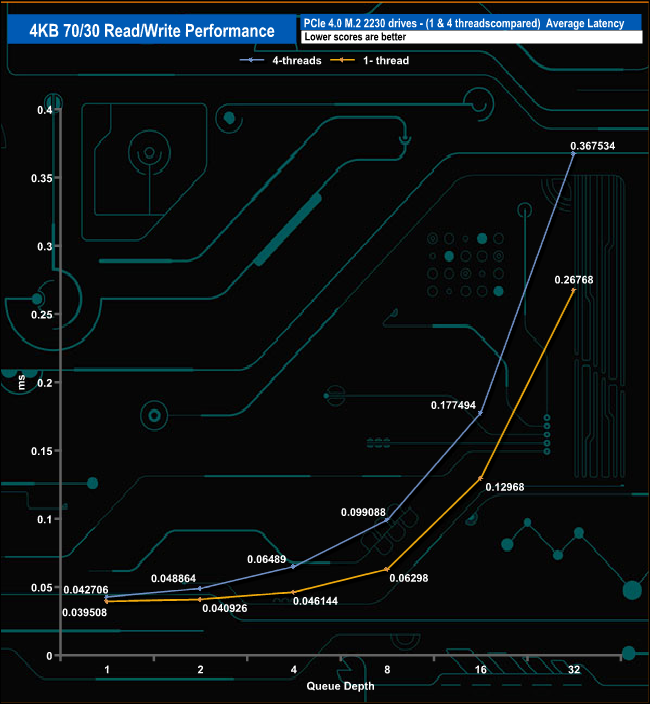

We used CrystalDiskMark 8’s custom settings to test the 4K 70/30 mixed read/write performance of the drive through a range of queue depths using a single thread and four threads.

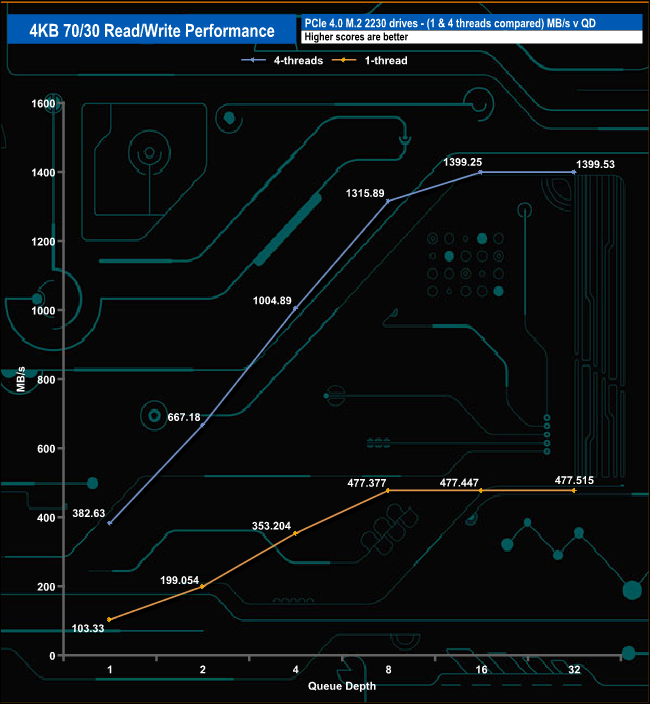

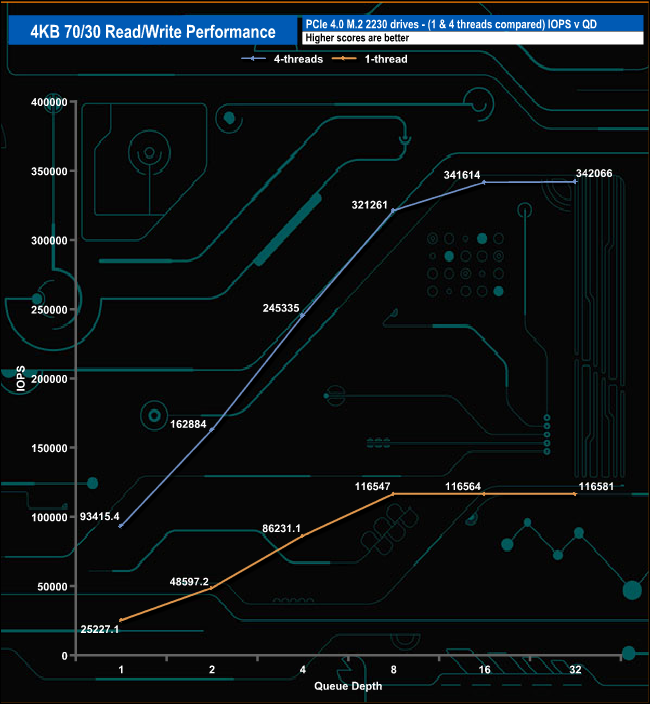

In our 4K 70/30 tests the drive's performance climbs smoothly using both a single thread and four threads up to QD8 where it begins to slow down. This is much more noticeable in the single-thread test. Single thread performance goes from 25,227 IOPS (103.33MB/s) at QD1 up to 116,581 IOPS (477.51MB/s) at QD32. With four threads the performance rises from 93,415 (382.62MB/s) at QD 1 up to 342,066 IOPS (1,399.53MB/s) at the end of the test run.
