We used CrystalDiskMark 8 to test the random performance of the drive at lower queue depths (QD1 –QD8 where most of the everyday workloads occur) using 1 to 4 threads.

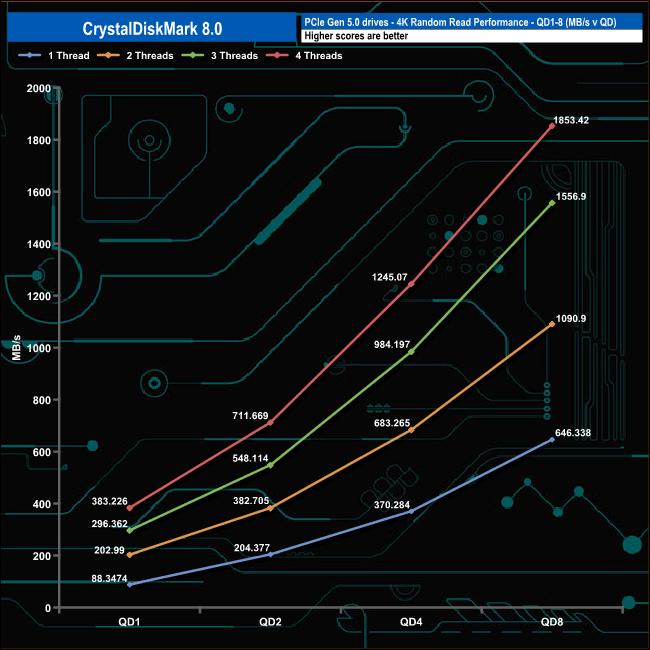

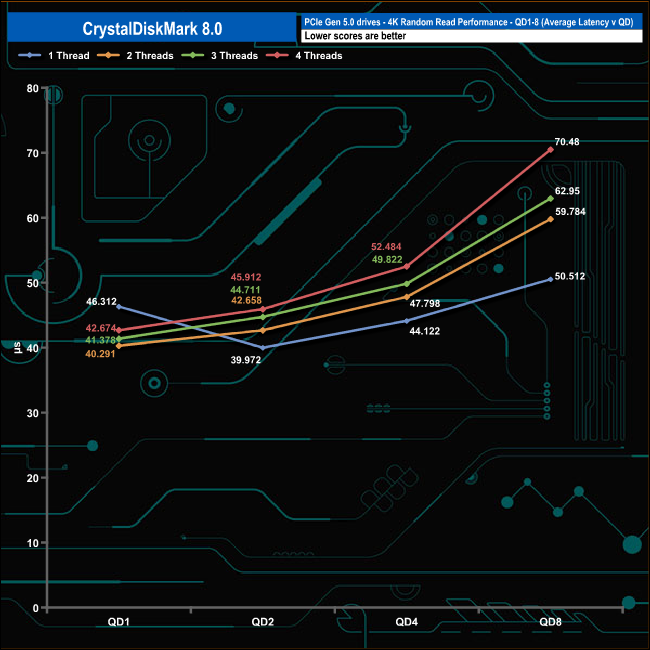

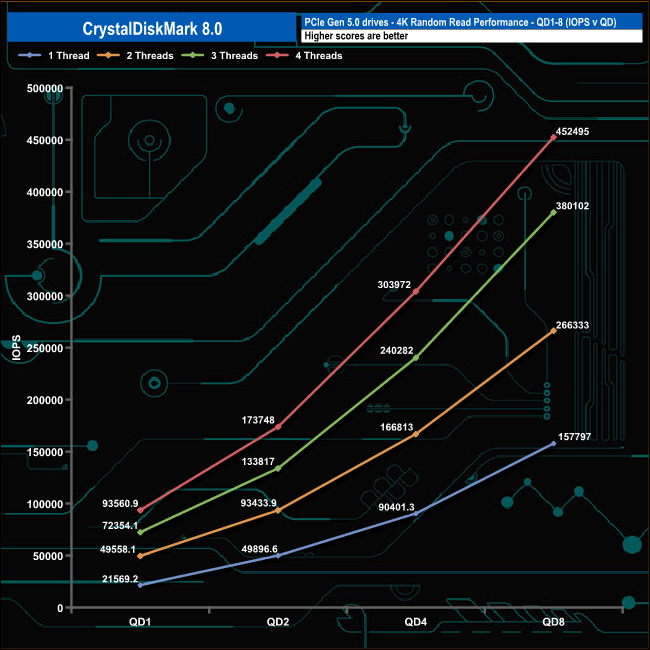

Random Reads

In the QD1-QD8 random read tests the drive produced smooth increases in performance as the queue depth deepened without any noticeable dramas. At QD1 the drive speed ranges from 21,589 IOPS (88.34MB/s) using a single thread up to 93,560 IOPS (383.22MB/s) using four threads. At a QD of 8, the single-thread performance had increased to 157,797 IOPS (646.33MB/s) while the four-threaded test reached 452,495 IOPS (1,853.42MB/s).

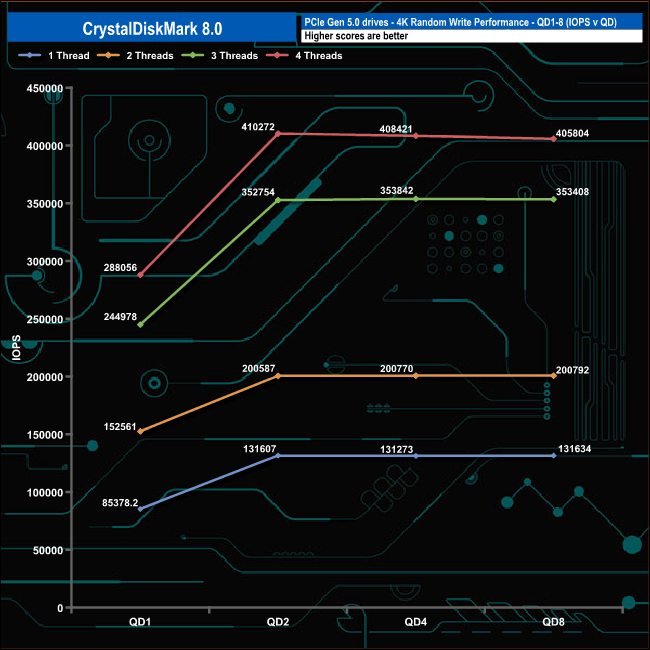

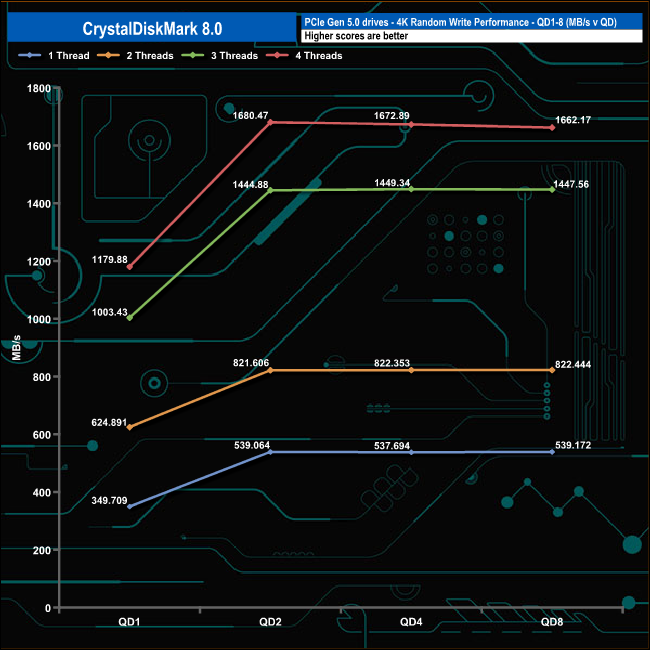

Random Writes

In the 4K write tests, the performance rose quickly from QD1 to QD2 for all four tested threads with the fastest rise seen in the three and four-threaded tests. All four threads see the performance start plateauing out from QD2 onwards up to the end of the test run at QD8.
