Crucial T500 2TB PCIe Gen4 SSD Review

1. Introduction2. Crucial T500 Pro 2TB3. Testing Methodology4. CrystalDiskMark5. ATTO Disk Benchmark6. AS SSD7. 128KB Sequential Performance8. 4K Random Read v QD Performance9. 4K Random Write v QD Performance10. 4K 70/30 Mixed Performance11. 4K Random Performance QD1-QD812. Throughput13. PCMark 10 Full System Drive Benchmark14. 3DMark Storage Benchmark 15. Final Fantasy XIV Endwalker Official Benchmark16. Tempretures17. Real Life File Testing18. Closing Thoughts19. View All Pages

The ATTO Disk Benchmark performance measurement tool is compatible with Microsoft Windows. Measure your storage system performance with various transfer sizes and test lengths for reads and writes. Several options are available to customize your performance measurement including queue depth, overlapped I/O and even a comparison mode with the option to run continuously.

Use ATTO Disk Benchmark to test any manufacturer's RAID controllers, storage controllers, host adapters, hard drives and SSD drives and notice that ATTO products will consistently provide the highest level of performance to your storage.

We are using version 4.1 for our NVMe disk tests.

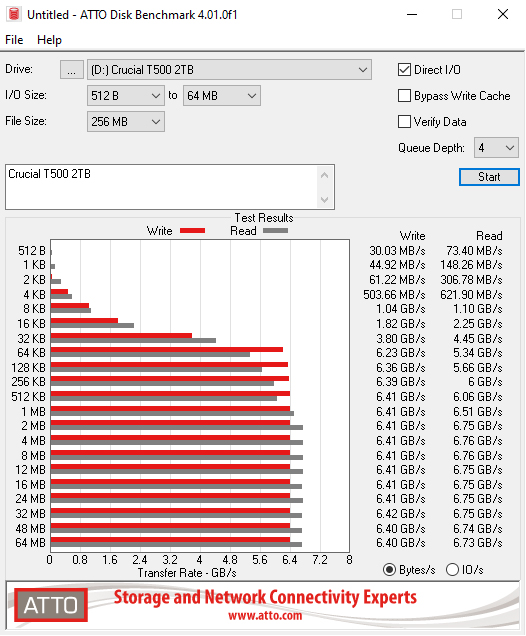

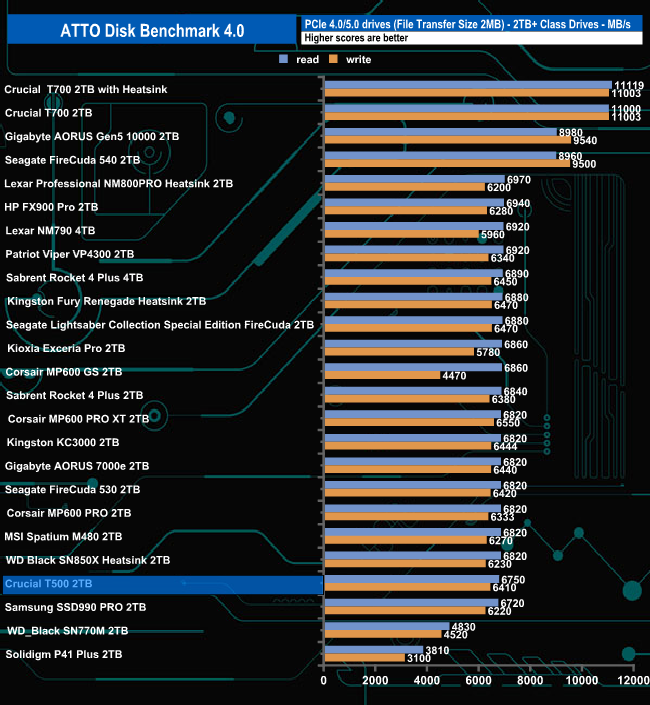

Using the ATTO benchmark, we couldn't hit the official maximum figures of 7,400MB/s for reads and up to 7,000MB/s for writes with test results of 6,750MB/s and 6,410MB/s for reads and writes respectively.

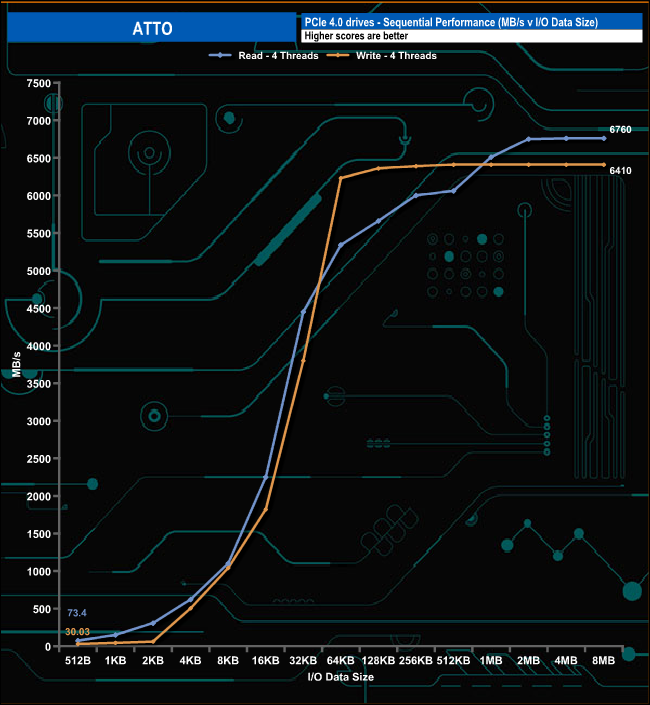

Using the ATTO benchmark writes begin to plateau out at the 512KB mark with a figure of 6,410MB/s. Reads begin to level off after the 2MB mark at 6,750MB/s.
