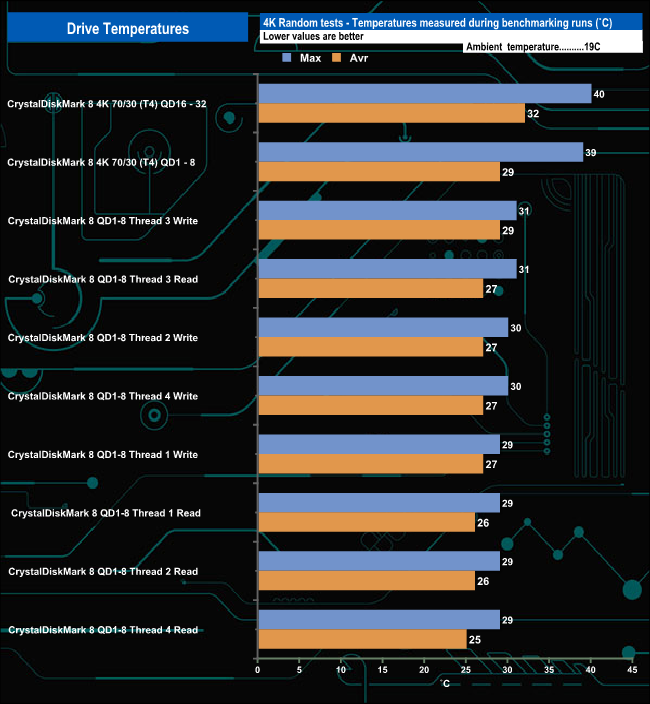

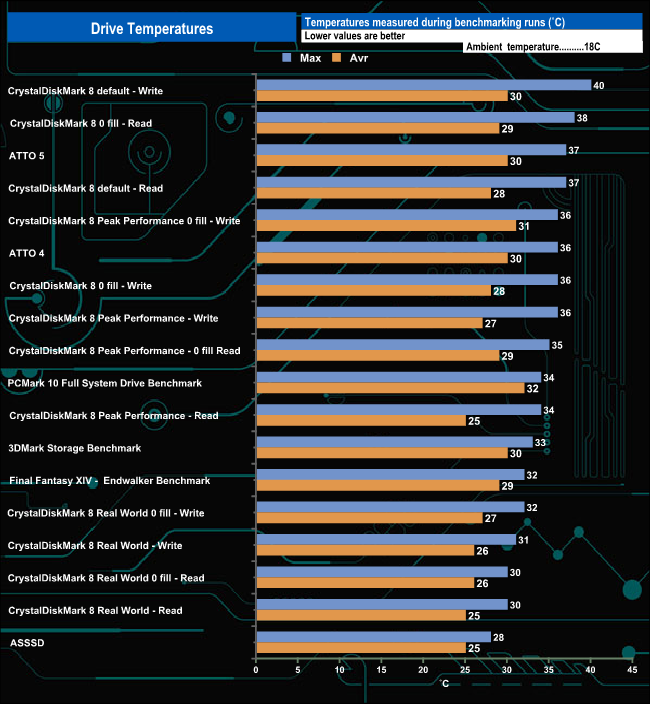

We took note of the drive’s temperature during some of our benchmarking runs. Kingston's Fury Renegade G5 is another of the latest breed of high-end Gen 5 drives that don't need a whopping great heatsink or cooler. We tested the drive sitting under the heatsink of the Gigabyte AORUS X670E Xtreme motherboard, which our test rig uses.

The drive has a few design features to combat the Achilles heel of high-end Gen5 drives, which is heat generation. Chief amongst these is the Silicon Motion SM2508 controller, which uses a TSMC 6nm process rather than the 12nm process used by previous-generation controllers, enabling better thermal management. It works well enough, as the hottest the drive got while benchmarking was 40° C during a CrystalDiskMark 8 default Write test run. For the bulk of our testing, the drive averaged 35° C, with the 4K-focused tests averaging 30° C, both well below the drive's 70° C maximum operating temperature.
