Kioxia Exceria PRO G2 4TB PCIe 5.0 SSD Review

1. Introduction2. Kioxia Exceria PRO G2 4TB3. Testing Methodology4. CrystalDiskMark5. ATTO Disk Benchmark6. AS SSD7. 128KB Sequential Performance8. 4K Random Read v QD Performance9. 4K Random Write v QD Performance10. 4K 70/30 Mixed Performance11. 4K Random Performance QD1-QD812. Throughput13. PCMark 10 Full System Drive Benchmark14. 3DMark Storage Benchmark 15. Final Fantasy XIV Endwalker Official Benchmark16. Temperatures17. Real Life File Testing18. Closing Thoughts19. View All Pages

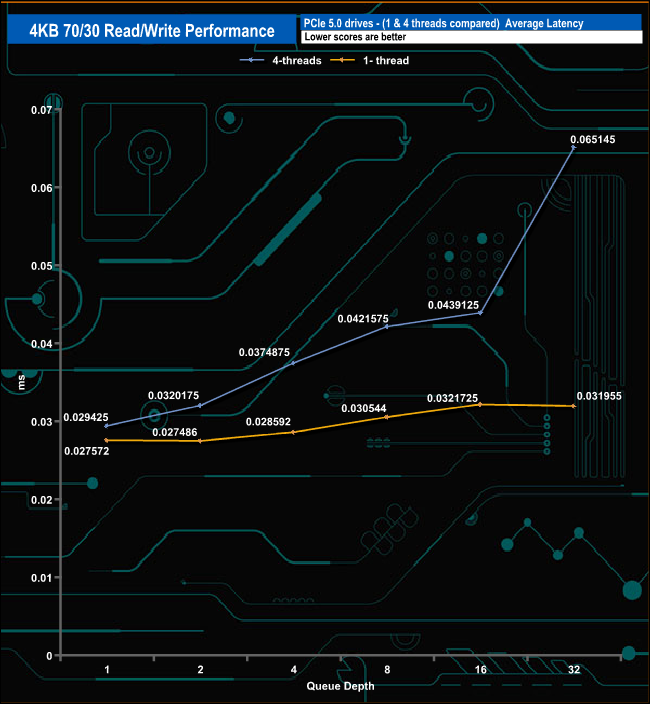

We used CrystalDiskMark 8’s custom settings to test the 4K 70/30 mixed read/write performance of the drive through a range of queue depths using a single thread and four threads.

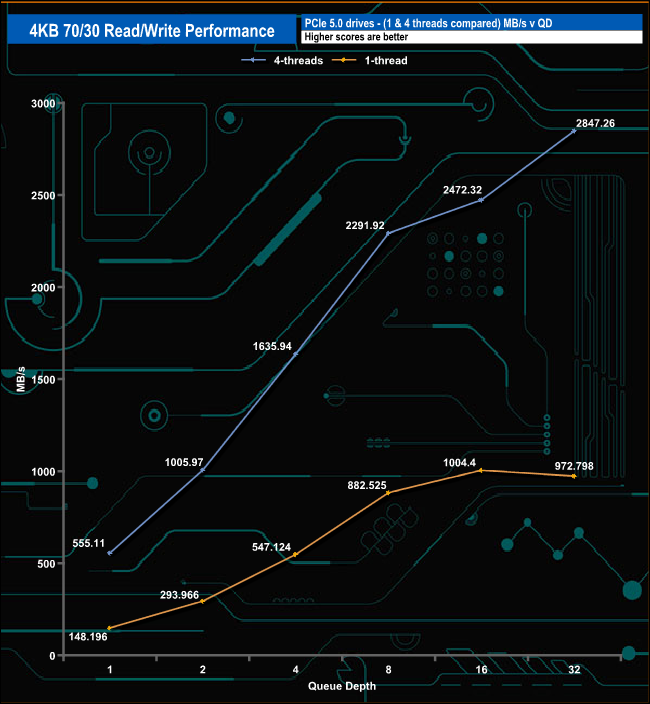

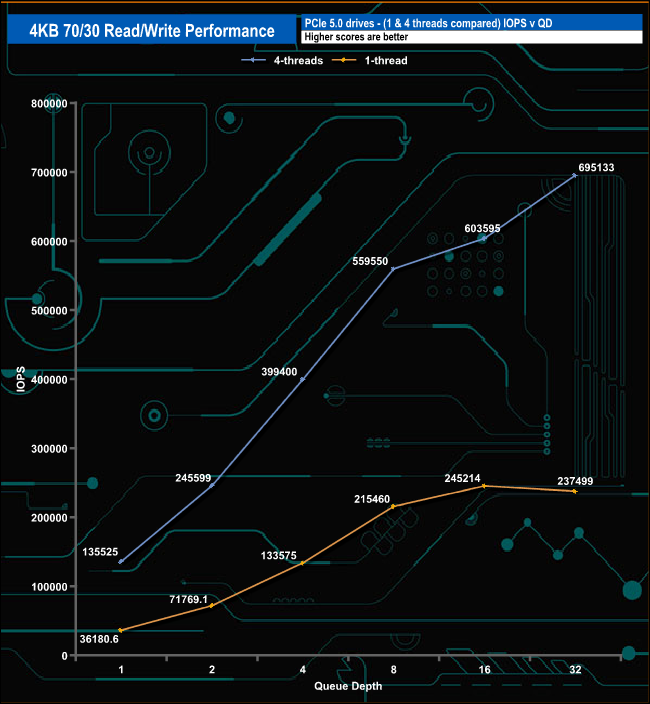

Using four threads, the drive produces 135,525 IOPS (555.11MB/s) at QD1 climbing to 695,133 IOPS (2,847MB/s) at QD32. Switching over to a single thread, the drives performance ranges from 36,180 IOPS (148MB/s) at QD1 up to 245,214 IOPS ( 1,004MB/s) at QD16 before dropping back to 237,499 IOPS (972MB/s) at QD32.
