To test real life performance of a drive, we use a mix of folder/file types, and by using the FastCopy utility (which gives a time as well as MB/s result), we record the performance of the drive reading from & writing to a 2TB Kingston KC3000.

Transfer Details
Data file – 100GB.
File folder – 50GB – 28,523 files.
Movie demos 8K – 21GB – (11 demos).
Raw Movie Clips 4K – 16GB – (9 MP4V files).
Audio Folder – 10GB – 1,483 files – (1479 @ MP3, 4 @ .FLAC files).
Single large image – 5GB – 1.5bn pixel photo.
3D Printer File Folder – 4.25GB – (166 files – 105 @ .STL, 38 @ .FBX, 11 @ .blend, 5 @ .lwo, 4 @ .OBJ, 3@ .3ds).
AutoCAD File Folder – 1.5GB (80 files – 60 @ .DWG and 20 @.DXF).

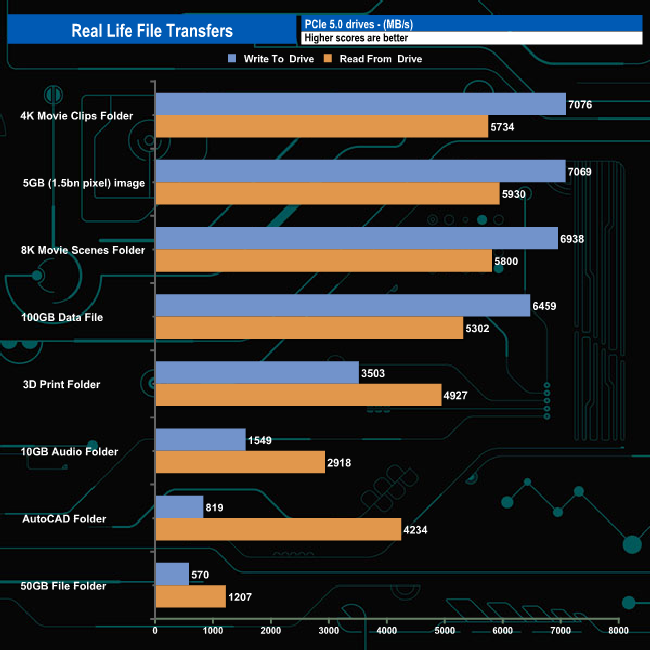

The Kioxia's Exceria PRO G2 averaged 4,247MB/s when writing the 8 transfer tests, with the fastest being 7,076MB/s for the 4K Raw Movie Clips folder, with the 50GB file folder transfer being the slowest at 570MB/s.

Reading back the data, the average was 4,506MB/s, and this time around, it was the 5GB image transfer that was the fastest at 7,069MB/s and again, it was the 50GB file folder transfer that was the slowest at 1,207MB/s.
