Kioxia Exceria PRO G2 4TB PCIe 5.0 SSD Review

1. Introduction2. Kioxia Exceria PRO G2 4TB3. Testing Methodology4. CrystalDiskMark5. ATTO Disk Benchmark6. AS SSD7. 128KB Sequential Performance8. 4K Random Read v QD Performance9. 4K Random Write v QD Performance10. 4K 70/30 Mixed Performance11. 4K Random Performance QD1-QD812. Throughput13. PCMark 10 Full System Drive Benchmark14. 3DMark Storage Benchmark 15. Final Fantasy XIV Endwalker Official Benchmark16. Temperatures17. Real Life File Testing18. Closing Thoughts19. View All Pages

We used CrystalDiskMark 8‘s custom settings to test the 4K random read performance of the drive through a range of queue depths. The setup for the tests is listed below.

Transfer Request Size: 4KB, Outstanding I/O: 1-32.

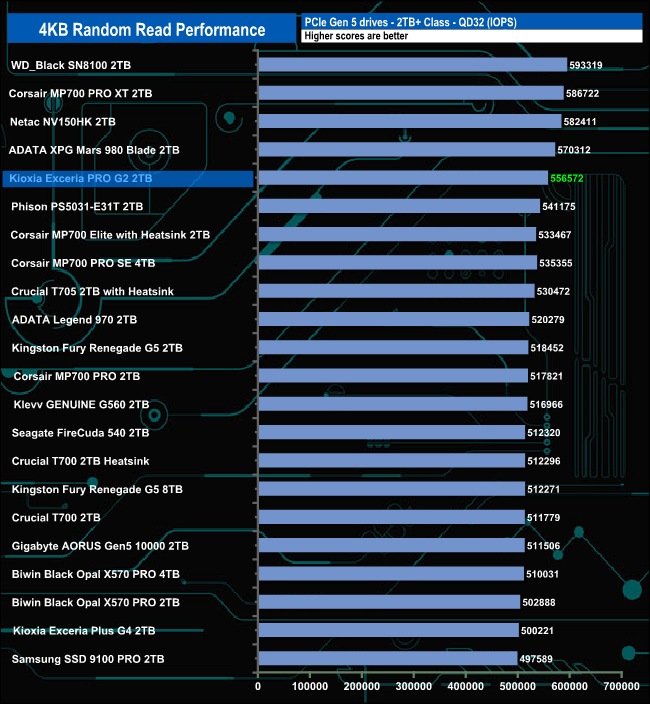

Using our 4-threaded test results, we couldn't get close to the official maximum random read figure of 2,300,000 IOPS; the best we saw was 556,572 IOPS at QD32.

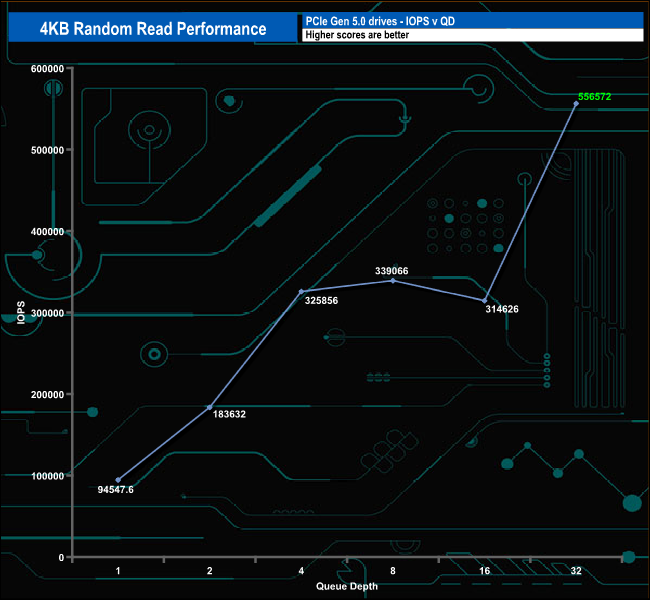

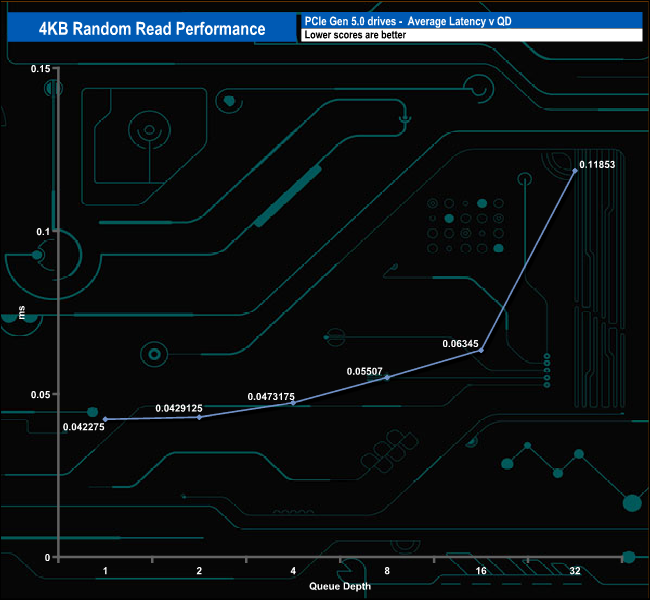

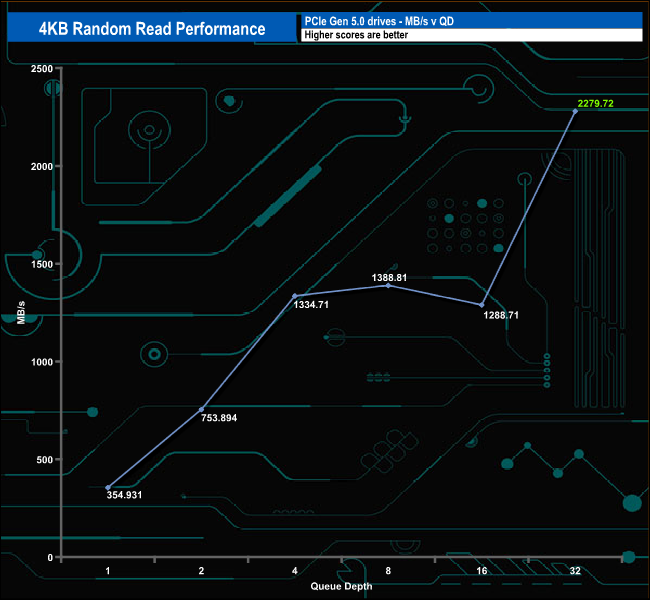

4K Random Read v QD Performance

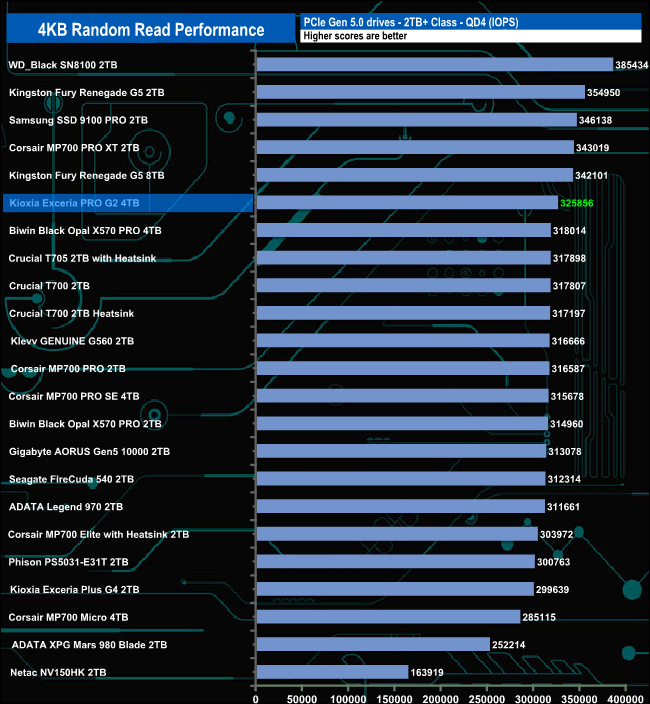

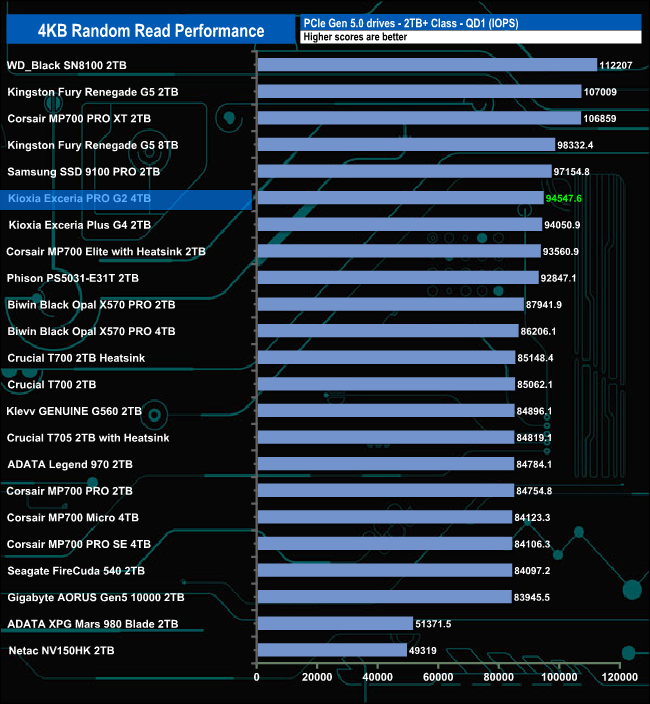

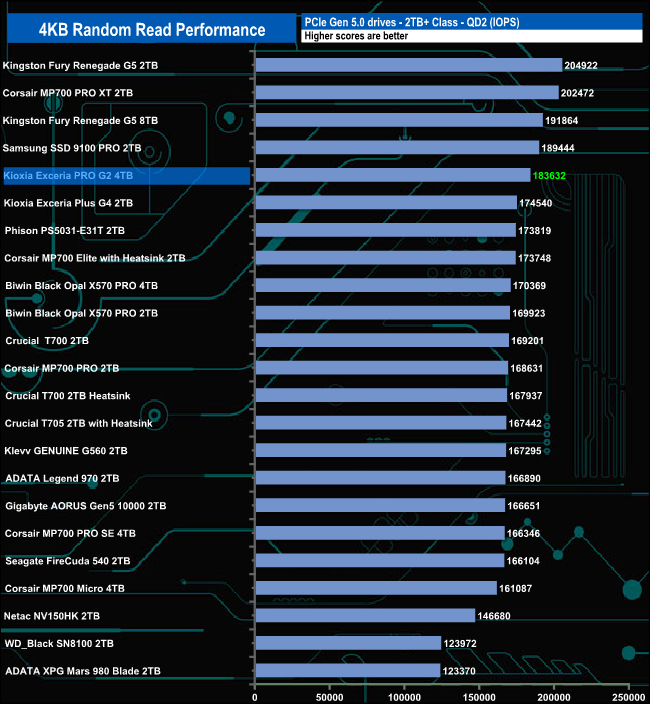

The drive is consistent in its performance as the queue depth deepens, sitting in fifth or sixth place throughout the testing.
