We used CrystalDiskMark 8‘s custom settings to test the 4K random write performance of the drive through a range of queue depths. The setup for the tests is listed below.

Transfer Request Size: 4KB, Outstanding I/O: 1-32.

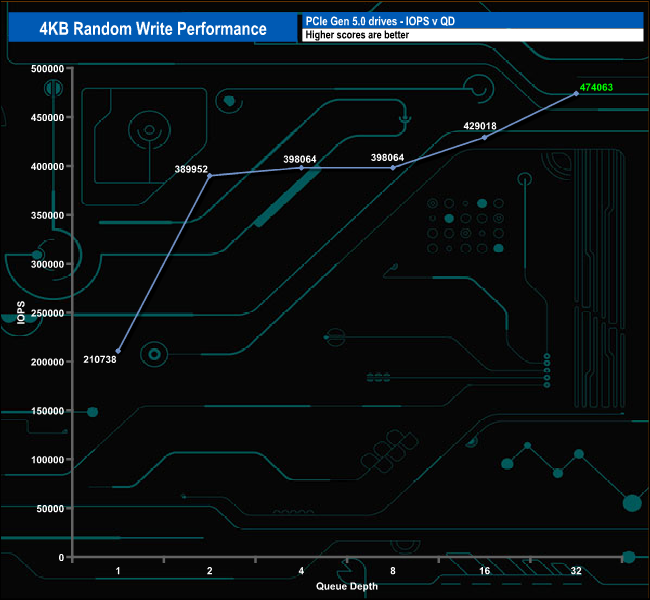

As with the random read results, we couldn't get close to the official maximum of 1,950,000 IOPS in the write test using our four-threaded tests. The best we saw was 474,063 IOPS at the end of the test at QD32.

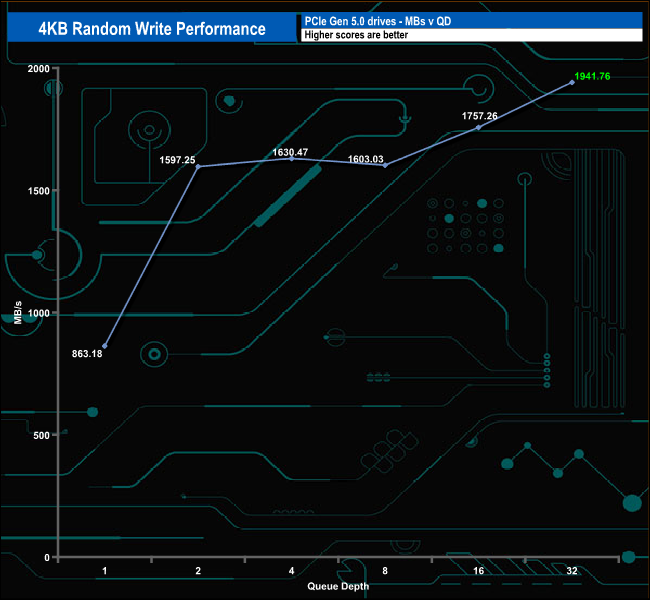

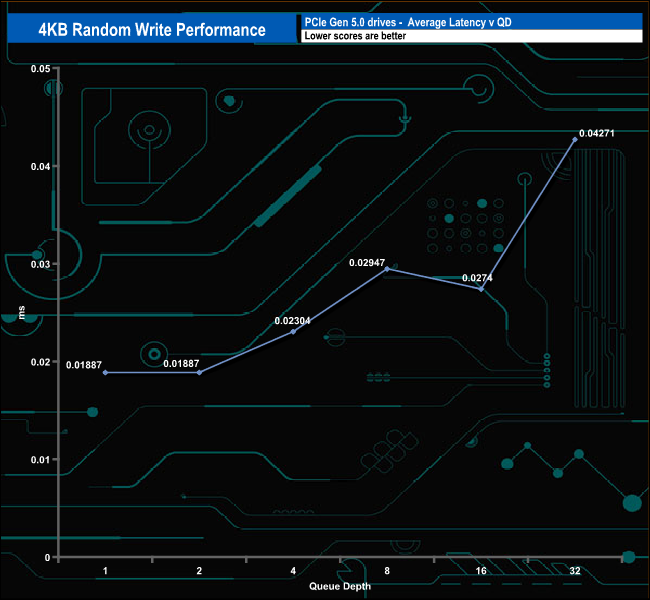

4K Random Write v QD Performance

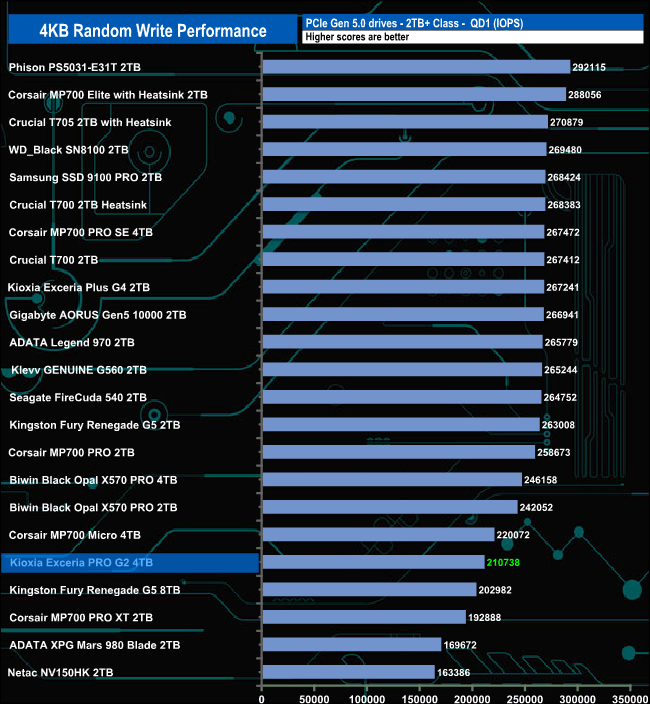

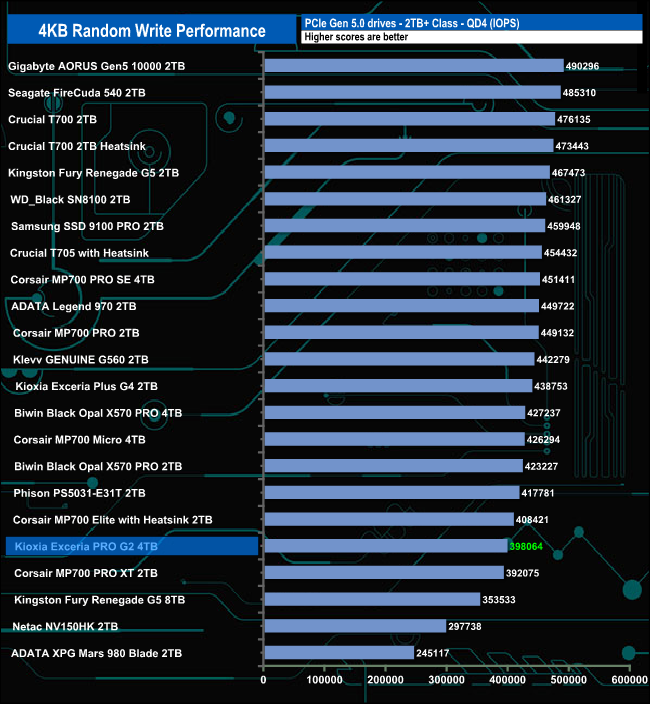

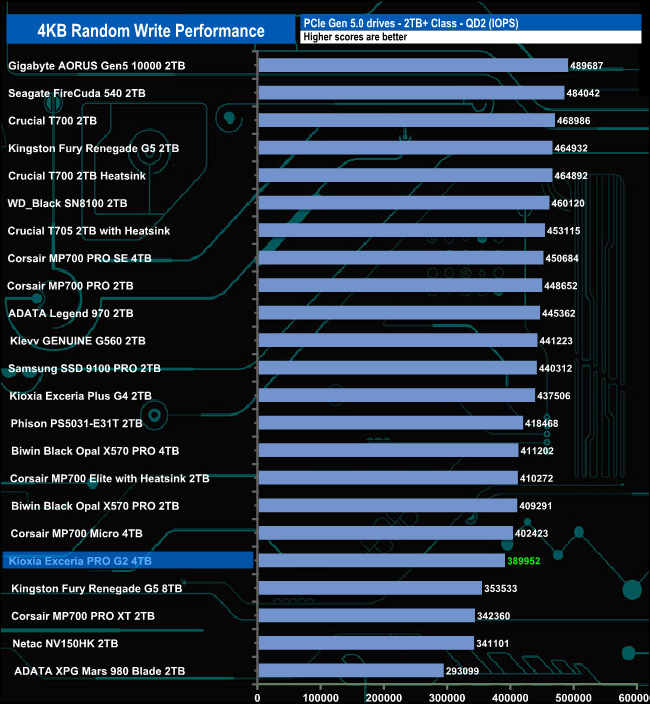

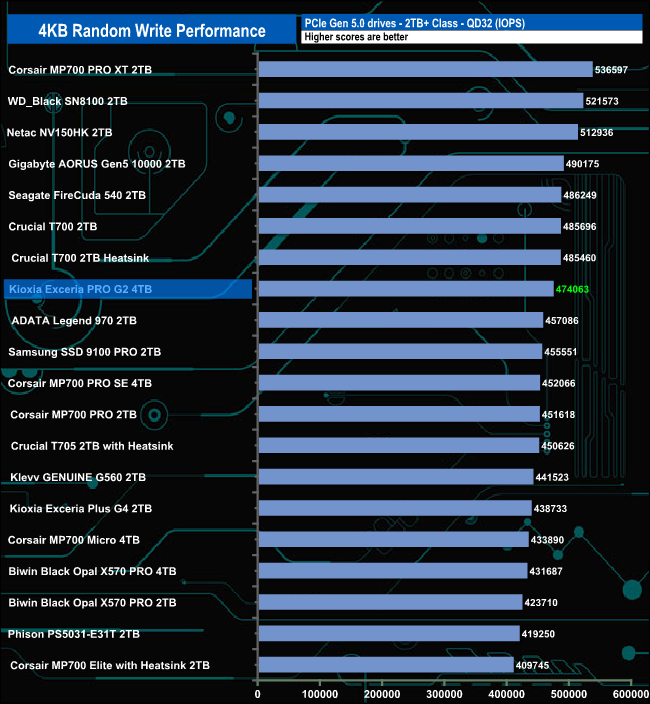

At QDs 1-4, the drive sits in the bottom half of the table, but at QD32 it has climbed into the top ten.
