Klevv GENUINE G560 2TB Gen5.0 SSD Review

1. Introduction2. Klevv GENUINE G560 2TB3. Testing Methodology4. CrystalDiskMark5. ATTO Disk Benchmark6. AS SSD7. 128KB Sequential Performance8. 4K Random Read v QD Performance9. 4K Random Write v QD Performance10. 4K 70/30 Mixed Performance11. 4K Random Performance QD1-QD812. Throughput13. PCMark 10 Full System Drive Benchmark14. 3DMark Storage Benchmark 15. Final Fantasy XIV Endwalker Official Benchmark16. Tempratures17. Real Life File Testing18. Closing Thoughts19. View All Pages

We used CrystalDiskMark 8‘s custom settings to test the 4K random read performance of the drive through a range of queue depths. The setup for the tests is listed below.

Transfer Request Size: 4KB, Outstanding I/O: 1-32.

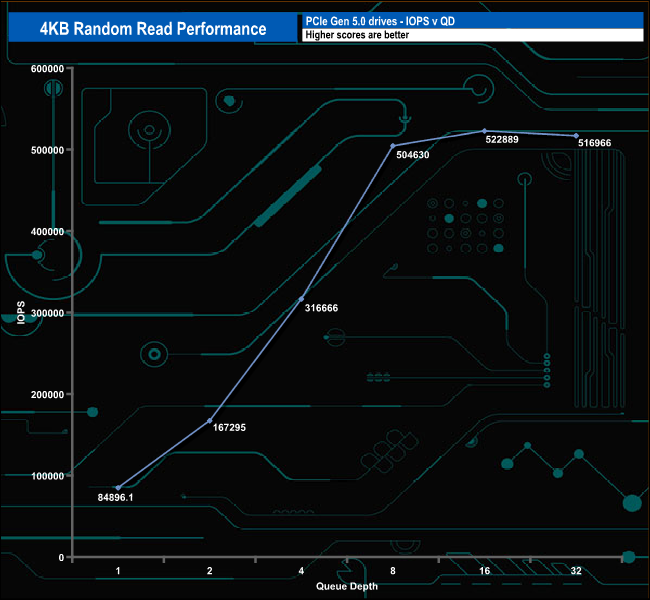

Klevv's 2TB GENUINE G560 is rated as up to 1,400,000 IOPS for random reads. Using our 4-threaded tests we couldn't get close to that figure, the best we saw was 522,889 IOPS at QD16.

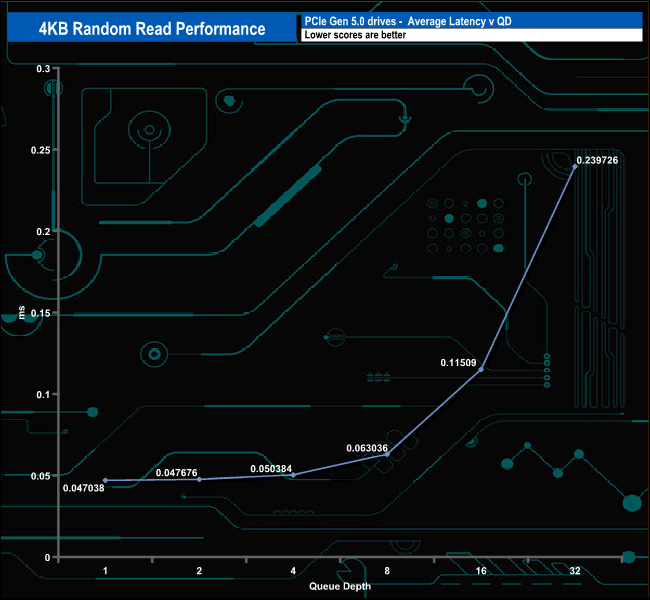

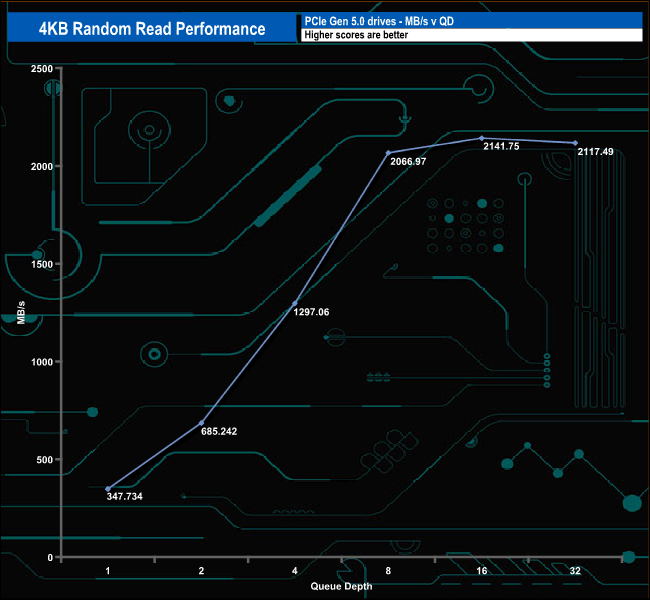

4K Random Read v QD compared.

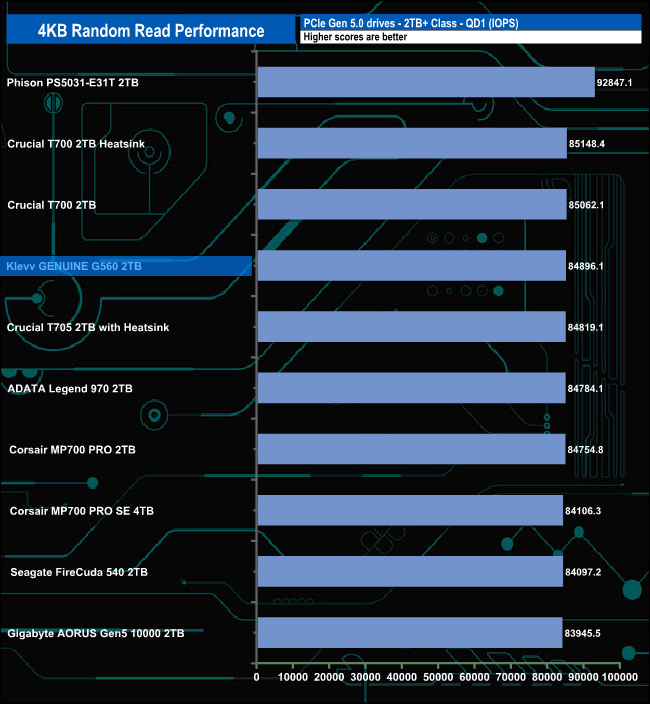

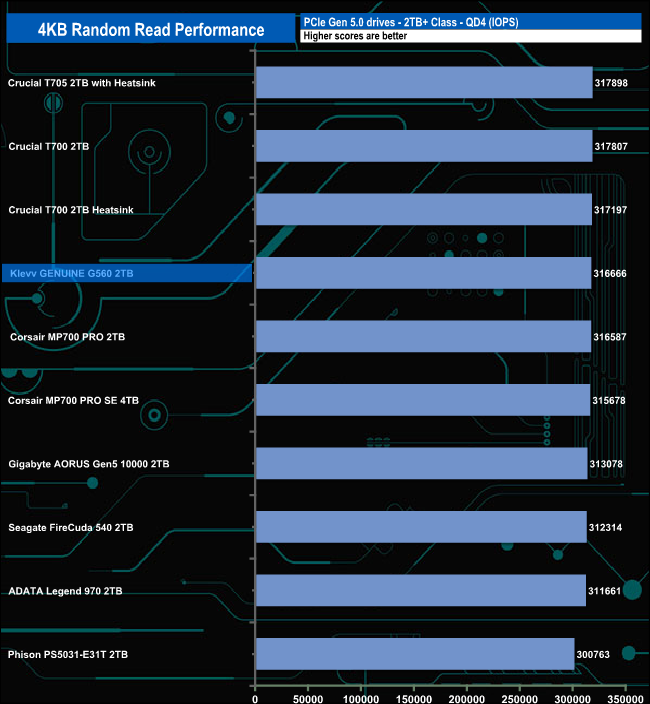

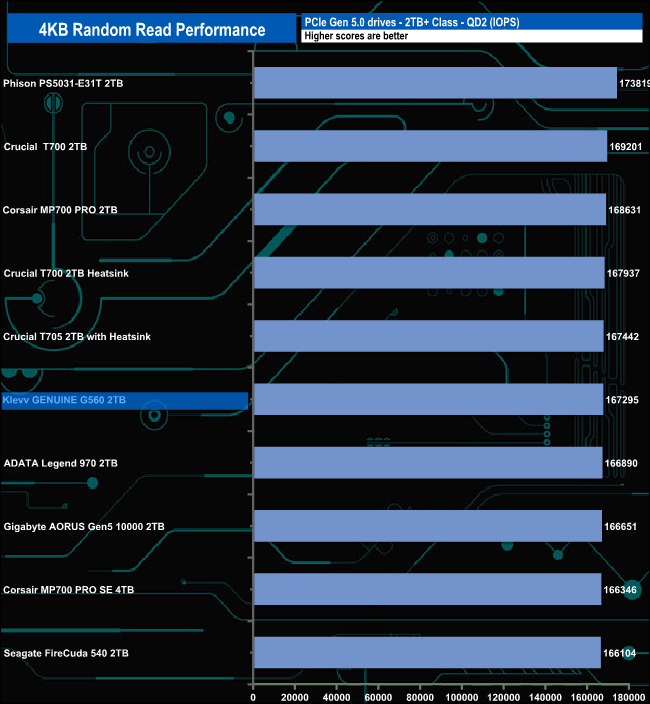

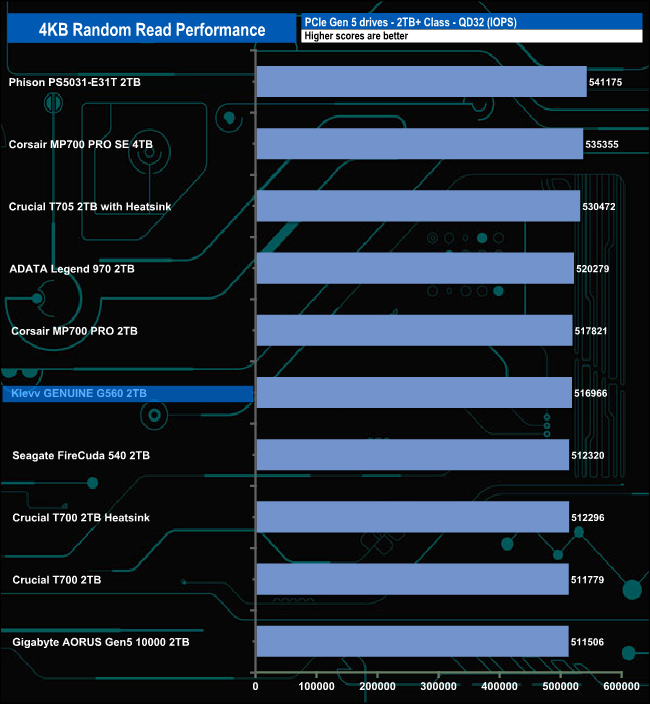

In comparison to the drives around it, the G560 performs best at QD1 and QD4 where it sits fourth in the results tables. At QDs 2 and 32 it drops down to sixth spot.
