Seagate FireCuda 540 2TB Gen 5 SSD Review

1. Introduction2. Seagate FireCuda 540 2TB3. Testing Methodology4. CrystalDiskMark5. ATTO Disk Benchmark6. AS SSD7. 128KB Sequential Performance8. 4K Random Read v QD Performance9. 4K Random Write v QD Performance10. 4K 70/30 Mixed Performance11. 4K Random Performance QD1-QD812. Throughput13. PCMark 10 Full System Drive Benchmark14. 3DMark Storage Benchmark 15. Final Fantasy XIV Endwalker Official Benchmark16. Temps17. Real Life File Testing18. Closing Thoughts19. View All Pages

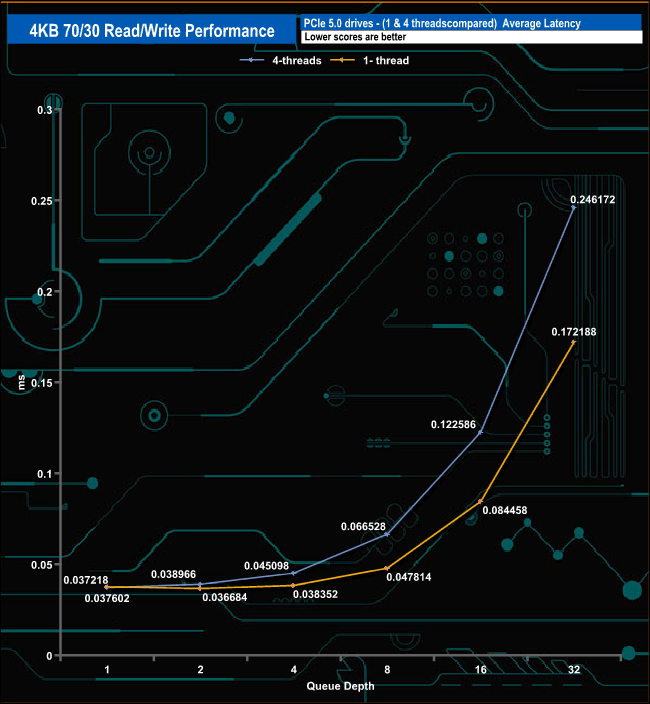

We used CrystalDiskMark 8’s custom settings to test the 4K 70/30 mixed read/write performance of the drive through a range of queue depths using a single thread and four threads.

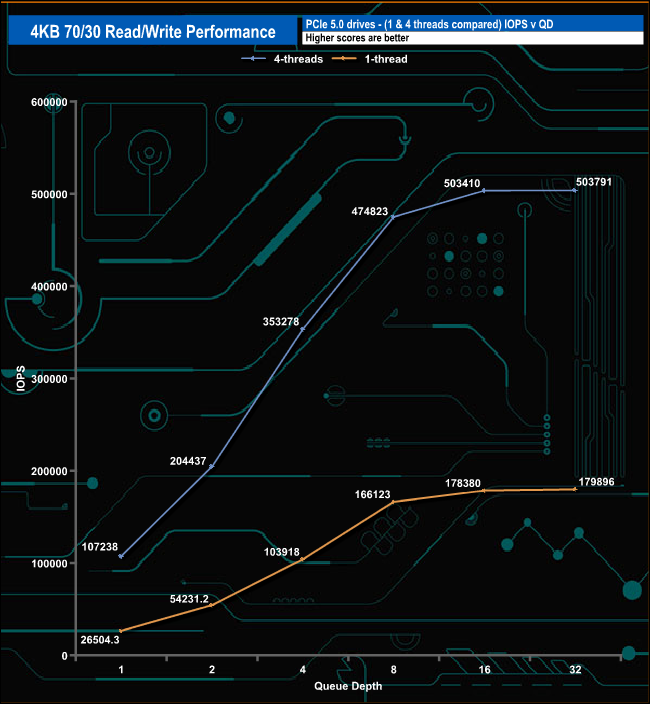

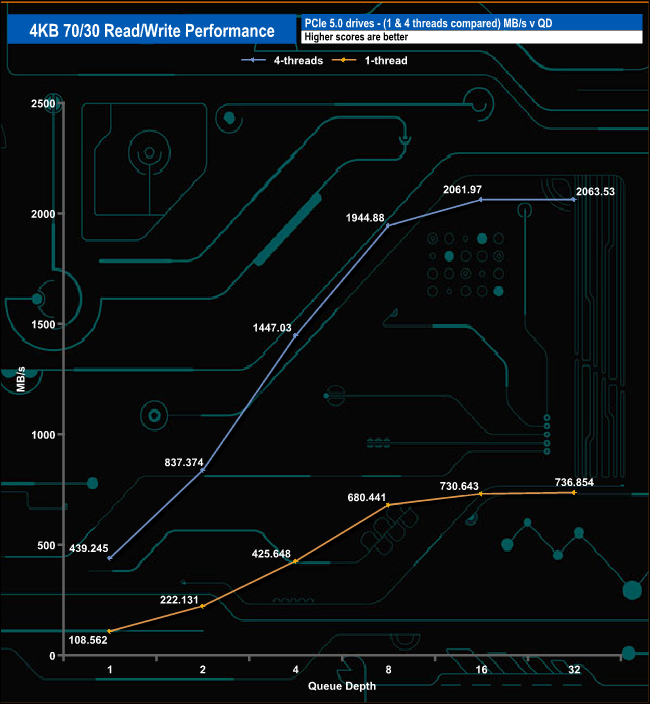

Using four threads in our 70/30 read/write tests, the performance of the 2TB FireCuda 540 ranges from 107,238 IOPS (439.24MB/s) at QD1 to 503,791 IOPS (2,063MB/s) at QD32. Switching over to a single thread the performance runs from 26,504 IOPS (109.56MB/s) at QD1 up to 179,896 IOPS (735.85MB/s) at QD32.
