Gamdias Featured Build – ASMR Edition!

It's been a hectic few months to start the year at KitGuru, but in today's video we take a chill with this all white ASMR Gamdias featured build – enjoy!

Case – Gamdias NESO P1 Pro WH – Coming soon.

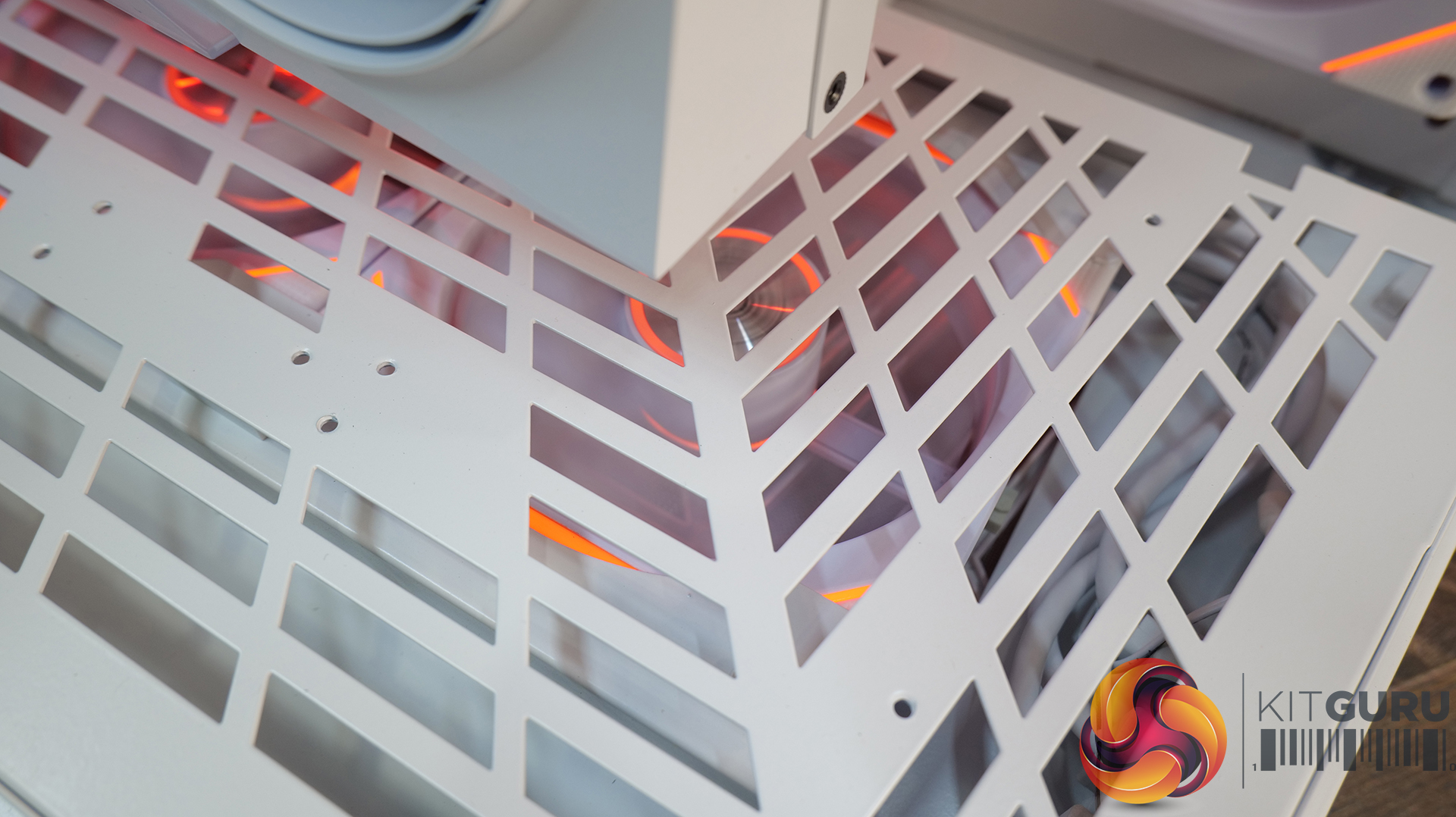

• A full tower case in matte black and snow white. It features a dual chamber trapezoidal design, allowing the hardware to be showcased in either vertical or horizontal orientation.
• One-touch mechanisms provide easy removal of panels for quick access and maintenance, while the magnetic feet allow instant and seamless switching from vertical to horizontal orientation.

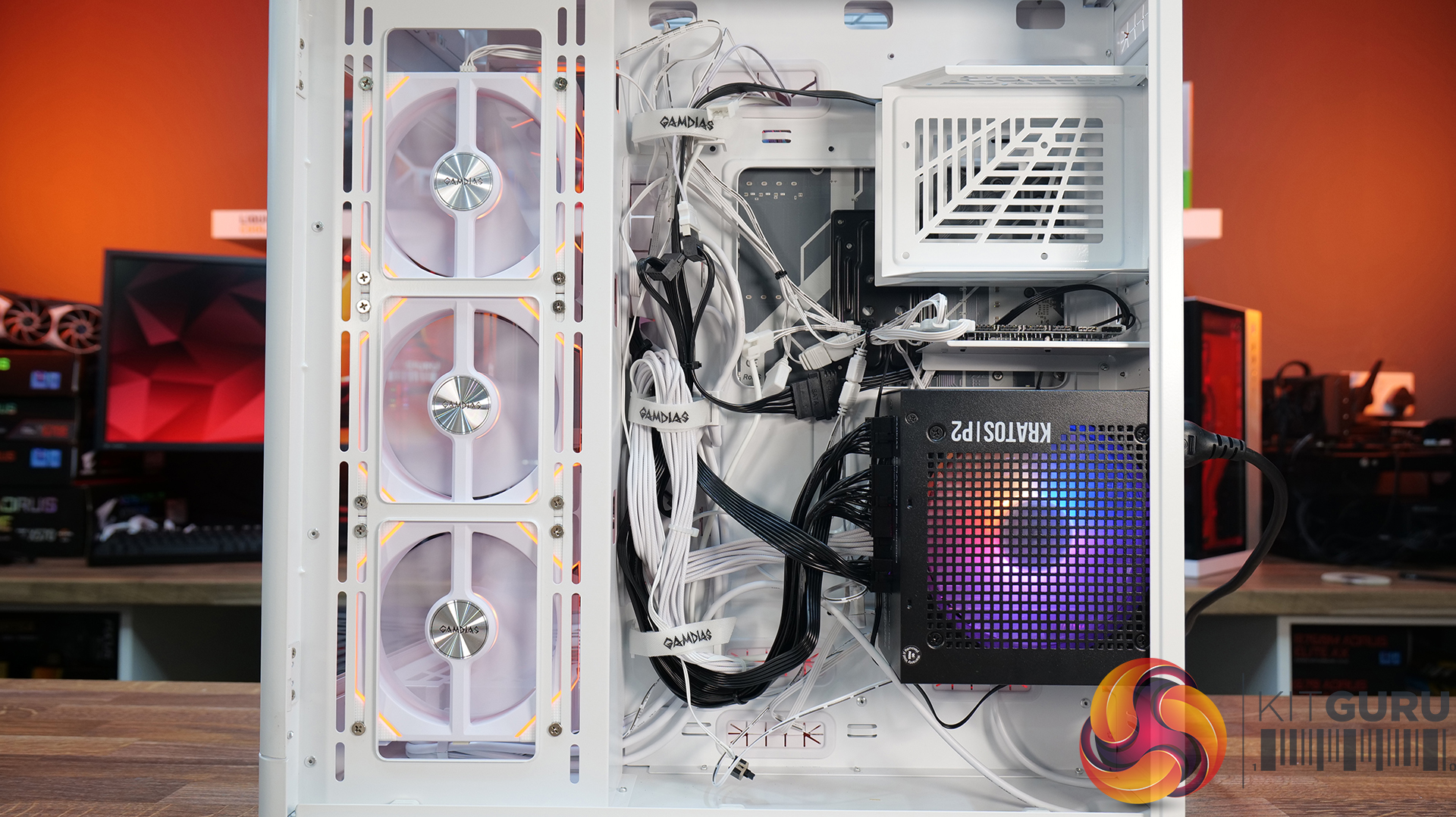

• Comes equipped with three Gamdias Aeolus P2 fans and a built-in 8-way ARGB and PWM fan hub for optimal airflow and easy configuration, as well as rotatble PCIe slots for vertical or horizontal GPU mounting and 90mm deep space provides ample room for cable management.

Specifications

• Case Type: Full Tower
• Dimensions (LxWxH): 490 x 310 x 495 mm
• Net Weight: 97kg
• Material: SPCC & ABS & Tempered glass
• Motherboard Support: E-ATX (310mm Width)/ATX/Micro-ATX/Mini-ITX
• Expansion Slots: 8 to 8
• Storage Bays: 2 x 3.5″ or 1 x 2.5″+1 x 3.5″(HDD Cage) 2 x 2.5″(HDD Cage)
• Max GPU Length: 426mm
• MAX GPU Width: 192mm
• Max CPU Cooler Height: 193mm
• Max PSU Size: ATX 180mm
• Pre-installed Fans: Side: 3 x 120mm ARGB PWM AEOLUS P2 WH Fans
• Fan Support: Top: 3 x 120mm/2 x 140mm, Side: 3 x 120mm/3 x 140mm, Rear: 1 x 120mm/1 x 140mm, Bottom: 3 x 120mm
• Radiator Support: Top: 360mm/280mm, Side: 360mm/420mm, Rear: 120mm
• Dust Filters: Top, Side, Bottom
• Font I/O: USB 3.0 x2, Type C x 1, HD Audio x1, LED control x1
• LCD Screen: N/A

CPU Cooler – Gamdias CHIONE P5-360WH – Coming soon.

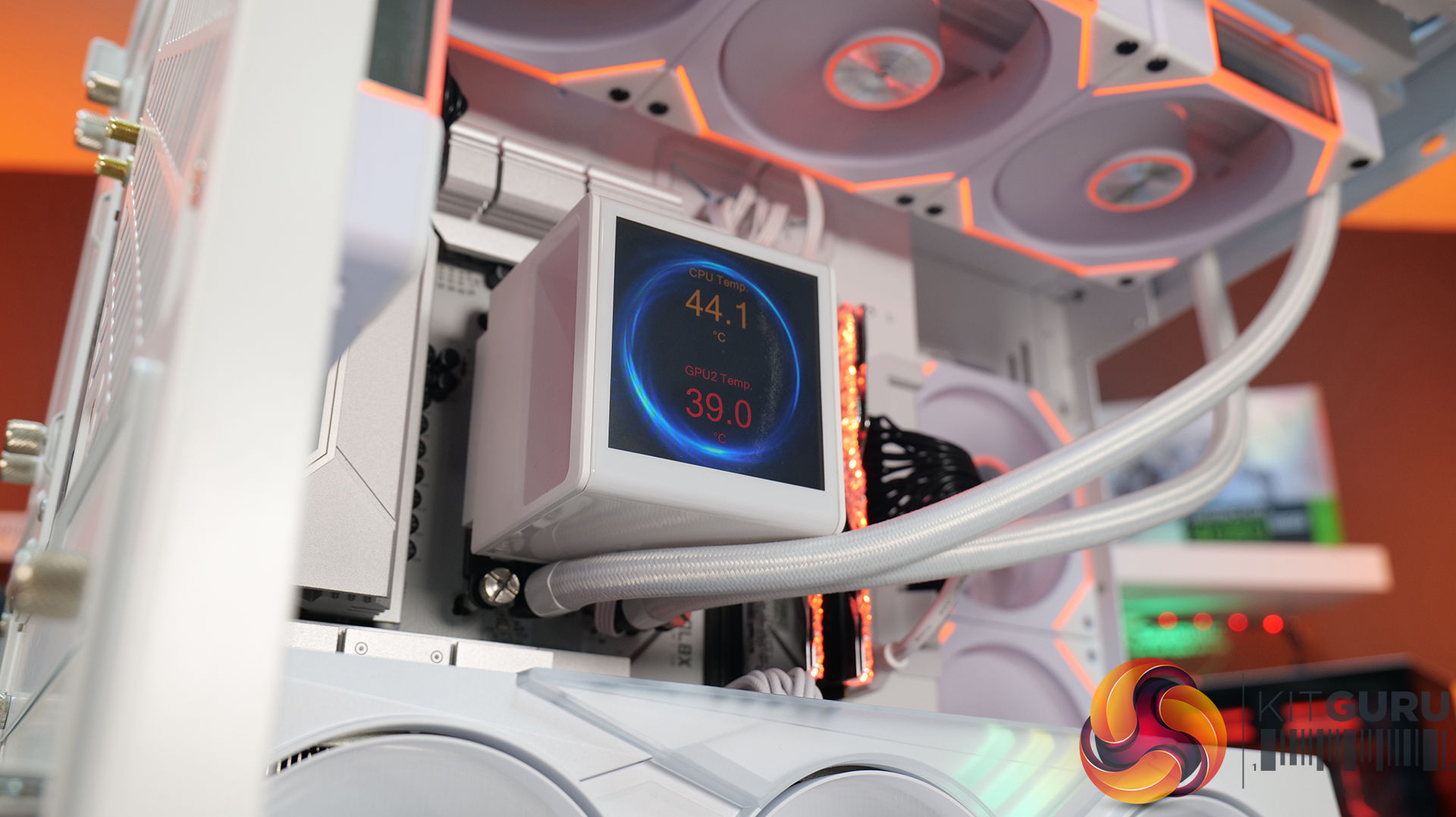

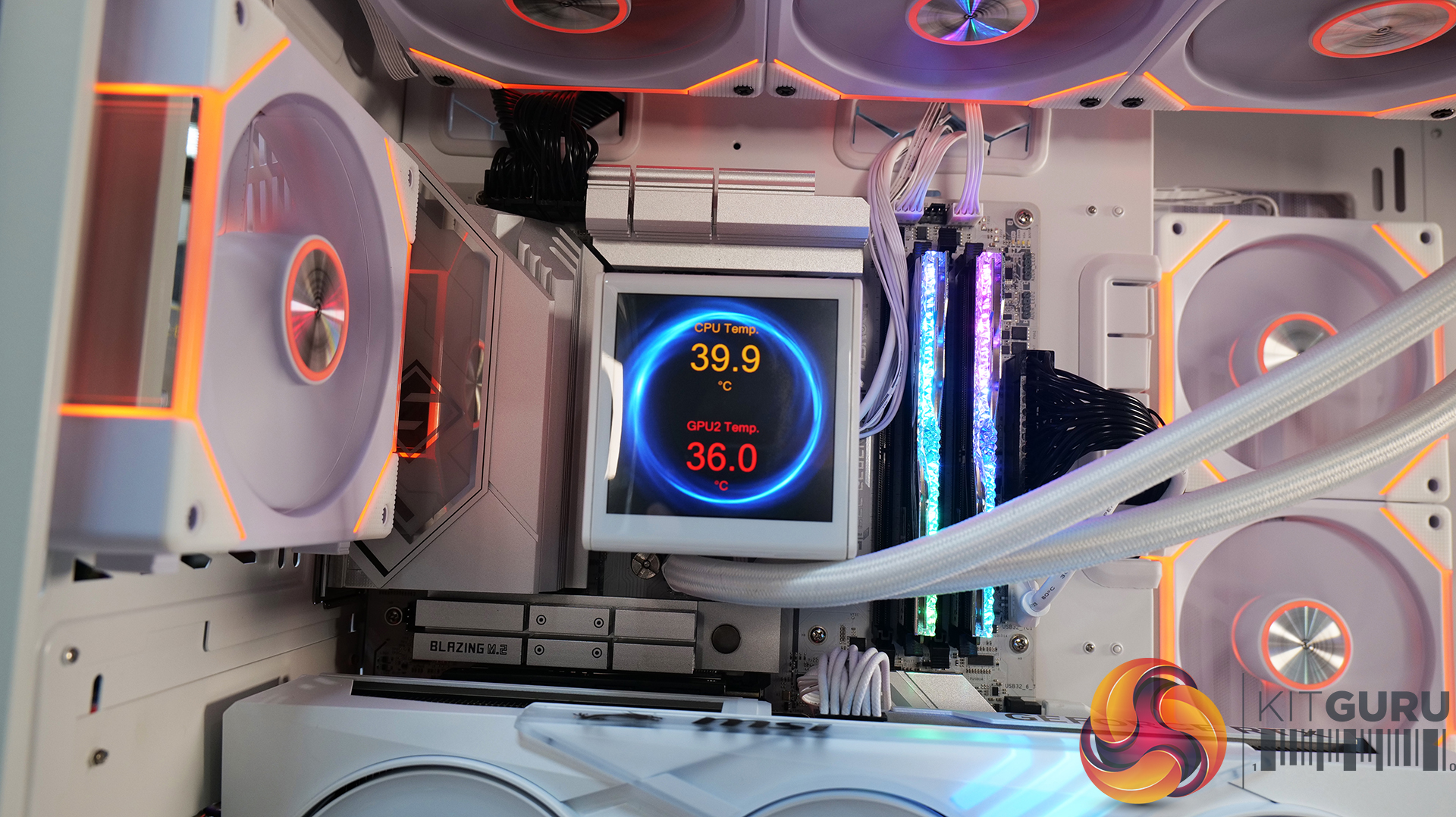

• Equipped with a 3.4-inch IPS LCD with 480×480 resolution to display real-time system info, pictures and animated GIFs.
• The display is mounted on magnets so it can be easily and quickly rotated, allowing the user to change orientation to suit their build for optimal viewing.

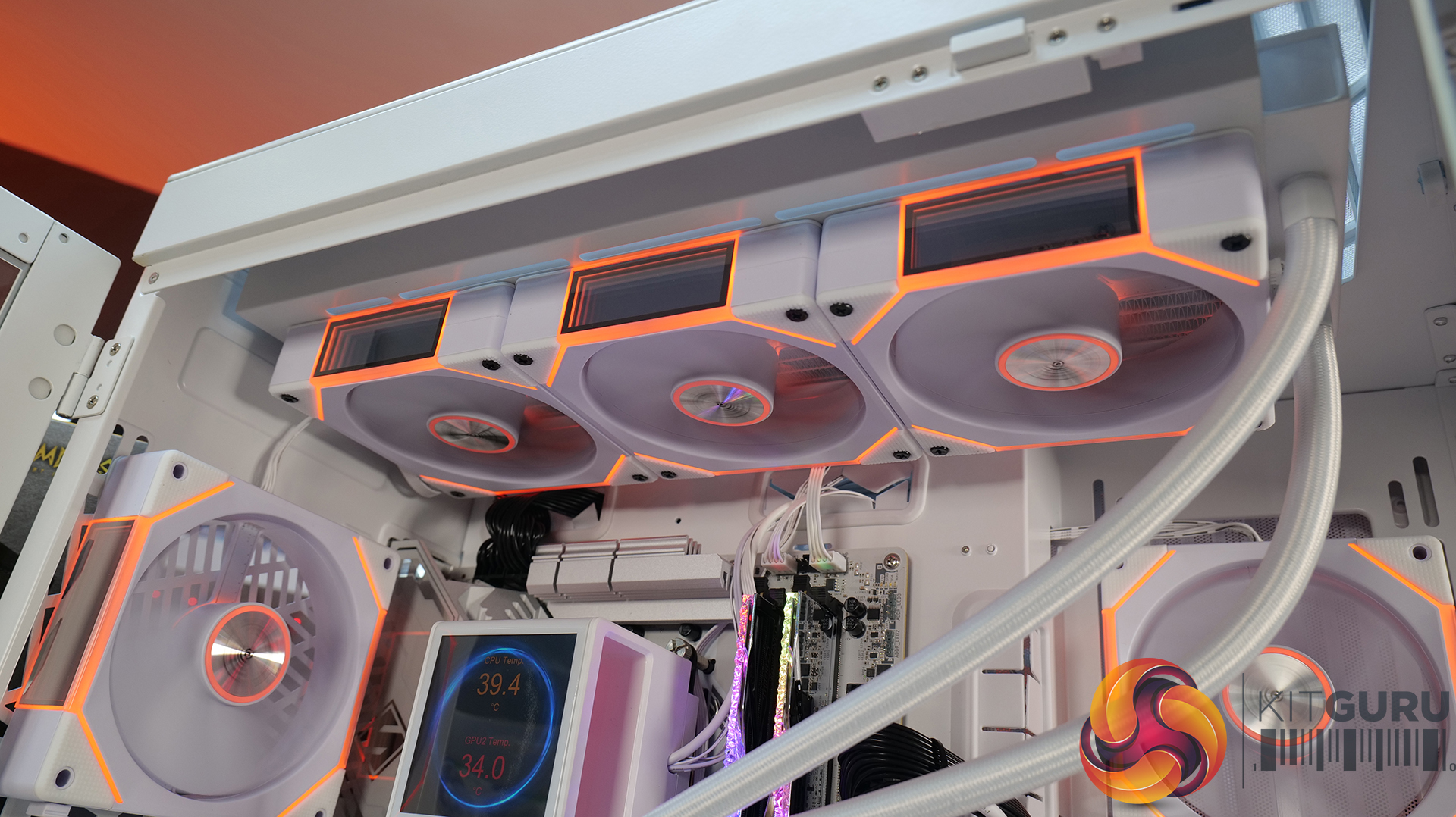

• CHIONE P5 pump features a powerful 12-slot 10-pole motor with a speed range of up to 2700RPM, an upgraded and optimised micro-channel copper cold plate and a 360mm radiator with high-density fins for optimal cooling performance.

Specifications

• Socket Compatibility: LGA2066 / 2011-v3 / 2011 / 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 / AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1
• Radiator Dimensions: 396 x 120 x 27 mm
• Tube Material: EPDM
• Base plate Material: Copper
• Radiator Material: Aluminium
• Pump Voltage: 12V
• Pump Connector: 4-pin
• Fan Dimensions: 120 x 120 x 25mm
• Fan Speed: 400 – 2200 RPM±10%
• Noise Level: 11 – 34.91 dBA
• Air Flow: 81.81 CFM
• Air Pressure: 3.15 mmH2O
• Connector: PWM & 5V sync
• Bearing: Hydraulic

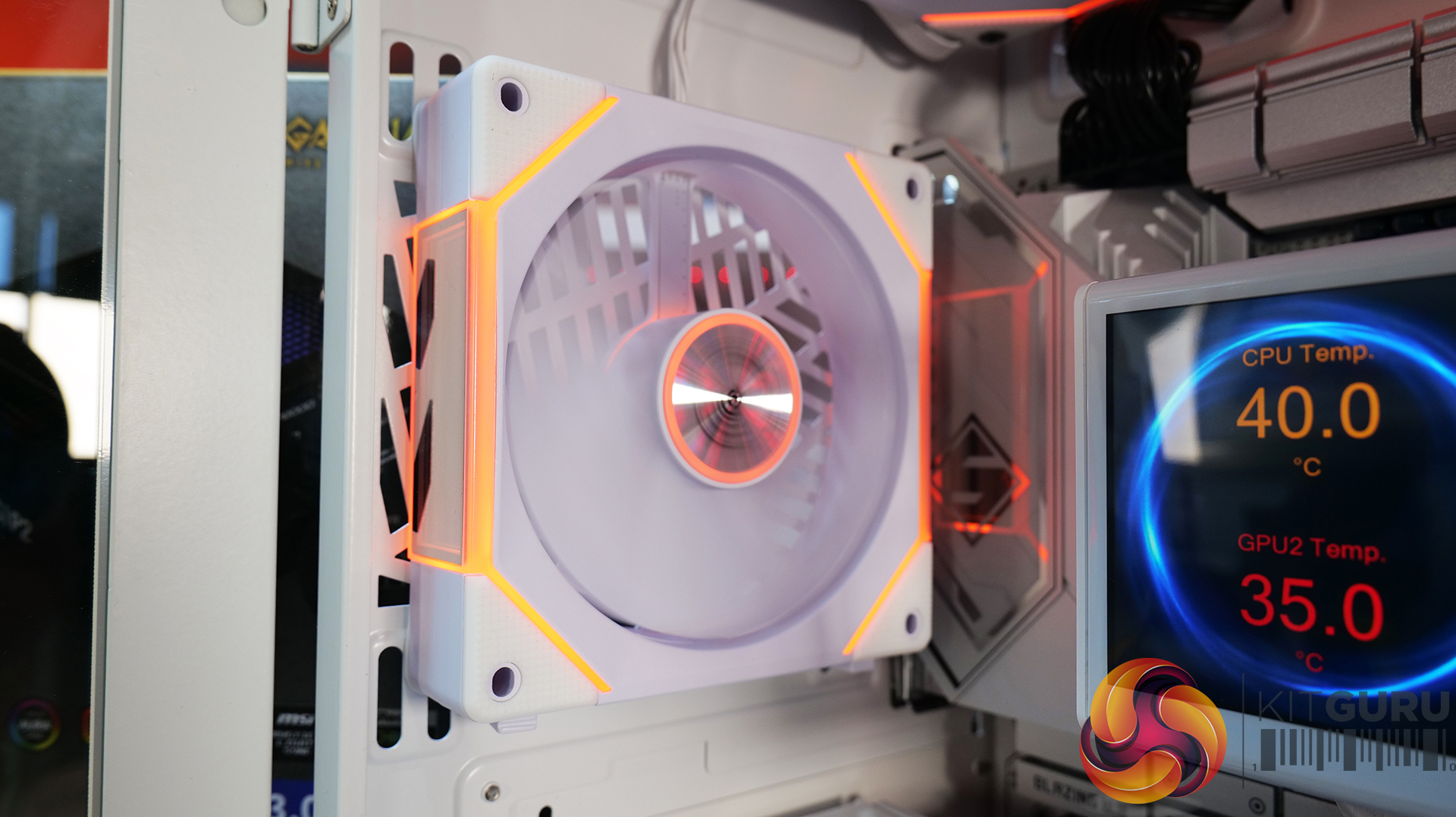

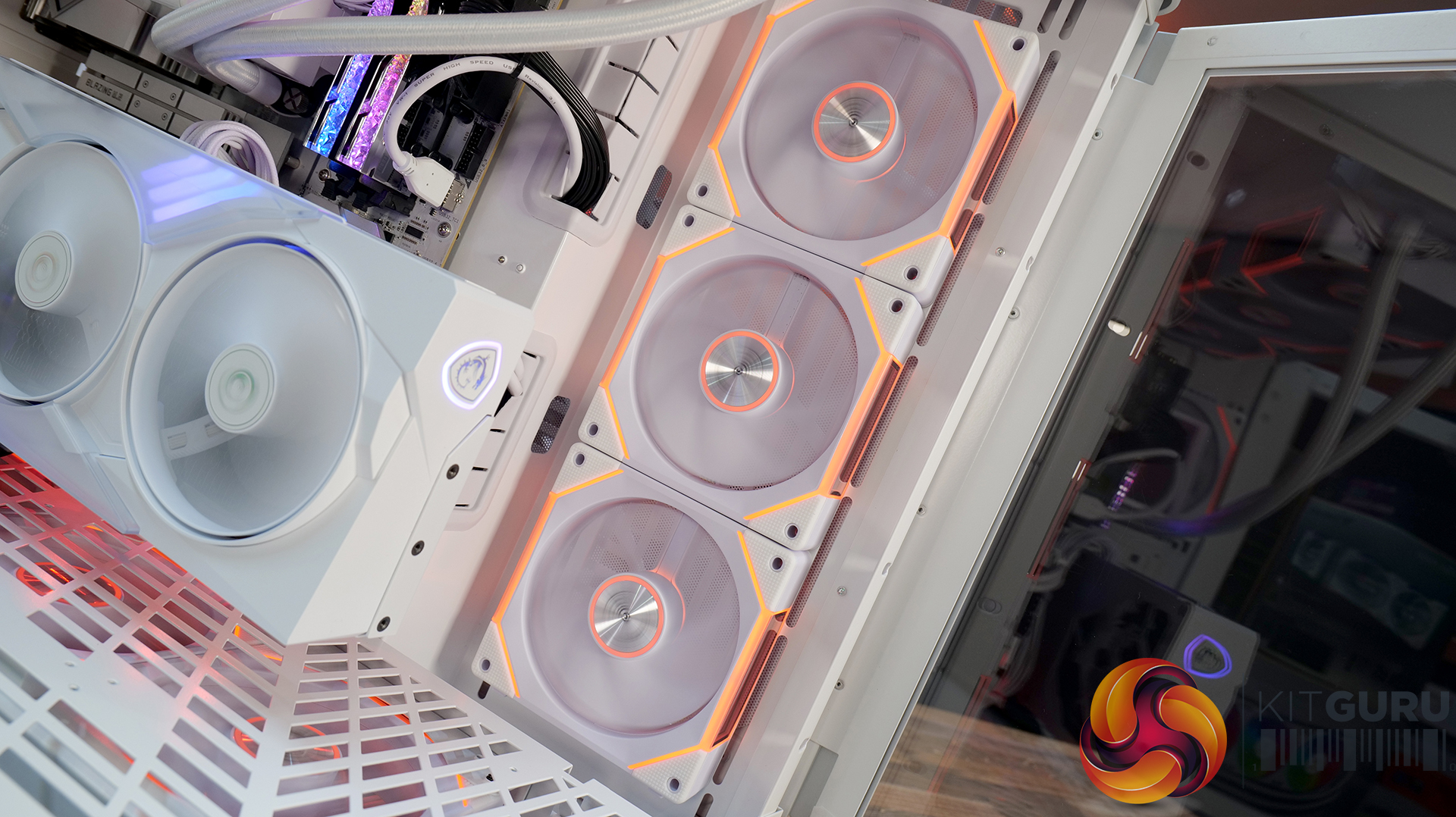

Fans – Gamdias AEOLUS P2-1203U WH – 3 packs available from Amazon UK HERE.

• Cableless daisy chain wiring design for easy cable management, and swappable fan blades for quick push/pull configuration.
• 30mm thick with PWM speed control and hydraulic bearing for extreme cooling performance and low-noise operation.
• Includes a new USB AELOUS BOX II controller with four ports to chain four clusters of fans with a maximum of 16 fans running simultaneously. The controller can also syncronise with motherboard 3-pin 5V ARGB headers.

Specifications

• Connector Type: 8-pin
• Fan Dimensions: 120 x 120 x 30mm
• Fan Speed: 1000 – 2400 RPM±10%
• Max Air Pressure: 3.1 mmH2O
• Max Airflow: 74.97 CFM
• Bearing Type: Hydraulic
• Operating Voltage: 12 V (Fan) / 5V(LED)

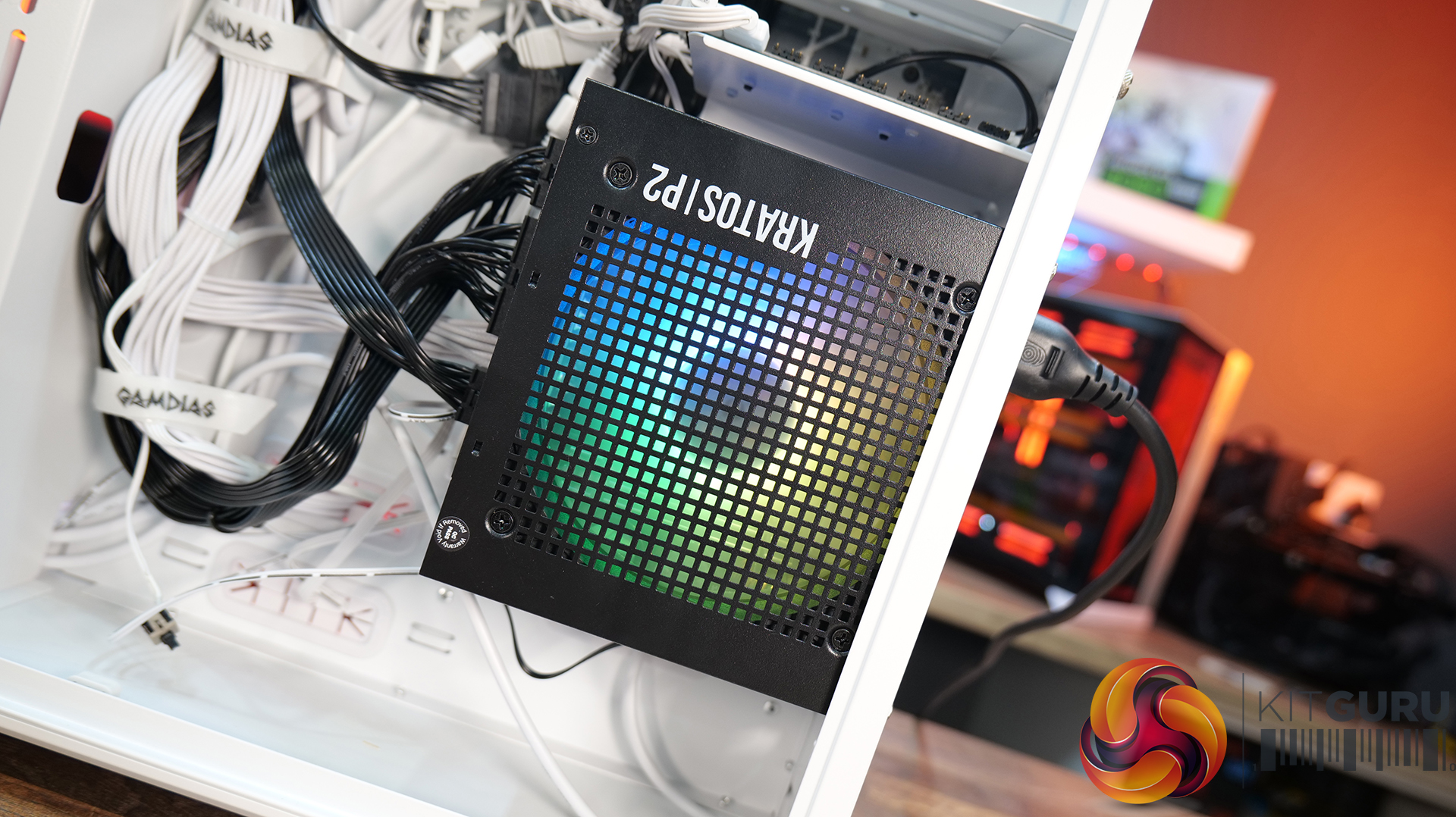

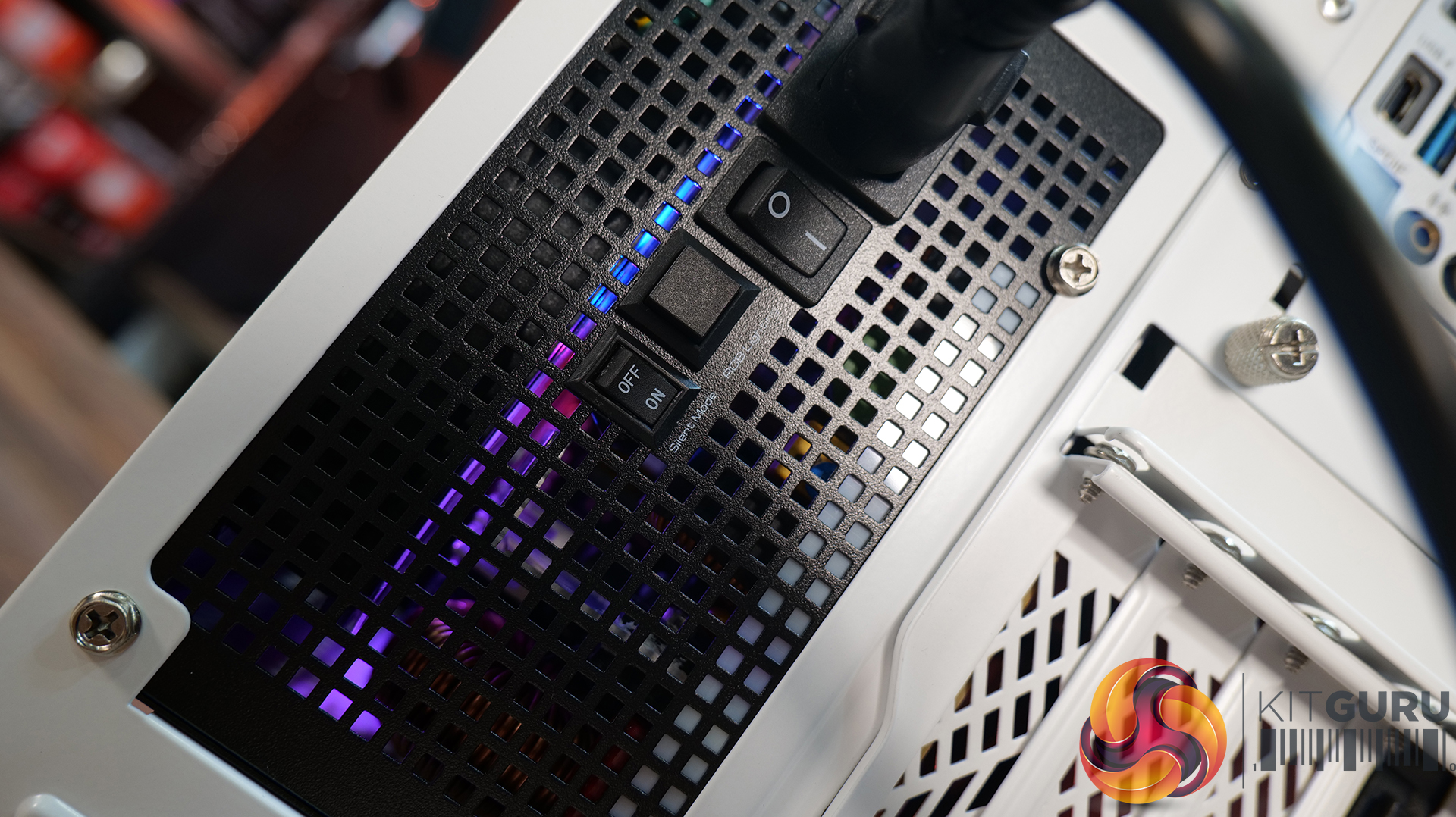

Power Supply – Gamdias Kratos P2-1200G

• Fully modular cable design to reduce cable clutter with native 12VHPWR cable included and 80+plus Gold certification.
• Supports ATX 3.0 and PCIe 5.0 with 100% superior quality Japanese capacitors and a premium 120mm hydraulic bearing fan.
• Features full ARGB lighting effects with 30 built-in addressable lighting effects via simple button on the unit and can be syncronised to motherboard software.

Specifications

• Type: ATX12V v3.0
• Efficiency: Meet 80 PLUS Gold efficiency
• Power Factor Correction: APFC with PF value of 0.99
• Supports MB Sync: 5V 3-pin Addressable (Digital) RGB Header Only
• Dimension (L x W x H): 140 x 150 x 86 mm
• Support C6/C7 power state: Yes
• AC Input: 100-240V~ / 15-7A / 47-63Hz
• DC Output: +3.3V / +5V / +12V / -12V / +5Vsb
• Output Current: 20A / 20A / 100A / 0.3A / 3A
• Output Power: 130W / 1200W / 3.6W / 15W
• Total Power: 1200W
• Peak Power: 1560W
• Protection: OVP / UVP / OPP / SCP / OCP / OTP
• Lighting Effect: 30 Neon-Flex RGB
• Cooling System: 120mm hydraulic bearing fan
• Silent Mode: Yes

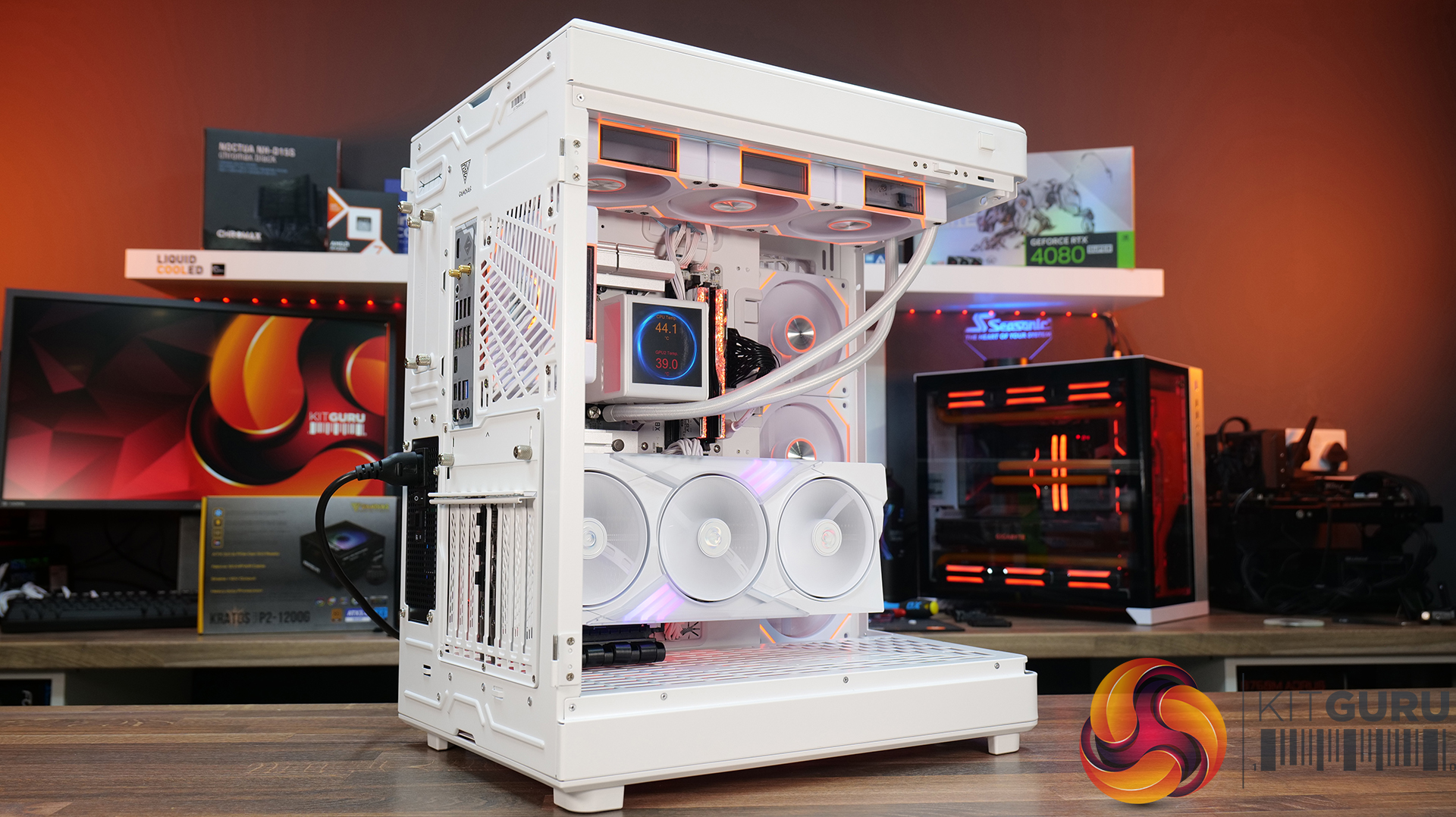

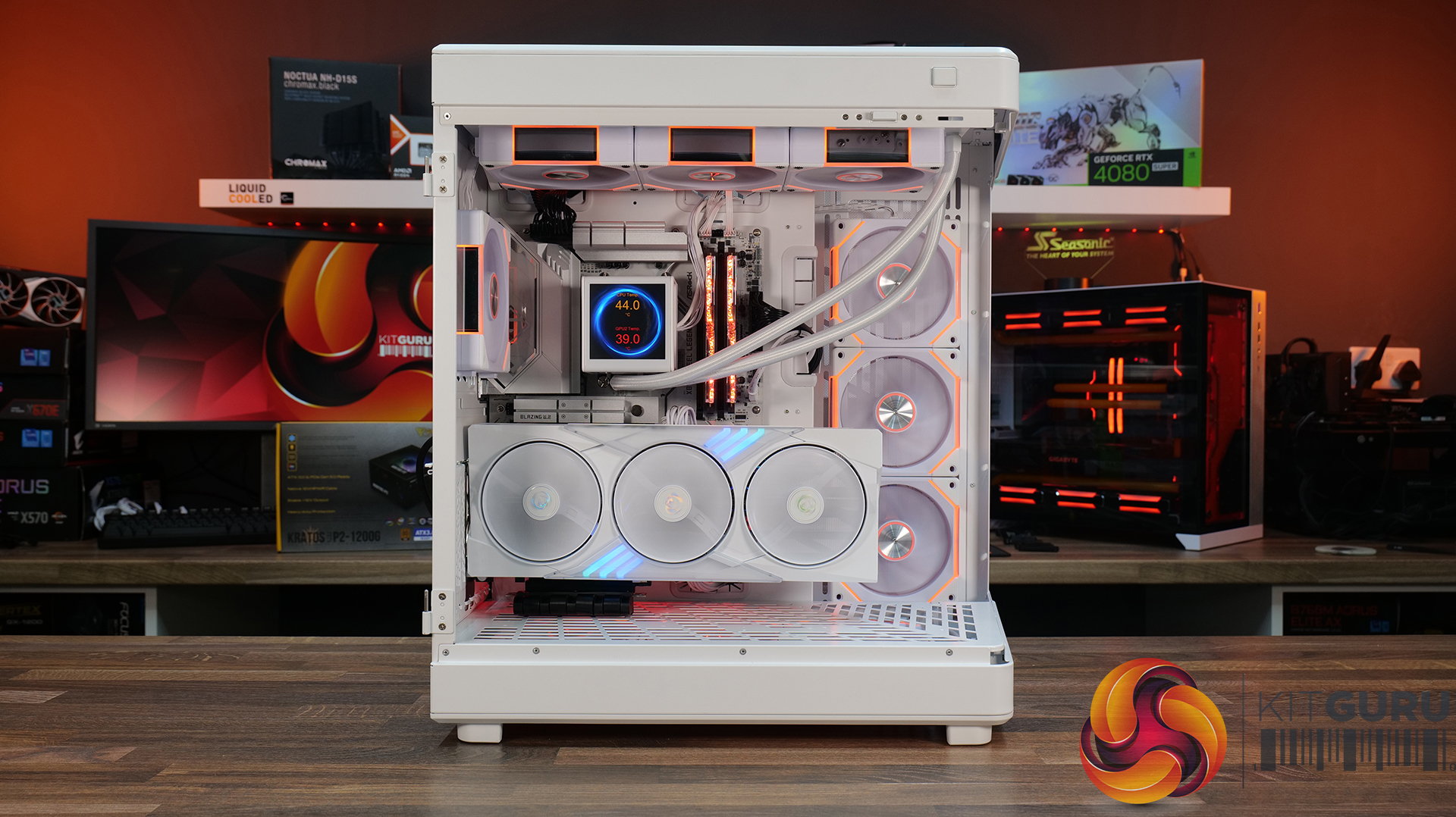

Build Specification:

• CPU – AMD Ryzen 7 9800X3D
• Motherboard – ASROCK X870 Steel Legend WiFi
• Graphics Card – MSI RTX 5080 Gaming Trio White
• Memory – 32GB (2 x 16GB modules) G.SKILL Trident Z5 Royal Neo DDR5-6000
• Storage – 1TB Corsair MP600 Elite PCIe Gen4 x4 NVMe M.2 SSD
• CPU Cooler – Gamdias CHIONE P5-360 WH
• Power Supply – Gamdias Kratos P2-1200G
• Case fans – Gamdias AEOLUS P2-1203U WH
• Chassis – Gamdias NESO P1 Pro WH
• Operating System – Windows 11

KitGuru says: Keep your eye out for these new Gamdias parts hitting UK shelves soon, they offer another option for enthusiasts who want to build with white gaming PC parts.
