Raijintek launch the Antila EVO RBW pump/reservoir combo

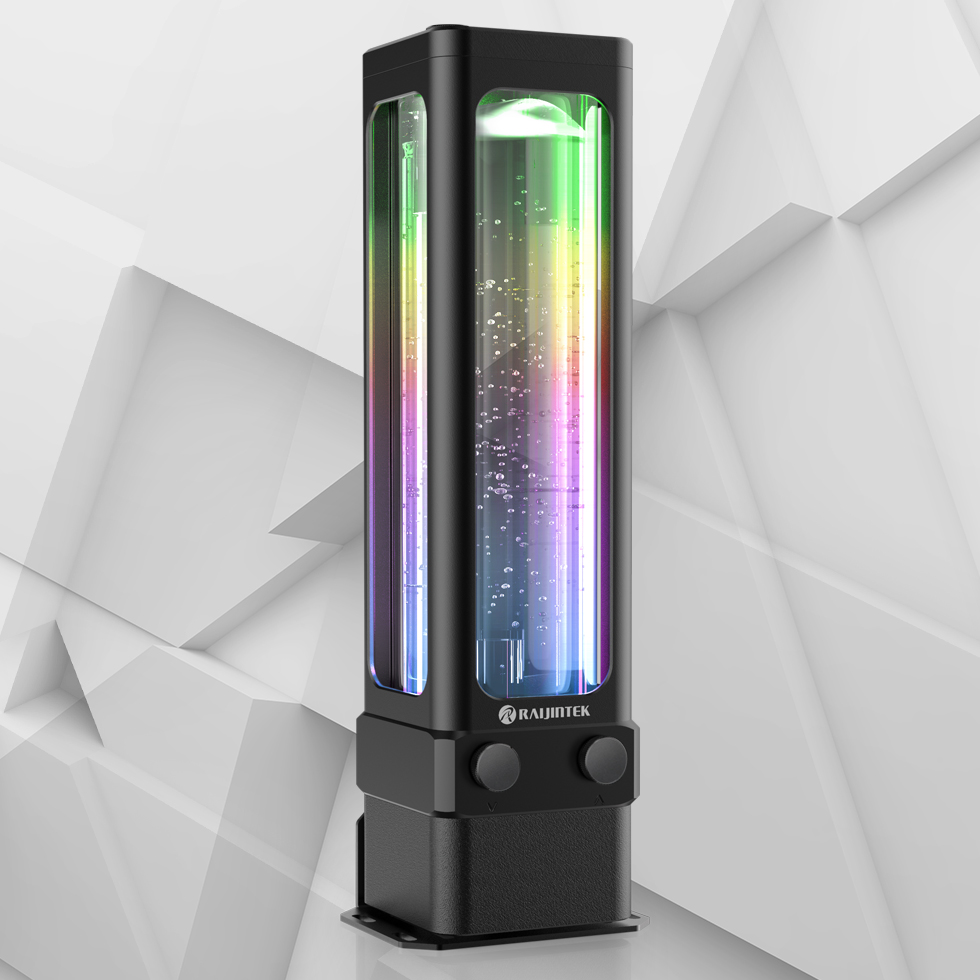

PC cooling specialist Raijintek has added a new D5 water pump and reservoir combo to its range of custom water-cooling products. The new Antila D5 EVO RBW features unique rainbow ARGB lighting and a 200mm reservoir.

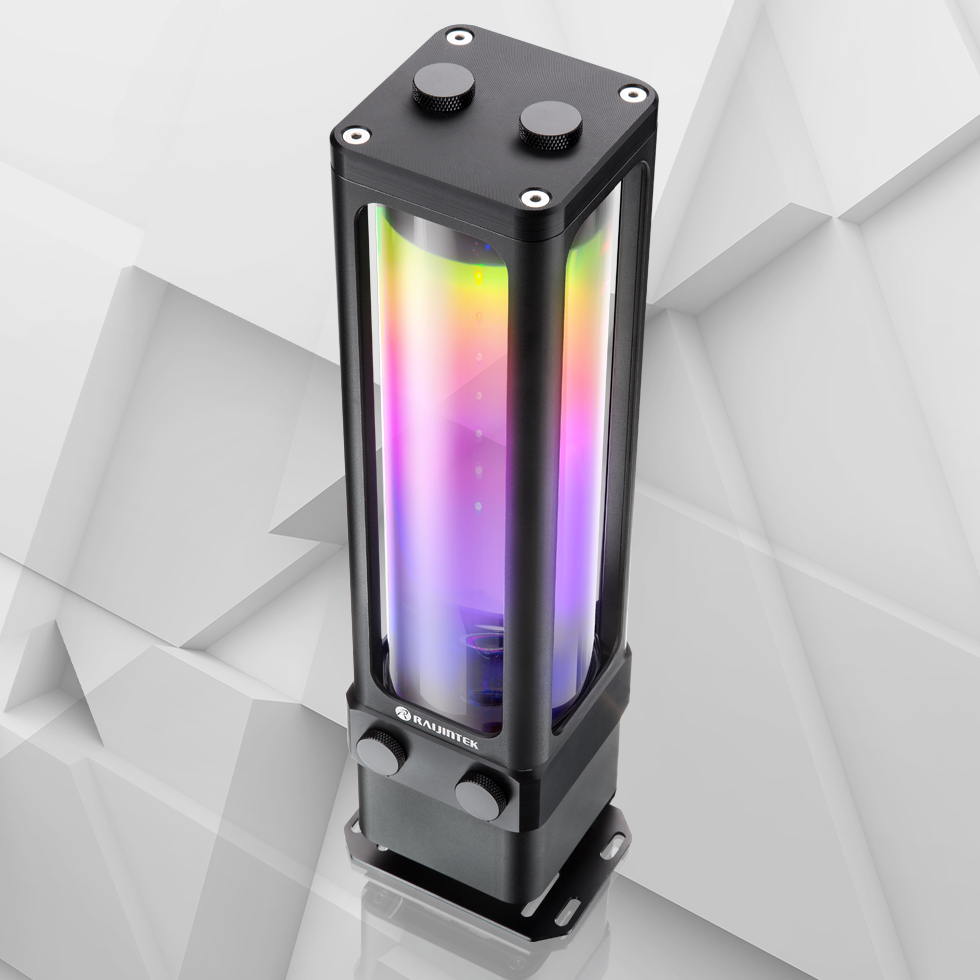

The Antila D5 EVO RBW series from Raijintek is equipped with a cylindrical reservoir manufactured from 6mm tempered glass, encased inside a 2mm thick aluminium frame with a POM top cover/bottom pump housing and unique rainbow ARGB illumination that makes it a worthy solution for the most elaborate custom water-cooling builds.

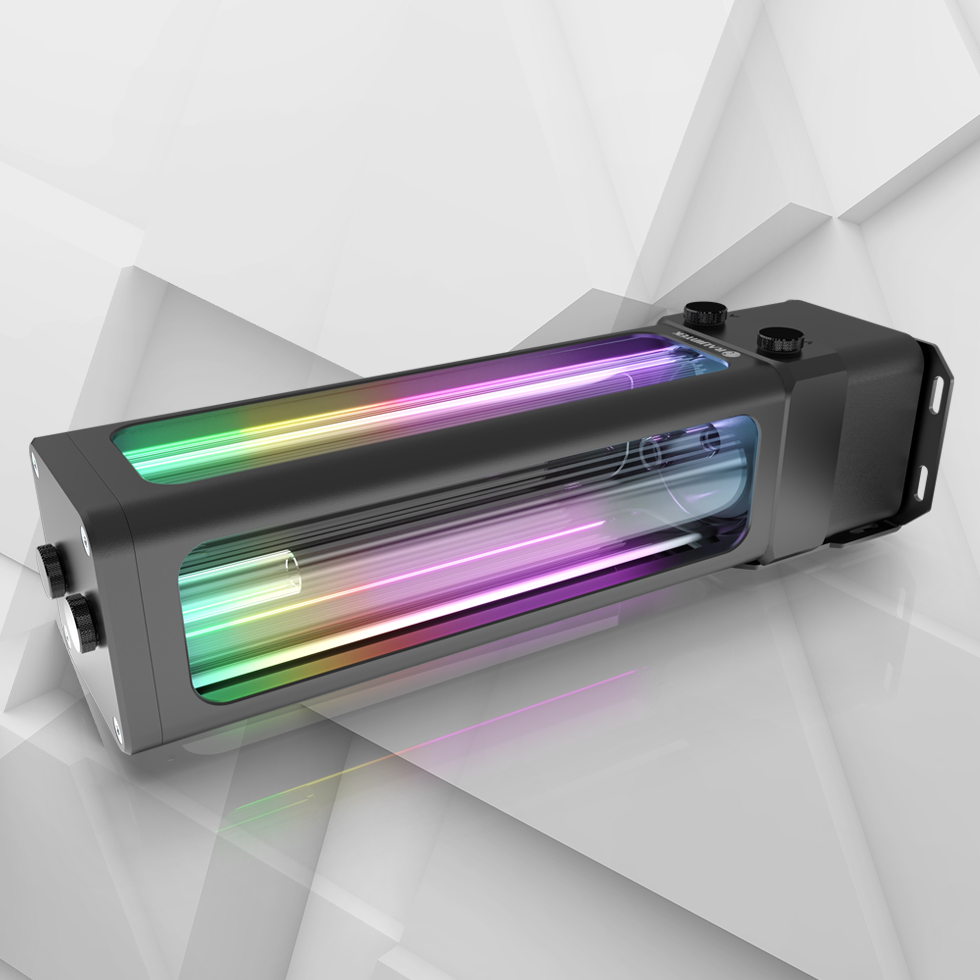

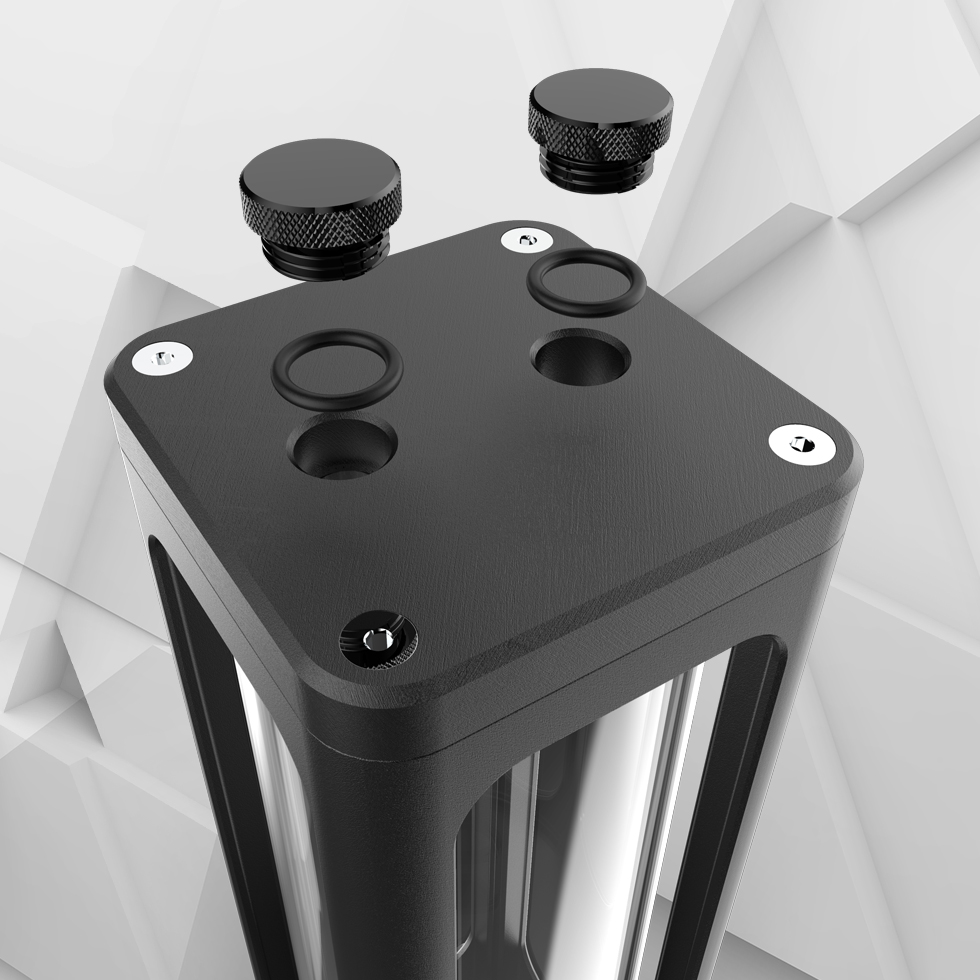

As well as its sturdy build quality, on top of the reservoir are two industry-standard G1/4” threaded inlet/outlet with pre-installed aluminium blanking plugs, a further two G1/4” inlet/outlets are located at the bottom of the reservoir.  The pump/reservoir unit mounts inside the case either vertically or horizontally via metal bracket with elongated mounting holes.

A D5 pump is fitted with a Ceramic Bearing motor to offer reliable and quiet operation that produces a maximum 50 PSI pressure with a flow rate of up to 1500L/hr and head lift of 4 meters at a maximum pump speed of 4800 RPM. The dimensions of the complete unit, including the mounting bracket, measure 80 × 95 × 305mm and the overall weight is 1260g.

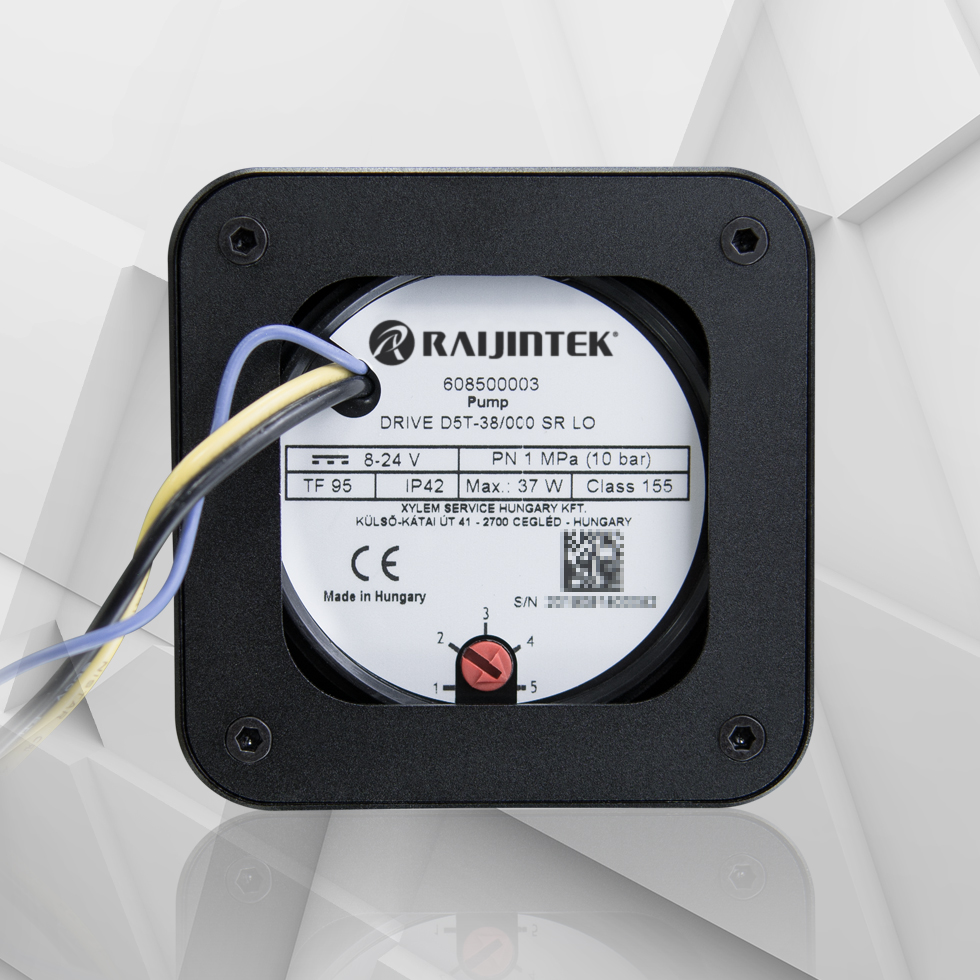

Pump speed is controlled by a switch on the bottom of the pump to adjust RPM manually, there are five speed stages –  1,800 RPM, 2,500 RPM, 3,300 RPM, 4,000 RPM, and 4,800 RPM, the unit is powered by a single Molex power connector so there is no PWM pump speed control.

Pricing and availability of the Raijintek Antila D5 EVO RBW combo are yet to be announced.

Discuss on our Facebook page HERE.

KitGuru says: The new Antila D5 EVO RBW from Rajintek is a good looking and sturdy piece of kit, PWM pump speed control would have been an advantage, however, it’s not critical as the pump speed can be adjusted manually to get a balance of performance vs noise. What do you guys think to this new pump/res combo from Raijintek?
