Using the graphics card-only power draw figures presented earlier in the review, here we present performance per Watt on a per-game basis for all twelve games we tested at 1080p.

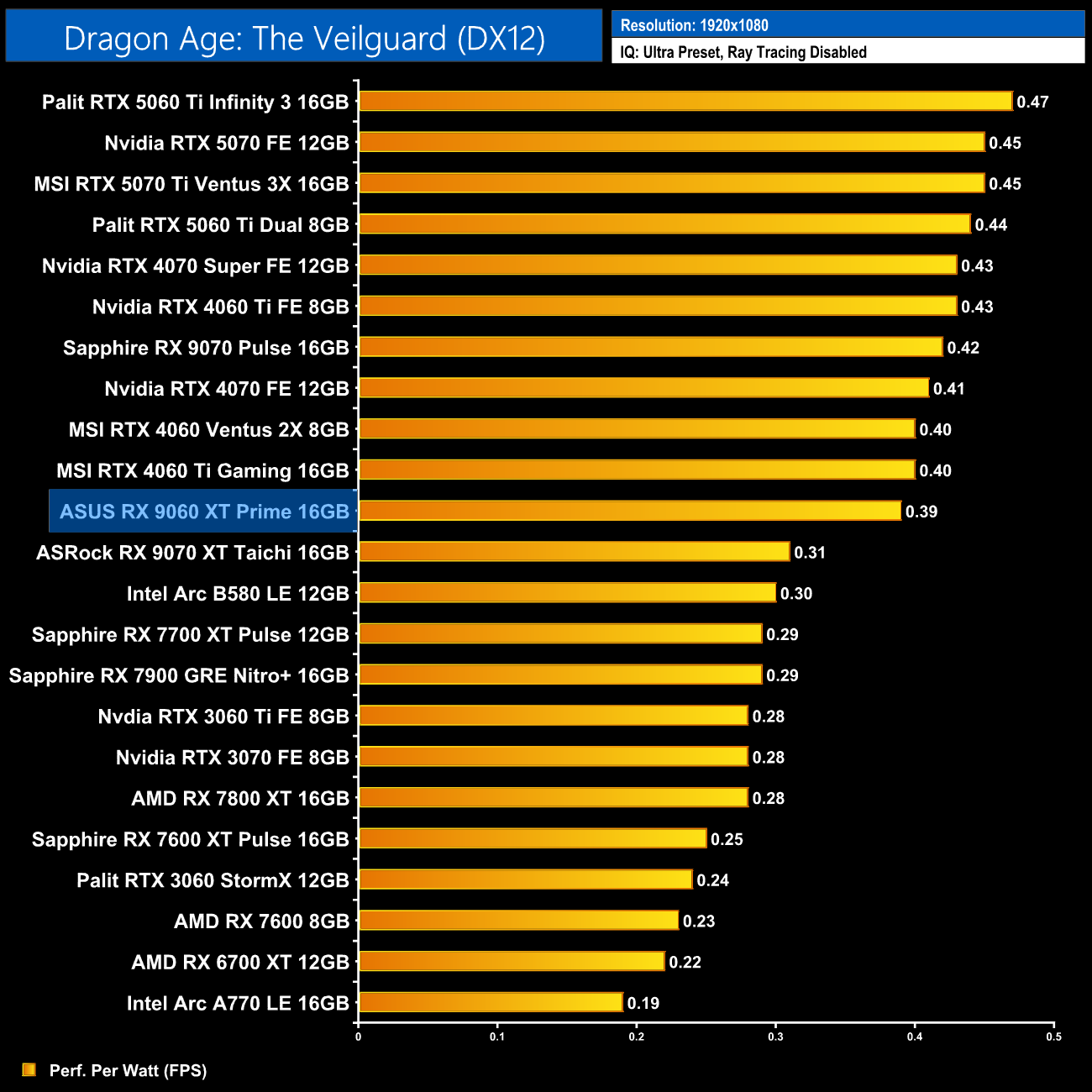

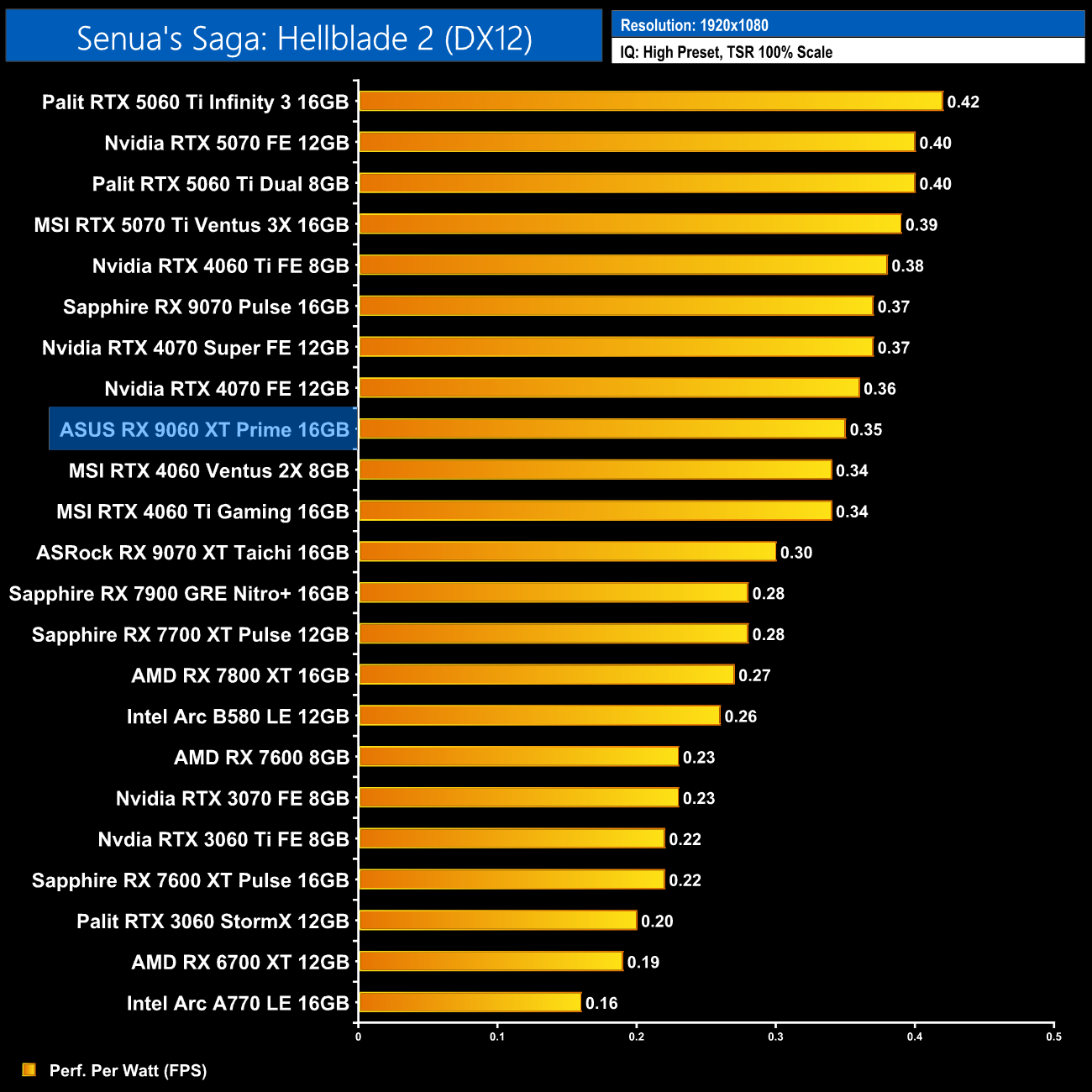

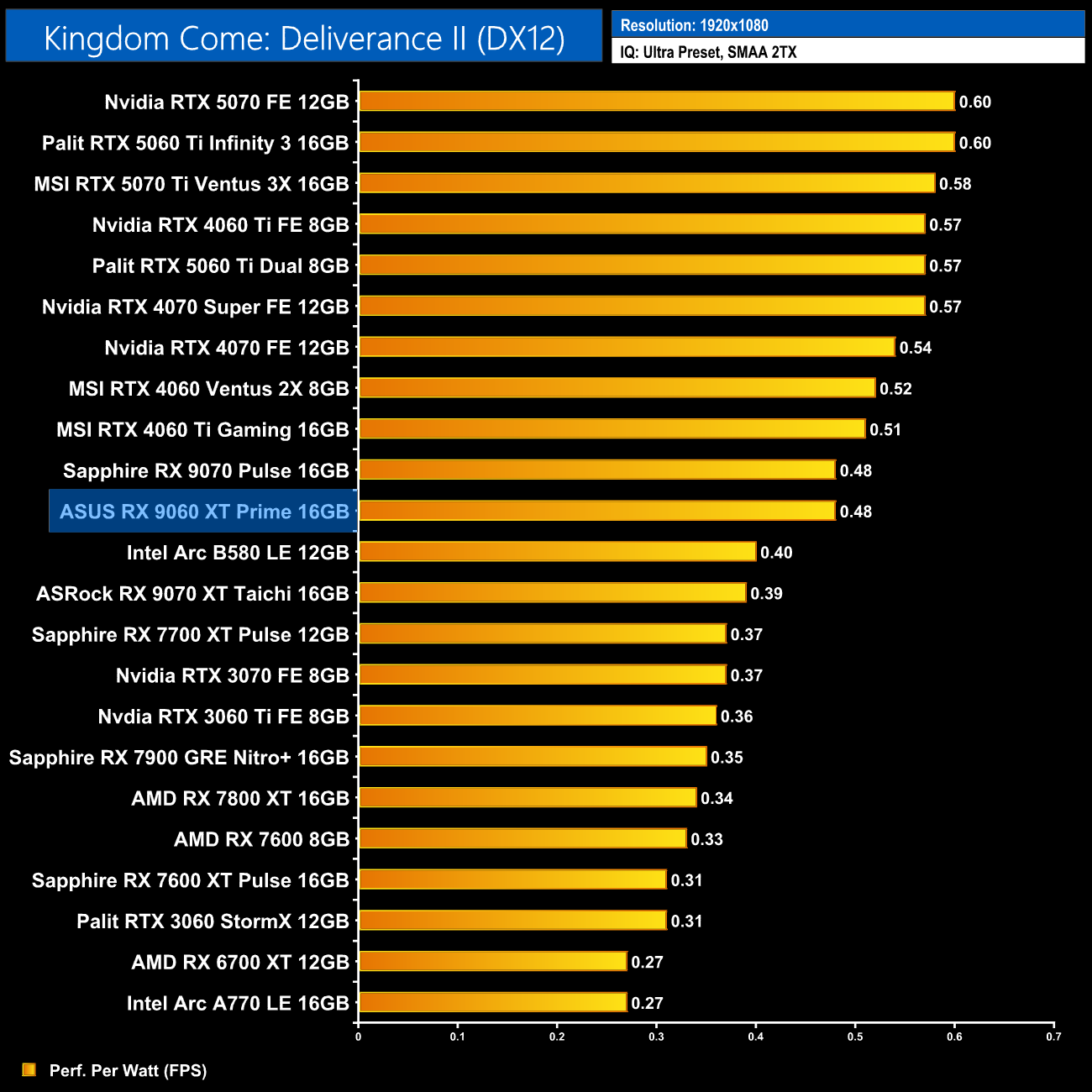

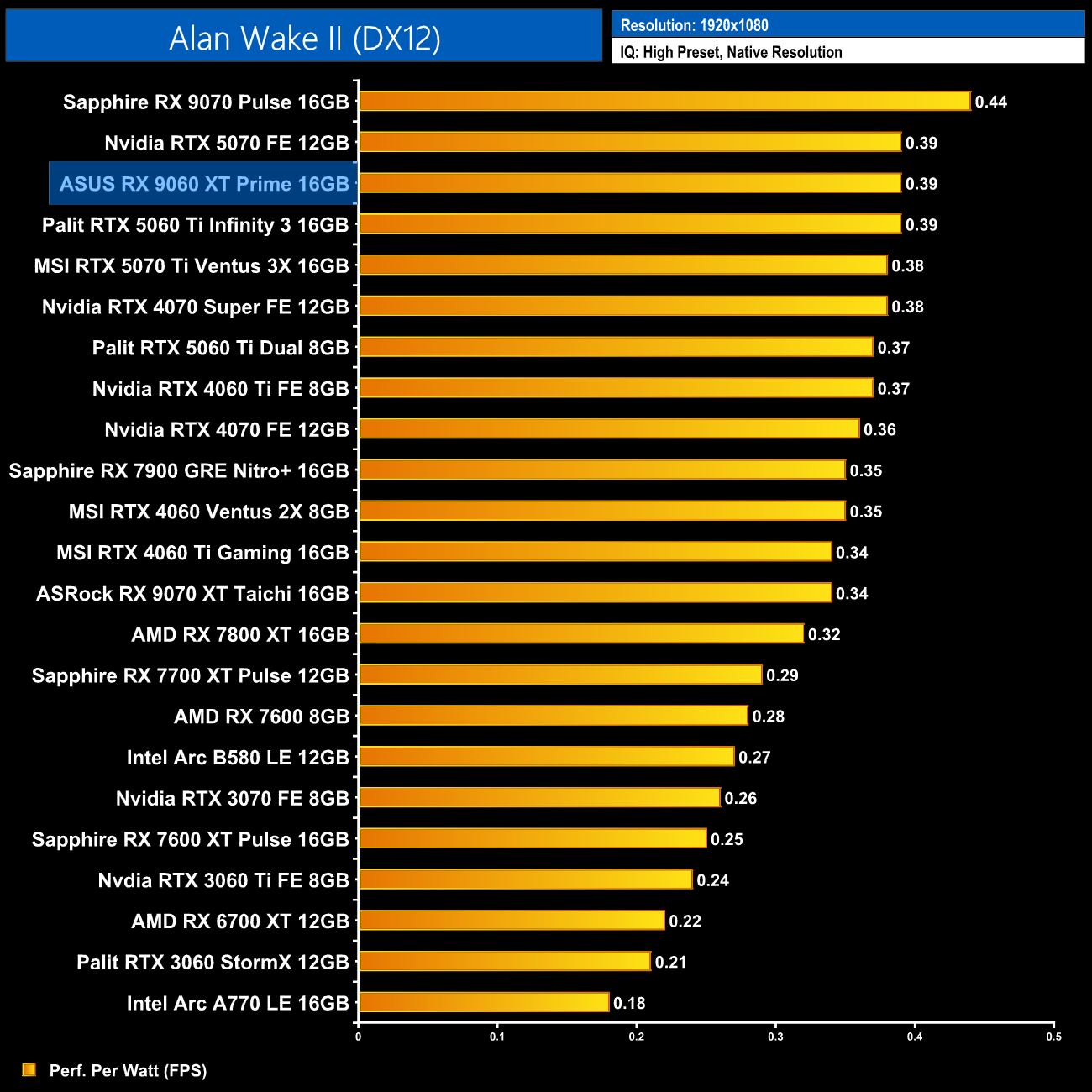

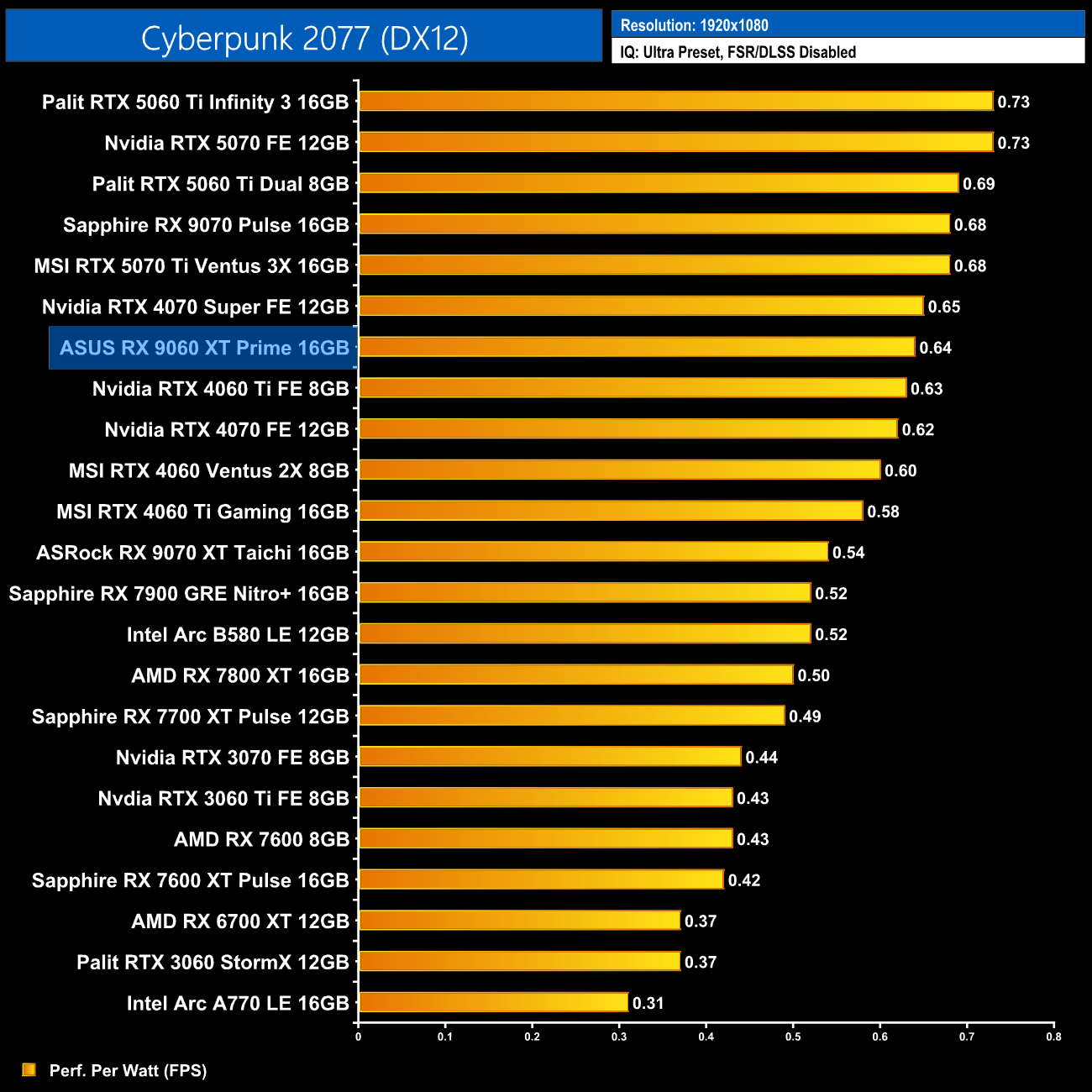

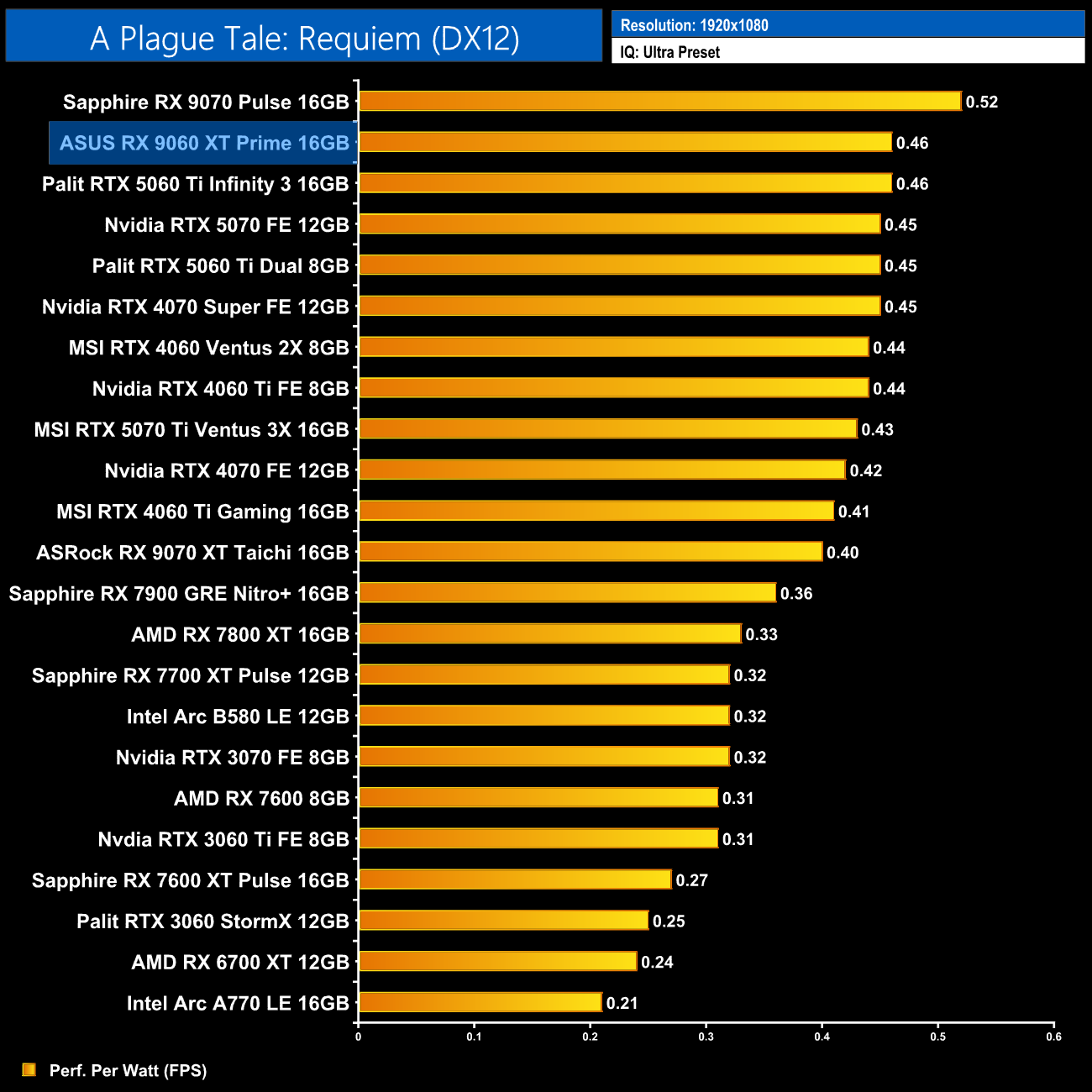

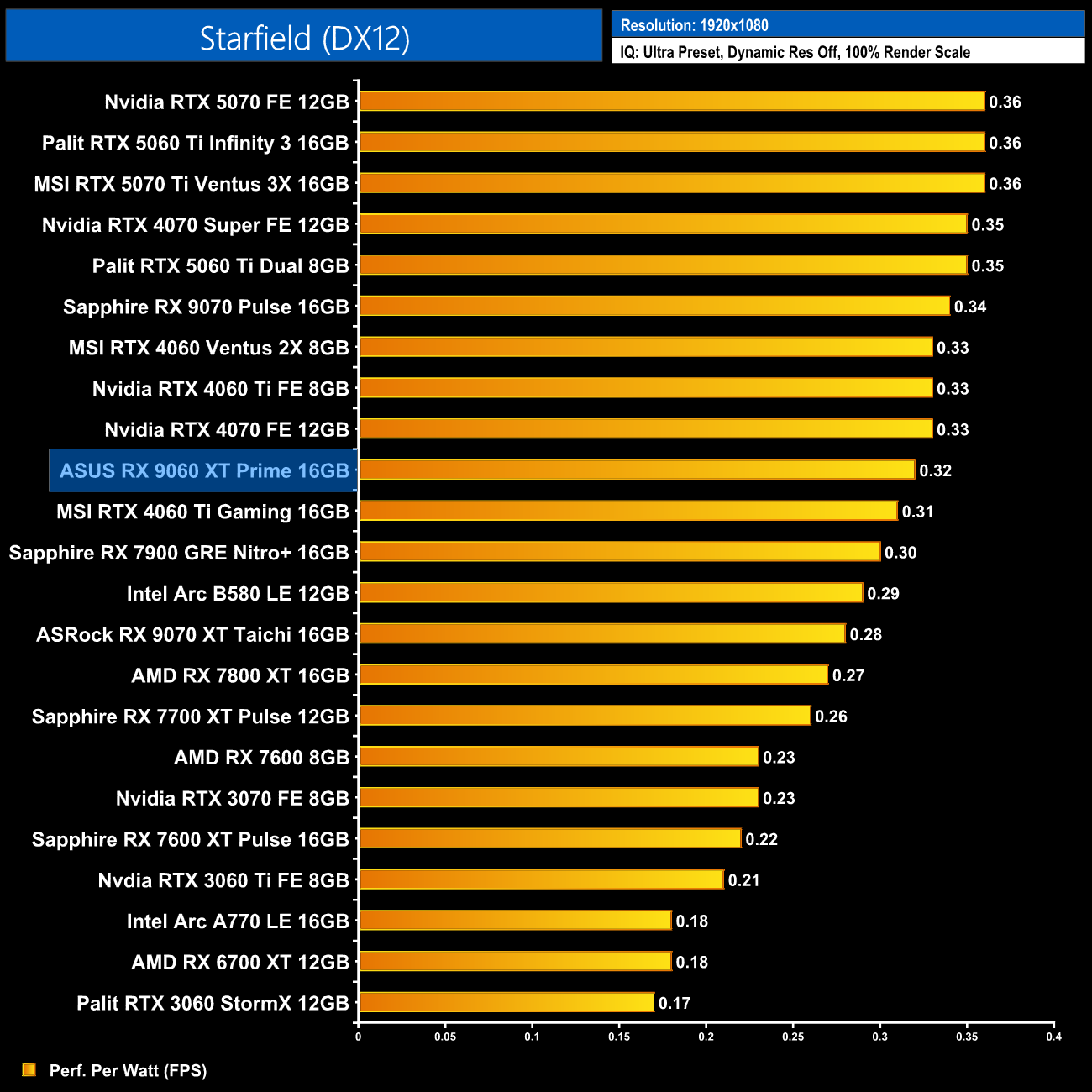

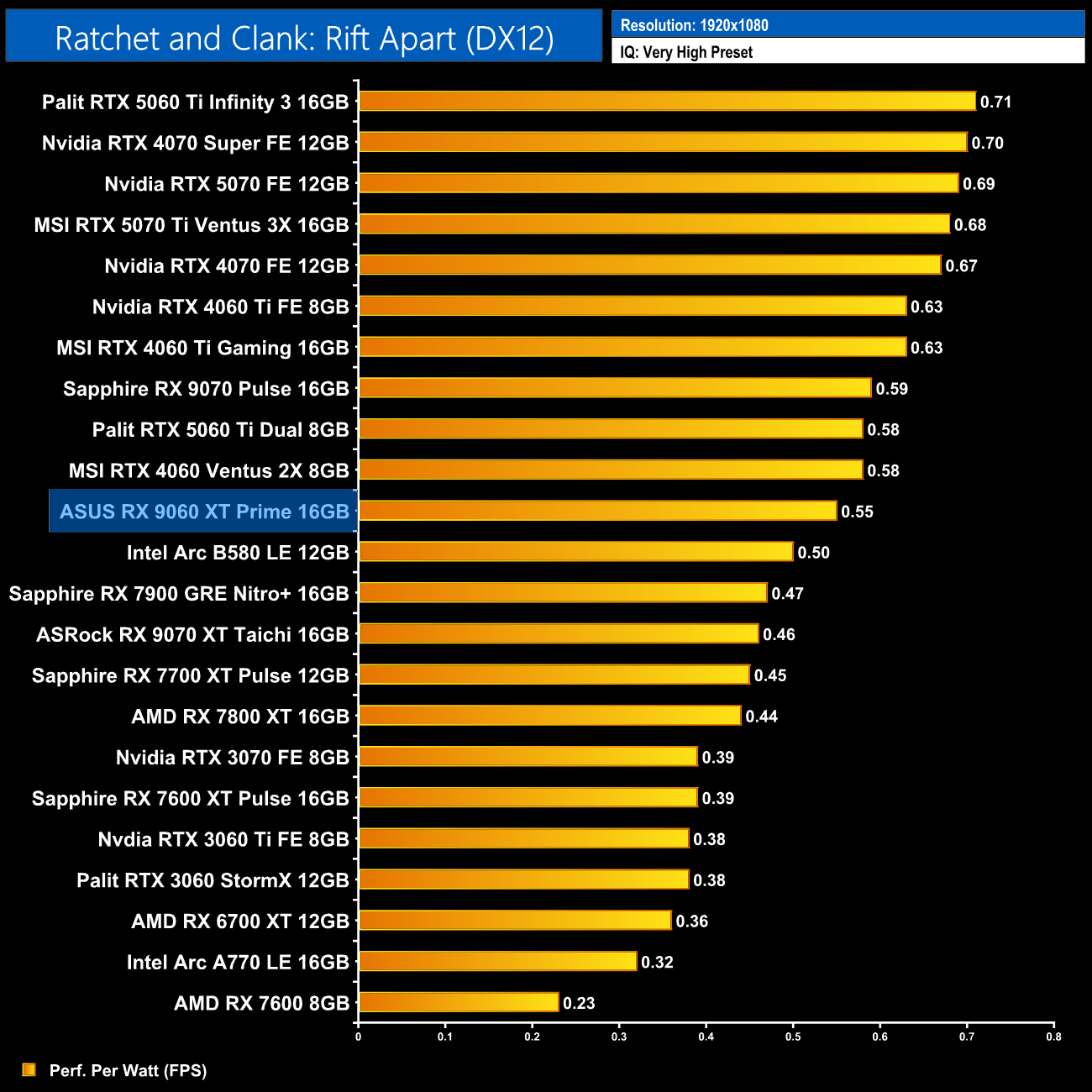

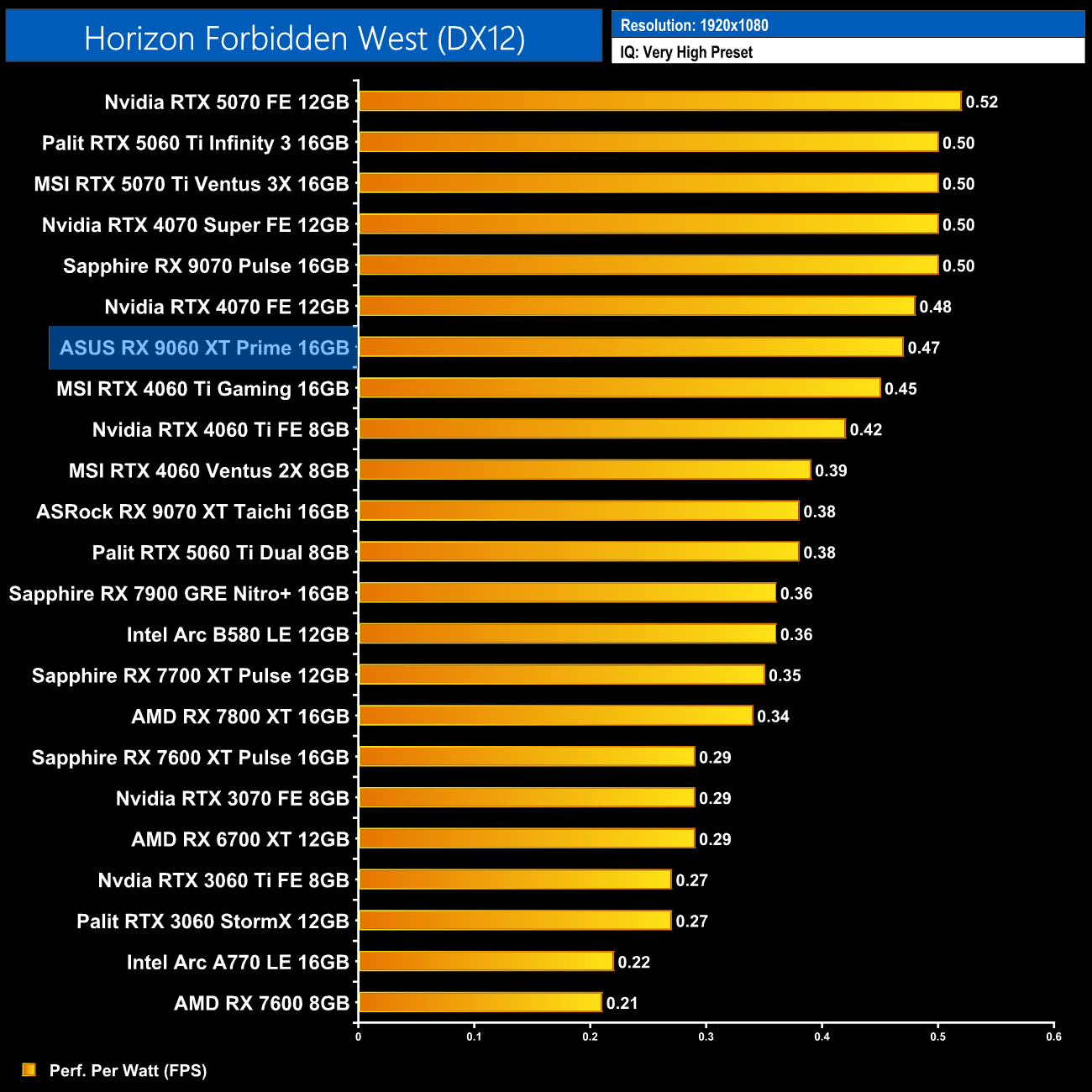

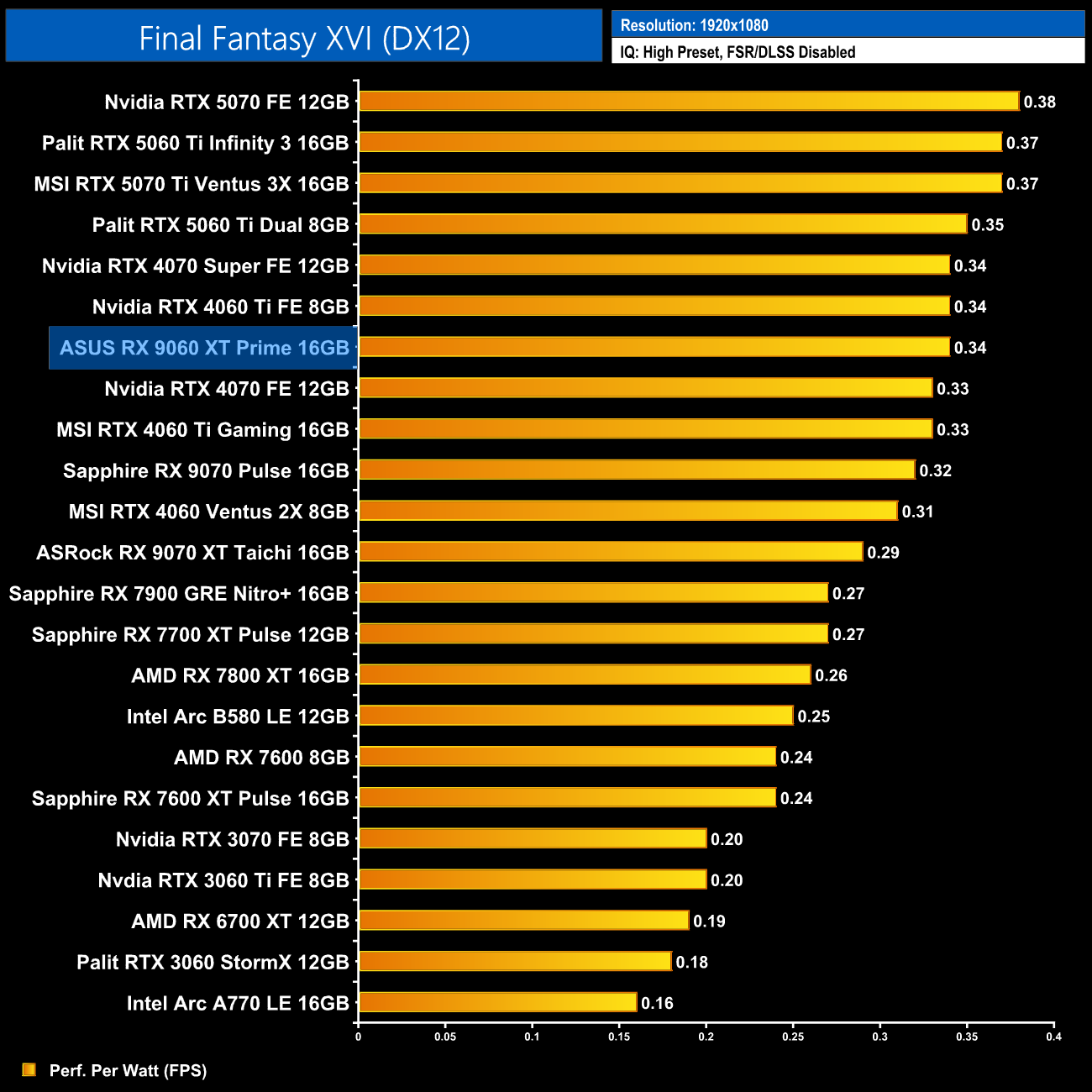

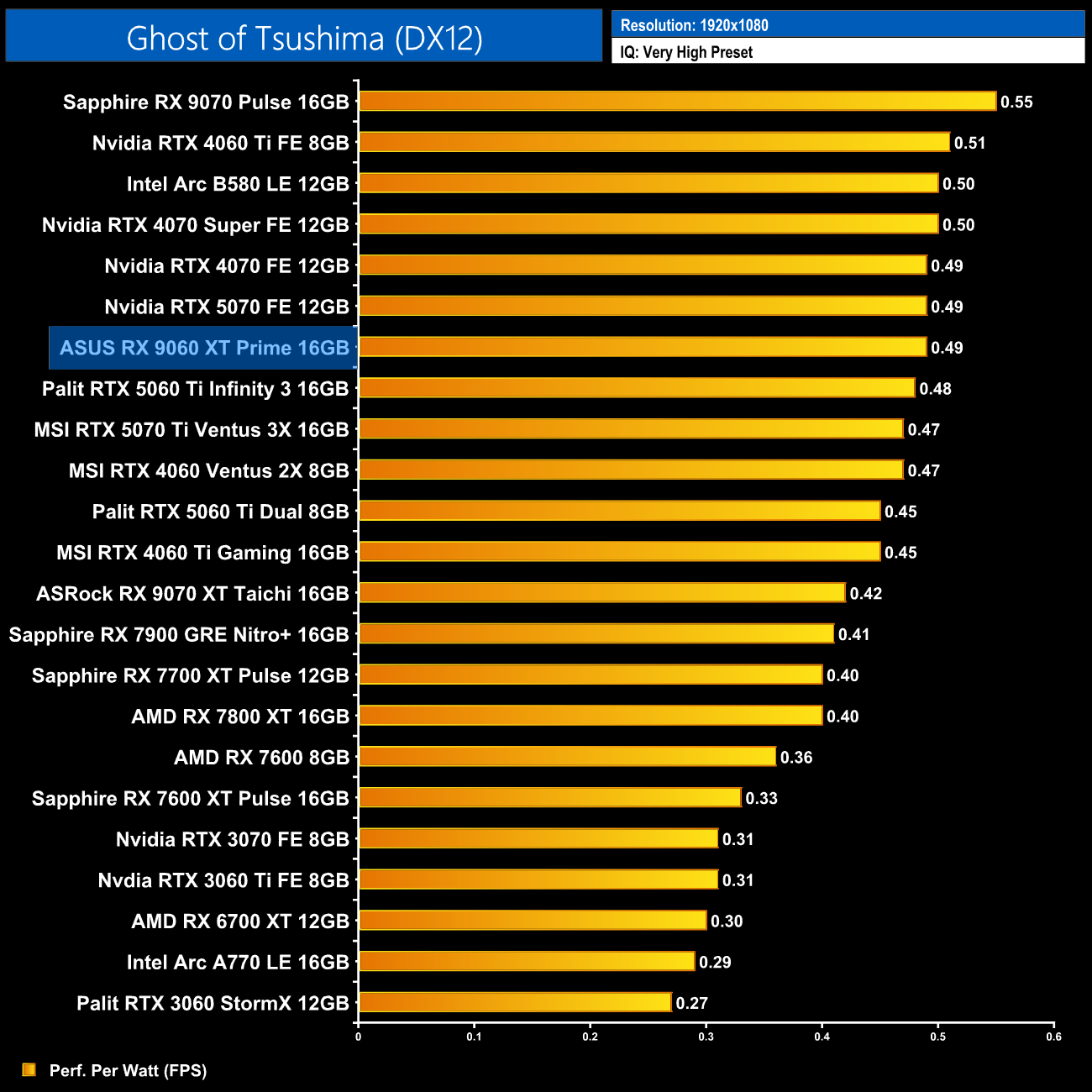

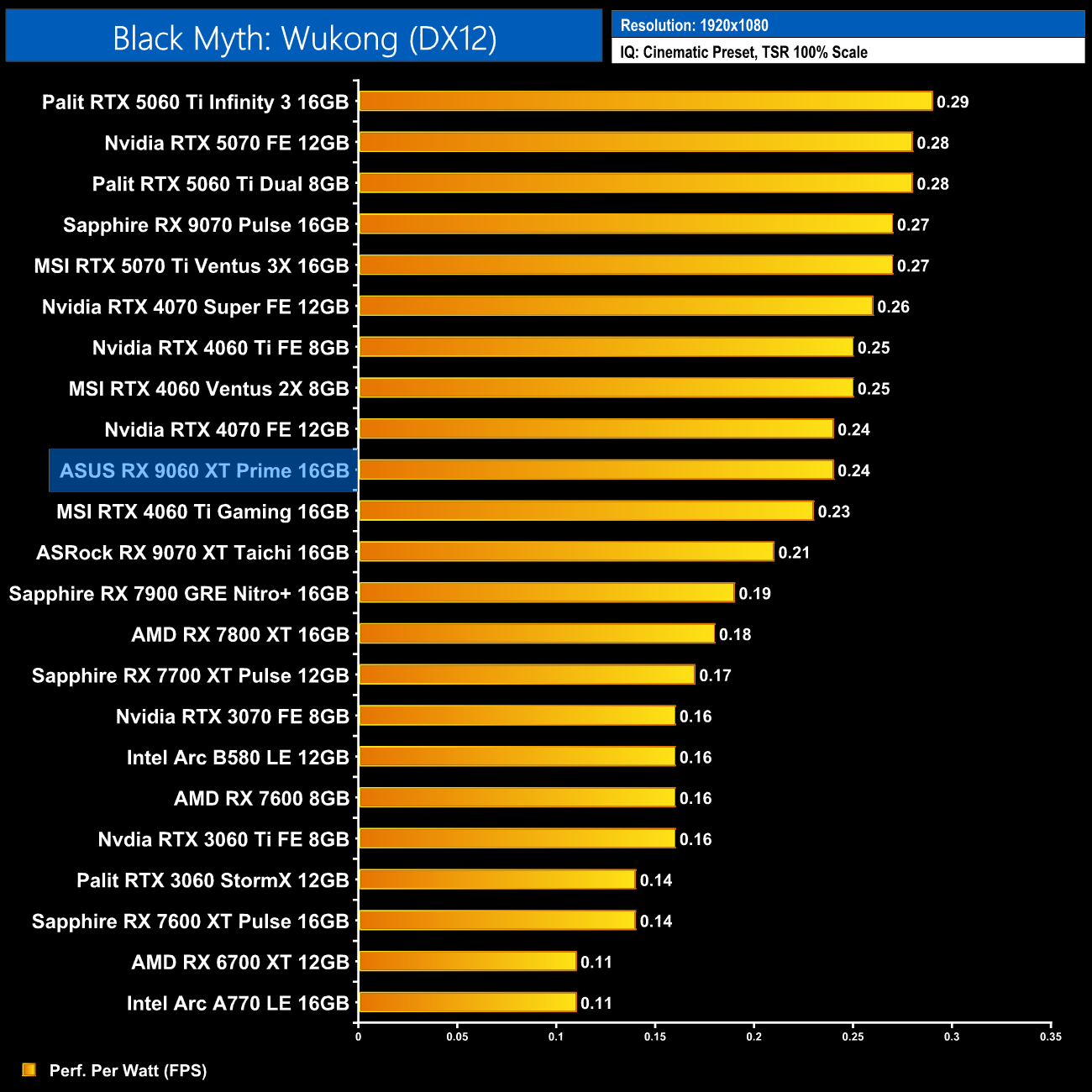

Per-Game Results at 1080p:

Click to enlarge.

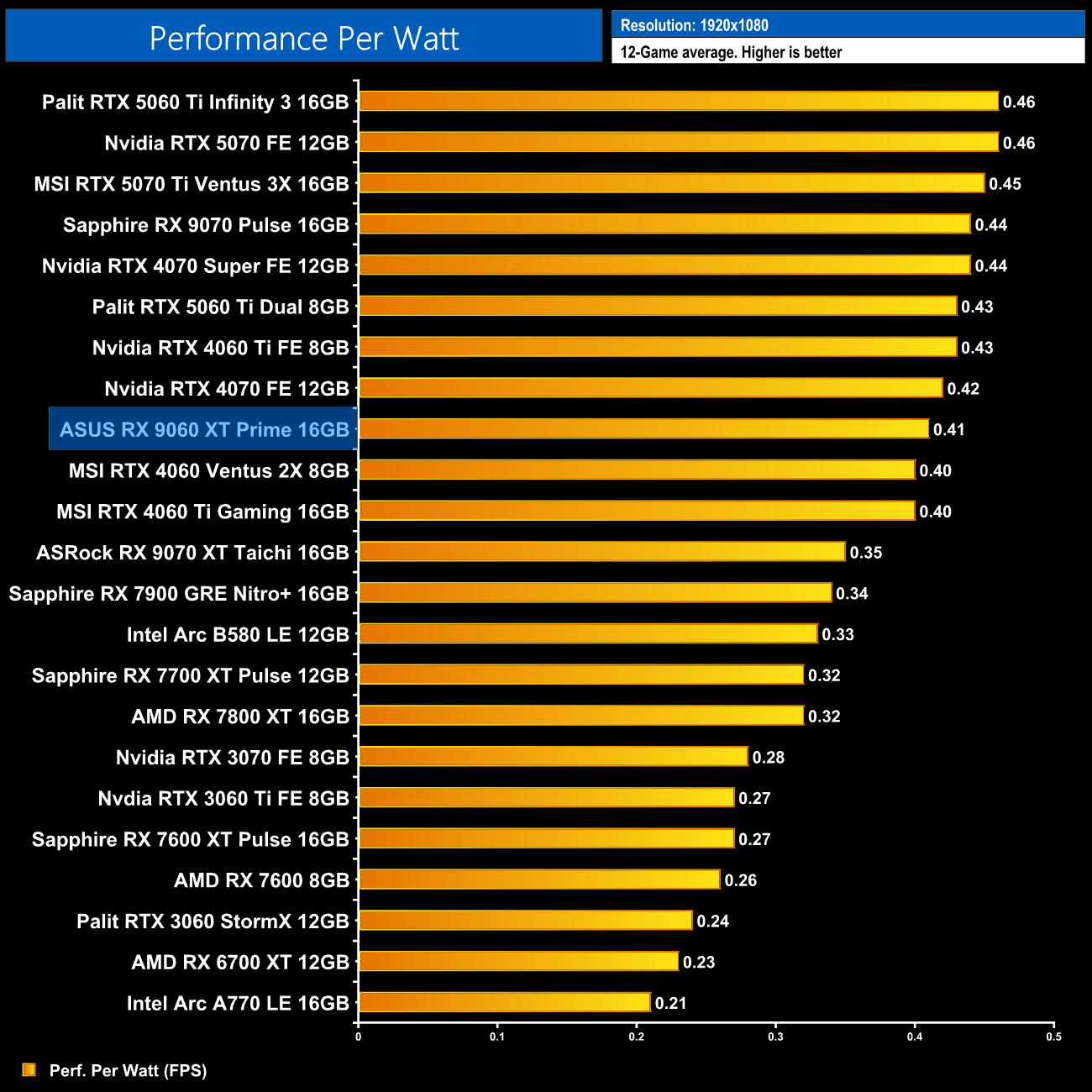

12-Game Average at 1080p:

As for what the power testing and performance data means in terms of overall efficiency, it's not bad at all, but it's not chart topping either. Efficiency is very similar to the RTX 40-series GPUs, and even then, the 9060 XT 16GB is only 11% less performant per Watt than the 5060 Ti 16GB is, so we're talking relatively small margins.

Ray tracing results

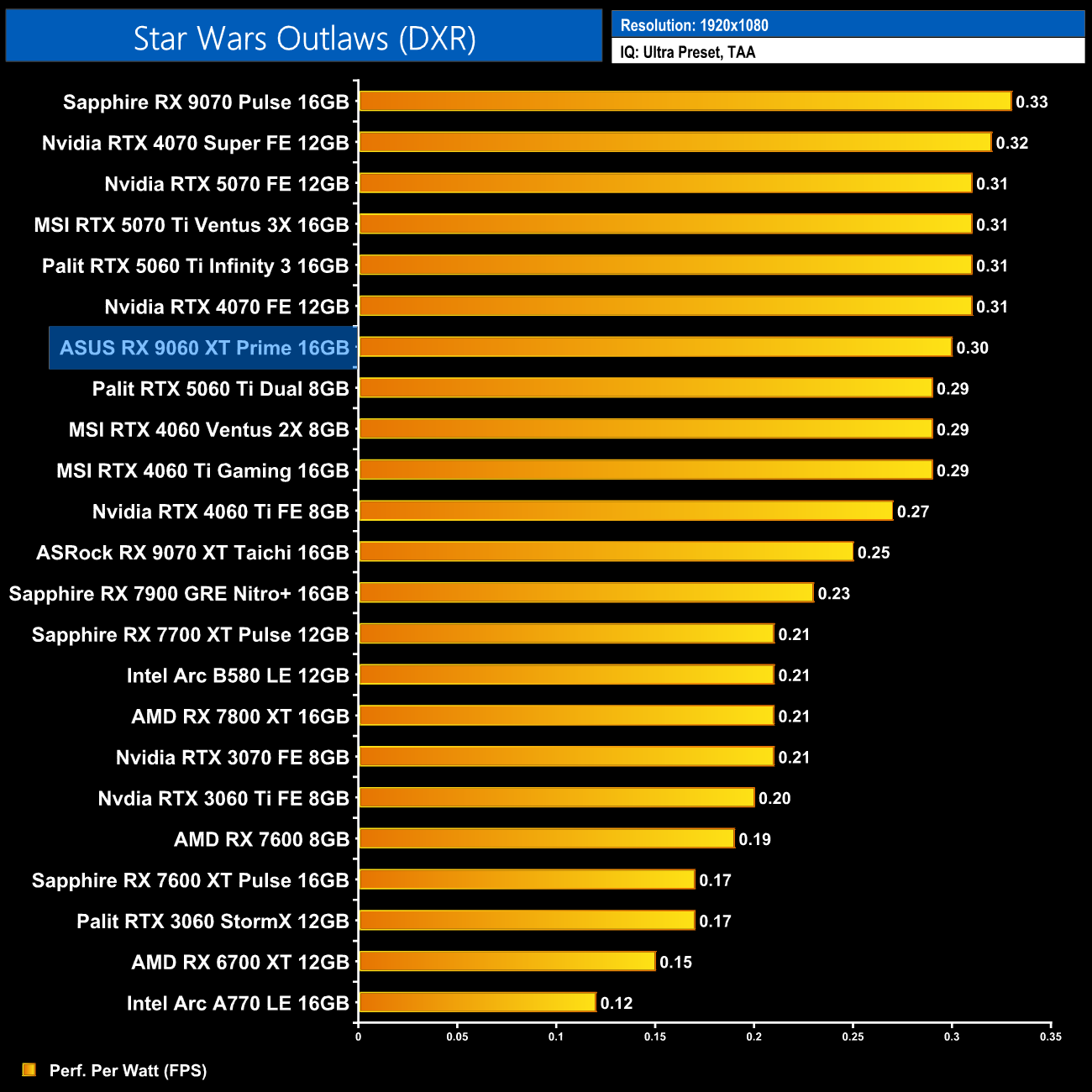

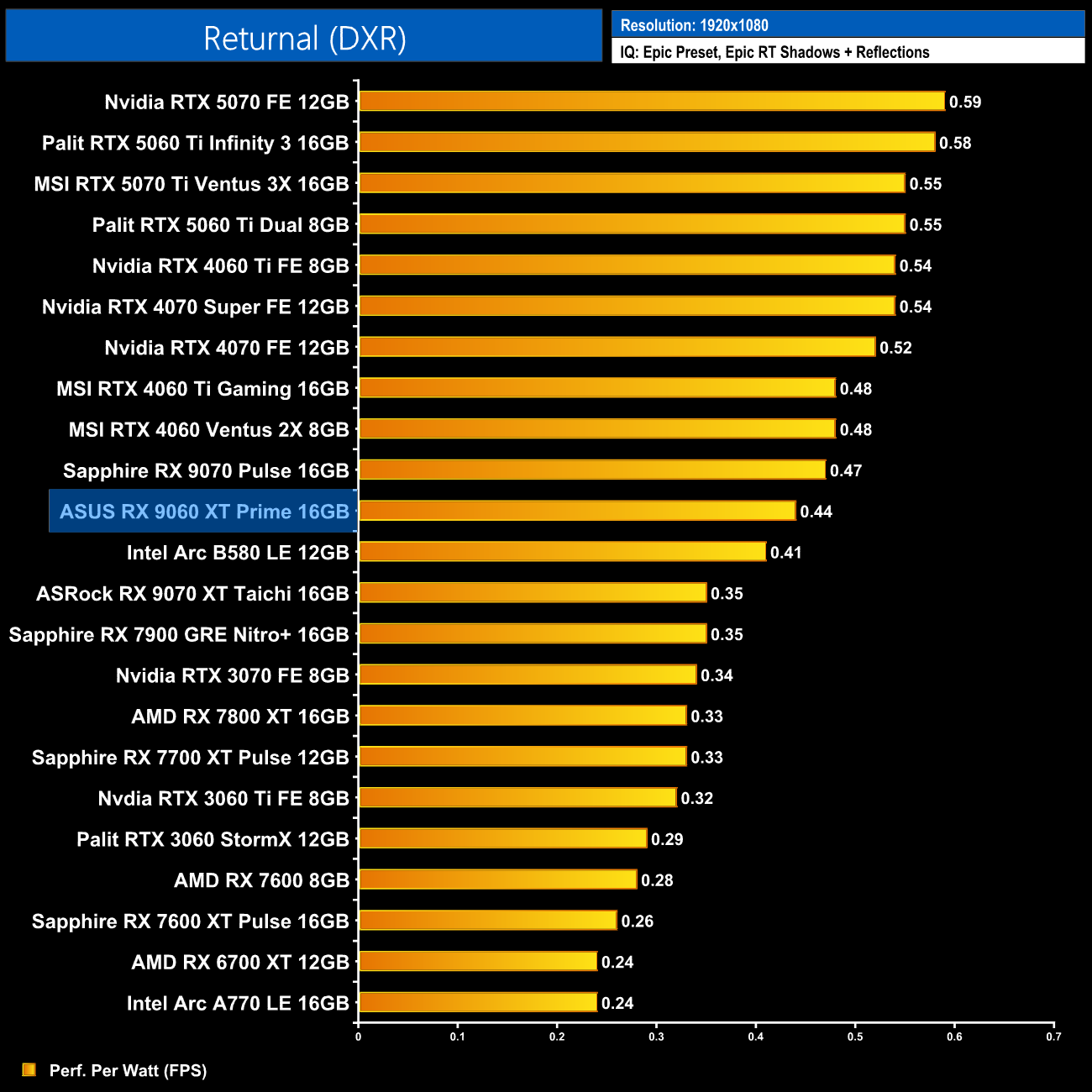

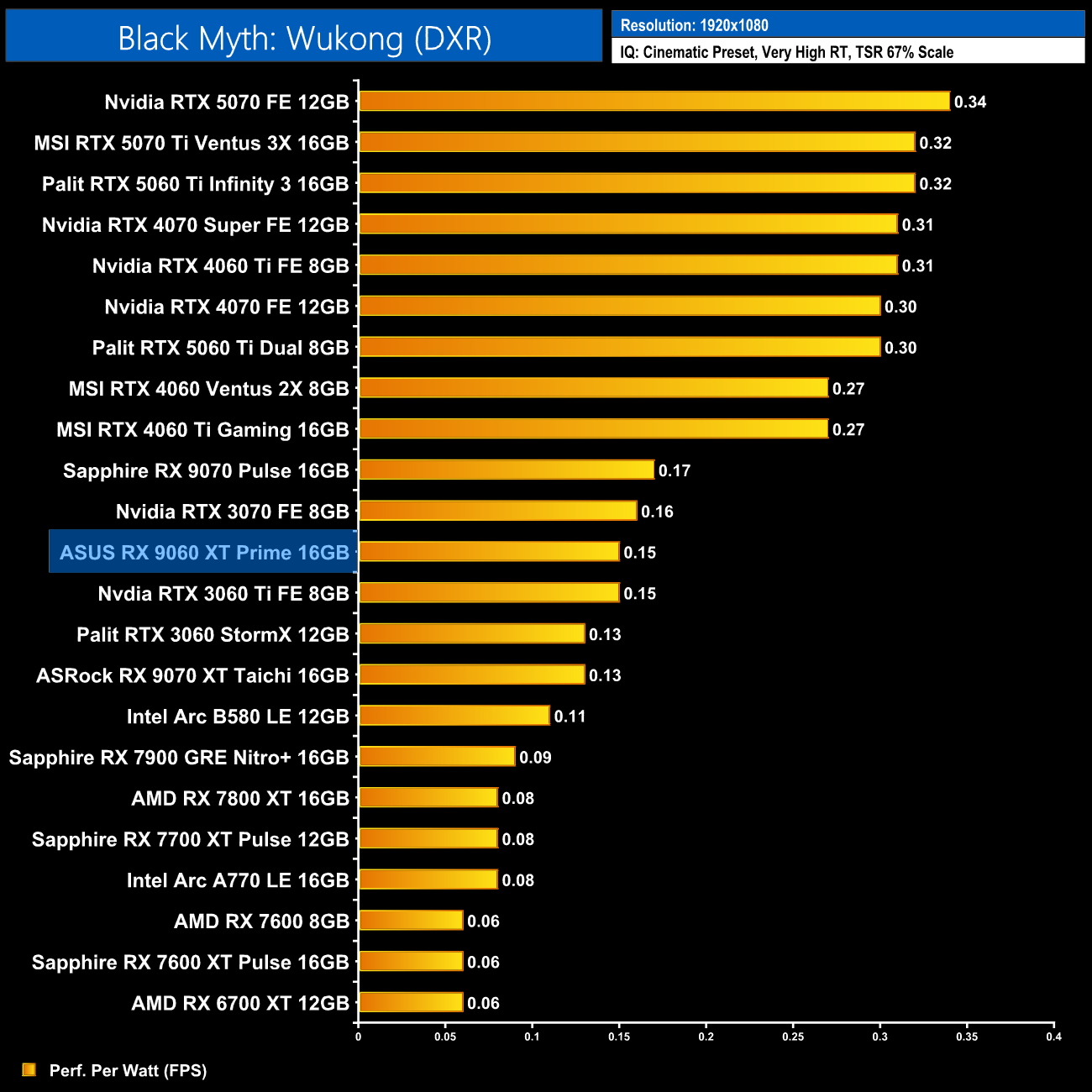

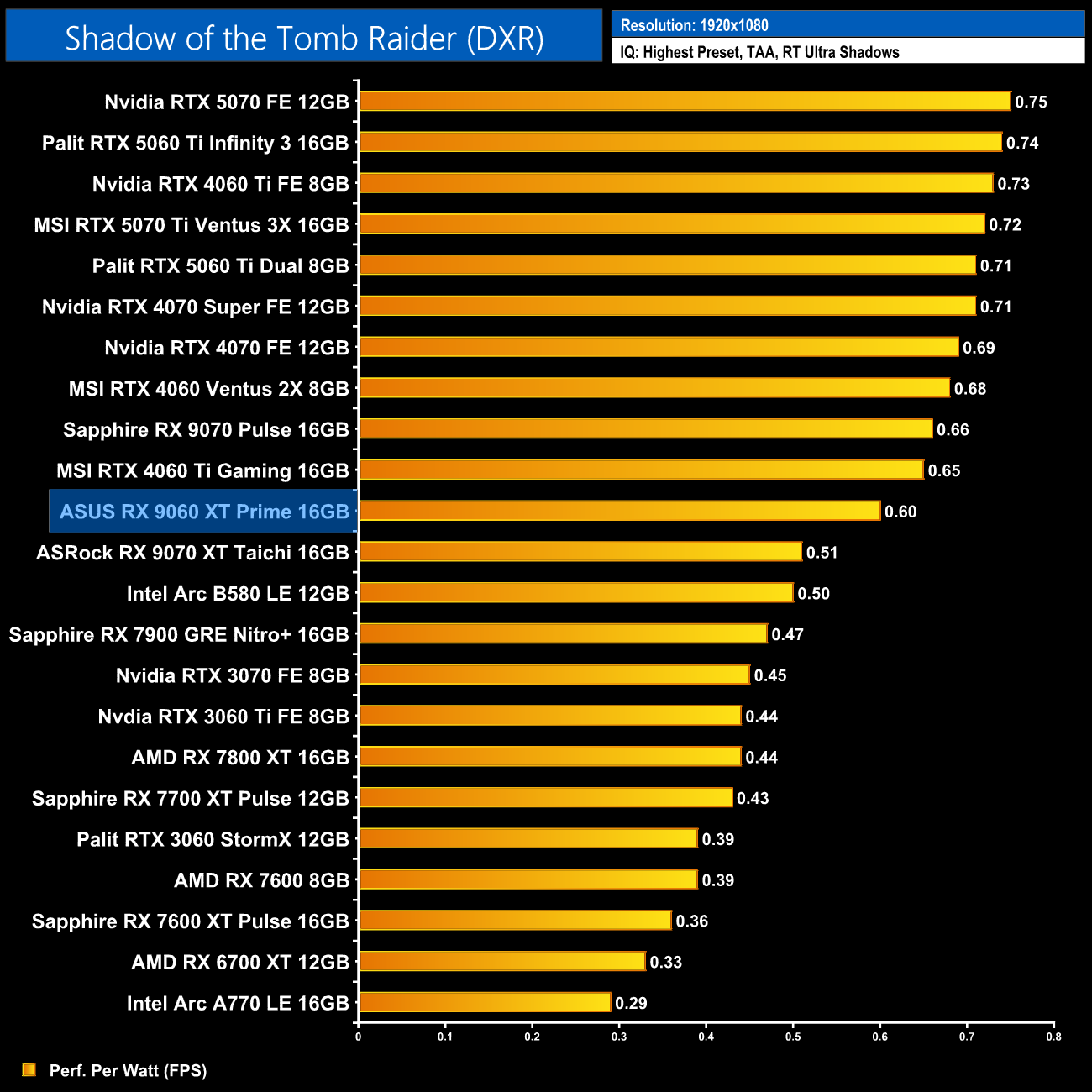

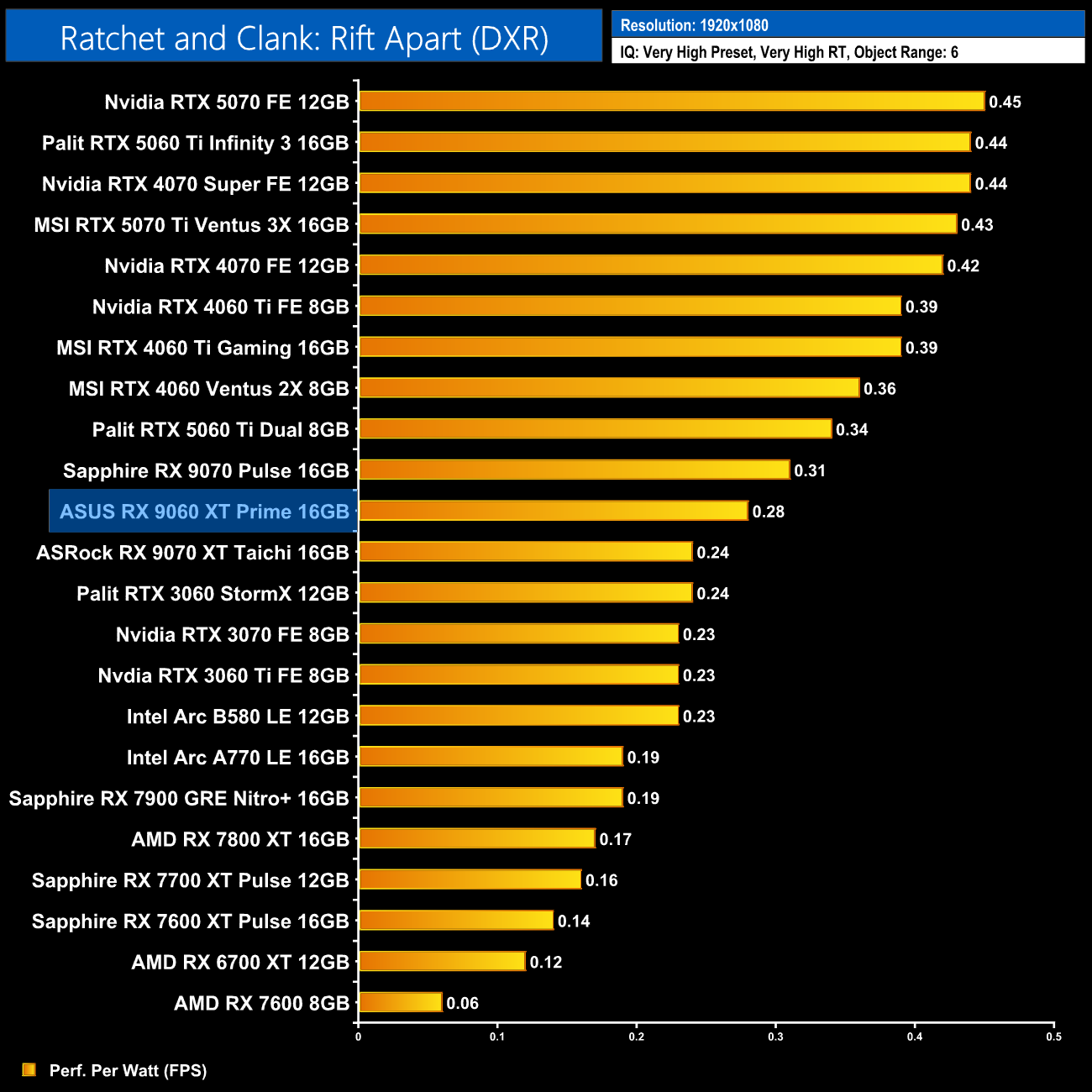

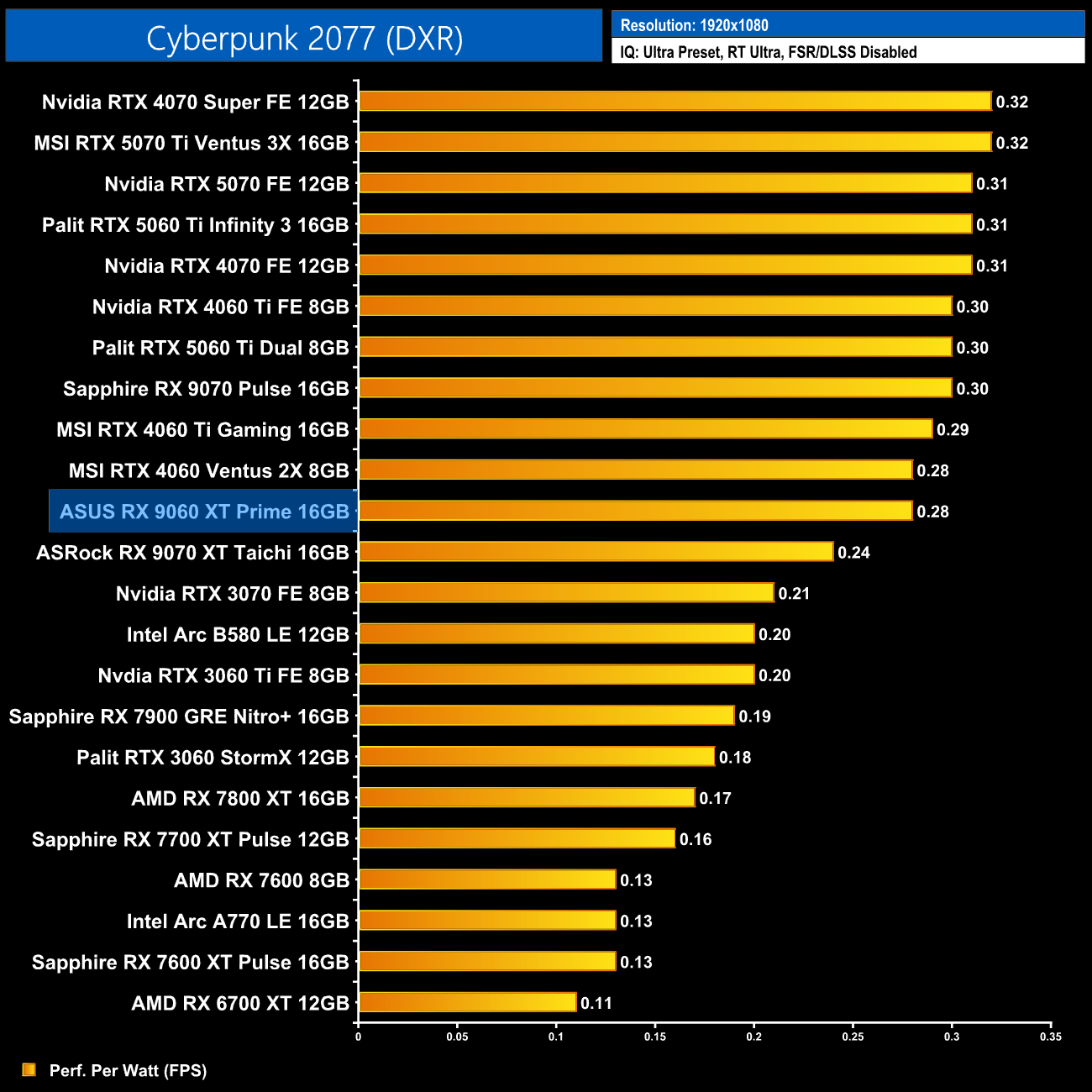

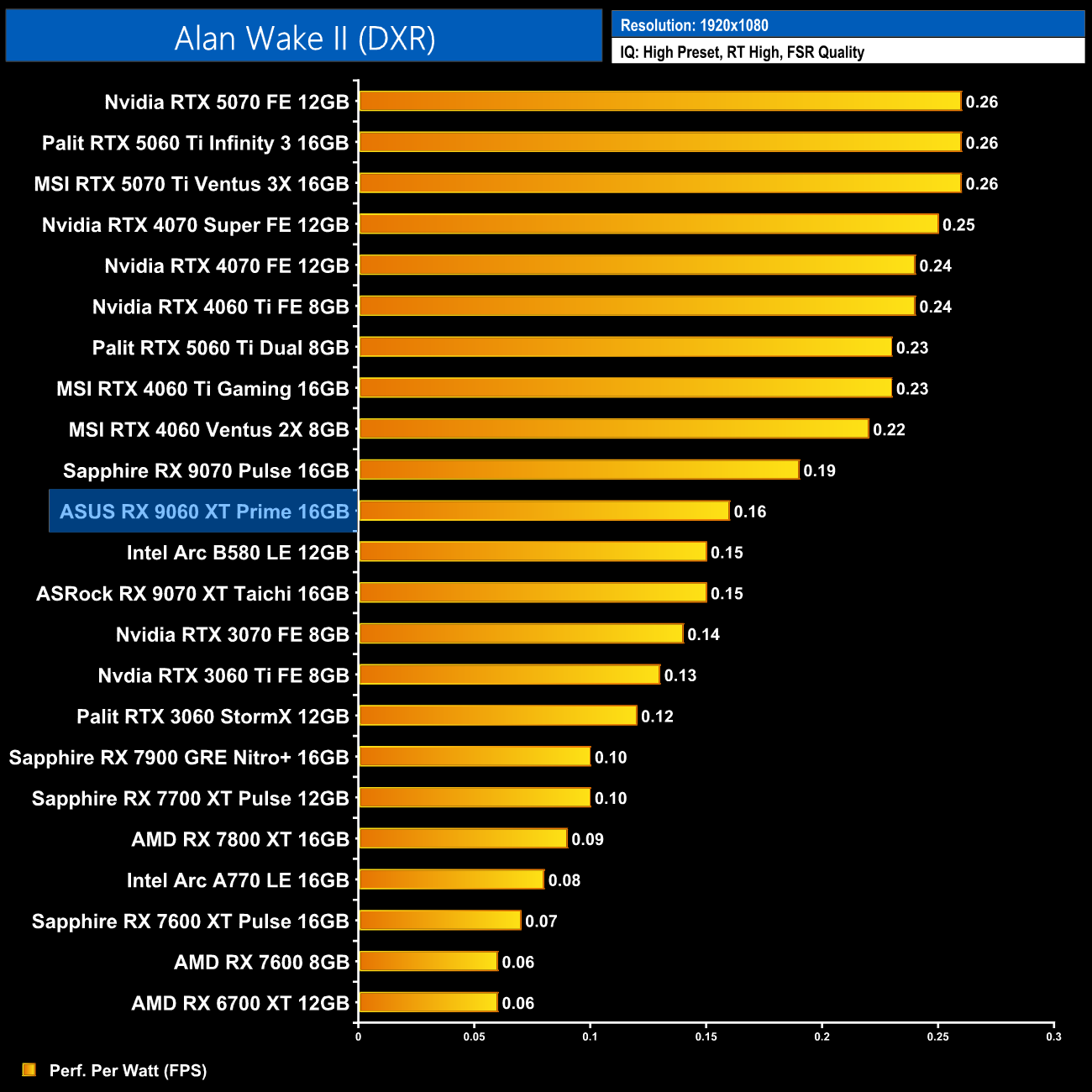

As a bonus, we now include the efficiency figures for all eight games we test with ray tracing enabled.

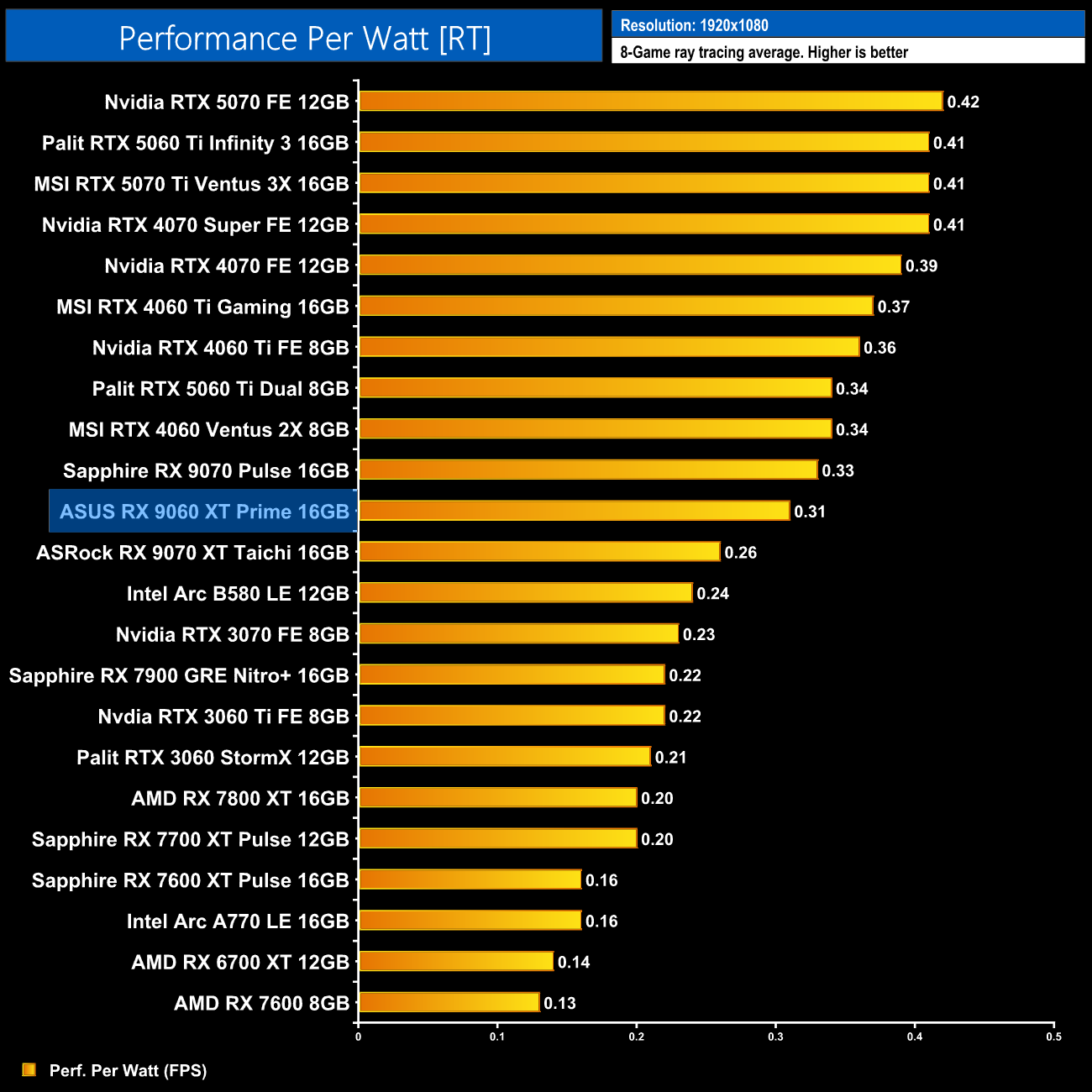

8-Game ray tracing average:

That margin does extend to 24 when ray tracing is enabled.
