Here we present power draw figures for the graphics card-only, on a per-game basis for all twelve games we tested at 1080p. This is measured using Nvidia's Power Capture Analysis Tool, also known as PCAT. You can read more about our updated power draw testing methodology HERE.

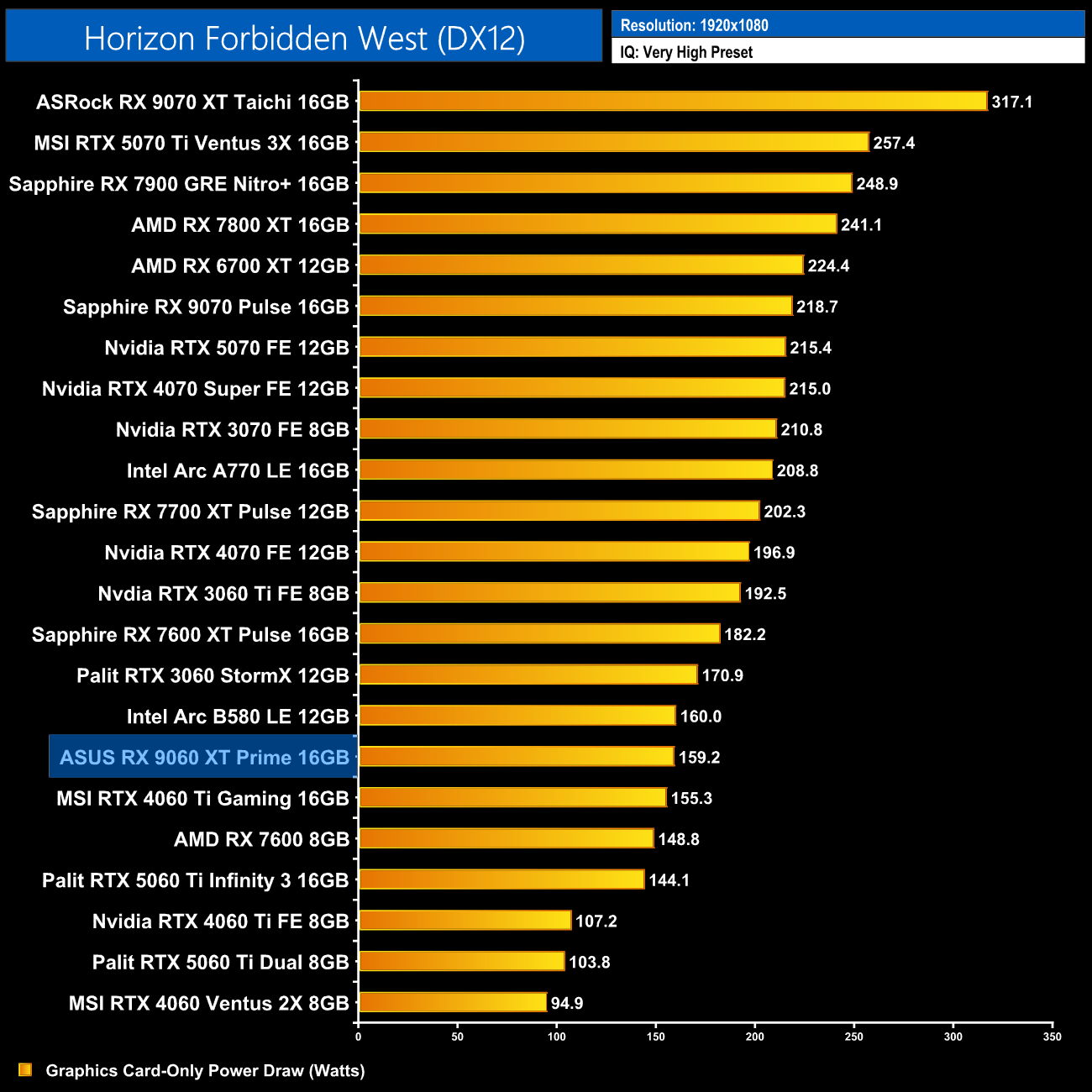

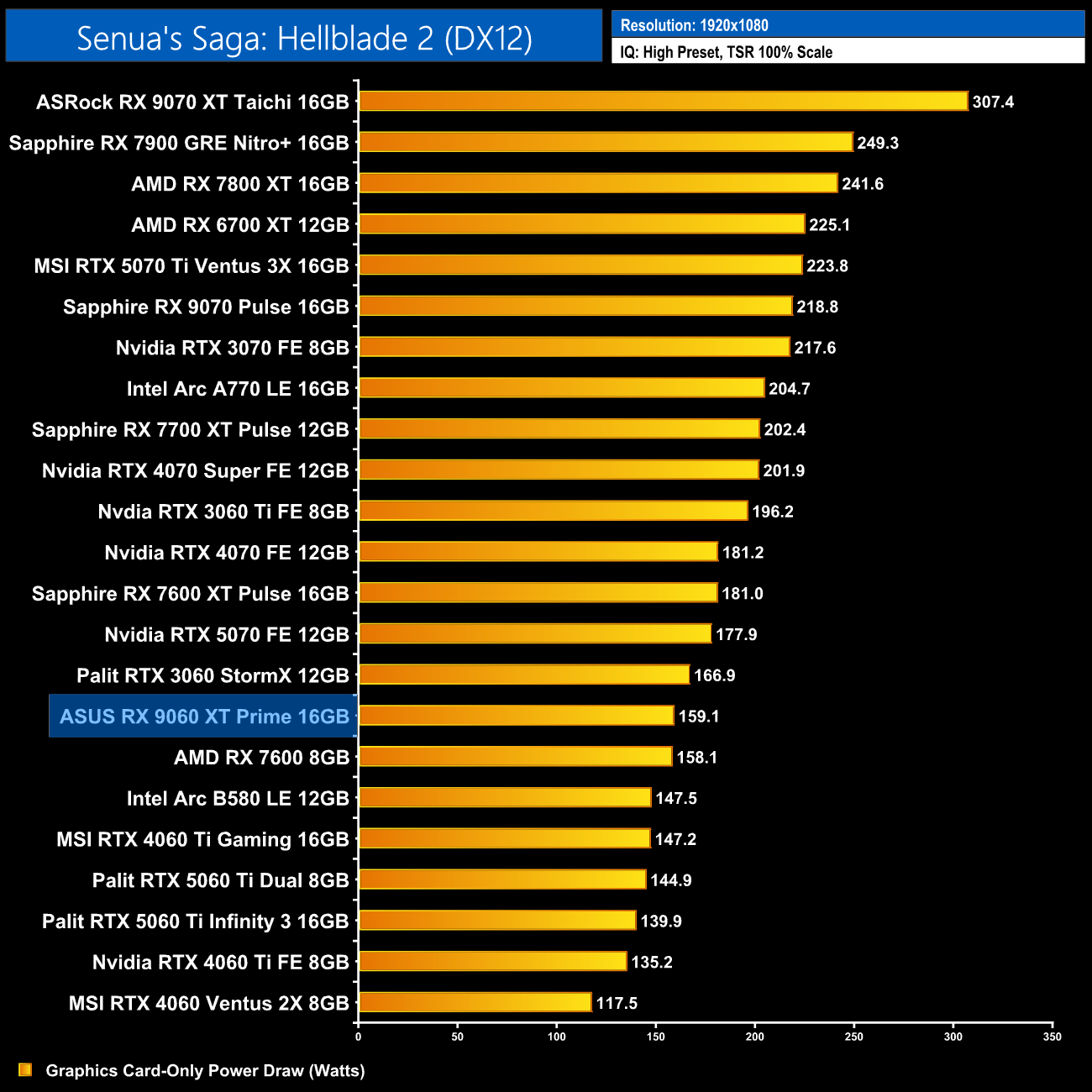

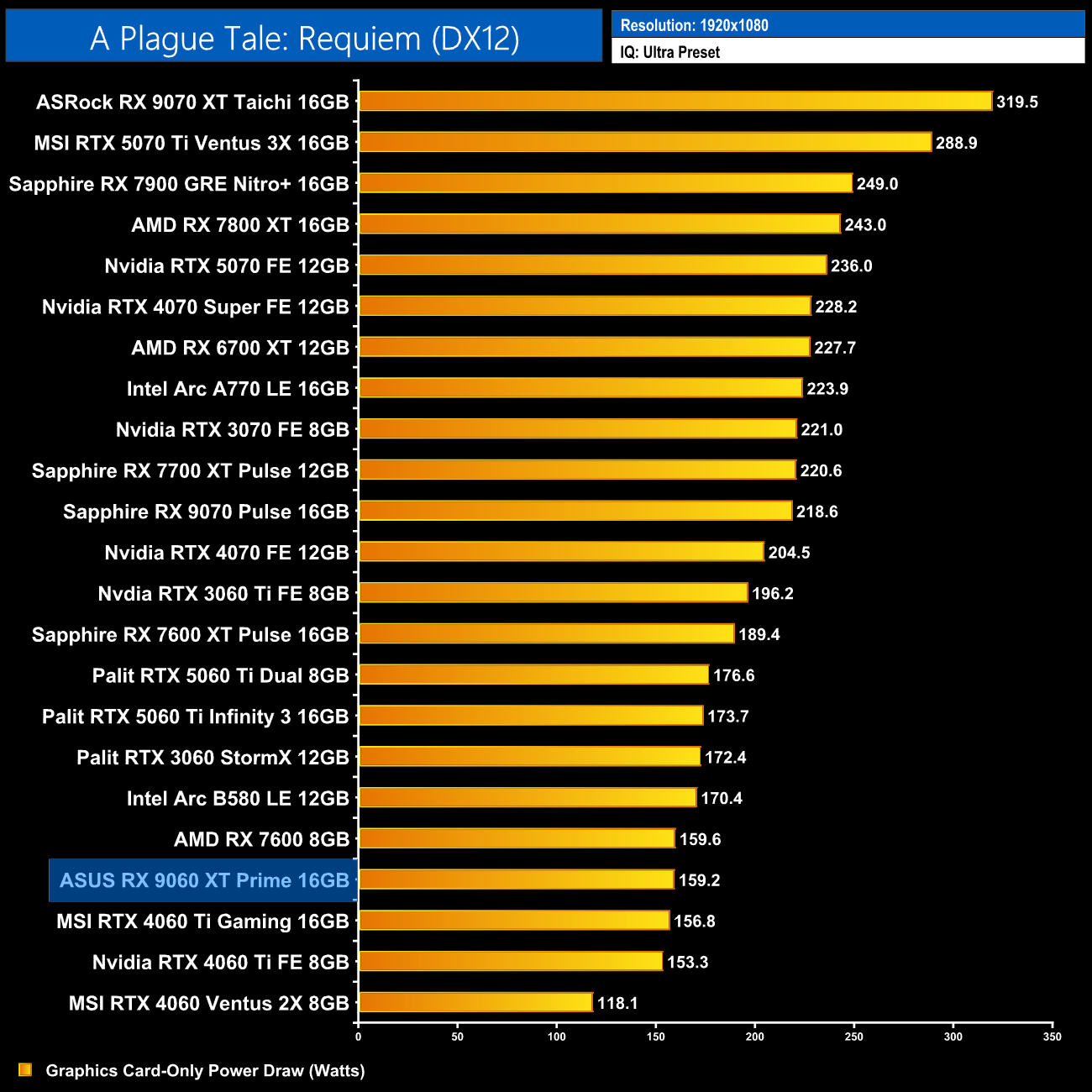

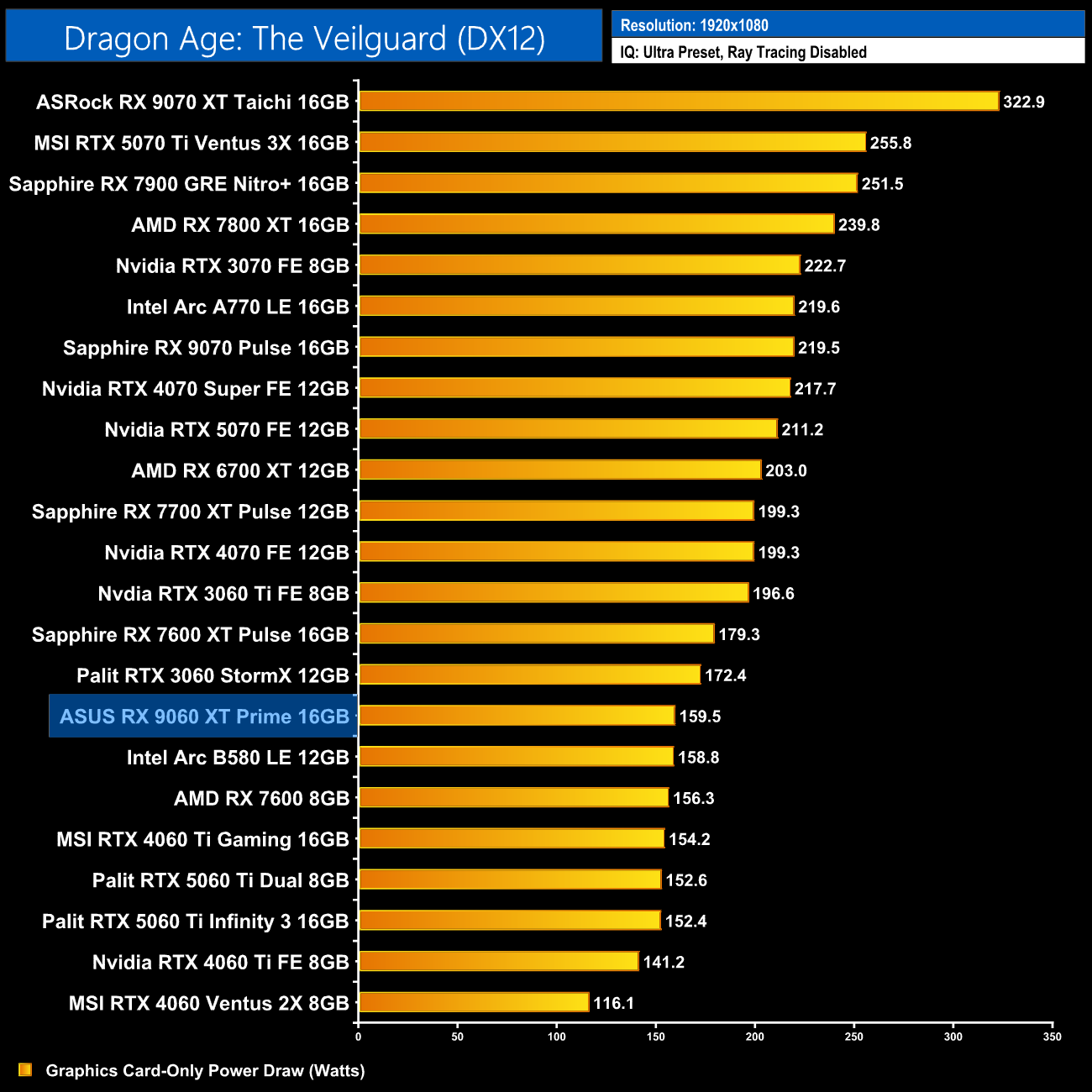

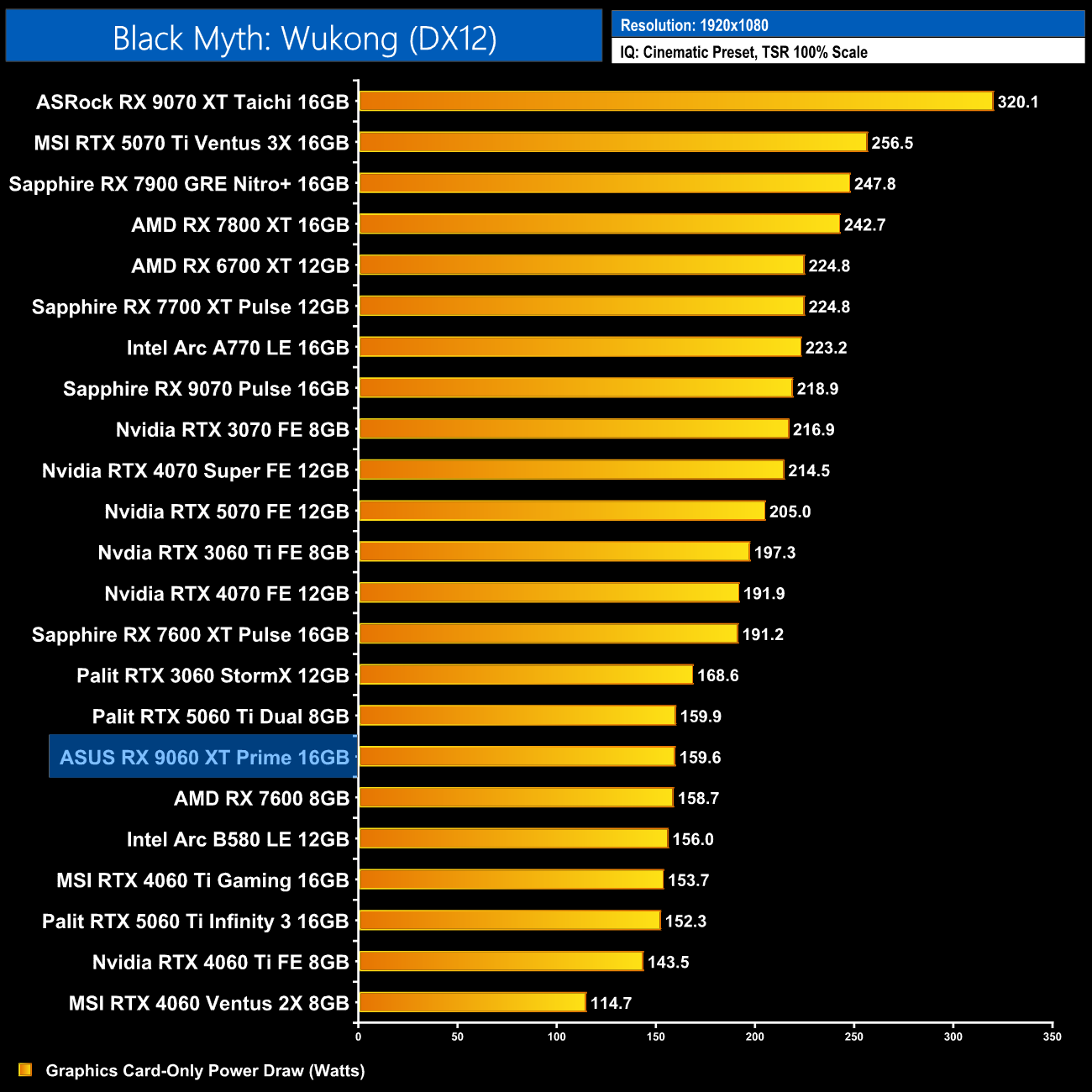

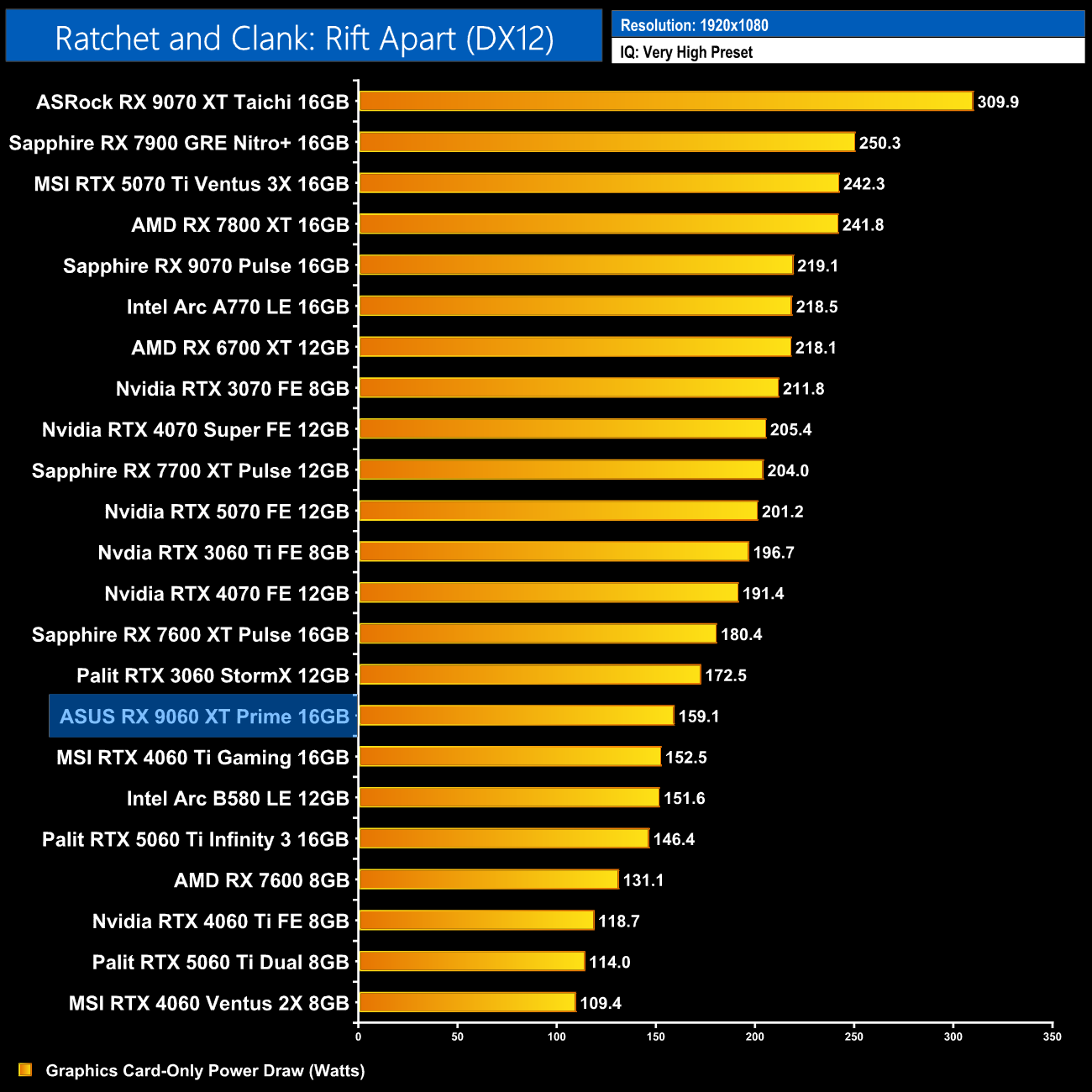

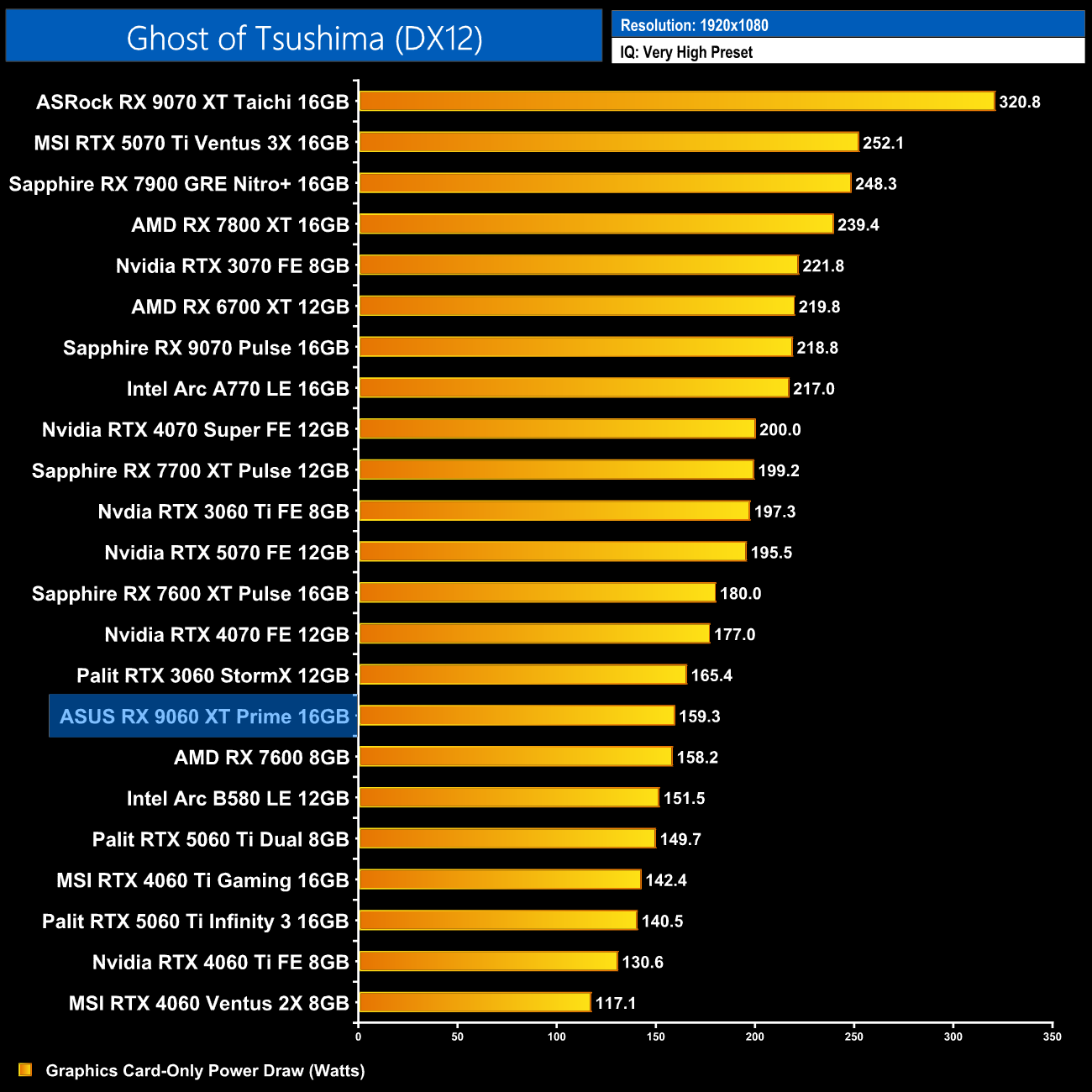

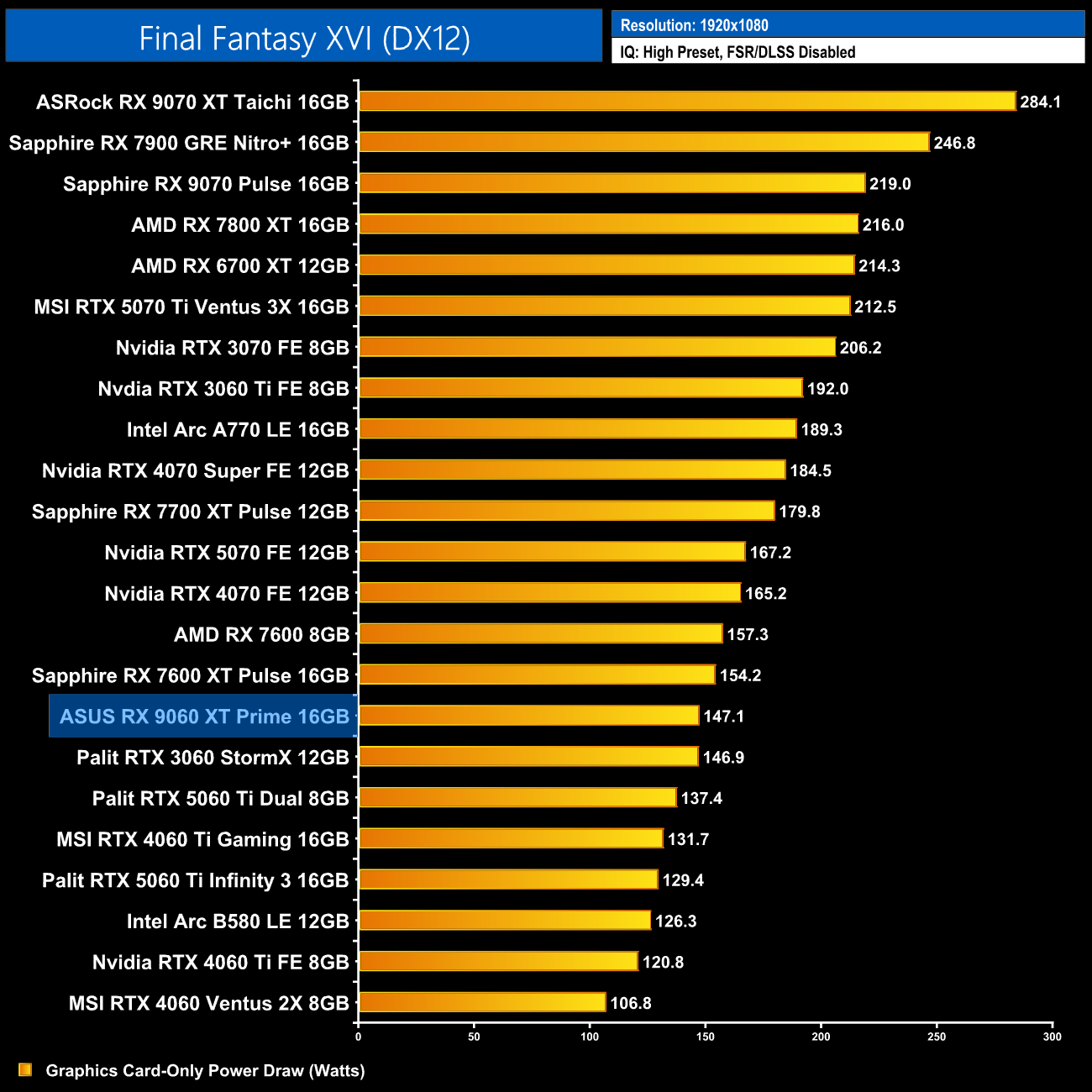

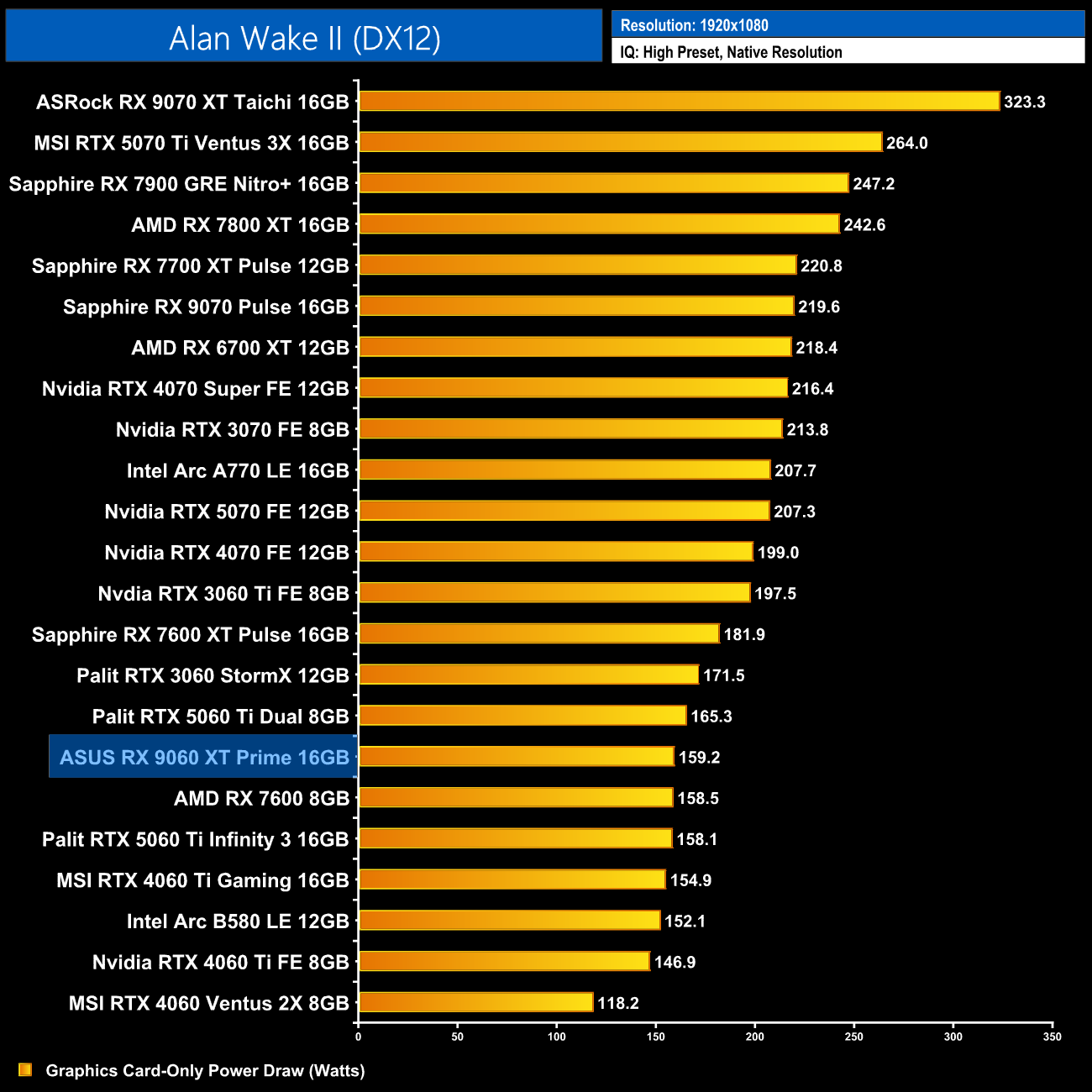

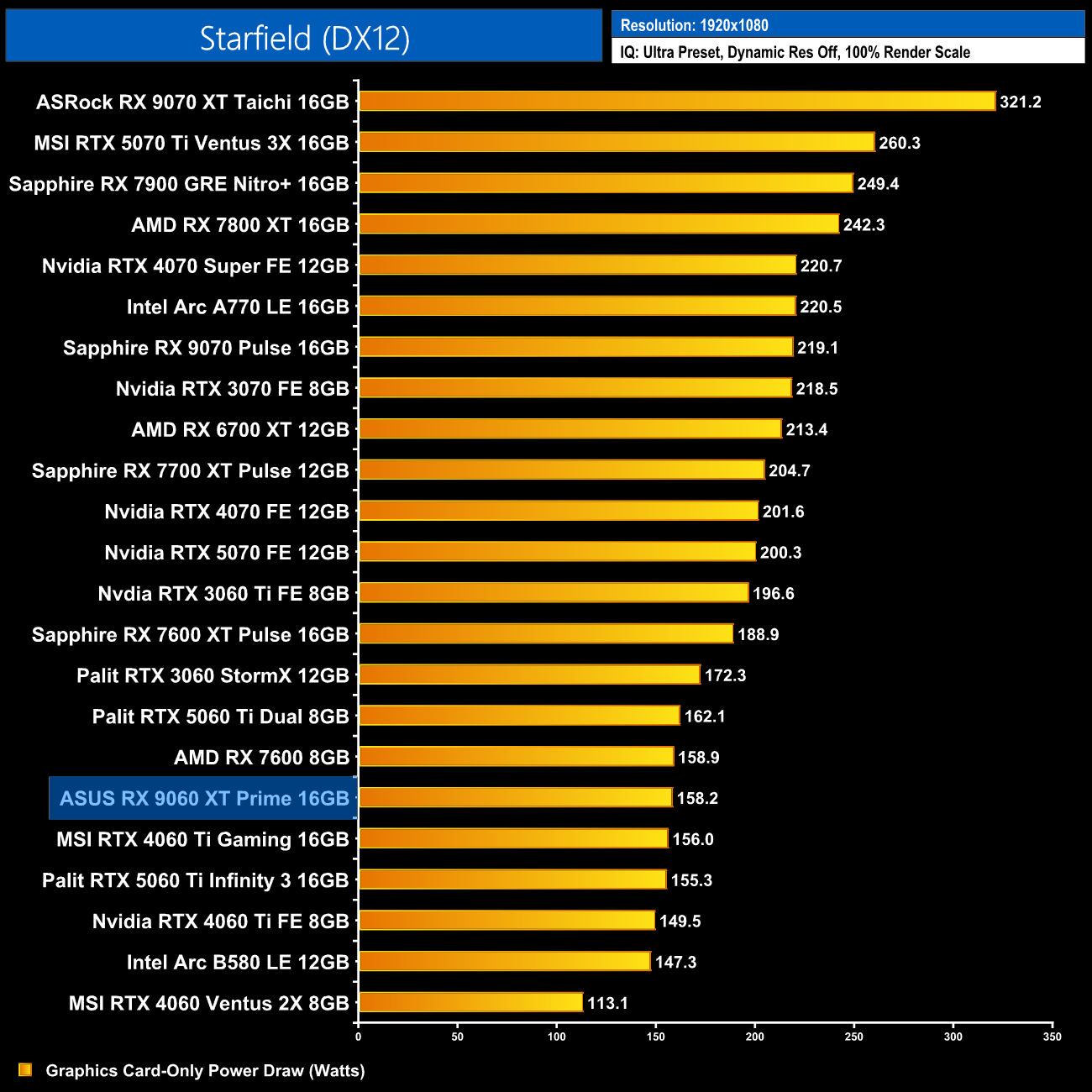

Per-Game Results at 1080p:

Click to enlarge.

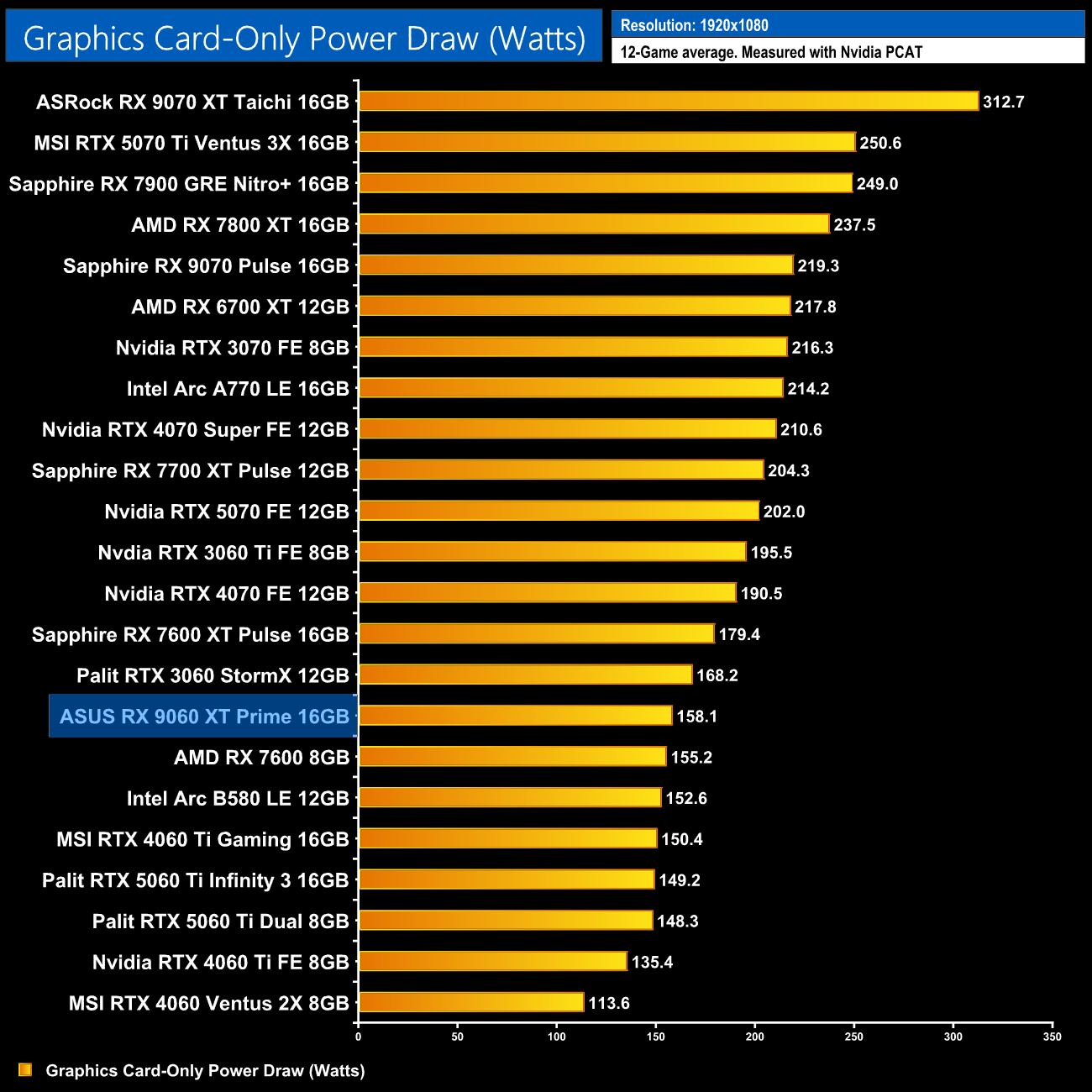

12-Game Average at 1080p:

Power draw of our ASUS Prime came in right in-line with AMD's claimed 160W TBP. Over the twelve games tested at 1080p, it averaged 158.1W, so it's actually more frugal than the RX 7600 XT, despite being much faster.

Ray tracing results

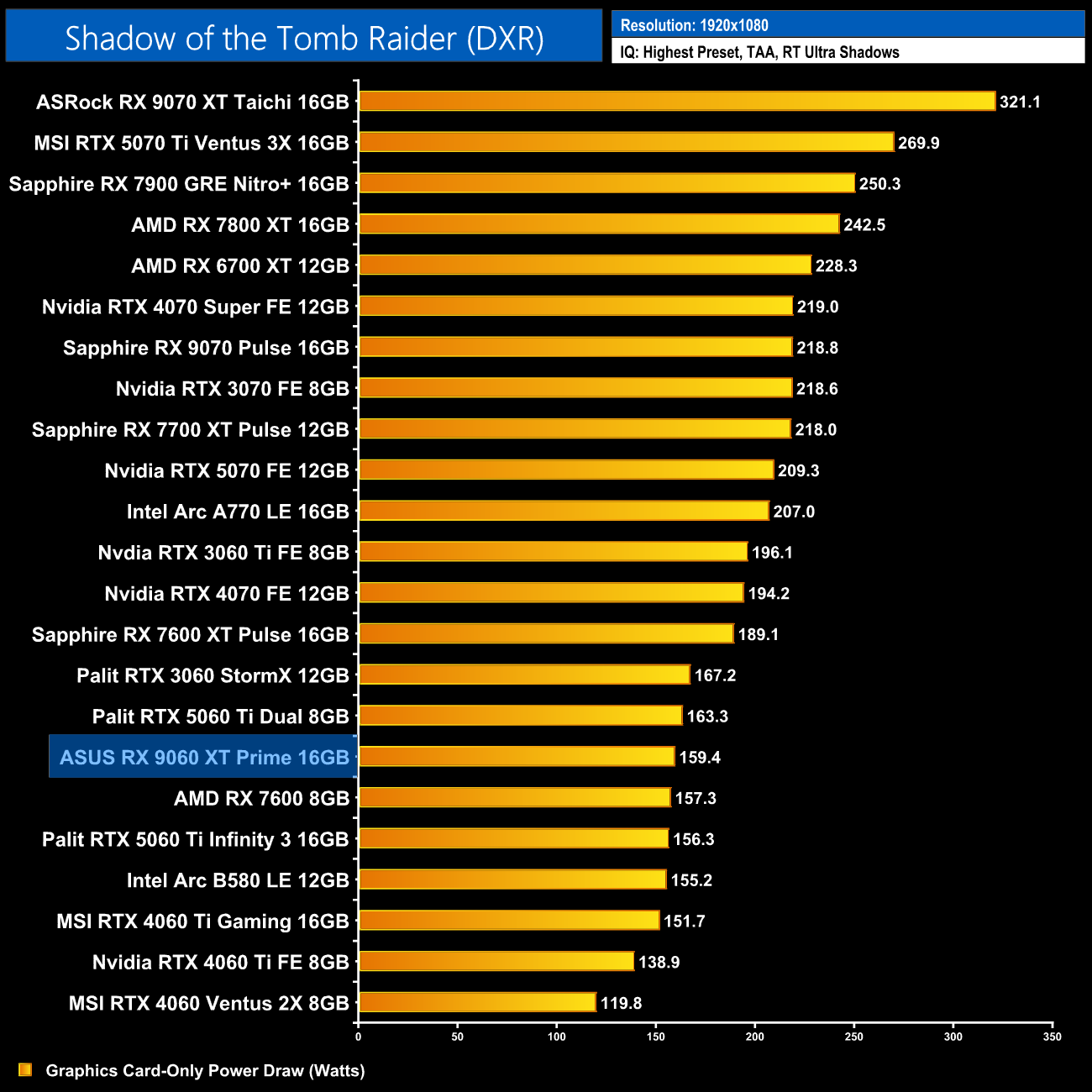

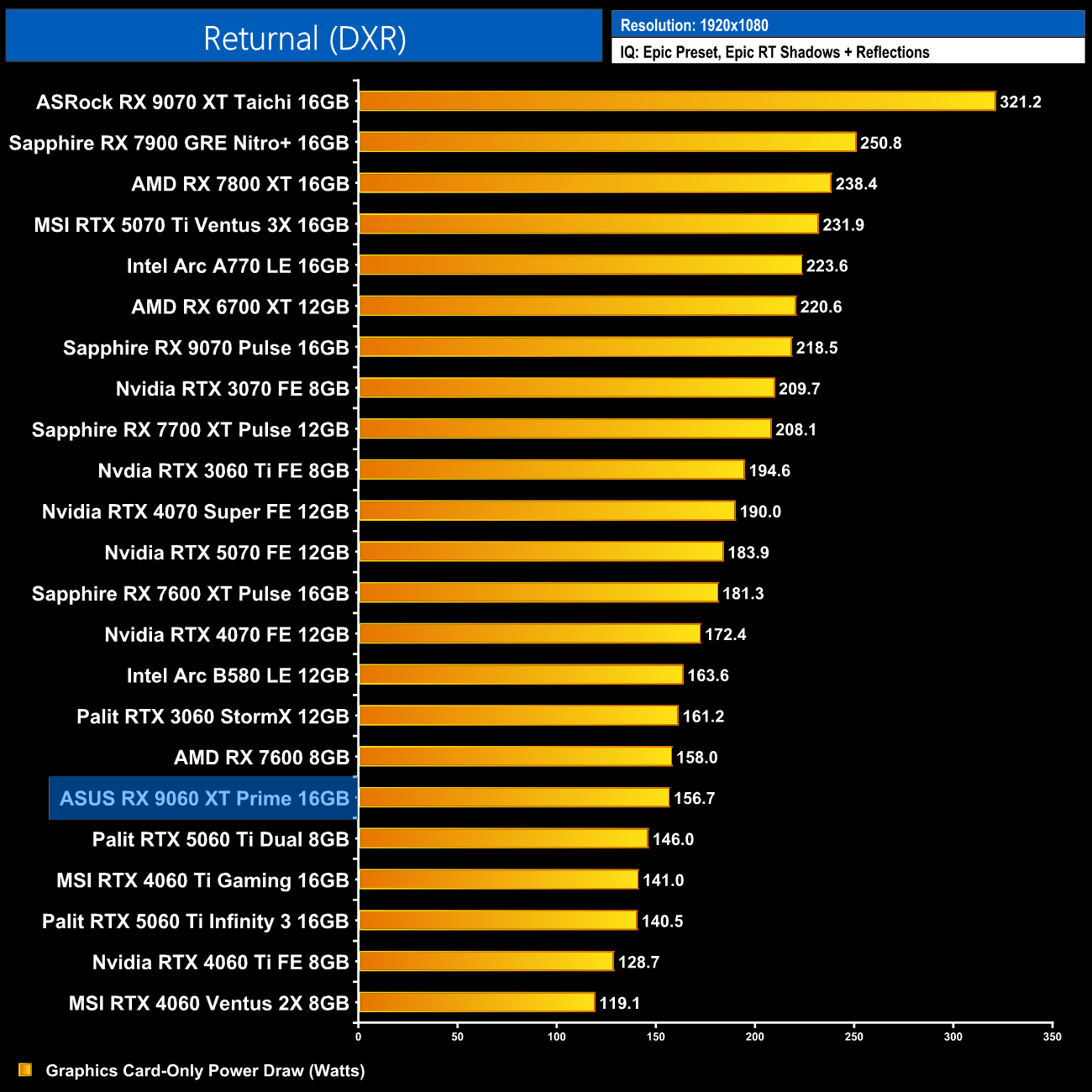

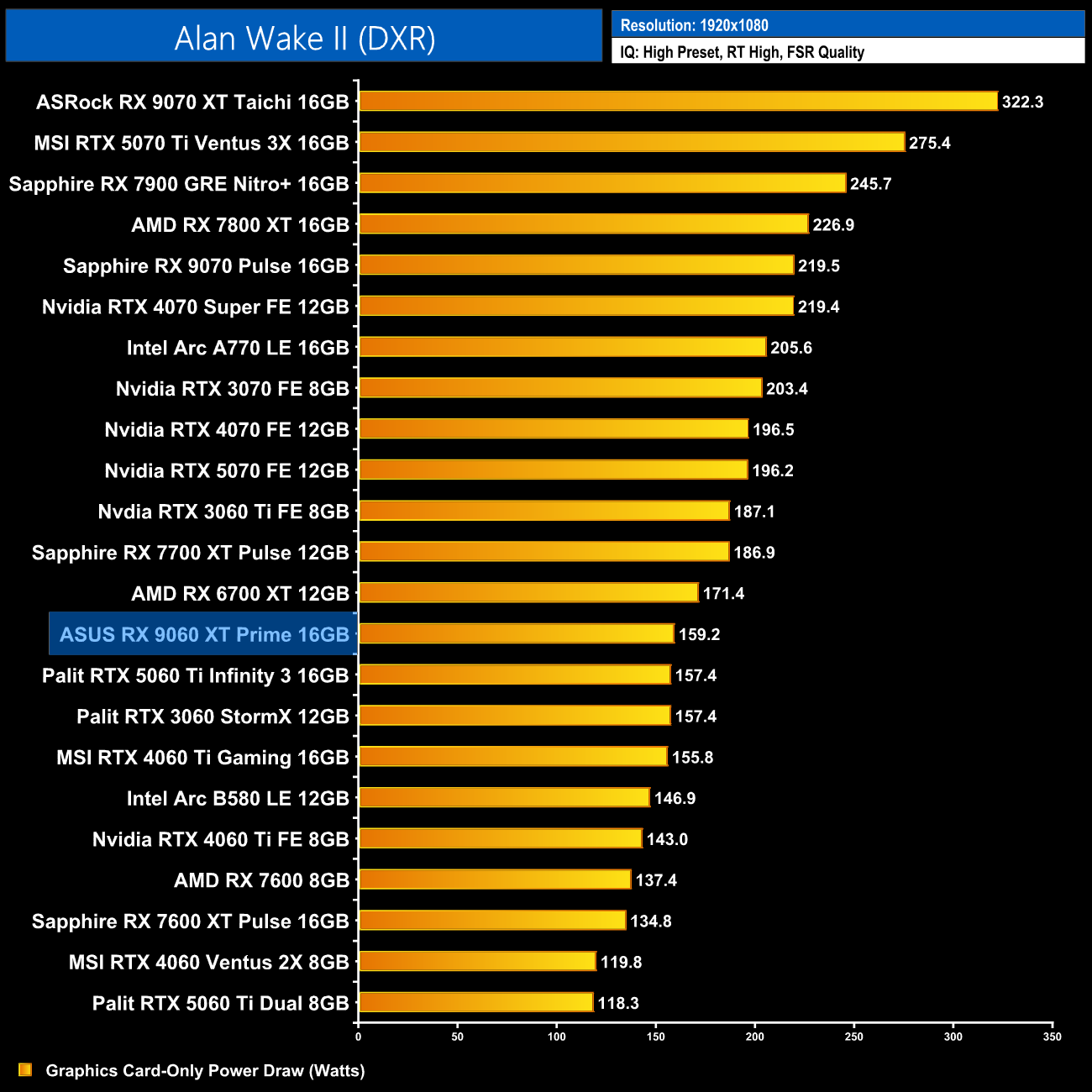

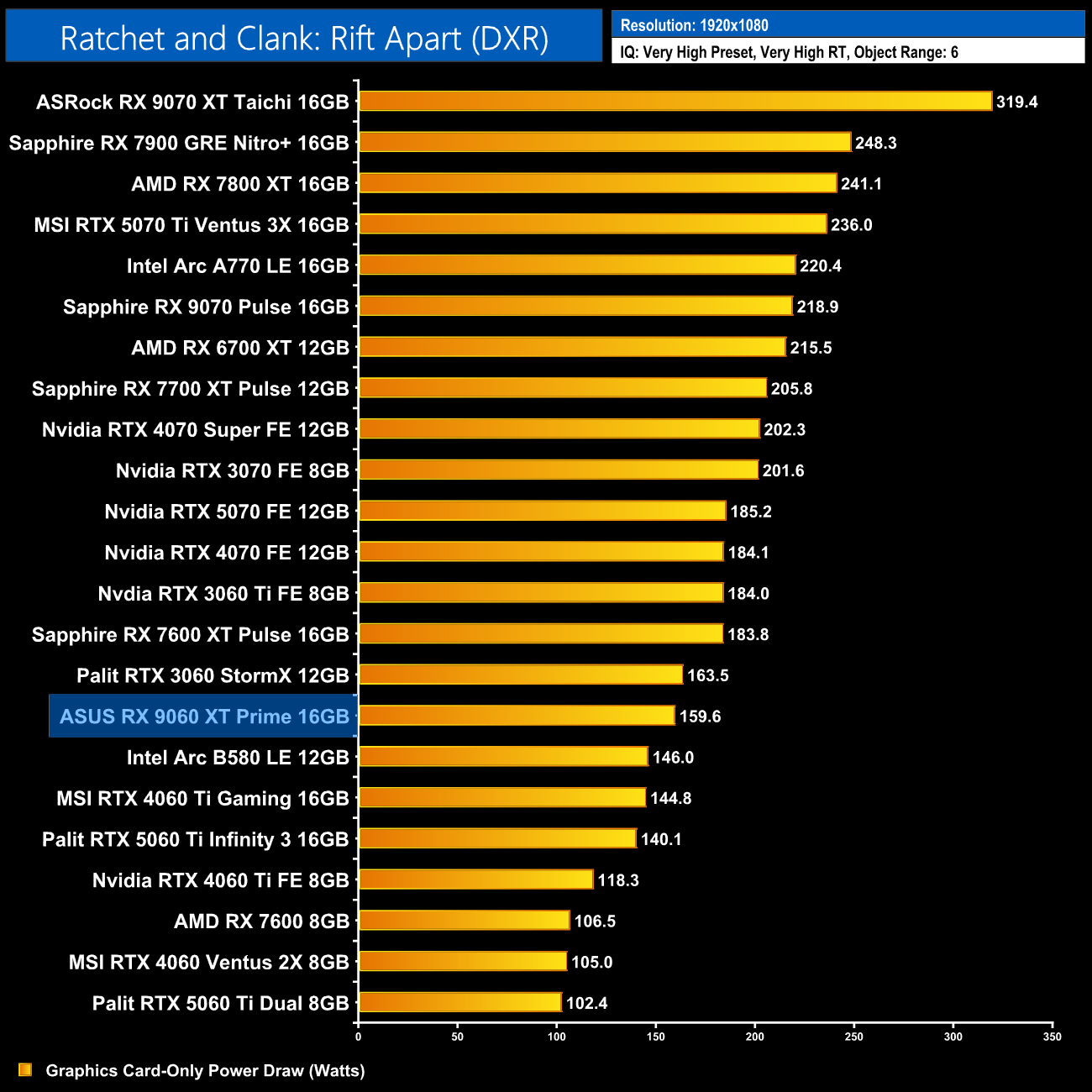

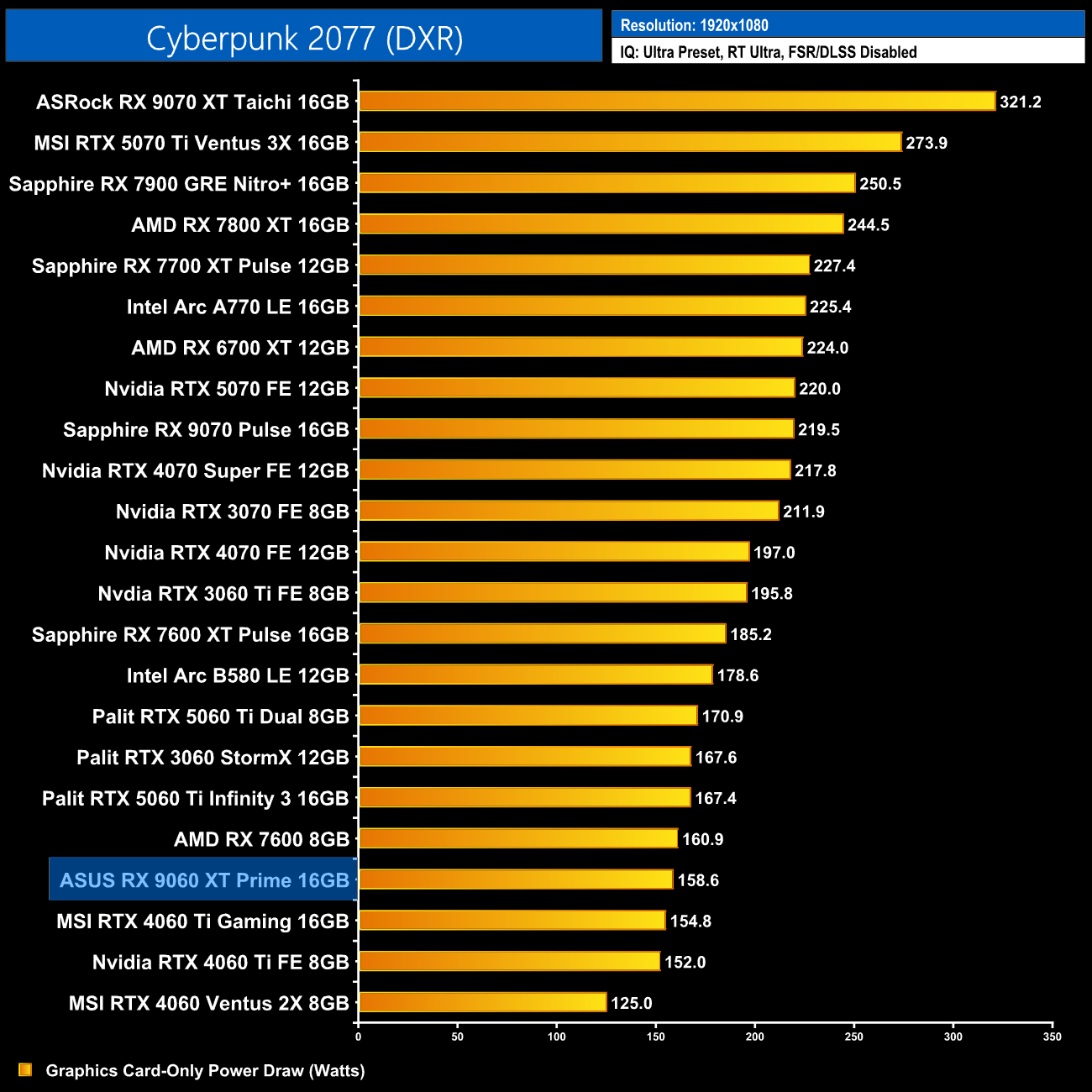

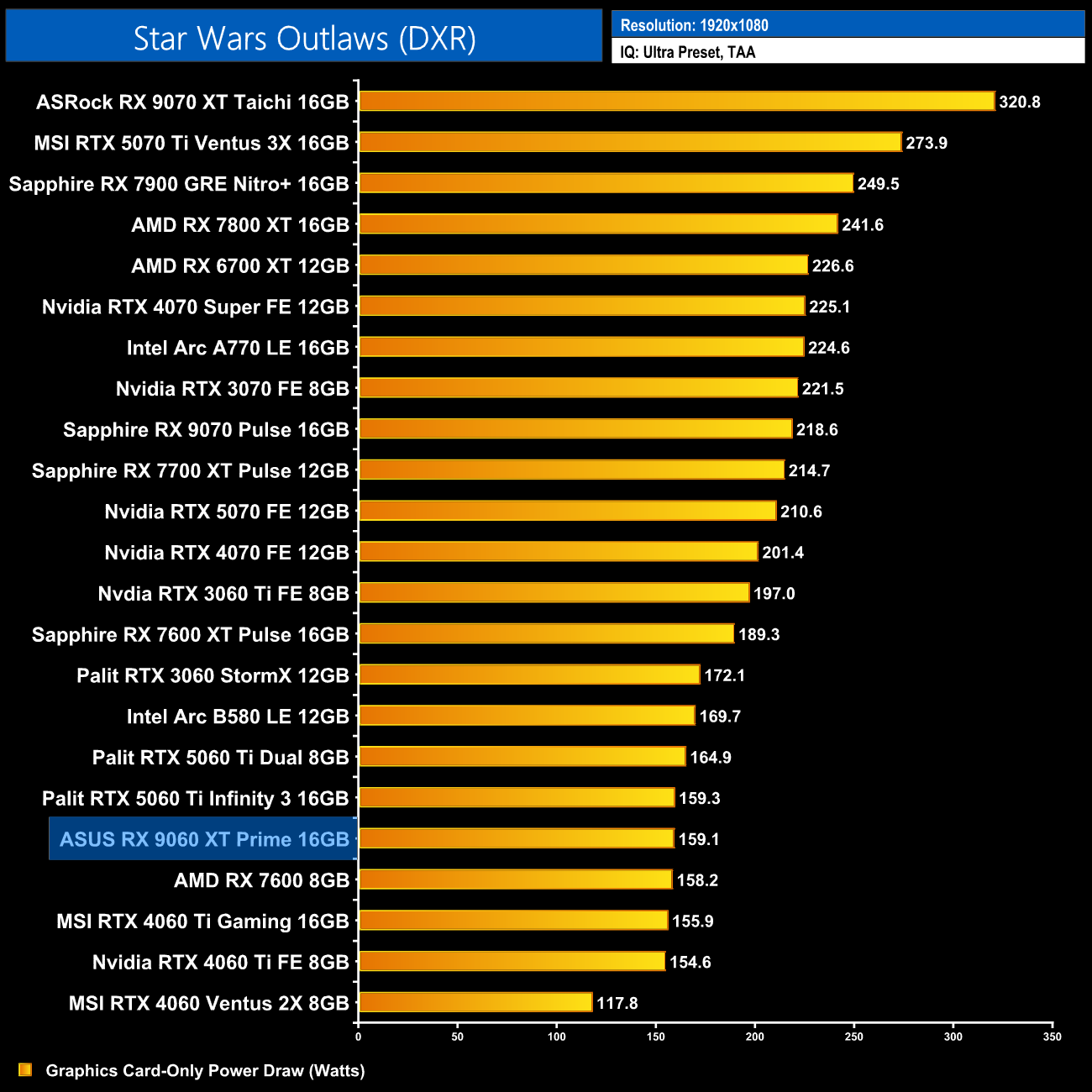

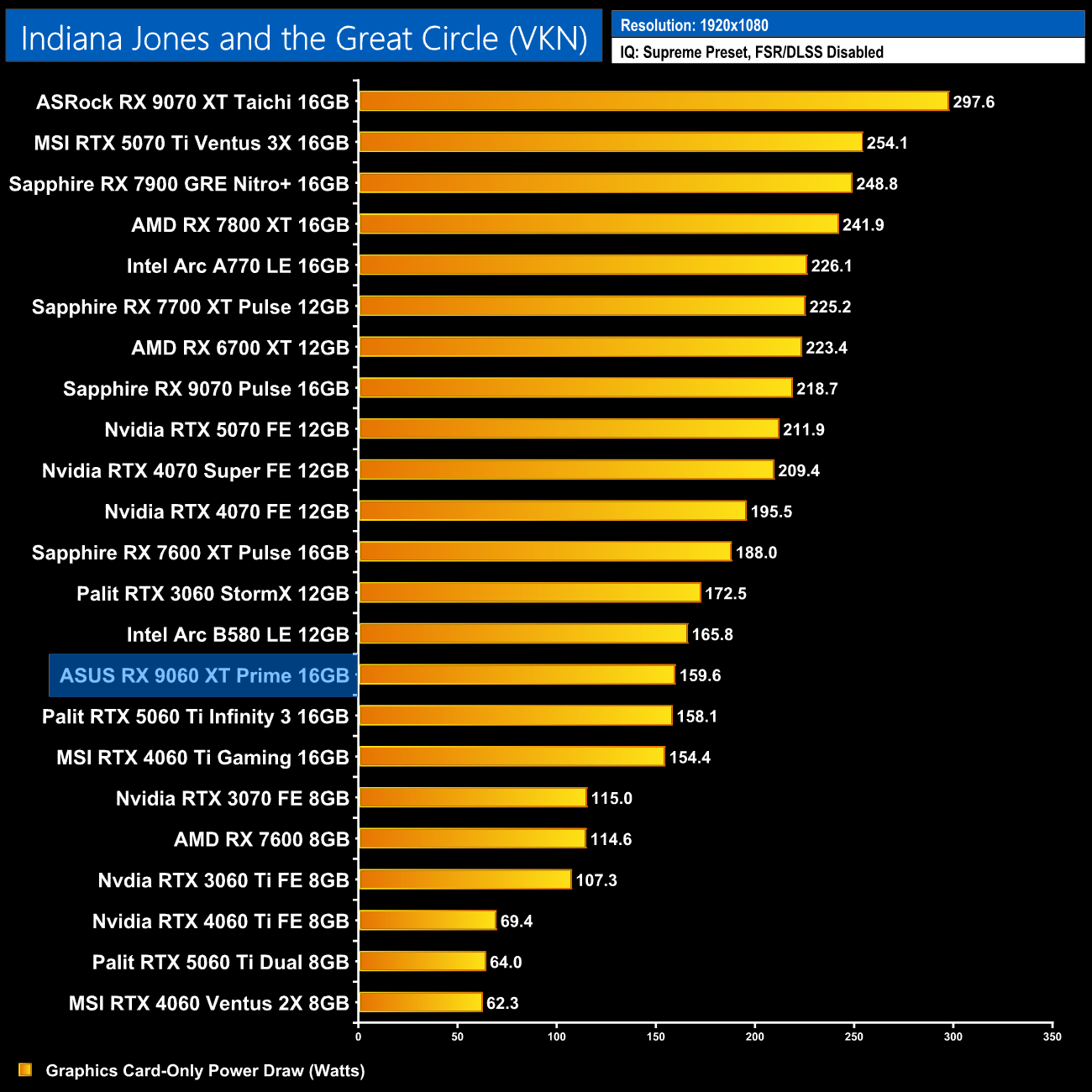

As a bonus, we now include the power figures for all eight games we test with ray tracing enabled.

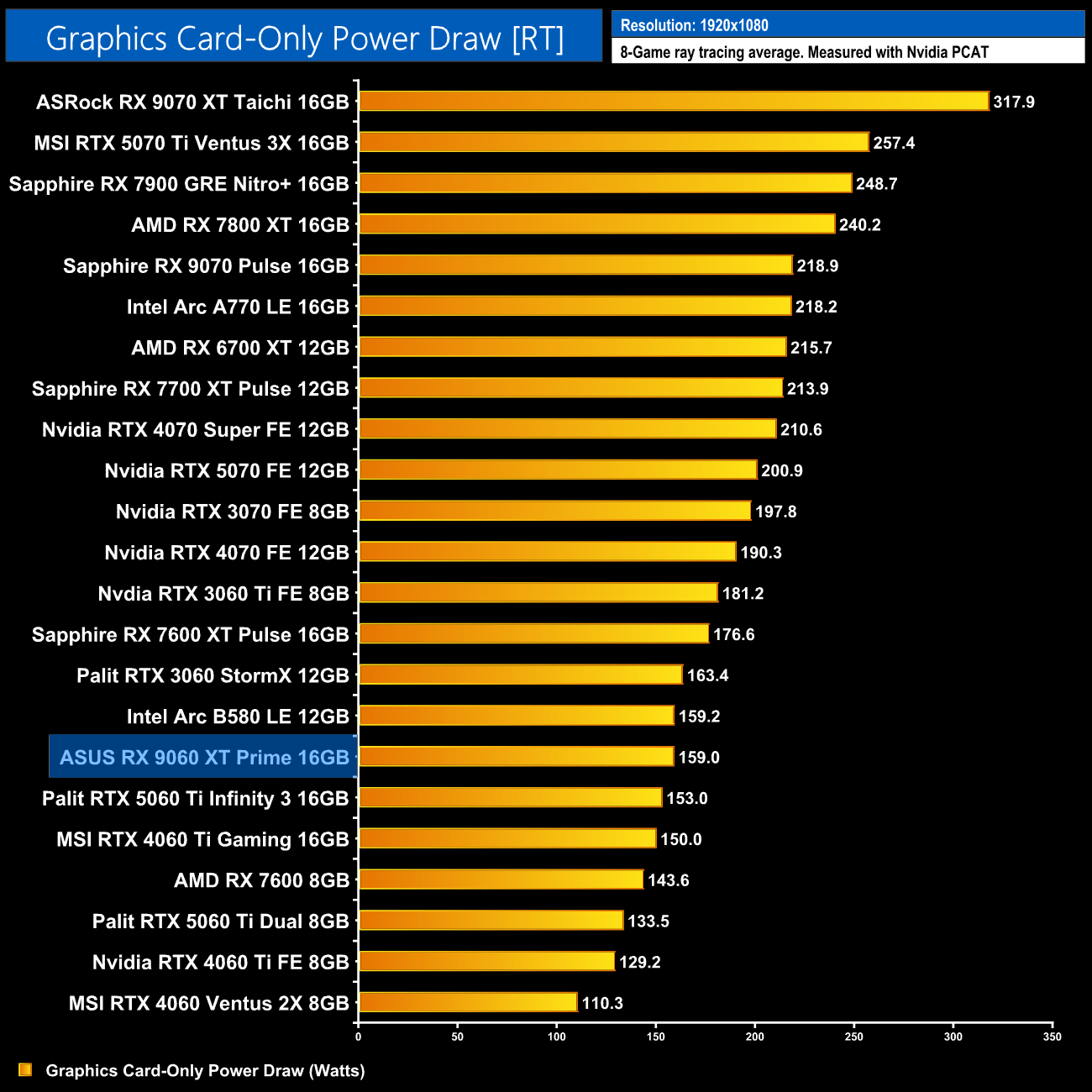

8-Game ray tracing average:

Ray tracing power draw is very similar at 159W average.
