We are back with the first of many new GPU launches this year! Things are kicking off with Intel's Arc B570, the smaller sibling of the B580 that hit the market in the middle of December. Alongside its reduced specification, it also sports a reduced price, targeting a $219 MSRP, making this one of the cheapest GPUs that we have reviewed in years. What can it bring to the table at that price point, and how much slower is it than the $249 B580? All that and more is covered in today's review.
Timestamps
00:00 Intro
00:48 Recapping the B570
01:31 B570 spec and comparison to B580
02:15 Test setup
03:16 Alan Wake 2
03:48 Black Myth: Wukong
04:08 Cyberpunk 2077
04:45 Final Fantasy XVI
05:02 Forza Horizon 5
05:36 Ghost of Tsushima
06:07 Horizon Forbidden West
06:48 The Last of Us Part 1
07:04 Plague Tale: Requiem
07:30 Senua’s Saga: Hellblade 2
07:49 Starfield
08:13 Total War: Warhammer III
08:54 12-game average results
09:46 Cost per frame analysis, $ and £
10:49 RT Alan Wake II
11:07 RT Black Myth: Wukong
11:19 RT Cyberpunk 2077
12:01 RT F1 24
12:56 RT Ratchet & Clank (is totally broken)
13:25 RT Returnal
13:44 RT Shadow of the Tomb Raider
14:01 RT Star Wars Outlaws
14:22 RT 8-game average
14:49 ASRock’s B570 Challenger
16:09 Thermals and noise
16:57 Power draw and efficiency in-depth
18:33 Idle power draw, a ‘sort of’ fix
19:12 Closing thoughts
Put simply, the Arc B570 is a slightly cut-down version of the B580 that we reviewed last month. It's offering 10% fewer cores, 2GB less VRAM over a narrower memory interface, reduced clock speed, and a more frugal 150W board power rating to match. Accordingly, Intel dropped the price by 12%, targeting a $219 MSRP, with the B580 fetching a $30 premium over this new model.
Pricing and availability remains a significant challenge for the B580 however, and I've not been able to find it in stock for less than £290 over the last week, despite launching at £249. As such, pre-order pricing for the B570 has crept higher than I suspect Intel would like, sitting at £250 here in the UK.

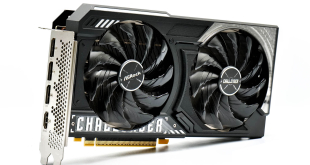

It's also worth confirming that there's no Intel-manufactured Limited Edition – AKA reference – model for the B570 either. Instead we were sent the ASRock Challenger model, with a dual-fan cooler and metal backplate.
If you want to read this review as a single page, click HERE.
Arc B580 | Arc B570 | Arc A770 | Arc A750 | Arc A580 | |
Silicon | BMG-G21 | BMG-G21 | ACM-G10 | ACM-G10 | ACM-G10 |
Process | TSMC N5 | TSMC N5 | TSMC N6 | TSMC N6 | TSMC N6 |
Render Slices | 5 | 5 | 8 | 7 | 6 |
Xe Cores | 20 | 18 | 32 | 28 | 24 |
Shaders | 2560 | 2304 | 4096 | 3584 | 3072 |
XMX Engines | 160 | 144 | 512 | 448 | 384 |
RT Units | 20 | 18 | 32 | 28 | 24 |
Texture Units | 160 | 144 | 256 | 224 | 192 |
ROPs | 80 | 80 | 128 | 112 | 96 |
Graphics Clock | 2670 MHz | 2500 MHz | 2100 MHz | 2050 MHz | 1700 MHz |
Memory Config | 12GB GDDR6 | 10GB GDDR6 | 8/16GB GDDR6 | 8GB GDDR6 | 8GB GDDR6 |
Memory Data Rate | 19 Gbps | 19 Gbps | 17.5 Gbps | 16 Gbps | 16 Gbps |
Memory Interface | 192-bit | 160-bit | 256-bit | 256-bit | 256-bit |
Memory Bandwidth | 456 GB/s | 380 GB/s | 560 GB/s | 512 GB/s | 512 GB/s |
PCIe Interface | Gen 4 x8 | Gen 4 x8 | Gen 4 x16 | Gen 4 x16 | Gen 4 x16 |
TBP | 190W | 150W | 225W | 225W | 185W |
First, it's worth recapping the specs for this new GPU. Built on the Xe2 architecture, the B570 uses the same BMG-G21 die as the B580, which is fabricated on TSMC's N5 node, and it has a die size of 272mm2. Comprised of 5 render slices, it is here cut-down to offer 18 cores. Each Xe core offers 16 vector engines, with each vector engine housing eight FP32 ALUs, for a grand total of 2304. Each Xe core is accompanied by a Ray Tracing Unit, while we also find 144 TMUs and 80 ROPs.
The memory subsystem, meanwhile, is new for an Arc GPU. We find 10GB of GDDR6 operating over a 160-bit memory interface, and with memory speed at 19Gbps, total memory bandwidth hits 380 GB/s.
Intel has also been able to crank up the clock speed significantly with Battlemage, but while the B580 has a rated graphics clock of 2670MHz, the B570 is slightly slower, rated at 2500MHz but with a 2750MHz peak clock.
Lastly, total board power is rated at 150W, something we look at closely in this review using our in-depth power testing methodology.
