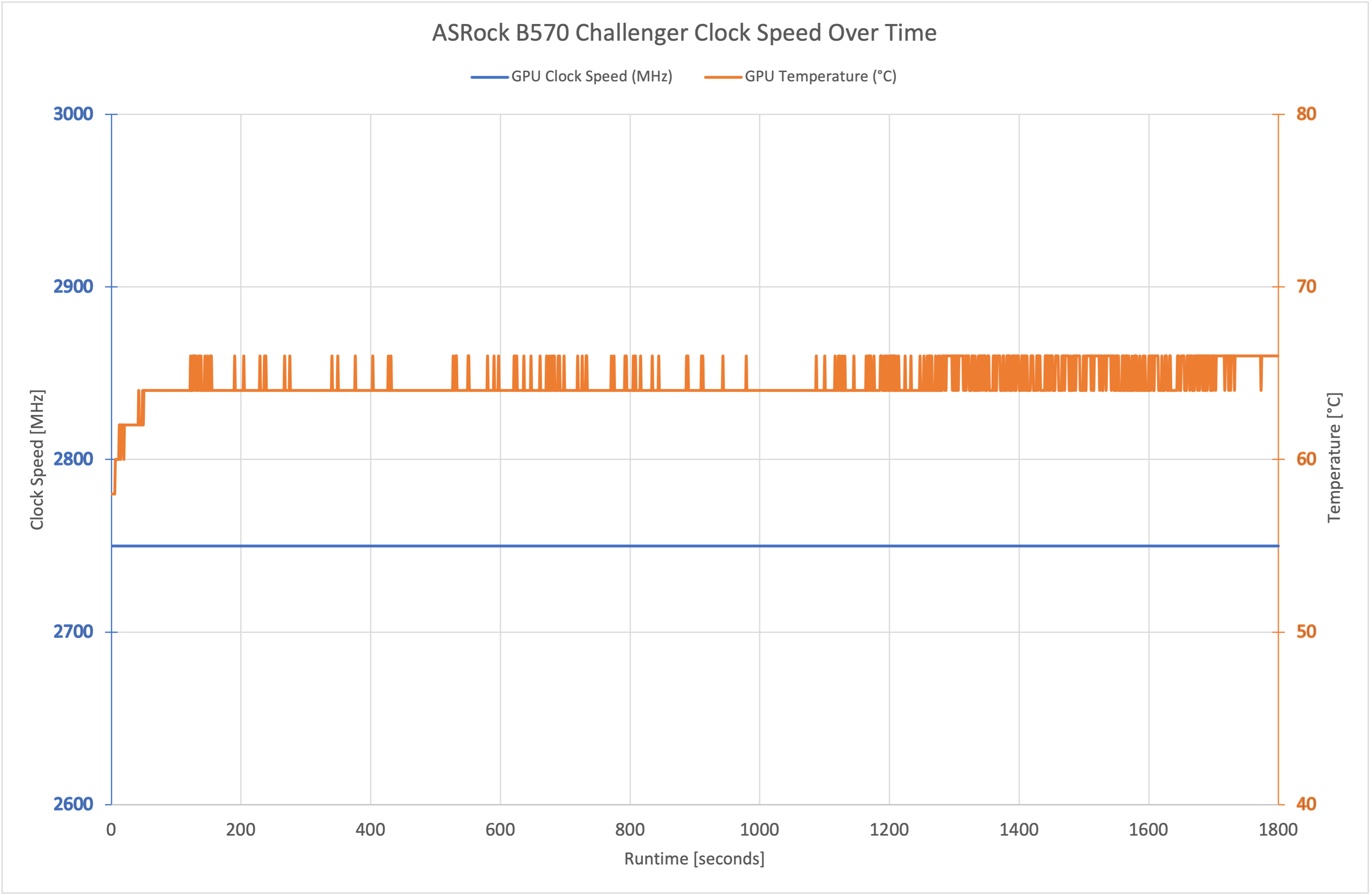

Here we present the average clock speed for each graphics card while running A Plague Tale: Requiem for 30 minutes. We use GPU-Z to record the GPU core frequency during gameplay. We calculate the average core frequency during the 30 minute run to present here.

Just like the B580, I found the B570 would run at its maximum clock speed of 2750MHz all day long, with not a single dip or deviation. Usually a completely fixed frequency plot suggests the GPU is not power limited, perhaps voltage or even clock limited, so while we can't say definitively the behaviour is very clear indeed.
