Using the graphics card-only power draw figures presented earlier in the review, here we present performance per Watt on a per-game basis for all twelve games we tested at 1440p.

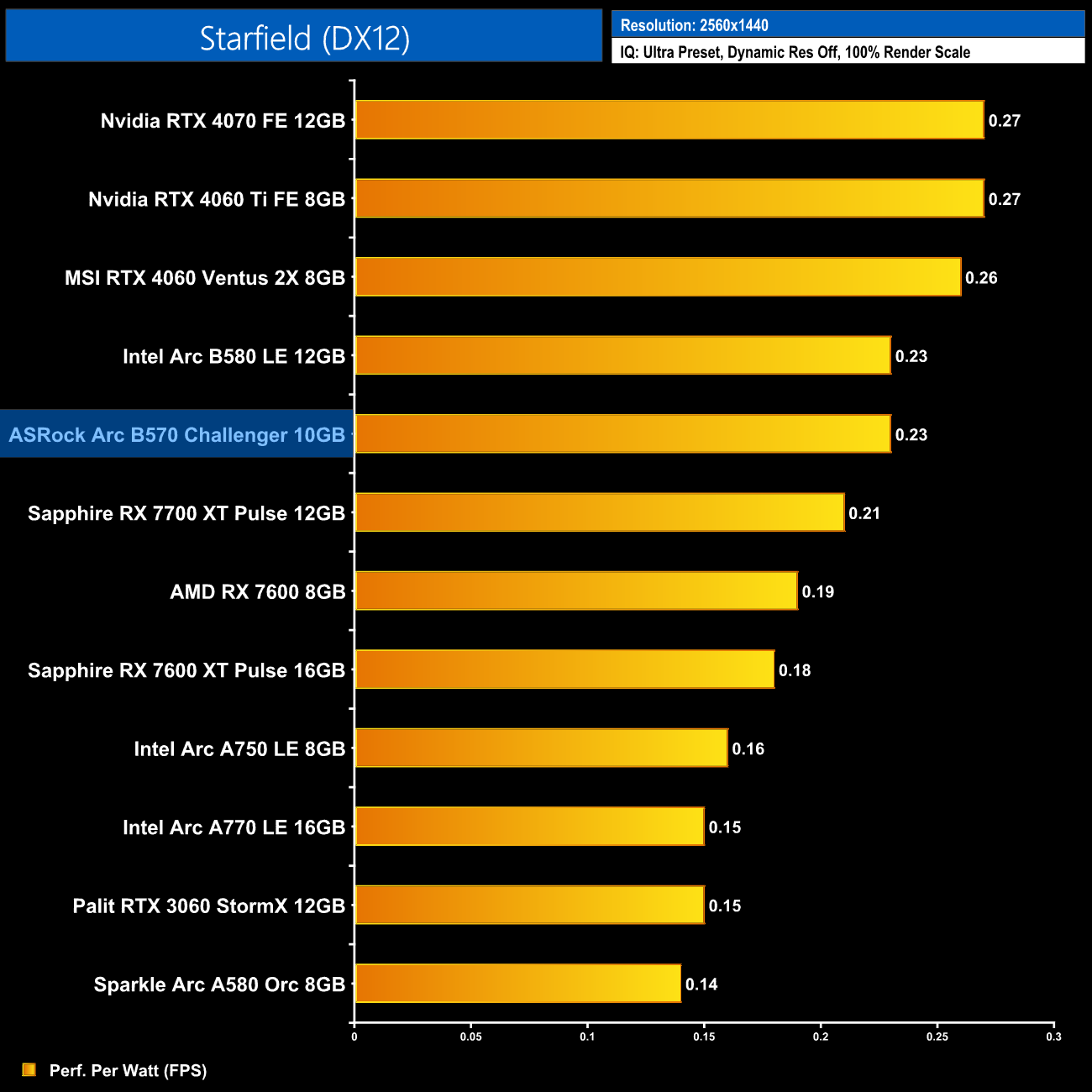

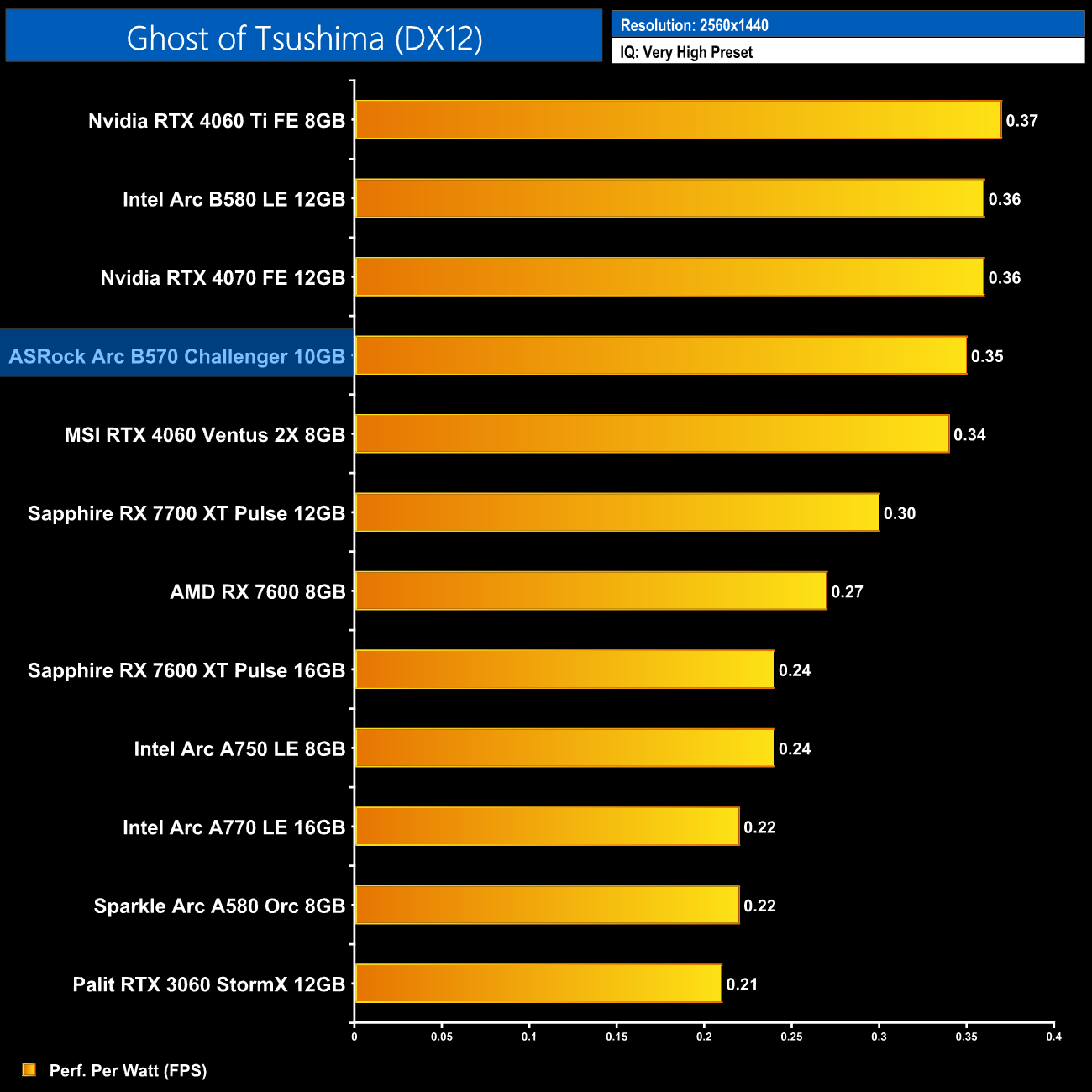

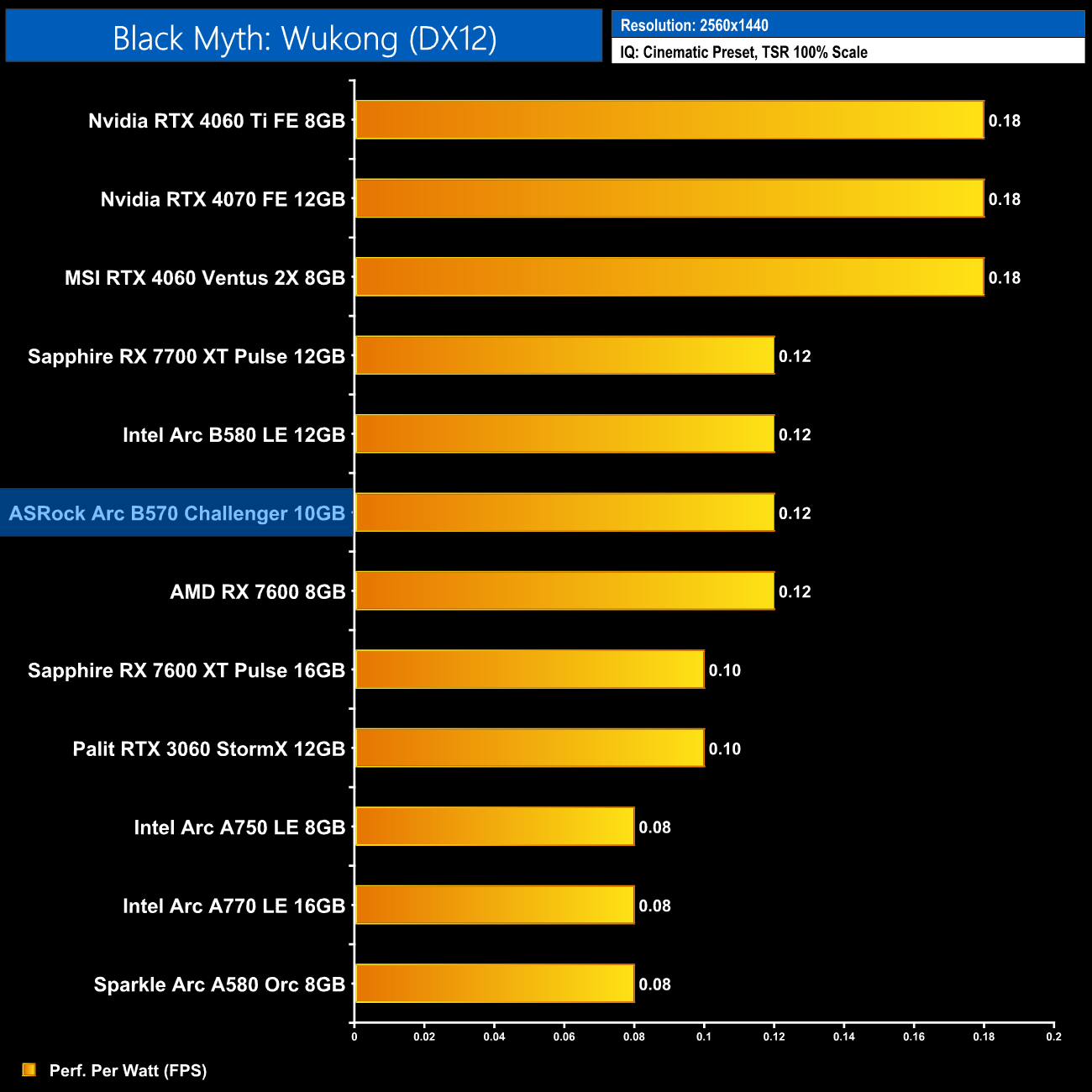

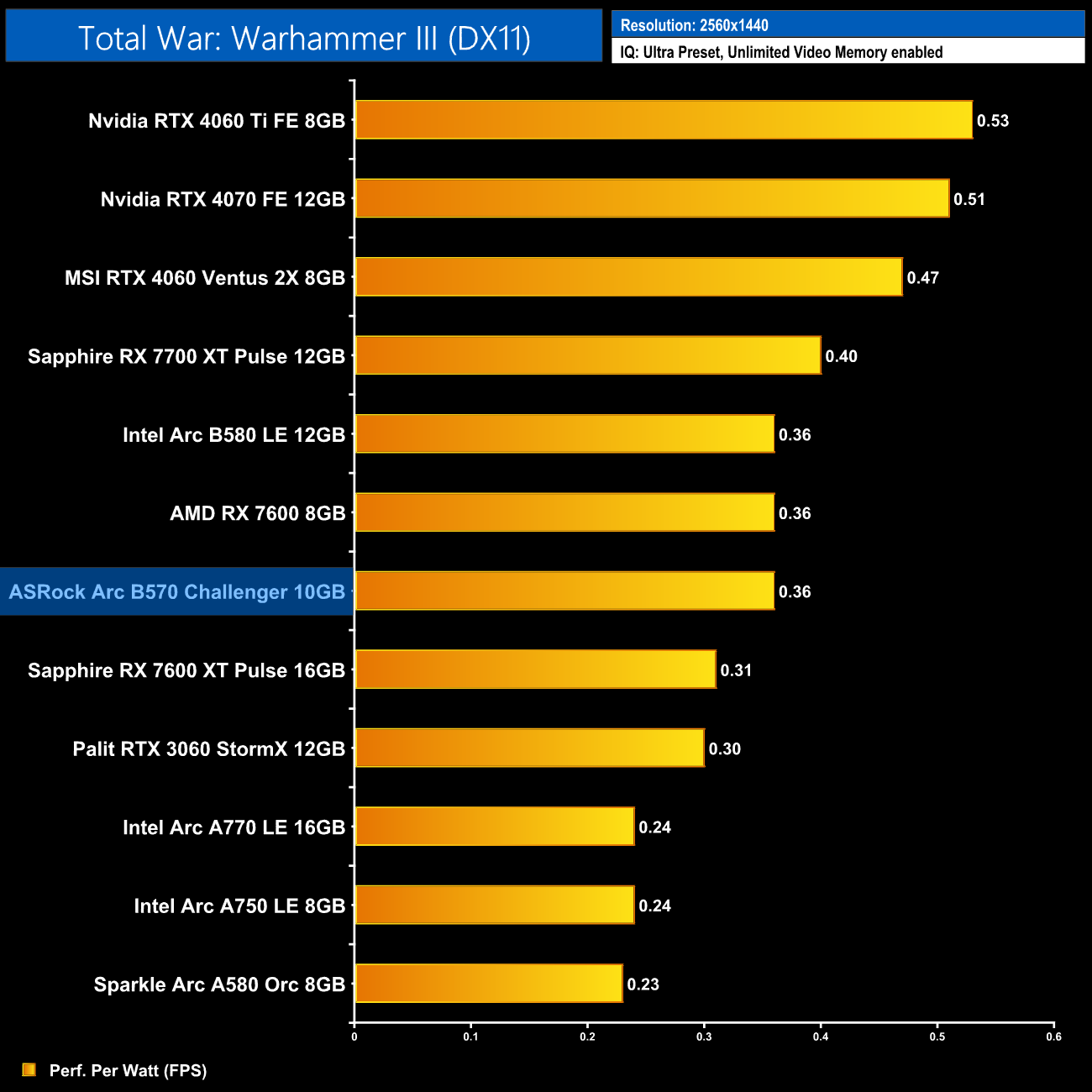

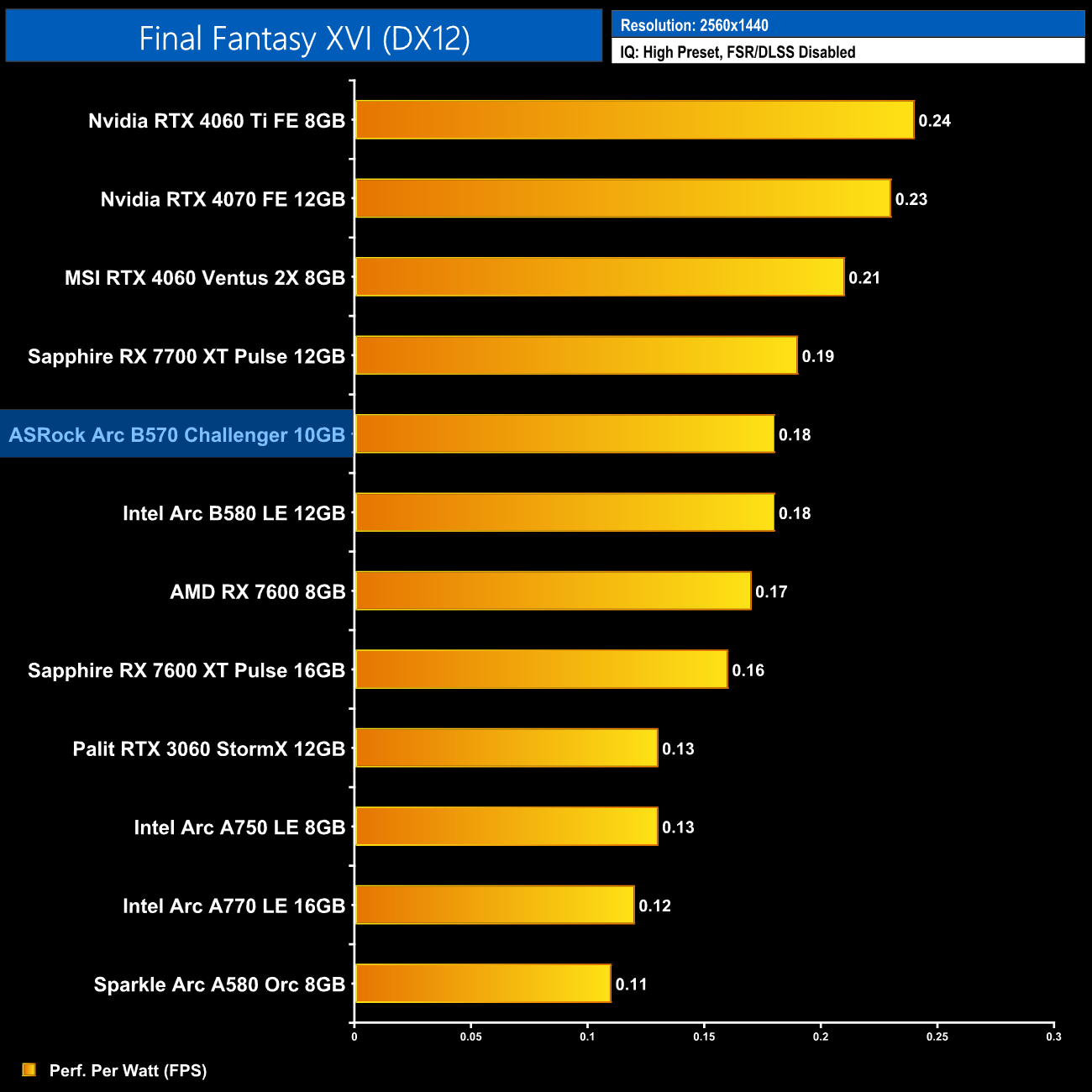

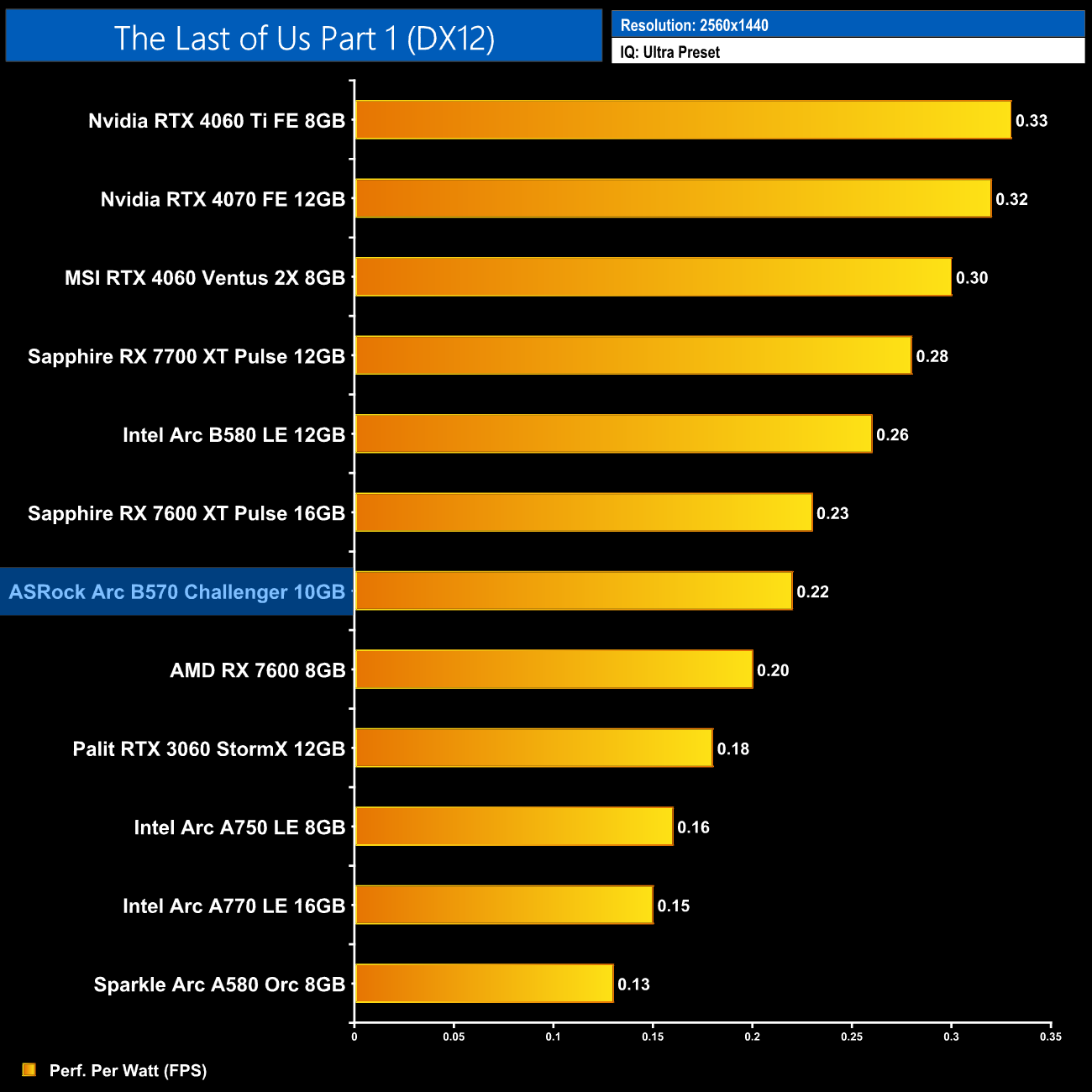

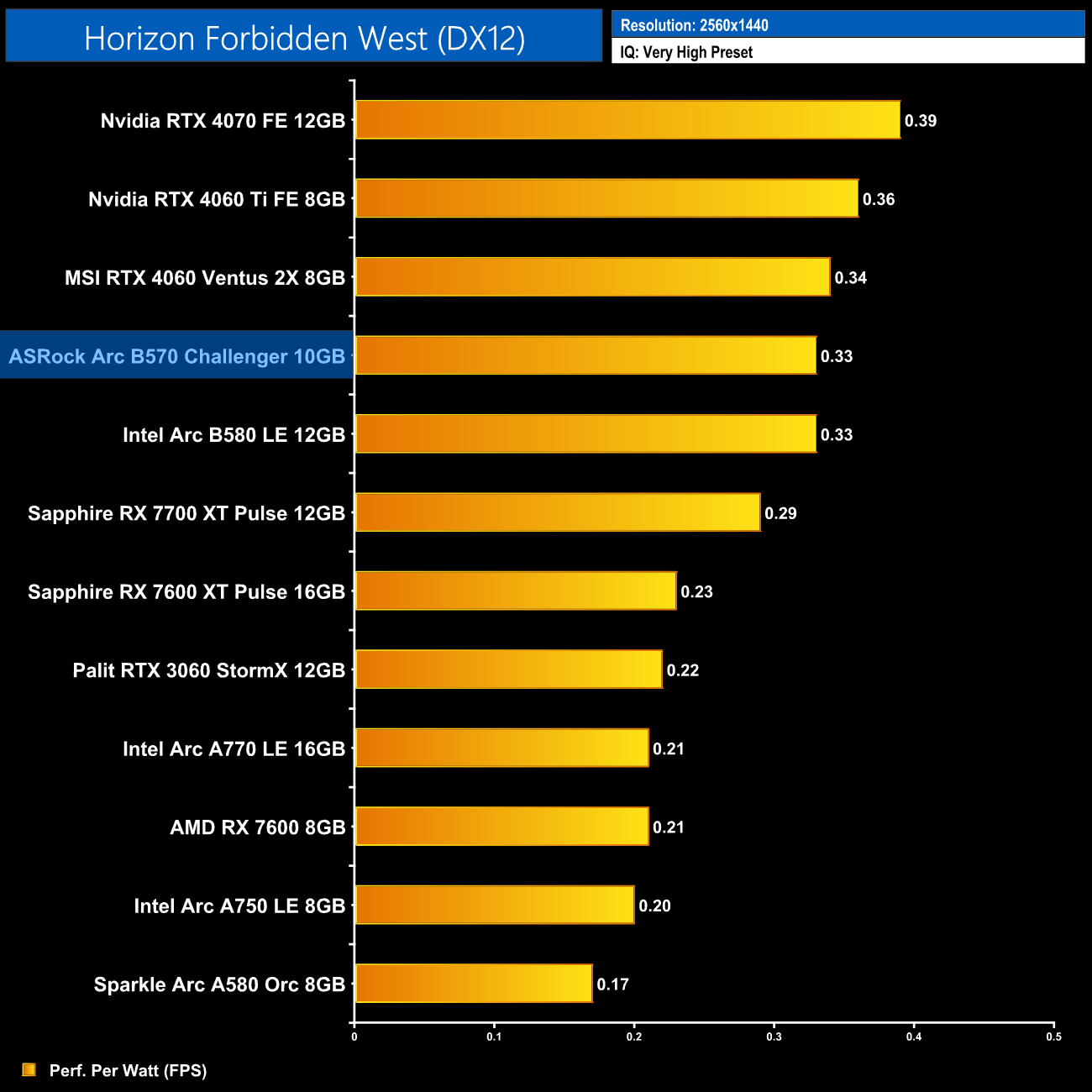

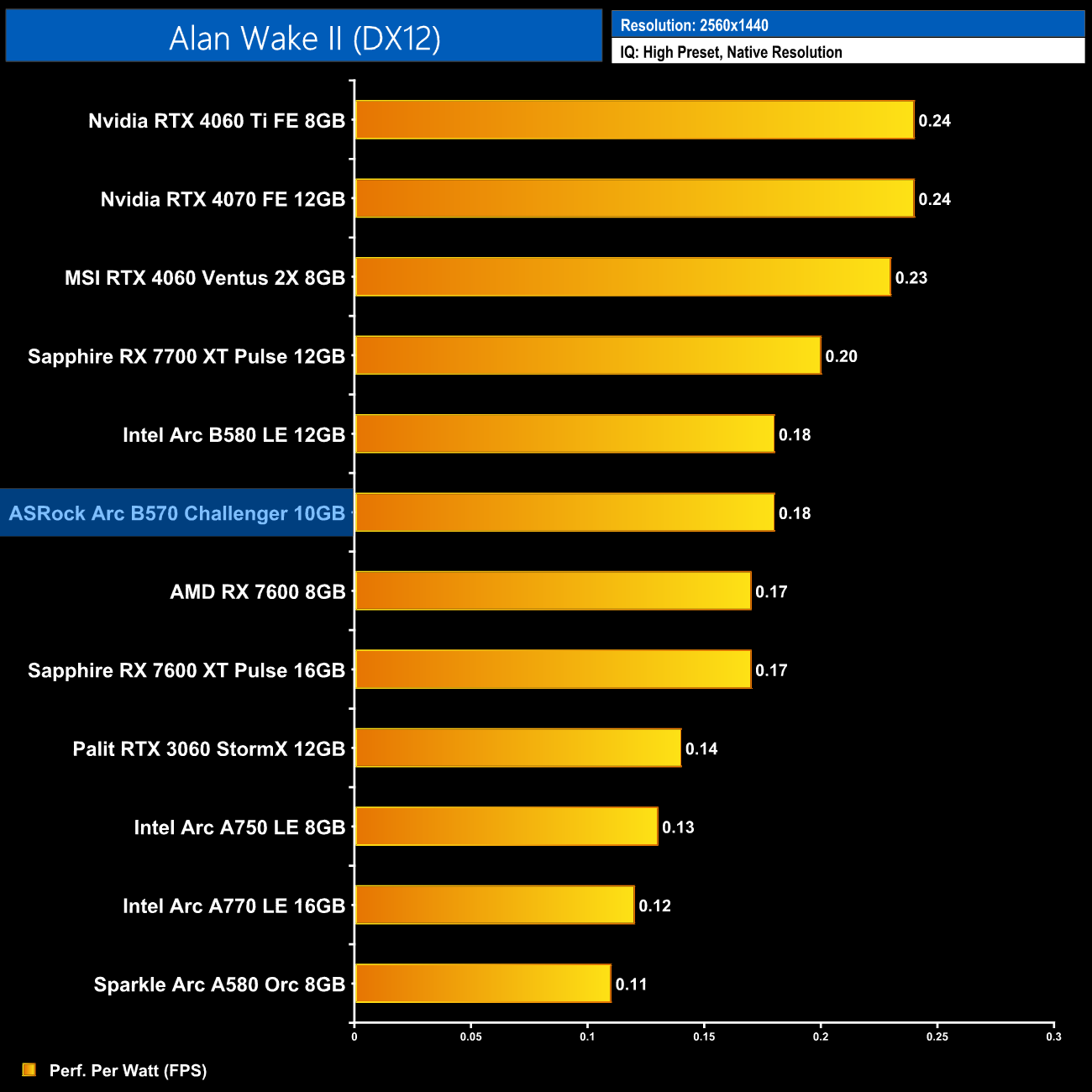

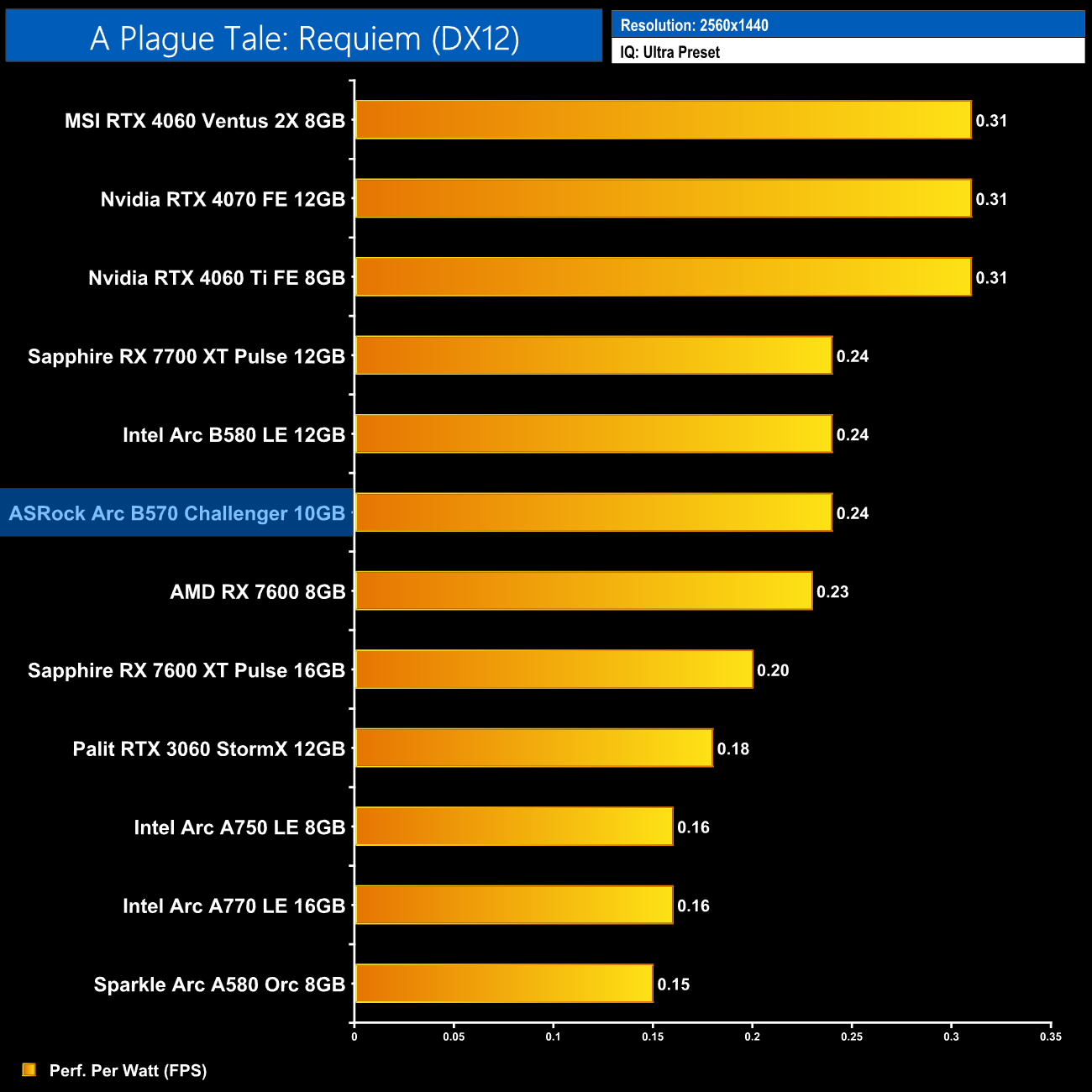

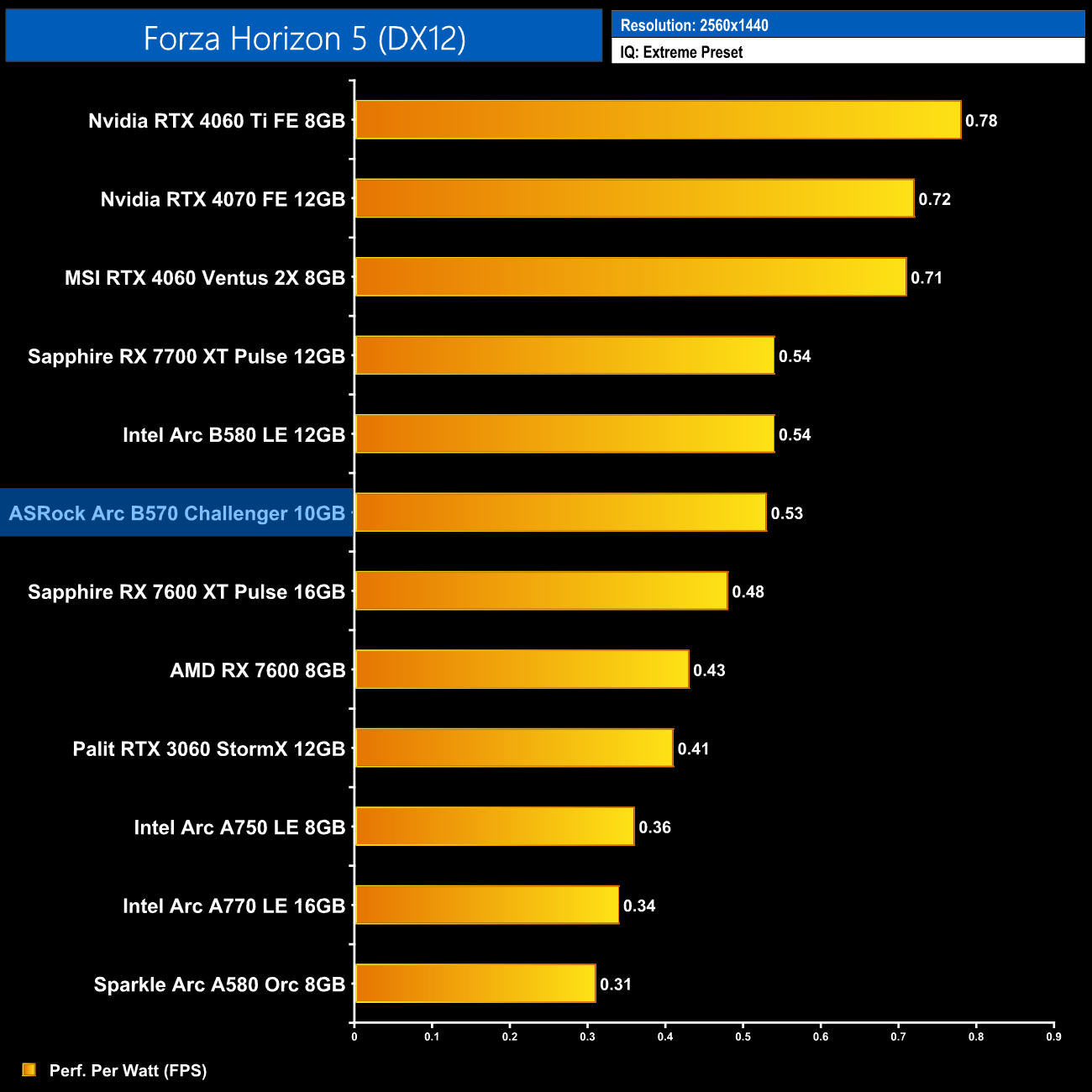

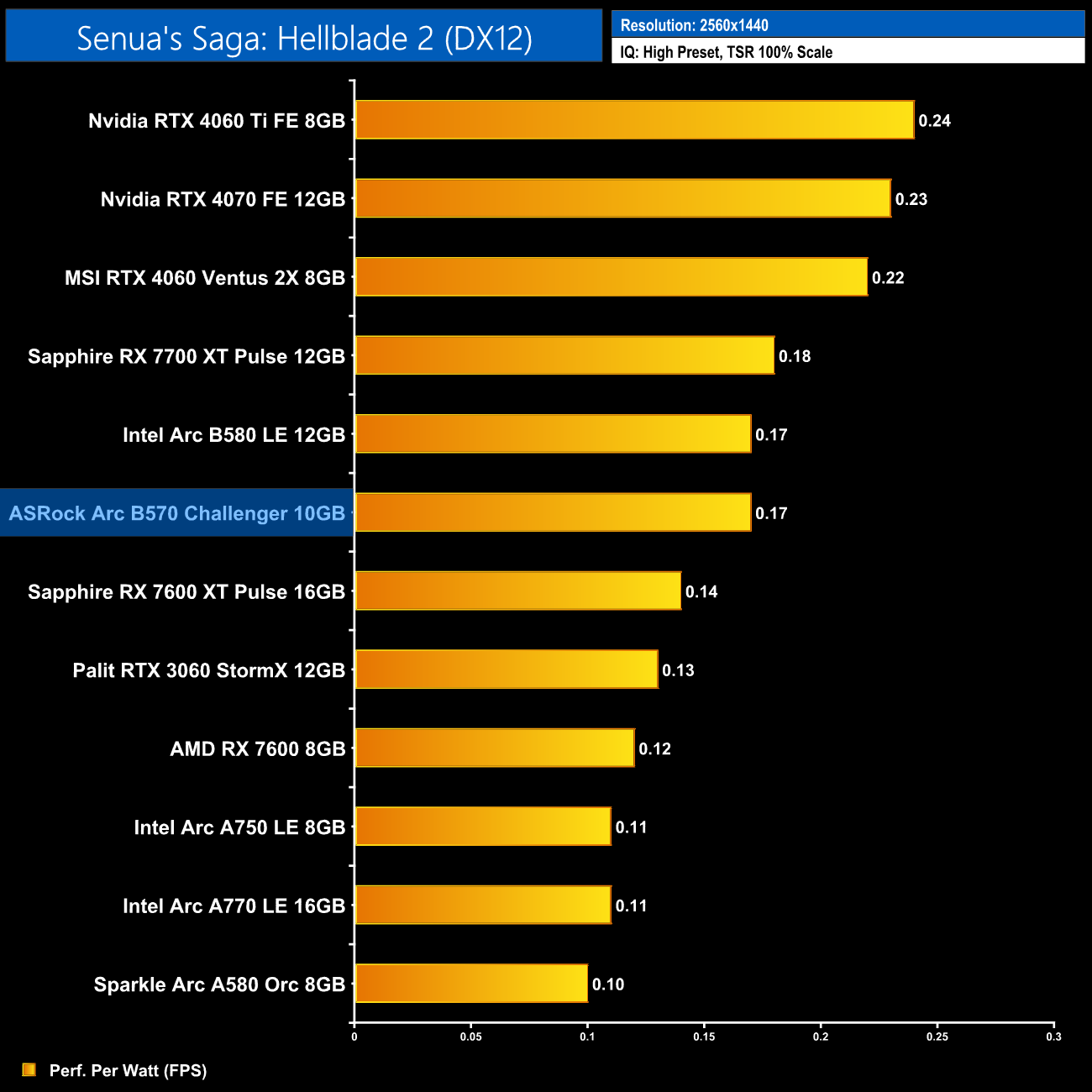

Per-Game Results at 1440p:

Click to enlarge.

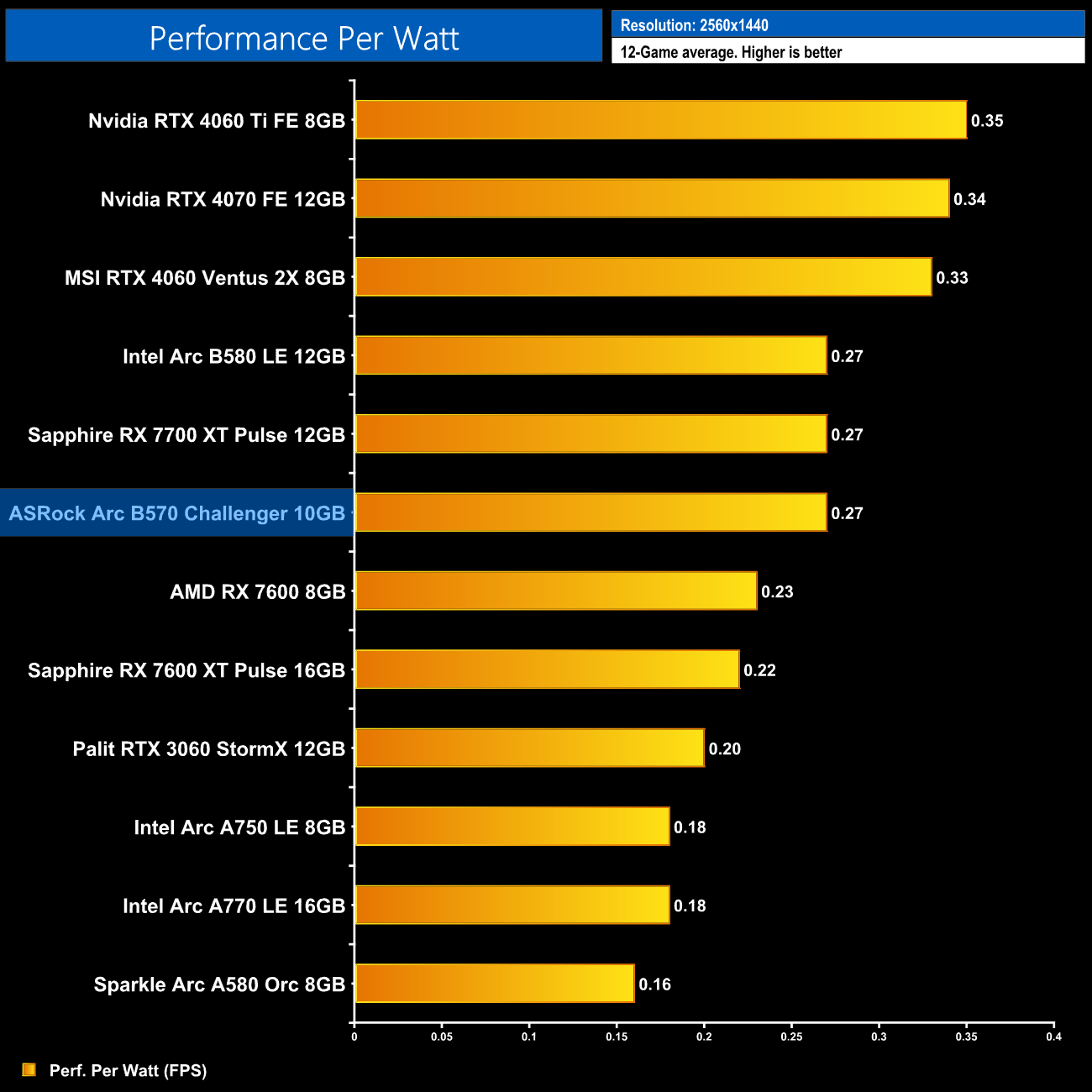

12-Game Average at 1440p:

Things stay much the same at 1440p, with the B570 level with the B580 and RX 7700 XT in terms of average efficiency, but the B570 is 18% less performant per Watt compared to the RTX 4060.

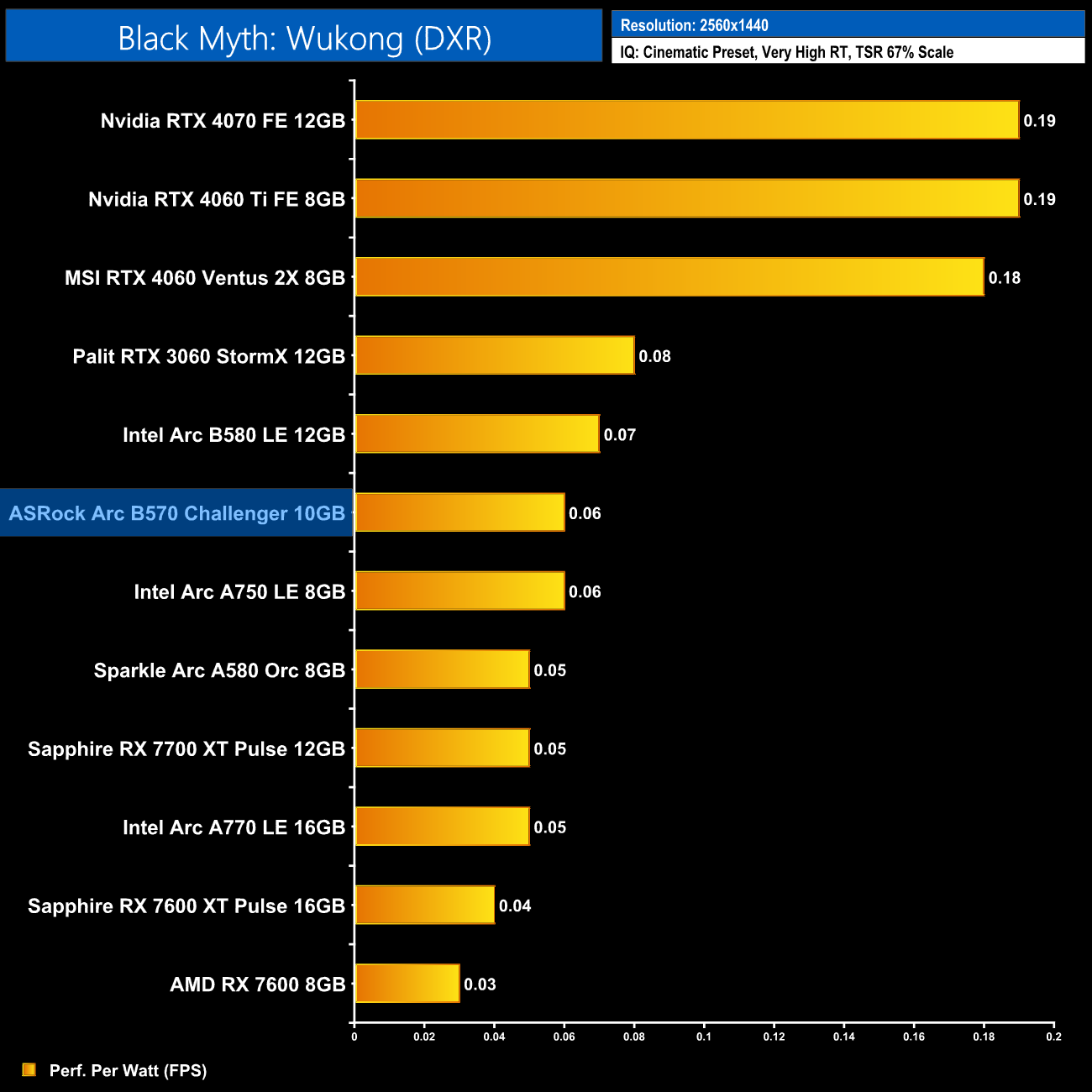

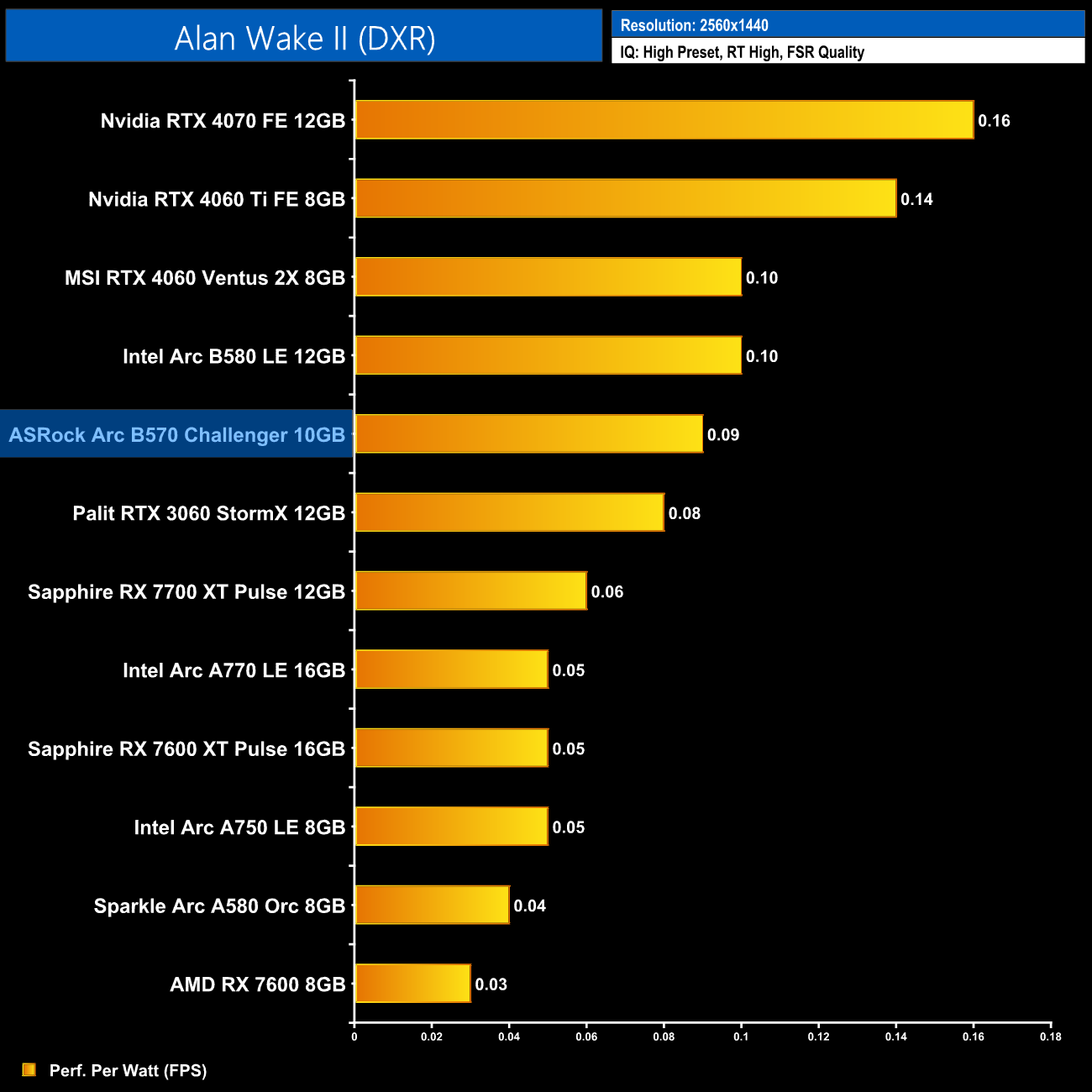

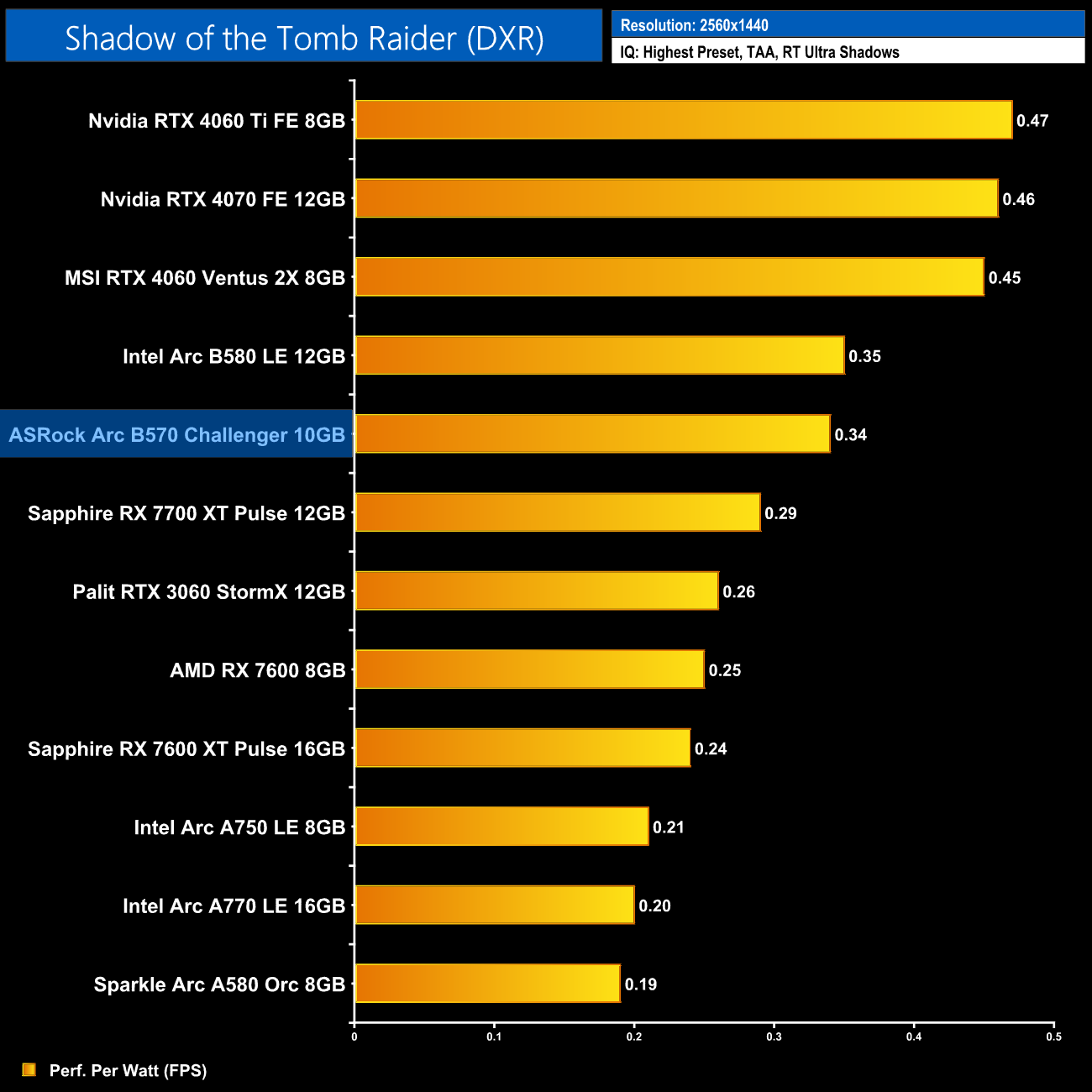

Ray tracing results

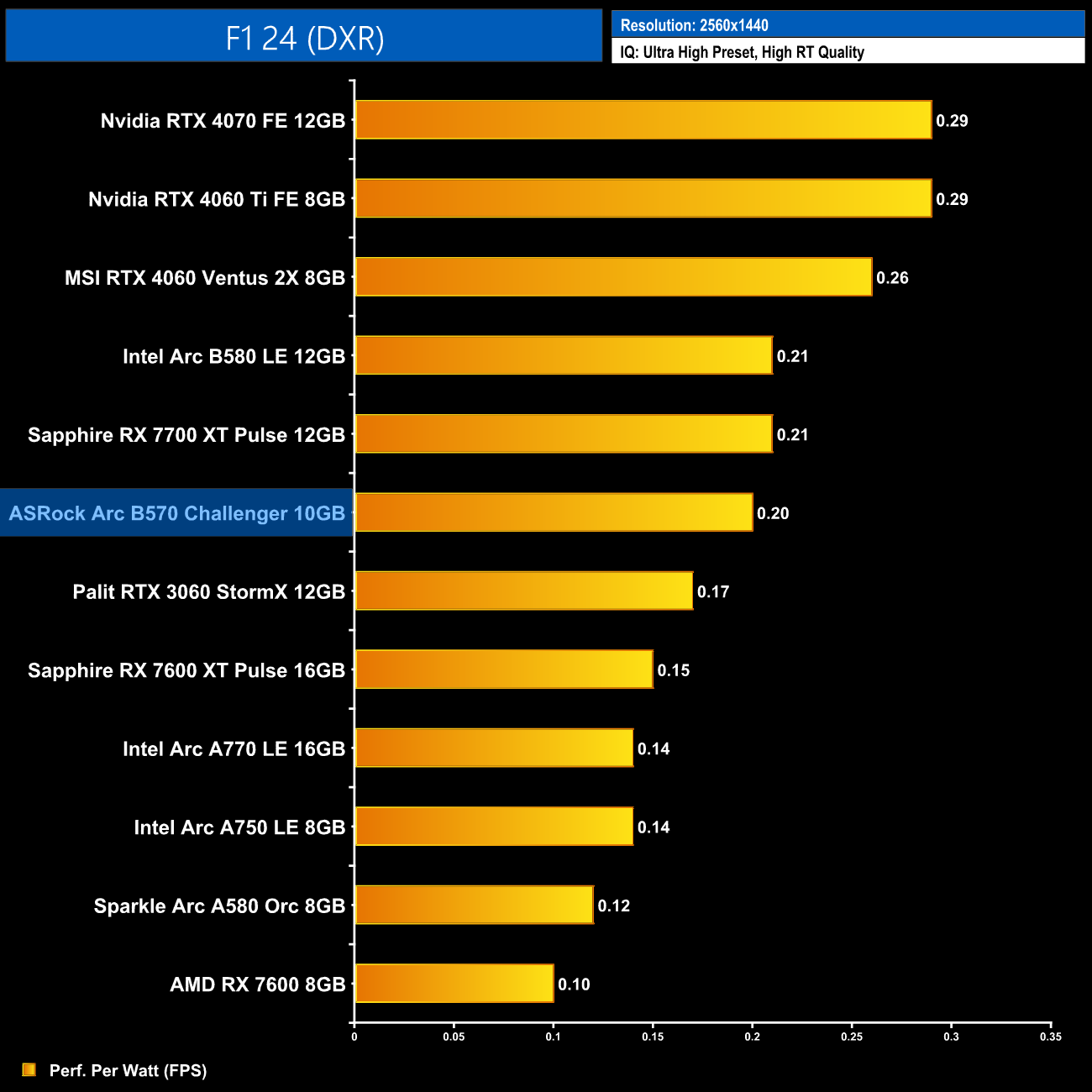

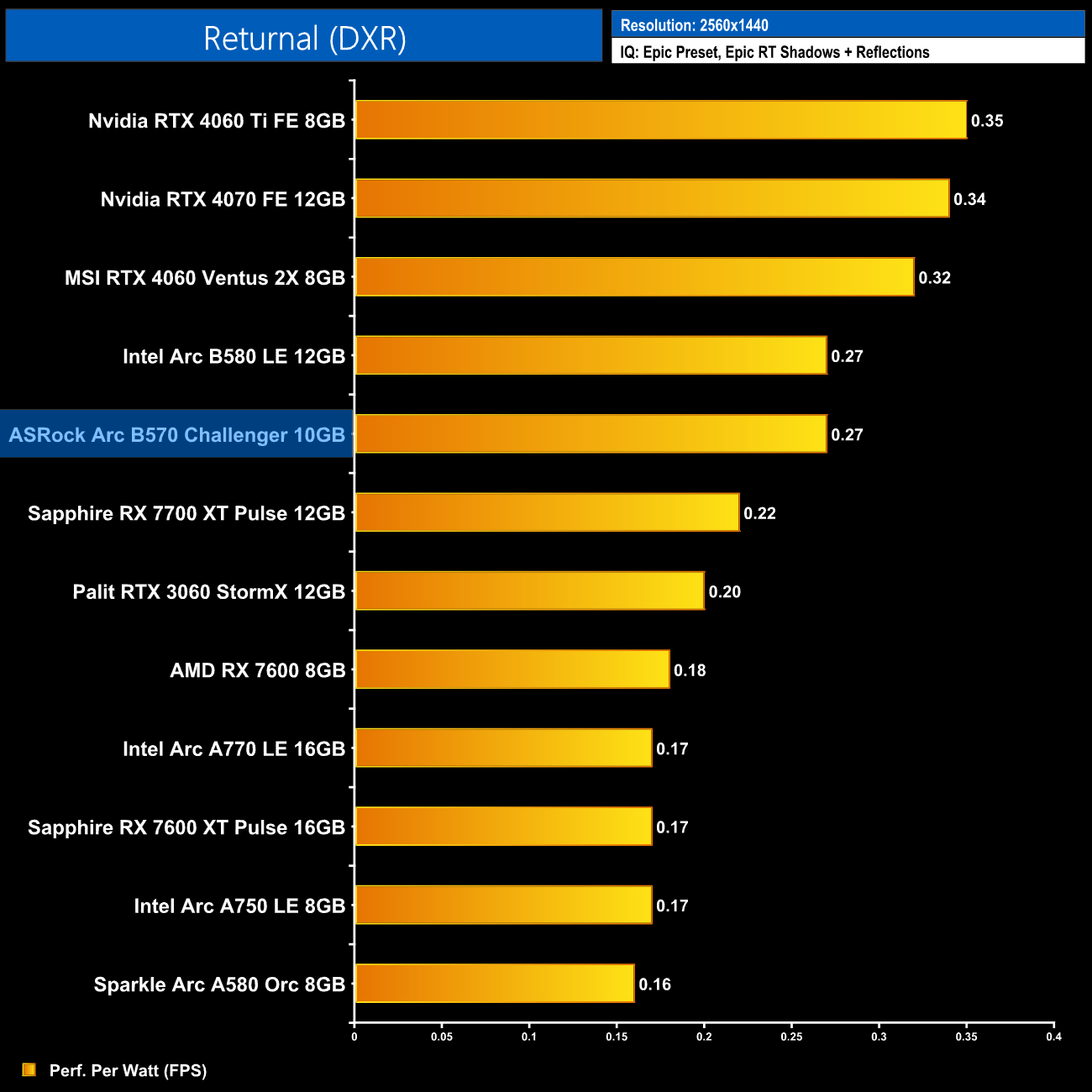

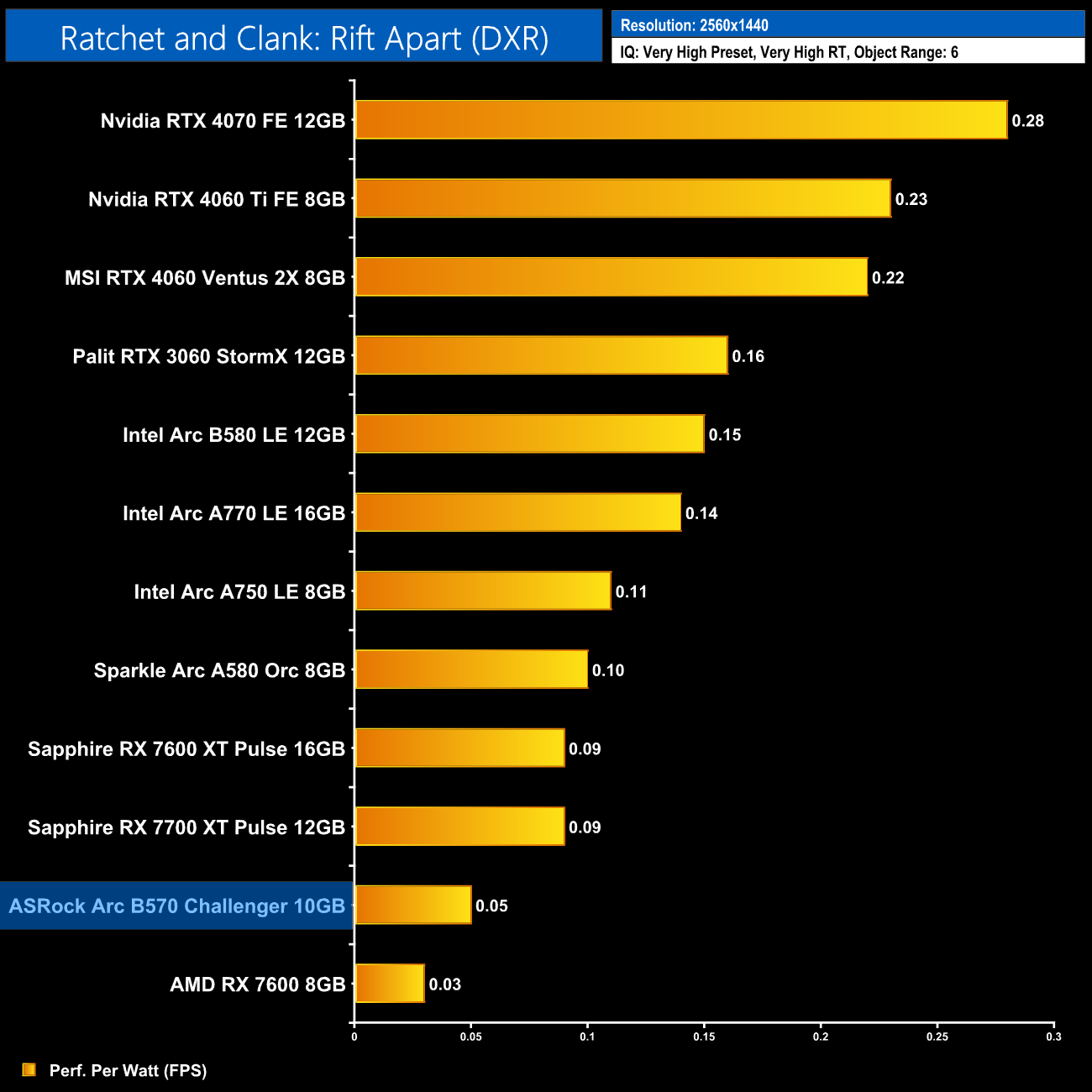

As a bonus, we now include the power figures for all six games we test with ray tracing enabled.

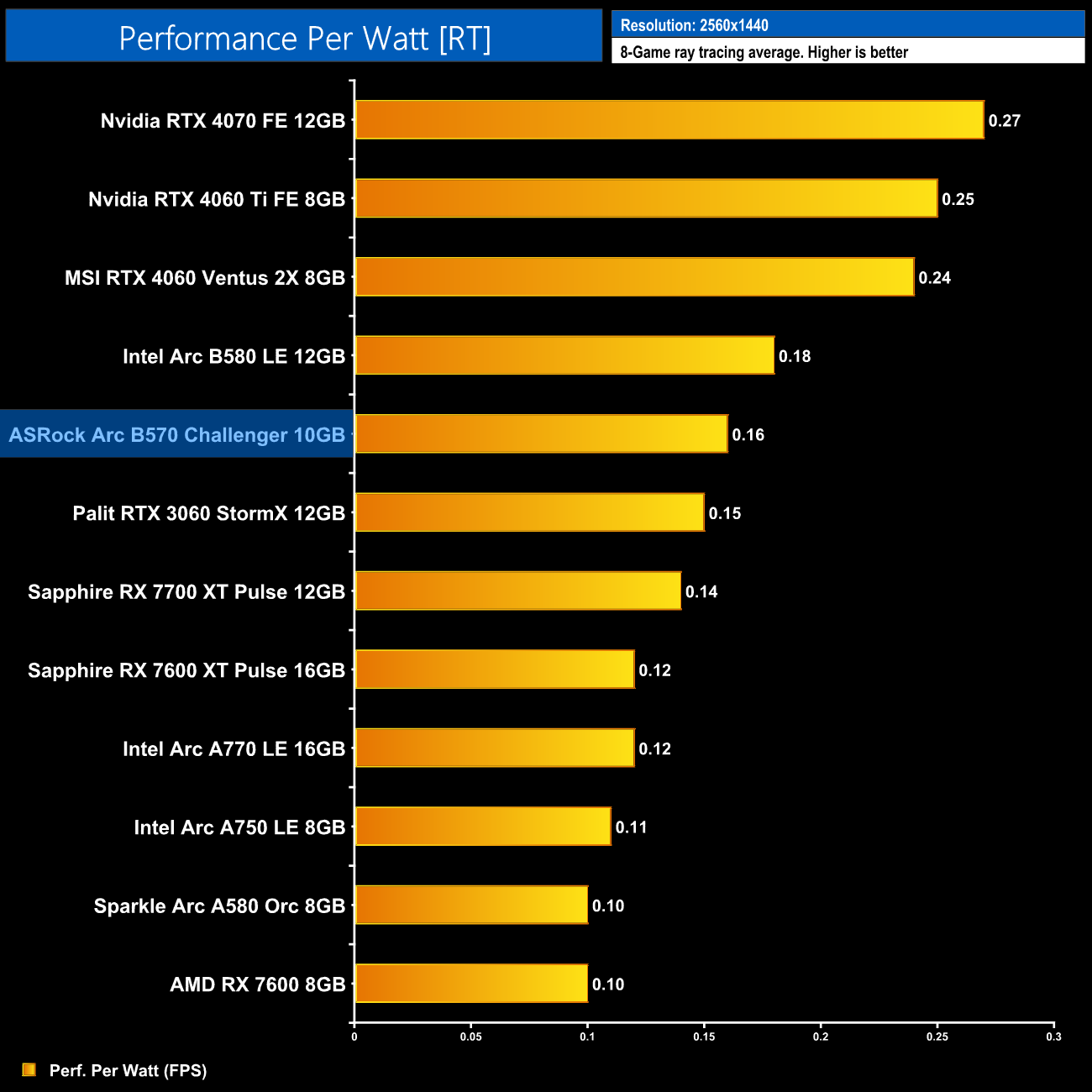

8-Game ray tracing average:

It's a similar story with ray tracing enabled, the Nvidia GPUs rule the roost here.
