Using the graphics card-only power draw figures presented earlier in the review, here we present performance per Watt on a per-game basis for all twelve games we tested at 2160p (4K).

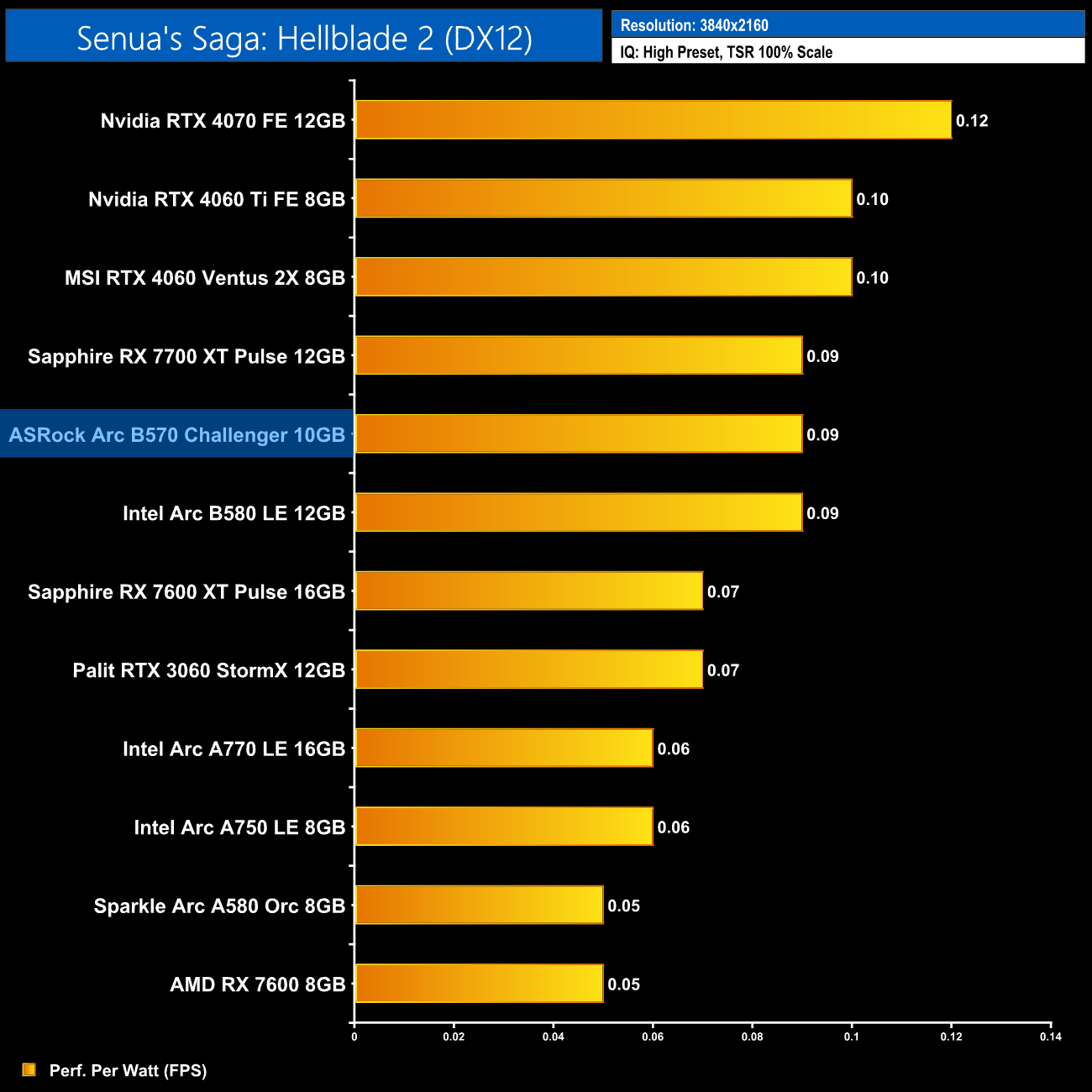

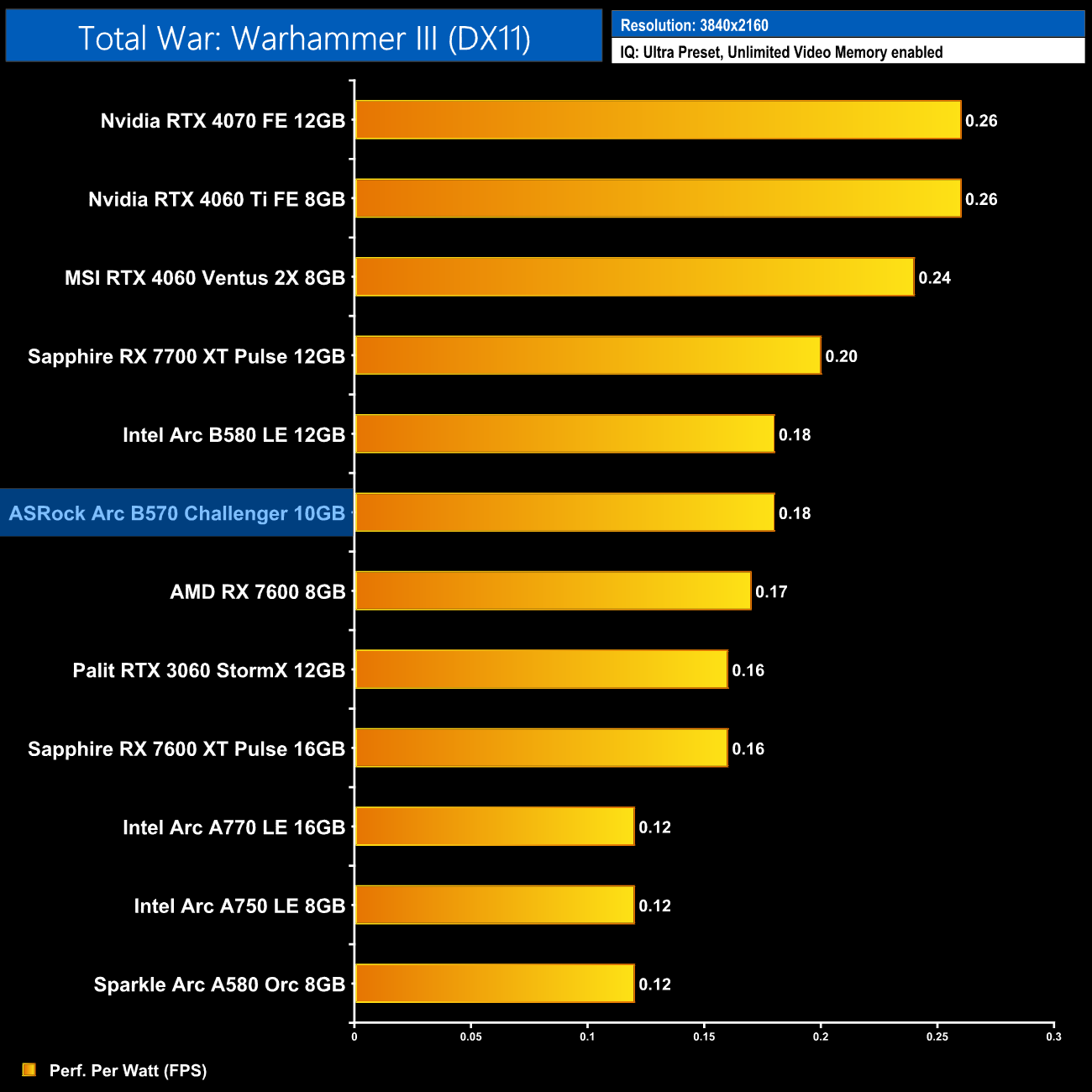

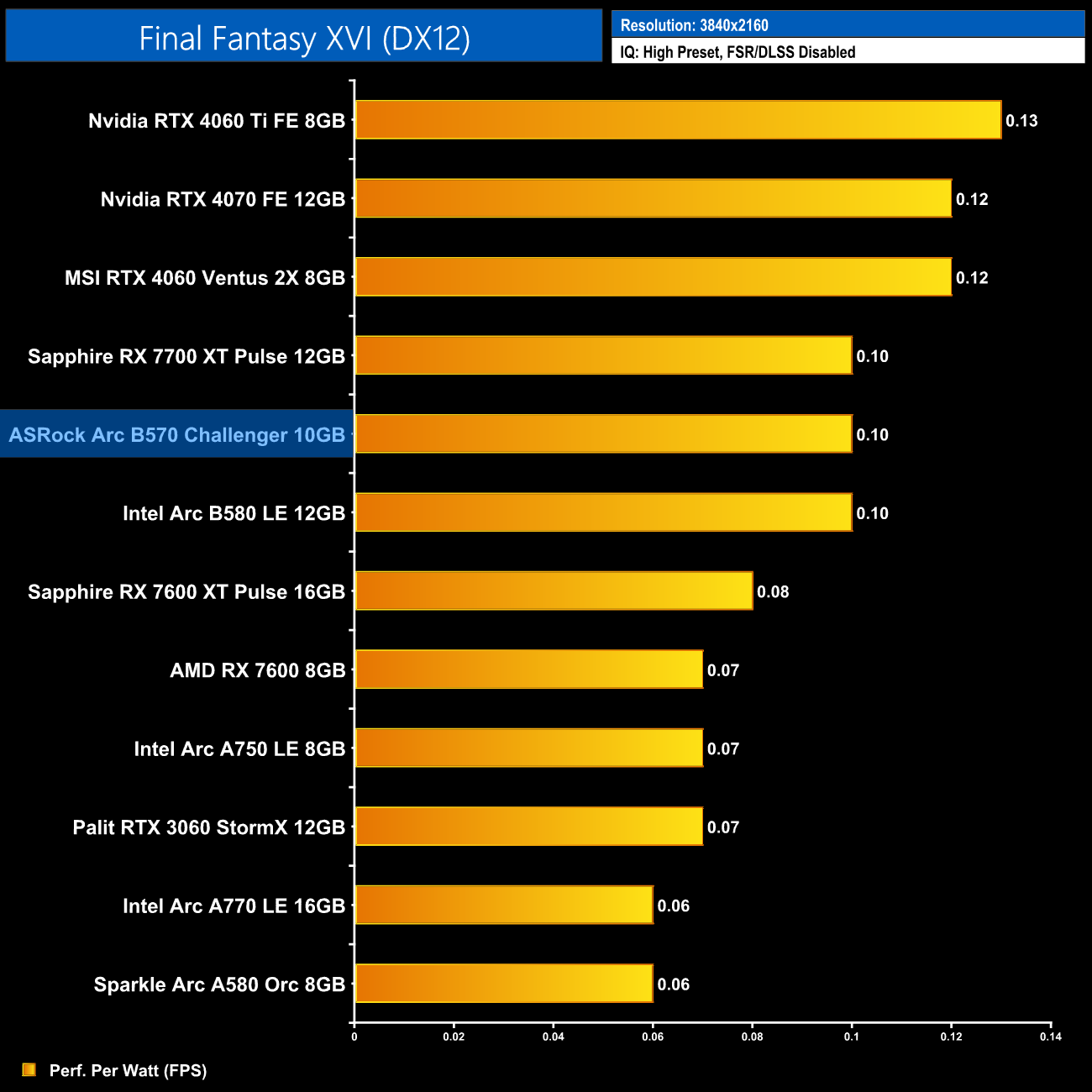

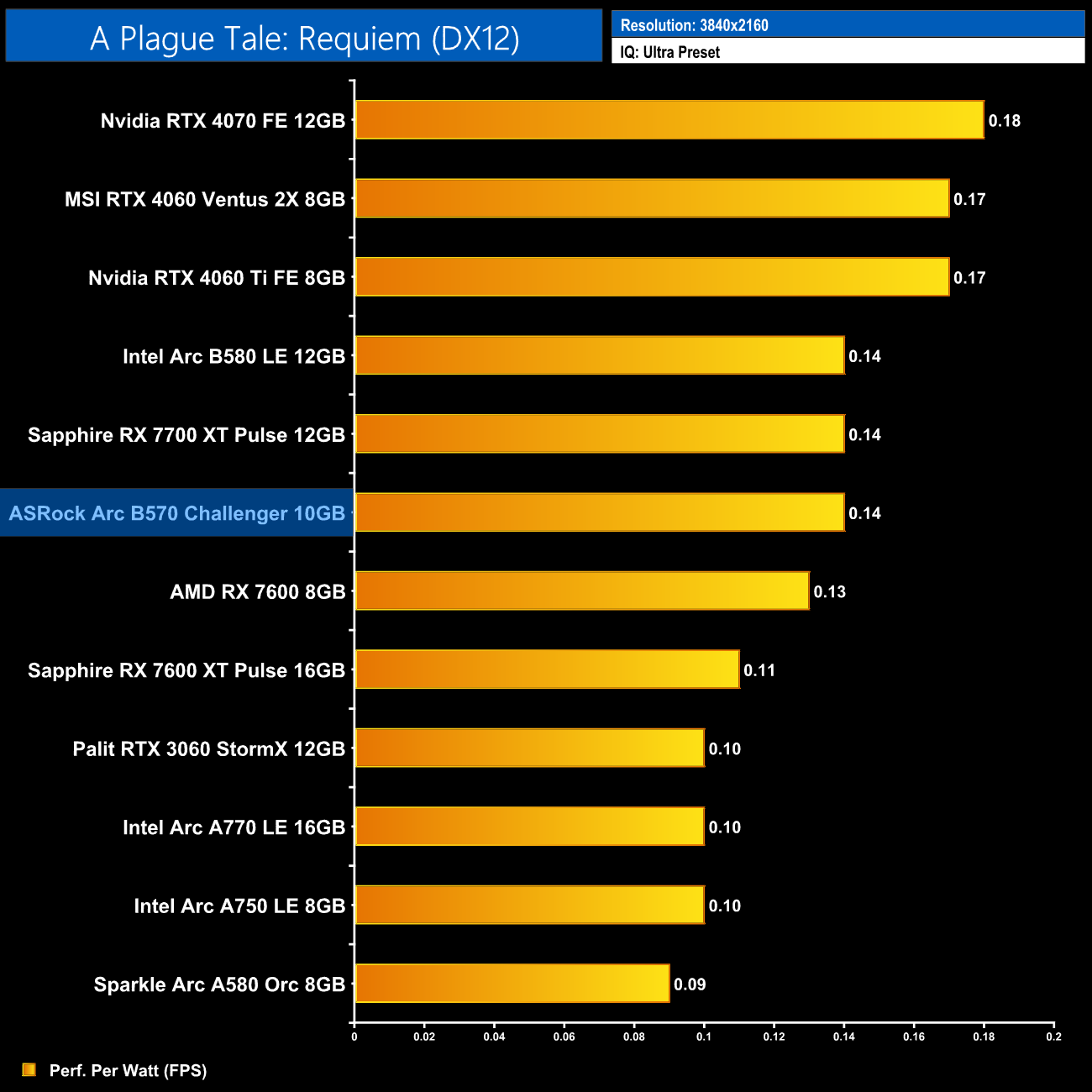

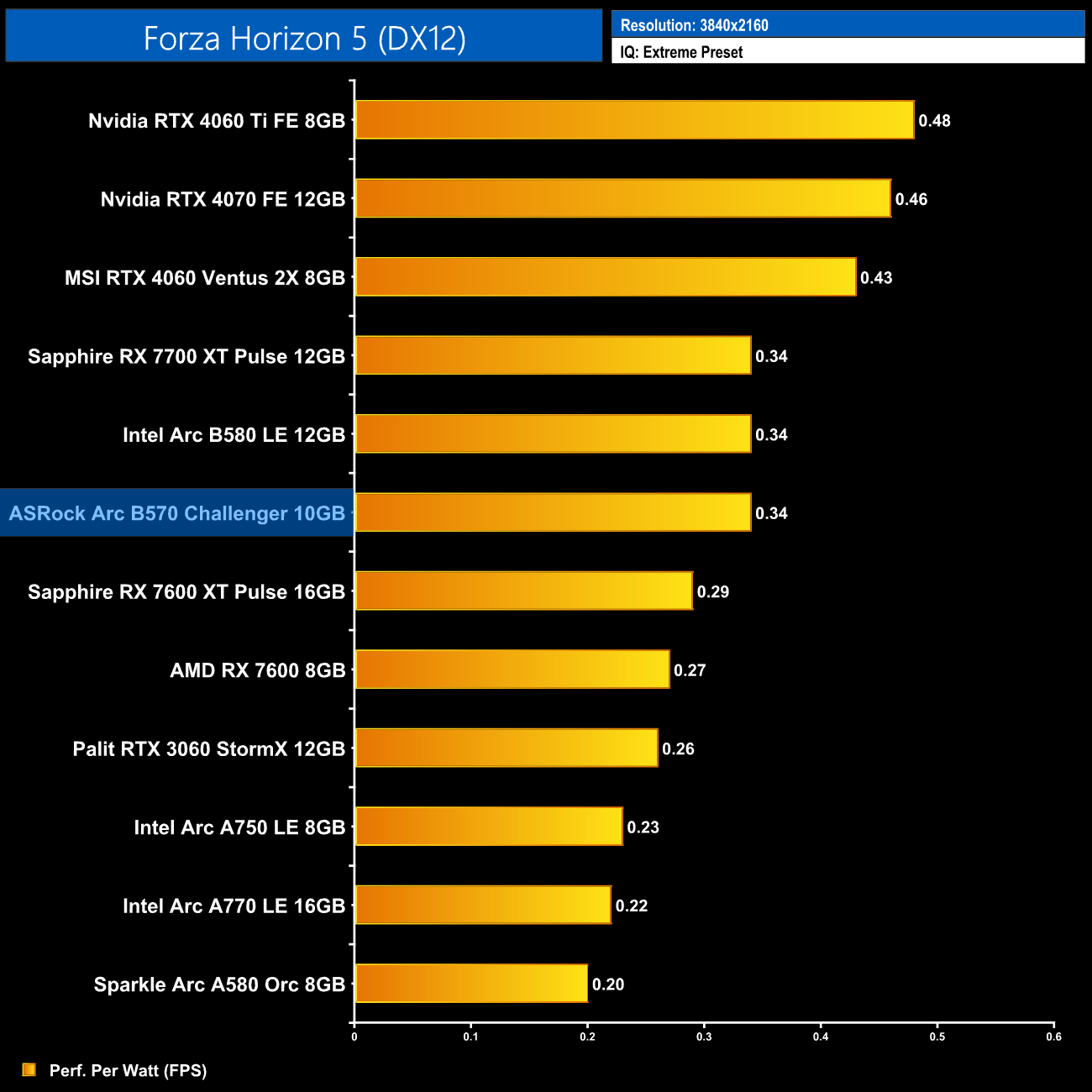

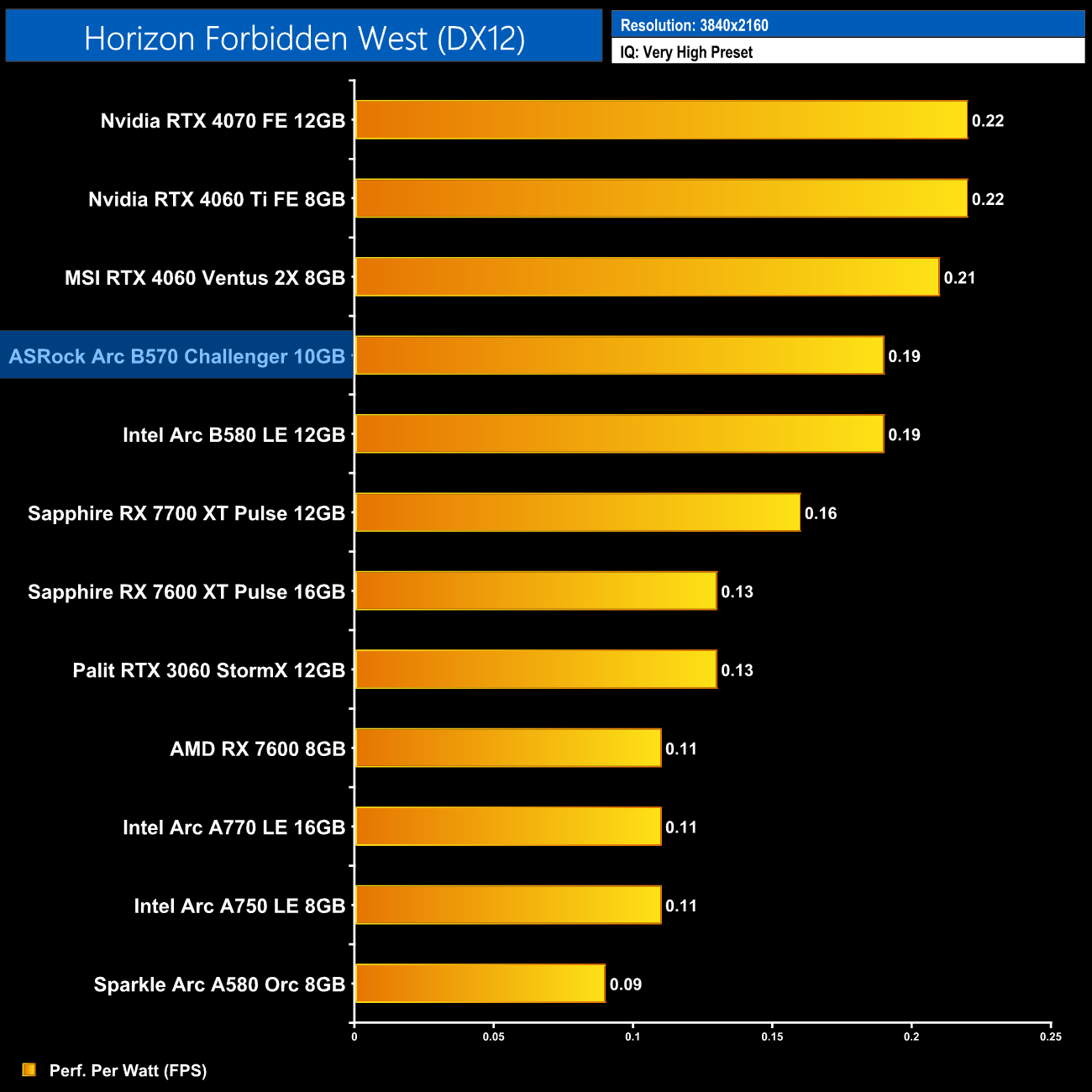

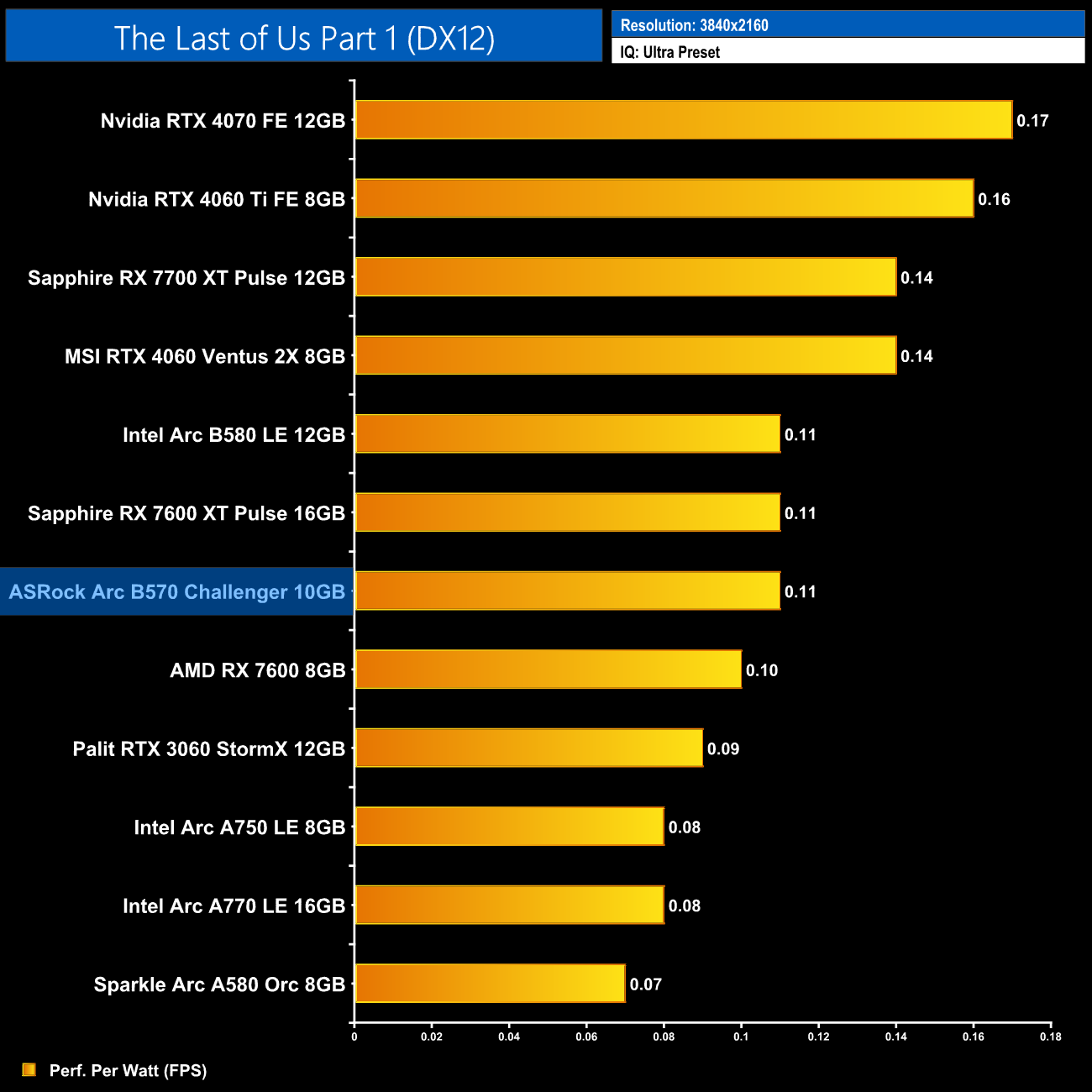

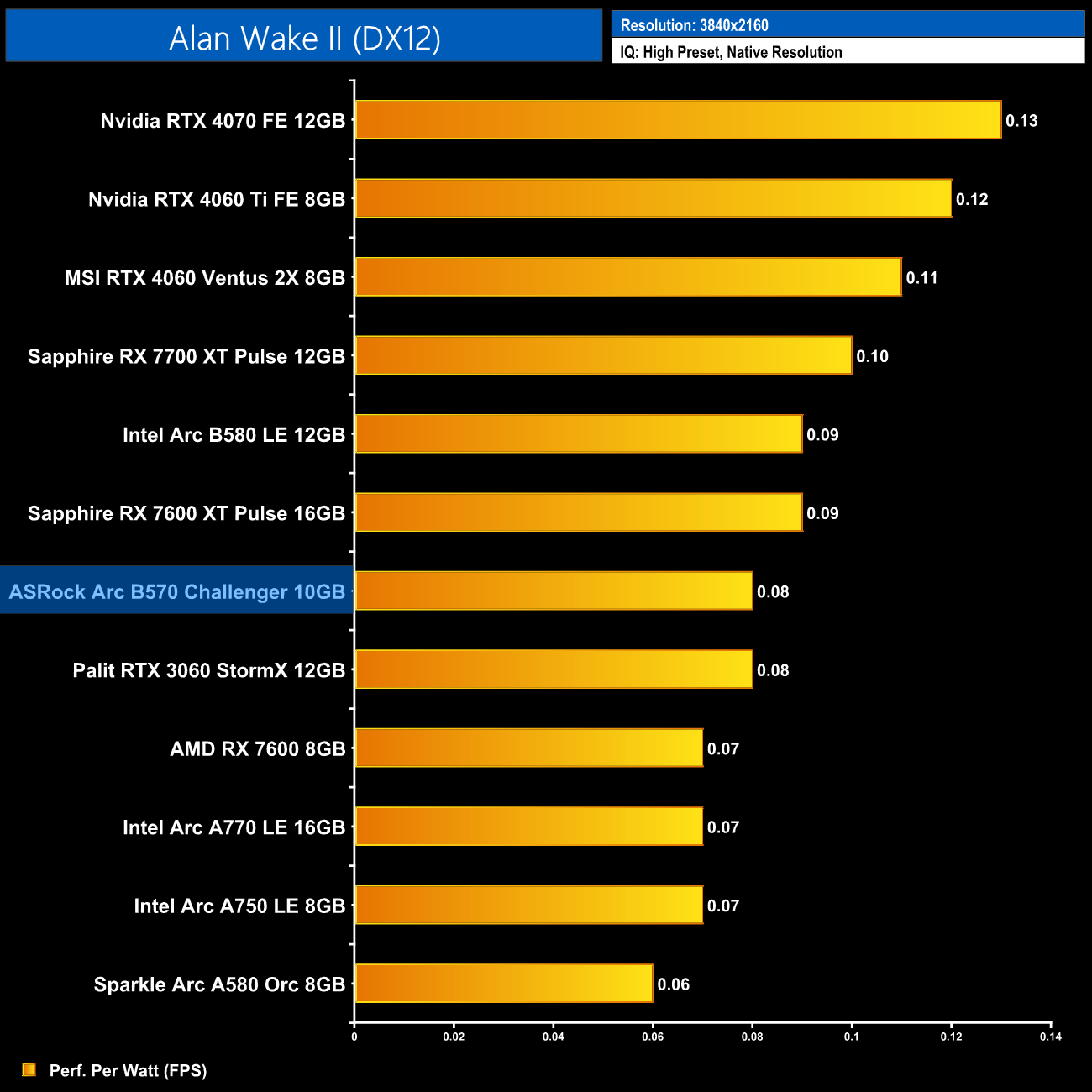

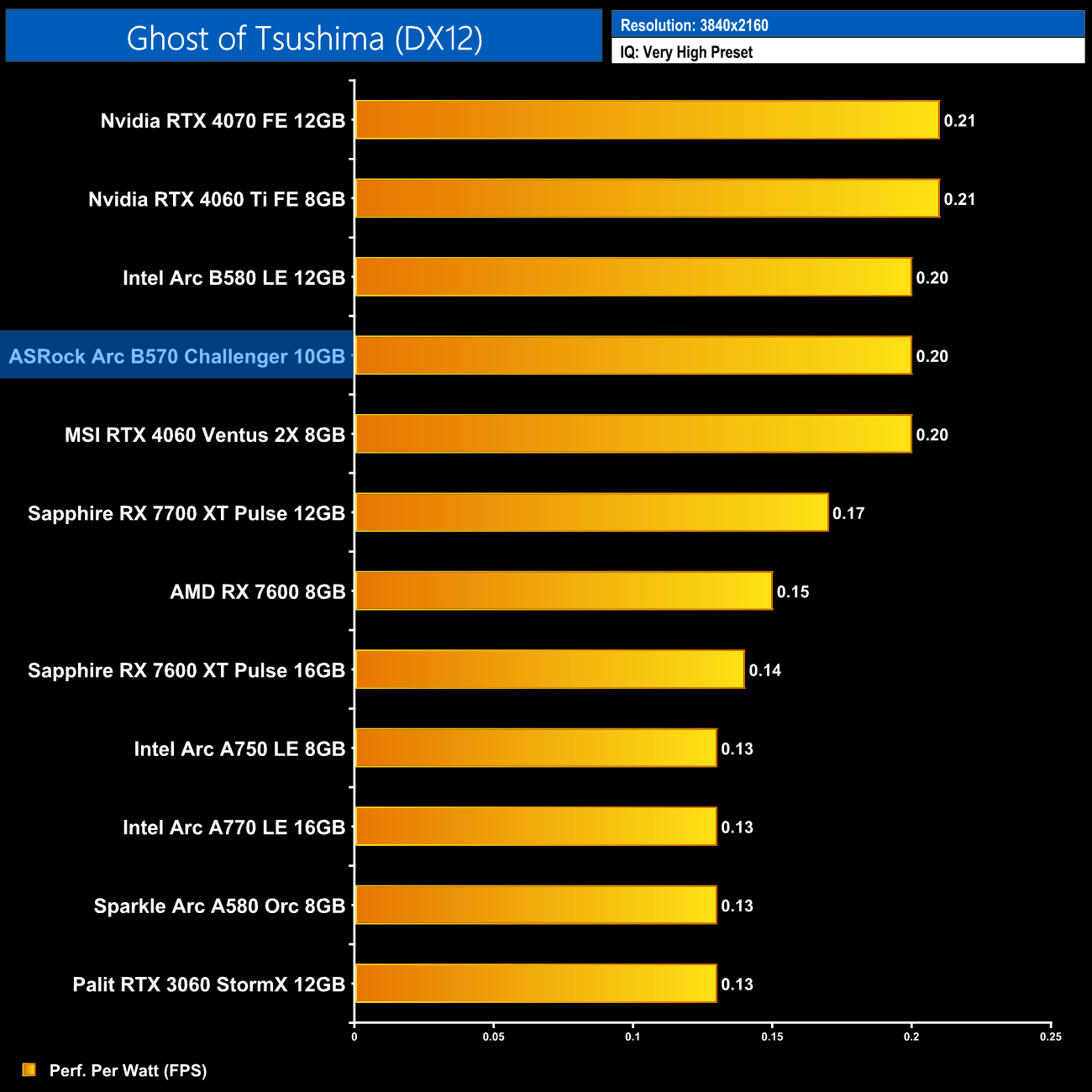

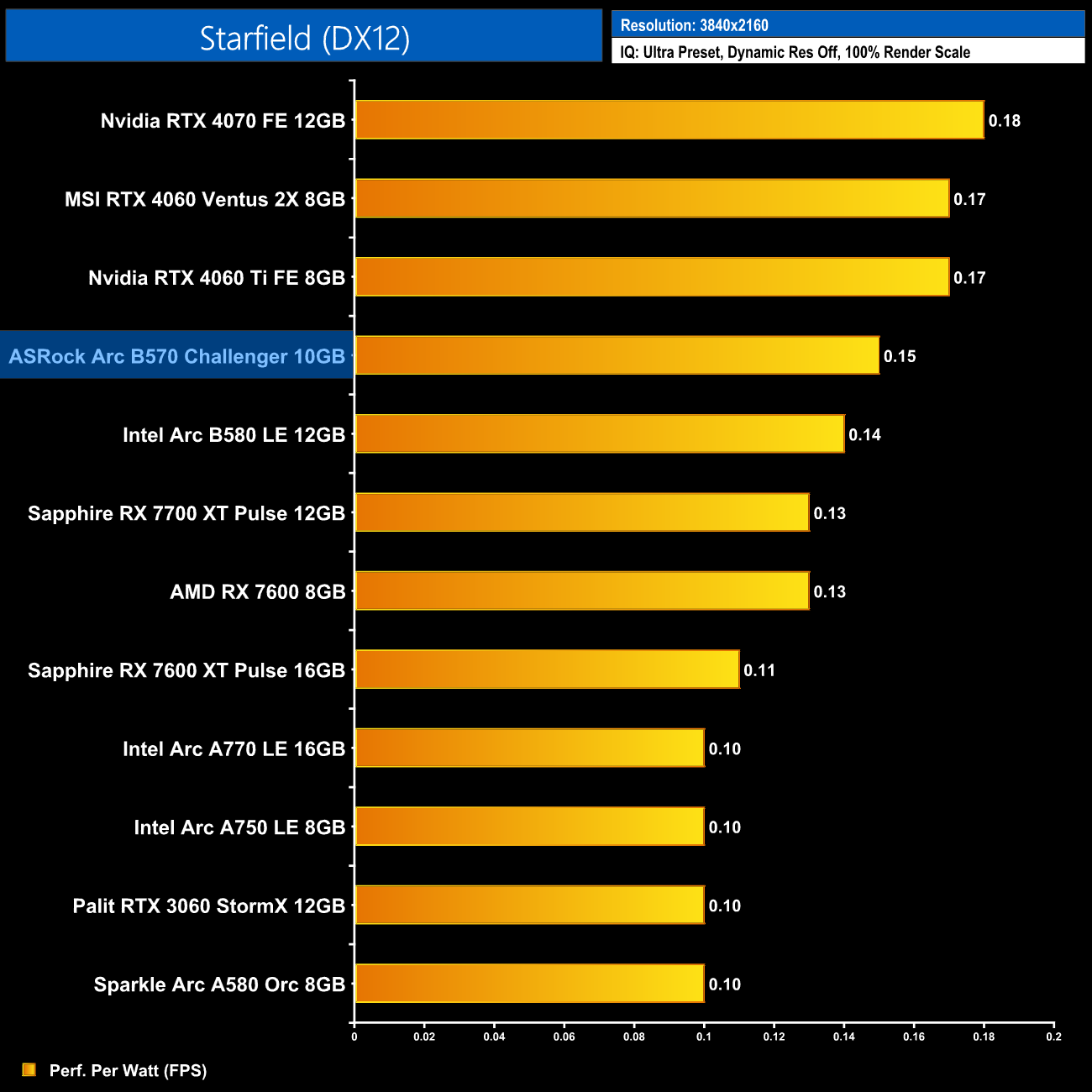

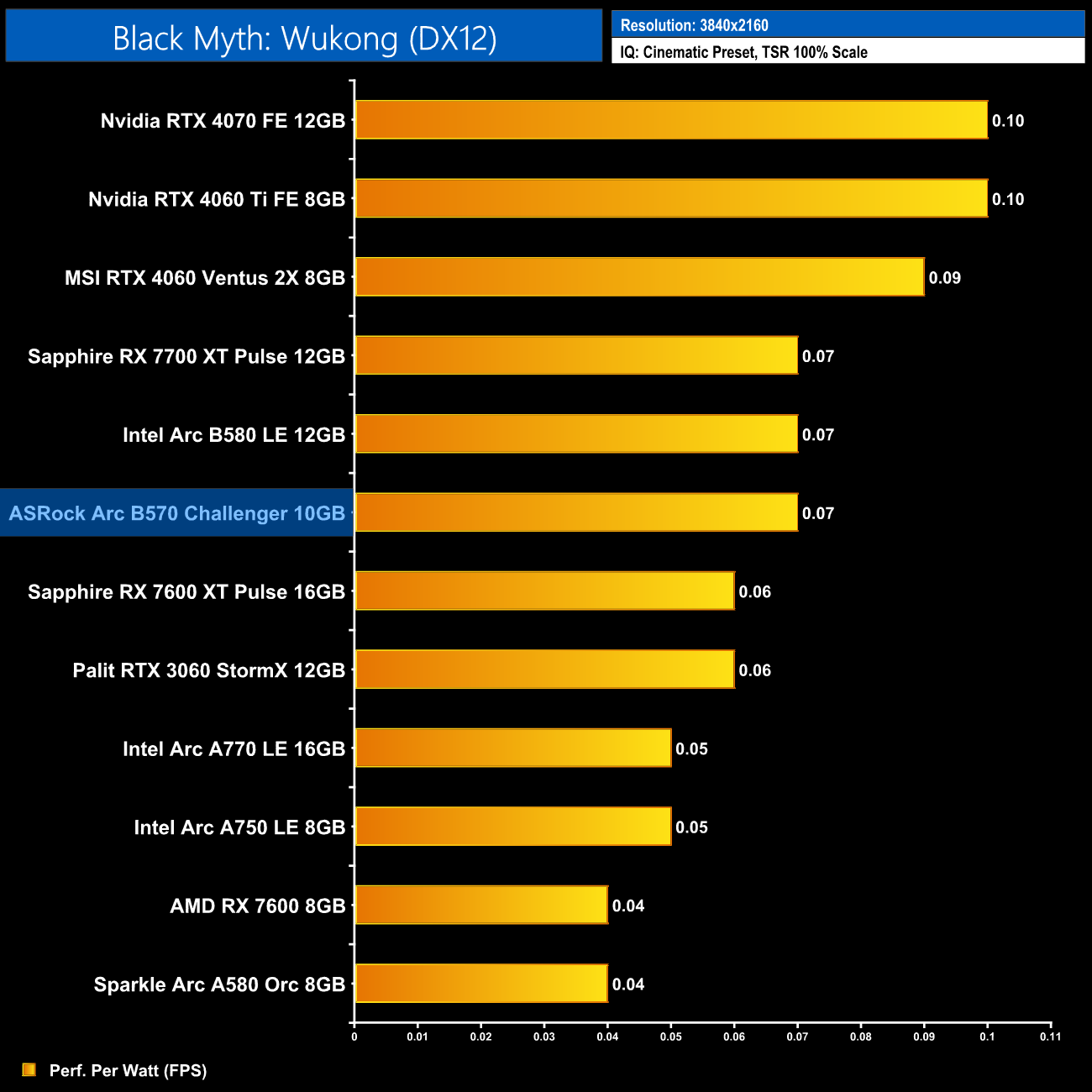

Per-Game Results at 2160p (4K):

Click to enlarge.

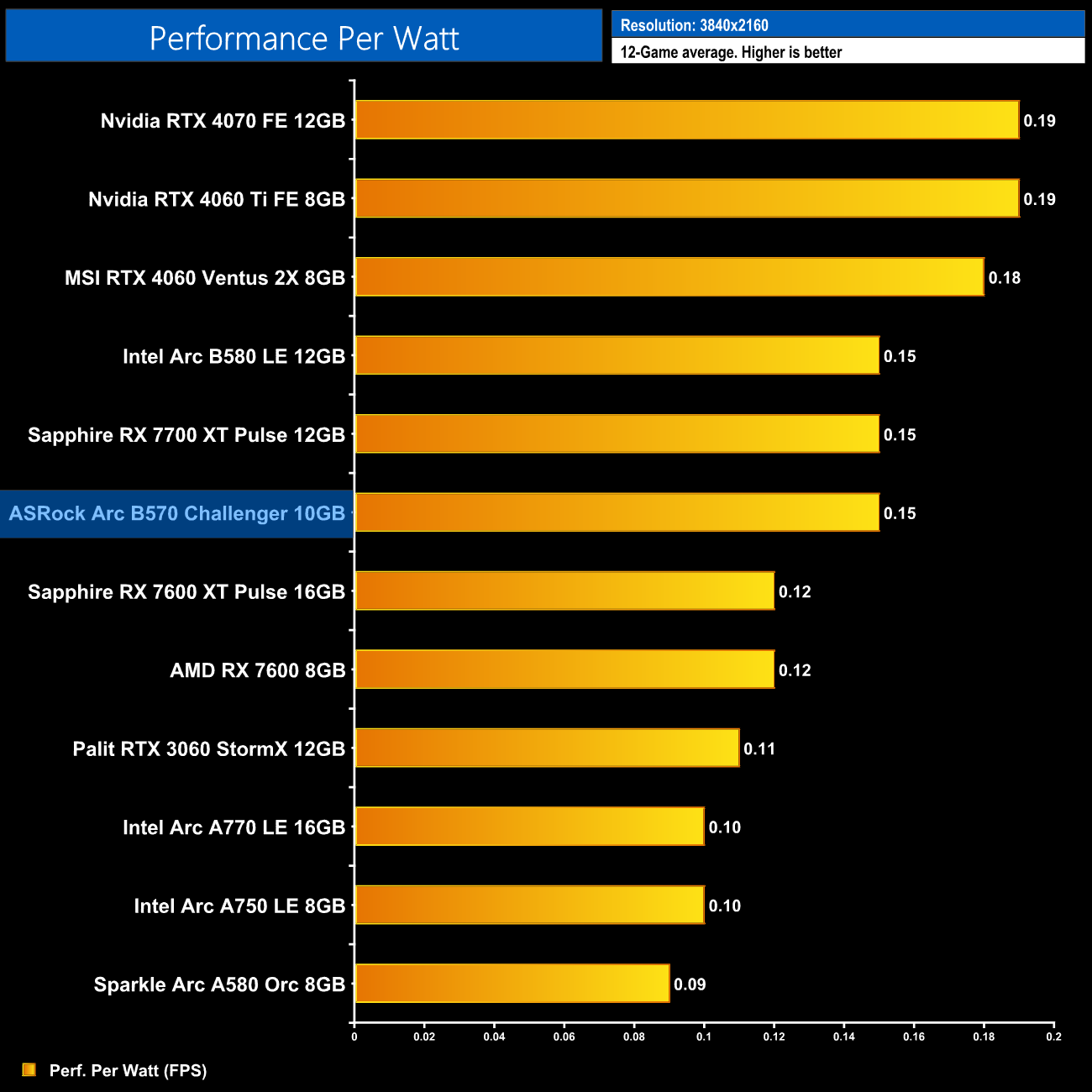

12-Game Average at 2160p (4K):

Not much changes at 4K either, though again, this data is not overly useful in the real world given no one is realistically going to be gaming on a B570 at 4K!

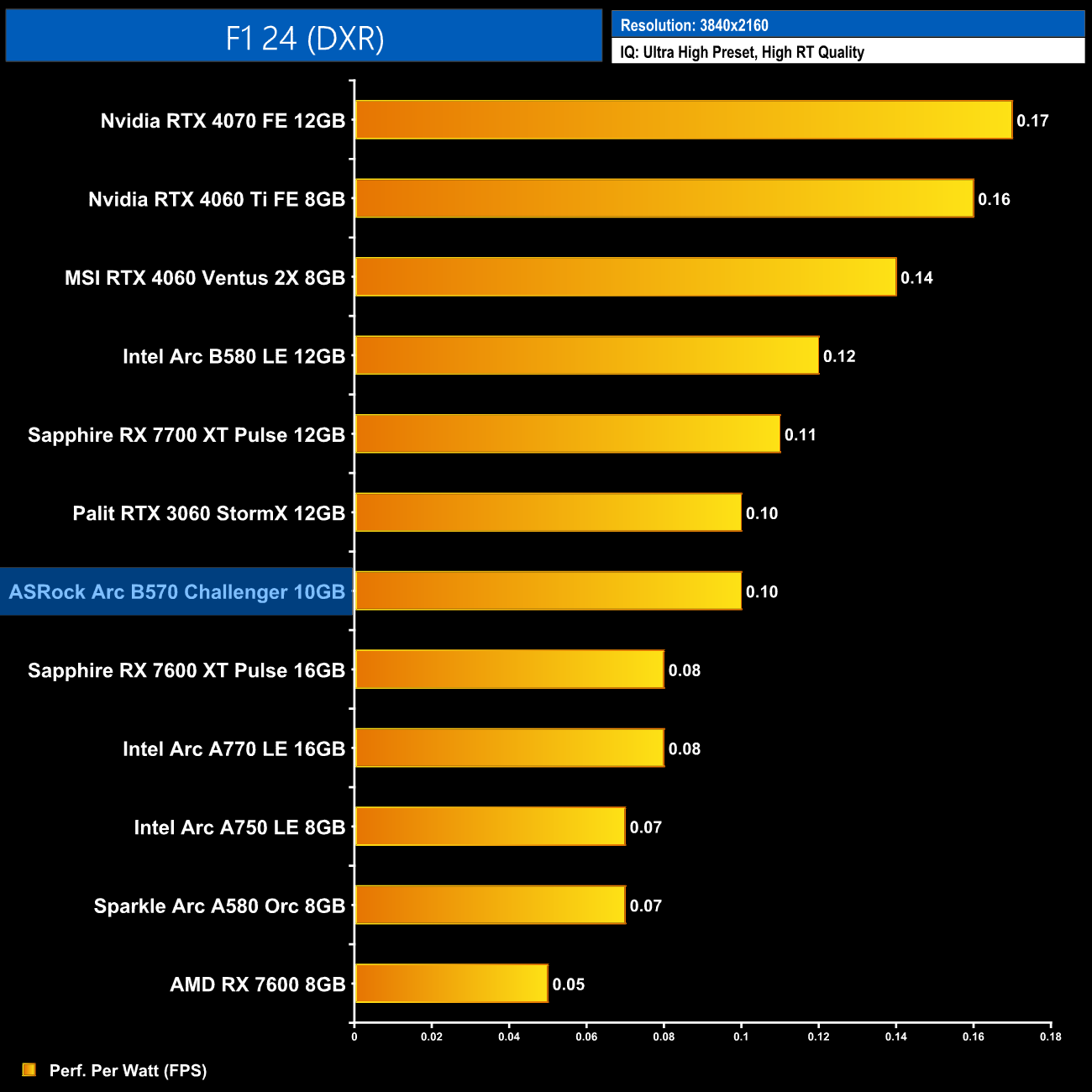

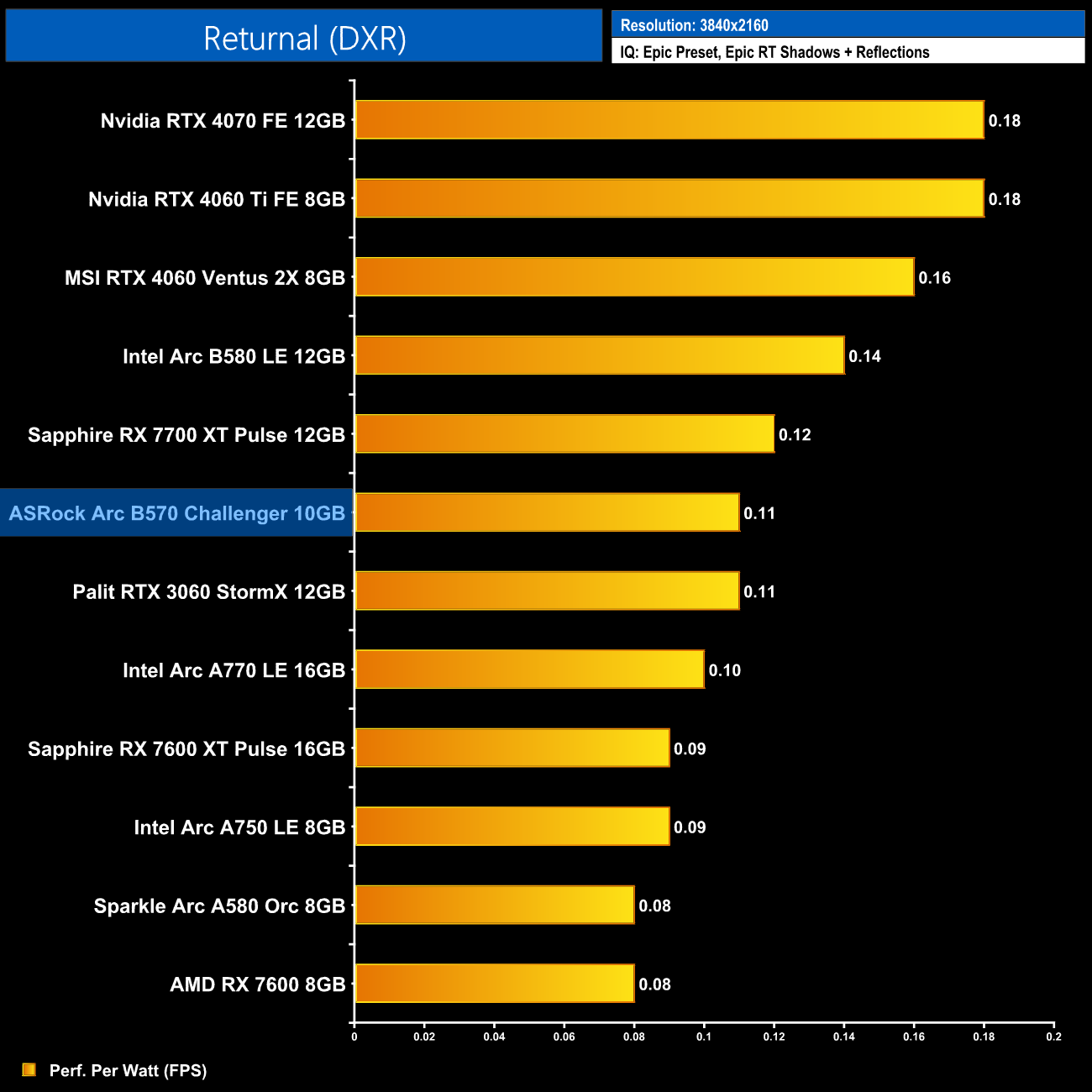

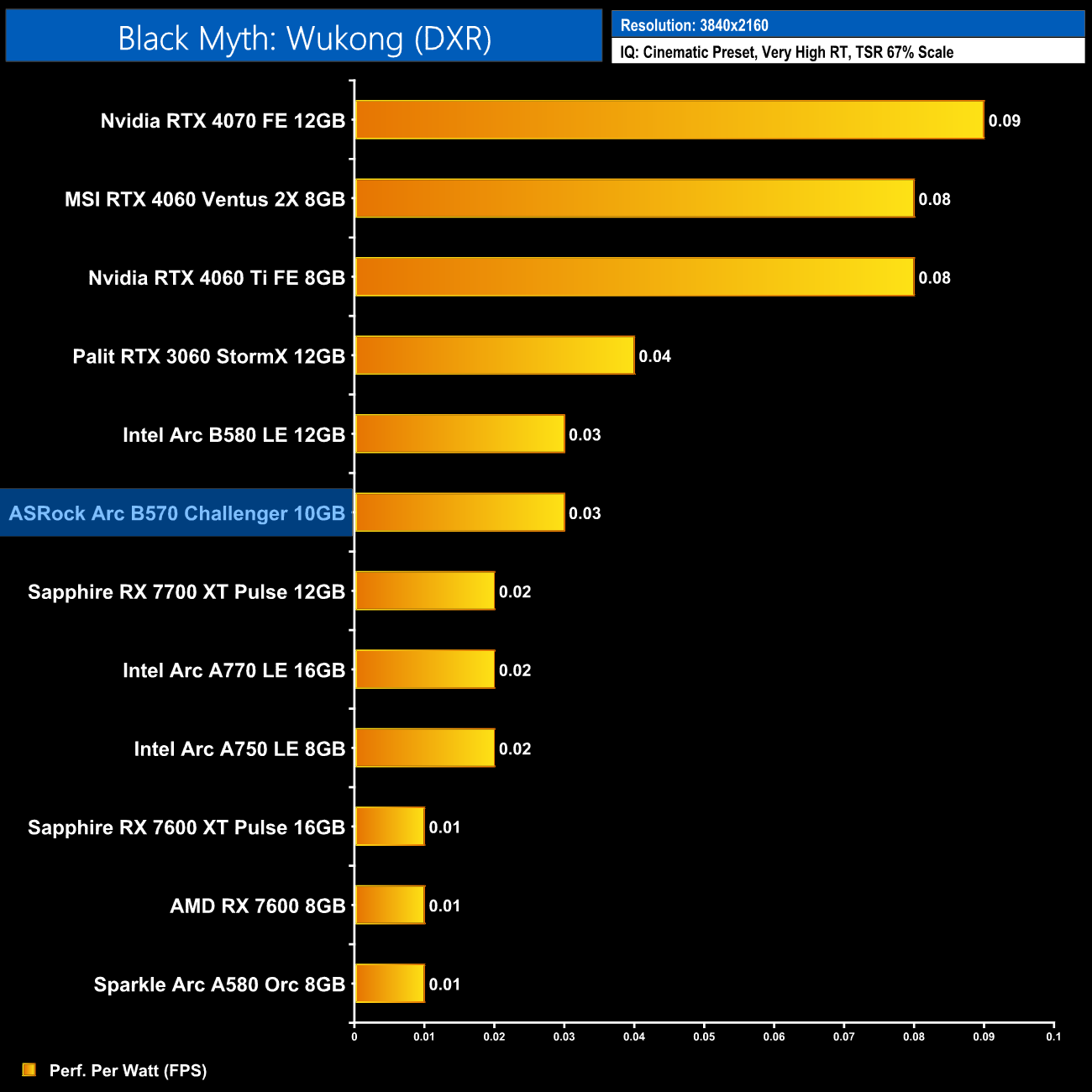

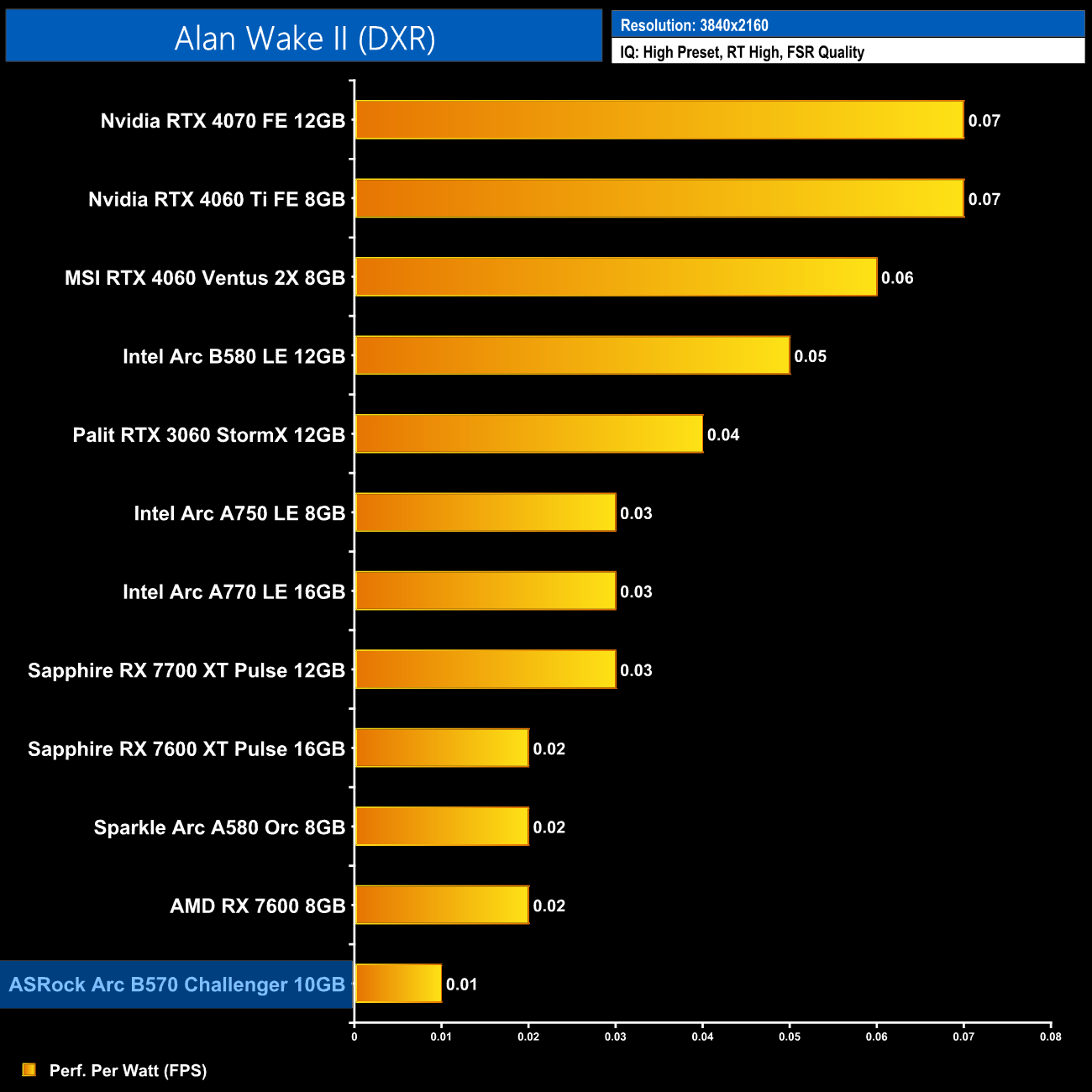

Ray tracing results

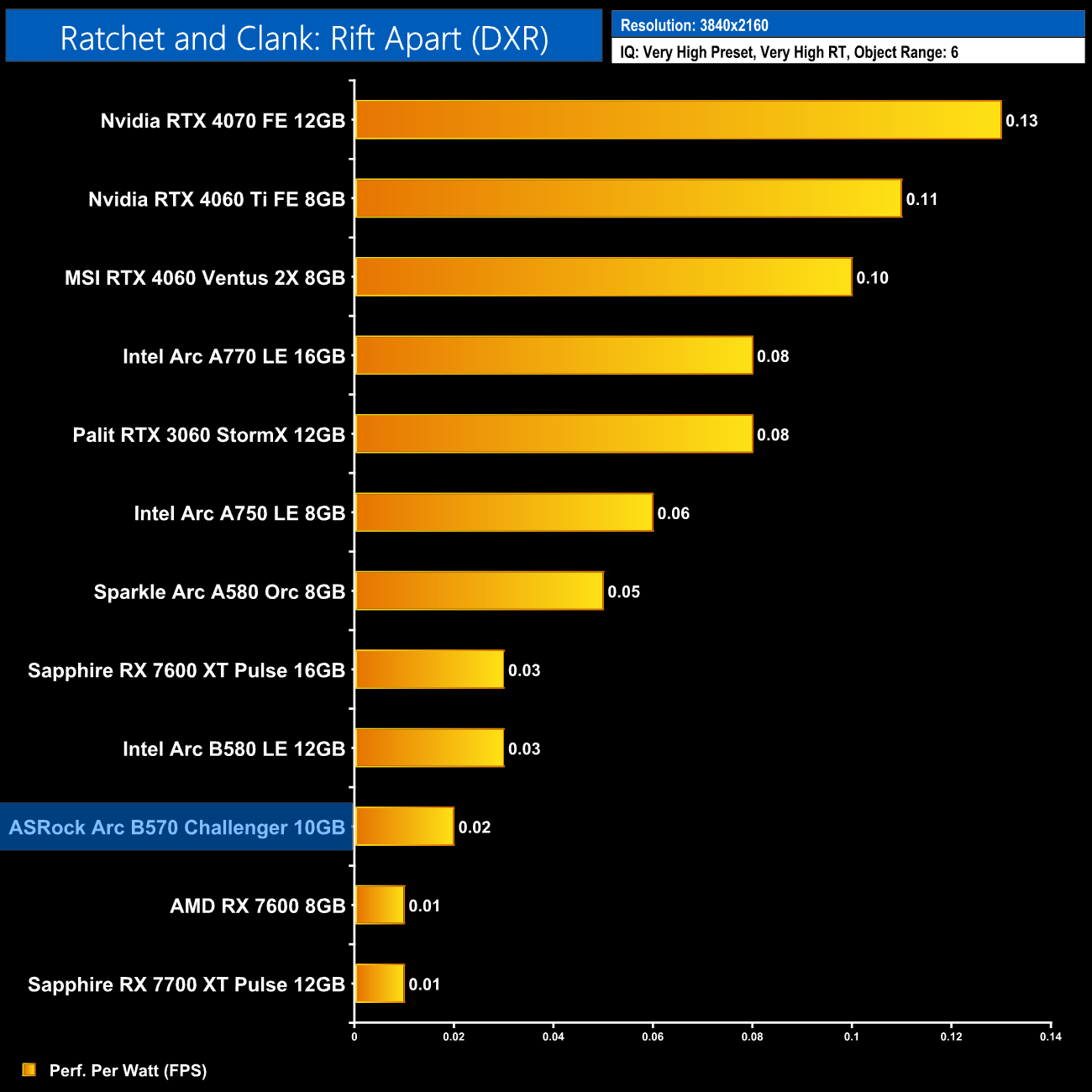

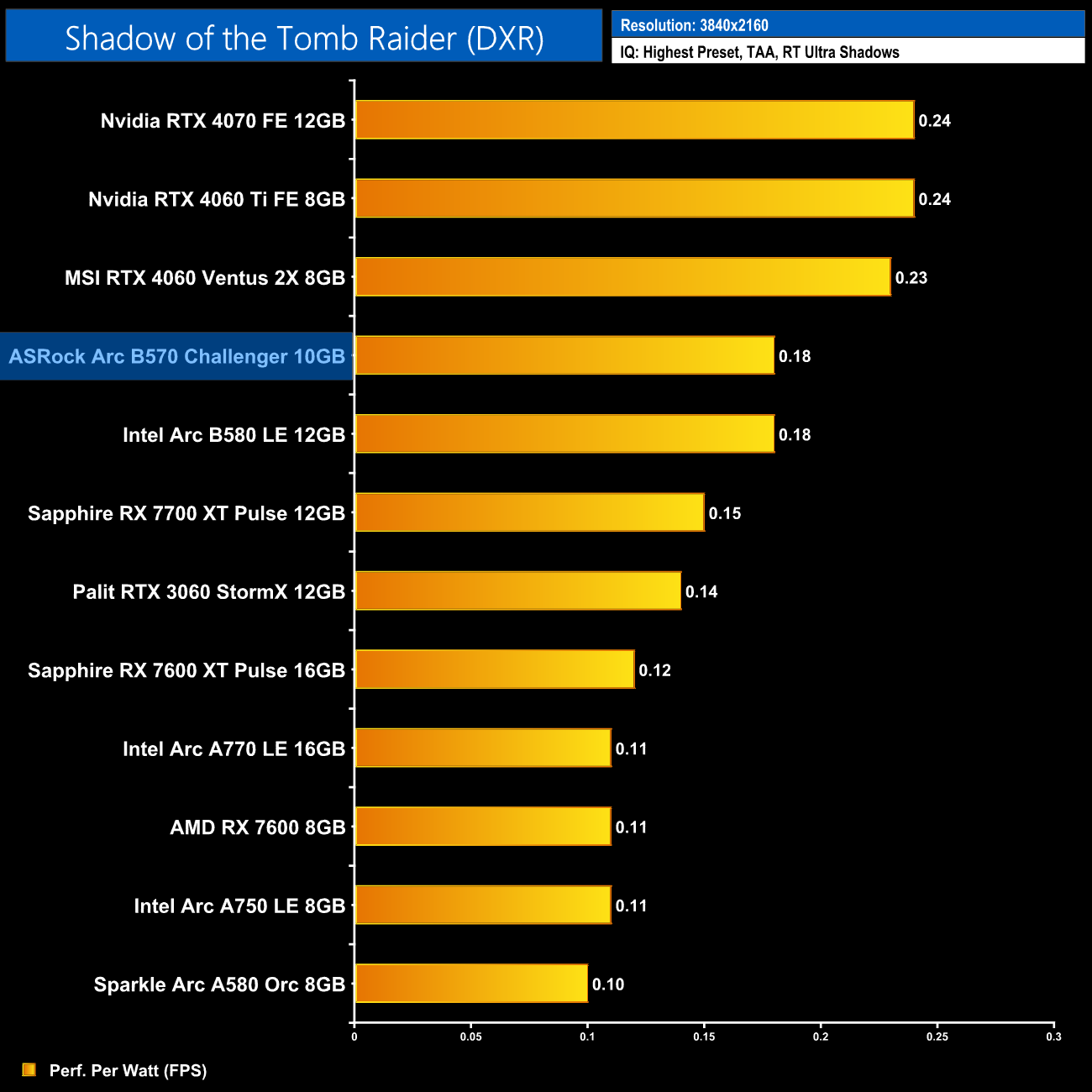

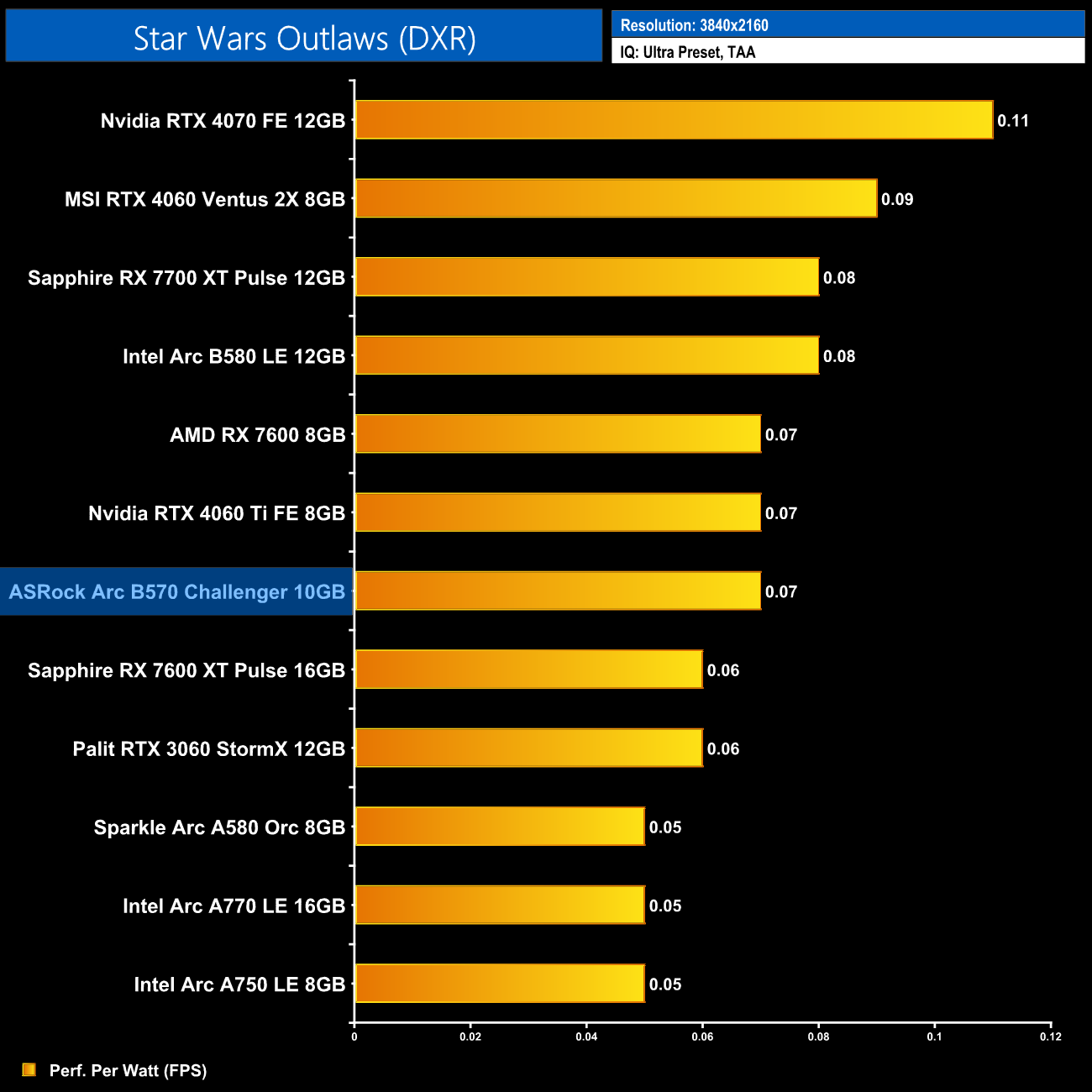

As a bonus, we now include the power figures for all six games we test with ray tracing enabled.

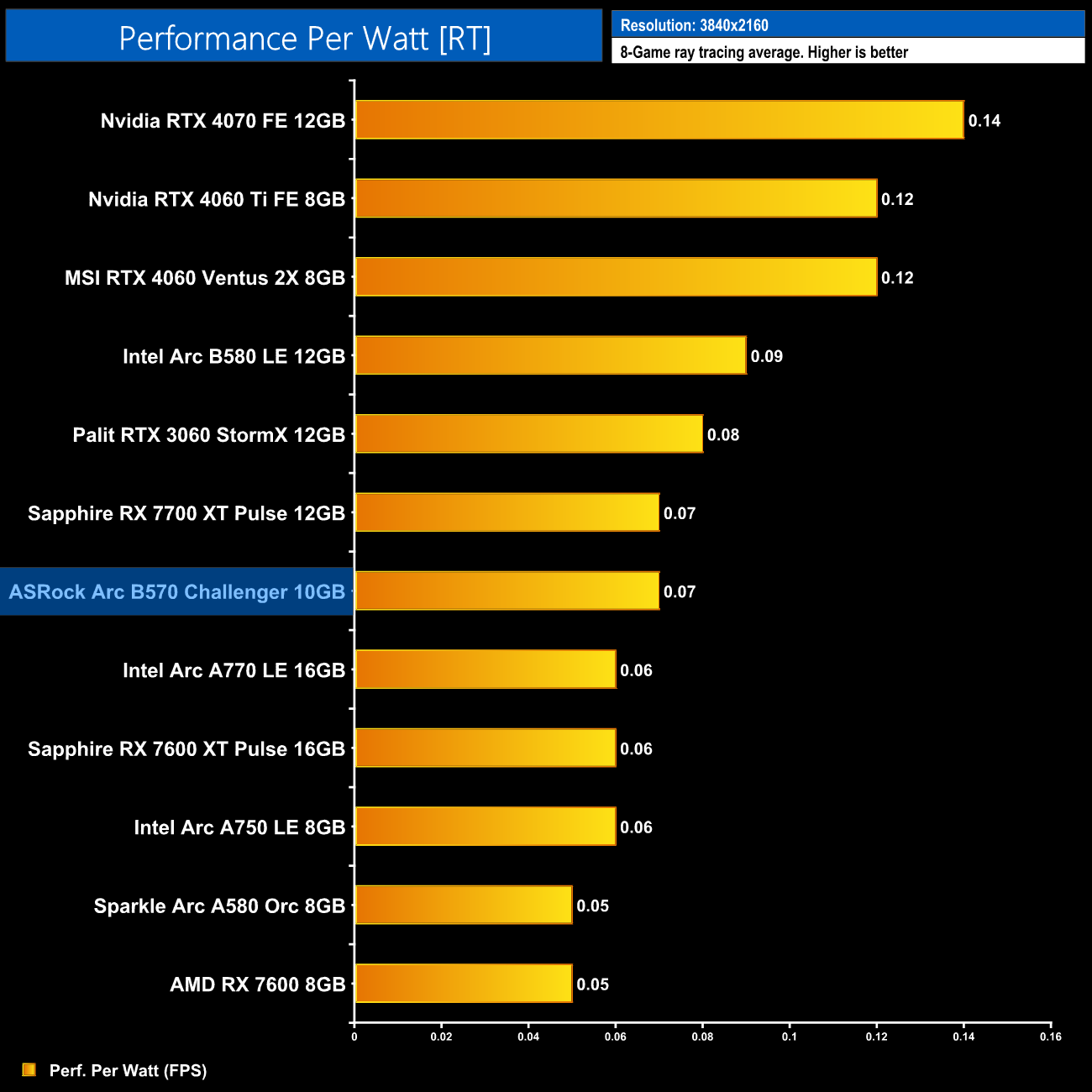

8-Game ray tracing average:

The same goes for the RT data.
