Using the graphics card-only power draw figures presented earlier in the review, here we present performance per Watt on a per-game basis for all twelve games we tested at 1080p.

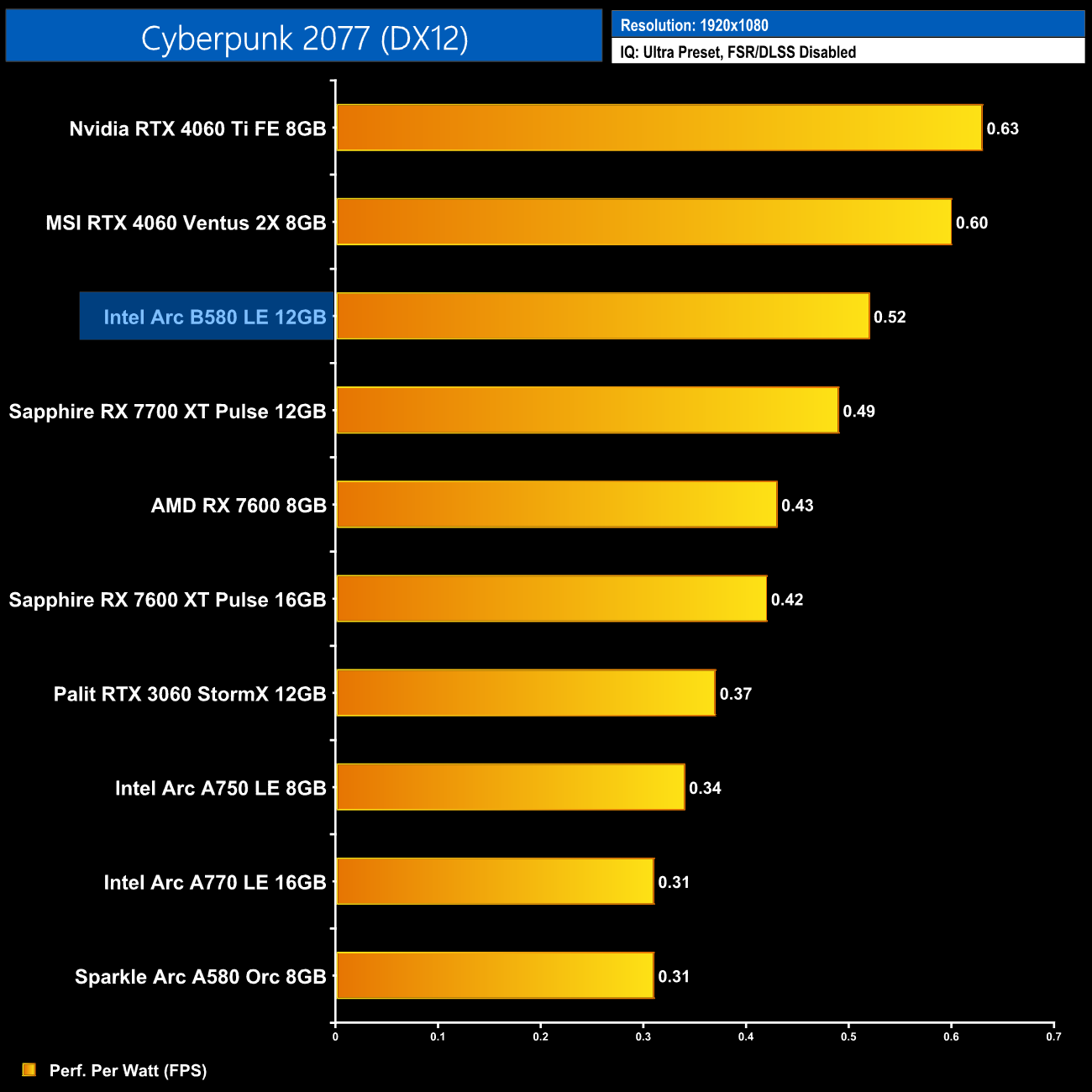

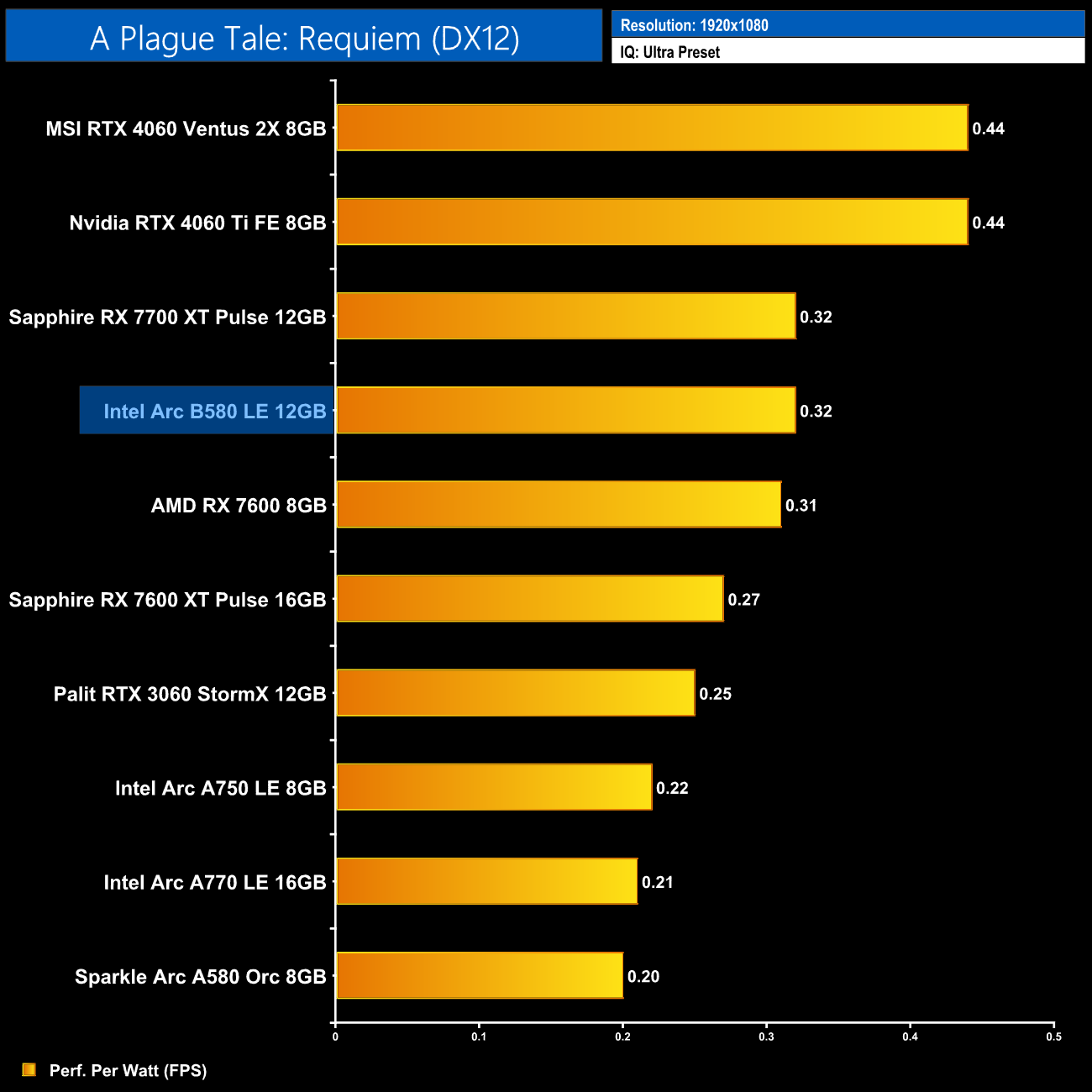

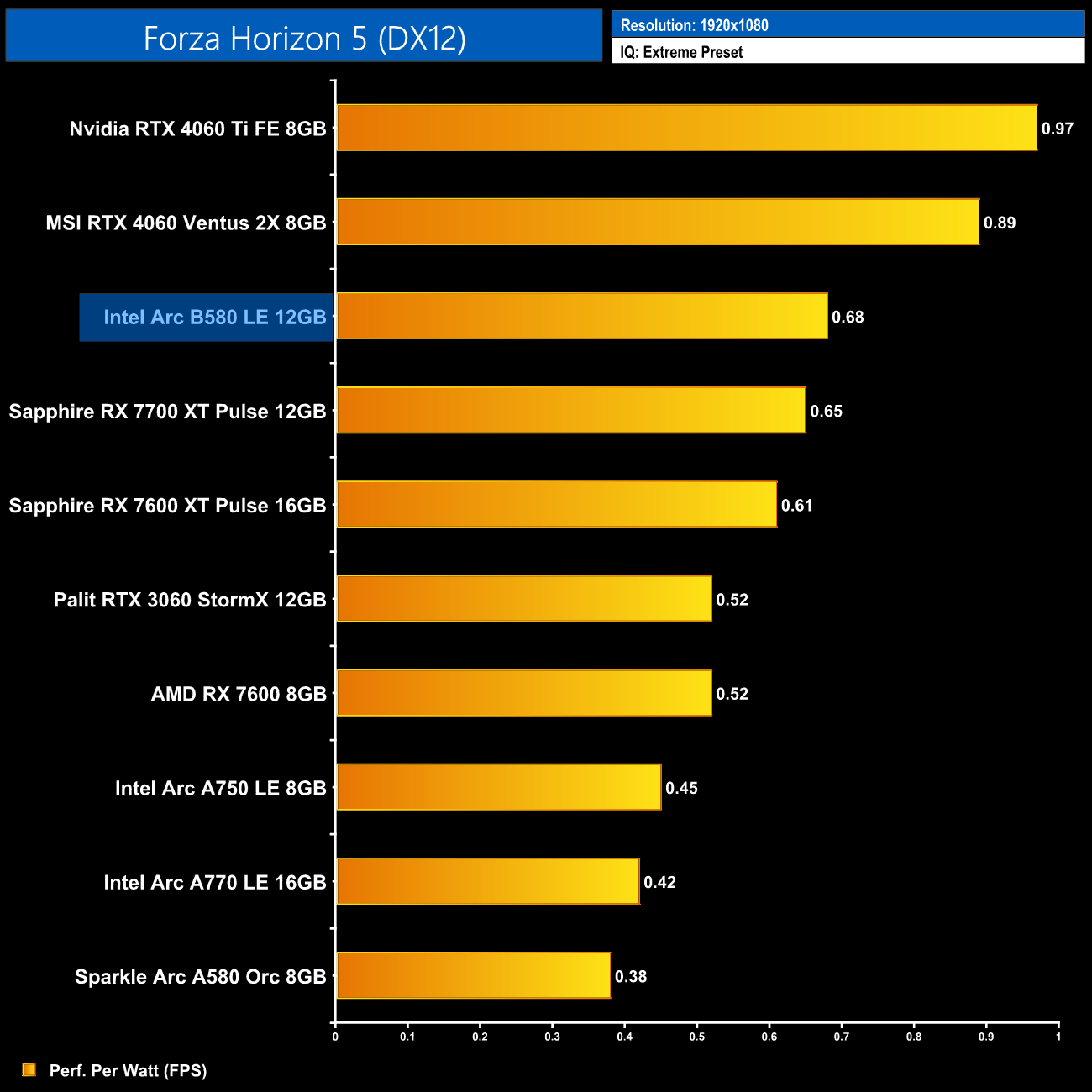

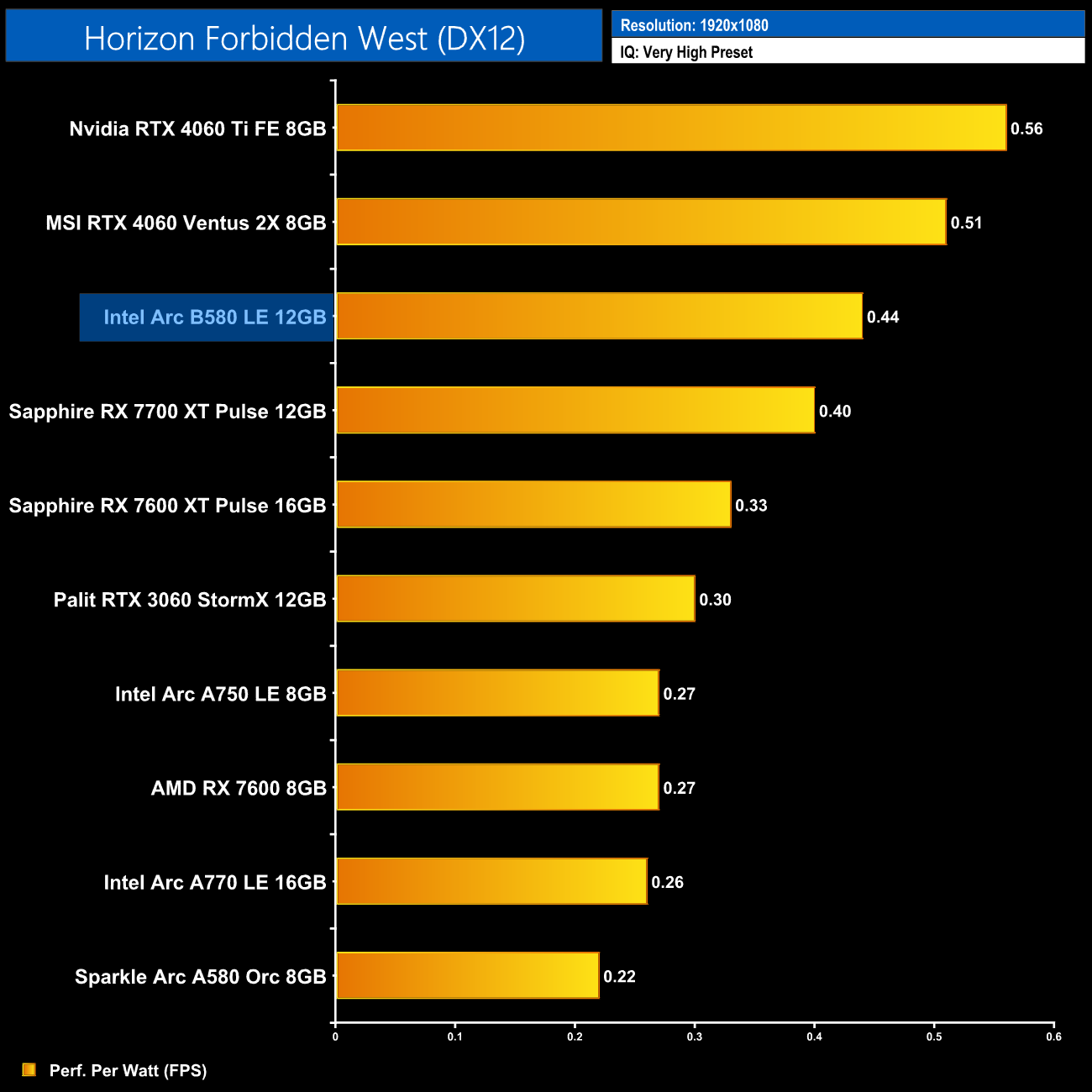

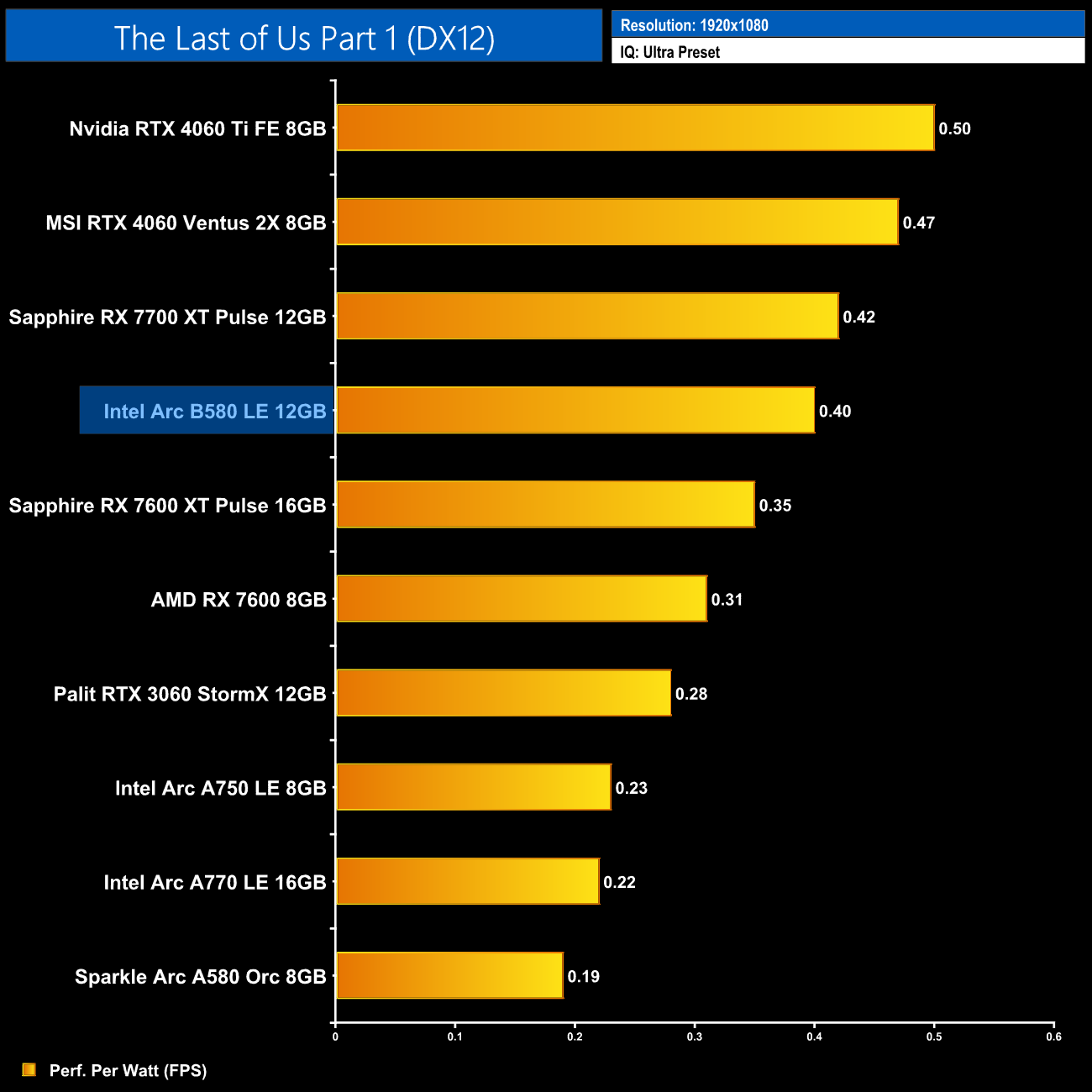

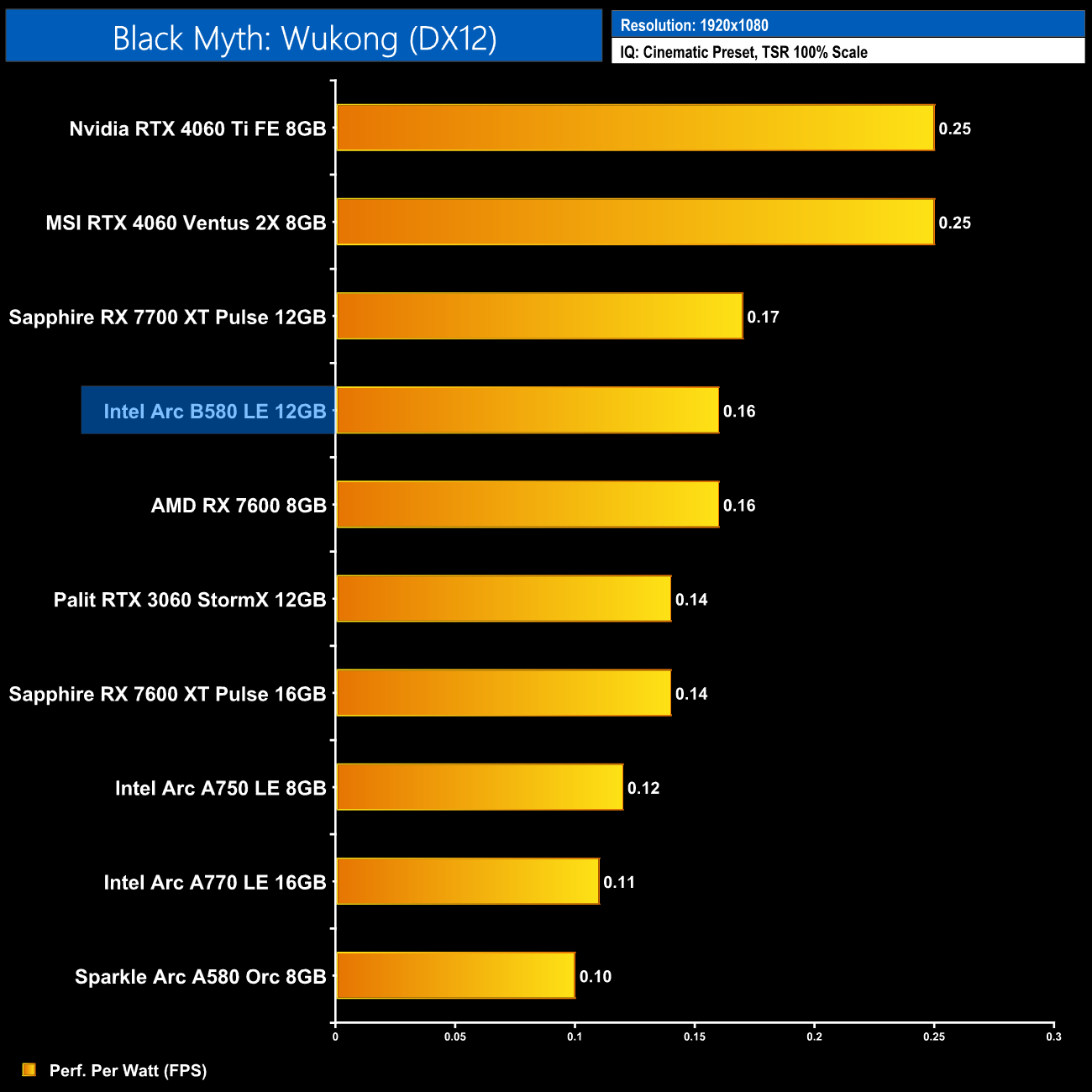

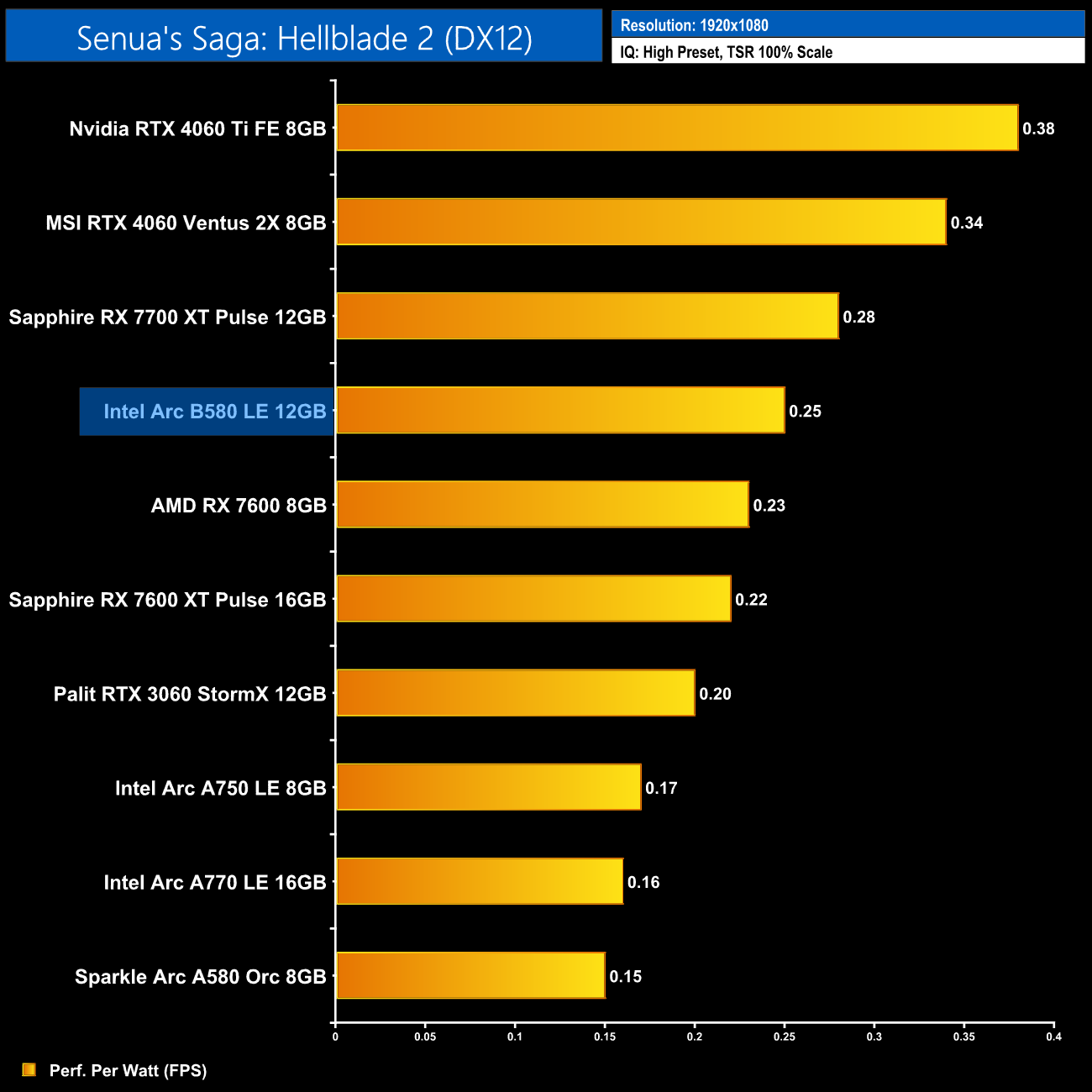

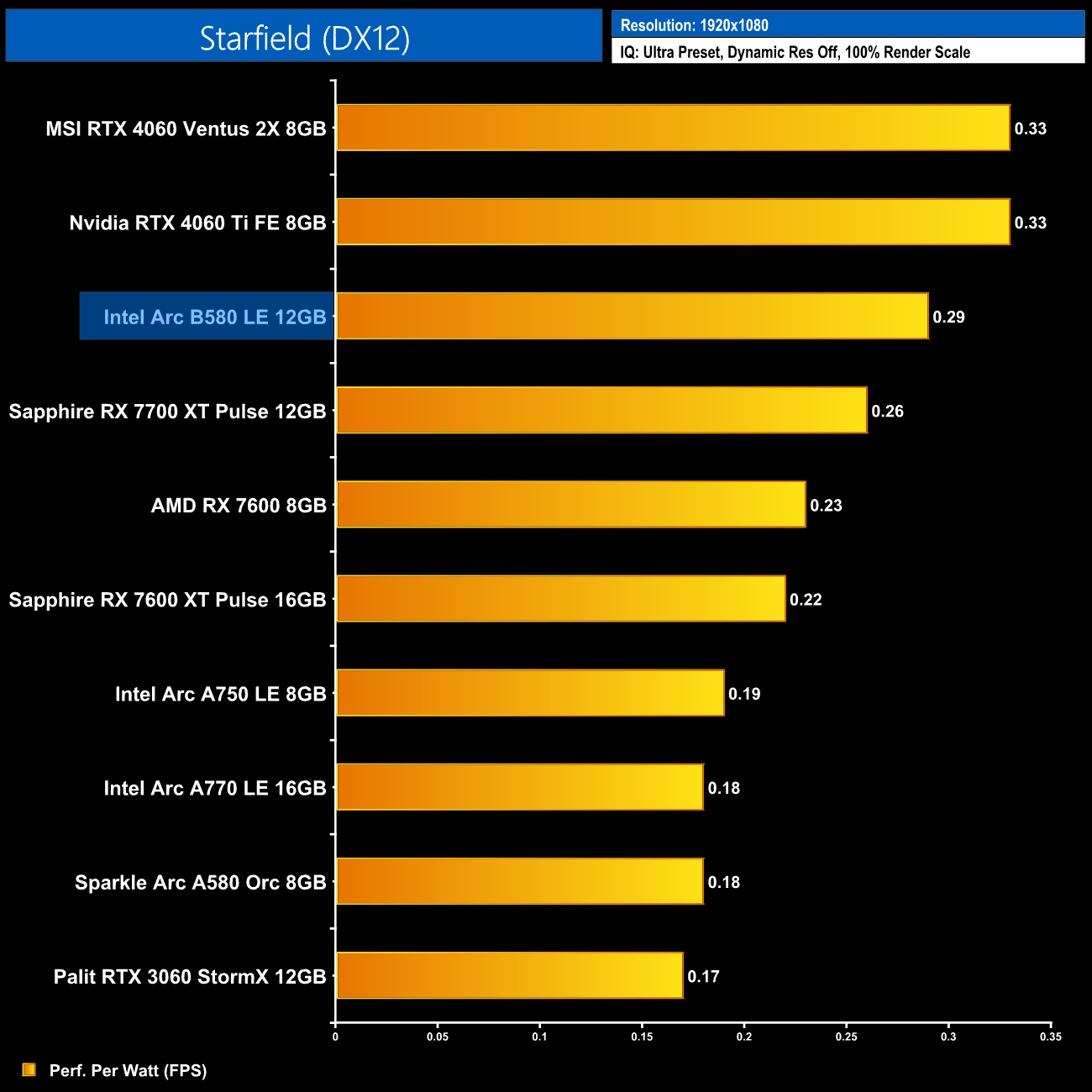

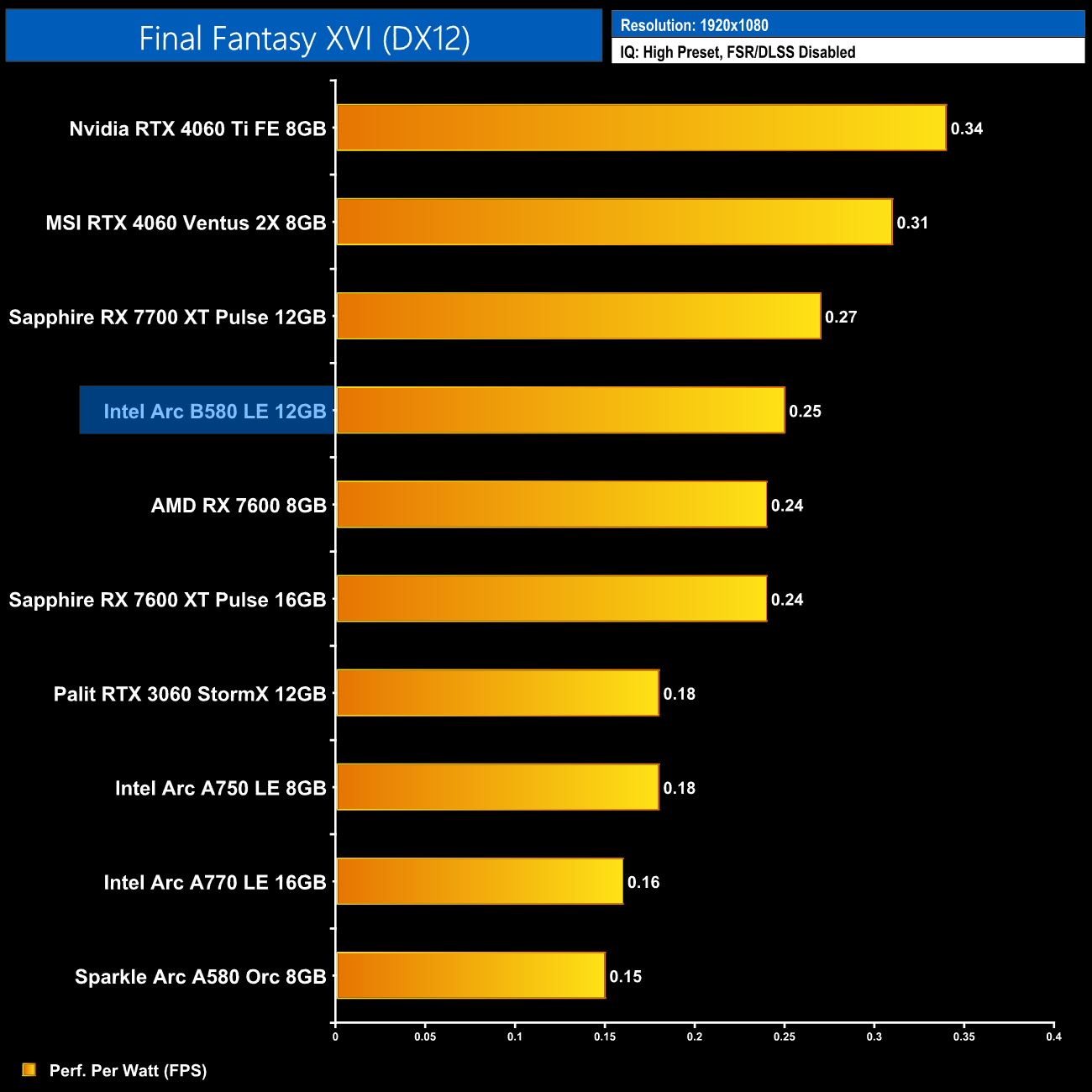

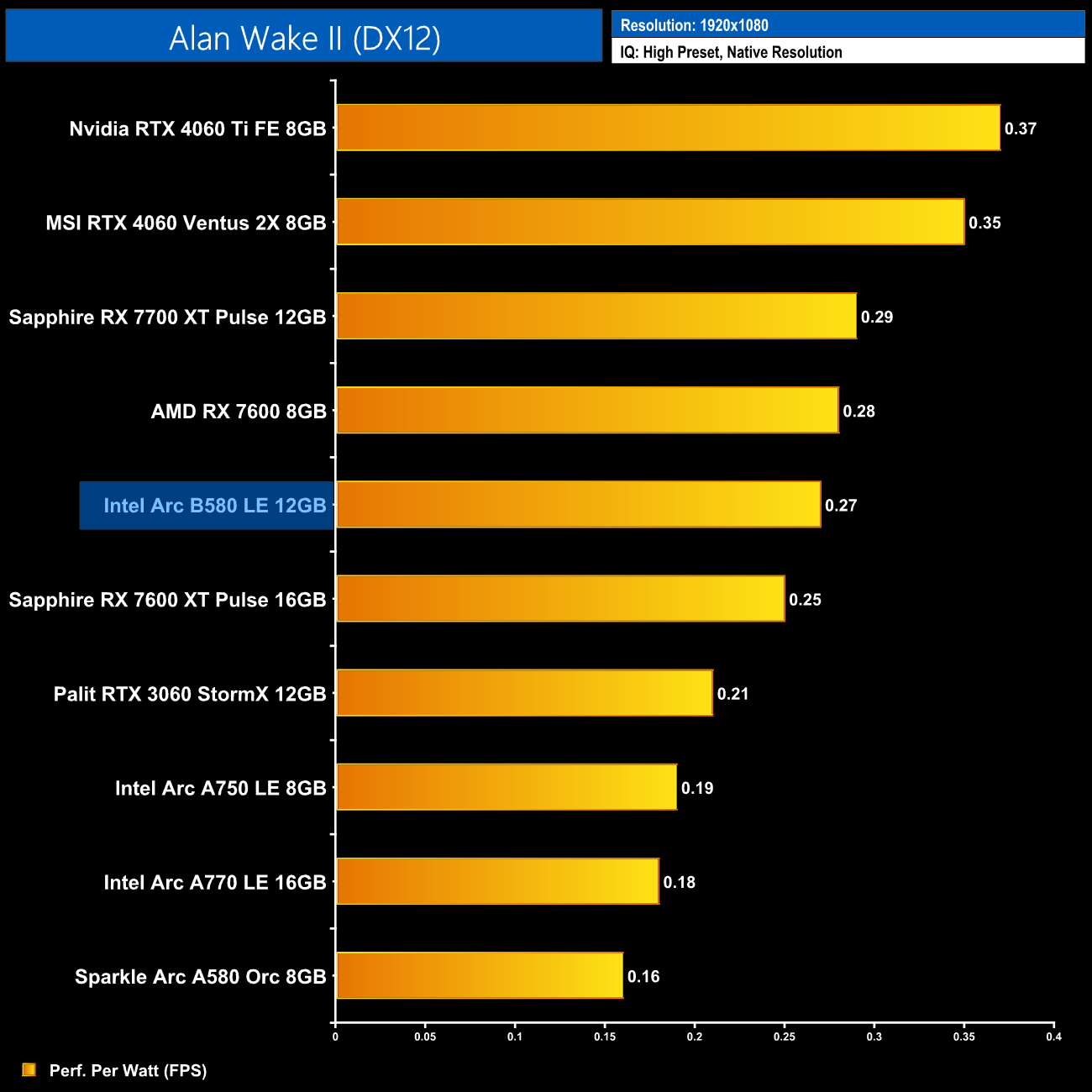

Per-Game Results at 1080p:

Click to enlarge.

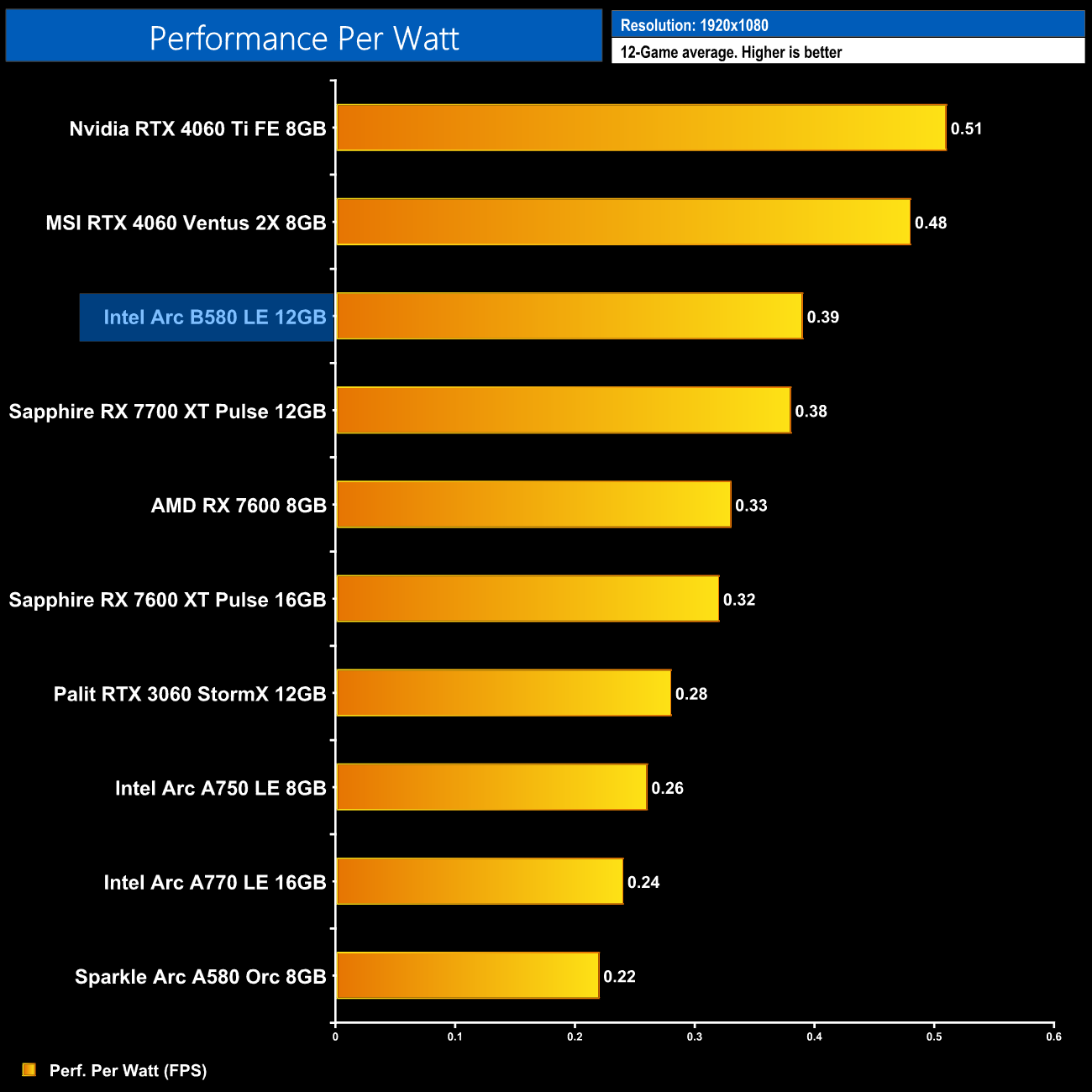

12-Game Average at 1080p:

As we thought, overall efficiency has come on hugely versus Alchemist. Intel claims a 50% improvement to performance per Watt, a figure I was able to match exactly when comparing the B580 to the A750 at 1080p. That does mean the B580 lags behind the RTX 40-series and Ada Lovelace, but it's already on par – if not slightly more efficient than RDNA 3, so I'd say this is a hugely impressive leap for just a single generation.

Ray tracing results

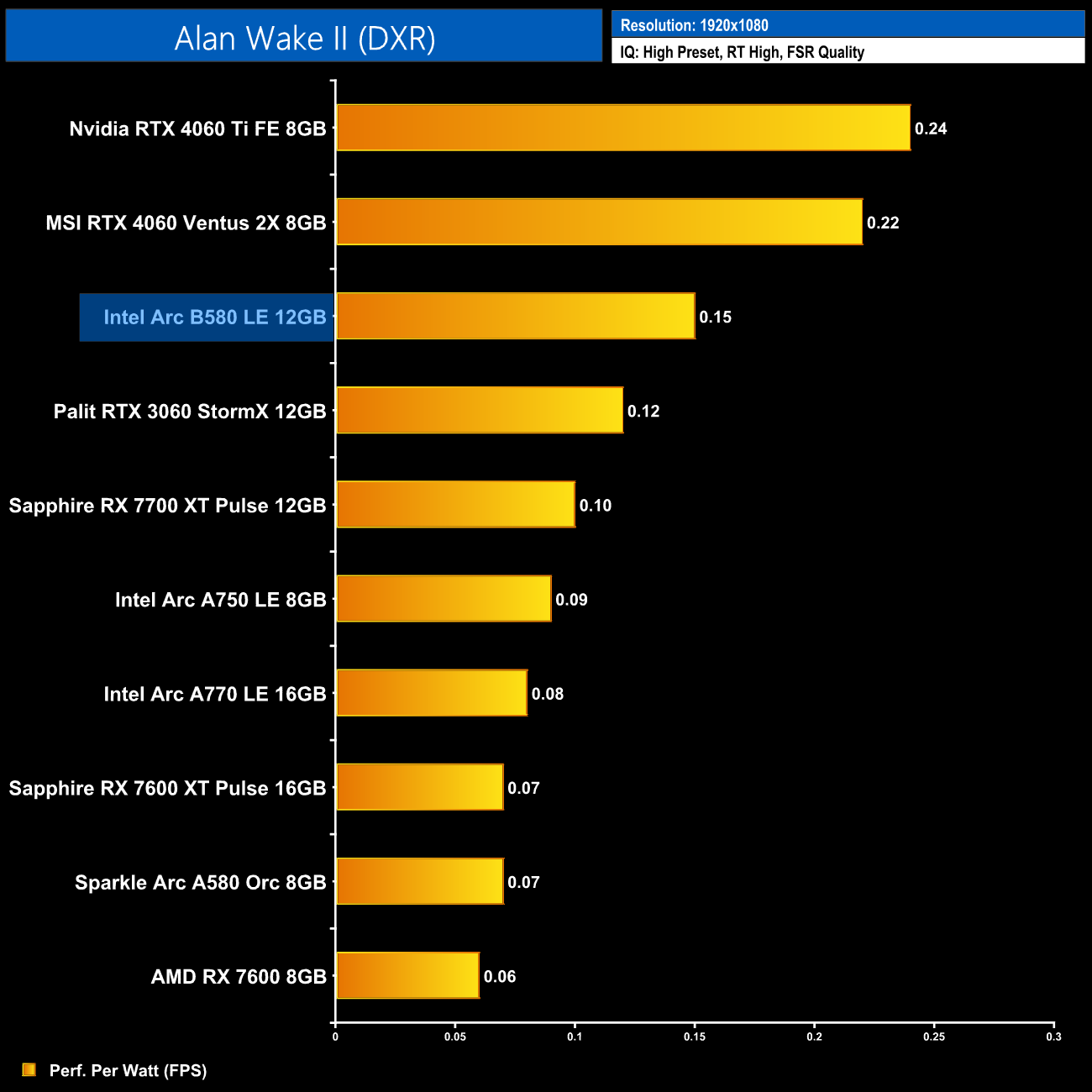

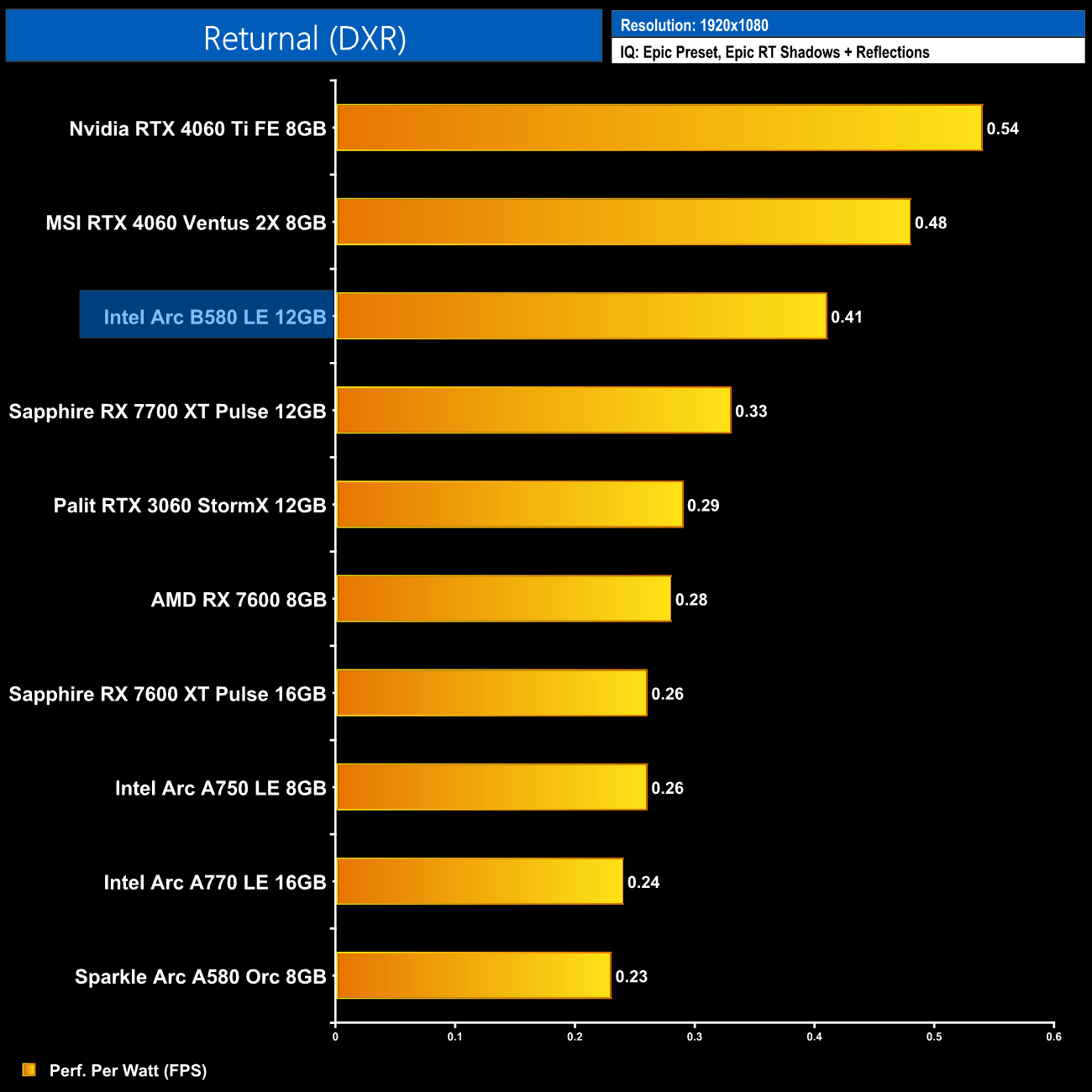

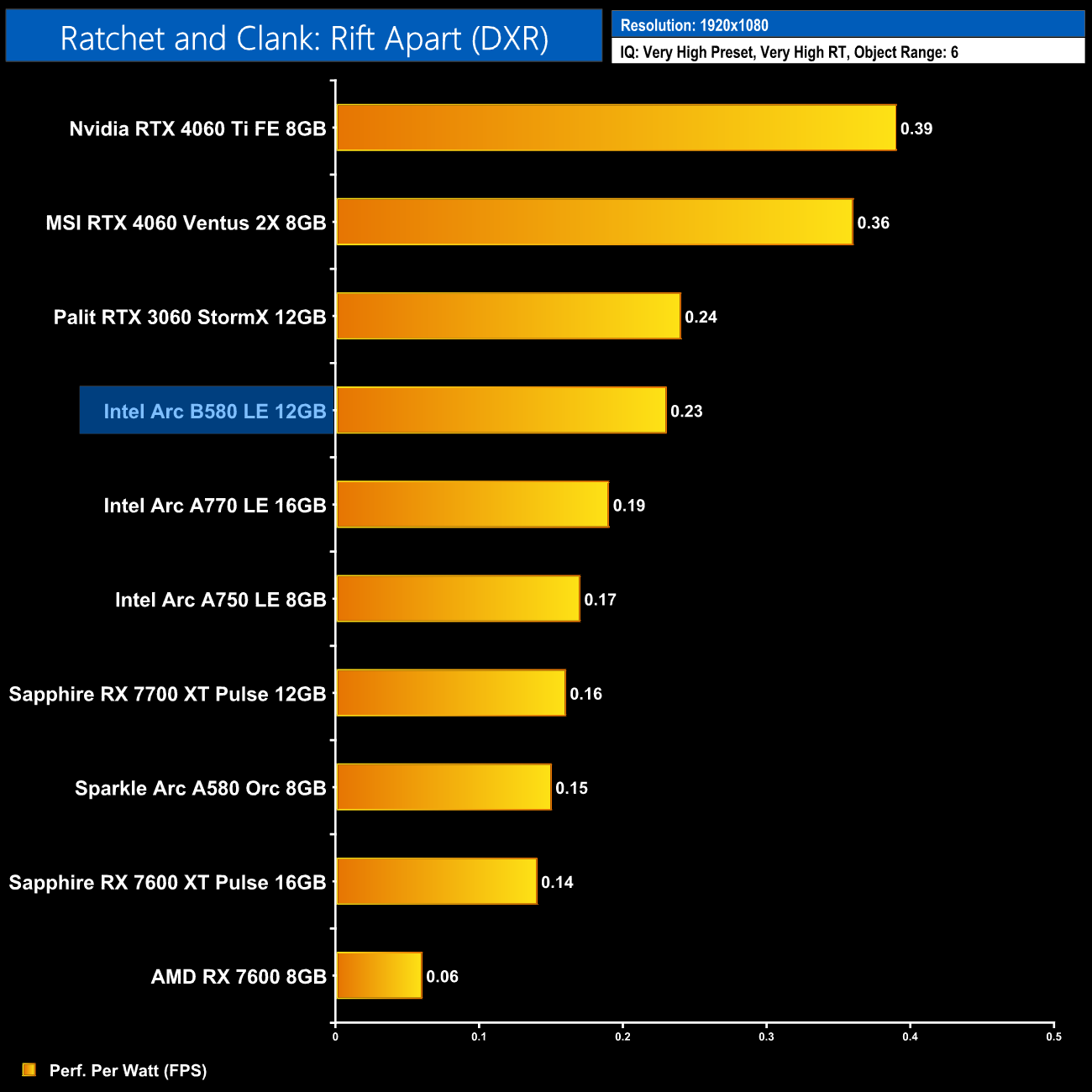

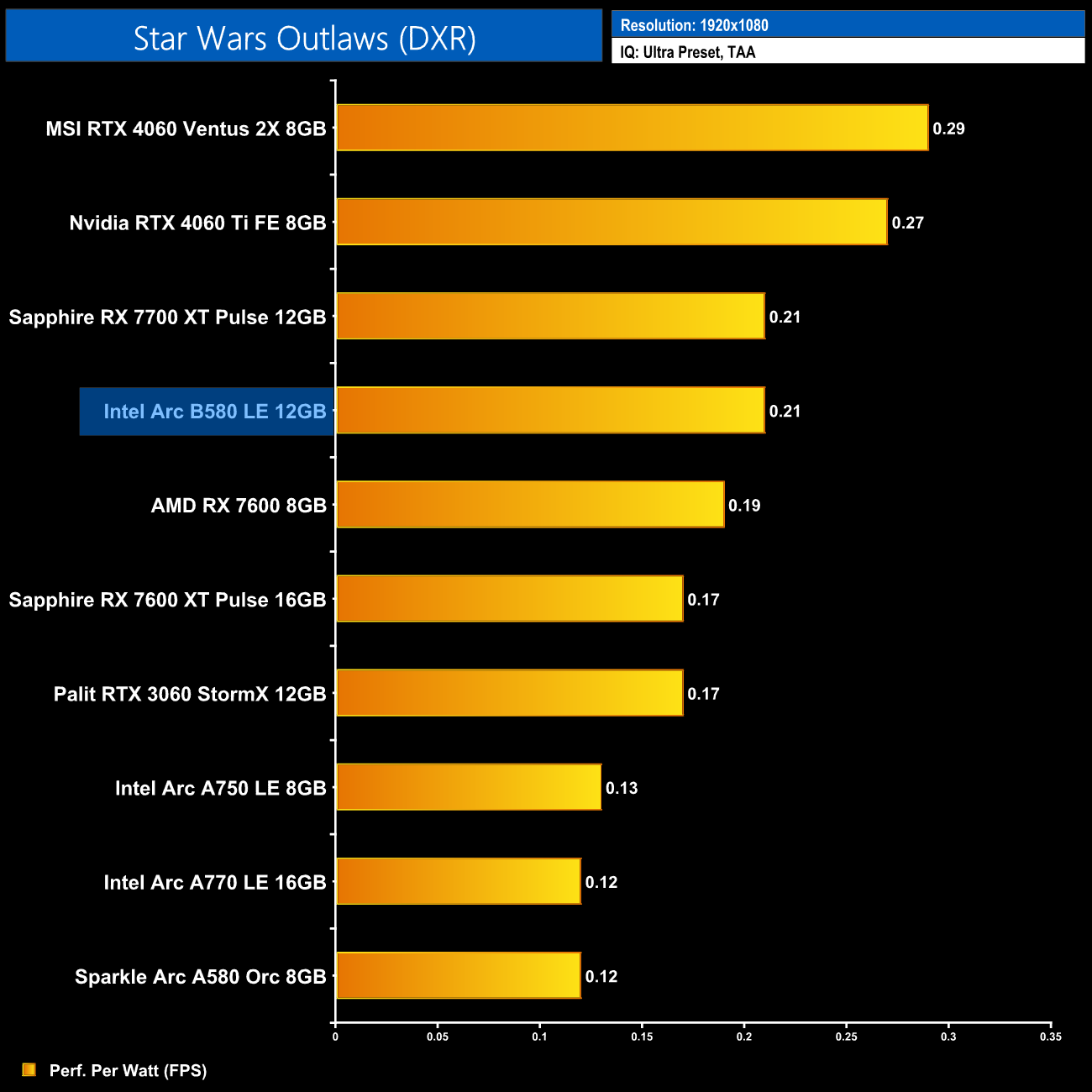

As a bonus, we now include the power figures for all eight games we test with ray tracing enabled.

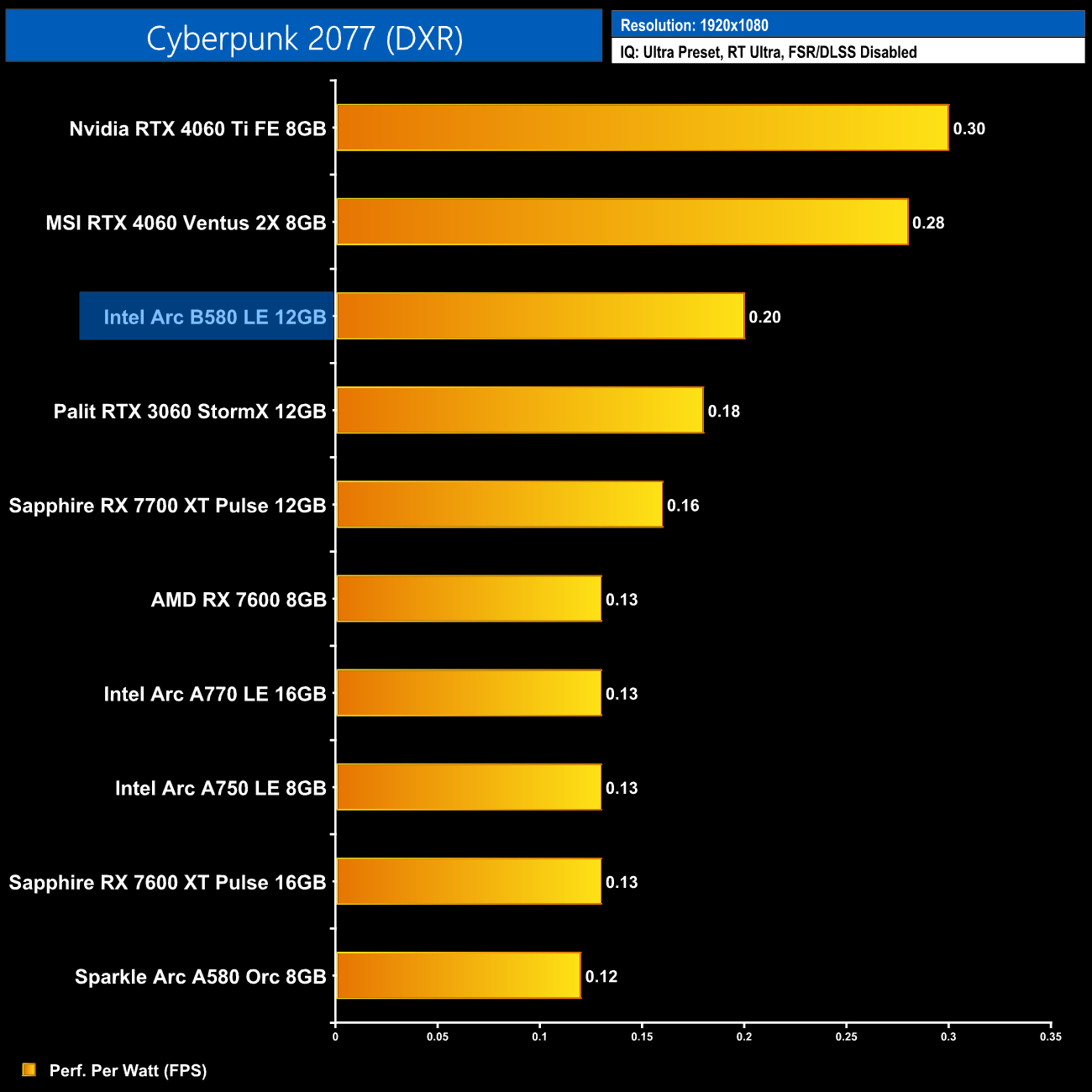

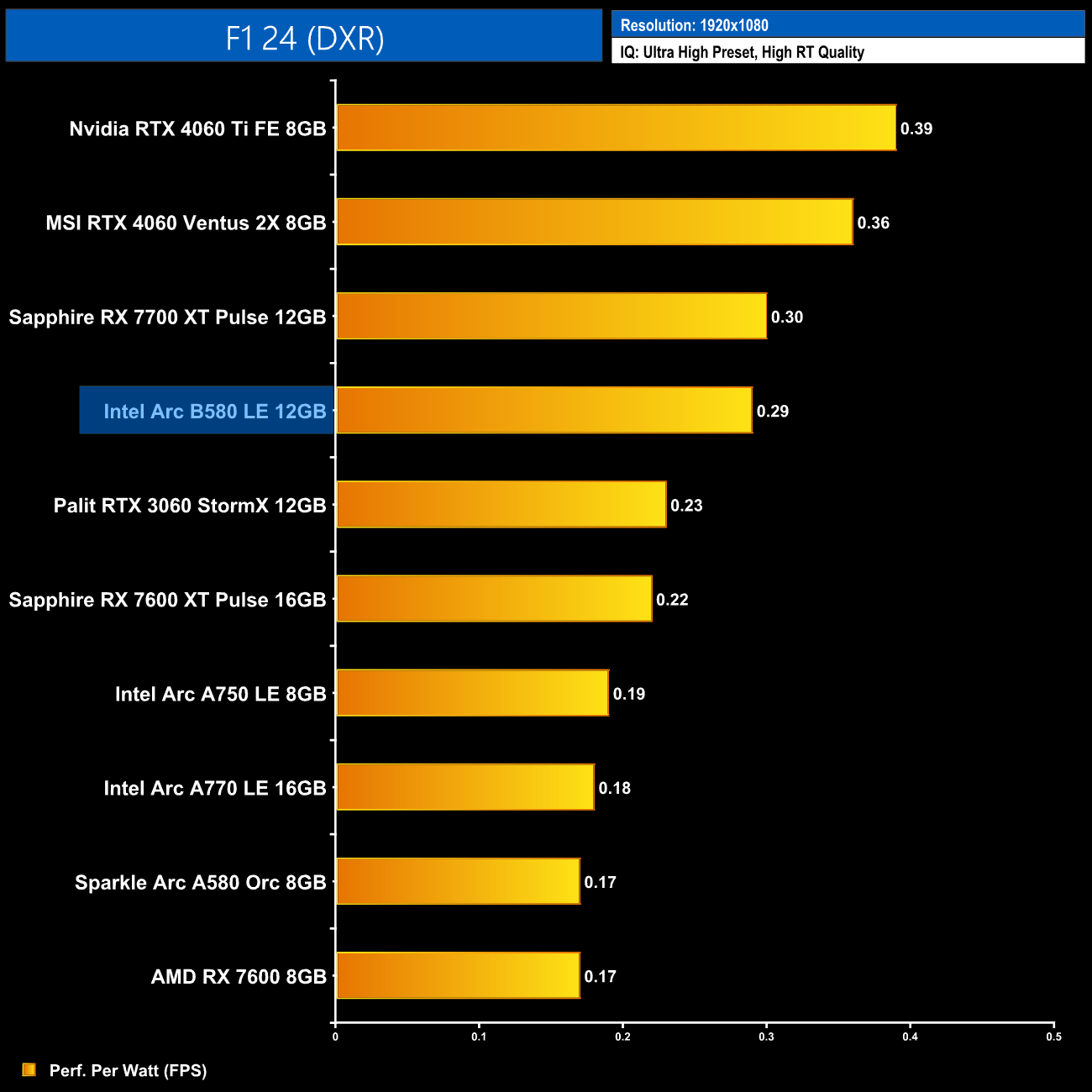

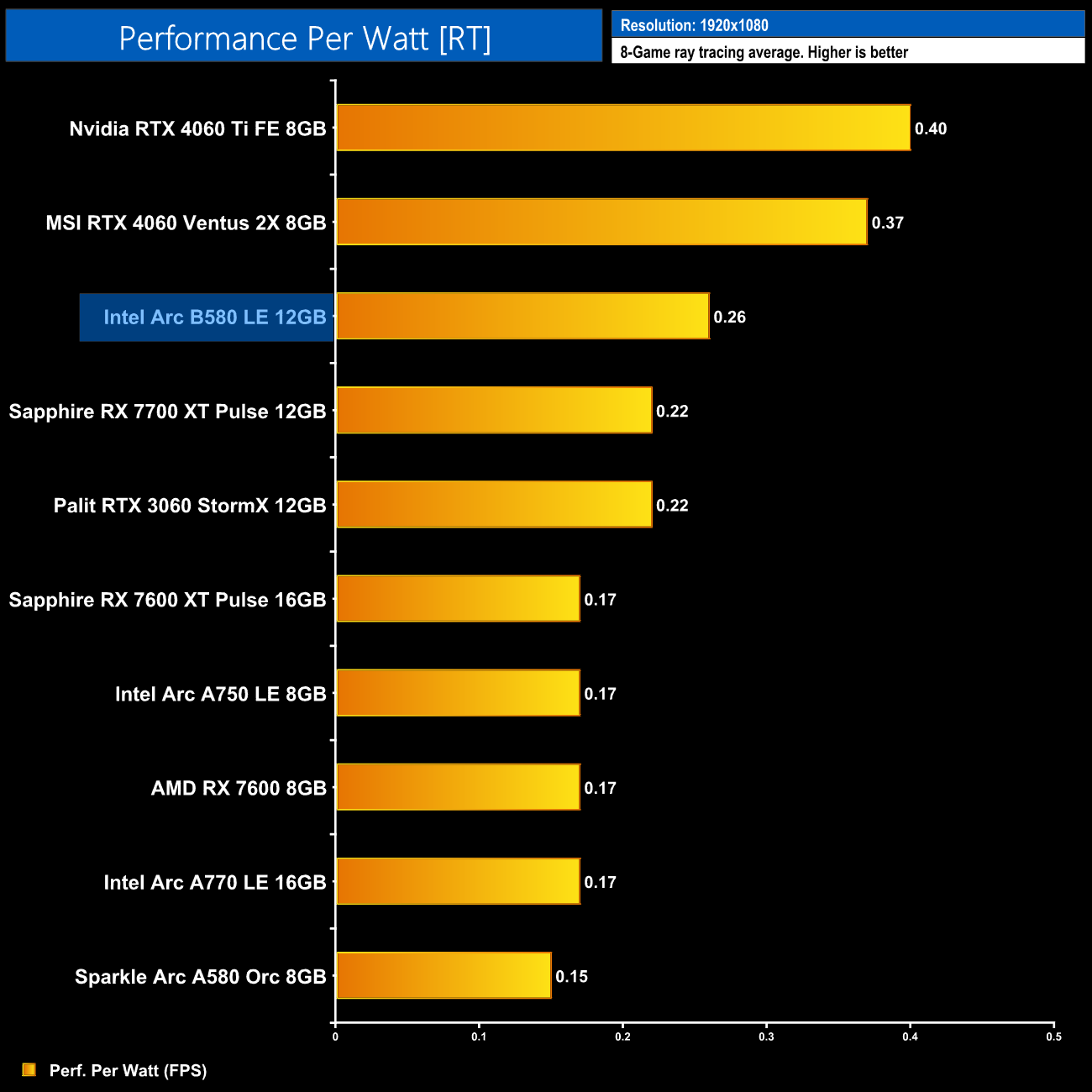

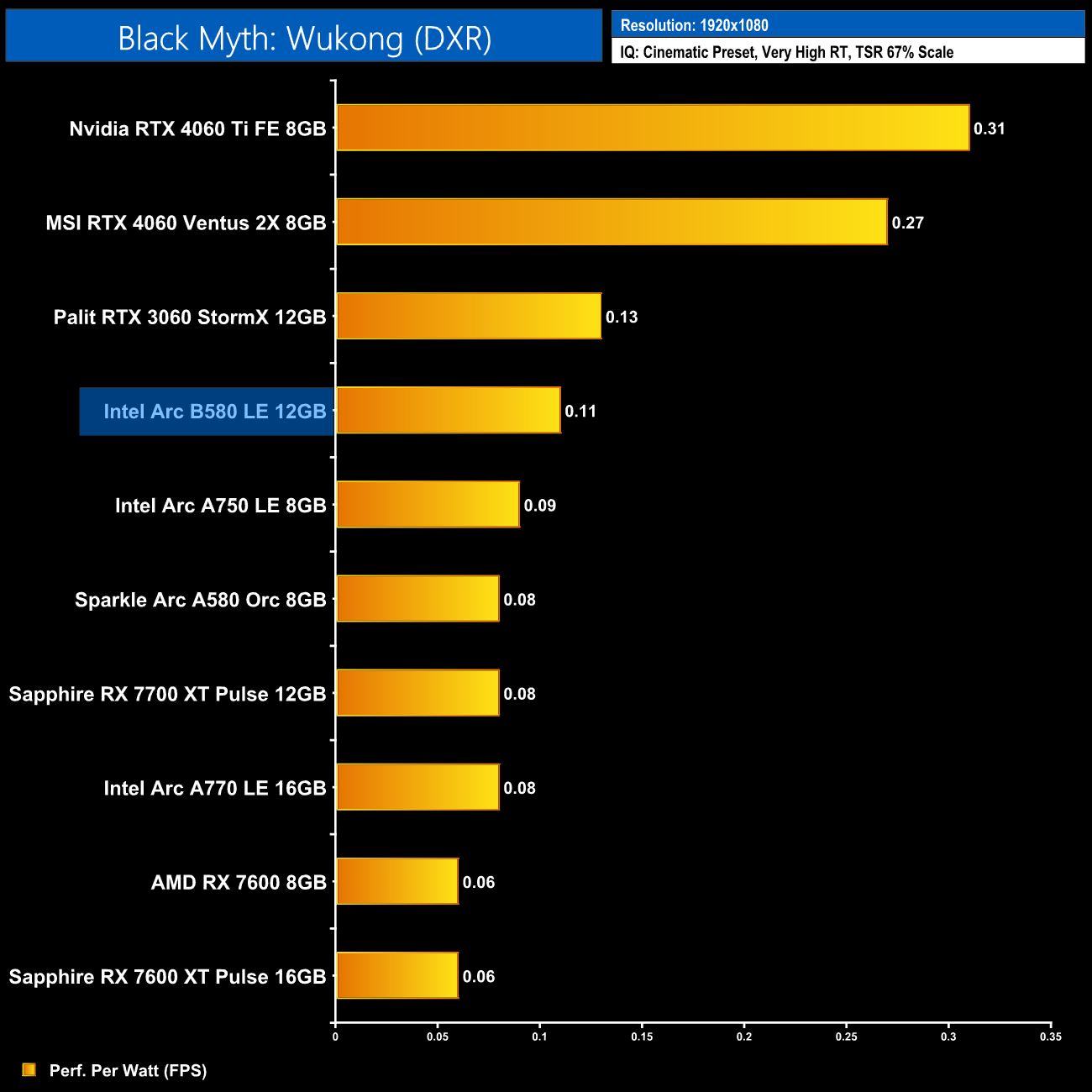

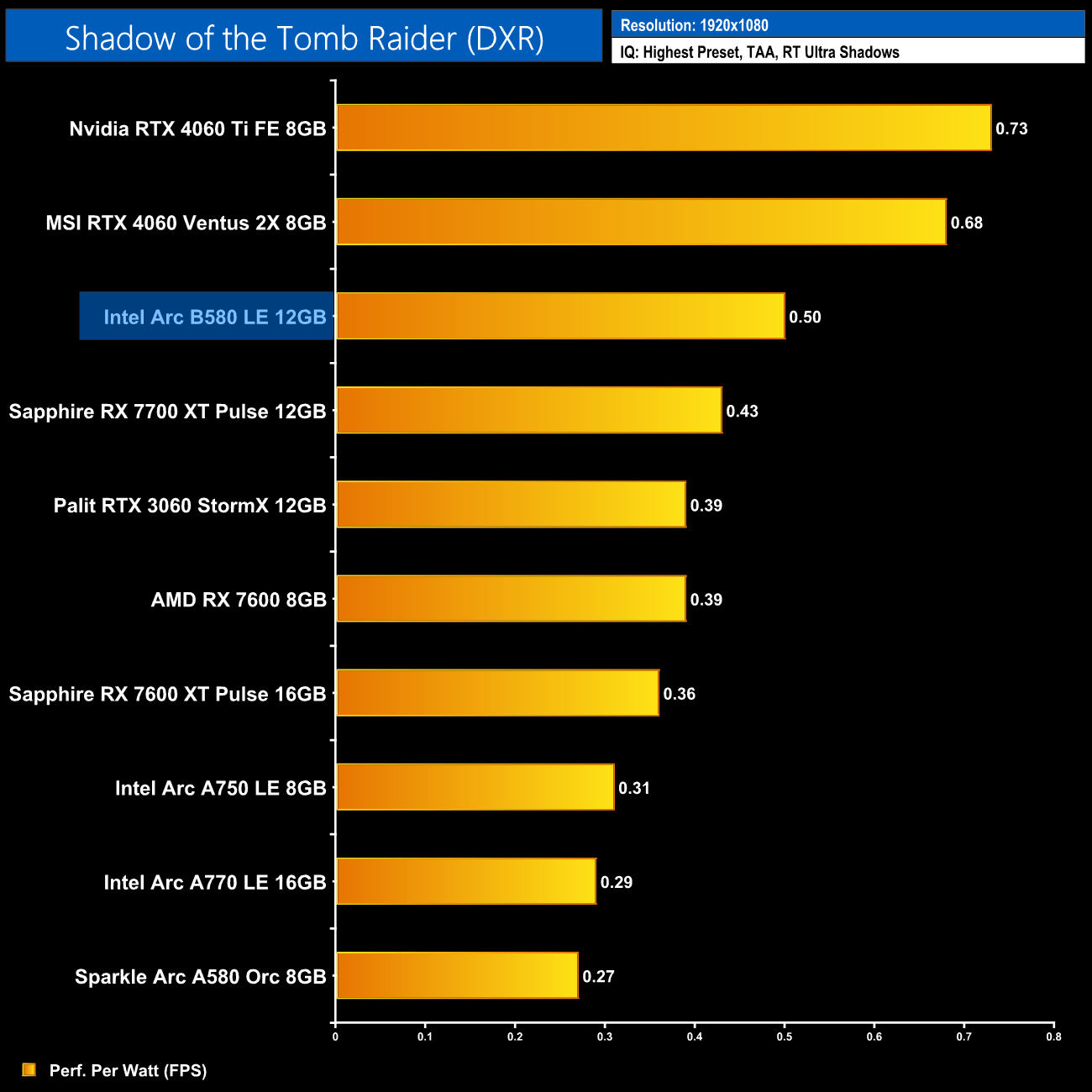

8-Game ray tracing average:

Ray tracing efficiency also scales similarly, with the B580 delivering 53% more performance per Watt than the A750.
