Palit RTX 5070 GamingPro OC Review

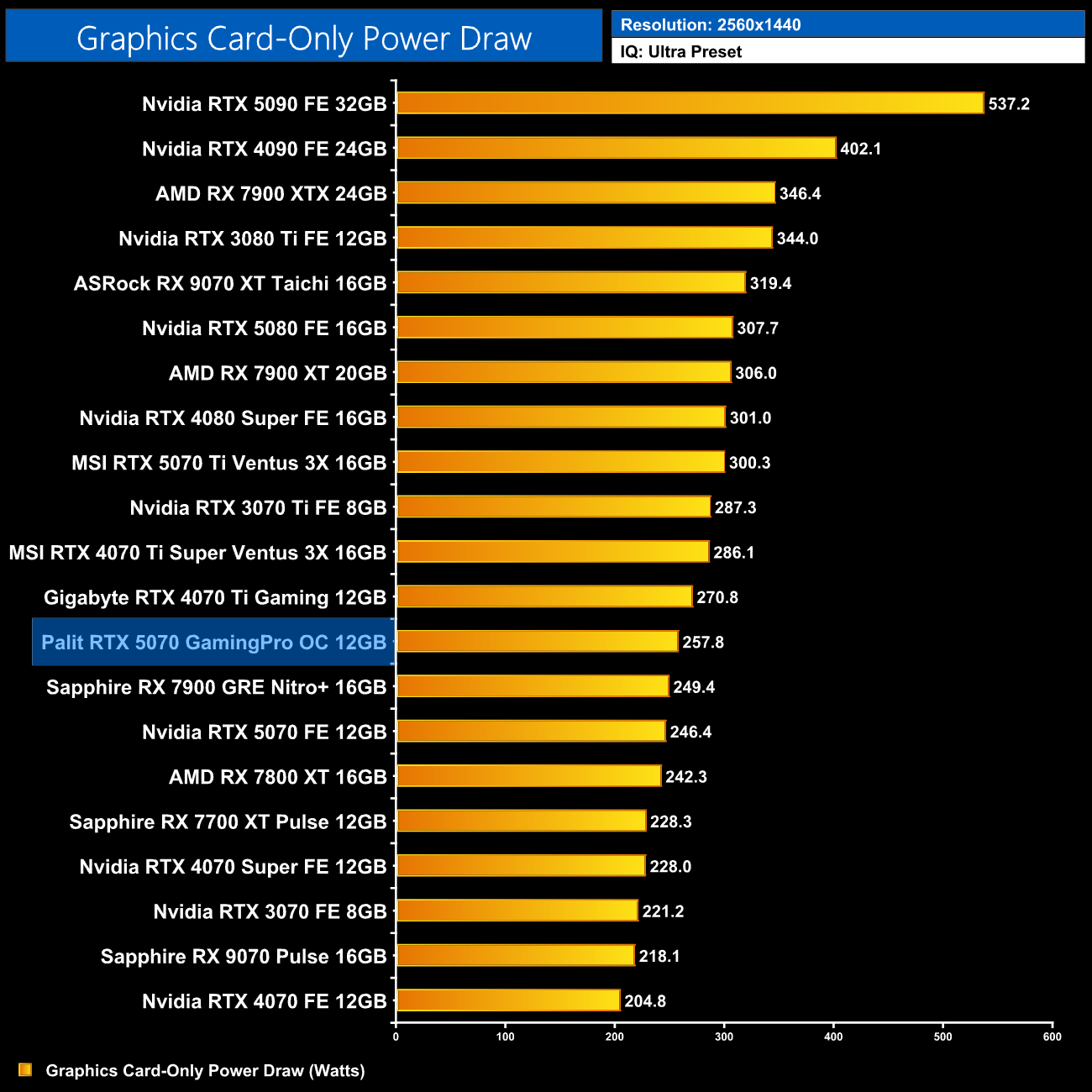

Power Draw

We use Nvidia PCAT to measure power draw of the graphics card only, with readings from both the PCIe slot and the PCIe power cables combined into a single figure. We use A Plague Tale: Requiem (4K/2160p) for this testing.

Power draw is slightly higher than the FE, but only by 12 or-so Watts, so it's nothing to worry about.

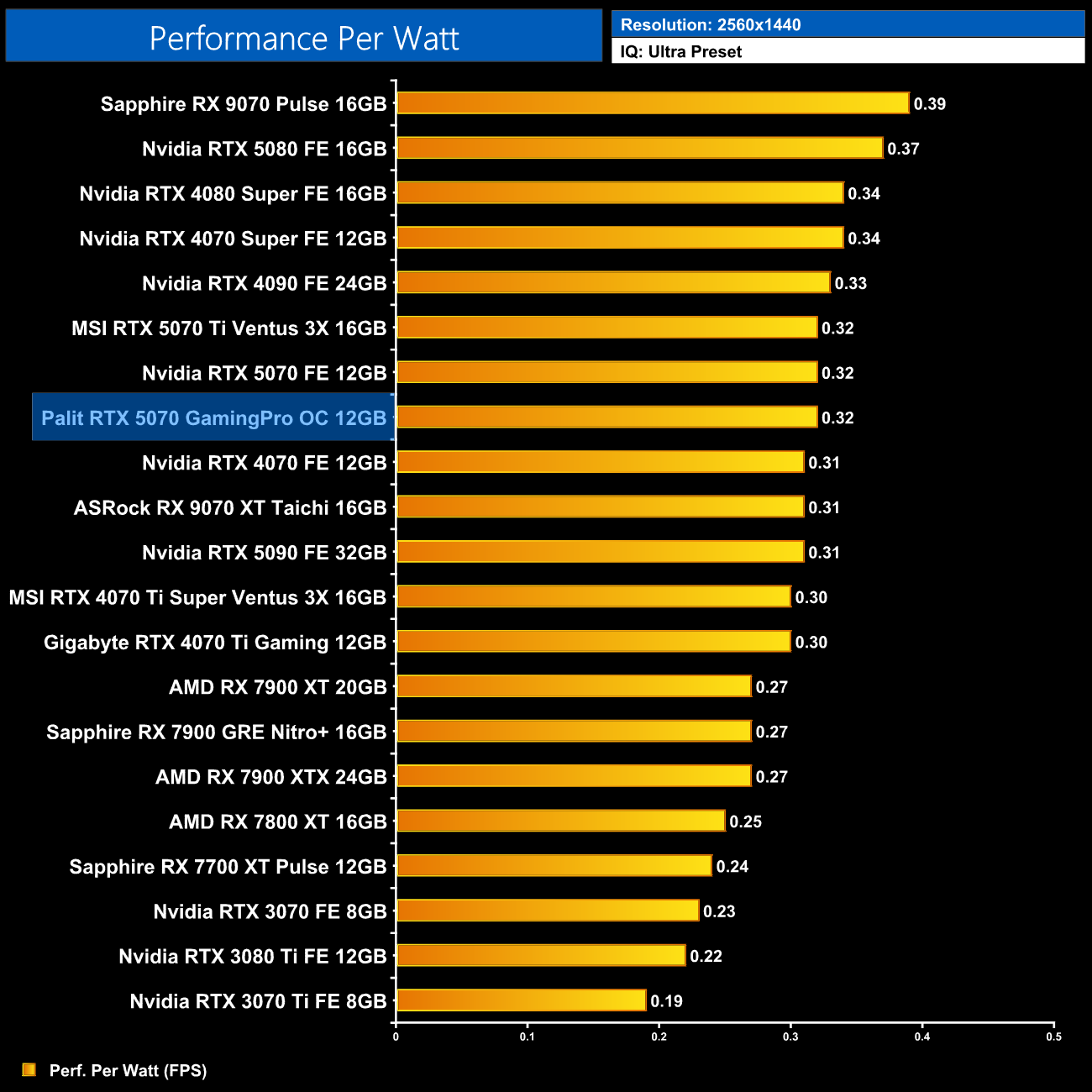

Performance per Watt

Combining the power draw values shown above with the performance data, we present performance per Watt for each graphics card tested:

Overall performance per Watt is still level with the RTX 5070 FE, though the RX 9070 is the clear winner in this instance.
