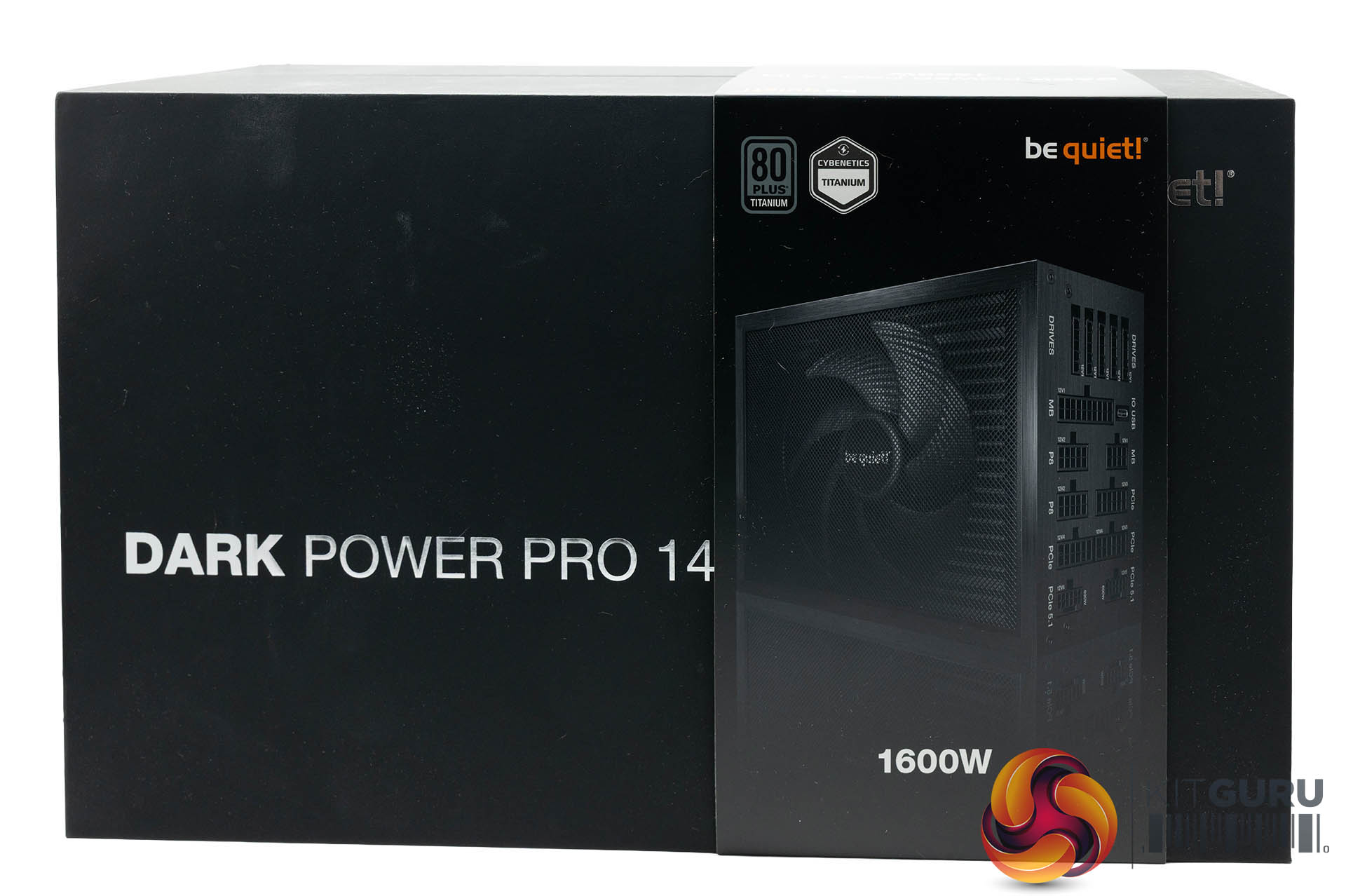

The Dark Power Pro 14 IO ships in a dark box with a high resolution image on the front.

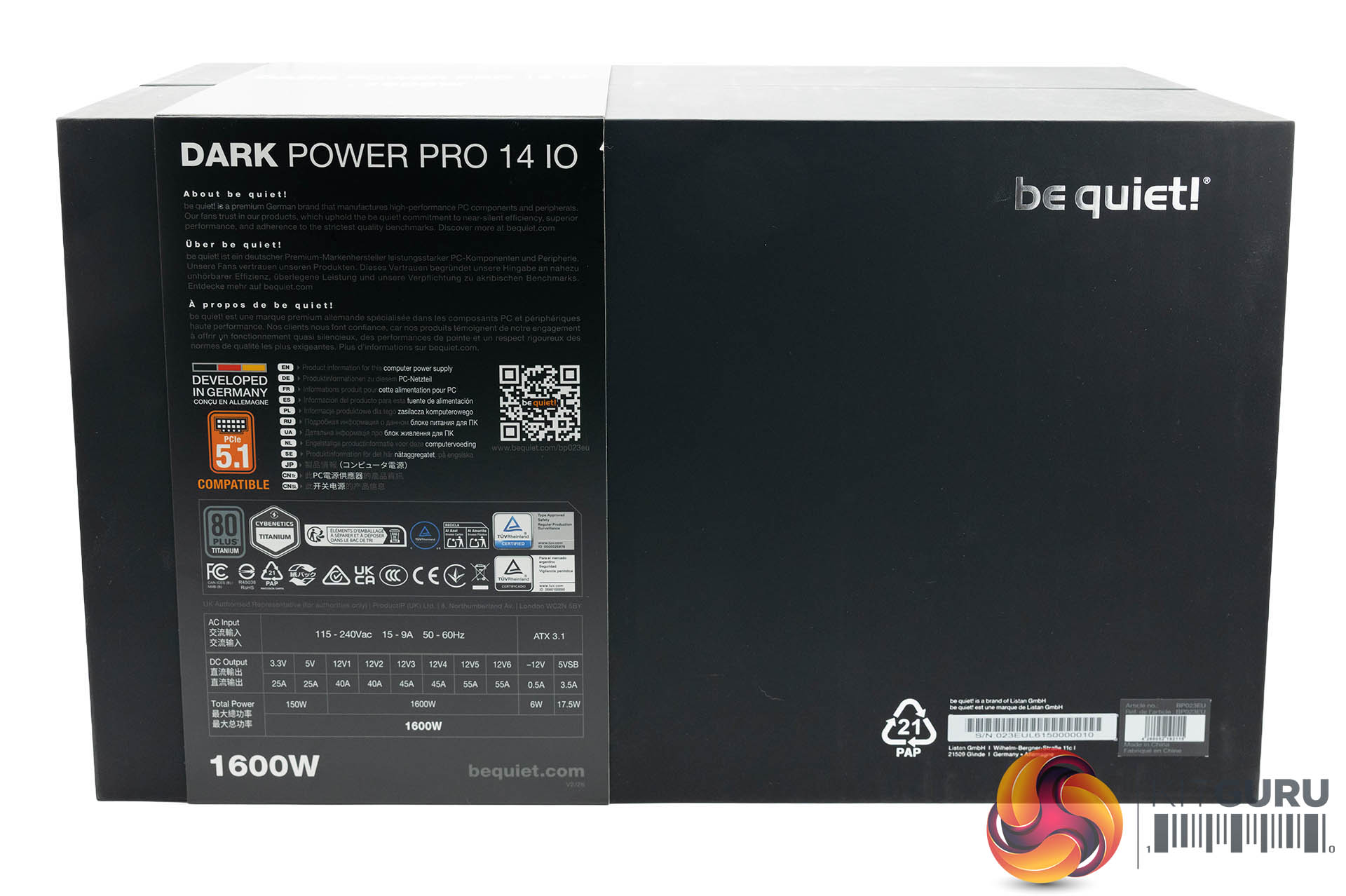

The rear of the box has some details on the unit.

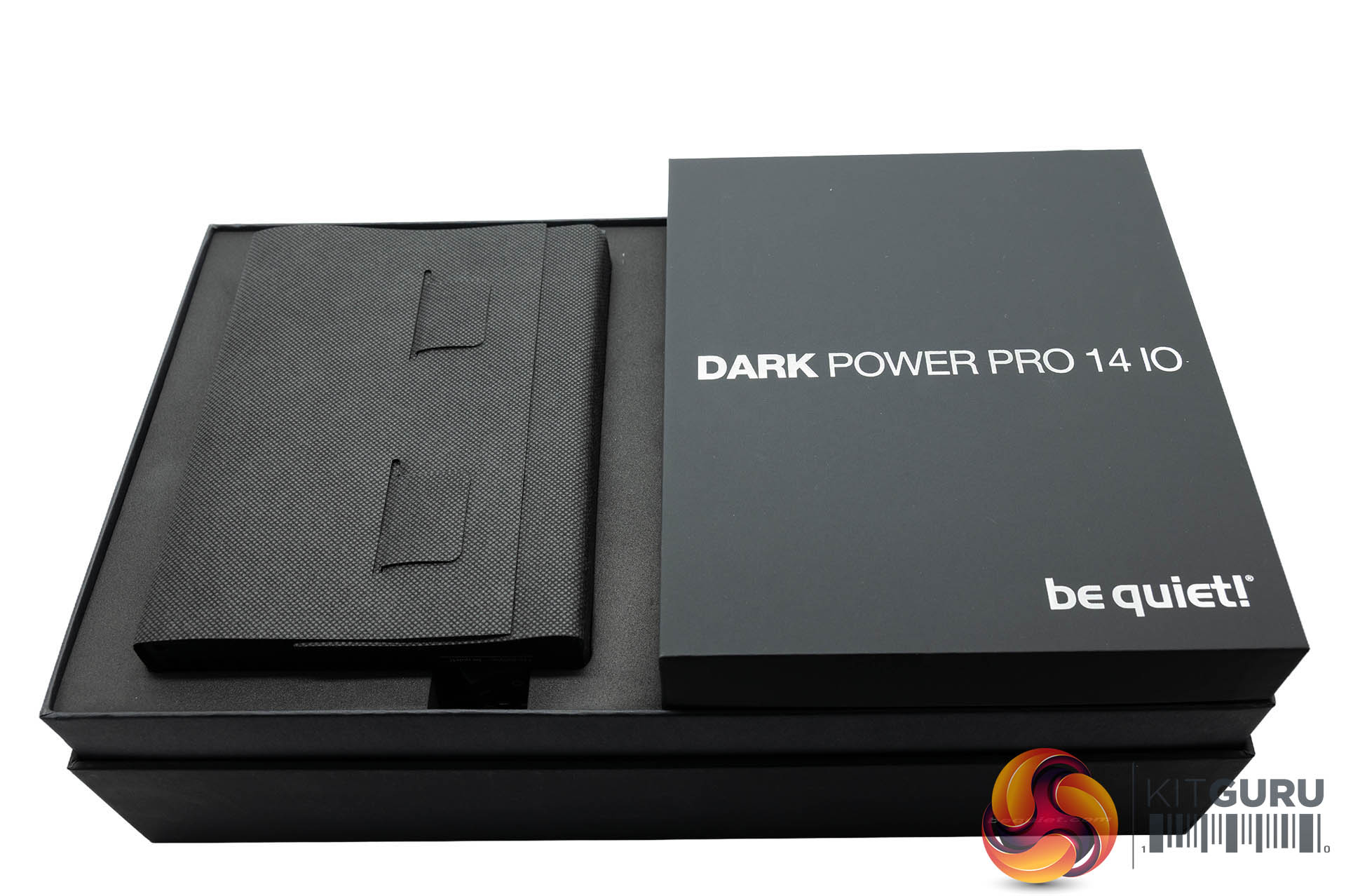

The packaging for this power supply is incredibly special.

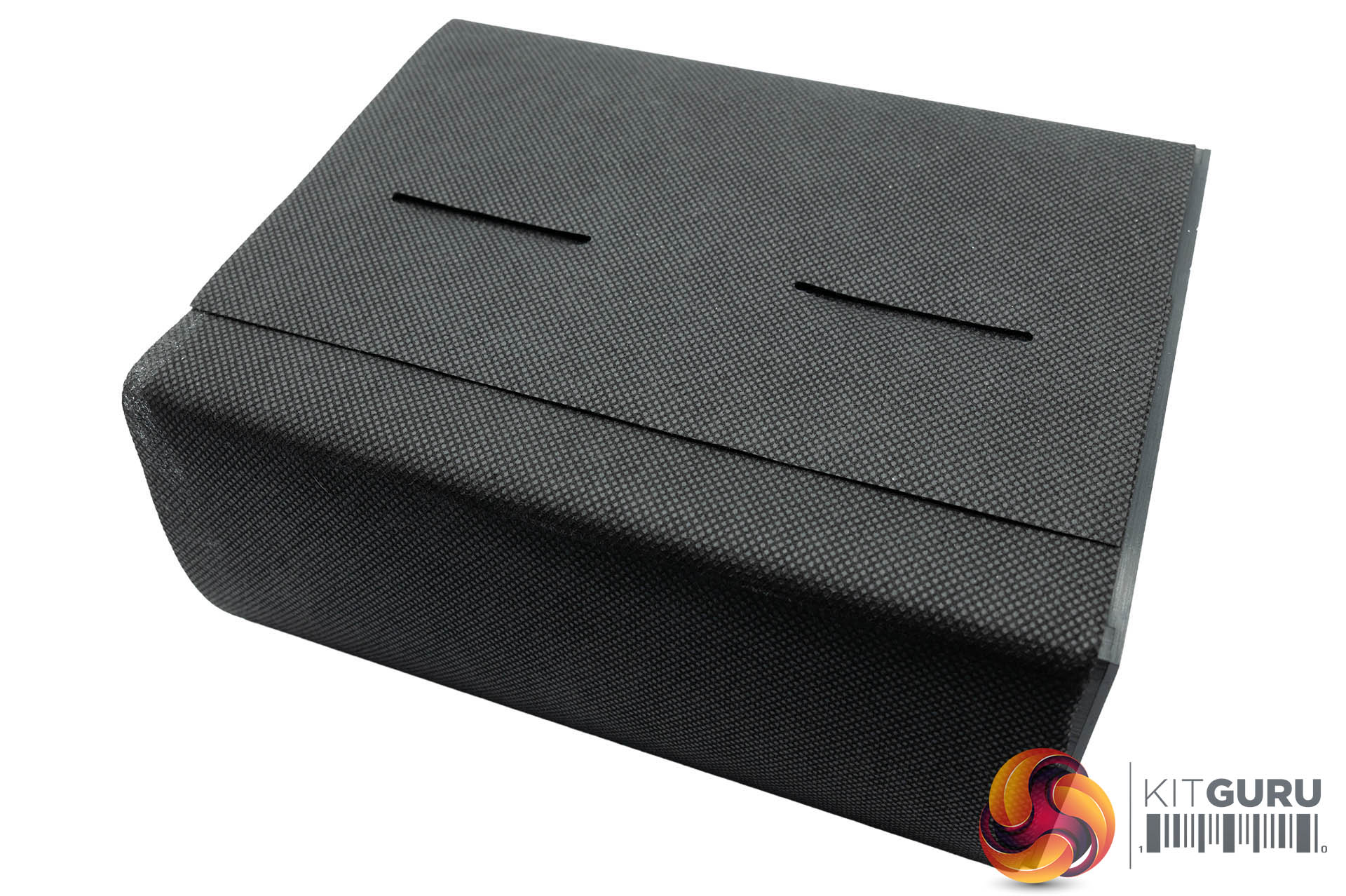

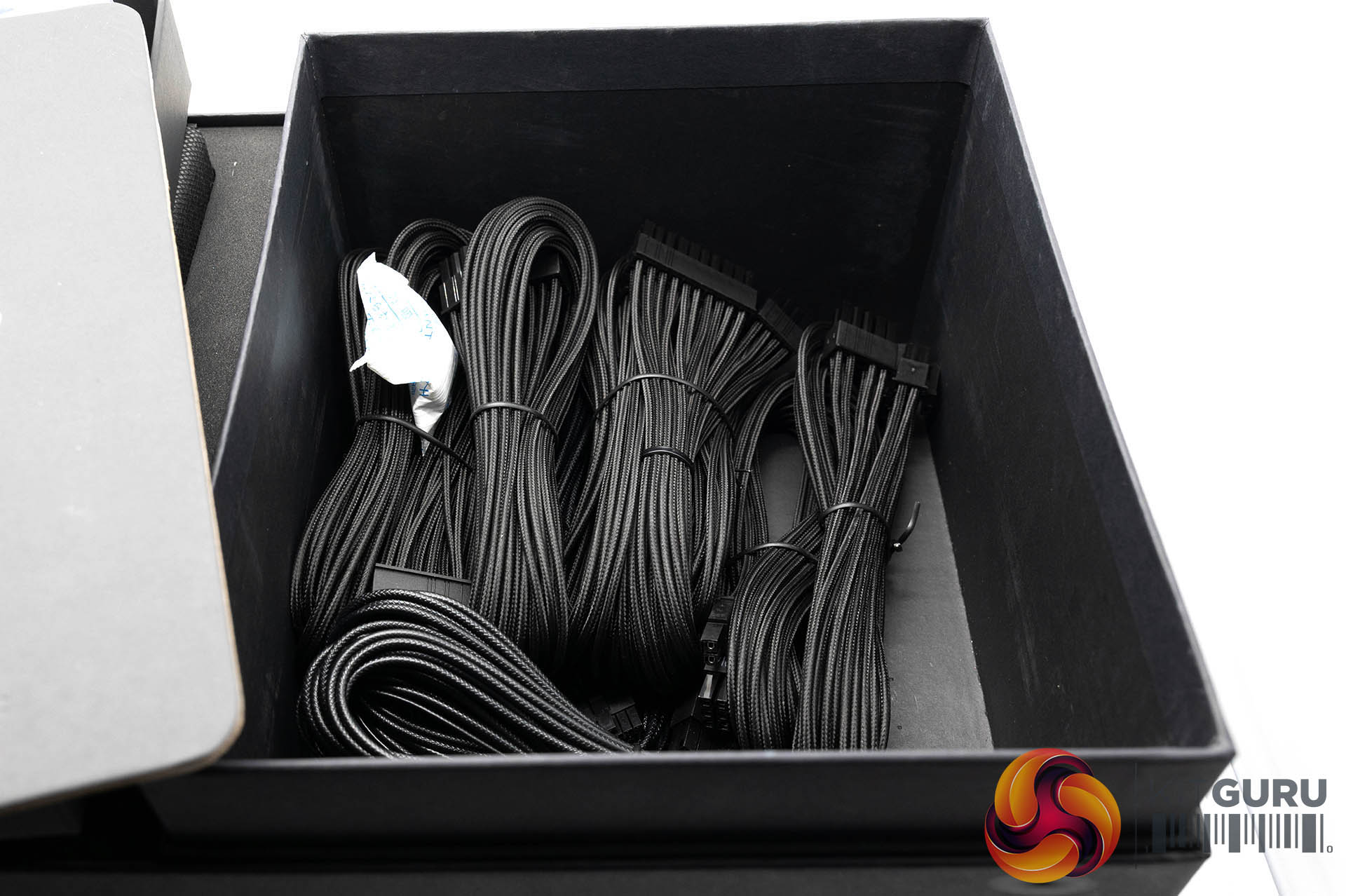

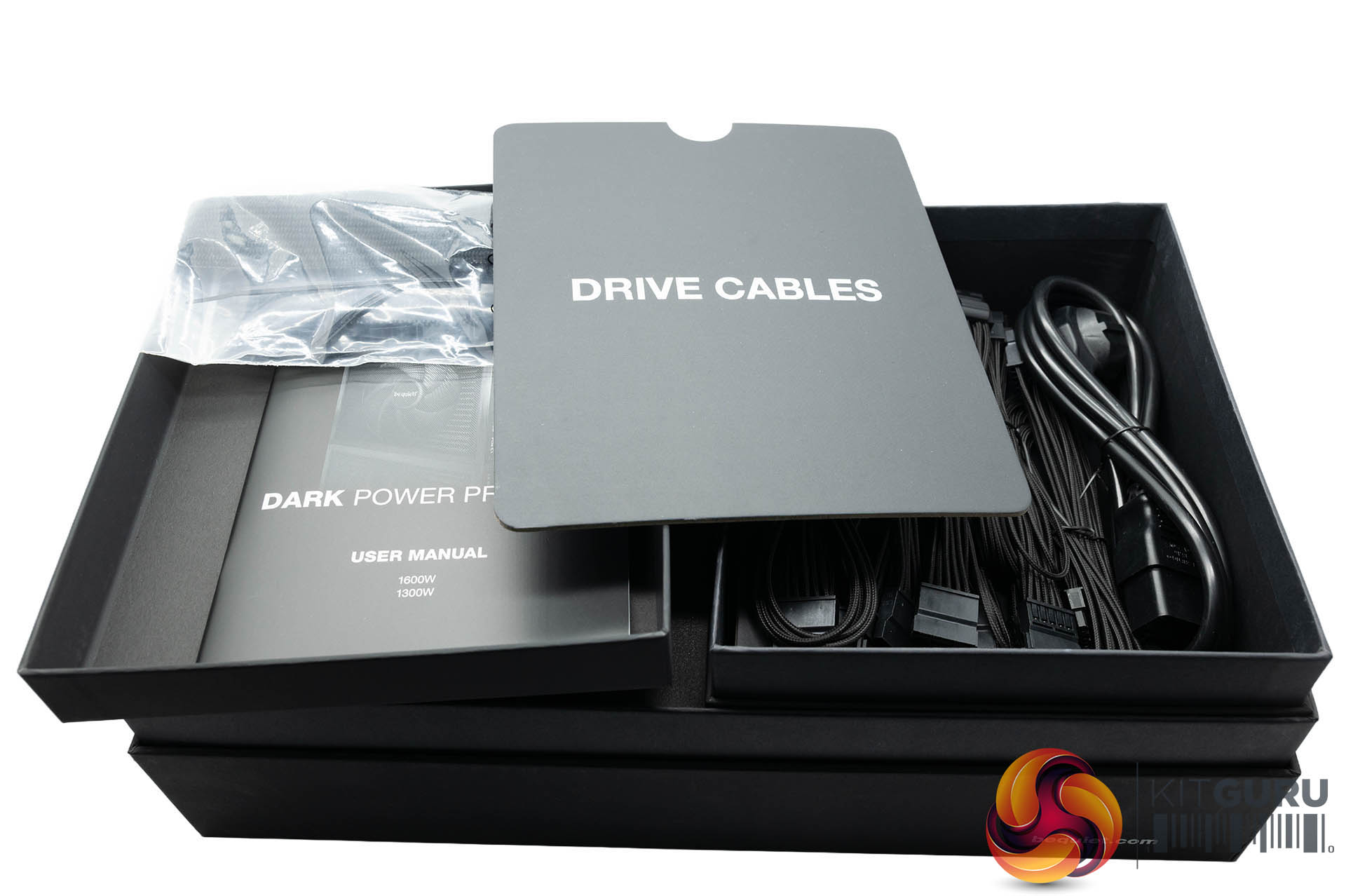

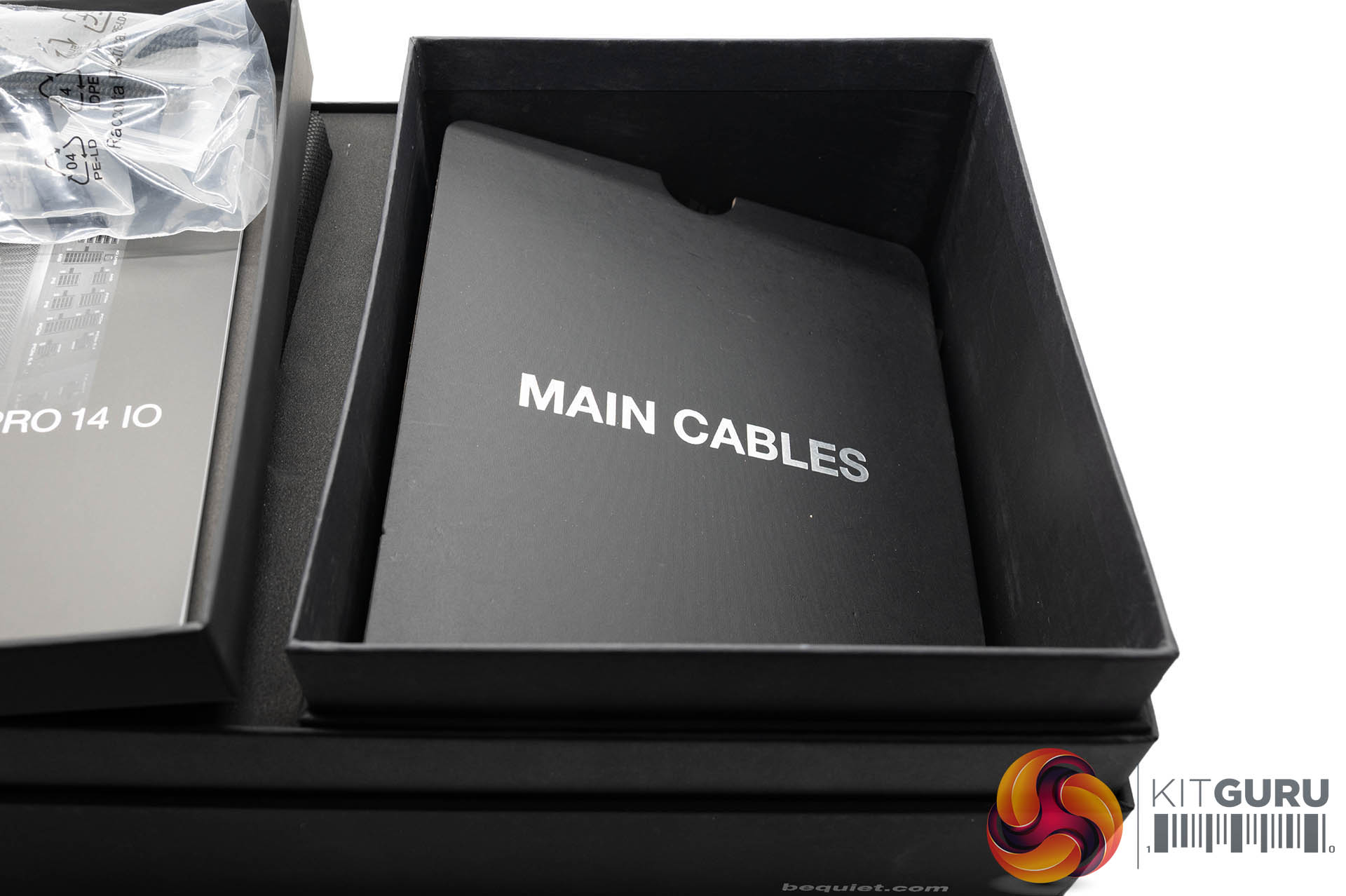

The power supply is protected inside a felt wrap and surrounded by padding. The cables are layered in a seperate box to the right, with accessories.

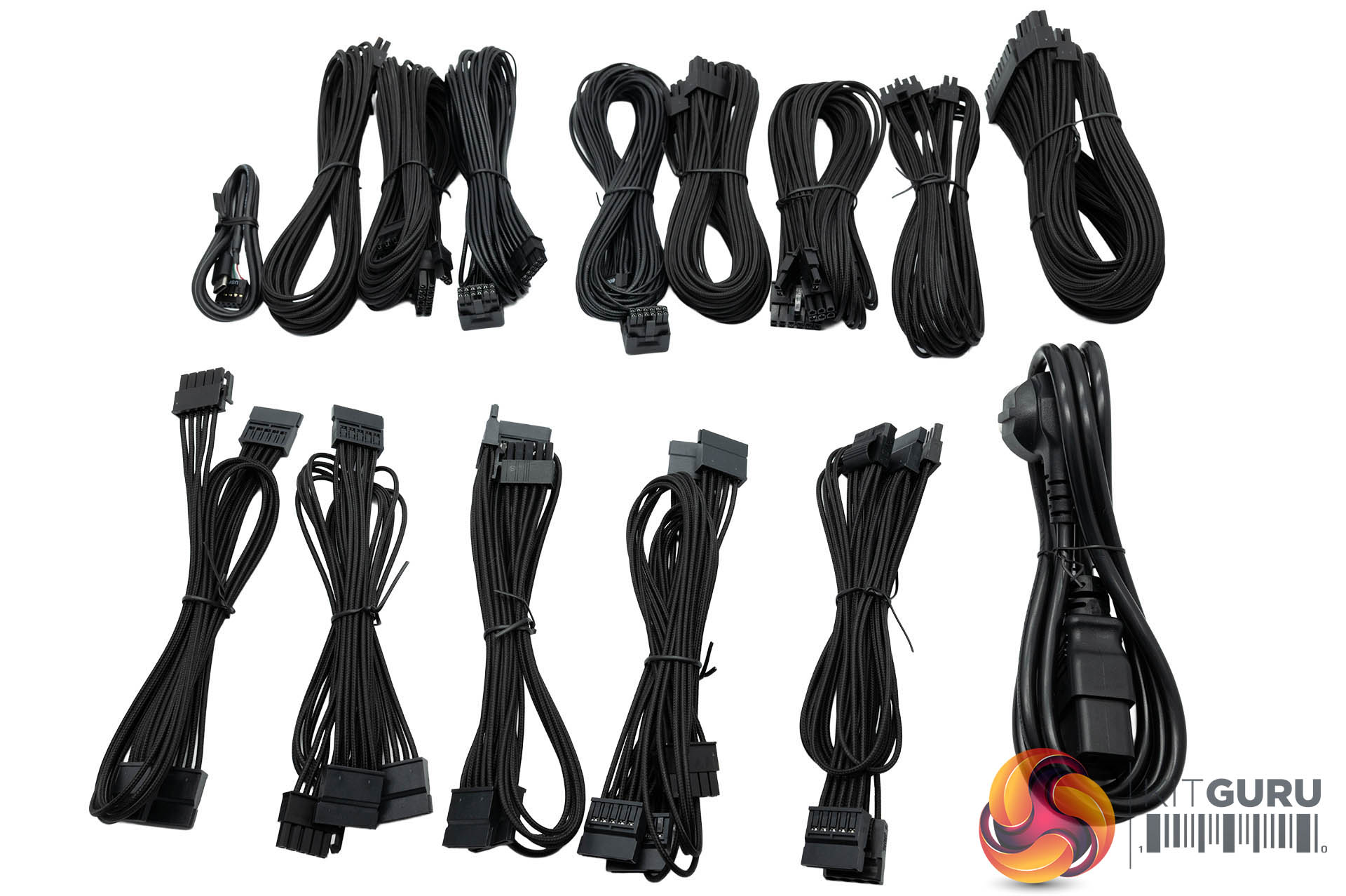

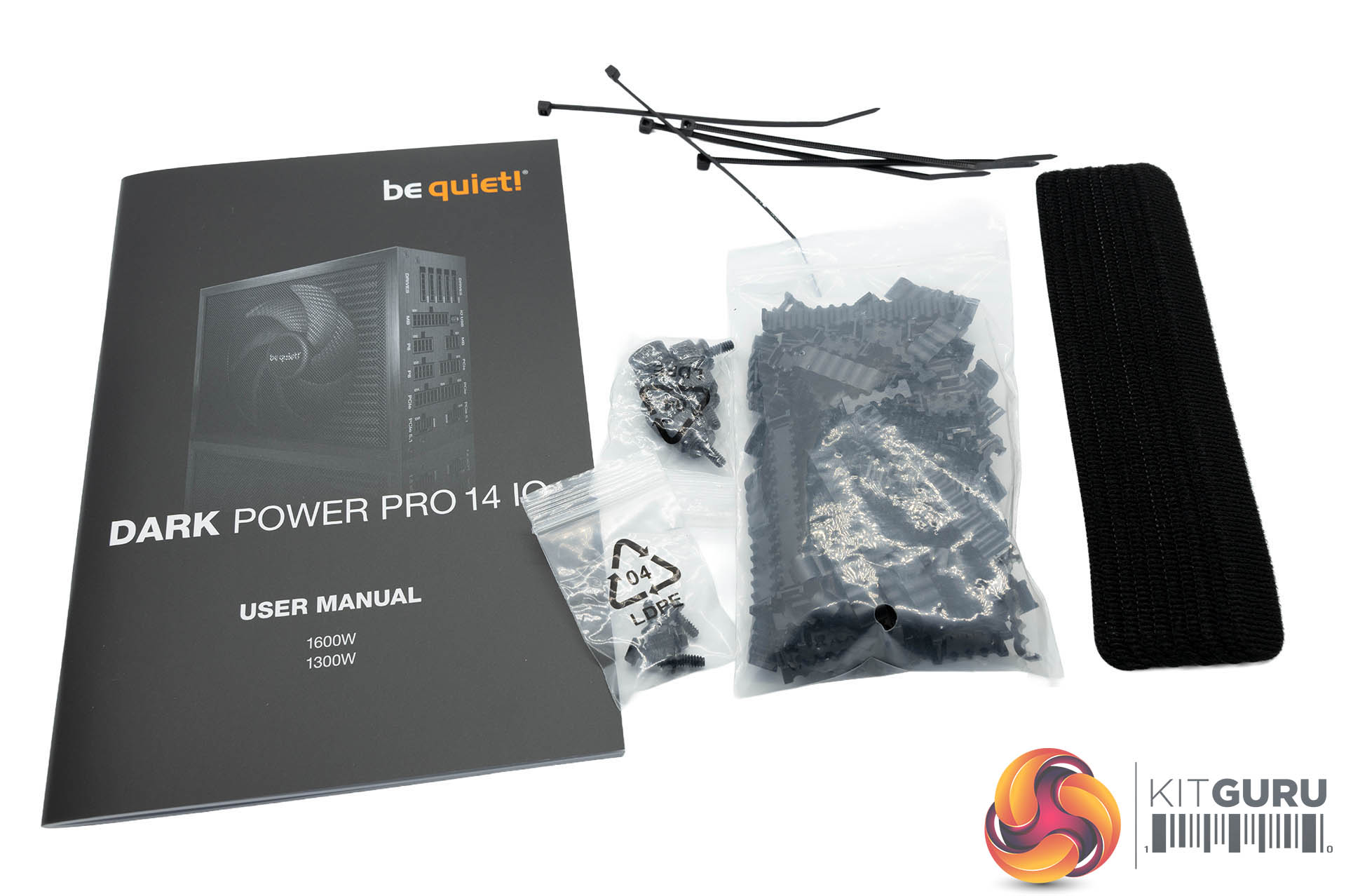

be quiet! supply a user manual, mounting screws and some quality cable ties, both felt and plastic. The individually sleeved cable quality is also very high, between 16 AWG and 24 AWG.
| Internal Ports | |
| CPU Power Connectors 12V ATX/EPS | 2 |
| CPU Power Supply | 1x 4+4-Pin + 1x 8-Pin |
| 12V-2×6 Power Connectors | 2 |
| 6+2 Pin PCIe Power Connectors | 6 |
| SATA Power Connectors | 16 |
| 4 Pin Molex Power Connectors | 2 |
| Software interface digital | Yes |

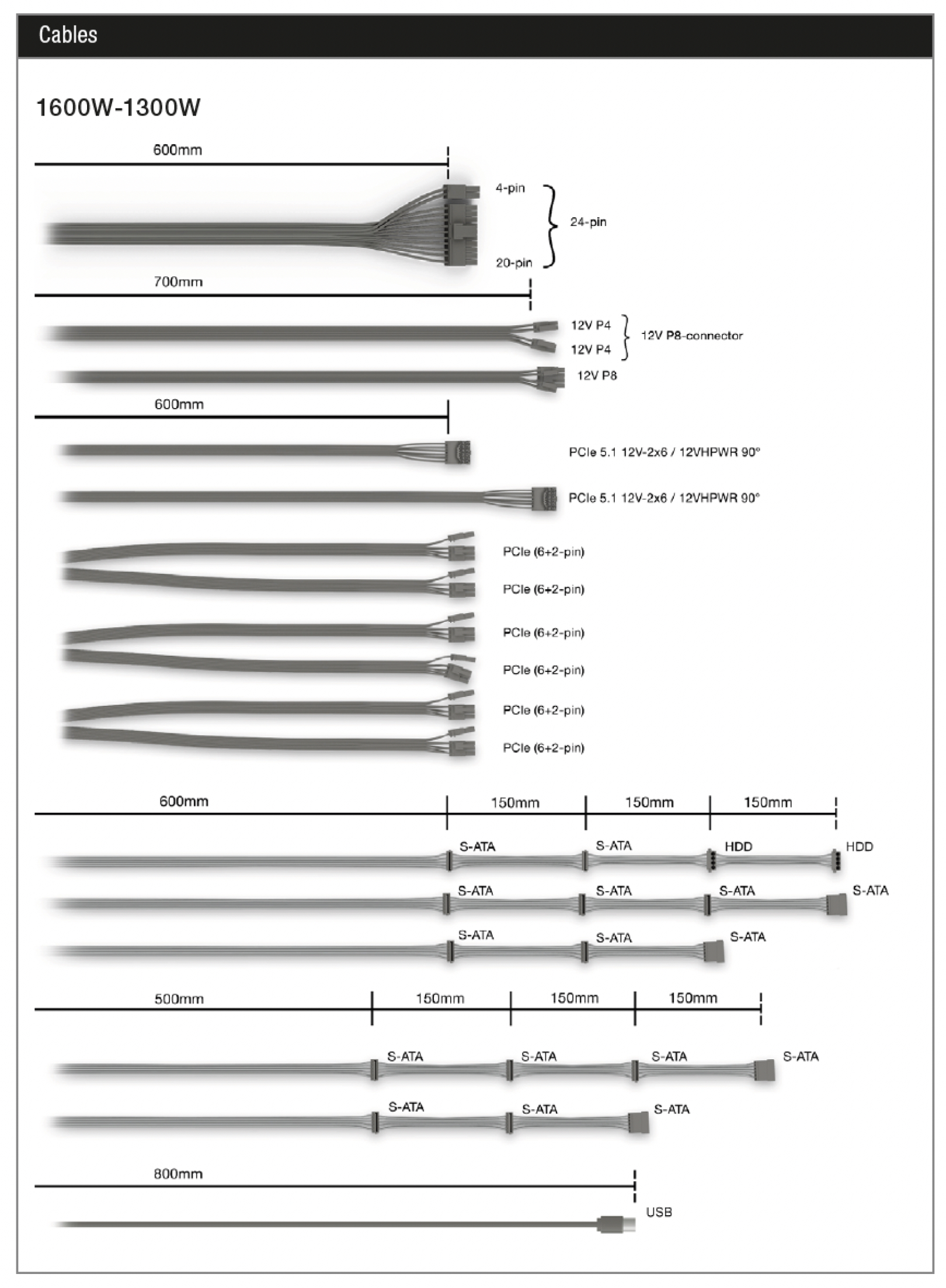

| Cable Specifications | |
| Max. CPU Power Cable Length | 700 mm |
| Max. 24-Pin Motherboard Power Cable Length | 600 mm |
| Max. 12V-2×6 Cable Length | 600 mm |
| Max. PCIe Power Cable Length | 600 mm |
| Max. SATA Power Cable Length | 1050 mm |
| Max. Molex Cable Length | 1050 mm |
