Corsair RM750x review


AS7V2639
The Corsair RM750x ships in an attractive yellow accented box with a high resolution image of the power supply visible in the center.
AS7V2641
Along the top of the box, Corsair have focused on the cabling and at the rear they list the use of ‘premium components’. Fan noise is a clear focus for Corsair as they include a noise level chart and information on the silent operation.
AS7V2644AS7V2645

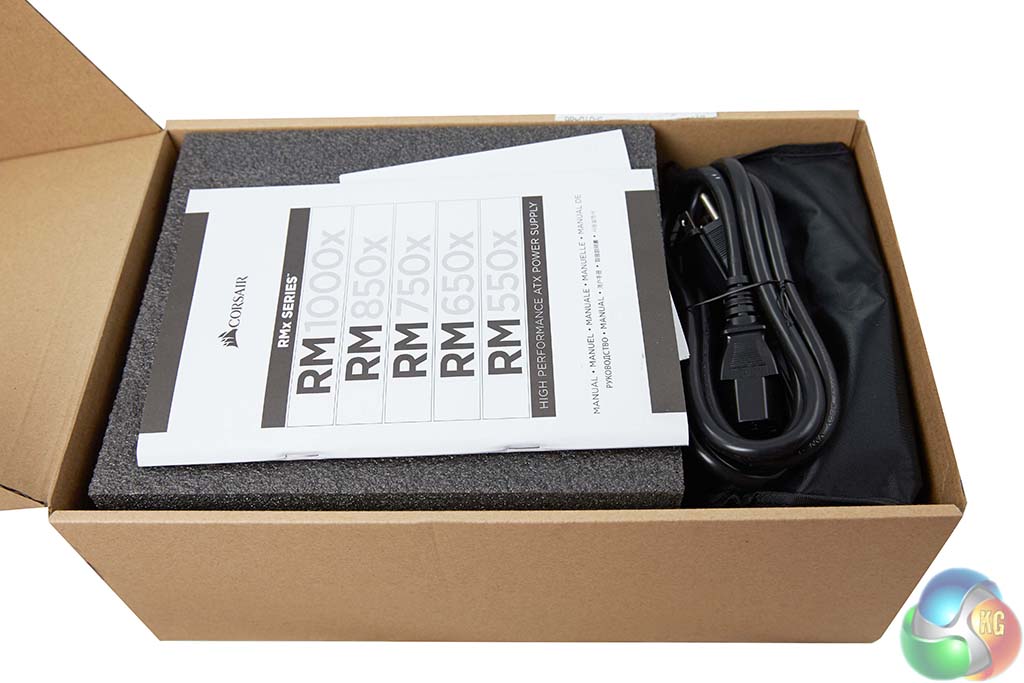

The power supply is protected inside thick foam with the cables at the side and the user manual on top. Corsair also include cable ties, case badge and a regional specific power cable.
AS7V2658

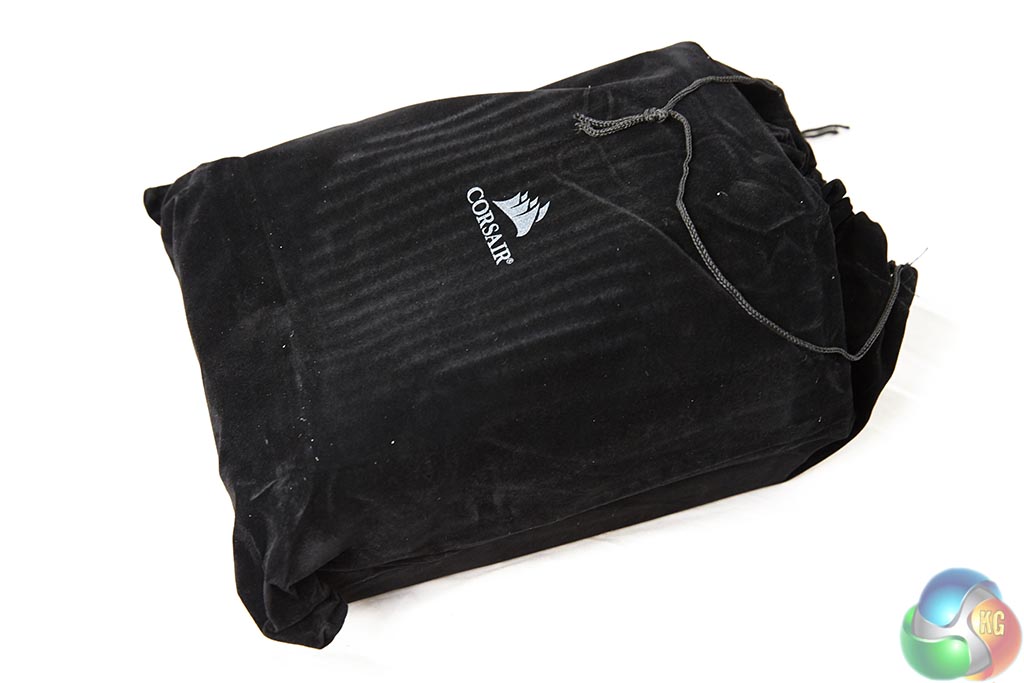

The power supply is protected inside a soft felt bag.
AS7V2654

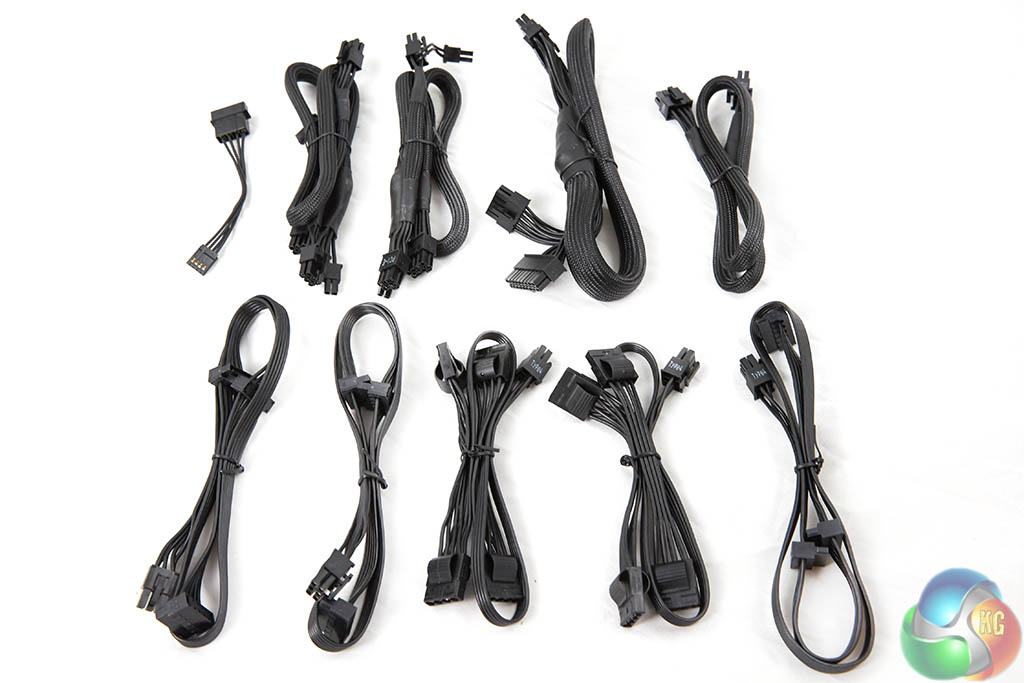

The RMx series ship with flat cables – these are the new ‘Type 4’ standard. The 8 pin cables, for ATX12V/EPS12V and PCIe are pin compatible with Type 4 cables, but they have added capacitors to help reduce ripple noise.

The Type 4 24 pin cable has an additional four pins. These are ‘sense wires’ which allow the RMx to measure the voltage at load and adjust on the fly, subsequently improving voltage regulation. Corsair have a page set up focusing on these cables, over HERE.
cables

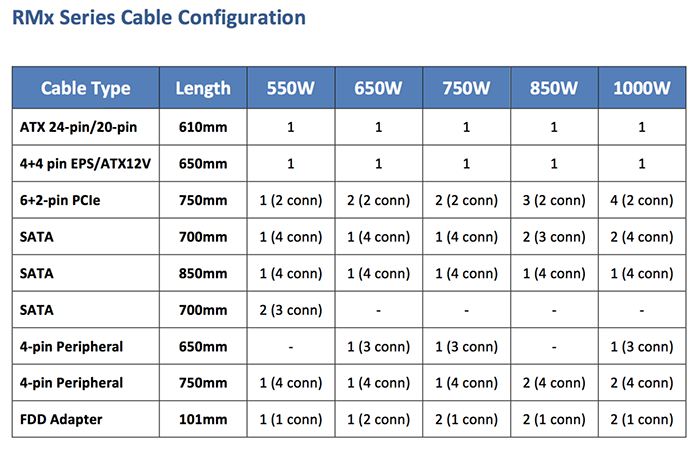

The RMx 750W has a total of four PCIe connectors across two cables – ideal for a dual card SLi or Crossfire configuration.
