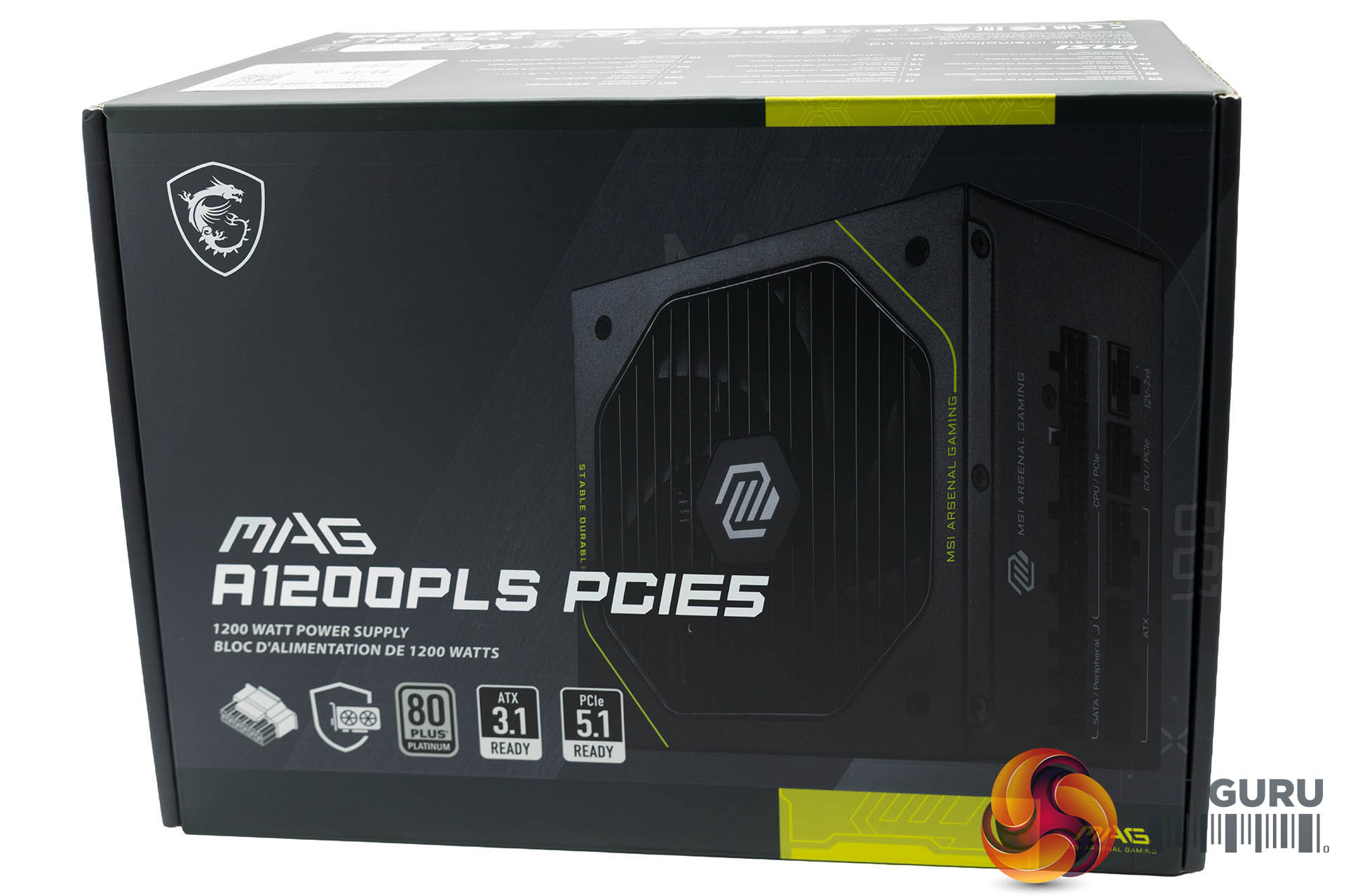

The MSI power supply is shipped in a box highlighting key features underneath a photo of the image itself.

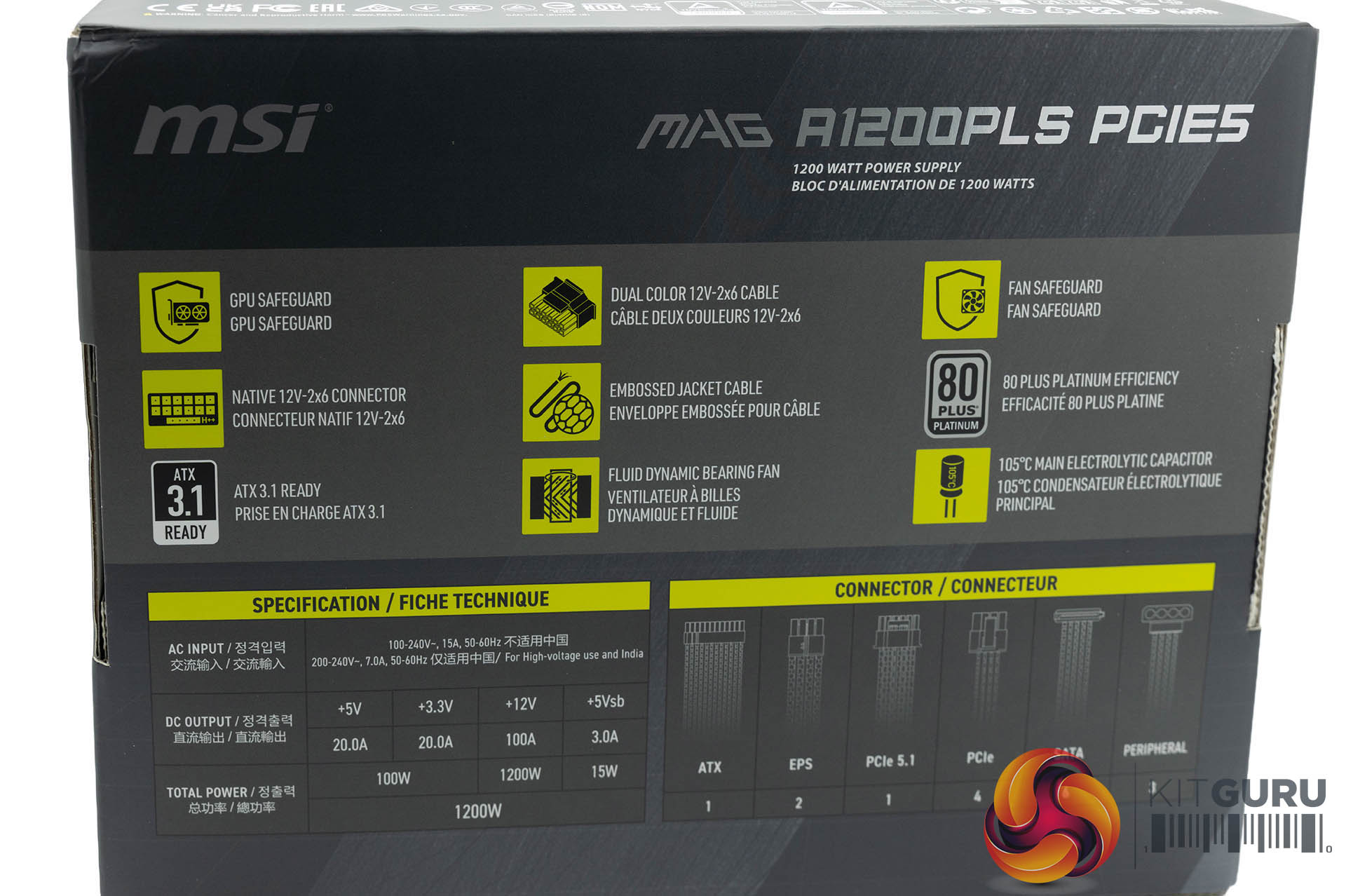

The rear of the box focuses on the GPU and Fan safeguard protections, colour coded 12V connectors, the fluid dynamic bearing fan and 105c rated capacitors.

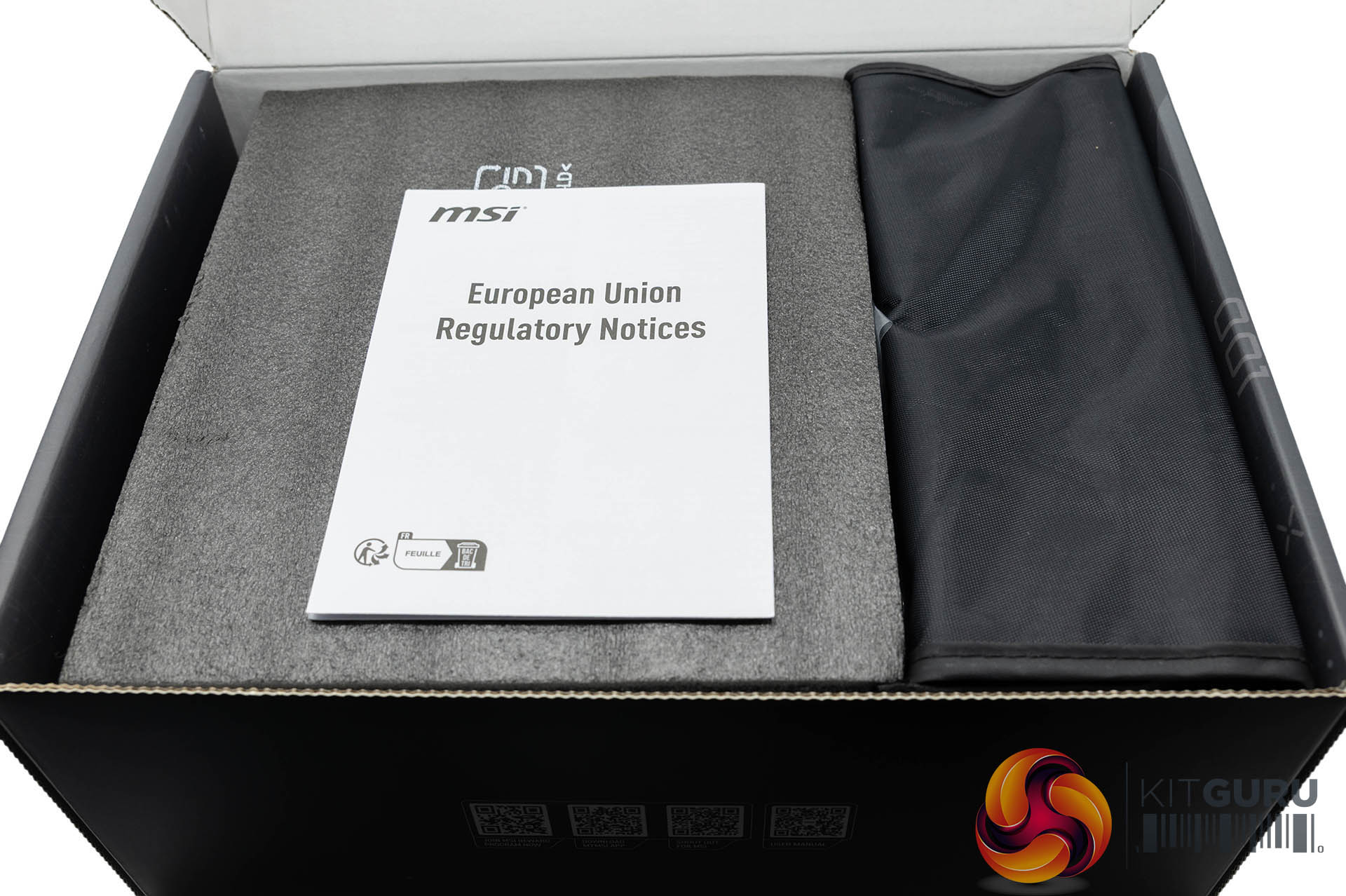

The power supply is protected between two piece of thick foam. At the side the accessories and cables are on the right.
Connector:
1 x Motherboard (24 pin) (600mm)
1 x CPU (4+4 pin) (650mm)
1 x CPU (8 pin) (650mm)
1 x PCIe 5 (12+4 pin) / 600W (600mm)
4 x PCIe (6+2 pin) (600mm+150mm)
6 x SATA (500mm+150mm+150mm)
3 x Peripheral (4 pin) (500mm+150mm+150mm)
1 x CPU (4+4 pin) (650mm)
1 x CPU (8 pin) (650mm)
1 x PCIe 5 (12+4 pin) / 600W (600mm)
4 x PCIe (6+2 pin) (600mm+150mm)
6 x SATA (500mm+150mm+150mm)
3 x Peripheral (4 pin) (500mm+150mm+150mm)

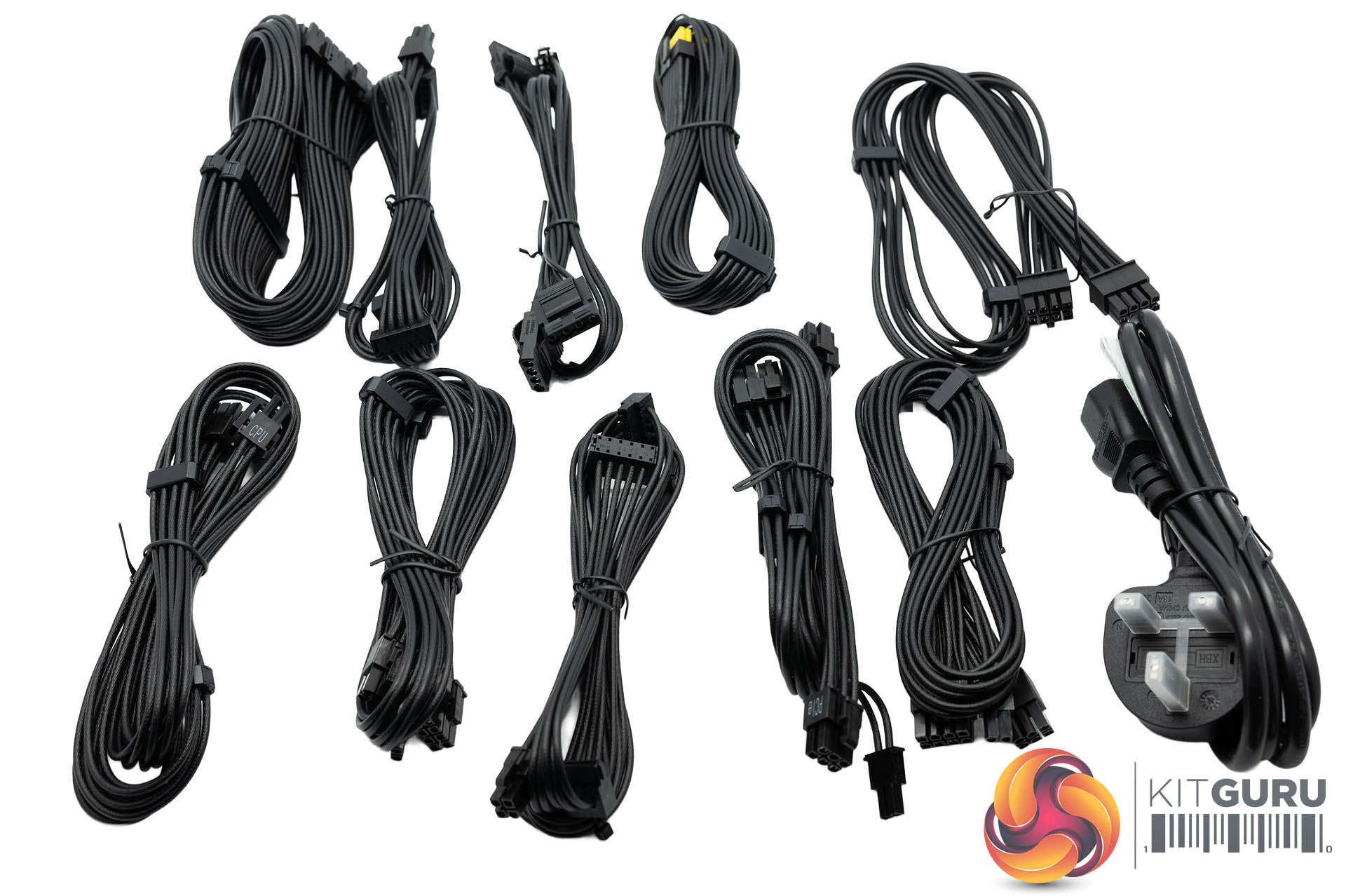

All cables are high quality individually sleeved and rated between 16-22AWG Gauge. The 12V-2×6 connector has per pin OCP.
