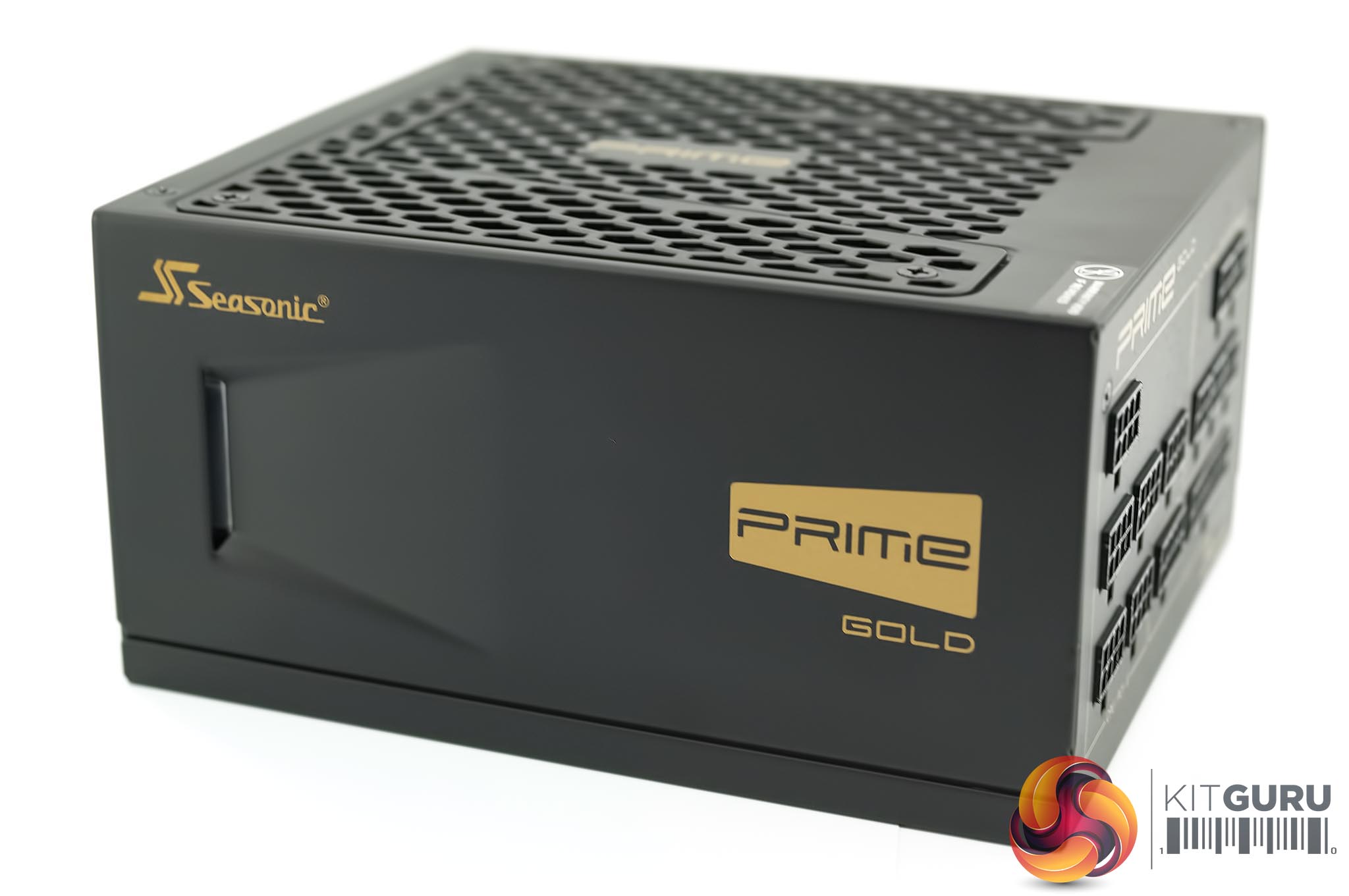

The Seasonic PRIME 850W GOLD supply is an almost identical design to the Platinum versions with gold accenting on the case. The Platinum version is more of a chrome colour scheme.

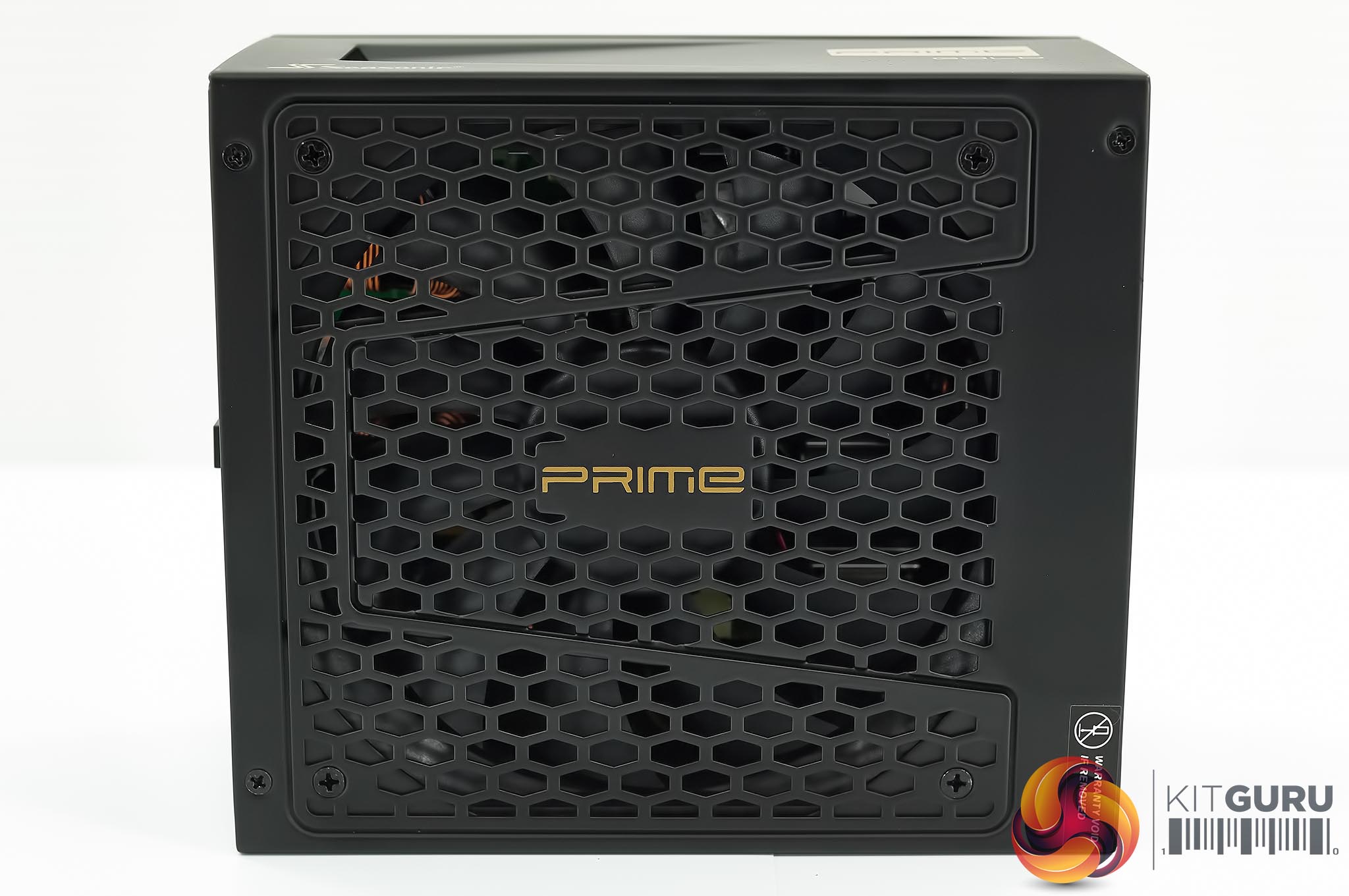

The PRIME logo on the Gold rated power supply is different to the other ranges – again it is coloured gold. No N shaped grill on this power supply either, with Seasonic opting for plain black.

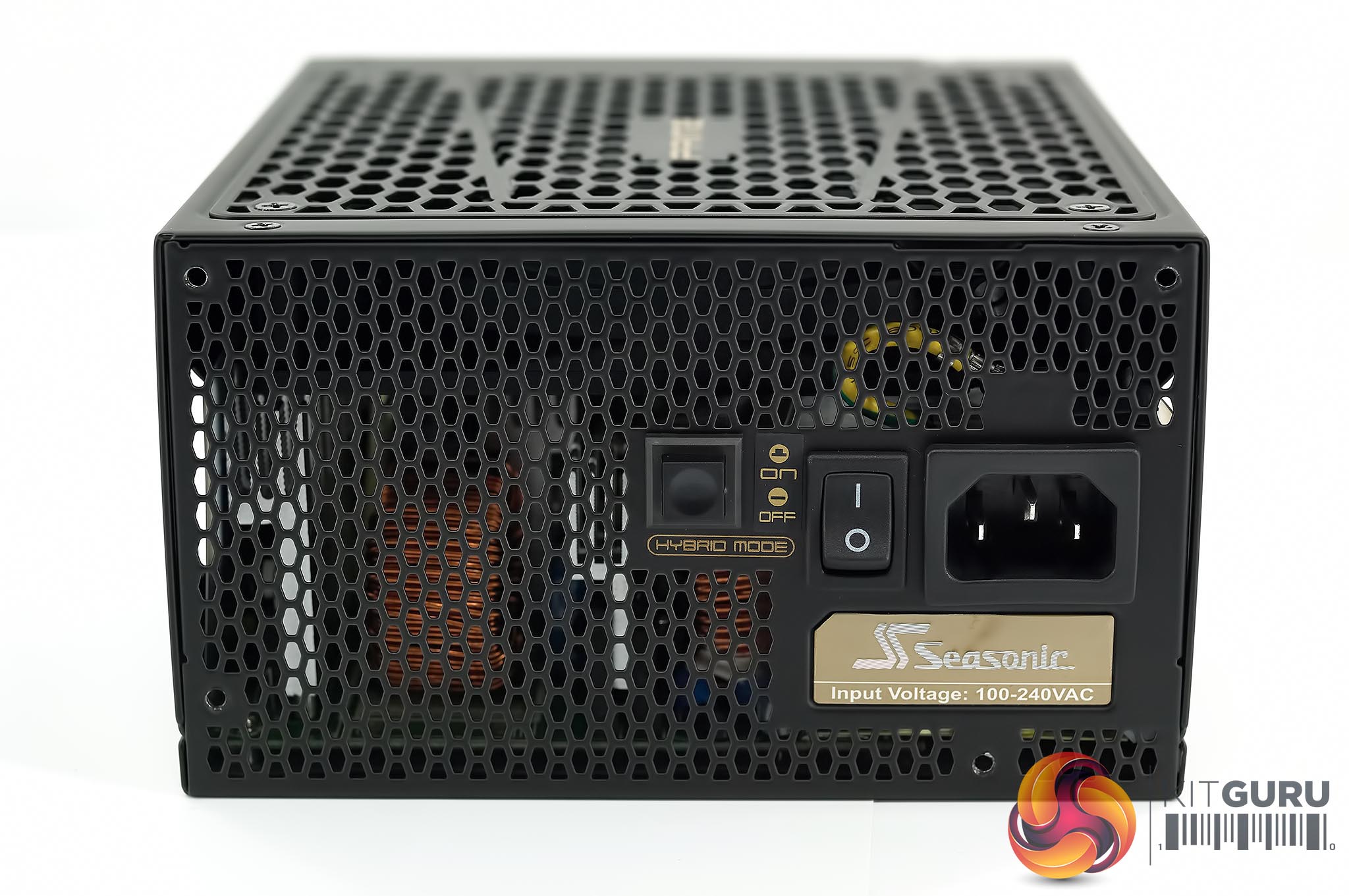

One side of the unit is home to a big cooling vent, with a power connector and switch at the side.
There is also a switch for Hybrid mode – allowing the fan to be disabled completely when the unit drops to a specific temperature threshold. Seasonic claim the Hybrid Fanless mode works up to:
- Approximately 50 % (±5 %) of system load at 25 °C.
- Approximately 30 % (±5 %) of system load at 40 °C.

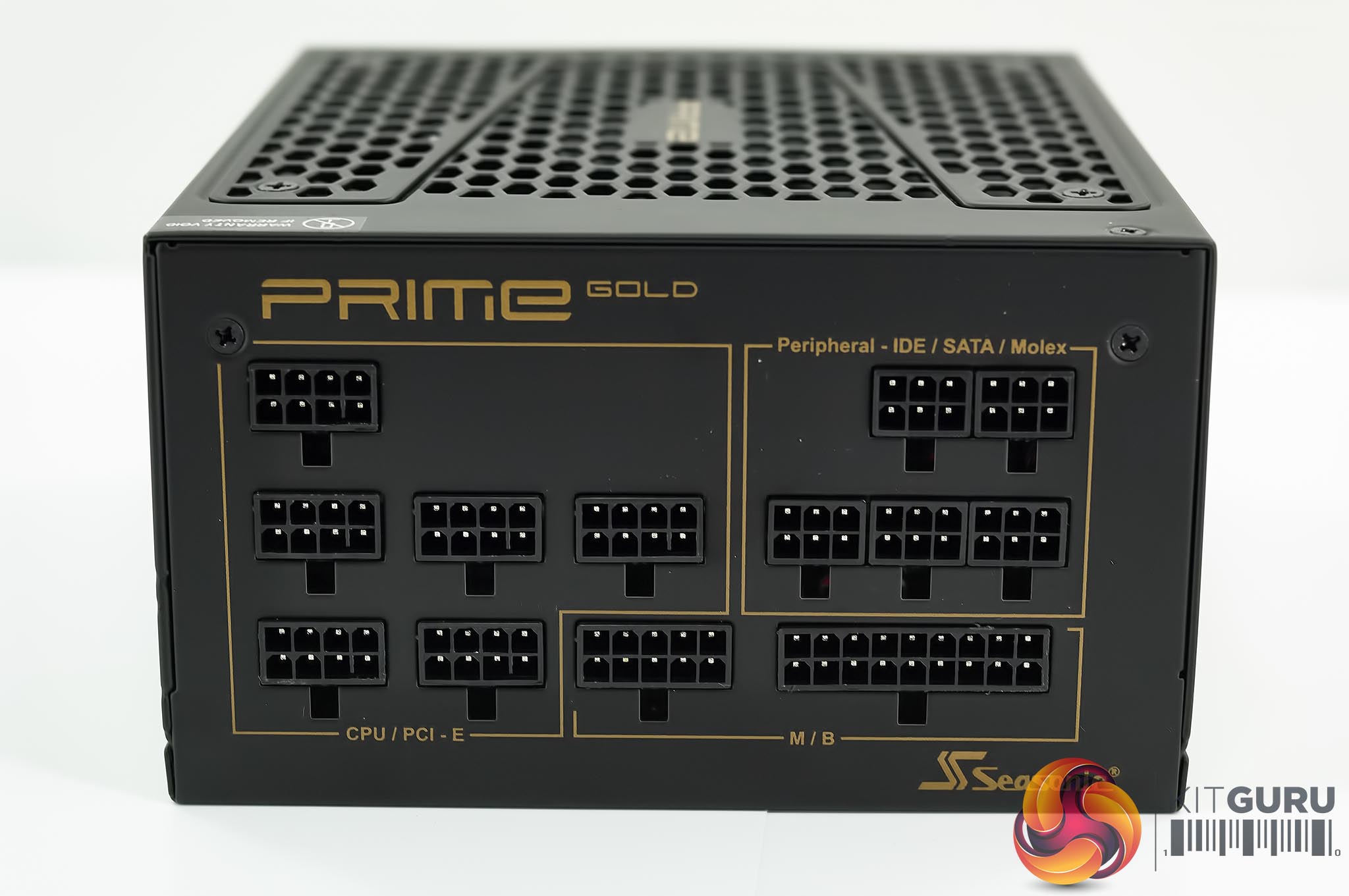

One side of the PRIME Gold unit is home to all the modular cables. The main M/B connectors are indicated along the bottom of the panel and are clearly labelled. The Peripheral/SATA/Molex connectors are visible in a bank of two and three along the top right side. On the other side are all the CPU and PCI-e connectors in a row of 1, 3 and 2 from top to bottom (6 in total).
This is exactly the same layout as the higher capacity 1000 watt PRIME Gold power supply that we reviewed a couple of weeks ago.

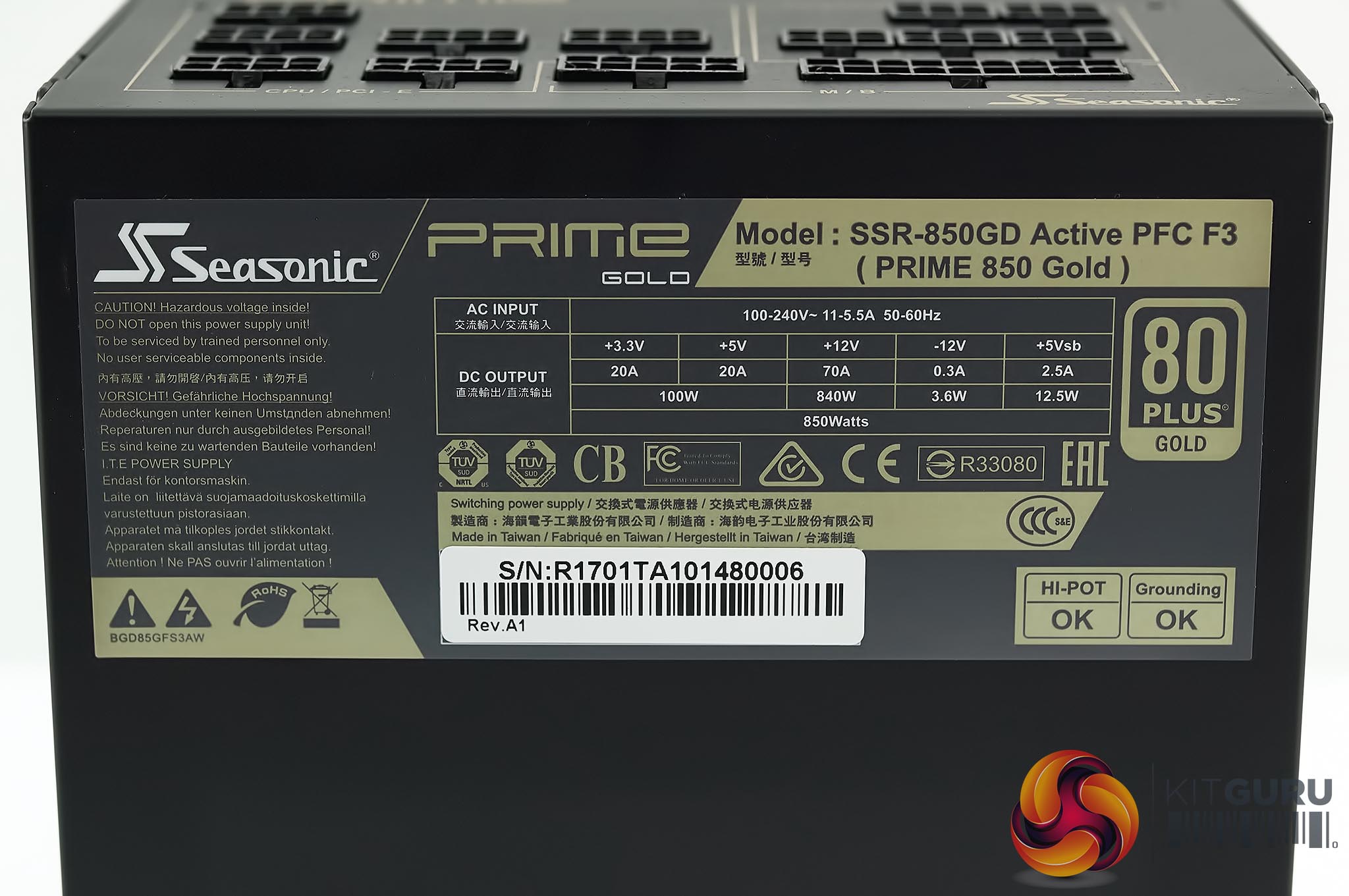

Above we can see the specifications of the power supply. The Model number is SSR-850GD Active PFC F3.
| Seasonic PRIME 850W Gold Power Supply |
|||||
|
DC Output
|
+3.3V
|
+5V
|
+12V |
-12V
|
+5Vsb
|
|
Max Output
|
20A
|
20A
|
70A |
0.3A
|
2.5A
|
| Total Power | 100W | 840W | 3.6W | 12.5W | |
| 850 Watts | |||||
This 850 watt power supply can deliver 70A on the +12V output. This drops from 83A on the 1000 watt version. The amps on the +3.3V and +5V rails drop from 25A to 20A as well.
