We used CrystalDiskMark 8 to test the random performance of the drive at lower queue depths (QD1 – QD8 where most of the everyday workloads occur) using 1 to 4 threads.

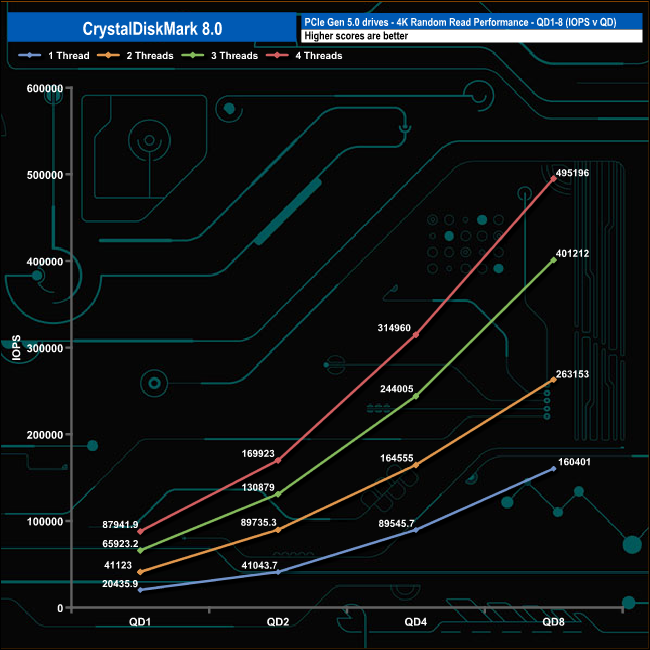

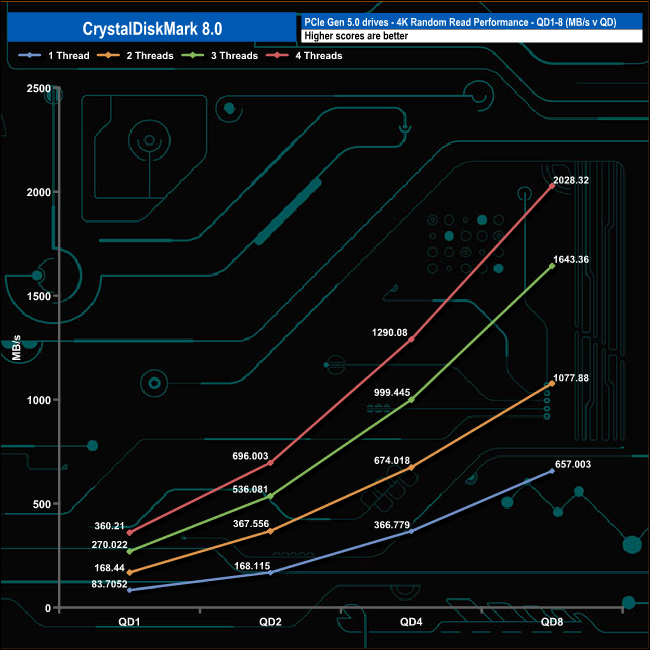

Random Reads

In the random read tests, all four of the tested threads displayed smooth increases in performance as the queue depth deepened. Test results at QD1 ranged from 20,435 IOPS (83.7MB/s) with a single thread up to 87,941 IOPS (360.2MB/s) using four threads.

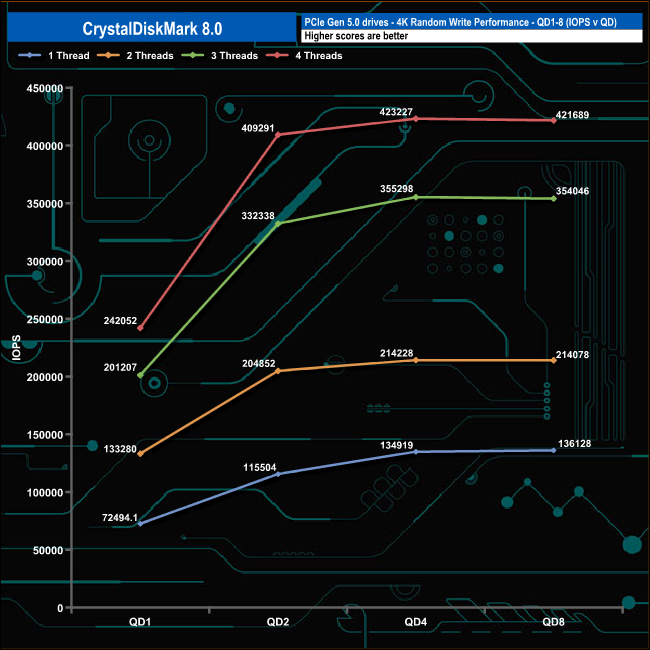

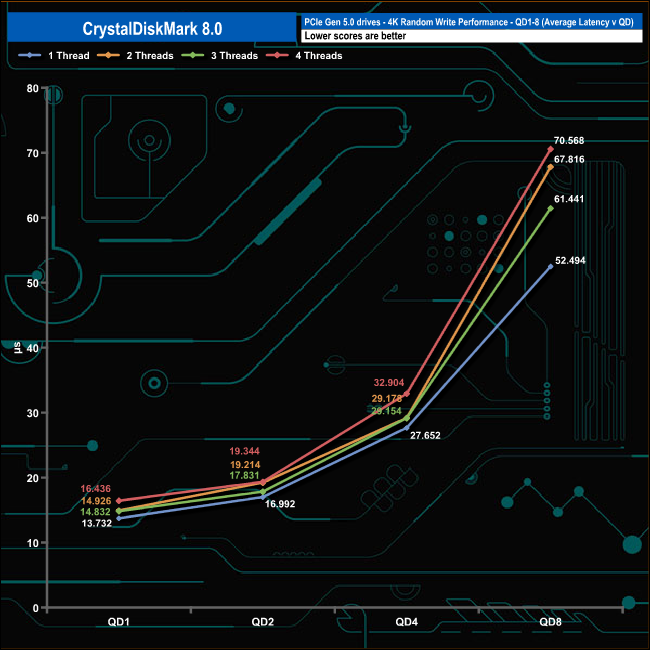

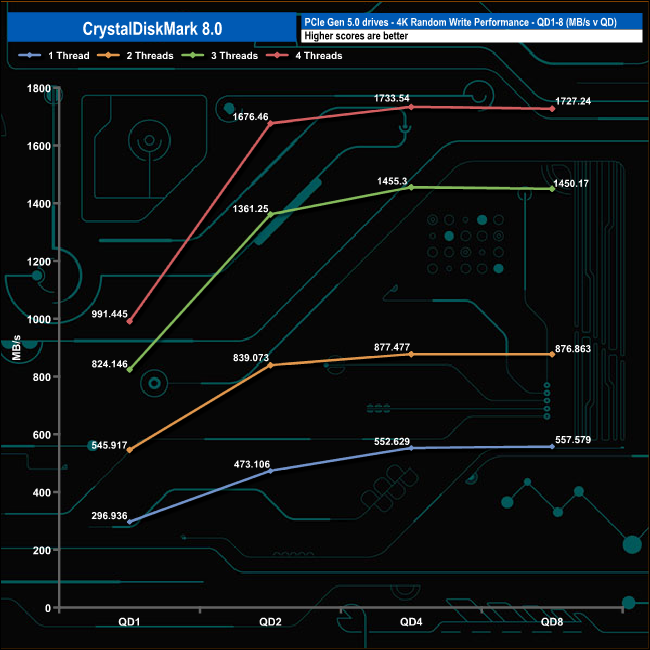

Random Writes

In the 4K write tests, the performance rose quickly from QD1 to QD2 (with three and four threads being the fastest) and then a slower rate of rise from QD2 to QD4 before the performance appeared to start levelling off.
