The ATTO Disk Benchmark performance measurement tool is compatible with Microsoft Windows. Measure your storage system's performance with various transfer sizes and test lengths for reads and writes. Several options are available to customize your performance measurement, including queue depth, overlapped I/O and even a comparison mode with the option to run continuously.

Use ATTO Disk Benchmark to test any manufacturer's RAID controllers, storage controllers, host adapters, hard drives and SSD drives and notice that ATTO products will consistently provide the highest level of performance to your storage. ATTO uses RAW or compressible data.

We are using version 4.1 for our NVMe disk tests with a set length of 256mb and test both the read and write performance.

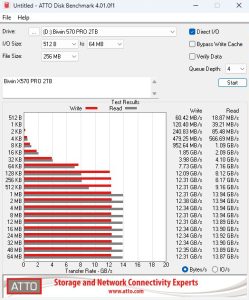

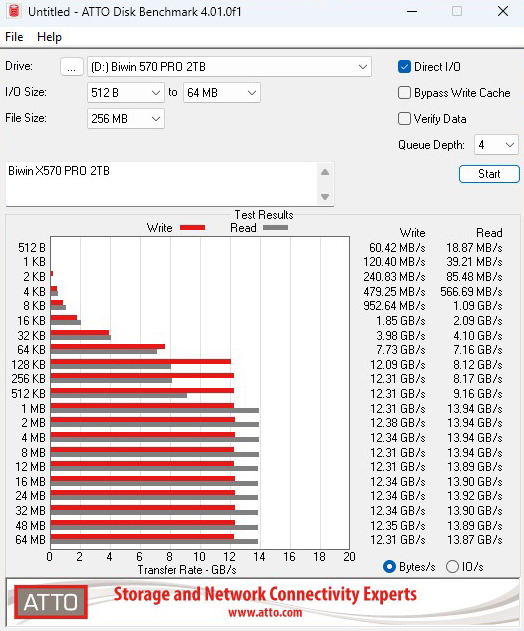

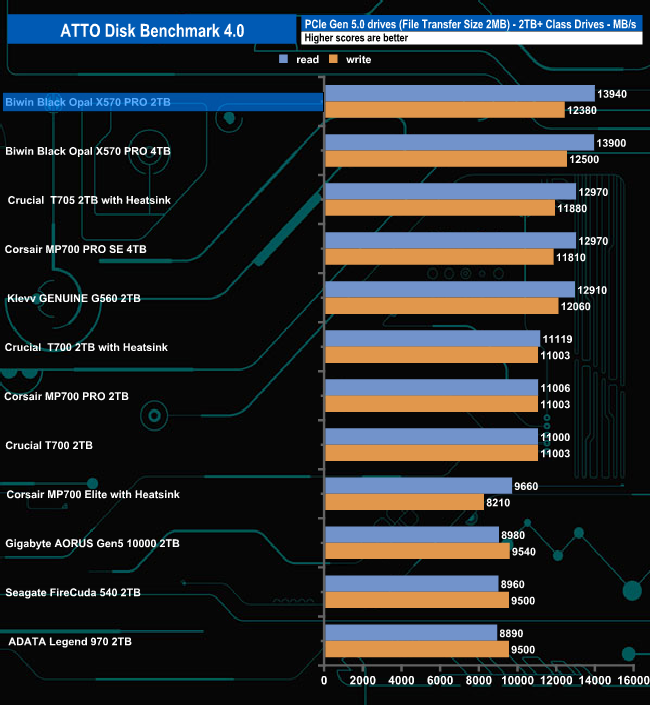

Using the ATTO benchmark we couldn't hit the official read and write sequential figures of up to 14,000MB/s and 13,00MB/s for read and writes respectively but with test figures of 13,940MB/s for reads and 12,340MB/s for writes, we were certainly in the ball park. Those result figures may be shy of the official maximums, but the read result is good enough for the drive to take over from the 4TB model at the top of the chart.
