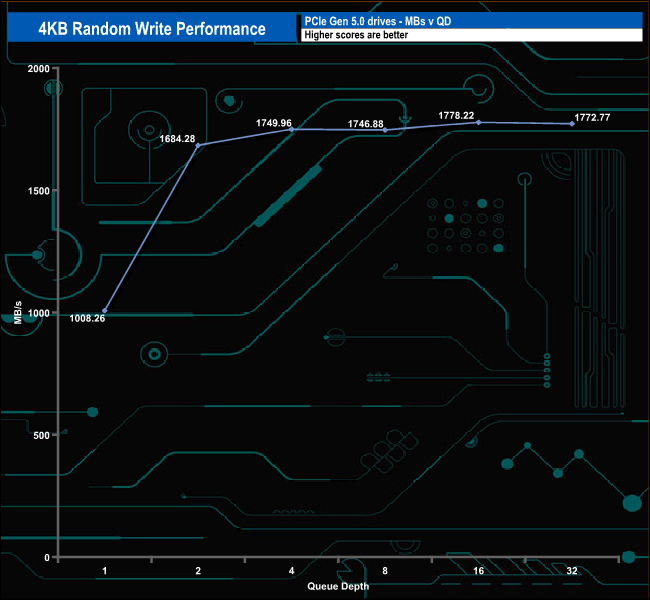

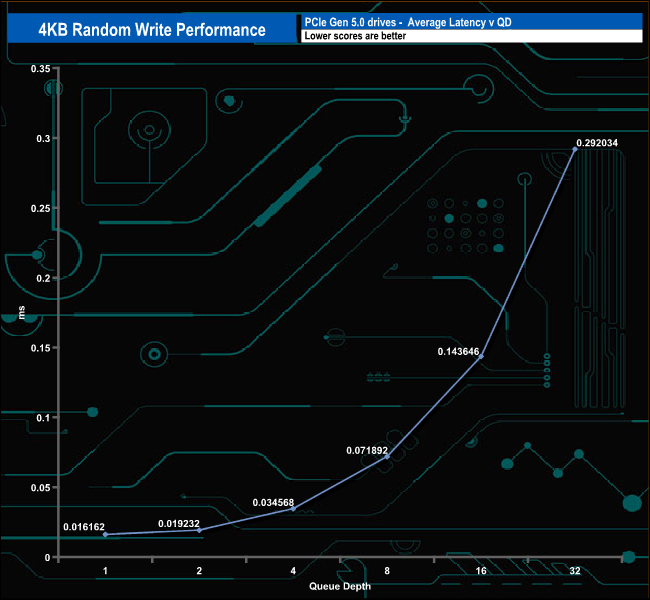

We used CrystalDiskMark 8‘s custom settings to test the 4K random write performance of the drive through a range of queue depths. The setup for the tests is listed below.

Transfer Request Size: 4KB, Outstanding I/O: 1-32.

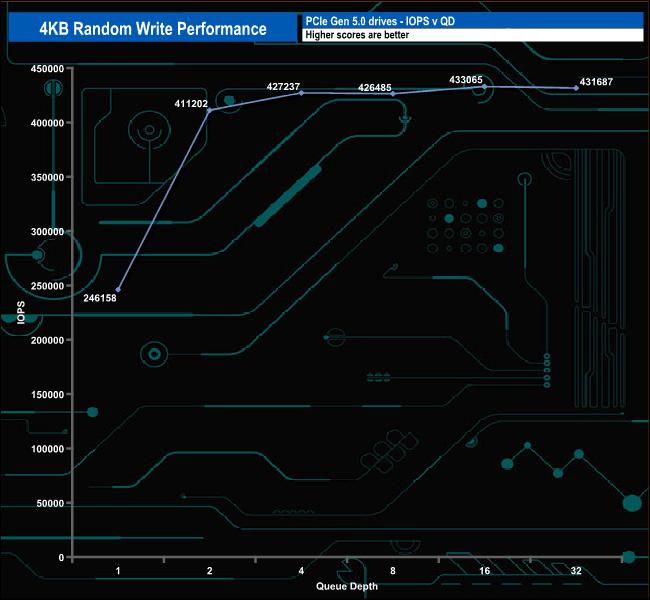

As with the random read results, we couldn't get close to the official maximum of 1,600,000 IOPS using our four threaded tests. The best we saw was 433,065 IOPS at QD16. After this peak, the performance dropped slightly to finish the test run at QD32 at 431,687 IOPS.

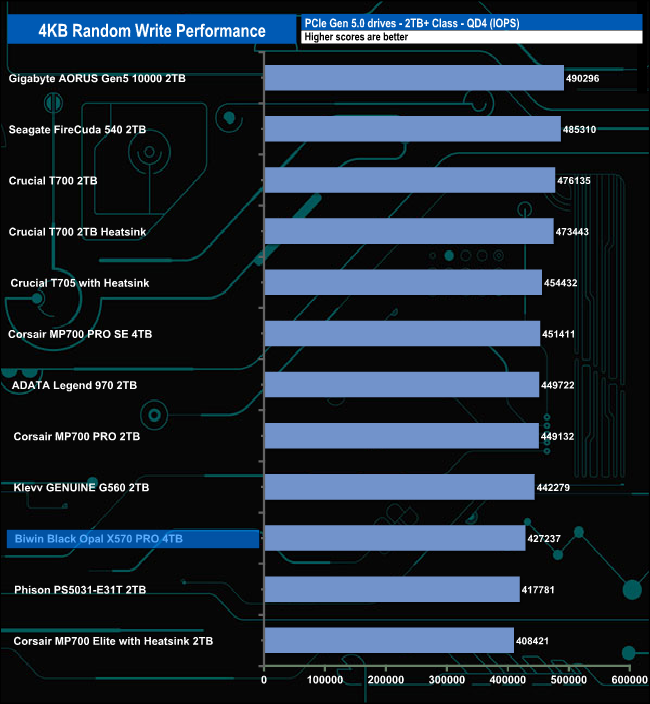

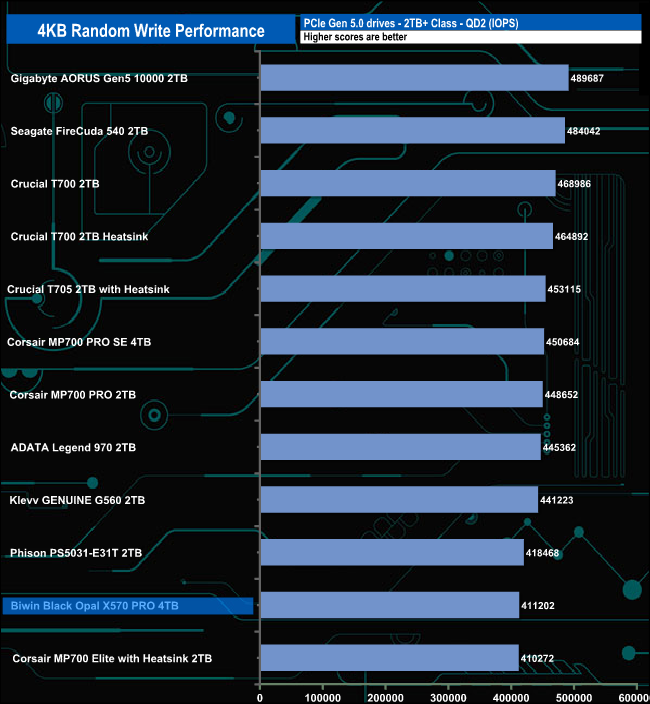

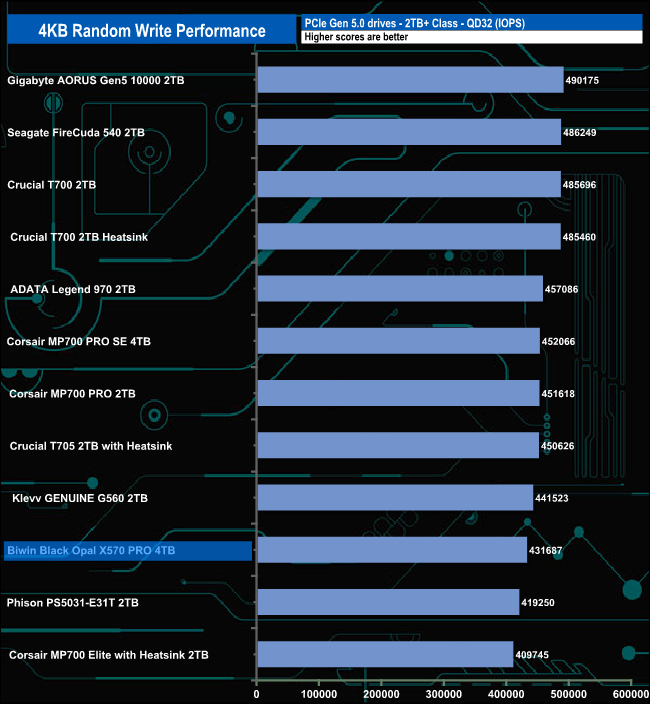

4K Random Write v QD Performance Compared

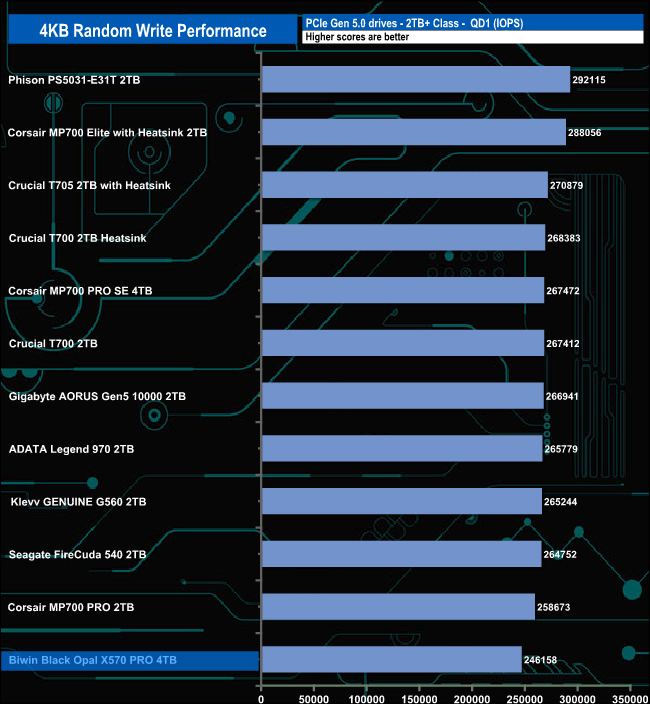

The tested random write performance of the drive isn't as good as the random reads. It sits in the bottom half of the results table for all the tested queue depths and props up the table at QD1.
